Before QC

pm <- VlnPlot(all10x.beforeqc, features.plot='percent.mito', group.by='sample_name', point.size.use = -1, do.return=T, x.lab.rot=T, size.x.use=8) + geom_hline(yintercept=0.08, linetype="dashed", color = "red")
pm

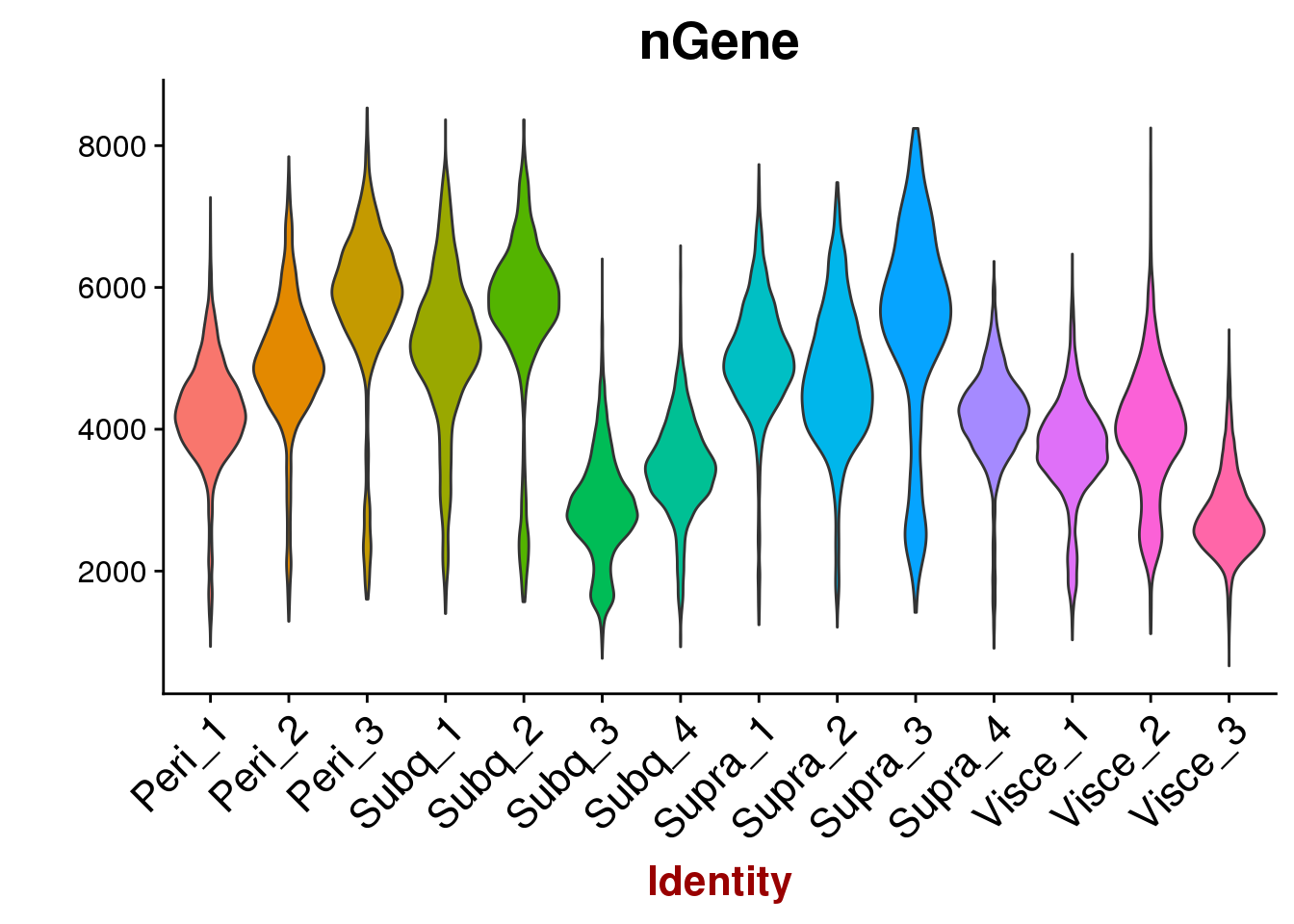

numi <- VlnPlot(all10x.beforeqc, features.plot='nUMI', group.by='sample_name', point.size.use = -1, do.return=T, x.lab.rot=T, size.x.use=8) + geom_hline(yintercept=110000, linetype="dashed", color = "red")
numi

ngene <- VlnPlot(all10x.beforeqc, features.plot='nGene', group.by='sample_name', point.size.use = -1, do.return=T, x.lab.rot=T, size.x.use=8) + geom_hline(yintercept=200, linetype="dashed", color = "red") + geom_hline(yintercept=9000, linetype="dashed", color = "red")
ngene

Warning: Removed 1 rows containing missing values (geom_hline).

GenePlot(all10x.beforeqc, 'nUMI', 'nGene', cex.use = 0.2, do.return=T)

Warning in plot.window(...): "do.return" is not a graphical parameter

Warning in plot.xy(xy, type, ...): "do.return" is not a graphical parameter

Warning in axis(side = side, at = at, labels = labels, ...): "do.return" is
not a graphical parameter

Warning in axis(side = side, at = at, labels = labels, ...): "do.return" is
not a graphical parameter

Warning in box(...): "do.return" is not a graphical parameter

Warning in title(...): "do.return" is not a graphical parameter

After QC

Number of cells and genes

all10x

An object of class seurat in project SeuratProject
 24078 genes across 56371 samples.

VlnPlot(all10x, features.plot='nGene', group.by='sample_name', point.size.use=-1, x.lab.rot=T)

VlnPlot(all10x, features.plot='nUMI', group.by='sample_name', point.size.use=-1, x.lab.rot=T)

VlnPlot(all10x, features.plot='percent.mito', group.by='sample_name', point.size.use=-1, x.lab.rot=T)

GenePlot(all10x, 'nUMI', 'nGene')

Number of cells before and after QC

before <- all10x.beforeqc@meta.data %>% count(sample_name)
after <- all10x@meta.data %>% count(sample_name)
ncells <- merge(before, after, by='sample_name', suffixes=c('.before', '.after'))
ncells

   sample_name n.before n.after
1       Peri_1     3973    3934
2       Peri_2     2889    2852
3       Peri_3     1346    1273
4       Subq_1     3087    3007
5       Subq_2     2071    2002
6       Subq_3     8661    8619
7       Subq_4     5022    4885
8      Supra_1     3056    3047
9      Supra_2     3664    3570
10     Supra_3     1035     880
11     Supra_4     3014    2785
12     Visce_1     4624    4539
13     Visce_2     4956    4893
14     Visce_3    10121   10085

TSNE

Below are several tSNE plots of the 10x-180504 data. tSNE was performed on the first 15 principal components of the log-normalized scaled (nUMI and percent.mito regressed out) data.

Visceral and perirenal seem a bit mixed, and supraclavicular and subcutaneous too.

TSNEPlot(all10x, pt.size=0.1, group.by='sample_name', do.label=T)

tSNE plots of samples within their depot. Peri2 and Peri3 seem to overlap really well, as well as Supra1 and Supra2, and Visce1 and Visce3.

plot_grid(t1, t2, t3, t4)

tSNE colored on subtissue.

TSNEPlot(all10x, group.by='depot', pt.size=0.1)

tSNE colored by type.

TSNEPlot(all10x, group.by='type', pt.size=0.1, colors.use=c('#964B00', '#F7E7CE'))

tSNE colored by cell cycle phase.

TSNEPlot(all10x, group.by='Phase', pt.size=0.1)

Clusters

Some clustering with different resolutions. res=0.5

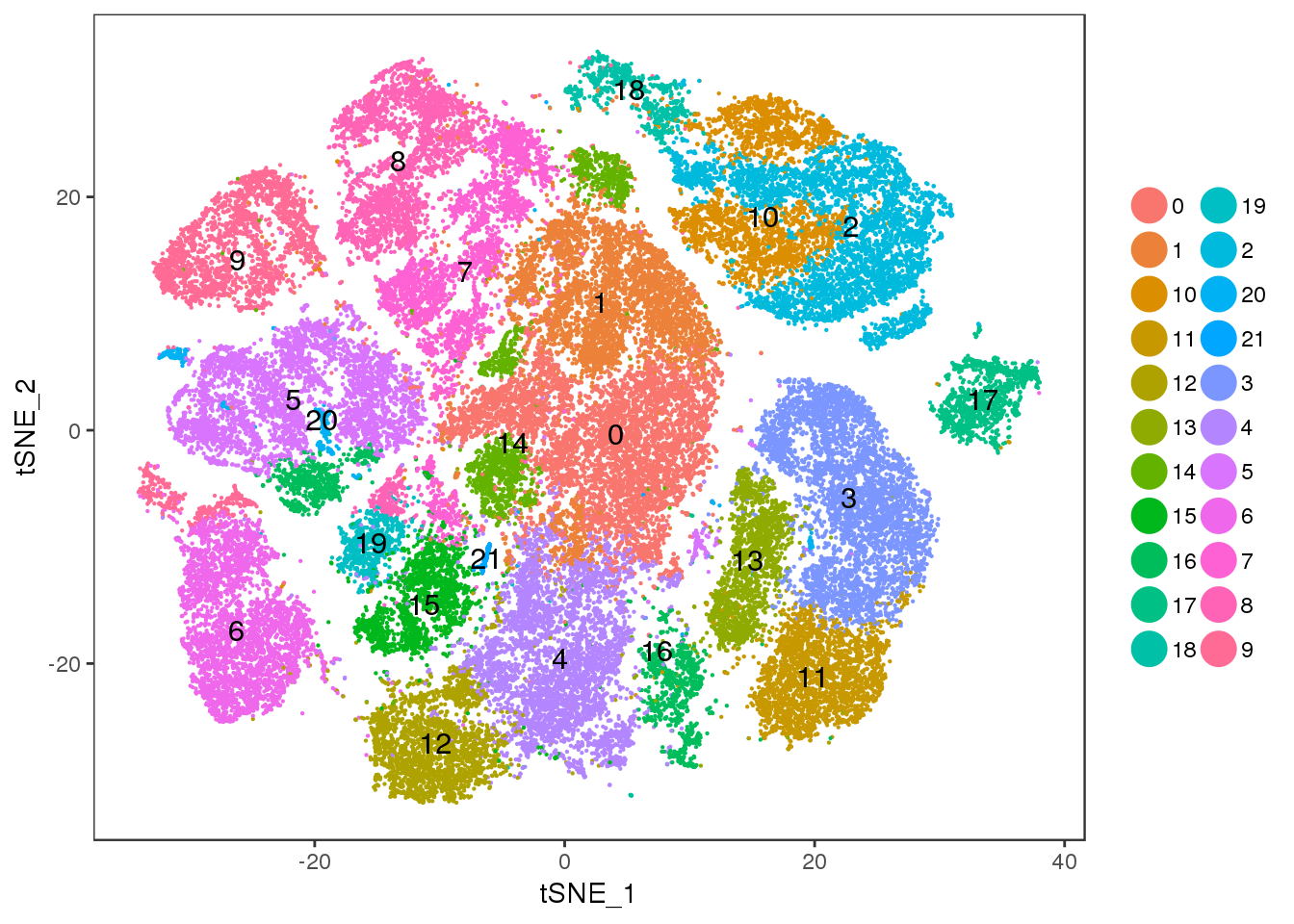

TSNEPlot(all10x, pt.size=0.1, group.by='res.0.5', do.label=T)

res=0.7

TSNEPlot(all10x, pt.size=0.1, group.by='res.0.7', do.label=T)

res=1

TSNEPlot(all10x, pt.size=0.1, group.by='res.1', do.label=T)

Cell cycle regression

T-SNE of the data with cell cycle effects regressed out. There does not seem to be a lot of structure within clusters now.

TSNEPlot(all10x.ccregout, pt.size=0.1, group.by='sample_name')

No cell cycle effect anymore.

TSNEPlot(all10x.ccregout, pt.size=0.1, group.by='Phase')

Subtissues

plot_grid(t1, t2, t3, t4)

TSNEPlot(all10x.ccregout, pt.size=0.1, group.by='depot')

TSNEPlot(all10x.ccregout, group.by='type', pt.size=0.1, colors.use=c('#964B00', '#F7E7CE'))

PCA

Some PCA plots. PC1 seems to capture cell cycle effects, and PC2 seems to capture some of the sample variability.

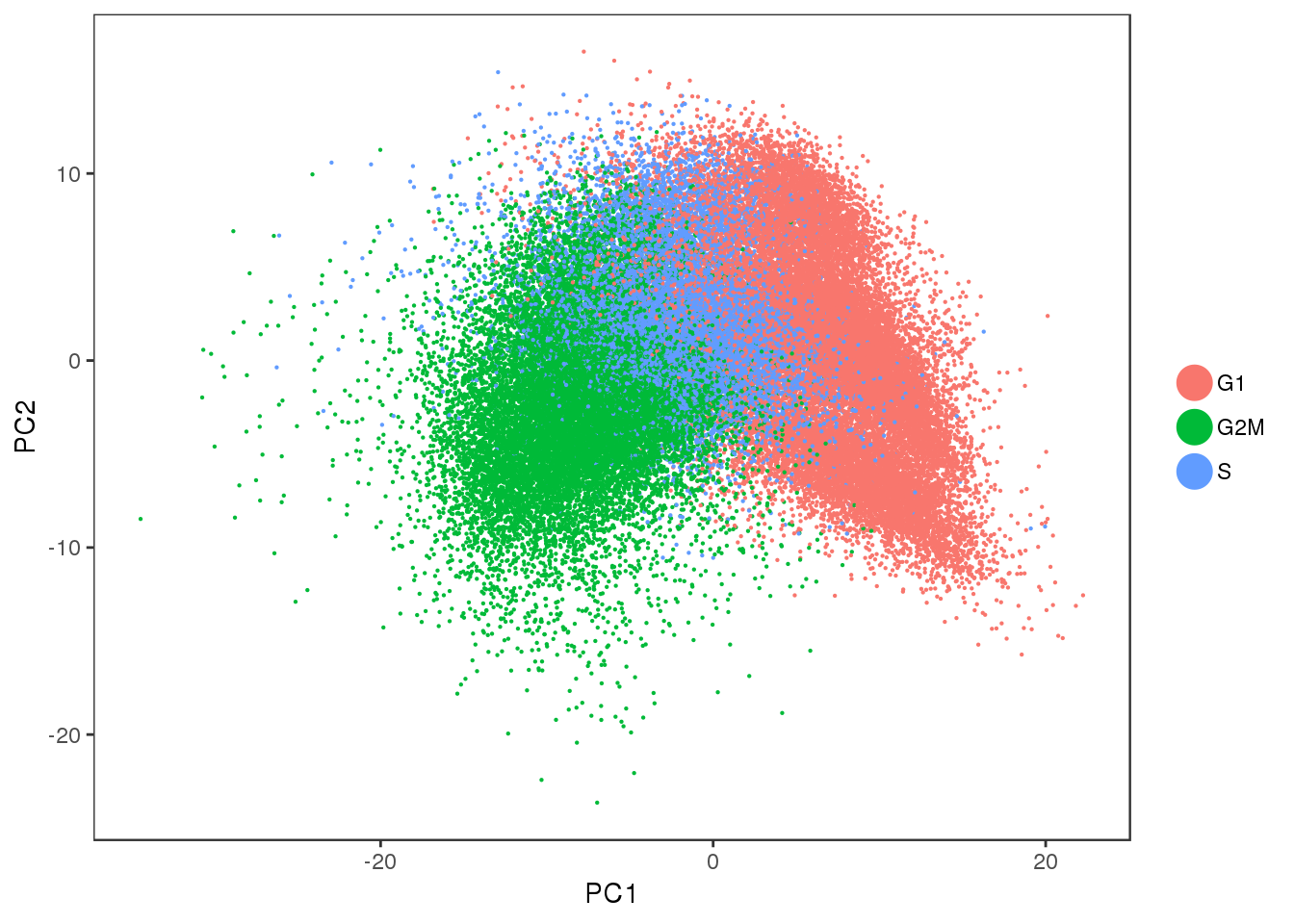

PCAPlot(all10x, group.by='Phase', pt.size=0.1)

PCAPlot(all10x, group.by='sample_name', pt.size=0.1)

PCA plot of the cell cycle regressed out data. There is no cell cycle effect anymore.

PCAPlot(all10x.ccregout, group.by='Phase', pt.size=0.1)

PCAPlot(all10x.ccregout, group.by='sample_name', pt.size=0.1)

Metadata plots

FeaturePlot(all10x, c("nGene"), cols.use = c("grey","blue"), no.legend=F)

FeaturePlot(all10x, c("percent.mito"), cols.use = c("grey","blue"), no.legend=F)

FeaturePlot(all10x, c("nUMI"), cols.use = c("grey","blue"), no.legend=F)

Diff

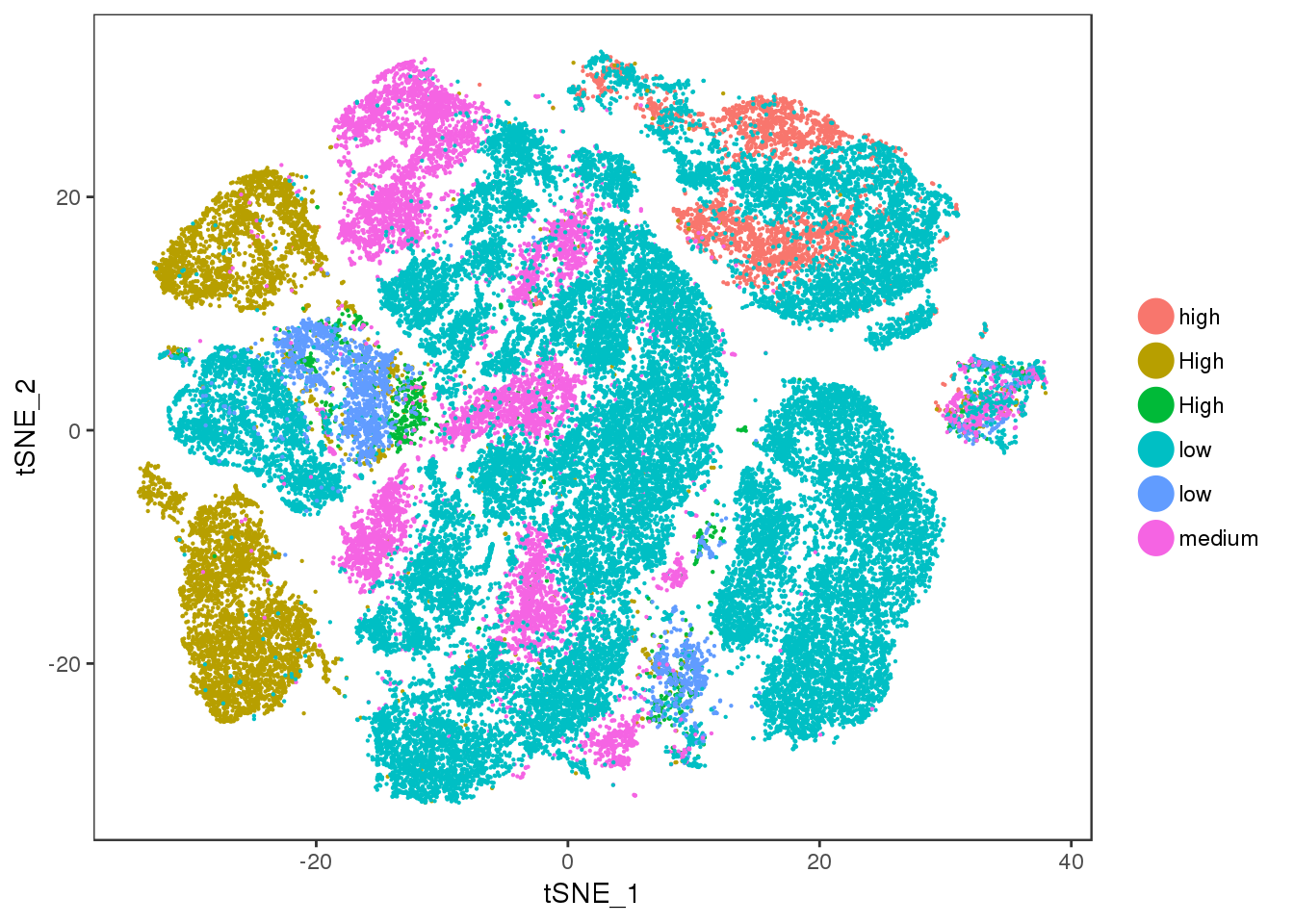

TSNEPlot(all10x, group.by='diff', pt.size=0.1)

all10x@meta.data['diff_int'] <- unlist(lapply(as.vector(unlist(all10x@meta.data$diff)), function(x){return(strtoi(strsplit(x, '%')))}))
FeaturePlot(all10x, features.plot='diff_int', cols.use=c('gray', 'blue'), no.legend=F)

ucp1.ctrl

TSNEPlot(all10x, group.by='ucp1.ctrl', pt.size=0.1)

ucp1.ne

TSNEPlot(all10x, group.by='ucp1.ne', pt.size=0.1)

bmi

TSNEPlot(all10x, group.by='bmi', pt.size=0.1)

age

TSNEPlot(all10x, group.by='age', pt.size=0.1)

VlnPlot(all10x, group.by='sample_name', features.plot=c('nGene'), point.size.use = -1, x.lab.rot=T)

VlnPlot(all10x, group.by='sample_name', features.plot=c('nUMI'), point.size.use = -1, x.lab.rot=T)

VlnPlot(all10x, group.by='sample_name', features.plot=c('percent.mito'), point.size.use = -1, x.lab.rot=T)

Mixture cluster 12

Sample composition in cluster 12.

cluster12 <- SubsetData(all10x, cells.use=rownames(all10x@meta.data)[which(all10x@meta.data$res.0.5 %in% 12)])
rotate_x <- function(data, column_to_plot, labels_vec, rot_angle) {
     plt <- barplot(data[[column_to_plot]], col='steelblue', xaxt="n")
     text(plt, par("usr")[3], labels = labels_vec, srt = rot_angle, adj = c(1.1,1.1), xpd = TRUE, cex=1)
}
rotate_x((cluster12@meta.data %>% count(sample_name))[,2], 'n', as.vector(unlist((cluster12@meta.data %>% count(sample_name))[,1])), 45)

cluster12 <- SubsetData(all10x, cells.use=rownames(all10x@meta.data)[which(all10x@meta.data$res.0.5 %in% 12)])
rotate_x <- function(data, column_to_plot, labels_vec, rot_angle) {
     plt <- barplot(data[[column_to_plot]], col='steelblue', xaxt="n")
     text(plt, par("usr")[3], labels = labels_vec, srt = rot_angle, adj = c(1.1,1.1), xpd = TRUE, cex=1)
}
rotate_x((cluster12@meta.data %>% count(sample_name))[,2], 'n', as.vector(unlist((cluster12@meta.data %>% count(sample_name))[,1])), 90)

Plots

all10x@meta.data$mixture <- ifelse(all10x@meta.data$res.0.5==12, "mixture", "rest")
VlnPlot(all10x, features.plot=c('nGene', 'MALAT1', 'NEAT1', 'FN1', 'ITGB1', 'COL1A1', 'COL1A2', 'percent.mito'), group.by='mixture', point.size.use=-1, nCol=4)

Figures for report

fig1 <- plot_grid(
  PCAPlot(all10x, group.by='Phase', pt.size=0.1),
  TSNEPlot(all10x, group.by='sample_name', pt.size=0.1),
  TSNEPlot(all10x, group.by='Phase', pt.size=0.1),
  TSNEPlot(all10x.ccregout, group.by='sample_name', pt.size=0.1),
  labels = "auto", nrow = 2)

save_plot("plots/180504_pca_tsne.pdf", fig1, base_width=12, base_height = 9)

fig1

sfig <- plot_grid(
  pm,
  numi,
  ngene,
  labels="auto", nrow=1
)

Warning: Removed 1 rows containing missing values (geom_hline).

save_plot("plots/supplementary_figures/sfig_180504_qcplots.pdf", sfig, base_width=12, base_height=3)
sfig

sfig2 <- plot_grid(
  PCElbowPlot(all10x, num.pc=30),
  PCElbowPlot(all10x.ccregout, num.pc=30),
  labels="auto", nrow=1)
save_plot("plots/supplementary_figures/sfig_180504_pcelbow.pdf", sfig2, base_width=12, base_height=4)
sfig2

Mixture cluster figure

get_violin_plot <- function(x){

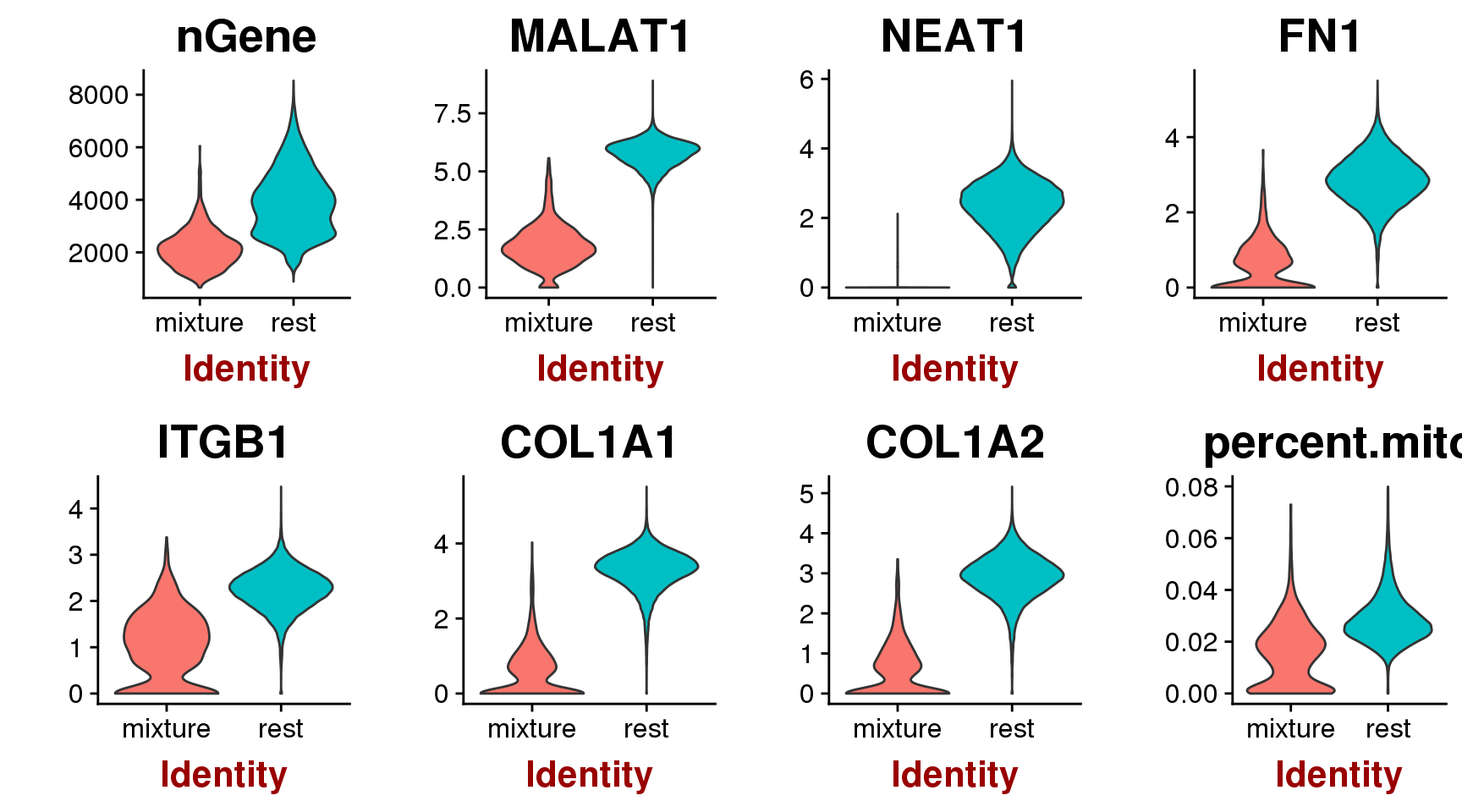

  return(VlnPlot(all10x, features.plot=c(x), point.size.use=-1, group.by='mixture', size.title.use=14, remove.legend=T) + theme(axis.title.x=element_blank()))
}

fig2_first_row <- plot_grid(
  TSNEPlot(all10x, group.by='sample_name', pt.size=0.1) + theme(legend.position=c(0.1, 0.5), legend.key = element_blank(), legend.background= element_rect(fill=alpha('white', 0.8), size=0.5, linetype='solid', colour=alpha('black', 0.3))),
  DimPlot(all10x, reduction.use='tsne', cells.highlight = rownames(all10x@meta.data)[all10x@meta.data$res.0.5 == 12], cols.highlight='blue', cols.use='gray', pt.size=0.1),
  labels=c('a', 'b')
)

fig2_violin <- plot_grid(
  get_violin_plot('nGene'),
  get_violin_plot('MALAT1'),
  get_violin_plot('NEAT1'),
  get_violin_plot('FN1'),
  get_violin_plot('ITGB1'),
  get_violin_plot('COL1A1'),
  get_violin_plot('COL1A2'),
  get_violin_plot('percent.mito'),
  labels=c('d', 'e', 'f', 'g', 'h', 'i', 'j', 'k'), nrow=2
)

fig2_barplot <- plot_grid(ggplot(data=cluster12@meta.data %>% count(sample_name), aes(x=sample_name, y=n)) +
  geom_bar(stat="identity", position='dodge') +
  scale_y_continuous(expand=c(0,0)) +
  theme(axis.line.y=element_blank(), axis.ticks.y=element_blank(), axis.title.x=element_blank(), axis.title.y=element_blank()) +
  coord_flip(), labels=c('c'))

fig2_second_row <- plot_grid(fig2_barplot, fig2_violin, rel_widths=c(2/8, 6/8))

fig2 <- plot_grid(
  fig2_first_row,
  fig2_second_row,
  nrow=2
)

fig2

save_plot("plots/180504_mixture.pdf", fig2, base_width=12, base_height=10)

Supplementary table: nr of cells before and after QC.

ncells

   sample_name n.before n.after
1       Peri_1     3973    3934
2       Peri_2     2889    2852
3       Peri_3     1346    1273
4       Subq_1     3087    3007
5       Subq_2     2071    2002
6       Subq_3     8661    8619
7       Subq_4     5022    4885
8      Supra_1     3056    3047
9      Supra_2     3664    3570
10     Supra_3     1035     880
11     Supra_4     3014    2785
12     Visce_1     4624    4539
13     Visce_2     4956    4893
14     Visce_3    10121   10085

write.table(ncells, file='tables/10x-180504-nCells.txt', sep='\t', row.names = F, quote=F)
