Analysis of the 10x-180504 samples.

Loading the required packages and datasets.

library(Seurat)

Loading required package: ggplot2

Loading required package: cowplot


Attaching package: 'cowplot'

The following object is masked from 'package:ggplot2':

    ggsave

Loading required package: Matrix

library(ggplot2)
library(dplyr)


Attaching package: 'dplyr'

The following objects are masked from 'package:stats':

    filter, lag

The following objects are masked from 'package:base':

    intersect, setdiff, setequal, union

all10x <- readRDS('output/10x-180504')
all10x.ccregout <- readRDS('output/10x-180504-ccregout')

QC Plots

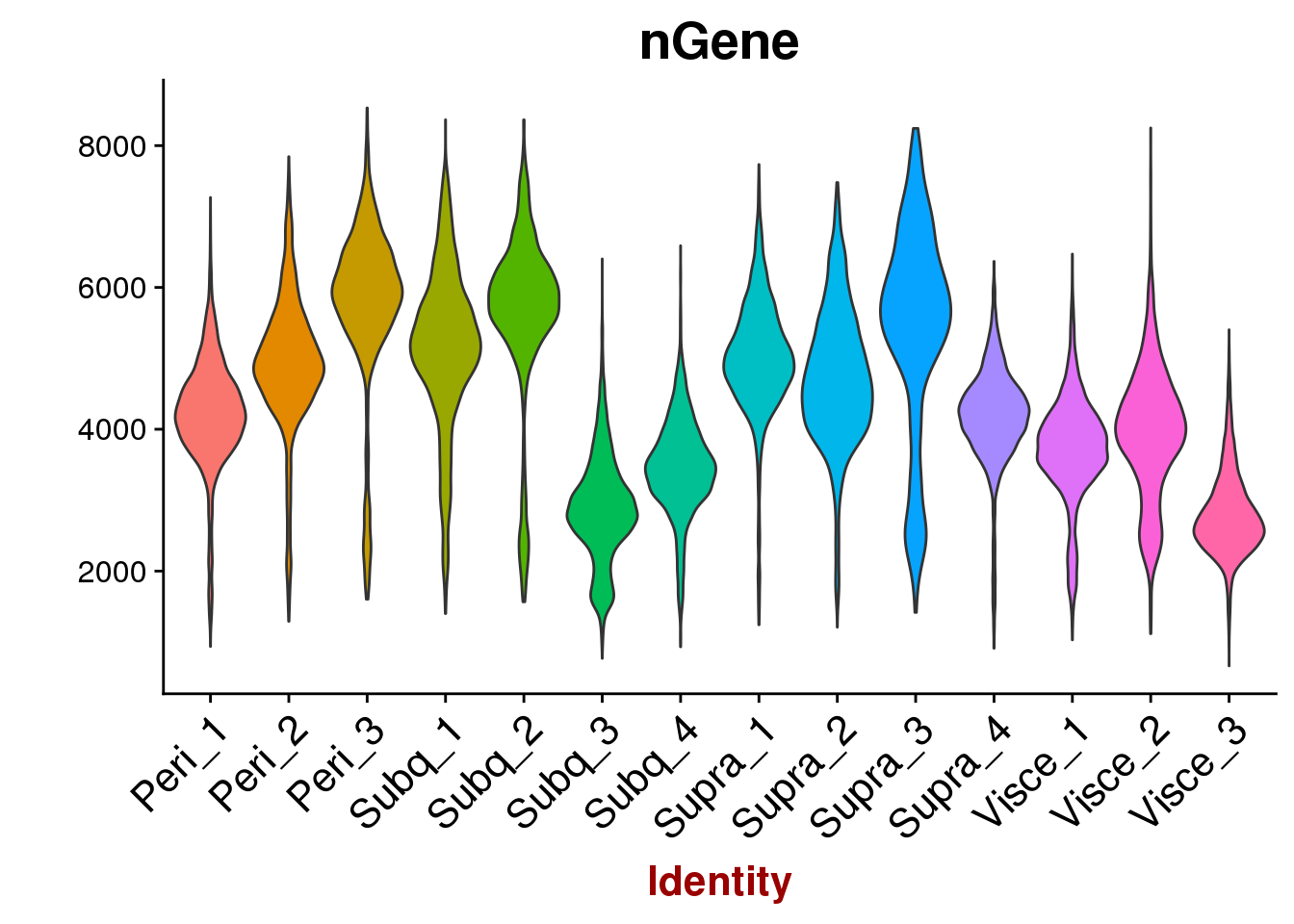

VlnPlot(all10x, features.plot='nGene', group.by='sample_name', point.size.use=-1, x.lab.rot=T)

Expand here to see past versions of unnamed-chunk-2-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

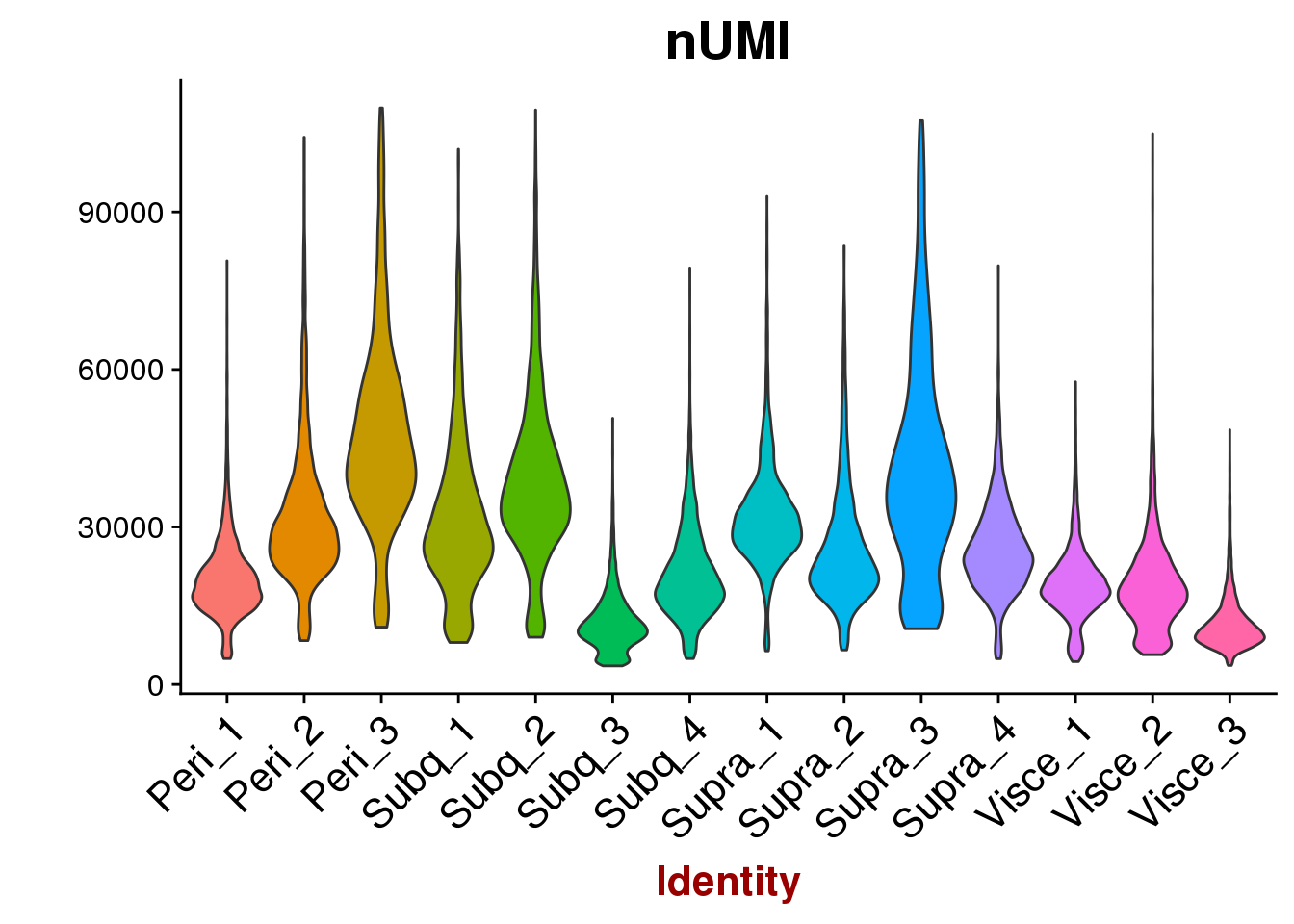

VlnPlot(all10x, features.plot='nUMI', group.by='sample_name', point.size.use=-1, x.lab.rot=T)

Expand here to see past versions of unnamed-chunk-3-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

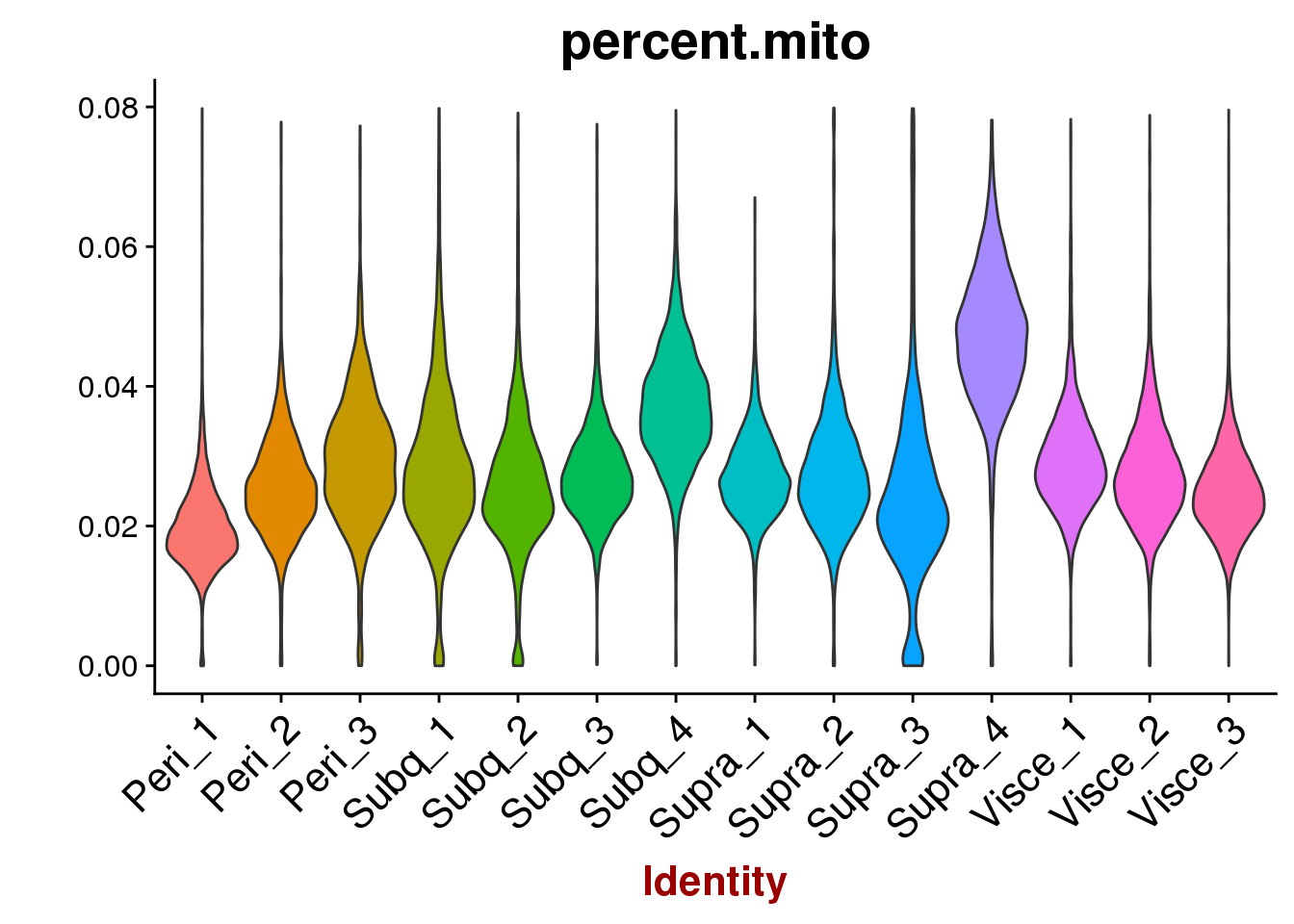

VlnPlot(all10x, features.plot='percent.mito', group.by='sample_name', point.size.use=-1, x.lab.rot=T)

Expand here to see past versions of unnamed-chunk-4-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

GenePlot(all10x, 'nUMI', 'nGene')

Expand here to see past versions of unnamed-chunk-5-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

TSNE

Below are several tSNE plots of the 10x-180504 data. tSNE was performed on the first 15 principal components of the log-normalized scaled (nUMI and percent.mito regressed out) data.

Visceral and perirenal seem a bit mixed, and supraclavicular and subcutaneous too.

TSNEPlot(all10x, pt.size=0.1, group.by='sample_name', do.label=T)

Expand here to see past versions of unnamed-chunk-6-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

tSNE plots of samples within their depot. Peri2 and Peri3 seem to overlap really well, as well as Supra1 and Supra2, and Visce1 and Visce3.

plot_grid(t1, t2, t3, t4)

Expand here to see past versions of unnamed-chunk-8-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

tSNE colored on subtissue.

TSNEPlot(all10x, group.by='depot', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-9-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

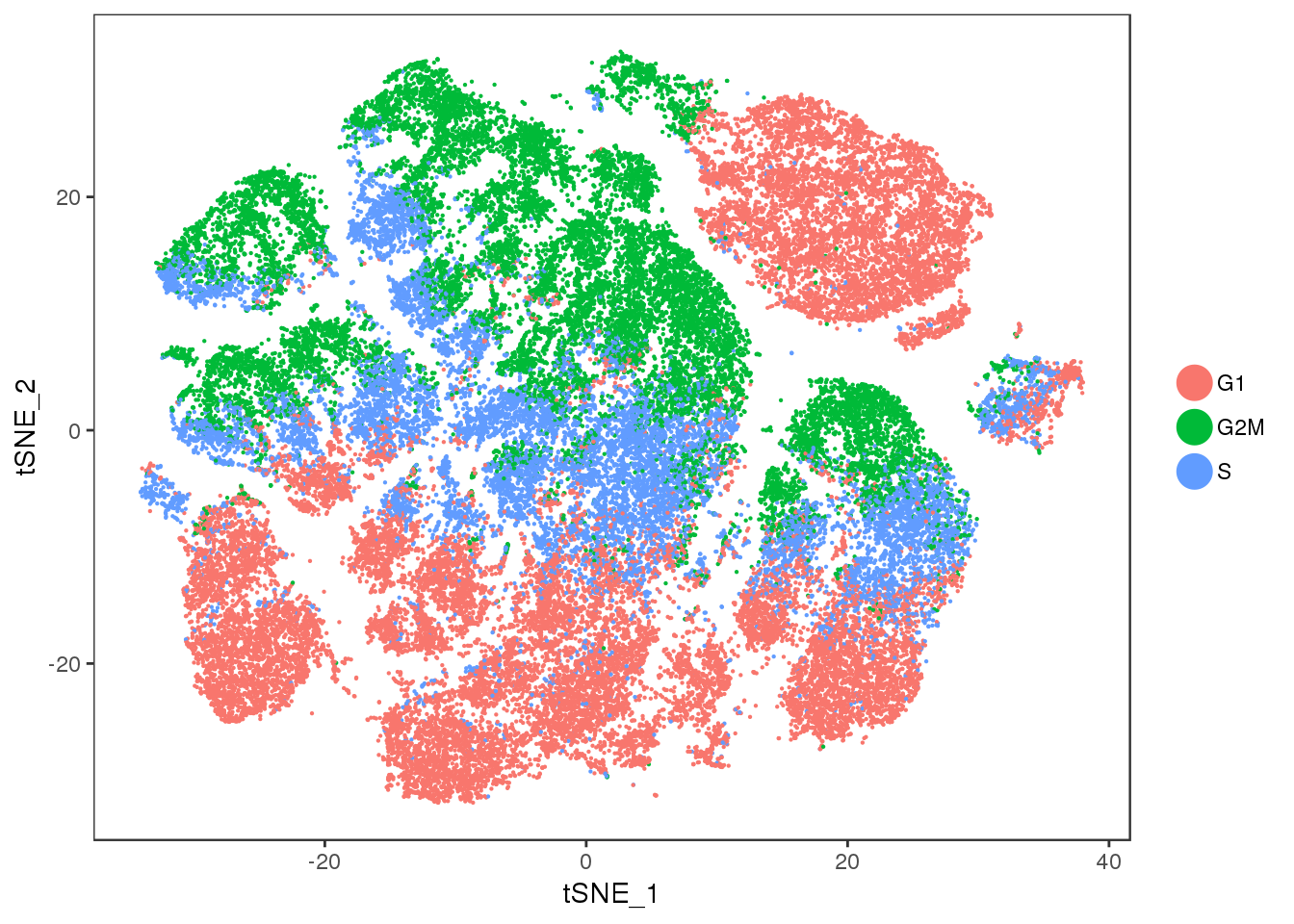

tSNE colored by cell cycle phase.

TSNEPlot(all10x, group.by='Phase', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-10-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

Clusters

Some clustering with different resolutions. res=0.5

TSNEPlot(all10x, pt.size=0.1, group.by='res.0.5', do.label=T)

Expand here to see past versions of unnamed-chunk-11-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

res=0.7

TSNEPlot(all10x, pt.size=0.1, group.by='res.0.7', do.label=T)

Expand here to see past versions of unnamed-chunk-12-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

res=1

TSNEPlot(all10x, pt.size=0.1, group.by='res.1', do.label=T)

Expand here to see past versions of unnamed-chunk-13-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

Cell cycle regression

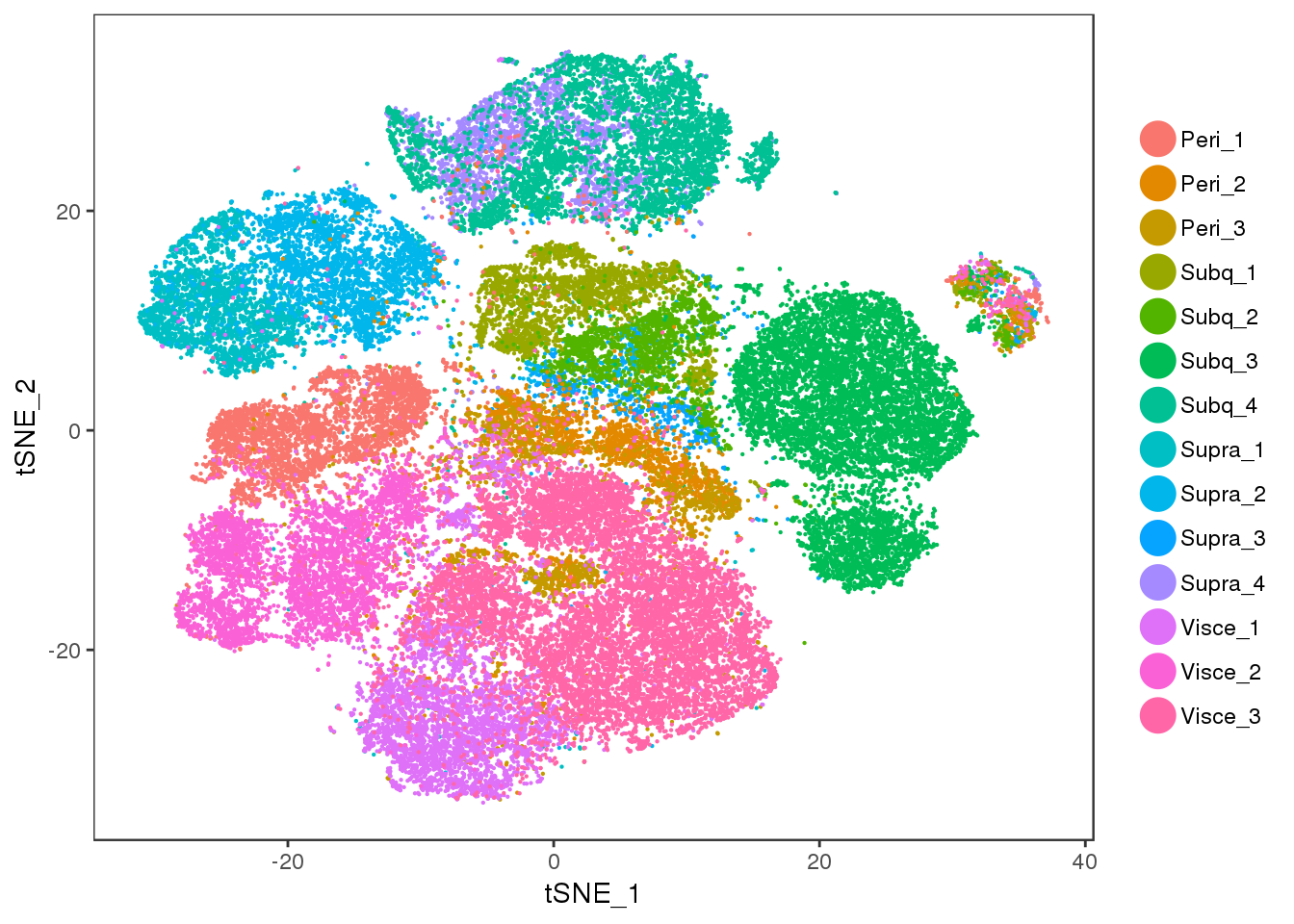

T-SNE of the data with cell cycle effects regressed out. There does not seem to be a lot of structure within clusters now.

TSNEPlot(all10x.ccregout, pt.size=0.1, group.by='sample_name')

Expand here to see past versions of unnamed-chunk-14-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

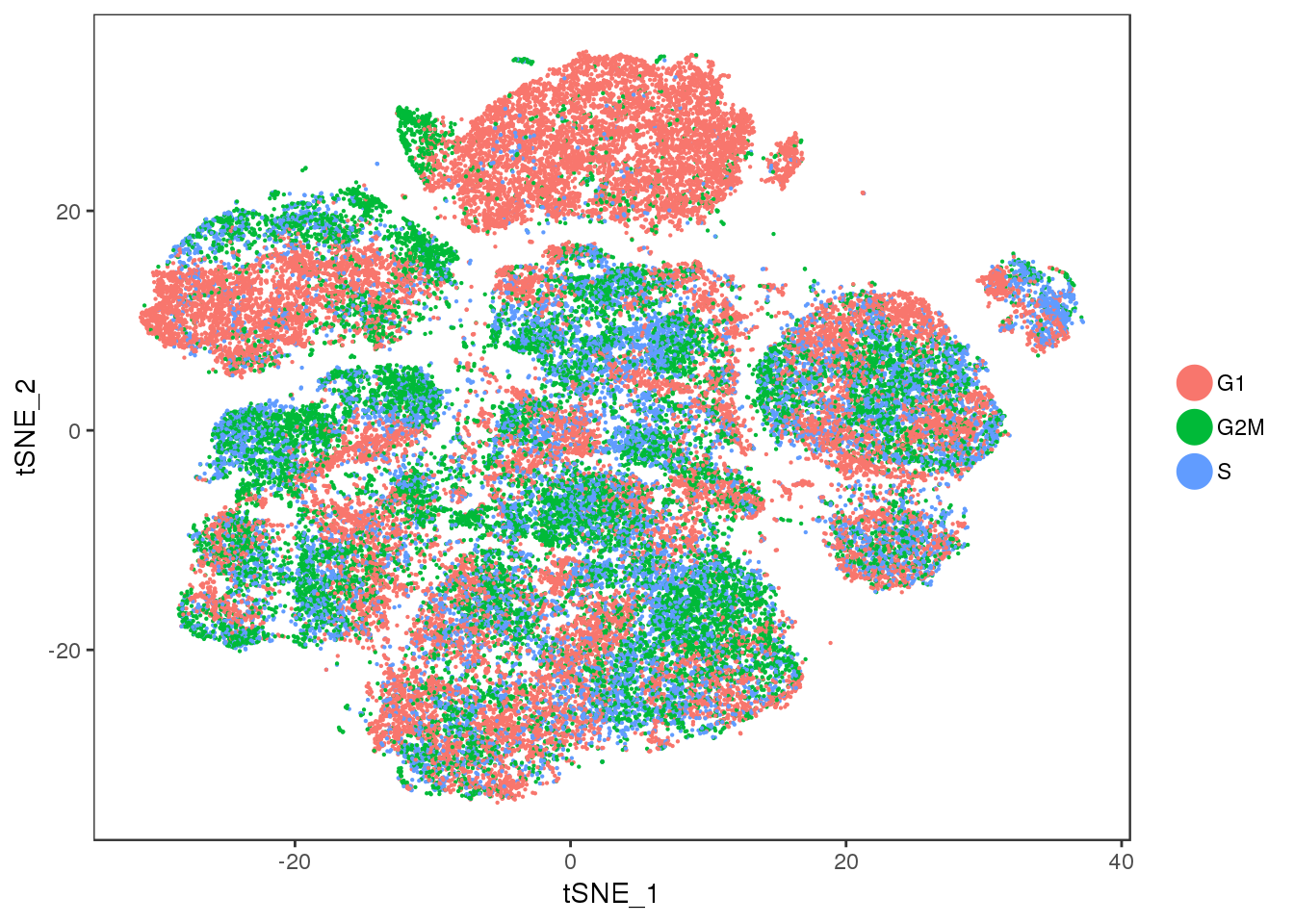

No cell cycle effect anymore.

TSNEPlot(all10x.ccregout, pt.size=0.1, group.by='Phase')

Expand here to see past versions of unnamed-chunk-15-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

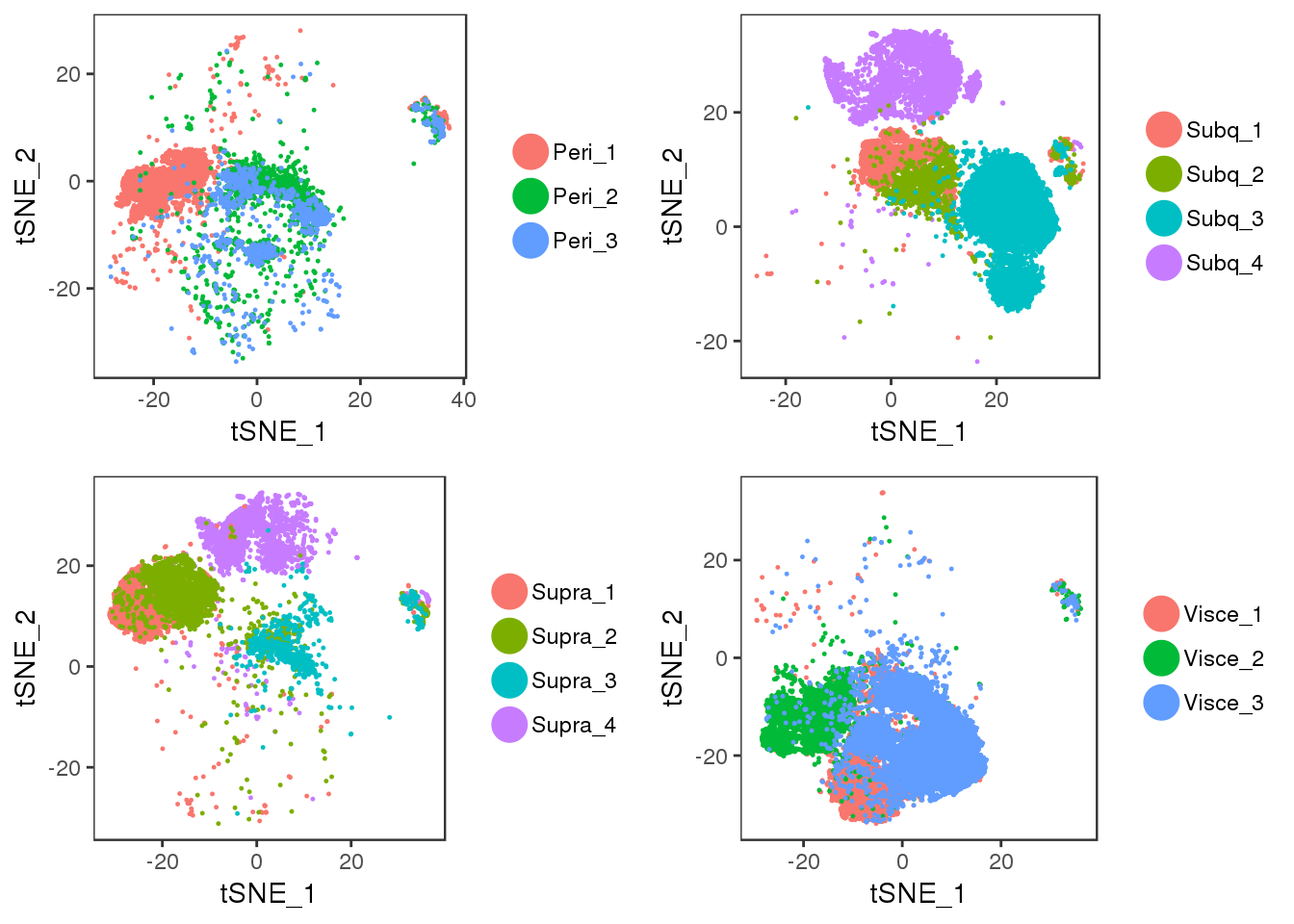

Subtissues

plot_grid(t1, t2, t3, t4)

Expand here to see past versions of unnamed-chunk-17-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

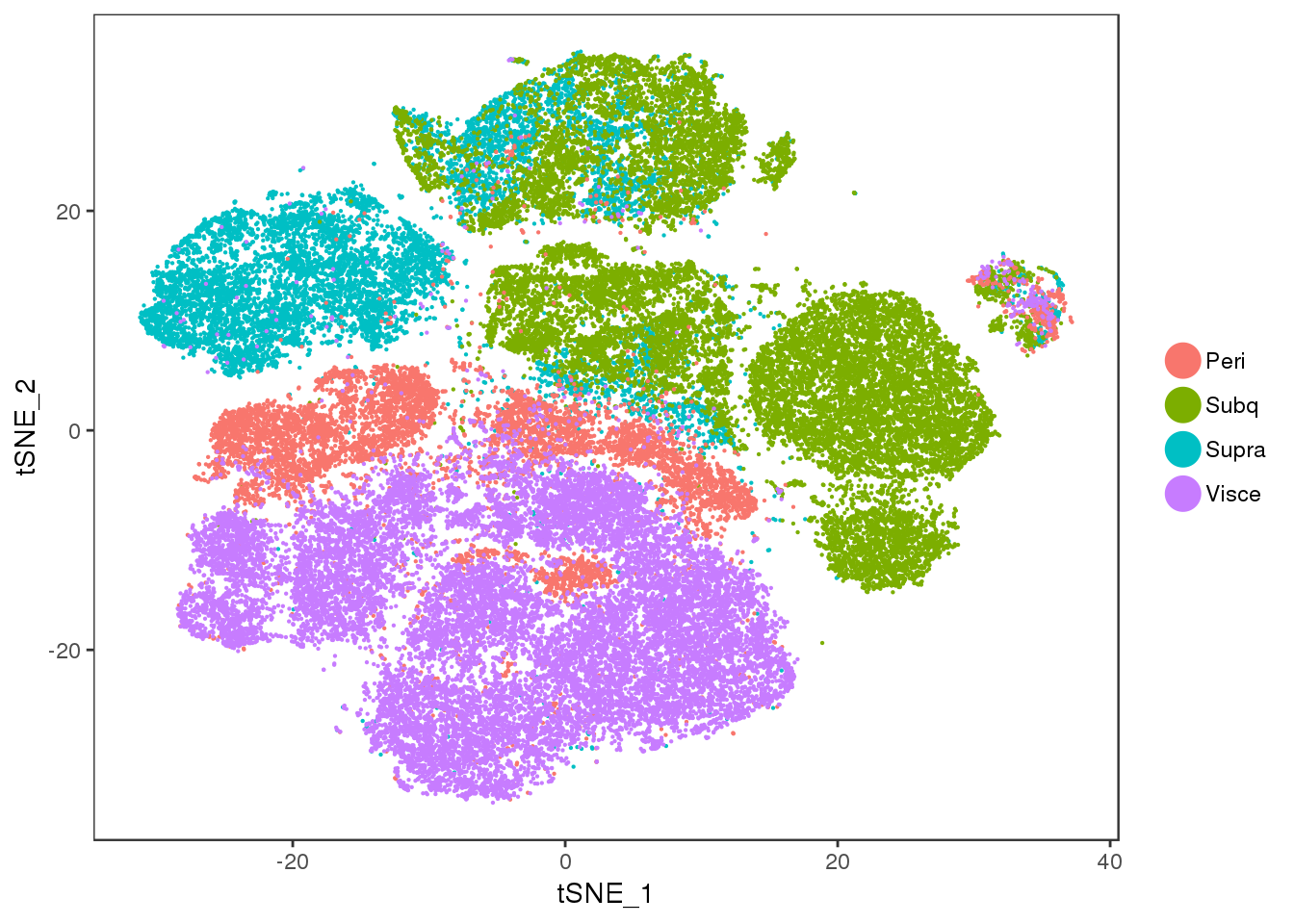

TSNEPlot(all10x.ccregout, pt.size=0.1, group.by='depot')

Expand here to see past versions of unnamed-chunk-18-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

PCA

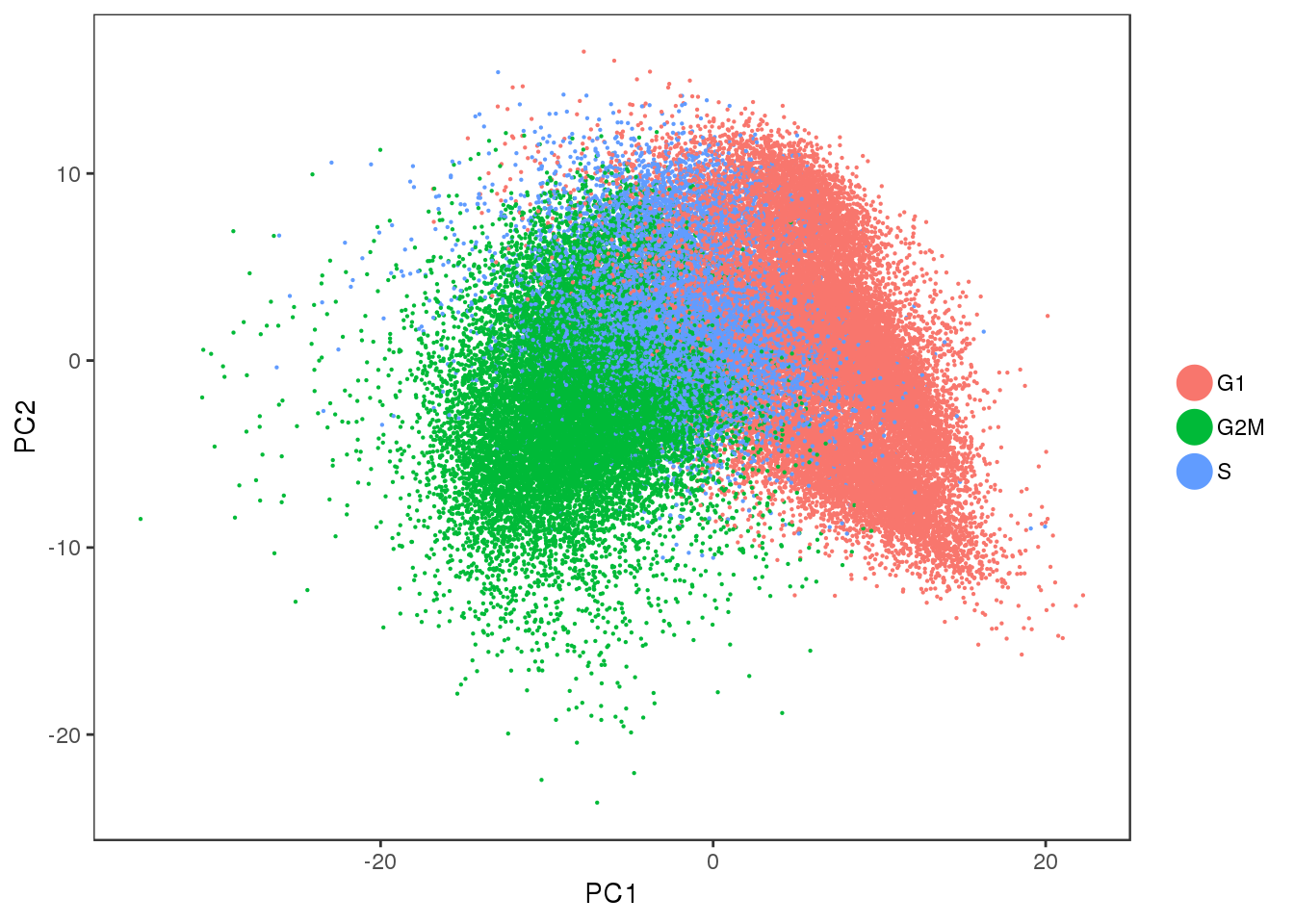

Some PCA plots. PC1 seems to capture cell cycle effects, and PC2 seems to capture some of the sample variability.

PCAPlot(all10x, group.by='Phase', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-19-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

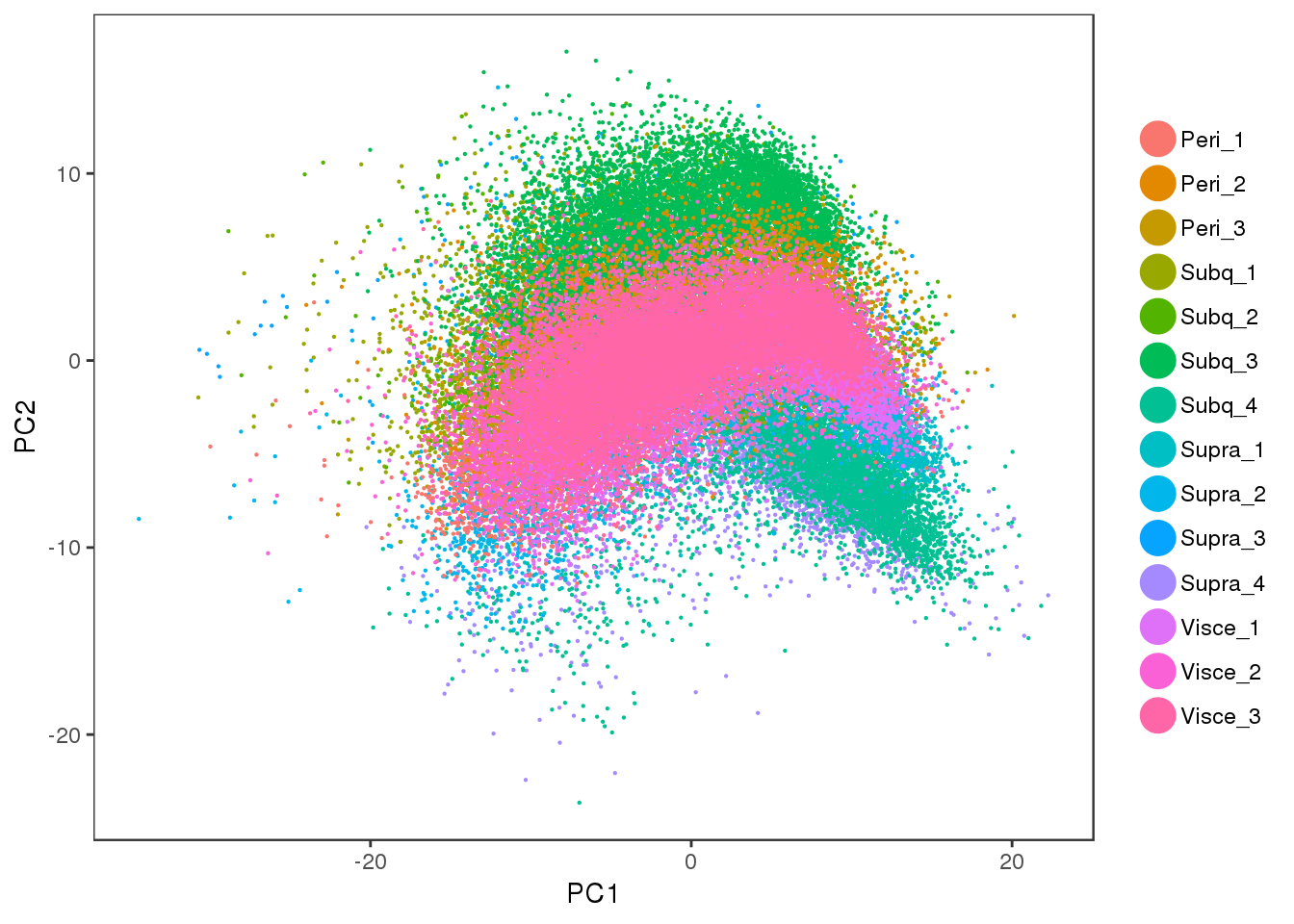

PCAPlot(all10x, group.by='sample_name', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-20-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

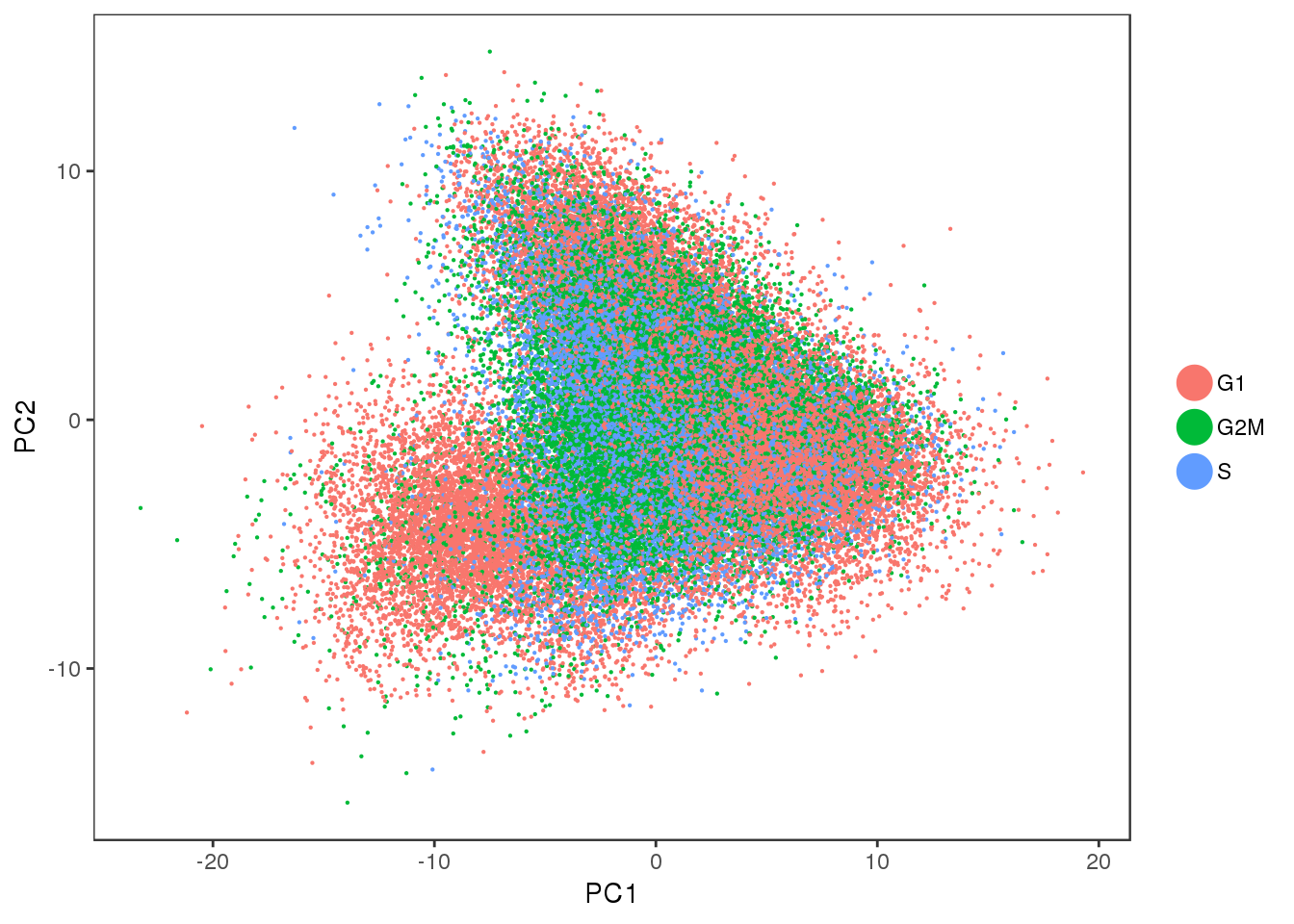

PCA plot of the cell cycle regressed out data. There is no cell cycle effect anymore.

PCAPlot(all10x.ccregout, group.by='Phase', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-21-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

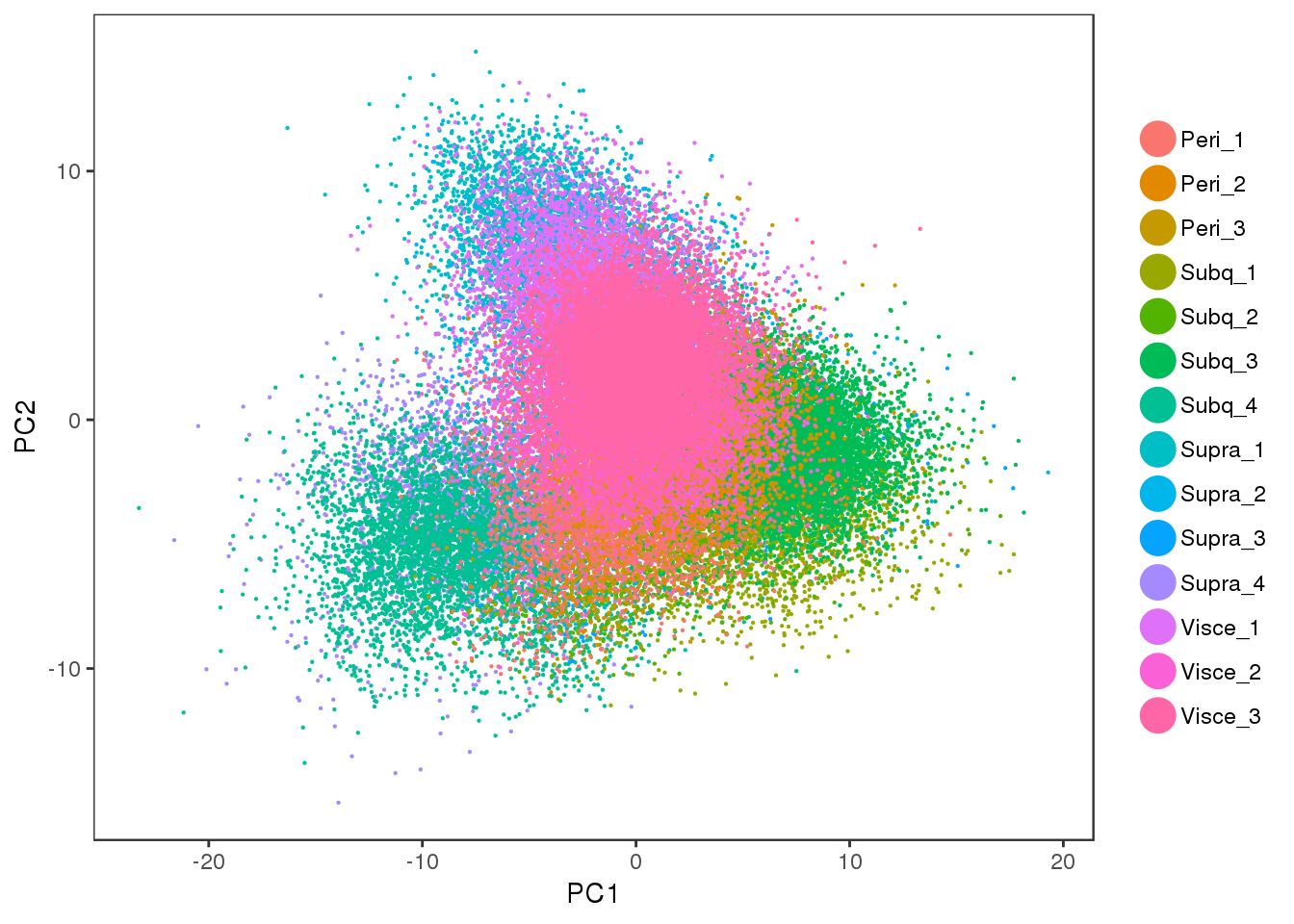

PCAPlot(all10x.ccregout, group.by='sample_name', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-22-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

Metadata plots

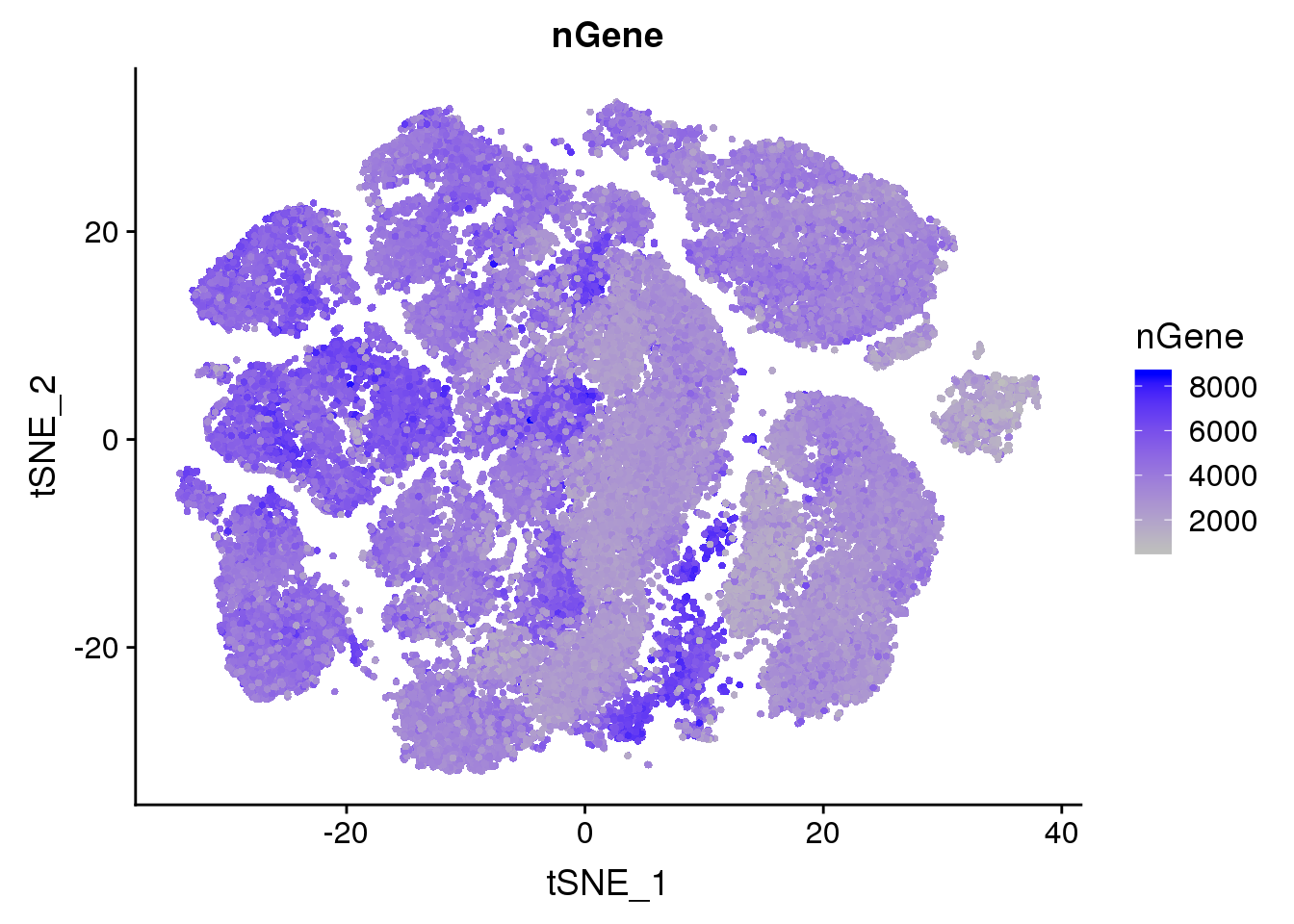

FeaturePlot(all10x, c("nGene"), cols.use = c("grey","blue"), no.legend=F)

Expand here to see past versions of unnamed-chunk-23-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

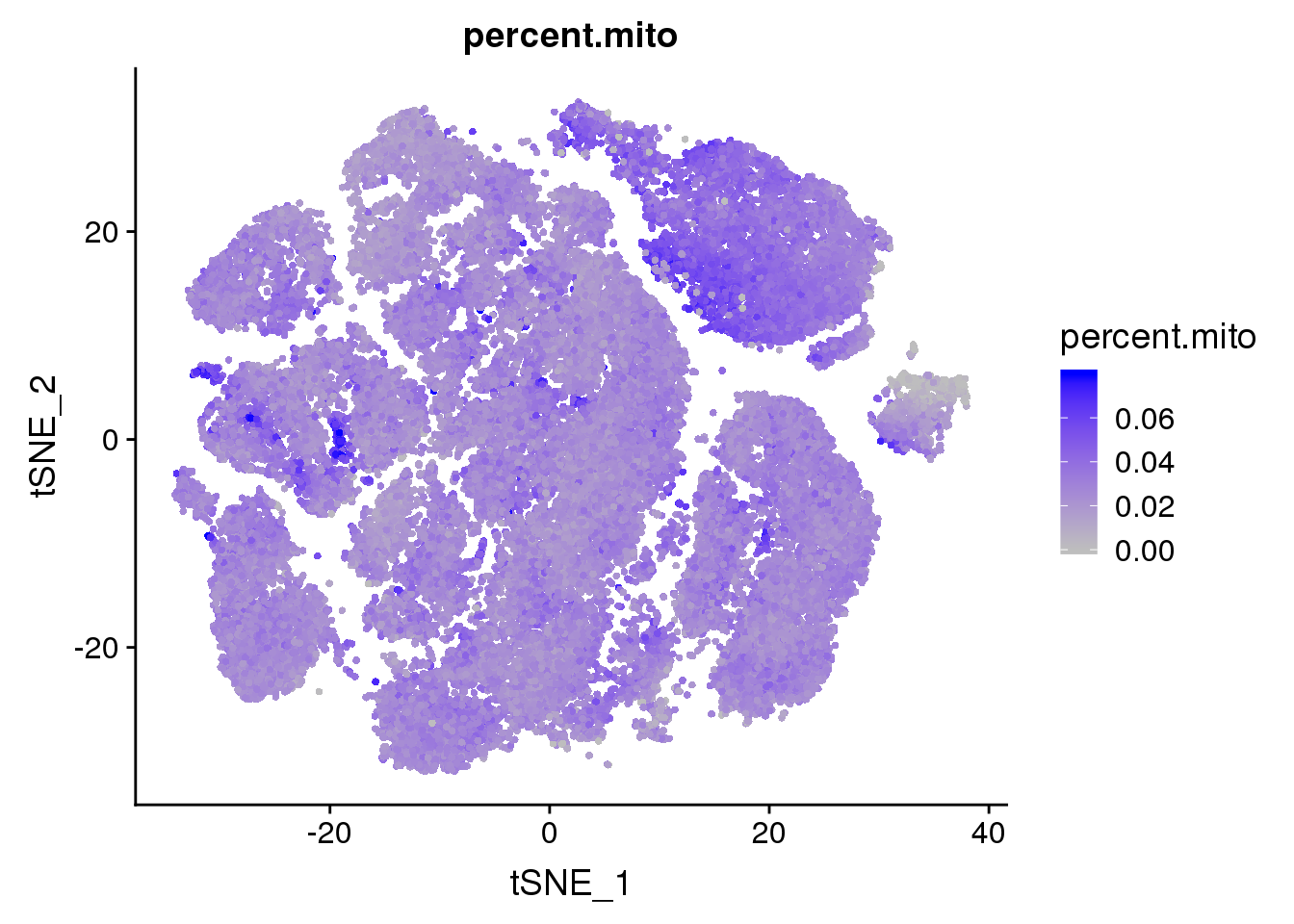

FeaturePlot(all10x, c("percent.mito"), cols.use = c("grey","blue"), no.legend=F)

Expand here to see past versions of unnamed-chunk-24-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02

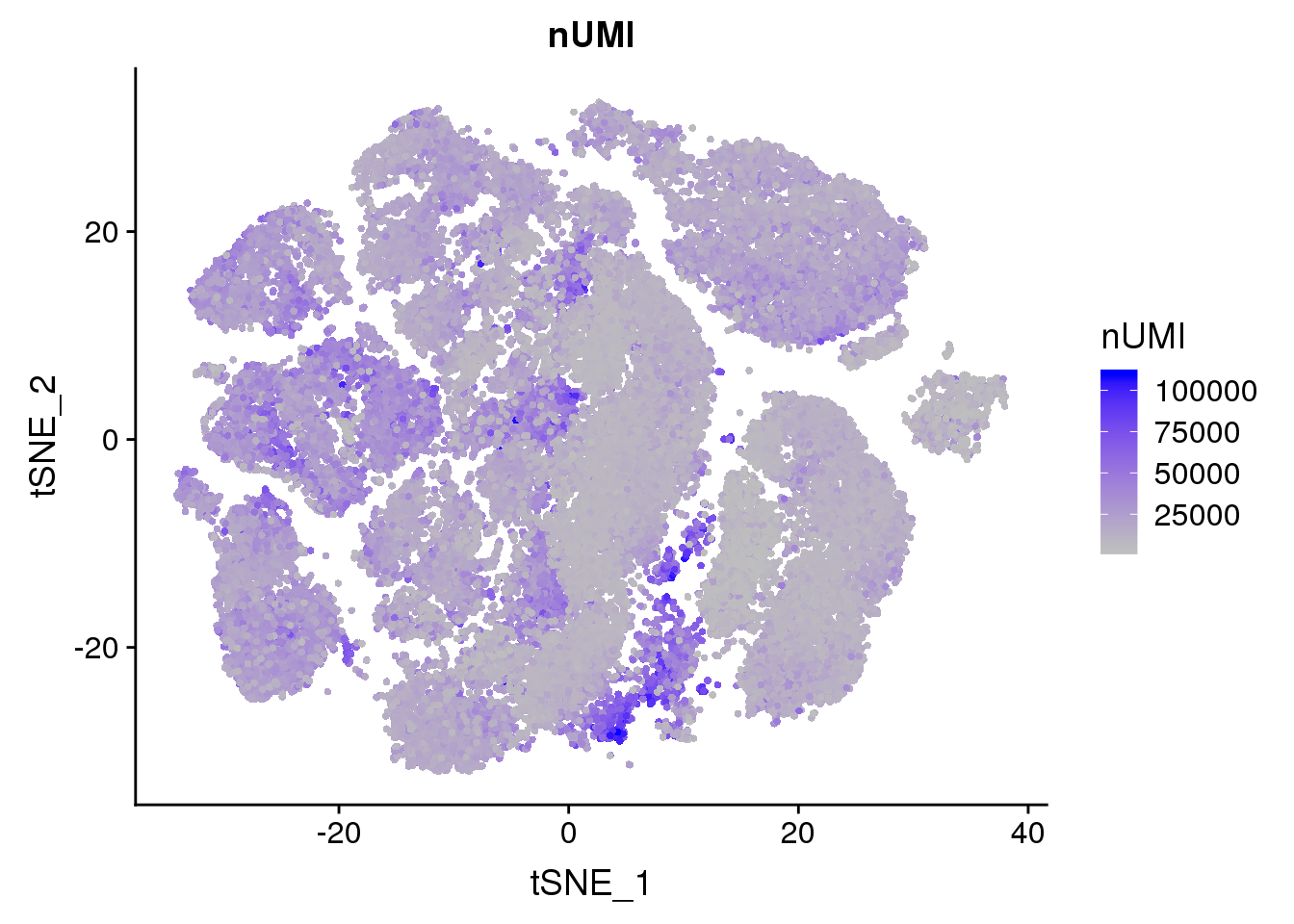

FeaturePlot(all10x, c("nUMI"), cols.use = c("grey","blue"), no.legend=F)

Expand here to see past versions of unnamed-chunk-25-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02

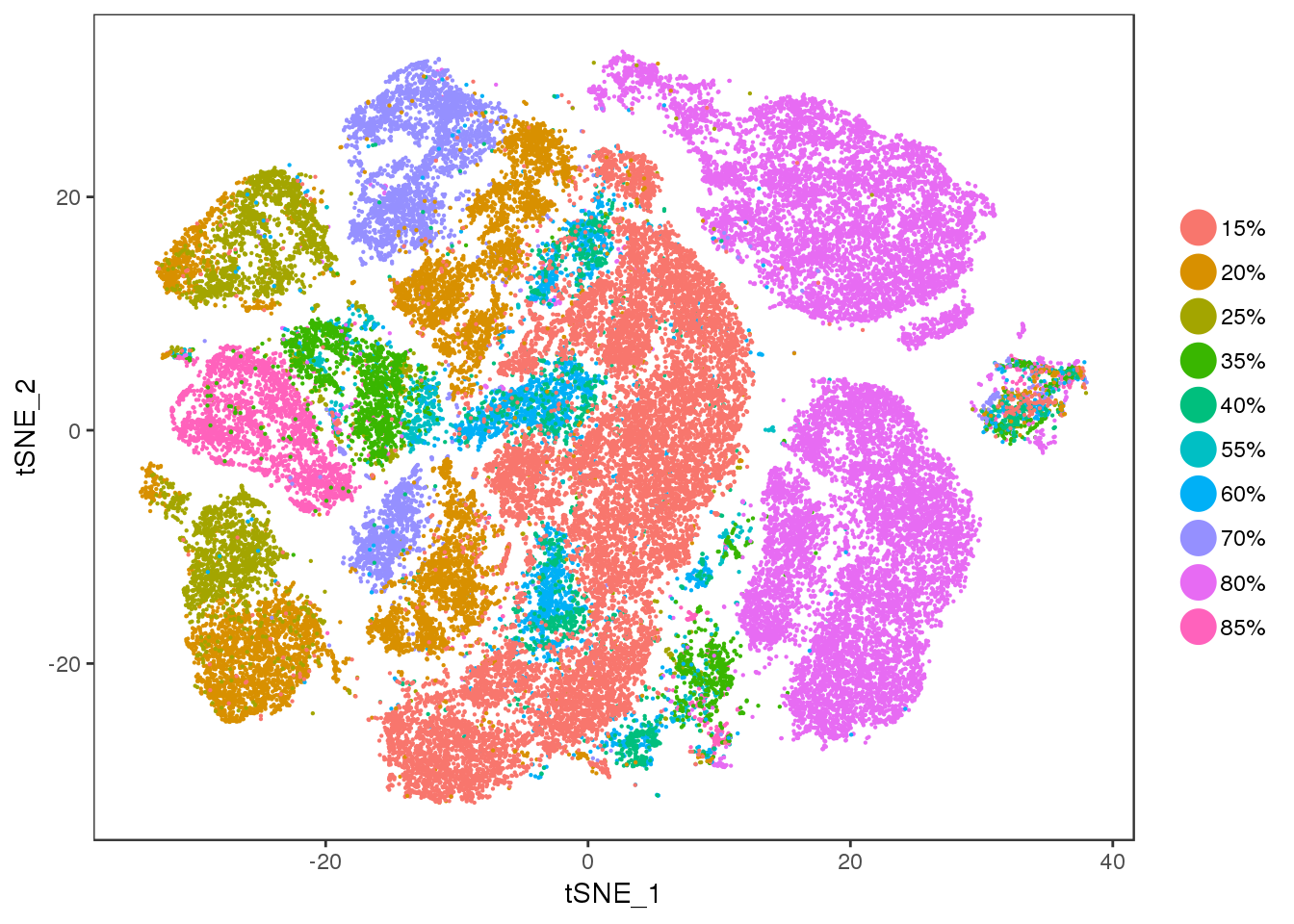

Diff

TSNEPlot(all10x, group.by='diff', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-26-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02

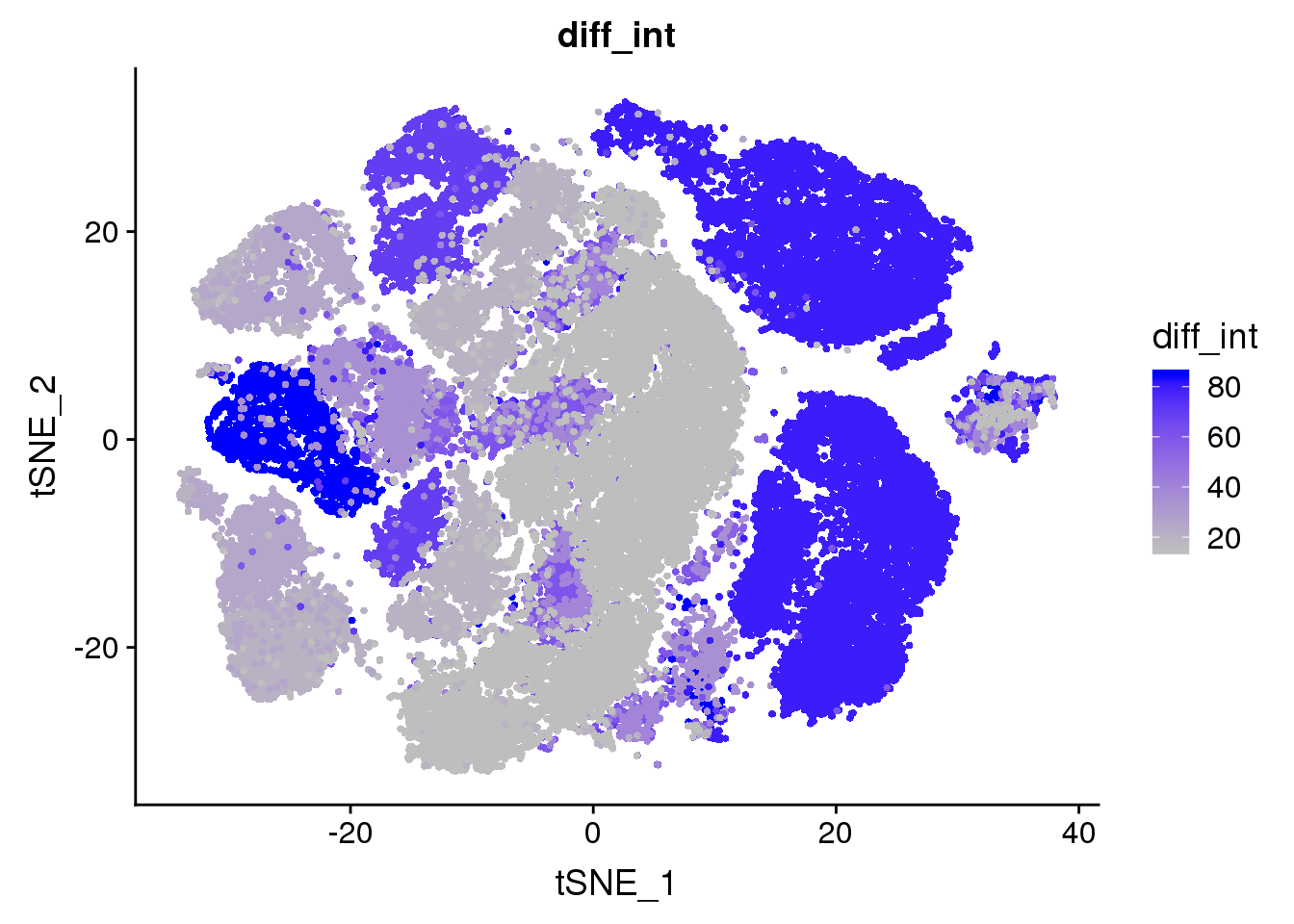

all10x@meta.data['diff_int'] <- unlist(lapply(as.vector(unlist(all10x@meta.data$diff)), function(x){return(strtoi(strsplit(x, '%')))}))
FeaturePlot(all10x, features.plot='diff_int', cols.use=c('gray', 'blue'), no.legend=F)

Expand here to see past versions of unnamed-chunk-27-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02

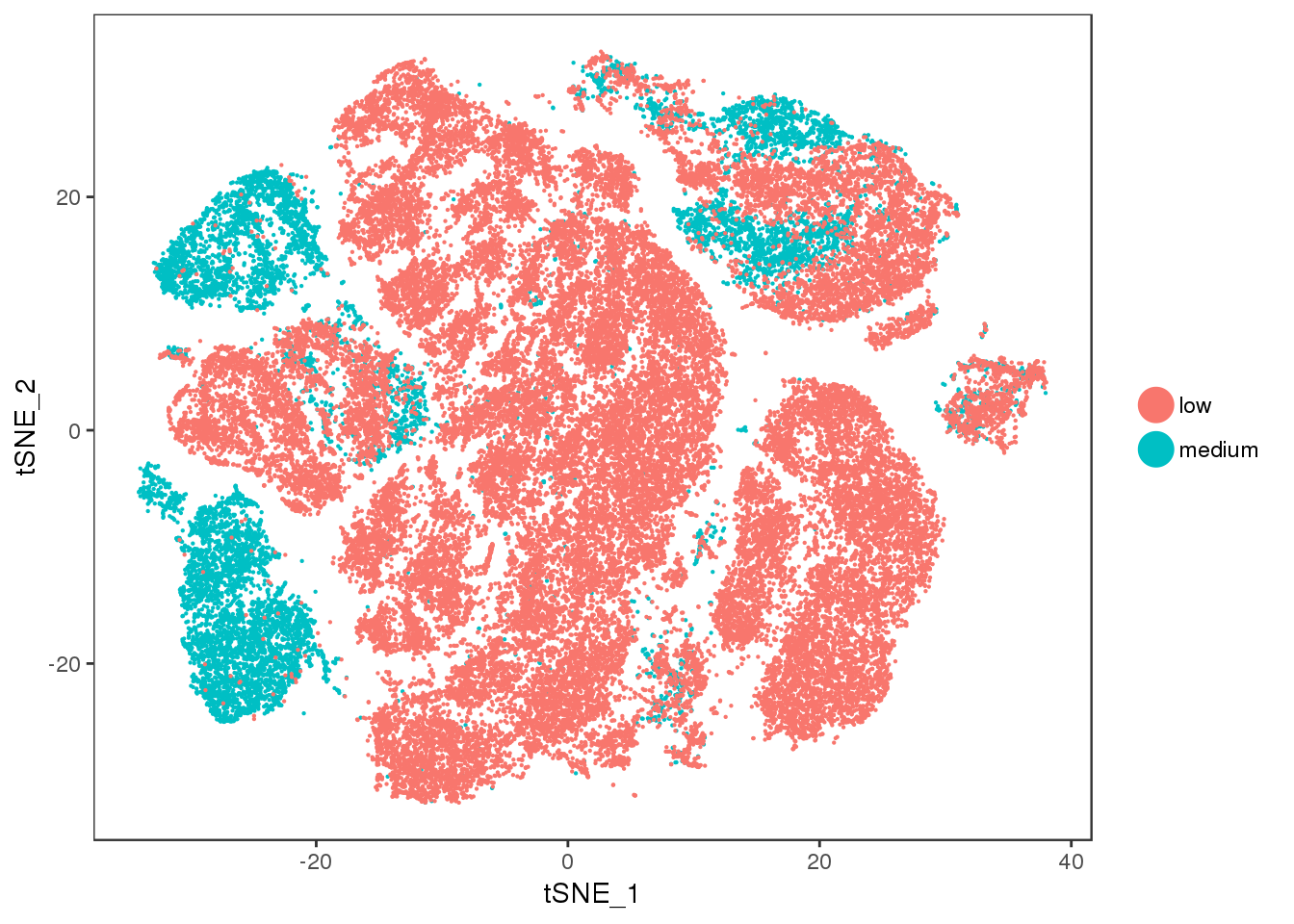

ucp1.ctrl

TSNEPlot(all10x, group.by='ucp1.ctrl', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-28-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02

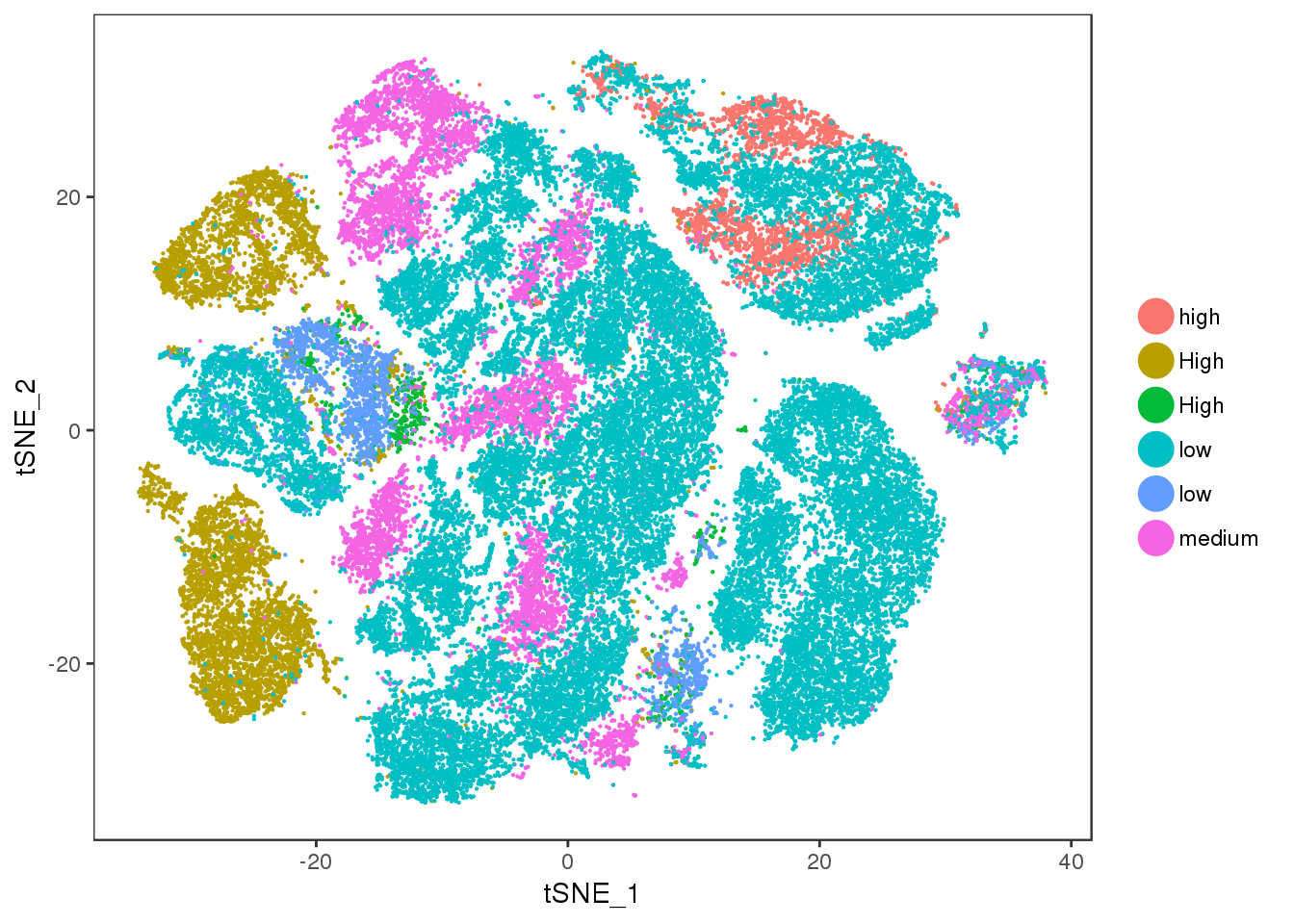

ucp1.ne

TSNEPlot(all10x, group.by='ucp1.ne', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-29-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

bmi

TSNEPlot(all10x, group.by='bmi', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-30-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

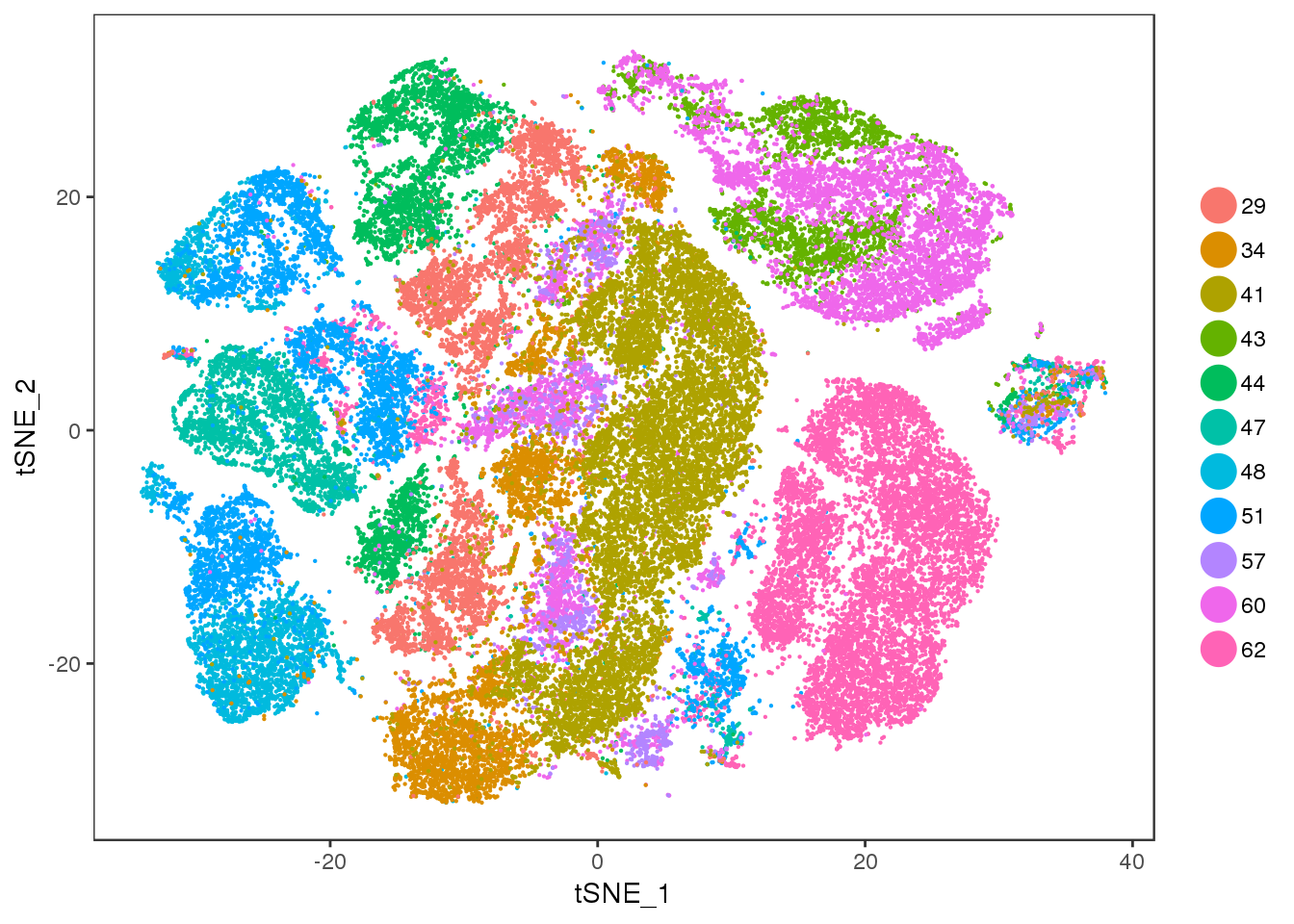

age

TSNEPlot(all10x, group.by='age', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-31-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

VlnPlot(all10x, group.by='sample_name', features.plot=c('nGene'), point.size.use = -1, x.lab.rot=T)

Expand here to see past versions of unnamed-chunk-32-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

VlnPlot(all10x, group.by='sample_name', features.plot=c('nUMI'), point.size.use = -1, x.lab.rot=T)

Expand here to see past versions of unnamed-chunk-33-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

VlnPlot(all10x, group.by='sample_name', features.plot=c('percent.mito'), point.size.use = -1, x.lab.rot=T)

Expand here to see past versions of unnamed-chunk-34-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

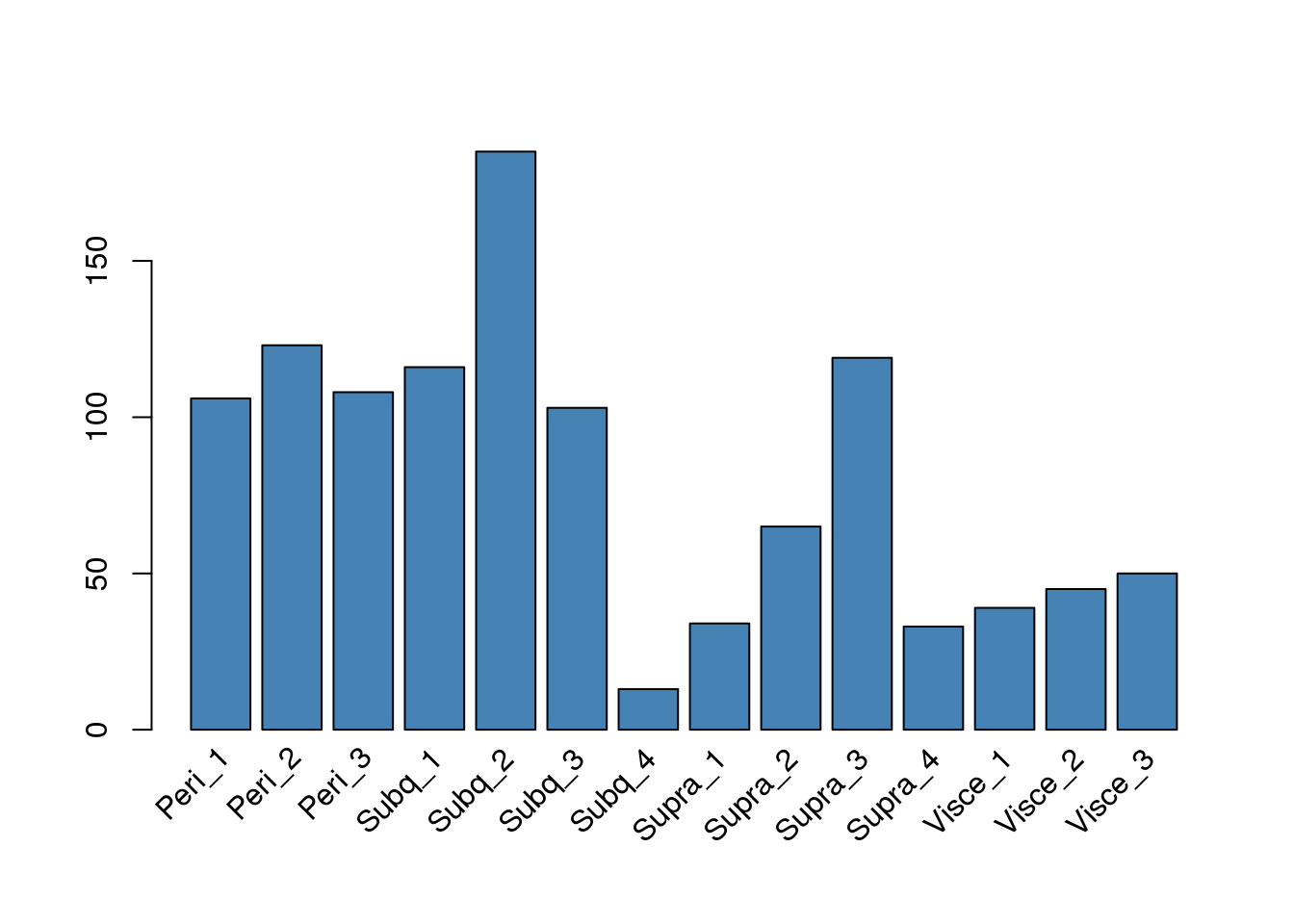

Mixture cluster 12

Sample composition in cluster 12.

cluster12 <- SubsetData(all10x, cells.use=rownames(all10x@meta.data)[which(all10x@meta.data$res.0.5 %in% 12)])
rotate_x <- function(data, column_to_plot, labels_vec, rot_angle) {
     plt <- barplot(data[[column_to_plot]], col='steelblue', xaxt="n")
     text(plt, par("usr")[3], labels = labels_vec, srt = rot_angle, adj = c(1.1,1.1), xpd = TRUE, cex=1)
}
rotate_x((cluster12@meta.data %>% count(sample_name))[,2], 'n', as.vector(unlist((cluster12@meta.data %>% count(sample_name))[,1])), 45)

Expand here to see past versions of unnamed-chunk-35-1.png:

Version	Author	Date
120215c	PytrikFolkertsma	2018-11-02
1f7e0da	PytrikFolkertsma	2018-10-30

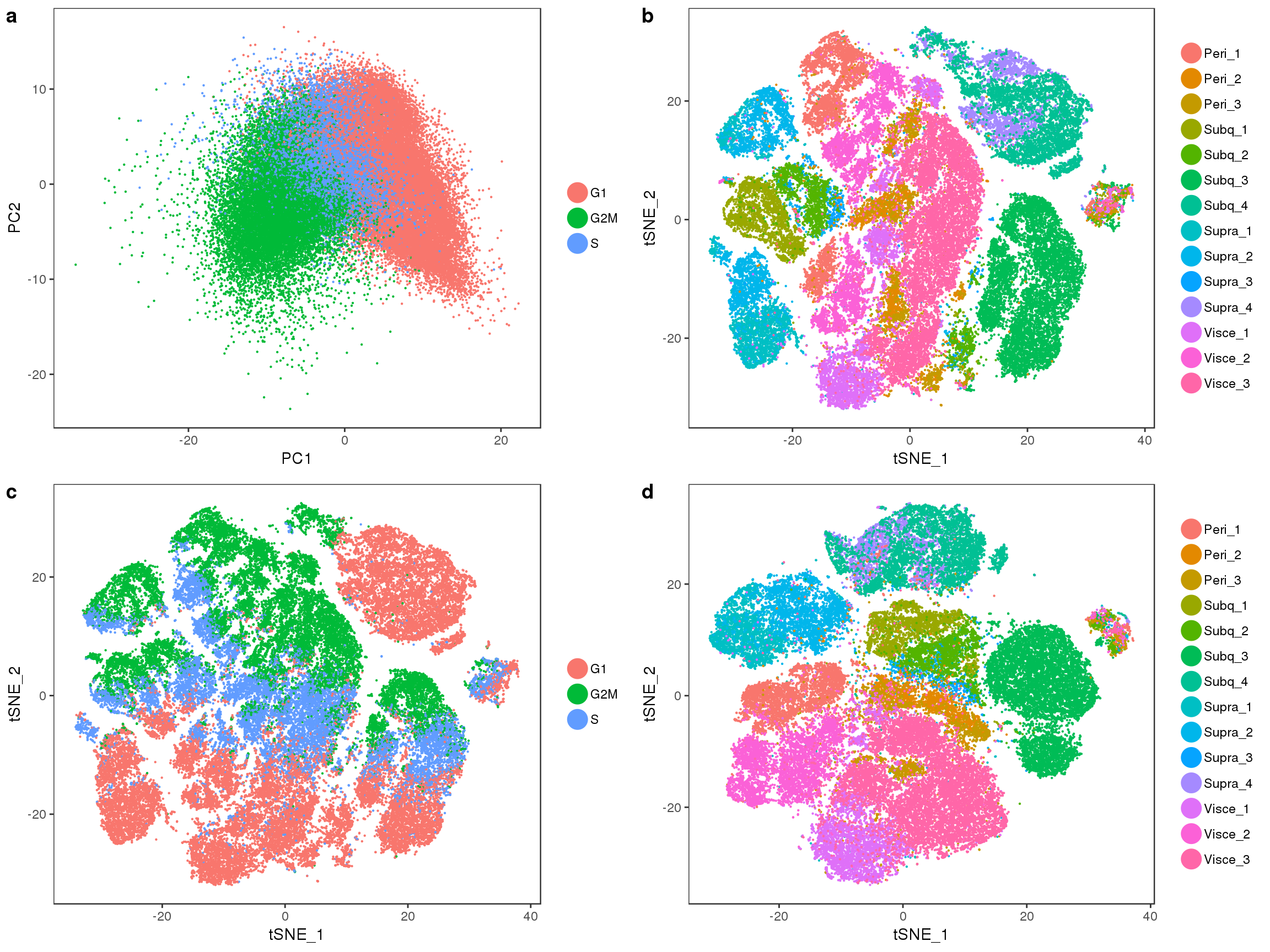

Figures for report

fig1

Expand here to see past versions of fig1-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

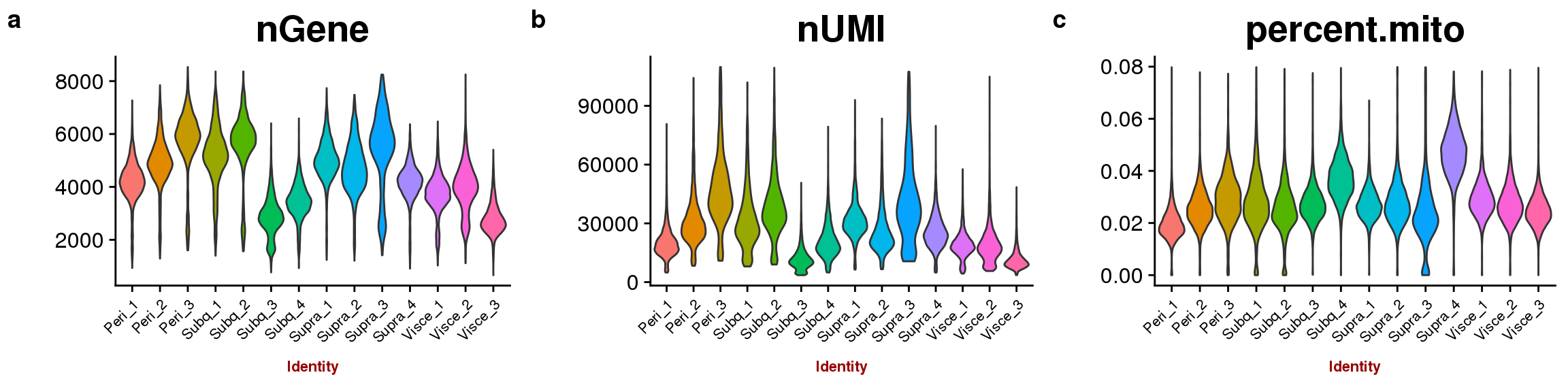

#Supplementary figures
sfig1 <- plot_grid(
  VlnPlot(all10x, group.by='sample_name', features.plot=c('nGene'), point.size.use = -1, x.lab.rot=T, size.x.use=8),
  VlnPlot(all10x, group.by='sample_name', features.plot=c('nUMI'), point.size.use = -1, x.lab.rot=T, size.x.use=8),
  VlnPlot(all10x, group.by='sample_name', features.plot=c('percent.mito'), point.size.use = -1, x.lab.rot=T, size.x.use=8),
  labels="auto", nrow=1
)
save_plot("plots/supplementary_figures/sfig_180504_qcplots.pdf", sfig1, base_width=12, base_height=3)
sfig1

Expand here to see past versions of fig2-1.png:

Version	Author	Date
1f7e0da	PytrikFolkertsma	2018-10-30

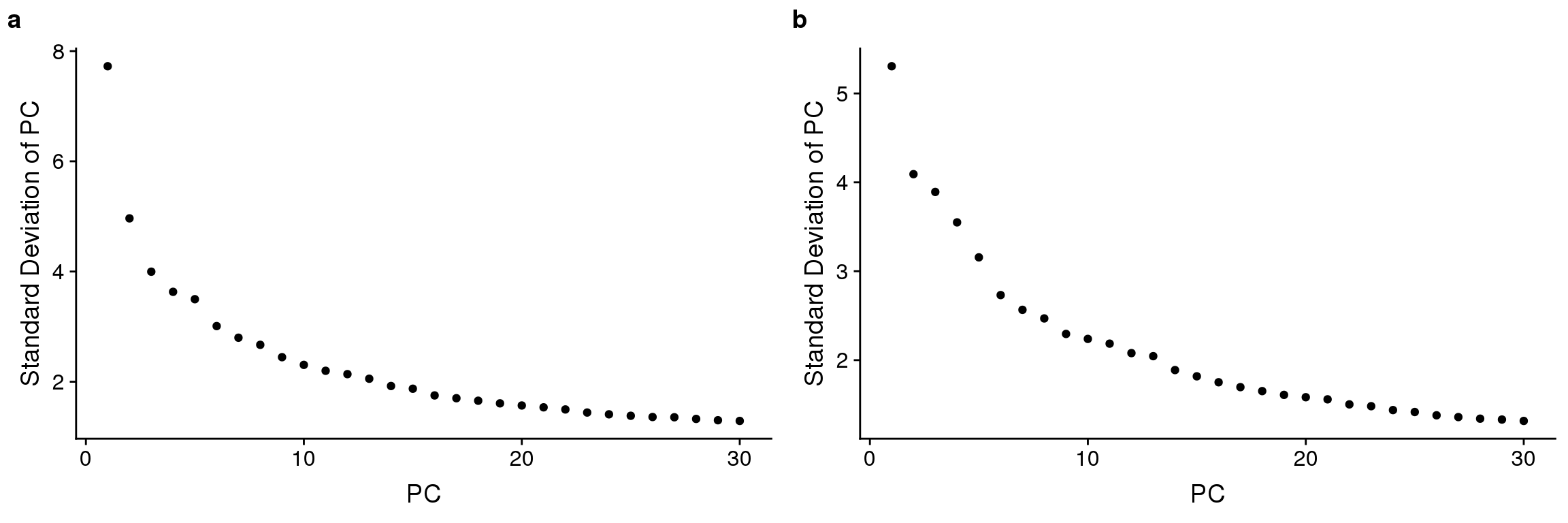

sfig2 <- plot_grid(
  PCElbowPlot(all10x, num.pc=30),
  PCElbowPlot(all10x.ccregout, num.pc=30),
  labels="auto", nrow=1)
save_plot("plots/supplementary_figures/sfig_180504_pcelbow.pdf", sfig2, base_width=12, base_height=4)
sfig2

Expand here to see past versions of fig3-1.png:

Version	Author	Date
661156c	PytrikFolkertsma	2018-11-05

Session information

sessionInfo()

R version 3.4.3 (2017-11-30)
Platform: x86_64-redhat-linux-gnu (64-bit)
Running under: Red Hat Enterprise Linux

Matrix products: default
BLAS/LAPACK: /usr/lib64/R/lib/libRblas.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] bindrcpp_0.2.2 dplyr_0.7.6    Seurat_2.3.4   Matrix_1.2-14
[5] cowplot_0.9.3  ggplot2_3.0.0

loaded via a namespace (and not attached):
  [1] Rtsne_0.13          colorspace_1.3-2    class_7.3-14
  [4] modeltools_0.2-22   ggridges_0.5.0      mclust_5.4.1
  [7] rprojroot_1.3-2     htmlTable_1.12      base64enc_0.1-3
 [10] rstudioapi_0.7      proxy_0.4-22        flexmix_2.3-14
 [13] bit64_0.9-7         mvtnorm_1.0-8       codetools_0.2-15
 [16] splines_3.4.3       R.methodsS3_1.7.1   robustbase_0.93-2
 [19] knitr_1.20          Formula_1.2-3       jsonlite_1.5
 [22] workflowr_1.1.1     ica_1.0-2           cluster_2.0.7-1
 [25] kernlab_0.9-27      png_0.1-7           R.oo_1.22.0
 [28] compiler_3.4.3      httr_1.3.1          backports_1.1.2
 [31] assertthat_0.2.0    lazyeval_0.2.1      lars_1.2
 [34] acepack_1.4.1       htmltools_0.3.6     tools_3.4.3
 [37] igraph_1.2.2        gtable_0.2.0        glue_1.3.0
 [40] RANN_2.6            reshape2_1.4.3      Rcpp_0.12.18
 [43] trimcluster_0.1-2.1 gdata_2.18.0        ape_5.1
 [46] nlme_3.1-137        iterators_1.0.10    fpc_2.1-11.1
 [49] gbRd_0.4-11         lmtest_0.9-36       stringr_1.3.1
 [52] irlba_2.3.2         gtools_3.8.1        DEoptimR_1.0-8
 [55] MASS_7.3-50         zoo_1.8-3           scales_1.0.0
 [58] doSNOW_1.0.16       parallel_3.4.3      RColorBrewer_1.1-2
 [61] yaml_2.2.0          reticulate_1.10     pbapply_1.3-4
 [64] gridExtra_2.3       rpart_4.1-13        segmented_0.5-3.0
 [67] latticeExtra_0.6-28 stringi_1.2.4       foreach_1.4.4
 [70] checkmate_1.8.5     caTools_1.17.1.1    bibtex_0.4.2
 [73] Rdpack_0.9-0        SDMTools_1.1-221    rlang_0.2.2
 [76] pkgconfig_2.0.2     dtw_1.20-1          prabclus_2.2-6
 [79] bitops_1.0-6        evaluate_0.11       lattice_0.20-35
 [82] ROCR_1.0-7          purrr_0.2.5         bindr_0.1.1
 [85] labeling_0.3        htmlwidgets_1.2     bit_1.1-14
 [88] tidyselect_0.2.4    plyr_1.8.4          magrittr_1.5
 [91] R6_2.2.2            snow_0.4-2          gplots_3.0.1
 [94] Hmisc_4.1-1         pillar_1.3.0        whisker_0.3-2
 [97] foreign_0.8-70      withr_2.1.2         fitdistrplus_1.0-9
[100] mixtools_1.1.0      survival_2.42-6     nnet_7.3-12
[103] tsne_0.1-3          tibble_1.4.2        crayon_1.3.4
[106] hdf5r_1.0.0         KernSmooth_2.23-15  rmarkdown_1.10
[109] grid_3.4.3          data.table_1.11.4   git2r_0.23.0
[112] metap_1.0           digest_0.6.15       diptest_0.75-7
[115] tidyr_0.8.1         R.utils_2.7.0       stats4_3.4.3
[118] munsell_0.5.0

This reproducible R Markdown analysis was created with workflowr 1.1.1

R Notebook
