GTEx V6
Yuxin Zou
2018-12-20
Last updated: 2019-01-29
workflowr checks: (Click a bullet for more information)-
✔ R Markdown file: up-to-date
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
-
✔ Environment: empty
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
-
✔ Seed:
set.seed(20181220)The command
set.seed(20181220)was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible. -
✔ Session information: recorded
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
-
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.✔ Repository version: 8607dea
Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can usewflow_publishorwflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.Ignored files: Ignored: .Rhistory Ignored: .Rproj.user/ Ignored: dsc-mash-gtex/ Untracked files: Untracked: .DS_Store Untracked: code/Demo_SumstatQuery.R Untracked: data/.DS_Store Untracked: data/cor_tissues_non_ash_voom_pearson.rda Untracked: data/gene_names_GTEX_V6.txt Untracked: data/genewide_ash_out_tissue_mat_halfuniform_non_mode.rda Untracked: data/order_index.rda Untracked: data/samples_id.txt Untracked: data/tissuewide_pearson_halfuniform_tissuewide_non_mode.rda Untracked: output/.DS_Store Untracked: output/GTExV6/ Untracked: output/GTExV6pipeline/ Untracked: output/corshrink_noise_gene_1.rds
Expand here to see past versions:
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 8607dea | zouyuxin | 2019-01-29 | wflow_publish(“analysis/GTExV6pipeline.Rmd”) |
| html | 5d17b16 | zouyuxin | 2019-01-29 | Build site. |
| Rmd | cadbb28 | zouyuxin | 2019-01-29 | wflow_publish(“analysis/GTExV6pipeline.Rmd”) |
| html | 02da57c | zouyuxin | 2019-01-27 | Build site. |
| Rmd | 378989c | zouyuxin | 2019-01-27 | wflow_publish(“analysis/GTExV6pipeline.Rmd”) |
library(mashr)Loading required package: ashrlibrary(knitr)
library(kableExtra)
library(ggplot2)
library(gridExtra)gtex <- readRDS(gzcon(url("https://github.com/stephenslab/gtexresults/blob/master/data/MatrixEQTLSumStats.Portable.Z.rds?raw=TRUE")))
missing.tissues <- c(7, 8, 19, 20, 24, 25, 31, 34, 37)
gtex.colors <- read.table("https://github.com/stephenslab/gtexresults/blob/master/data/GTExColors.txt?raw=TRUE", sep = '\t', comment.char = '')[-missing.tissues, 2]
gtex.colors <- as.character(gtex.colors)
gene.names = as.character(read.table('data/gene_names.txt')[,1])The results are from mashr_flashr_pipeline. We include the data driven covariance matrices based on the first three principal components and factors from flash.

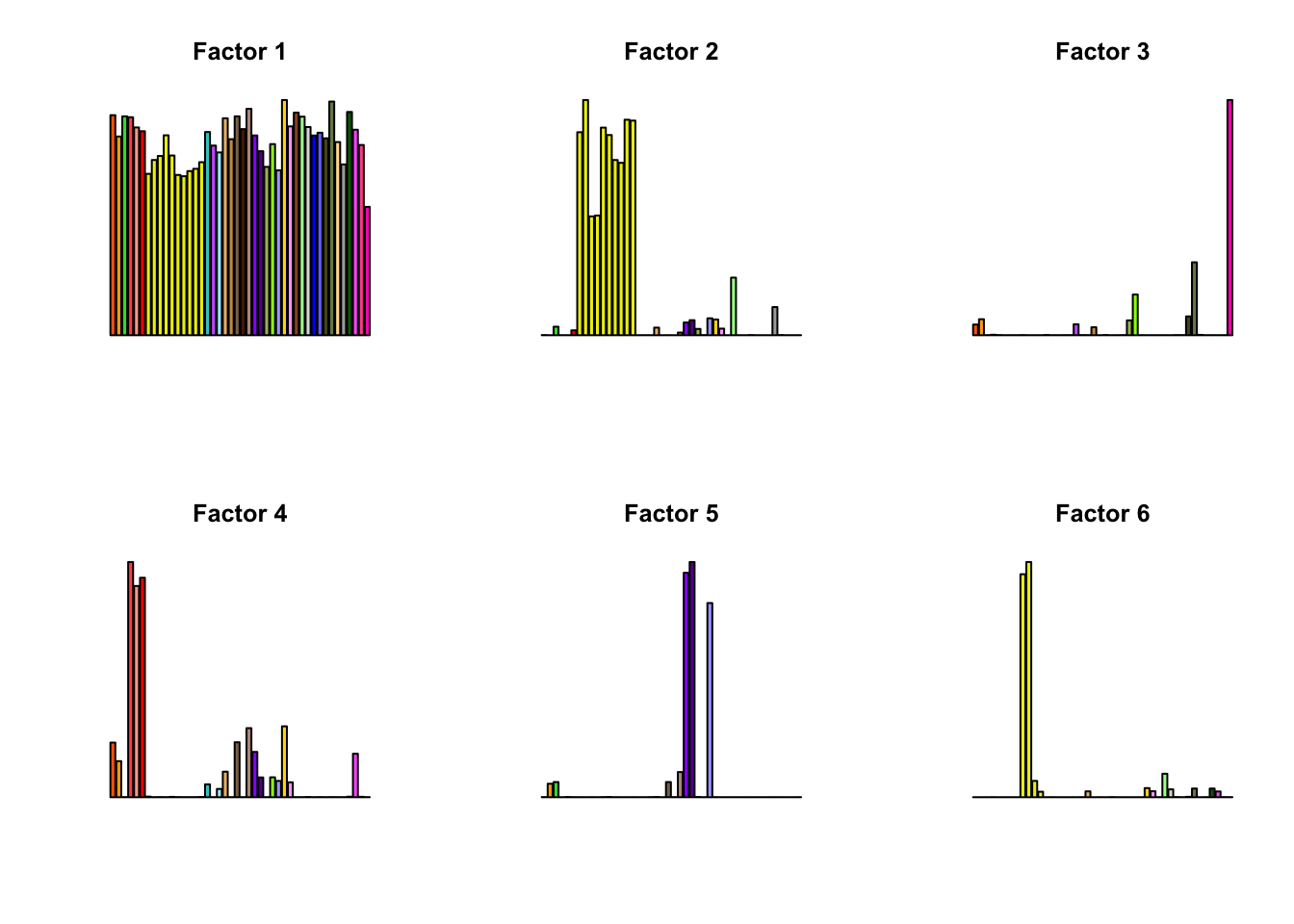

Flash model based on effects:
factors = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.flash.model.rds')$factors
par(mfrow = c(2, 3))
for(k in 1:13){
barplot(factors[,k], col=gtex.colors, names.arg = FALSE, axes = FALSE, main=paste0("Factor ", k))
}
Expand here to see past versions of flash EE factors plot-1.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |
Expand here to see past versions of flash EE factors plot-2.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |
Expand here to see past versions of flash EE factors plot-3.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |

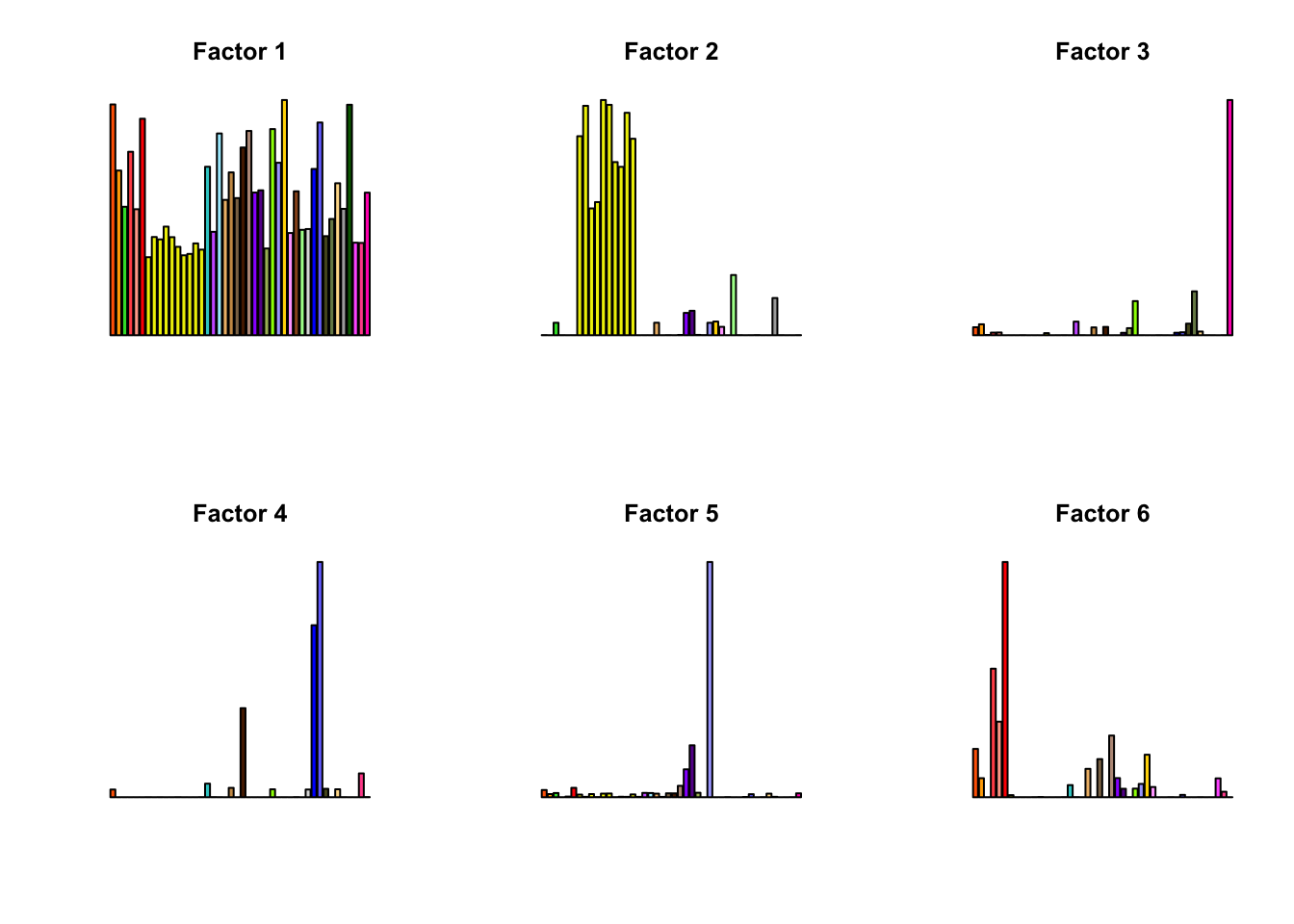

Flash model based on z scores:
factors = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.flash.model.rds')$factors
par(mfrow = c(2, 3))
for(k in 1:18){
barplot(factors[,k], col=gtex.colors, names.arg = FALSE, axes = FALSE, main=paste0("Factor ", k))
}
Expand here to see past versions of flash EZ factors plot-1.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |
Expand here to see past versions of flash EZ factors plot-2.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |
Expand here to see past versions of flash EZ factors plot-3.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |
# read model
m_simple_EE = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.mash_model_V_simple.rds')
m_simple_EE$result = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.mash_model_V_simple.posterior.rds')
m_simple_EZ = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.FL_PC3.mash_model_V_simple.rds')
m_simple_EZ$result = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.FL_PC3.mash_model_V_simple.posterior.rds')
m_mle_EE = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.mash_model_V_mle.rds')
m_mle_EE$result = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.mash_model_V_mle.posterior.rds')
m_mle_EZ = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.FL_PC3.mash_model_V_mle.rds')
m_mle_EZ$result = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.FL_PC3.mash_model_V_mle.posterior.rds')
m_Vgene_EE_kushal = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.V_corshrink_xcondition_kushal.mash_model.rds')
m_Vgene_EE_kushal$result = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.V_corshrink_xcondition_kushal.posterior.rds')
m_Vgene_EZ_kushal = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.FL_PC3.V_corshrink_xcondition_kushal.mash_model.rds')
m_Vgene_EZ_kushal$result = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.FL_PC3.V_corshrink_xcondition_kushal.posterior.rds')
m_Vgene_EE_nullz = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.V_corshrink_xcondition_nullz.mash_model.rds')
m_Vgene_EE_nullz$result = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.V_corshrink_xcondition_nullz.posterior.rds')
m_Vgene_EZ_nullz = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.FL_PC3.V_corshrink_xcondition_nullz.mash_model.rds')
m_Vgene_EZ_nullz$result = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.FL_PC3.V_corshrink_xcondition_nullz.posterior.rds')Estimated null cor V
V.simple = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.V_simple.rds')
corrplot::corrplot(V.simple, method='color', type='upper', tl.col="black", tl.srt=45, tl.cex = 0.5, diag = FALSE, col=colorRampPalette(c("blue", "white", "red"))(200), cl.lim = c(-1,1), title = 'Simple', mar=c(0,0,5,0))
Expand here to see past versions of V-1.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |
# dev.off()

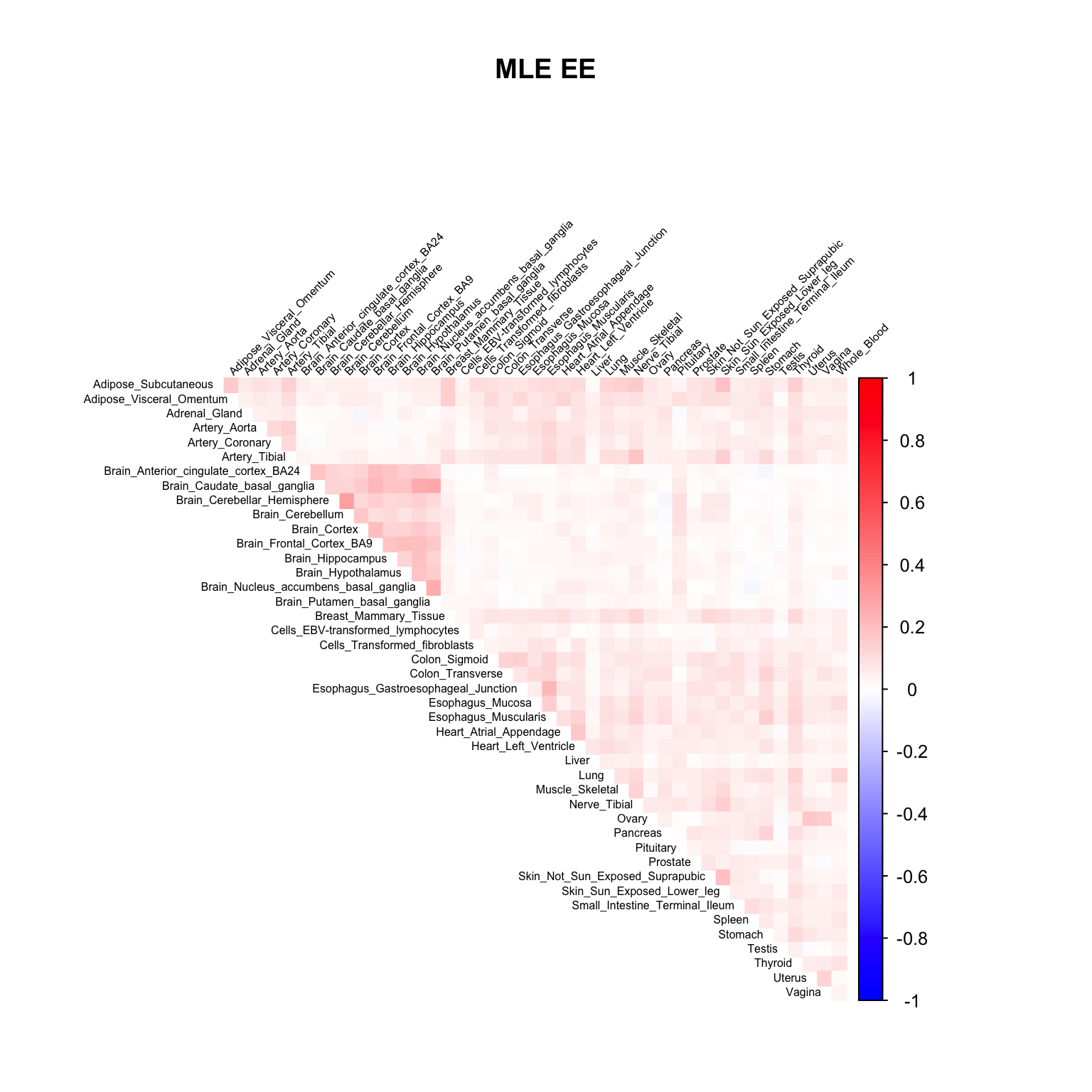

V.mle.EE = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EE.FL_PC3.V_mle.rds')
corrplot::corrplot(V.mle.EE, method='color', type='upper', tl.col="black", tl.srt=45, tl.cex = 0.5, diag = FALSE, col=colorRampPalette(c("blue", "white", "red"))(200), cl.lim = c(-1,1), title = 'MLE EE', mar=c(0,0,5,0))
Expand here to see past versions of V-2.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |

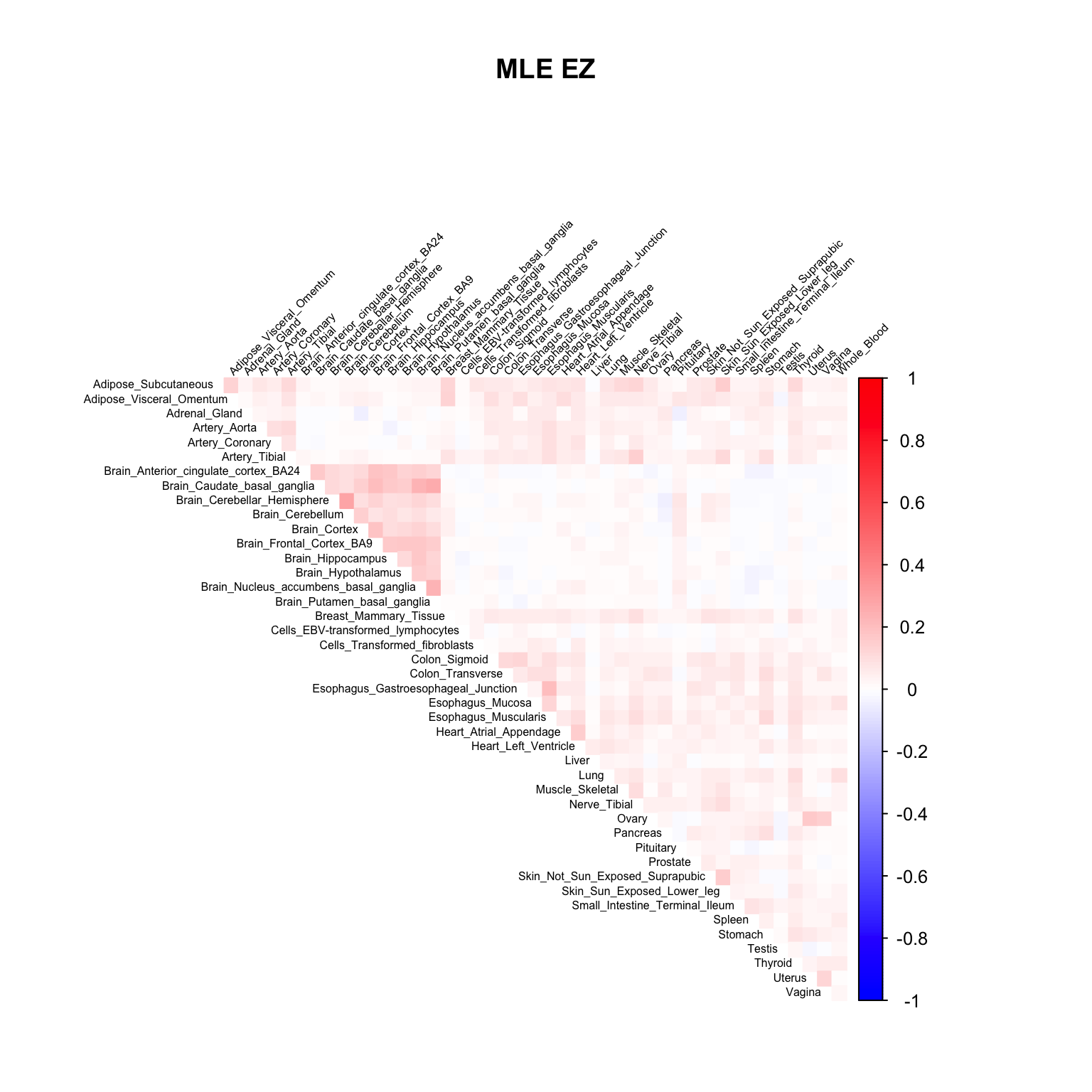

V.mle.EZ = readRDS('output/GTExV6pipeline/MatrixEQTLSumStats.Portable.Z.EZ.FL_PC3.V_mle.rds')
corrplot::corrplot(V.mle.EZ, method='color', type='upper', tl.col="black", tl.srt=45, tl.cex = 0.5, diag = FALSE, col=colorRampPalette(c("blue", "white", "red"))(200), cl.lim = c(-1,1), title = 'MLE EZ', mar=c(0,0,5,0))
Expand here to see past versions of V-3.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |
Results
logliks = c(get_loglik(m_simple_EE), get_loglik(m_mle_EE), get_loglik(m_Vgene_EE_kushal), get_loglik(m_Vgene_EE_nullz))
logliks_EZ = c(get_loglik(m_simple_EZ), get_loglik(m_mle_EZ), get_loglik(m_Vgene_EZ_kushal), get_loglik(m_Vgene_EZ_nullz))
tmp = cbind(logliks, logliks_EZ)
row.names(tmp) = c('Simple', 'MLE', 'Vgene Kushal', 'Vgene null z')
colnames(tmp) = c('EE', 'EZ')
tmp %>% kable() %>% kable_styling()| EE | EZ | |
|---|---|---|
| Simple | 936478.4 | 937254.7 |
| MLE | 940058.8 | 940457.4 |
| Vgene Kushal | 886368.9 | 907004.4 |
| Vgene null z | 1021859.8 | 1036059.9 |

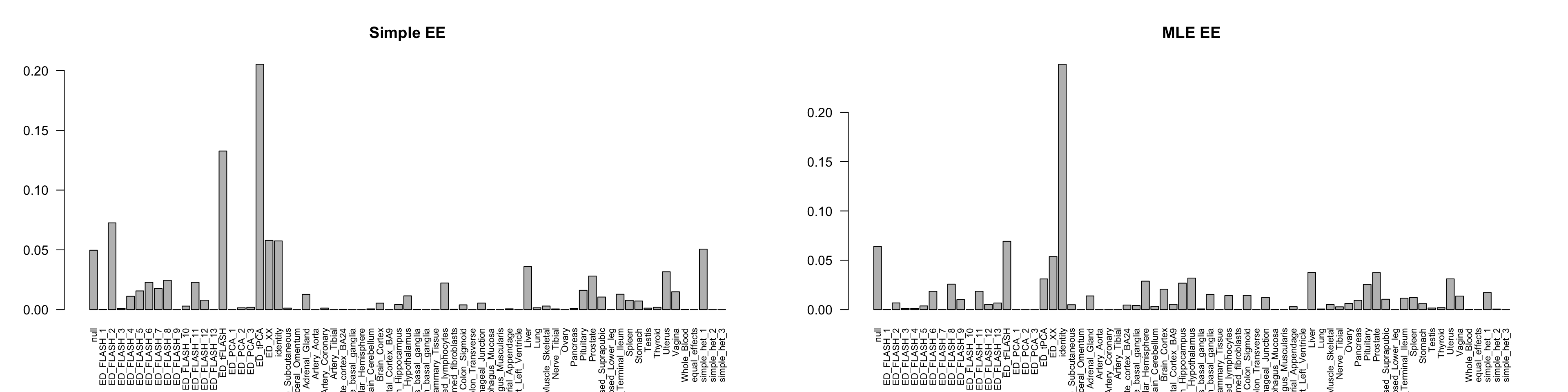

par(mfrow=c(1,2))
barplot(get_estimated_pi(m_simple_EE), las=2, cex.names = 0.7, main = 'Simple EE')
barplot(get_estimated_pi(m_mle_EE), las=2, cex.names = 0.7, main = 'MLE EE')
Expand here to see past versions of plot weights-1.png:
| Version | Author | Date |
|---|---|---|
| 02da57c | zouyuxin | 2019-01-27 |

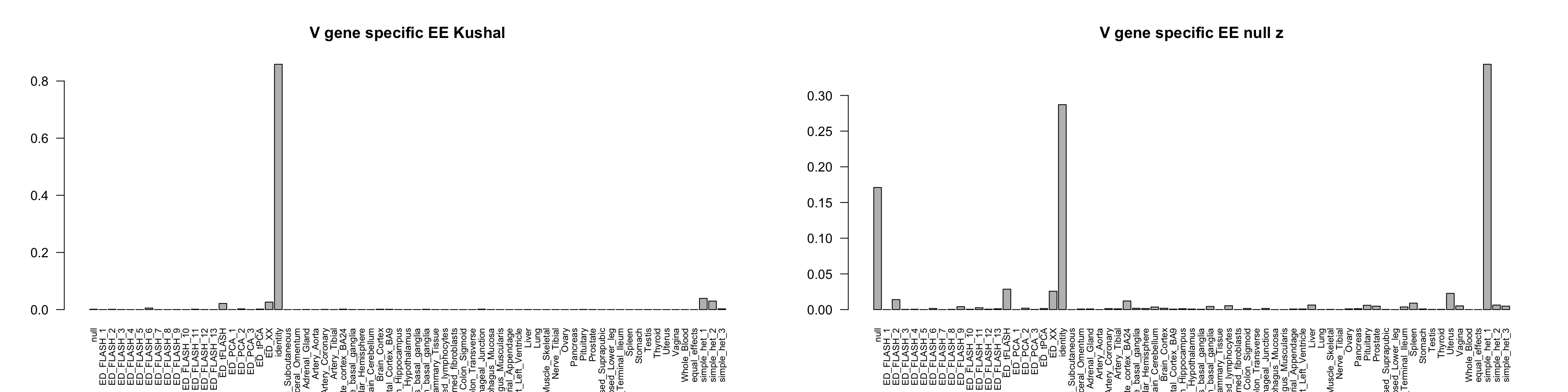

barplot(get_estimated_pi(m_Vgene_EE_kushal), las=2, cex.names = 0.7, main = 'V gene specific EE Kushal')
barplot(get_estimated_pi(m_Vgene_EE_nullz), las=2, cex.names = 0.7, main = 'V gene specific EE null z')
Expand here to see past versions of plot weights-2.png:
| Version | Author | Date |
|---|---|---|
| 5d17b16 | zouyuxin | 2019-01-29 |
| 02da57c | zouyuxin | 2019-01-27 |

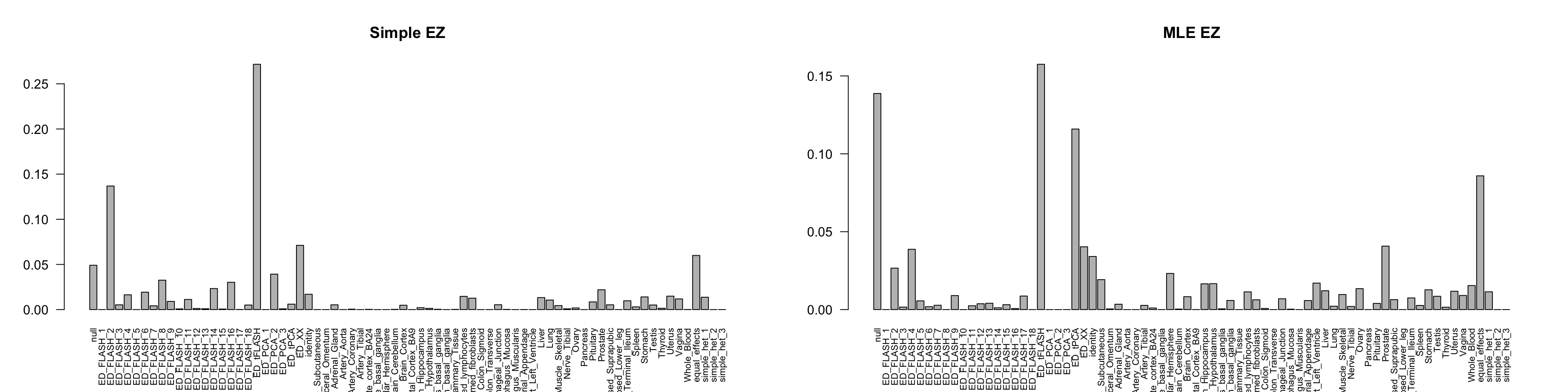

barplot(get_estimated_pi(m_simple_EZ), las=2, cex.names = 0.7, main = 'Simple EZ')
barplot(get_estimated_pi(m_mle_EZ), las=2, cex.names = 0.7, main = 'MLE EZ')
Expand here to see past versions of plot weights-3.png:
| Version | Author | Date |
|---|---|---|
| 5d17b16 | zouyuxin | 2019-01-29 |

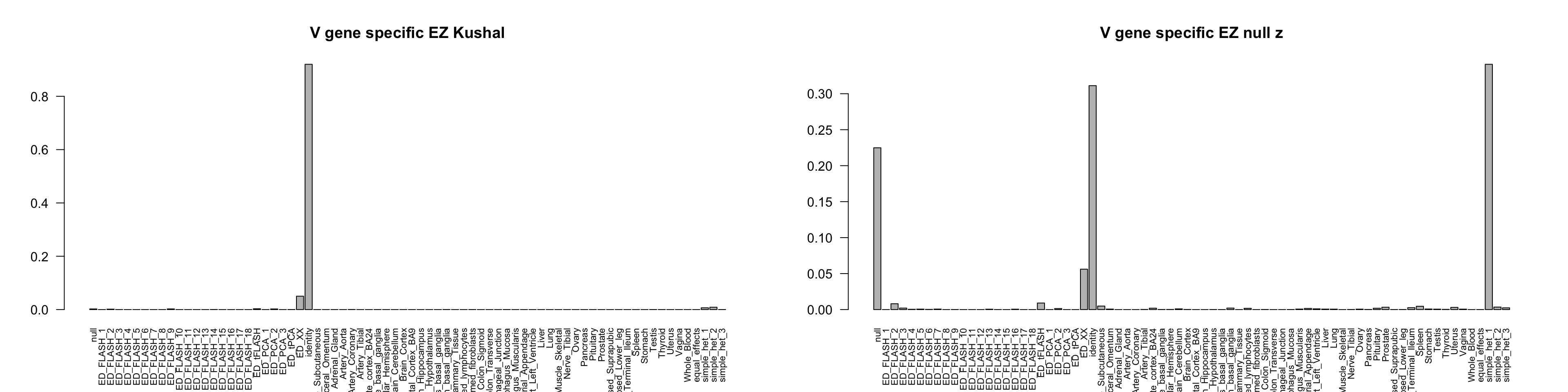

barplot(get_estimated_pi(m_Vgene_EZ_kushal), las=2, cex.names = 0.7, main = 'V gene specific EZ Kushal')
barplot(get_estimated_pi(m_Vgene_EZ_nullz), las=2, cex.names = 0.7, main = 'V gene specific EZ null z')
Expand here to see past versions of plot weights-4.png:
| Version | Author | Date |
|---|---|---|
| 5d17b16 | zouyuxin | 2019-01-29 |
Number of significant:
numsig_EE = c(length(get_significant_results(m_simple_EE)),
length(get_significant_results(m_mle_EE)),
length(get_significant_results(m_Vgene_EE_kushal)),
length(get_significant_results(m_Vgene_EE_nullz)))
numsig_EZ = c(length(get_significant_results(m_simple_EZ)),
length(get_significant_results(m_mle_EZ)),
length(get_significant_results(m_Vgene_EZ_kushal)),
length(get_significant_results(m_Vgene_EZ_nullz)))
tmp = cbind(numsig_EE, numsig_EZ)
row.names(tmp) = c('Simple', 'MLE', 'Vgene Kushal', 'Vgene null z')
colnames(tmp) = c('EE', 'EZ')
tmp %>% kable() %>% kable_styling()| EE | EZ | |
|---|---|---|
| Simple | 13068 | 13519 |
| MLE | 12654 | 12986 |
| Vgene Kushal | 15767 | 16066 |
| Vgene null z | 15916 | 15967 |

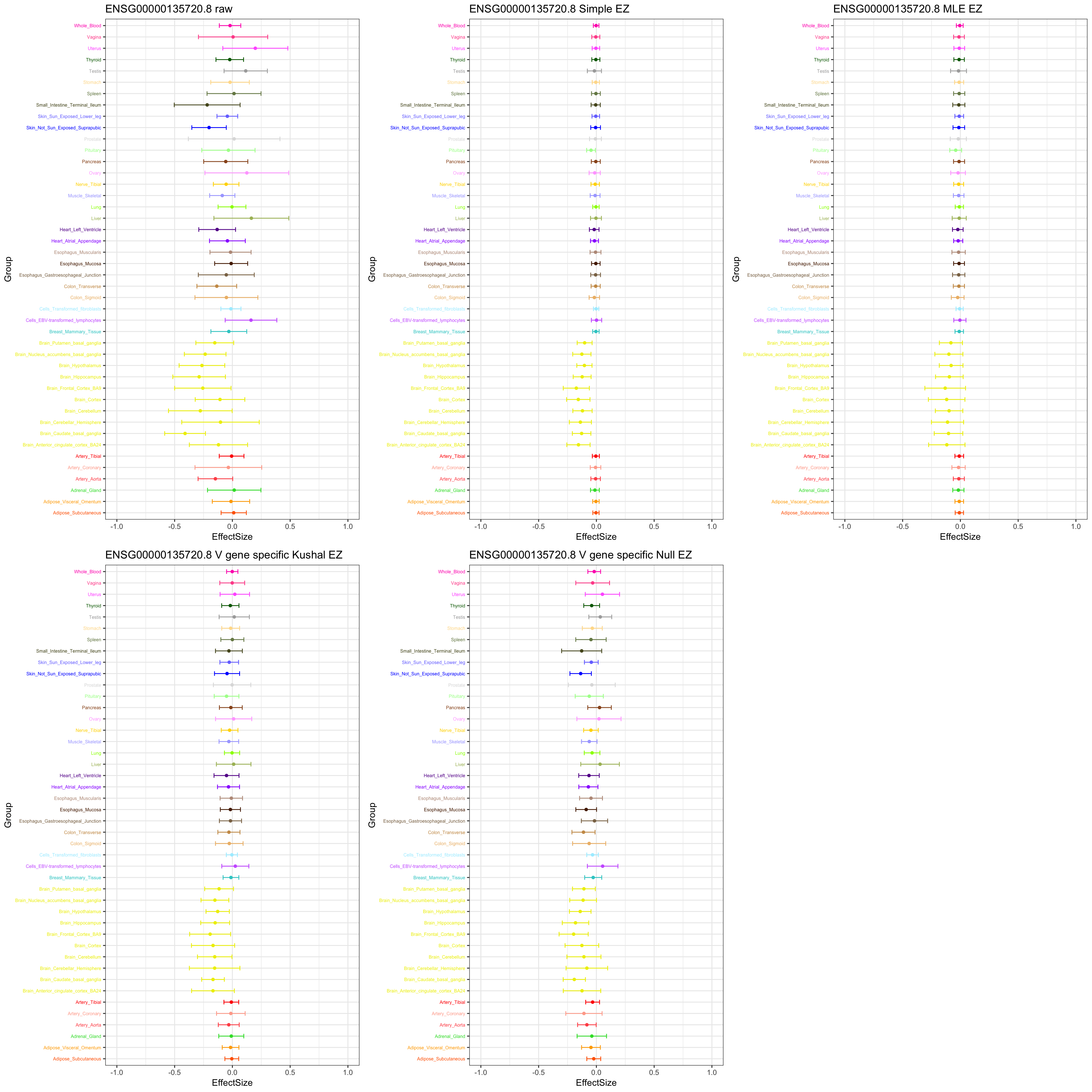

The gene significant in Simple EZ, not in MLE EZ:
ind = setdiff(get_significant_results(m_simple_EZ), get_significant_results(m_mle_EZ))[9]
stronggene = data.frame(gtex$strong.b[ind,])
colnames(stronggene) = 'EffectSize'
stronggene$Group = row.names(stronggene)
stronggene$se = gtex$strong.s[ind,]
p1 = ggplot(stronggene, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + coord_flip() + ggtitle(paste0(gene.names[ind], ' raw')) + ylim(c(-1,1)) + geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneSimple = data.frame(m_simple_EZ$result$PosteriorMean[ind,])
colnames(stronggeneSimple) = 'EffectSize'
stronggeneSimple$Group = row.names(stronggeneSimple)
stronggeneSimple$se = m_simple_EZ$result$PosteriorSD[ind,]
p2 = ggplot(stronggeneSimple, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + coord_flip() + ggtitle(paste0(gene.names[ind],' Simple EZ')) + ylim(c(-1,1)) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneMLE = data.frame(m_mle_EZ$result$PosteriorMean[ind,])
colnames(stronggeneMLE) = 'EffectSize'
stronggeneMLE$Group = row.names(stronggeneMLE)
stronggeneMLE$se = m_mle_EZ$result$PosteriorSD[ind,]
p3 = ggplot(stronggeneMLE, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + ylim(c(-1,1)) + coord_flip() + ggtitle(paste0(gene.names[ind],' MLE EZ')) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneVgeneKushal = data.frame(m_Vgene_EZ_kushal$result$PosteriorMean[ind,])
colnames(stronggeneVgeneKushal) = 'EffectSize'
stronggeneVgeneKushal$Group = row.names(stronggeneVgeneKushal)
stronggeneVgeneKushal$se = m_Vgene_EZ_kushal$result$PosteriorSD[ind,]
p4 = ggplot(stronggeneVgeneKushal, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + ylim(c(-1,1)) + coord_flip() + ggtitle(paste0(gene.names[ind],' V gene specific Kushal EZ')) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneVgeneNullZ = data.frame(m_Vgene_EZ_nullz$result$PosteriorMean[ind,])
colnames(stronggeneVgeneNullZ) = 'EffectSize'
stronggeneVgeneNullZ$Group = row.names(stronggeneVgeneNullZ)
stronggeneVgeneNullZ$se = m_Vgene_EZ_nullz$result$PosteriorSD[ind,]
p5 = ggplot(stronggeneVgeneNullZ, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + ylim(c(-1,1)) + coord_flip() + ggtitle(paste0(gene.names[ind],' V gene specific Null EZ')) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
grid.arrange(p1, p2, p3, p4, p5, nrow = 2)
Expand here to see past versions of unnamed-chunk-3-1.png:
| Version | Author | Date |
|---|---|---|
| 5d17b16 | zouyuxin | 2019-01-29 |
| 02da57c | zouyuxin | 2019-01-27 |

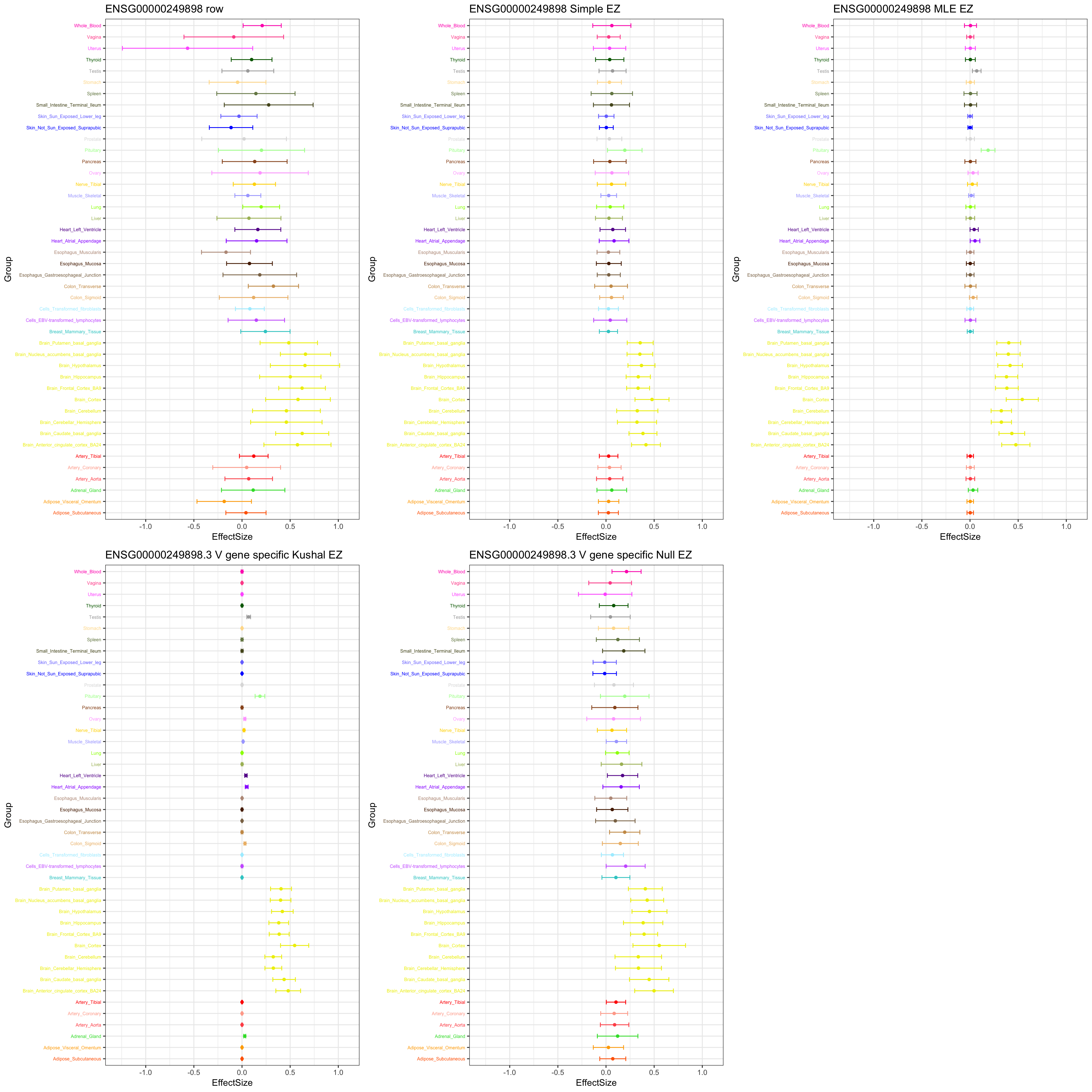

The gene MCPH1:
ind = 13837
stronggene = data.frame(gtex$strong.b[13837,])
colnames(stronggene) = 'EffectSize'
stronggene$Group = row.names(stronggene)
stronggene$se = gtex$strong.s[13837,]
p1 = ggplot(stronggene, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + coord_flip() + ggtitle('ENSG00000249898 row') + ylim(c(-1.3,1.1)) + geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneSimple = data.frame(m_simple_EZ$result$PosteriorMean[13837,])
colnames(stronggeneSimple) = 'EffectSize'
stronggeneSimple$Group = row.names(stronggeneSimple)
stronggeneSimple$se = m_simple_EZ$result$PosteriorSD[13837,]
p2 = ggplot(stronggeneSimple, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + ylim(c(-1.3,1.1)) + coord_flip() + ggtitle('ENSG00000249898 Simple EZ') +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneMLE = data.frame(m_mle_EZ$result$PosteriorMean[13837,])
colnames(stronggeneMLE) = 'EffectSize'
stronggeneMLE$Group = row.names(stronggeneMLE)
stronggeneMLE$se = m_mle_EZ$result$PosteriorSD[13837,]
p3 = ggplot(stronggeneMLE, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + coord_flip() + ggtitle('ENSG00000249898 MLE EZ') + ylim(c(-1.3,1.1)) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneVgeneKushal = data.frame(m_Vgene_EZ_kushal$result$PosteriorMean[ind,])
colnames(stronggeneVgeneKushal) = 'EffectSize'
stronggeneVgeneKushal$Group = row.names(stronggeneVgeneKushal)
stronggeneVgeneKushal$se = m_Vgene_EZ_kushal$result$PosteriorSD[ind,]
p4 = ggplot(stronggeneVgeneKushal, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + ylim(c(-1.3,1.1)) + coord_flip() + ggtitle(paste0(gene.names[ind],' V gene specific Kushal EZ')) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneVgeneNullZ = data.frame(m_Vgene_EZ_nullz$result$PosteriorMean[ind,])
colnames(stronggeneVgeneNullZ) = 'EffectSize'
stronggeneVgeneNullZ$Group = row.names(stronggeneVgeneNullZ)
stronggeneVgeneNullZ$se = m_Vgene_EZ_nullz$result$PosteriorSD[ind,]
p5 = ggplot(stronggeneVgeneNullZ, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + ylim(c(-1.3,1.1)) + coord_flip() + ggtitle(paste0(gene.names[ind],' V gene specific Null EZ')) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
grid.arrange(p1, p2, p3, p4, p5, nrow = 2)
Expand here to see past versions of unnamed-chunk-4-1.png:
| Version | Author | Date |
|---|---|---|
| 5d17b16 | zouyuxin | 2019-01-29 |
| 02da57c | zouyuxin | 2019-01-27 |

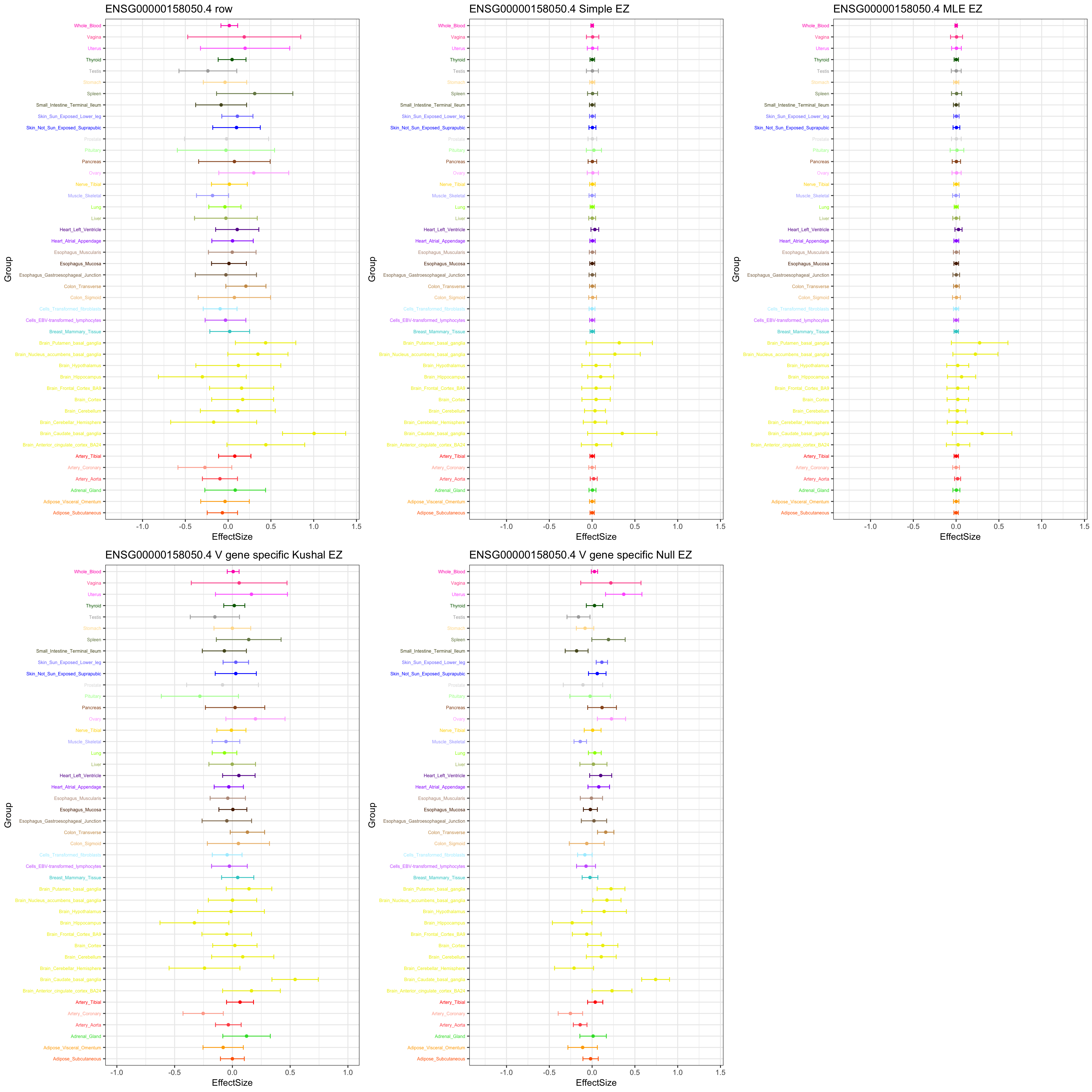

The gene significant in V gene specific EZ (null) tissuewide, not in mle EZ:
ind = setdiff(get_significant_results(m_Vgene_EZ_nullz), get_significant_results(m_mle_EZ))[10]
stronggene = data.frame(gtex$strong.b[ind,])
colnames(stronggene) = 'EffectSize'
stronggene$Group = row.names(stronggene)
stronggene$se = gtex$strong.s[ind,]
p1 = ggplot(stronggene, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + coord_flip() + ggtitle(paste0(gene.names[ind],' row')) + ylim(c(-1.3,1.4)) + geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneSimple = data.frame(m_simple_EZ$result$PosteriorMean[ind,])
colnames(stronggeneSimple) = 'EffectSize'
stronggeneSimple$Group = row.names(stronggeneSimple)
stronggeneSimple$se = m_simple_EZ$result$PosteriorSD[ind,]
p2 = ggplot(stronggeneSimple, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + ylim(c(-1.3,1.4)) + coord_flip() + ggtitle(paste0(gene.names[ind],' Simple EZ')) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneMLE = data.frame(m_mle_EZ$result$PosteriorMean[ind,])
colnames(stronggeneMLE) = 'EffectSize'
stronggeneMLE$Group = row.names(stronggeneMLE)
stronggeneMLE$se = m_mle_EZ$result$PosteriorSD[ind,]
p3 = ggplot(stronggeneMLE, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + coord_flip() + ggtitle(paste0(gene.names[ind],' MLE EZ')) + ylim(c(-1.3,1.4)) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneVgeneKushal = data.frame(m_Vgene_EZ_kushal$result$PosteriorMean[ind,])
colnames(stronggeneVgeneKushal) = 'EffectSize'
stronggeneVgeneKushal$Group = row.names(stronggeneVgeneKushal)
stronggeneVgeneKushal$se = m_Vgene_EZ_kushal$result$PosteriorSD[ind,]
p4 = ggplot(stronggeneVgeneKushal, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + ylim(c(-1,1)) + coord_flip() + ggtitle(paste0(gene.names[ind],' V gene specific Kushal EZ')) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
stronggeneVgeneNullZ = data.frame(m_Vgene_EZ_nullz$result$PosteriorMean[ind,])
colnames(stronggeneVgeneNullZ) = 'EffectSize'
stronggeneVgeneNullZ$Group = row.names(stronggeneVgeneNullZ)
stronggeneVgeneNullZ$se = m_Vgene_EZ_nullz$result$PosteriorSD[ind,]
p5 = ggplot(stronggeneVgeneNullZ, aes(y = EffectSize, x = Group)) +
geom_point(show.legend = FALSE, color=gtex.colors) + ylim(c(-1.3,1.4)) + coord_flip() + ggtitle(paste0(gene.names[ind],' V gene specific Null EZ')) +
geom_errorbar(aes(ymin=EffectSize-1.96*se, ymax=EffectSize+1.96*se), width=0.4, show.legend = FALSE, color=gtex.colors) +
theme_bw(base_size=12) + theme(axis.text.y = element_text(colour = gtex.colors, size = 6))
grid.arrange(p1, p2, p3, p4, p5, nrow = 2)
Expand here to see past versions of unnamed-chunk-5-1.png:
| Version | Author | Date |
|---|---|---|
| 5d17b16 | zouyuxin | 2019-01-29 |
| 02da57c | zouyuxin | 2019-01-27 |

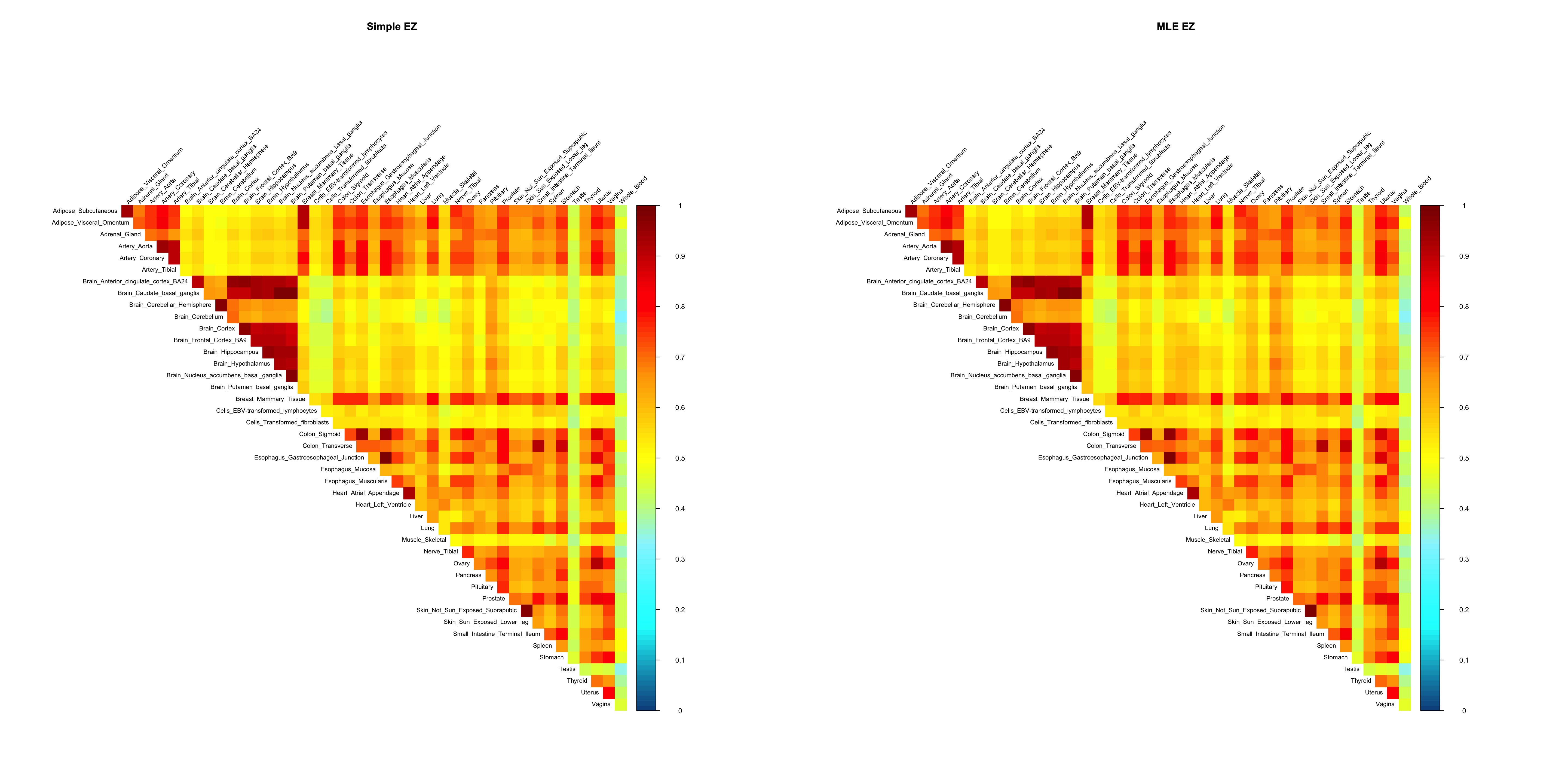

The pairwise sharing by magnitude
par(mfrow = c(1,2))
clrs=colorRampPalette(rev(c('darkred', 'red','orange','yellow','cadetblue1', 'cyan', 'dodgerblue4', 'blue','darkorchid1','lightgreen','green', 'forestgreen','darkolivegreen')))(200)
x <- get_pairwise_sharing(m_simple_EZ)
colnames(x) <- colnames(get_lfsr(m_simple_EZ))
rownames(x) <- colnames(x)
corrplot::corrplot(x, method='color', type='upper', tl.col="black", tl.srt=45, tl.cex = 0.7, diag = FALSE, col=clrs, cl.lim = c(0,1), title = 'Simple EZ', mar=c(0,0,5,0))
x <- get_pairwise_sharing(m_mle_EZ)
colnames(x) <- colnames(get_lfsr(m_mle_EZ))
rownames(x) <- colnames(x)
corrplot::corrplot(x, method='color', type='upper', tl.col="black", tl.srt=45, tl.cex = 0.7, diag = FALSE, col=clrs, cl.lim = c(0,1), title = 'MLE EZ', mar=c(0,0,5,0))
Expand here to see past versions of unnamed-chunk-6-1.png:
| Version | Author | Date |
|---|---|---|
| 5d17b16 | zouyuxin | 2019-01-29 |

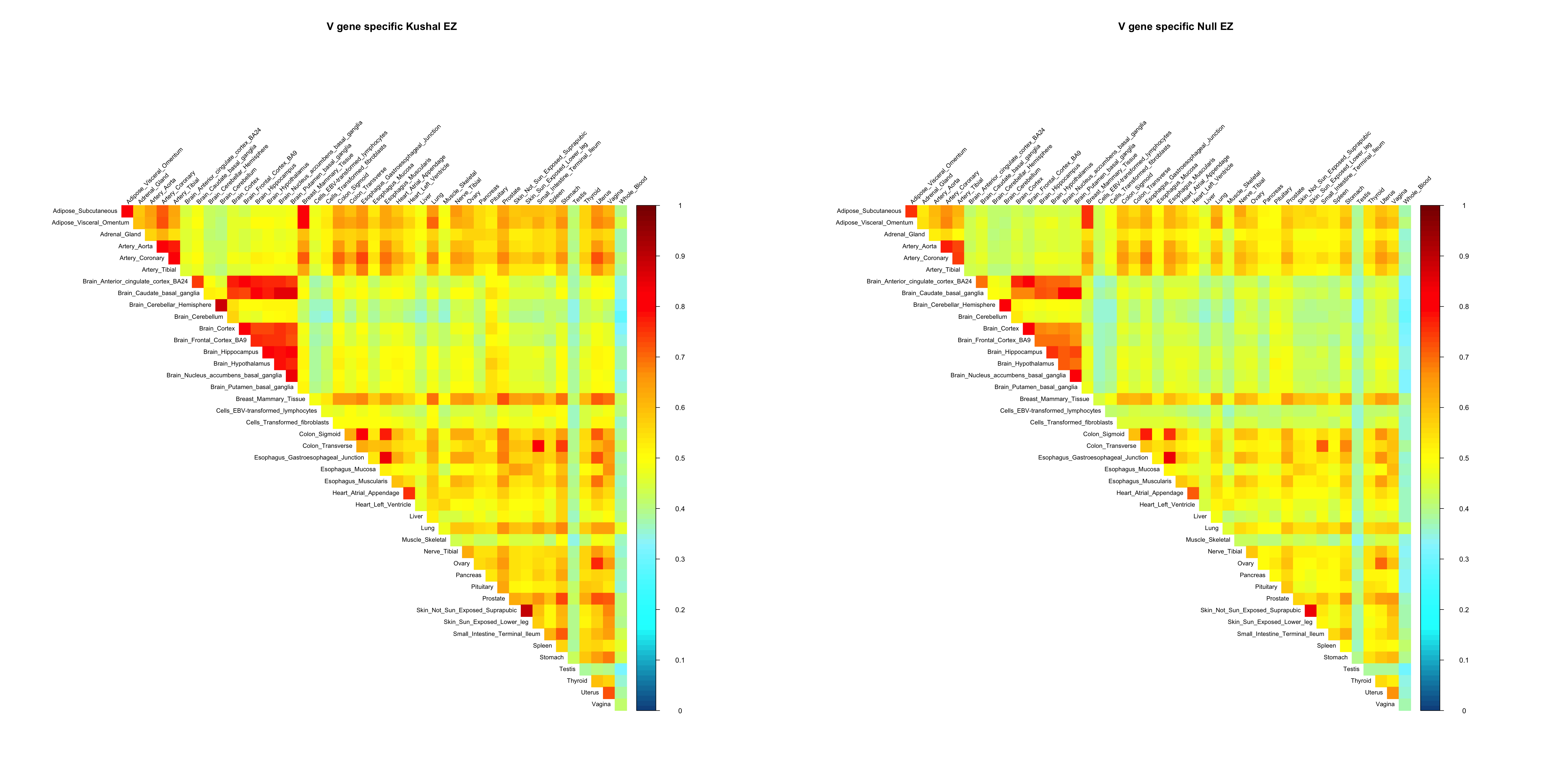

par(mfrow = c(1,2))
clrs=colorRampPalette(rev(c('darkred', 'red','orange','yellow','cadetblue1', 'cyan', 'dodgerblue4', 'blue','darkorchid1','lightgreen','green', 'forestgreen','darkolivegreen')))(200)
x <- get_pairwise_sharing(m_Vgene_EZ_kushal)
colnames(x) <- colnames(get_lfsr(m_Vgene_EZ_kushal))
rownames(x) <- colnames(x)
corrplot::corrplot(x, method='color', type='upper', tl.col="black", tl.srt=45, tl.cex = 0.7, diag = FALSE, col=clrs, cl.lim = c(0,1), title = 'V gene specific Kushal EZ', mar=c(0,0,5,0))
x <- get_pairwise_sharing(m_Vgene_EZ_nullz)
colnames(x) <- colnames(get_lfsr(m_Vgene_EZ_nullz))
rownames(x) <- colnames(x)
corrplot::corrplot(x, method='color', type='upper', tl.col="black", tl.srt=45, tl.cex = 0.7, diag = FALSE, col=clrs, cl.lim = c(0,1), title = 'V gene specific Null EZ', mar=c(0,0,5,0))
Expand here to see past versions of unnamed-chunk-7-1.png:
| Version | Author | Date |
|---|---|---|
| 5d17b16 | zouyuxin | 2019-01-29 |
Session information
sessionInfo()R version 3.5.1 (2018-07-02)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS 10.14.2
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] gridExtra_2.3 ggplot2_3.1.0 kableExtra_1.0.1 knitr_1.20
[5] mashr_0.2.19.0555 ashr_2.2-26
loaded via a namespace (and not attached):
[1] tidyselect_0.2.5 corrplot_0.84 purrr_0.2.5
[4] lattice_0.20-38 colorspace_1.4-0 htmltools_0.3.6
[7] viridisLite_0.3.0 yaml_2.2.0 rlang_0.3.1
[10] R.oo_1.22.0 mixsqp_0.1-93 pillar_1.3.1
[13] withr_2.1.2 glue_1.3.0 R.utils_2.7.0
[16] bindrcpp_0.2.2 bindr_0.1.1 foreach_1.4.4
[19] plyr_1.8.4 stringr_1.3.1 munsell_0.5.0
[22] gtable_0.2.0 workflowr_1.1.1 rvest_0.3.2
[25] R.methodsS3_1.7.1 mvtnorm_1.0-8 codetools_0.2-16
[28] evaluate_0.12 labeling_0.3 pscl_1.5.2
[31] doParallel_1.0.14 parallel_3.5.1 highr_0.7
[34] Rcpp_1.0.0 readr_1.3.1 backports_1.1.3
[37] scales_1.0.0 rmeta_3.0 webshot_0.5.1
[40] truncnorm_1.0-8 abind_1.4-5 hms_0.4.2
[43] digest_0.6.18 stringi_1.2.4 dplyr_0.7.8
[46] grid_3.5.1 rprojroot_1.3-2 tools_3.5.1
[49] magrittr_1.5 lazyeval_0.2.1 tibble_2.0.1
[52] crayon_1.3.4 whisker_0.3-2 pkgconfig_2.0.2
[55] MASS_7.3-51.1 Matrix_1.2-15 SQUAREM_2017.10-1
[58] xml2_1.2.0 assertthat_0.2.0 rmarkdown_1.11
[61] httr_1.4.0 rstudioapi_0.9.0 iterators_1.0.10
[64] R6_2.3.0 git2r_0.24.0 compiler_3.5.1 This reproducible R Markdown analysis was created with workflowr 1.1.1
