MASH v FLASH detailed simulation study

Introduction

Here I study simulations from a MASH model that extends the “model with independent, unique, and shared effects” from my larger simulation study. For the code used in this analysis, see below.

Simulations

I run 10 simulations, each of which simulates data for 20 conditions and 1200 tests. I use 17 different covariance structures, each of which are used to simulate 25 tests. The other 775 tests are null across all conditions.

Fitting methods

The fitting methods are identical to those described in my previous study of GTEx data.

Results

I pre-run the script below and load the results from file.

rrmses <- sqrt(readRDS("./output/MASHvFLASHsims2/mses.rds"))
pr <- readRDS("./output/MASHvFLASHsims2/pr.rds")

RRMSE (nulls)

First I give a breakdown of the relative root mean-squared errors (that is, the RMSE for each fit object, divided by the RMSE that would be obtained by simply using the observed data \(Y\) to estimate the “true effects” \(X\)). In addition to calculating the RRMSE separately for each covariance type, I also separately consider null effects and nonnull effects.

MASH does much better in shrinking null effects towards zero for tests that are null across all conditions or that are unique to a single condition (covariance types 7-8). However, the OHF method much better on nulls when nonnull effects are of medium size and are shared across several conditions (types 9 and 11). Here, it is possibly relevant to recall that cases 7 and 8 are covered by canonical covariance matrices in MASH but cases 9 and 11 are not.

method.names <- c("pn.zero", "pn.OHF", "ash.zero", "ash.OHF", "mash")
plot.order <- c(5, 2, 4, 1, 3)
legend.args <- list(x="right", bty="n", inset=c(-0.25,0), xpd=T)

main.null <- list()
idx.null <- list()
names.null <- list()

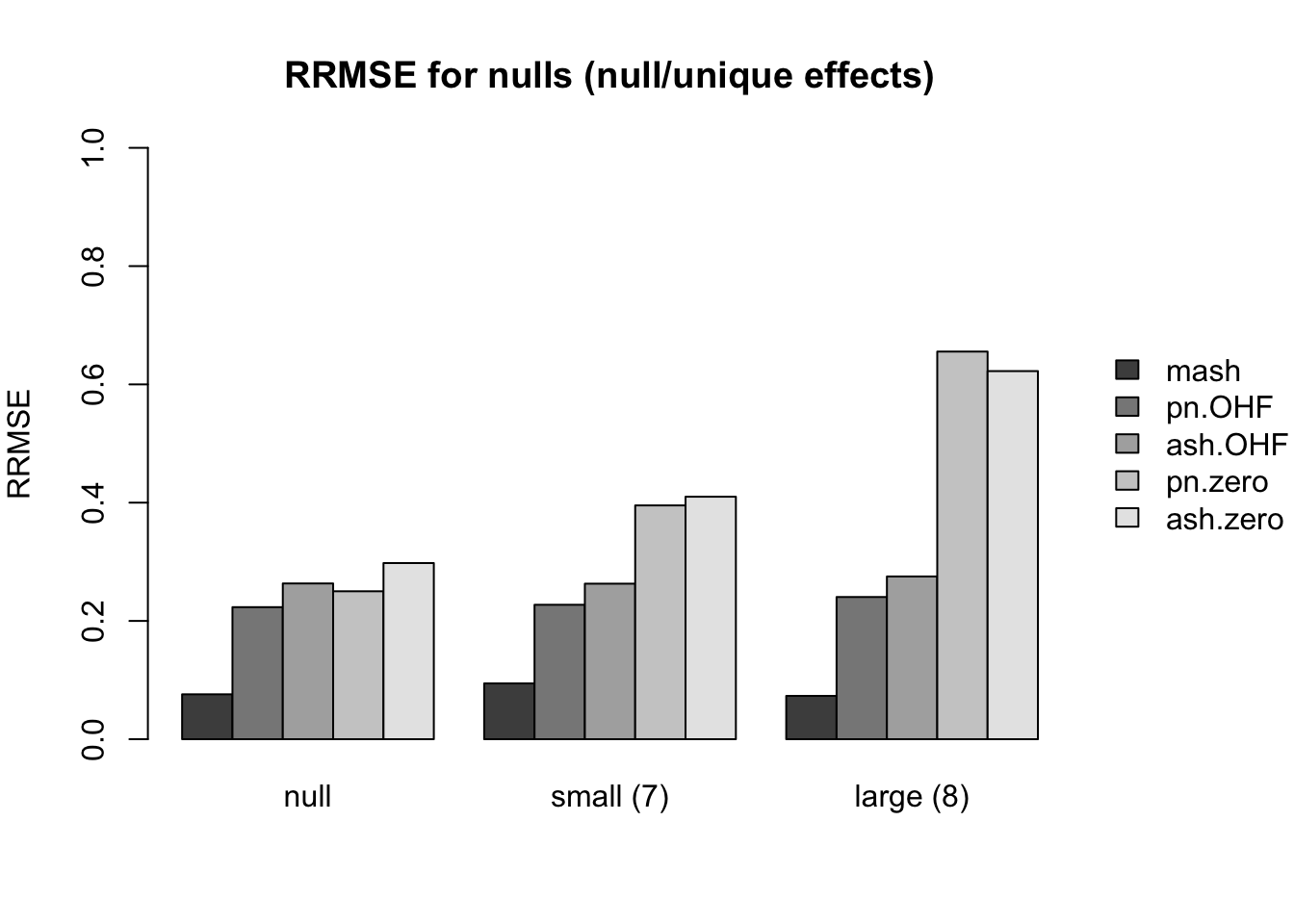

main.null[[1]] <- "RRMSE for nulls (null/unique effects)"
idx.null[[1]] <- c(23, 7, 9)
names.null[[1]] <- c("null", "small (7)", "large (8)")

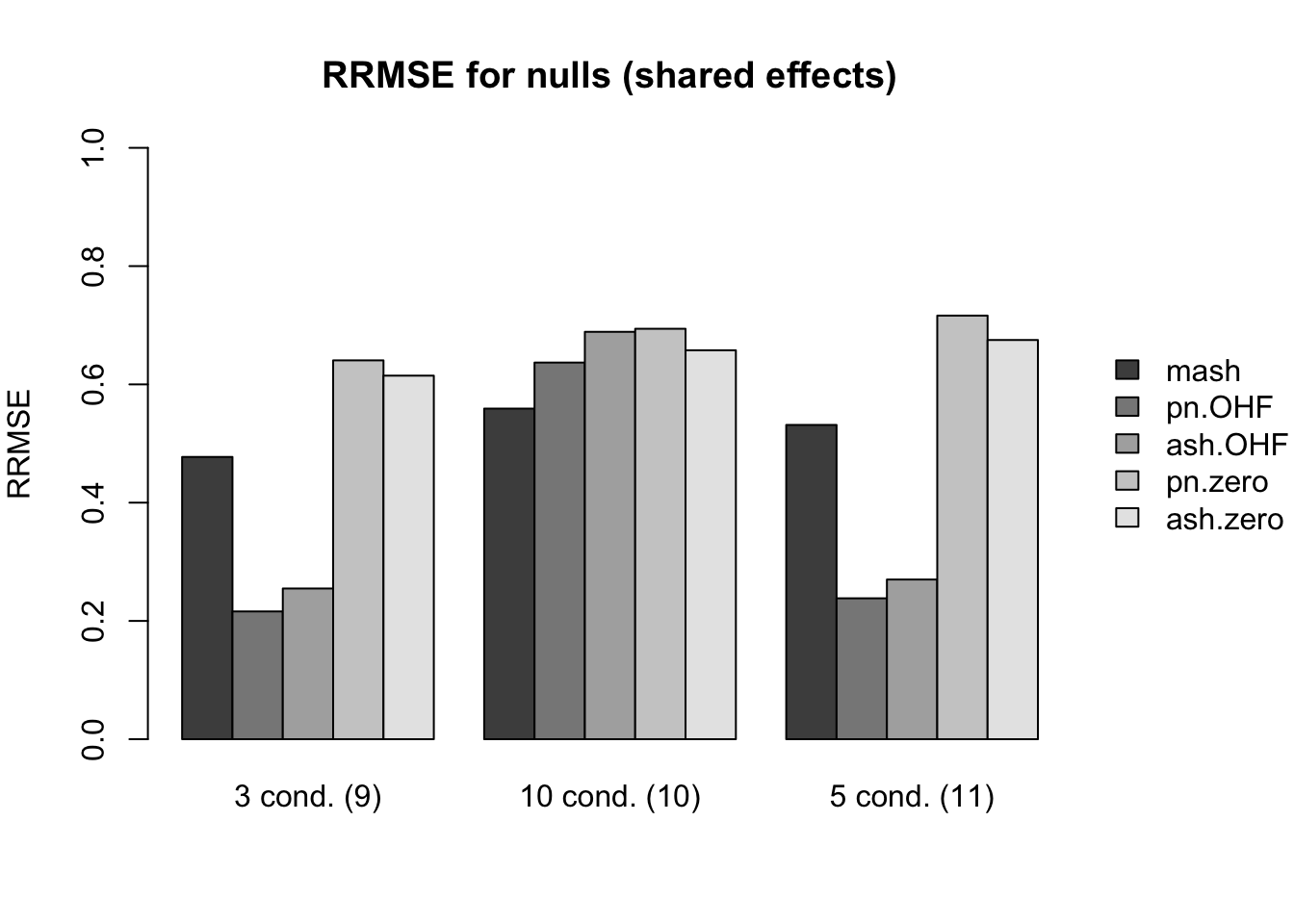

main.null[[2]] <- "RRMSE for nulls (shared effects)"
idx.null[[2]] <- c(11, 13, 15)
names.null[[2]] <- c("3 cond. (9)", "10 cond. (10)", "5 cond. (11)")

par(mar = c(5,4,4,6))
for (i in 1:length(main.null)) {
  barplot(rrmses[plot.order, idx.null[[i]]],
          names.arg = names.null[[i]], beside=T,
          ylim=c(0, 1), ylab="RRMSE",
          main=main.null[[i]], legend.text=method.names[plot.order],
          args.legend=legend.args)
}

Expand here to see past versions of mse_null-1.png:

Version	Author	Date
0a83e6c	Jason Willwerscheid	2018-07-22
ce6e790	Jason Willwerscheid	2018-06-26
17ae3f3	Jason Willwerscheid	2018-06-24

RRMSE (nonnulls)

Results for nonnull effects are more even. MASH generally does a bit better than FLASH, with the notable exception of type 17 (a combination of identical and unique effects) and the possible exception of unique effects (types 7-8).

main.nonnull <- list()
idx.nonnull <- list()
names.nonnull <- list()

main.nonnull[[1]] <- "RRMSE for independent effects"
idx.nonnull[[1]] <- 1:3
names.nonnull[[1]] <- c("small (1)", "large (2)", "various (3)")

main.nonnull[[2]] <- "RRMSE for identical and rank-1 effects"
idx.nonnull[[2]] <- 4:6
names.nonnull[[2]] <- c("sm. ident. (4)", "lg. ident. (5)", "rank-1 (6)")

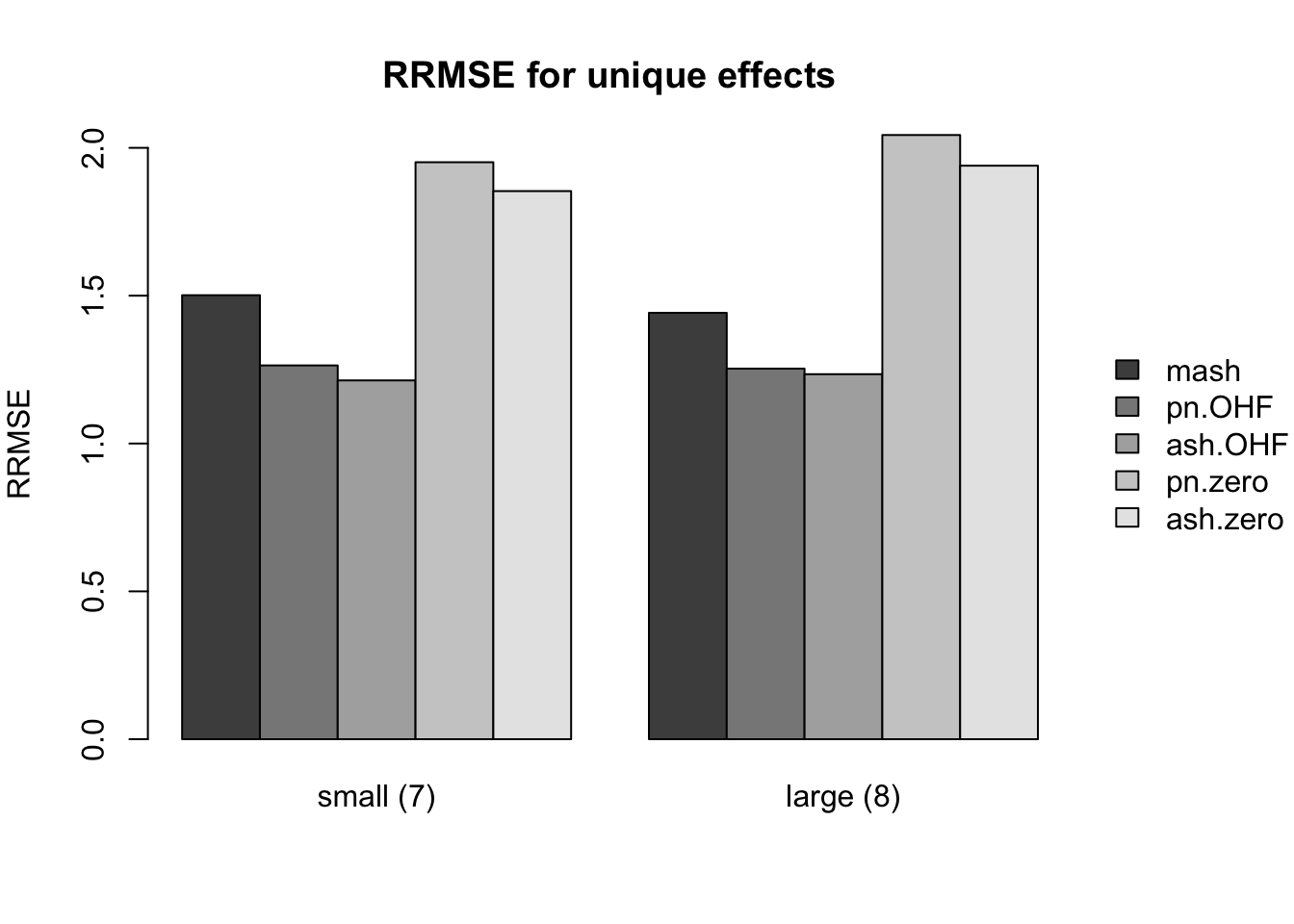

main.nonnull[[3]] <- "RRMSE for unique effects"
idx.nonnull[[3]] <- c(8, 10)
names.nonnull[[3]] <- c("small (7)", "large (8)")

main.nonnull[[4]] <- "RRMSE for shared effects"
idx.nonnull[[4]] <- c(12, 14, 16)
names.nonnull[[4]] <- c("3 cond. (9)", "10 cond. (10)", "5 cond. (11)")

main.nonnull[[5]] <- "RRMSE for random covariance"
idx.nonnull[[5]] <- 17:19
names.nonnull[[5]] <- c("rank-5 (12)", "rank-10 (13)", "full-rank (14)")

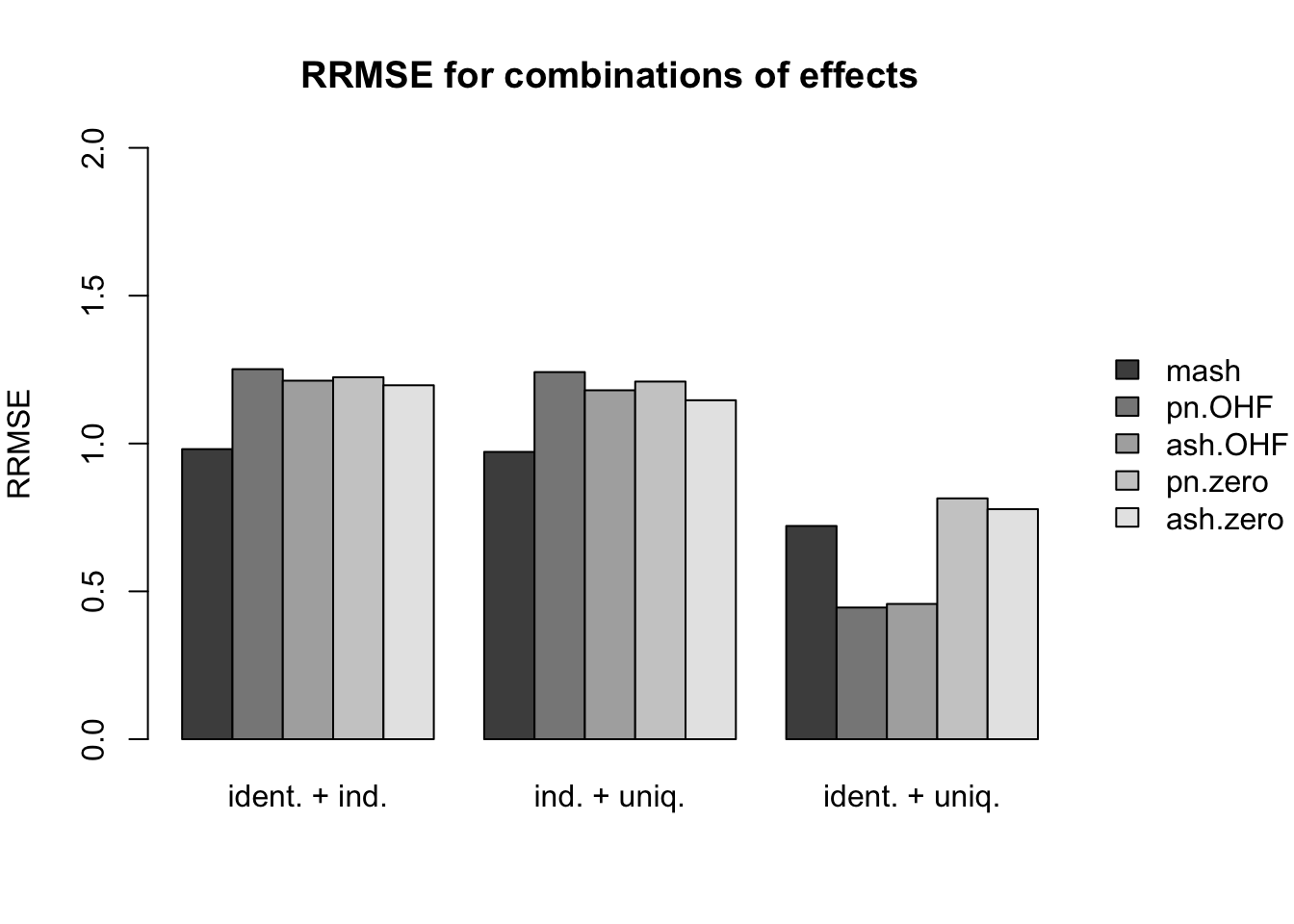

main.nonnull[[6]] <- "RRMSE for combinations of effects"
idx.nonnull[[6]] <- 20:22
names.nonnull[[6]] <- c("ident. + ind.", "ind. + uniq.", "ident. + uniq.")

par(mar = c(5,4,4,6))
for (i in 1:length(main.nonnull)) {
  barplot(rrmses[plot.order, idx.nonnull[[i]]],
          names.arg = names.nonnull[[i]], beside=T,
          ylim=c(0, 2), ylab="RRMSE",
          main=main.nonnull[[i]], legend.text=method.names[plot.order],
          args.legend=legend.args)
}

Expand here to see past versions of mse_nonnull-1.png:

Version	Author	Date
0a83e6c	Jason Willwerscheid	2018-07-22
ce6e790	Jason Willwerscheid	2018-06-26
17ae3f3	Jason Willwerscheid	2018-06-24

Expand here to see past versions of mse_nonnull-2.png:

Version	Author	Date
0a83e6c	Jason Willwerscheid	2018-07-22
ce6e790	Jason Willwerscheid	2018-06-26
17ae3f3	Jason Willwerscheid	2018-06-24

Expand here to see past versions of mse_nonnull-3.png:

Version	Author	Date
0a83e6c	Jason Willwerscheid	2018-07-22
ce6e790	Jason Willwerscheid	2018-06-26
17ae3f3	Jason Willwerscheid	2018-06-24

get_fpr <- function(pr) {
  nullidx <- c(7, 9, 11, 13, 15)
  fp <- 25 * rowSums(pr[, nullidx]) + 775 * (pr[, 23])
  fp / (25 * length(nullidx) + 775)
}
plot_fprvtpr <- function(idx, typename) {
  colors <- c("orangered", "blue", "orange", "sky blue", "seagreen")
  plot.order <- c(5, 1, 3, 2, 4)
  plot(get_fpr(pr$mash), pr$mash[, idx], type='l',
       col=colors[length(method.names)], lty=1,
       xlab="FPR", ylab="TPR", ylim=c(0, 1), main=typename)
  for (i in 1:(length(method.names) - 1)) {
    next.pr <- pr[[method.names[i]]]
    lines(get_fpr(next.pr), next.pr[, idx], col=colors[i], lty=1)
  }
  legend("bottomright", legend=method.names[plot.order],
         col=colors[plot.order], lty=1)
}

par(mfrow=c(1, 2))

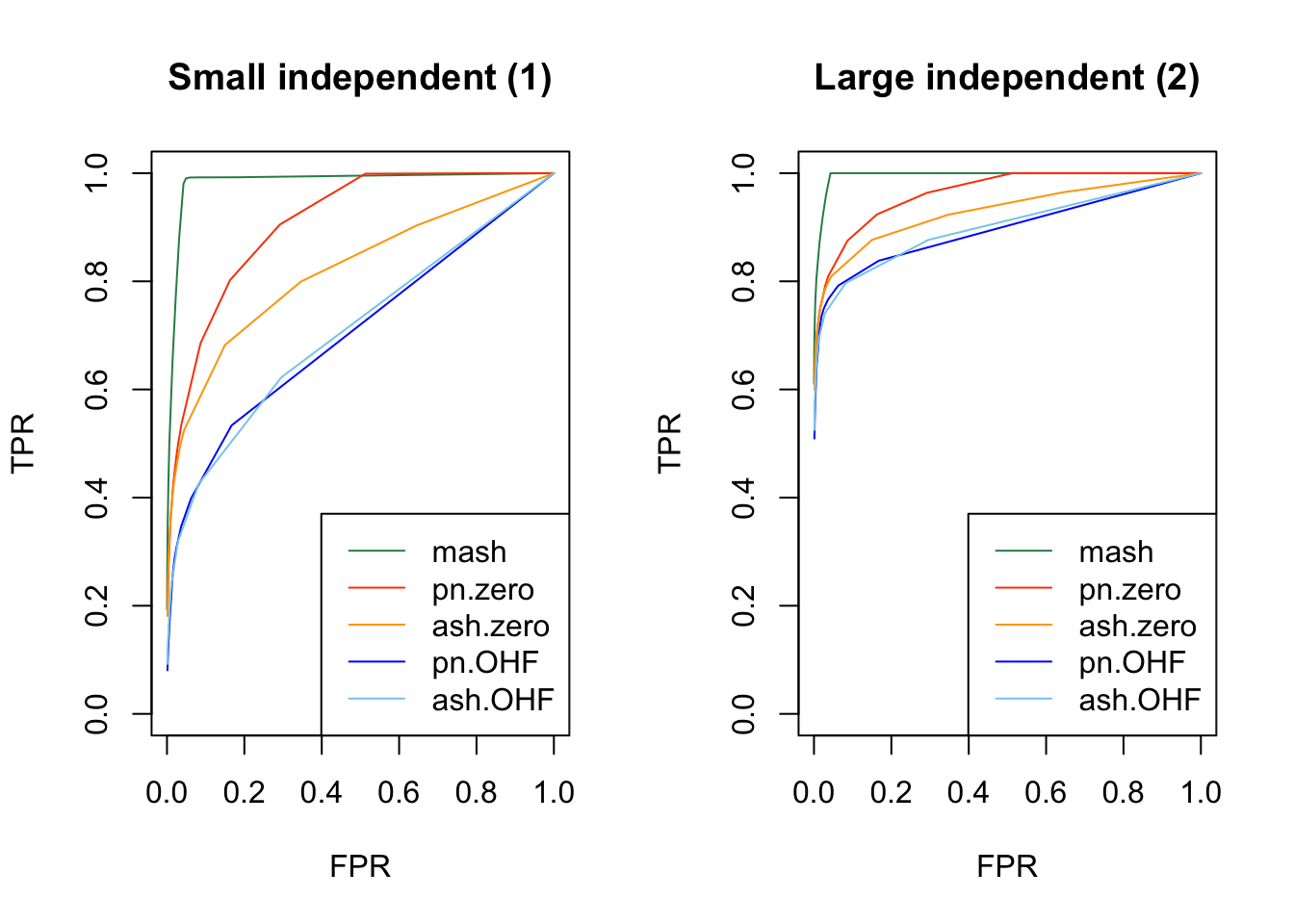

plot_fprvtpr(1, "Small independent (1)")
plot_fprvtpr(2, "Large independent (2)")

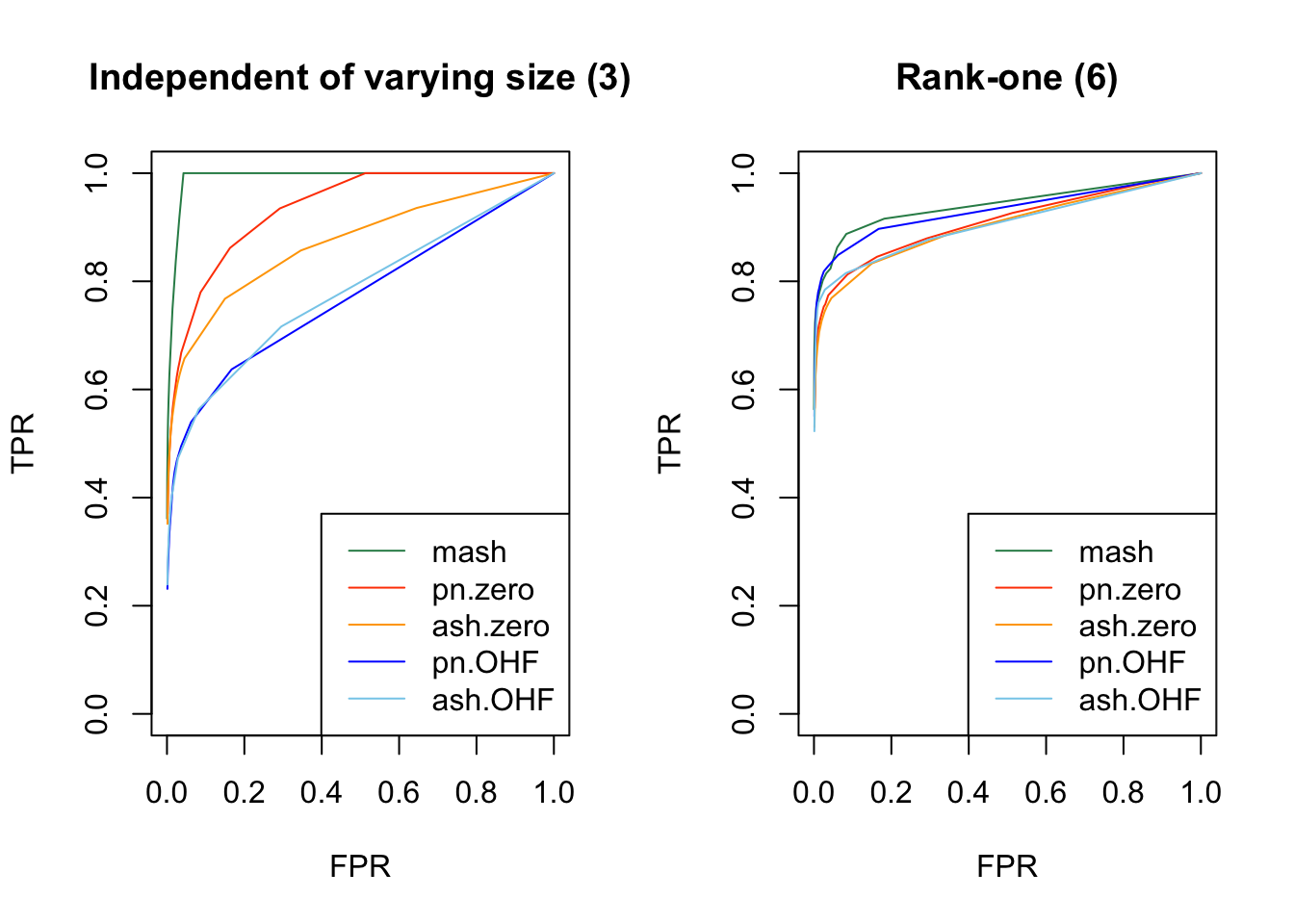

plot_fprvtpr(3, "Independent of varying size (3)")
plot_fprvtpr(6, "Rank-one (6)")

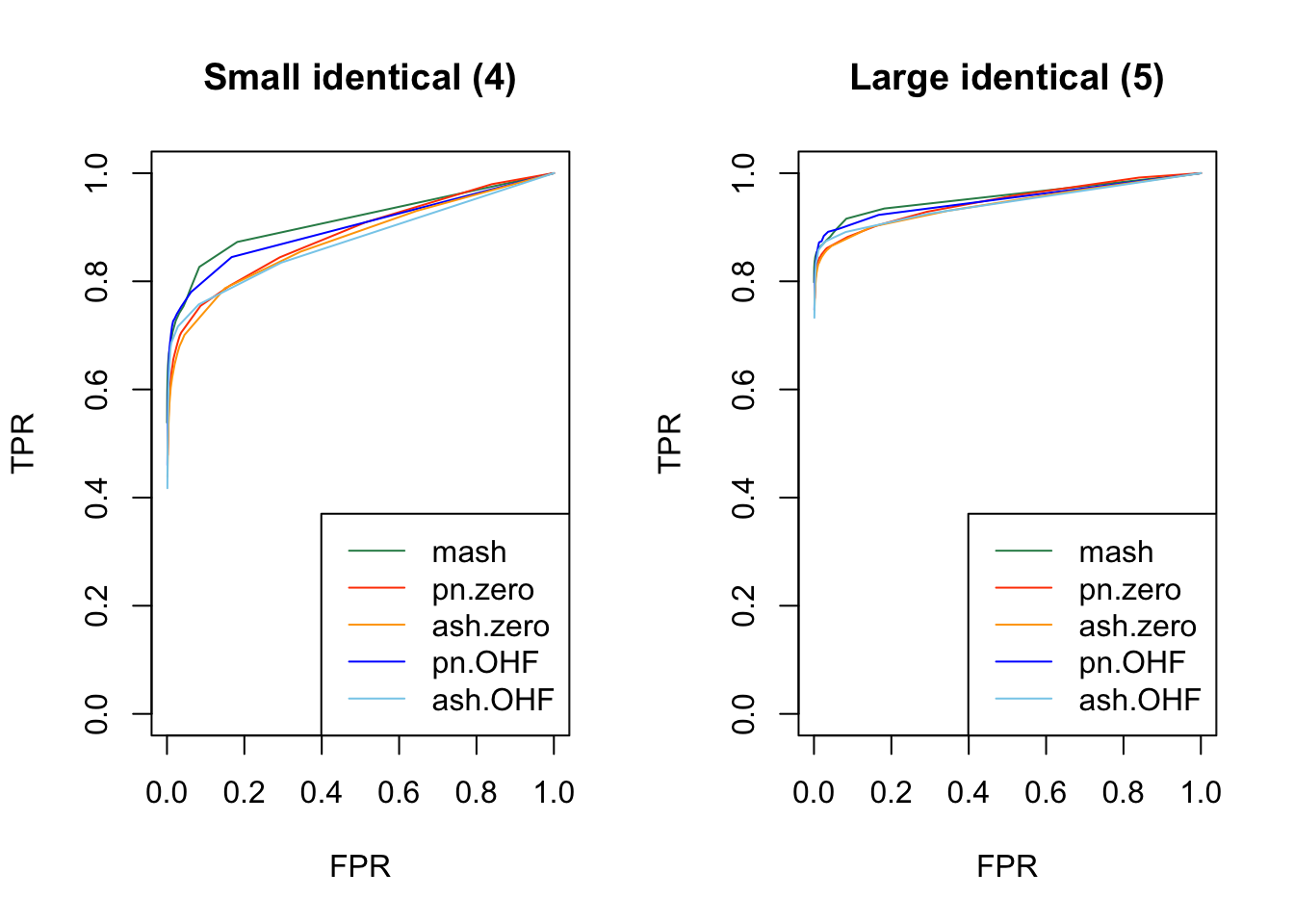

plot_fprvtpr(4, "Small identical (4)")
plot_fprvtpr(5, "Large identical (5)")

plot_fprvtpr(8, "Small unique (7)")
plot_fprvtpr(10, "Large unique (8)")

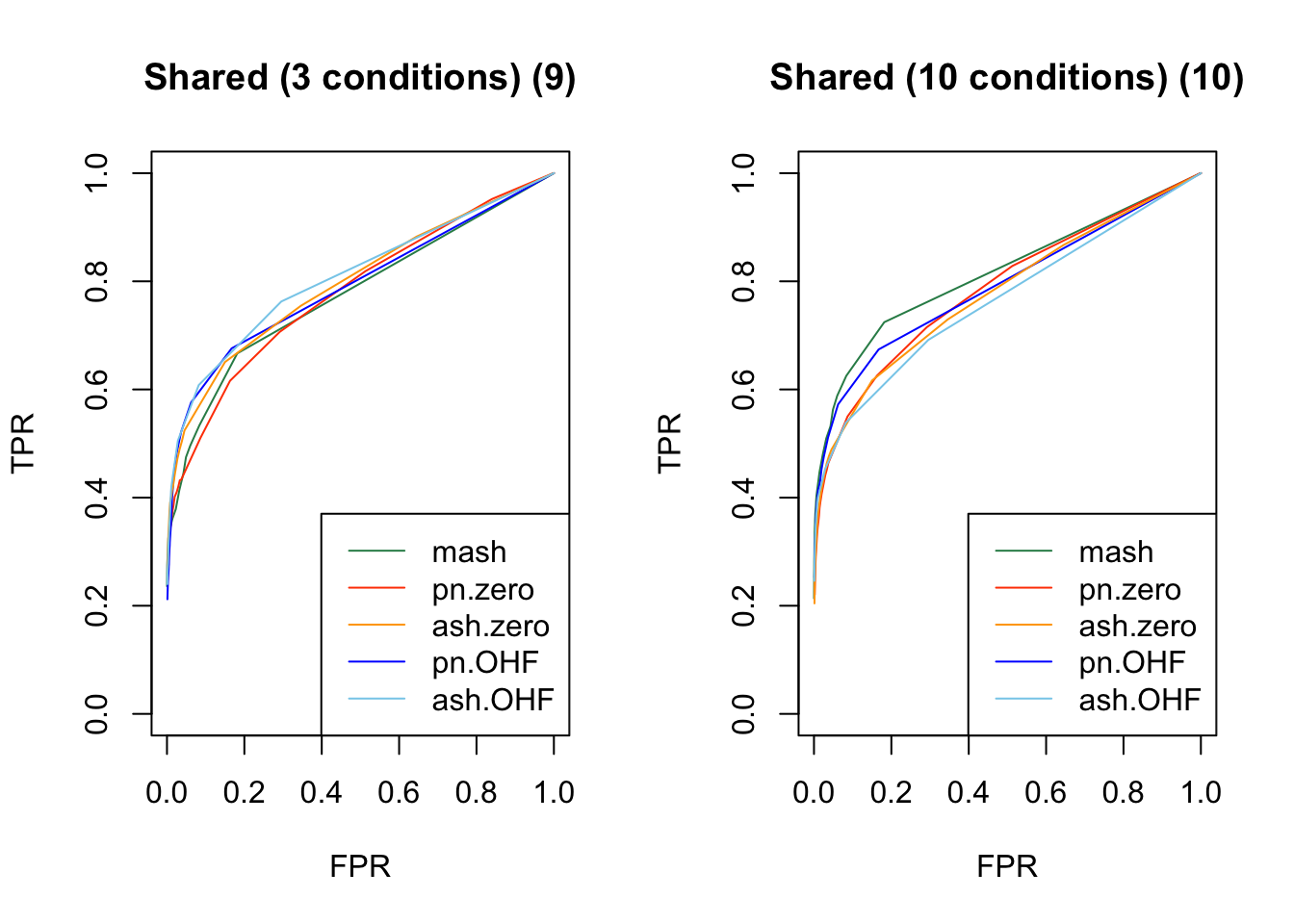

plot_fprvtpr(12, "Shared (3 conditions) (9)")
plot_fprvtpr(14, "Shared (10 conditions) (10)")

plot_fprvtpr(16, "Shared (varying sizes) (11)")
plot_fprvtpr(17, "Random rank-5 (12)")

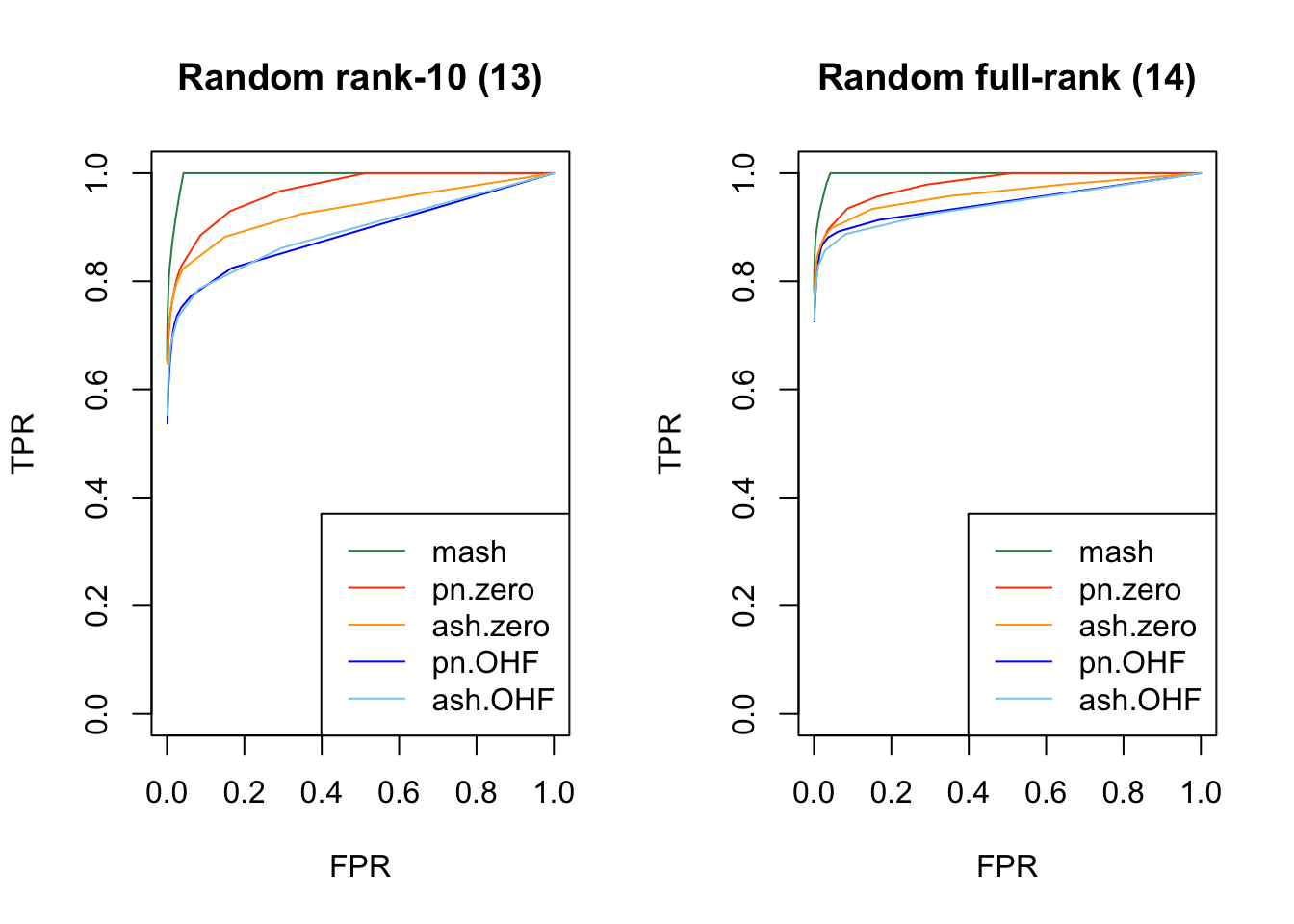

plot_fprvtpr(18, "Random rank-10 (13)")
plot_fprvtpr(19, "Random full-rank (14)")

plot_fprvtpr(20, "Identical plus independent (15)")
plot_fprvtpr(21, "Independent plus unique (16)")

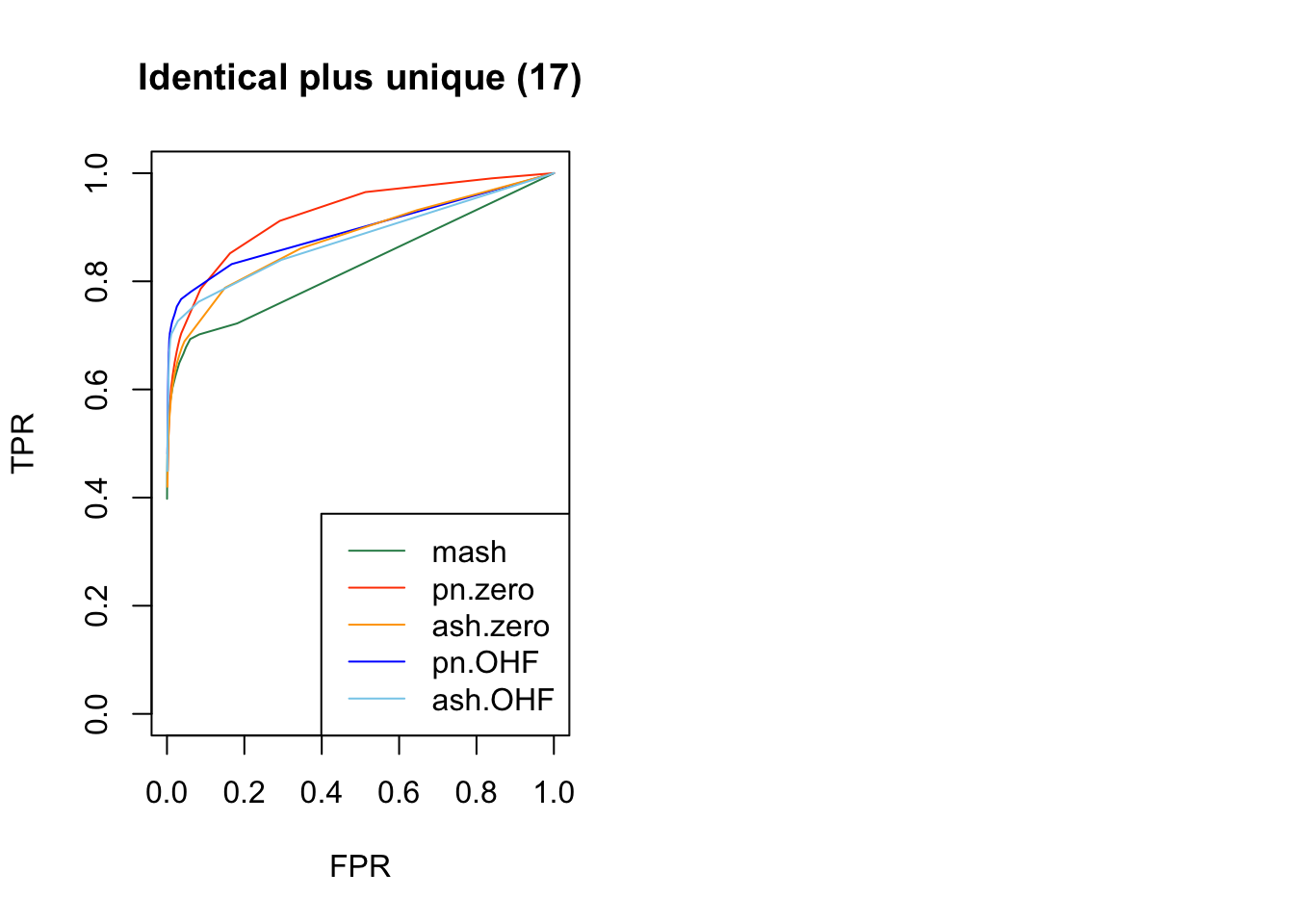

plot_fprvtpr(22, "Identical plus unique (17)")

Code

Click “Code” to view the code used to obtain the above results.

devtools::load_all("/Users/willwerscheid/GitHub/flashr/")
library(mashr)

source("./code/fits.R")
source("./code/sims.R")
source("./code/utils.R")

# Global parameters -----------------------------------------------------

n <- 20
p <- 1200
nsims <- 10
nsamp <- 200 # for sampling lfsr (FLASH fits)
ncol <- 25 # number of columns that exhibit each variance type
t <- 0.05 # "significance" threshold

# FLASH methods ---------------------------------------------------------

fl_fits <- c(function(fl_data) {fit_flash_zero(fl_data, Kmax = 50,
                                               ebnm_fn = "ebnm_pn",
                                               init_fn = "udv_si_svd",
                                               backfit = FALSE,
                                               warmstart = TRUE)},
             function(fl_data) {fit_flash_OHF(fl_data, Kmax = 50,
                                              ebnm_fn = "ebnm_pn",
                                              init_fn = "udv_si_svd",
                                              backfit = FALSE,
                                              warmstart = TRUE)},
             function(fl_data) {fit_flash_zero(fl_data, Kmax = 50,
                                               ebnm_fn = "ebnm_ash",
                                               init_fn = "udv_si_svd",
                                               backfit = FALSE,
                                               warmstart = TRUE)},
             function(fl_data) {fit_flash_OHF(fl_data, Kmax = 50,
                                              ebnm_fn = "ebnm_ash",
                                              init_fn = "udv_si_svd",
                                              backfit = FALSE,
                                              warmstart = TRUE)})
fl_fit_names <- c("pn.zero", "pn.OHF", "ash.zero", "ash.OHF")
n_flmethods <- length(fl_fit_names)

# Covariance structures -------------------------------------------------

Sigma <- list()

# Independent (small)
Sigma[[1]] <- diag(2^2, n)
# Independent (large)
Sigma[[2]] <- diag(5^2, n)
# Independent (different sizes)
sizes <- seq(1, 5, length.out=n)
Sigma[[3]] <- diag(sizes^2)
# Identical (small)
Sigma[[4]] <- matrix(2^2, nrow=n, ncol=n)
# Identical (large)
Sigma[[5]] <- matrix(5^2, nrow=n, ncol=n)
# Rank-one
Sigma[[6]] <- outer(sizes, sizes)

zeros <- matrix(0, nrow=n, ncol=n)
for (j in 7:11) {
  Sigma[[j]] <- zeros
}
# Unique (small)
uniqsmidx <- 1
Sigma[[7]][uniqsmidx, uniqsmidx] <- 3^2
# Unique (large)
uniqlgidx <- 2
Sigma[[8]][uniqlgidx, uniqlgidx] <- 8^2
# Shared (3 conditions)
shar3idx <- 3:5
Sigma[[9]][shar3idx, shar3idx] <- matrix(3^2, nrow=3, ncol=3)
# Shared (10 conditions)
shar10idx <- 1:10
Sigma[[10]][shar10idx, shar10idx] <- matrix(2^2, nrow=10, ncol=10)
# Shared (5 conditions, different sizes)
shar5idx <- 6:10
sizes <- seq(2, 4, length.out=5)
Sigma[[11]][shar5idx, shar5idx] <- outer(sizes, sizes)

# Rank-5
A <- matrix(rnorm(n*5, 0, 2), nrow=5, ncol=n)
Sigma[[12]] <- t(A) %*% A
# Rank-10
A <- matrix(rnorm(n*10, 0, 2), nrow=10, ncol=n)
Sigma[[13]] <- t(A) %*% A
# Random
A <- matrix(rnorm(n*n, 0, 2), nrow=n, ncol=n)
Sigma[[14]] <- t(A) %*% A

# Large independent plus small identical
Sigma[[15]] <- Sigma[[2]] + Sigma[[4]]
# Small independent plus large unique
Sigma[[16]] <- Sigma[[1]] + Sigma[[8]]
# Small identical plus large unique
Sigma[[17]] <- Sigma[[4]] + Sigma[[8]]
ntypes <- 17

# Variables for splitting up results by covariance structures -----------

partnames <- c("IndSm", "IndLg", "IndDiff",
               "IdentSm", "IdentLg", "Rank1",
               "UniqSmNull", "UniqSmNonnull",
               "UniqLgNull", "UniqLgNonnull",
               "Shar3Null", "Shar3Nonnull",
               "Shar10Null", "Shar10Nonnull",
               "Shar5Null", "Shar5Nonnull",
               "Rank5", "Rank10", "Random",
               "IndIdent", "IndUniq", "IdentUniq",
               "Null")
partxidx <- list(1:n, 1:n, 1:n, 1:n, 1:n, 1:n,
                 setdiff(1:n, uniqsmidx), uniqsmidx,
                 setdiff(1:n, uniqlgidx), uniqlgidx,
                 setdiff(1:n, shar3idx), shar3idx,
                 setdiff(1:n, shar10idx), shar10idx,
                 setdiff(1:n, shar5idx), shar5idx,
                 1:n, 1:n, 1:n, 1:n, 1:n, 1:n, 1:n)
partyidx <- list(1:ncol, ncol + 1:ncol, 2*ncol + 1:ncol,
                 3*ncol + 1:ncol, 4*ncol + 1:ncol, 5*ncol + 1:ncol,
                 6*ncol + 1:ncol, 6*ncol + 1:ncol,
                 7*ncol + 1:ncol, 7*ncol + 1:ncol,
                 8*ncol + 1:ncol, 8*ncol + 1:ncol,
                 9*ncol + 1:ncol, 9*ncol + 1:ncol,
                 10*ncol + 1:ncol, 10*ncol + 1:ncol,
                 11*ncol + 1:ncol, 12*ncol + 1:ncol,
                 13*ncol + 1:ncol, 14*ncol + 1:ncol,
                 15*ncol + 1:ncol, 16*ncol + 1:ncol,
                 (17*ncol + 1):p)
nparts <- length(partnames)
partition_by_type <- function(X) {
  # Splits up results by covariance type:
  ret <- rep(0, nparts)
  for (i in 1:nparts) {
    ret[i] <- mean(X[partxidx[[i]], partyidx[[i]]])
  }
  names(ret) <- partnames
  ret
}

# Variables for storing results -----------------------------------------

mses <- matrix(0, nrow = n_flmethods + 1, ncol = nparts)
ts <- c(seq(.005, .05, by=.005), seq(.06, .1, by=.01),
        seq(.2, 1.0, by=.1))

pr <- list()
for (fl_fit in fl_fit_names) {
  pr[[fl_fit]] <- matrix(0, nrow=length(ts), ncol=nparts)
}
pr$mash <- matrix(0, nrow=length(ts), ncol=nparts)

# Run simulations -------------------------------------------------------

for (i in 1:nsims) {
  # Simulate dataset:
  message(paste0("Simulating dataset #", i))
  X <- matrix(0, nrow=n, ncol=p)
  for (j in 1:ntypes) {
    start_col = 1 + ncol*(j-1)
    end_col = ncol*j
    X[, start_col:end_col] <- t(MASS::mvrnorm(ncol, rep(0, n), Sigma[[j]]))
  }
  Y <- X + rnorm(n*p)

  # Generate fits:
  fl <- list()
  for (j in 1:n_flmethods) {
    method <- fl_fit_names[j]

    message(paste("Fitting", method))
    fit <- fl_fits[[j]](Y)
    fl[[method]] <- fit$f
  }
  m <- fit_mash(Y)

  # Do diagnostics:
  base.se <- (Y - X)^2
  base.mse <- partition_by_type(base.se)

  for (j in 1:n_flmethods) {
    method <- fl_fit_names[j]

    fl.se <- (flash_get_fitted_values(fl[[method]]) - X)^2
    fl.mse <- partition_by_type(fl.se) / base.mse
    mses[j, ] <- mses[j, ] + fl.mse

    message(paste("Sampling from", method))
    fl.sampler <- flash_sampler(Y, fl[[method]], fixed="loadings")
    fl.samp <- fl.sampler(nsamp)
    fl.lfsr <- flash_lfsr(fl.samp)
    for (k in 1:length(ts)) {
      fl.signif <- fl.lfsr <= ts[k]
      fl.pr <- partition_by_type(fl.signif)
      pr[[method]][k, ] <- pr[[method]][k, ] + fl.pr
    }
  }

  m.se <- (t(get_pm(m$m)) - X)^2
  m.mse <- partition_by_type(m.se) / base.mse
  mses[n_flmethods + 1, ] <- mses[n_flmethods + 1, ] + m.mse

  m.lfsr <- t(get_lfsr(m$m))

  for (k in 1:length(ts)) {
    m.signif <- m.lfsr <= ts[k]
    m.pr <- partition_by_type(m.signif)
    pr$mash[k,] <- pr$mash[k,] + m.pr
  }
}

# Average results over simulations --------------------------------------

mses <- mses / nsims
pr <- lapply(pr, function(method) {method / nsims})

saveRDS(mses, "./output/MASHvFLASHsims2/mses.rds")
saveRDS(pr, "./output/MASHvFLASHsims2/pr.rds")

Session information

sessionInfo()

R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.6

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

loaded via a namespace (and not attached):
 [1] workflowr_1.0.1   Rcpp_0.12.17      digest_0.6.15
 [4] rprojroot_1.3-2   R.methodsS3_1.7.1 backports_1.1.2
 [7] git2r_0.21.0      magrittr_1.5      evaluate_0.10.1
[10] stringi_1.1.6     whisker_0.3-2     R.oo_1.21.0
[13] R.utils_2.6.0     rmarkdown_1.8     tools_3.4.3
[16] stringr_1.3.0     yaml_2.1.17       compiler_3.4.3
[19] htmltools_0.3.6   knitr_1.20
