Read data.
library(data.table)
tmp = setDF(fread('data/unnecessary_in_building/GSM1626794_P14Retina_2.digital_expression.txt'))
orig = tmp[,-1]; rownames(orig) = tmp[,1]; rm(tmp)
genenames = sapply(strsplit(rownames(orig), ":"), function(x) x[3])
gc(verbose=FALSE);
used (Mb) gc trigger (Mb) limit (Mb) max used (Mb)
Ncells 2792253 149.2 4257502 227.4 NA 4257502 227.4
Vcells 106691790 814.0 155381158 1185.5 16384 107648931 821.3

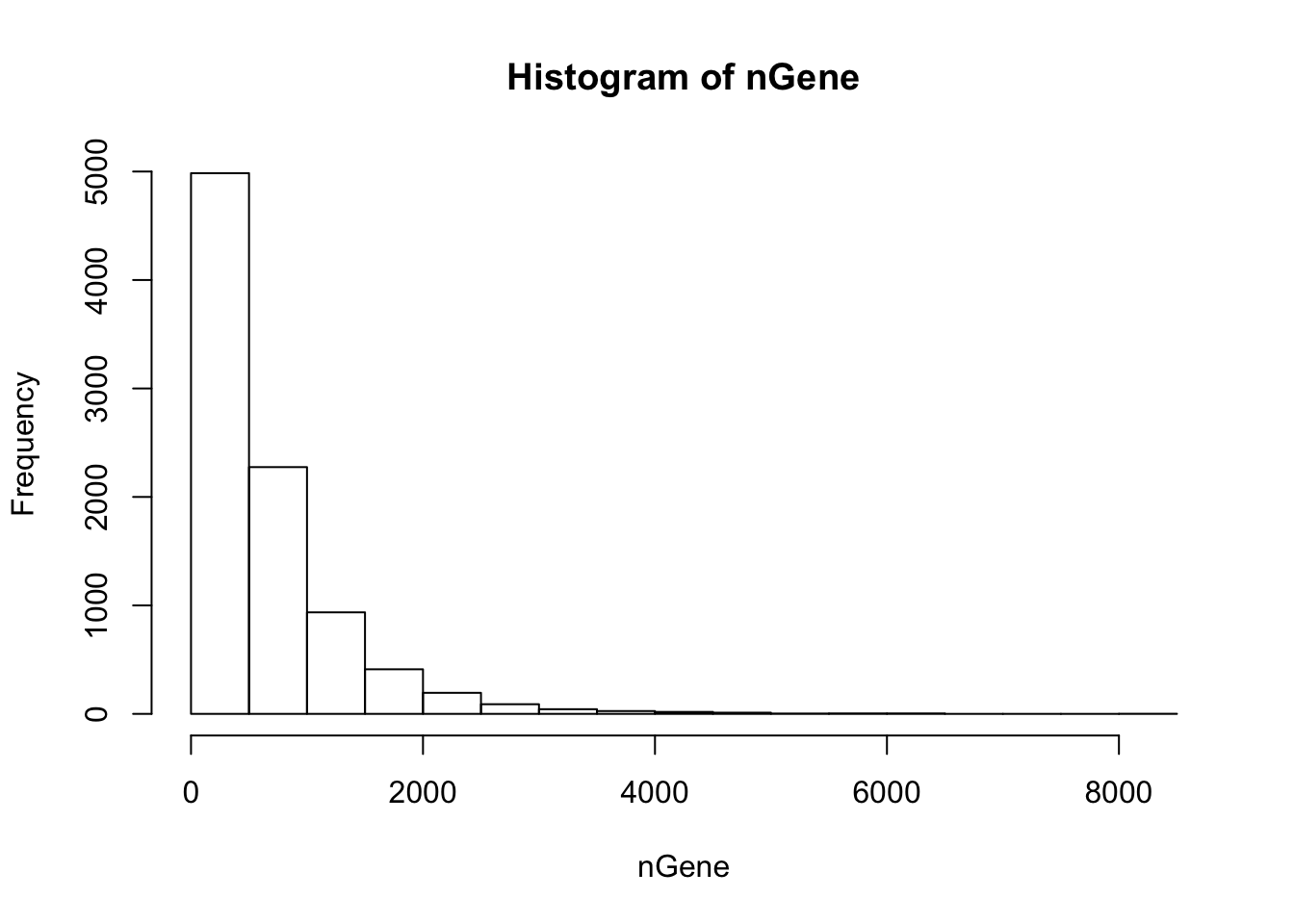

nGene = colSums(orig > 0)
hist(nGene)
Version | Author | Date |
---|---|---|
f6c8902 | tk382 | 2018-08-29 |
summaryX = cellFilter(X = orig,
genenames = genenames,
minGene = 500,
maxGene = 2000,
maxMitoProp = 0.1)
tmpX = summaryX$X
nUMI = summaryX$nUMI
nGene = summaryX$nGene
percent.mito = summaryX$percent.mito
det.rate = summaryX$det.rate
par(mfrow = c(1,4))
boxplot(nUMI, main='nUMI');
boxplot(nGene, main='nGene');
boxplot(percent.mito, main='mitochondrial gene', ylim=c(0,0.5));
boxplot(det.rate, main='detection rate', ylim=c(0,0.1))
Version | Author | Date |
---|---|---|
f6c8902 | tk382 | 2018-08-29 |
X = tmpX[rowSums(tmpX) > 0, ]
genenames = genenames[rowSums(tmpX) > 0]
#gene filter by dispersion
disp = dispersion(X, bins = 20)
plot(disp$z ~ disp$genemeans,
xlab = "mean expression",
ylab = "normalized dispersion")
Version | Author | Date |
---|---|---|
f6c8902 | tk382 | 2018-08-29 |
select = which(abs(disp$z) > 1)
X = X[select, ]
genenames = genenames[select]
Use quantile-normalization to make the distribution of each cell the same.
nX = quantile_normalize(as.matrix(X))

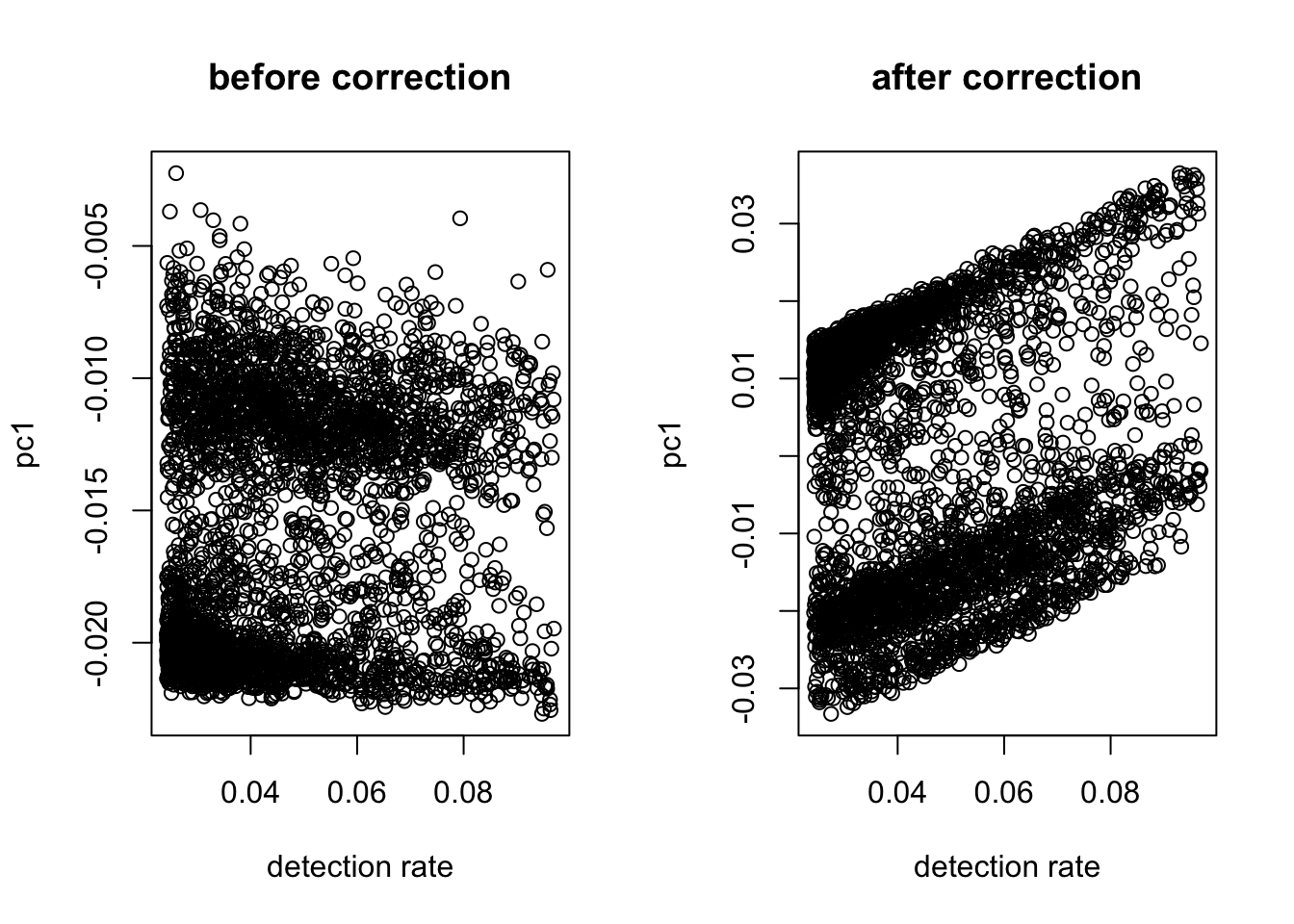

After normalization, the linear relationship between the first PC and the detection rate usually disappears. The plots show that even without correction, the two are not heavily correlated. So we do not regress out the detection rate.
#take log
logX = as.matrix(log(nX + 1))
#check dependency
out = correct_detection_rate(logX, det.rate)
Version | Author | Date |
---|---|---|
f6c8902 | tk382 | 2018-08-29 |
#regress out
# log.cpm = out$residual
log.cpm = logX

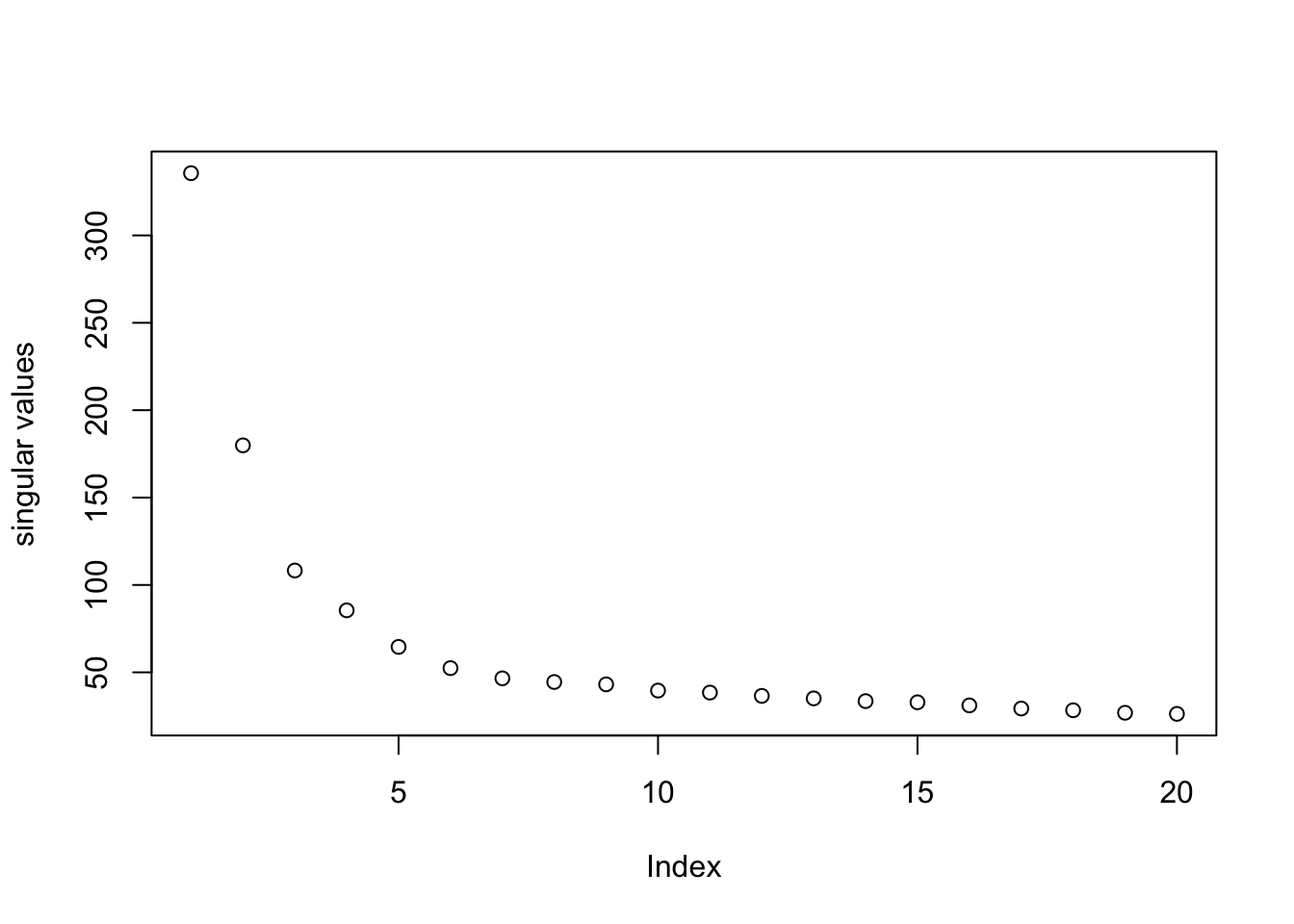

pc = irlba(log.cpm, 20)
plot(pc$d, ylab = "singular values")
Version | Author | Date |
---|---|---|
f6c8902 | tk382 | 2018-08-29 |
tsne = Rtsne(pc$v[,1:5], dims=2, perplexity = 100, pca=FALSE)
plot(tsne$Y, xlab = 'tsne1', ylab = 'tsne2', cex = 0.5)
Version | Author | Date |
---|---|---|
f6c8902 | tk382 | 2018-08-29 |
rm(pc)
Run SLSL on the log.cpm matrix.
# out = SLSL(log.cpm, log=FALSE,
# filter = FALSE,
# correct_detection_rate = FALSE,
# klist = c(300,350,400),
# sigmalist = c(1,1.5,2),
# kernel_type = "pearson",
# verbose=FALSE)
# save(out, file = 'dropseq_slsl1.Rdata')
load('analysis/dropseq_slsl1.Rdata')

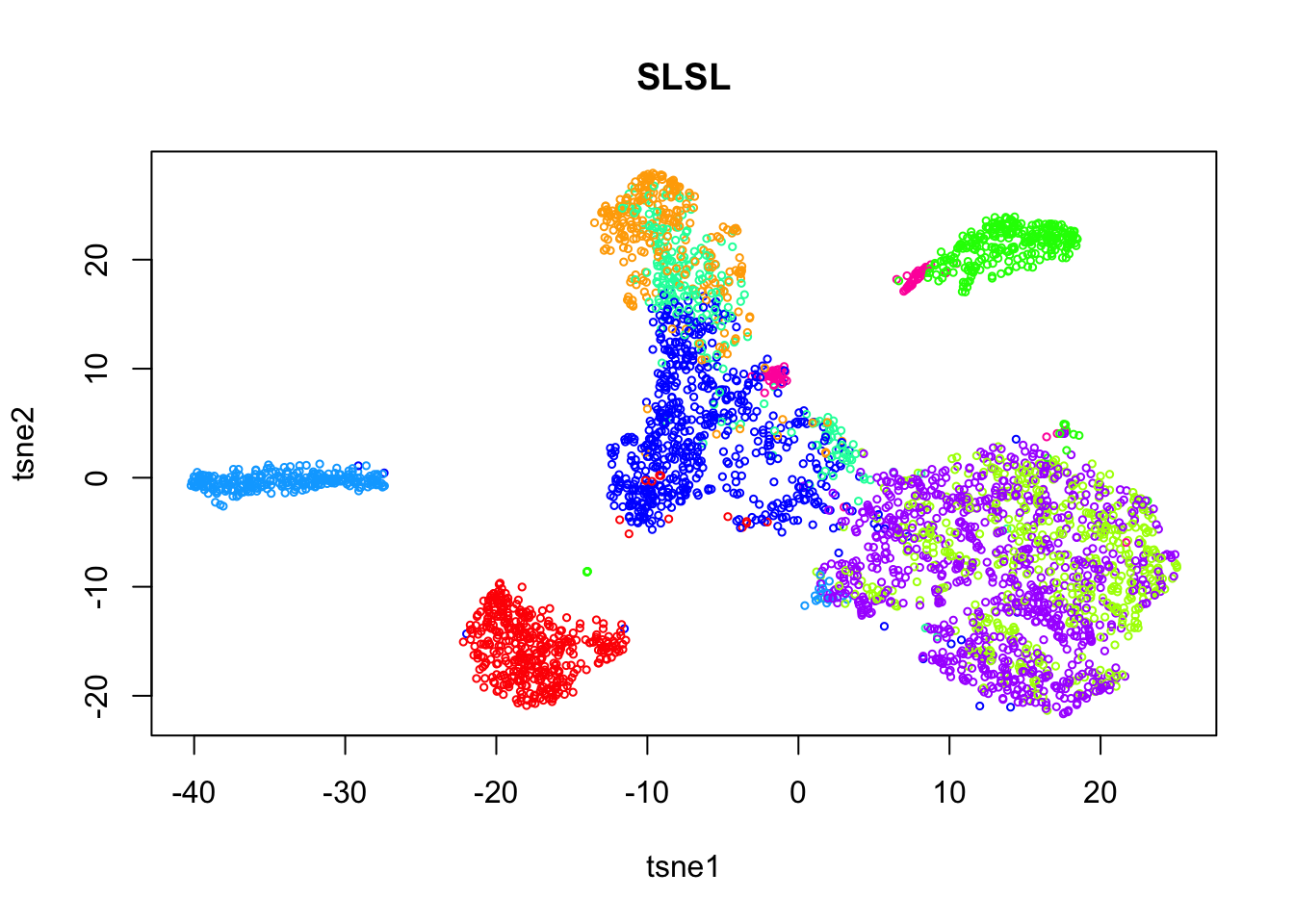

tab = table(out$result)
plot(tsne$Y, col=rainbow(length(tab))[out$result],
xlab = 'tsne1', ylab='tsne2', main="SLSL", cex = 0.5)
Using SC3 with our gene and cell filter procedure and disabling the biology and filter feature of the function leads to the following result. Using SC3’s default methods lead to the error “distribution of gene expression in cells is too skewed towards 0”.
library(SingleCellExperiment)
library(SC3)
# colnames(X) = paste0("C", 1:ncol(X))
# sce = SingleCellExperiment(
# assays = list(
# counts = X,
# logcounts = as.matrix(log(X+1))
# ),
# colData = colnames(X)
# )
# rowData(sce)$feature_symbol = genenames
# sce = sc3_prepare(sce, kmeans_nstart = 50)
# sce = sc3_estimate_k(sce)
# k = metadata(sce)$sc3$k_estimation
# N = ncol(X)
# sce = sc3(sce, ks=k, biology = FALSE, gene_filter=FALSE,
# kmeans_nstart=10)
# col_data_selected = colData(sce)
# save(col_data_selected, file = "analysis/dropseq_sc3_result.Rdata")
load('analysis/dropseq_sc3_result.Rdata')
plot(tsne$Y, col=rainbow(k)[col_data_selected$sc3_6_clusters],
xlab = 'tsne1', ylab='tsne2', main="SC3", cex = 0.5)

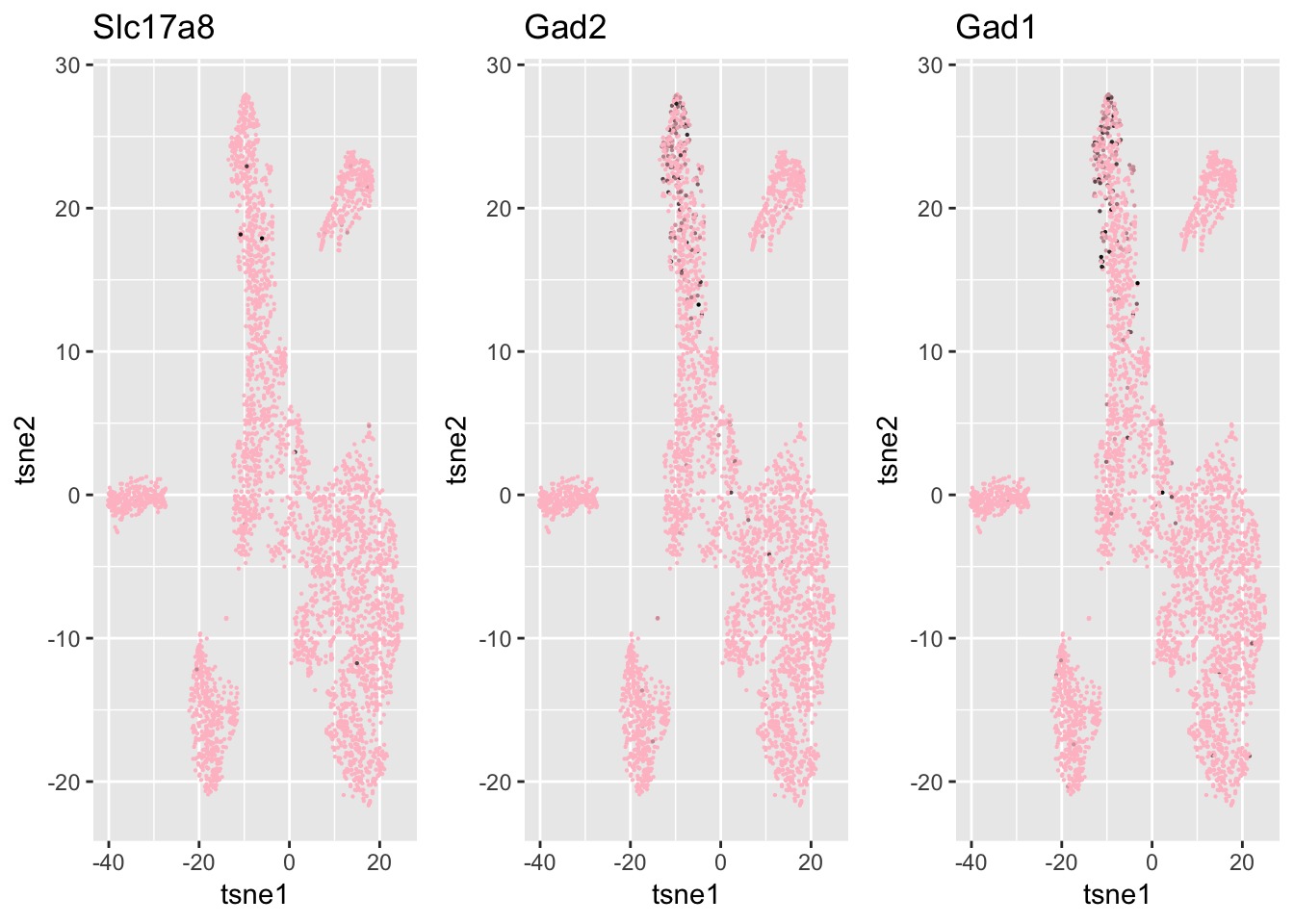

ind = which(genenames %in% c('Chat', 'Gad1', 'Gad2', 'Slc17a8', 'Slc6a9', 'Gjd2'))
df = data.frame(tsne1 = tsne$Y[,1], tsne2 = tsne$Y[,2],
Slc17a8 = log.cpm[ind[1], ],
Gad2 = log.cpm[ind[2], ],
Gad1 = log.cpm[ind[3],]
)
g1 = ggplot(df, aes(x=tsne1, y=tsne2, col = Slc17a8)) + geom_point(size=0.1) +
scale_colour_gradient(low="pink", high="black") + guides(color = FALSE) + ggtitle('Slc17a8')
g2 = ggplot(df, aes(x=tsne1, y=tsne2, col = Gad2)) + geom_point(size=0.1) +
scale_colour_gradient(low="pink", high="black") + guides(color = FALSE) + ggtitle('Gad2')
g3 = ggplot(df, aes(x=tsne1, y=tsne2, col = Gad1)) + geom_point(size=0.1) +
scale_colour_gradient(low="pink", high="black") + guides(color = FALSE) + ggtitle('Gad1')
grid.arrange(g1,g2,g3, nrow=1)
Version | Author | Date |
---|---|---|
f6c8902 | tk382 | 2018-08-29 |
