Differential expression analysis–EdgeR quasi-likelihood F-tests

Last updated: 2019-02-15

• ✖ R Markdown file: uncommitted changes

  The R Markdown file has unstaged changes. To know which version of the R Markdown file created these results, you’ll want to first commit it to the Git repo. If you’re still working on the analysis, you can ignore this warning. When you’re finished, you can run wflow_publish to commit the R Markdown file and build the HTML.

• ✔ Environment: empty

  Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

• ✔ Seed: set.seed(20181119)

  The command set.seed(20181119) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

• ✔ Session information: recorded

  Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

• ✔ Repository version: a970cce

  Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.

  Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:


  Ignored files:
      Ignored:    .Rproj.user/

  Unstaged changes:
      Modified:   analysis/EdgeR-LRT.Rmd
      Modified:   analysis/EdgeR-QLF.Rmd



  Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

Load data

source("code/summary_functions.R")
library(dplyr)
library(gtools)
library(data.table)
load("data/DE_input.Rd")
glocus <- "VPS45"
Nperm <- 5
dim(dm)[1]

NULL

gcount <- dm[1:(dim(dm)[1]-76), colnames(dm1dfagg)[dm1dfagg[glocus,] >0 & nlocus==1]]
# negative control cells defined as neg gRNA targeted cells
ncount <- dm[1:(dim(dm)[1]-76), colnames(dm1dfagg)[dm1dfagg["neg",] >0 & nlocus==1]]
coldata <- data.frame(row.names = c(colnames(gcount),colnames(ncount)),
                      condition=c(rep('G',dim(gcount)[2]),rep('N',dim(ncount)[2])))
countall <- cbind(gcount,ncount)
totalcount <- apply(countall,1,sum)
cellpercent <-  apply(countall,1,function(x) length(x[x>0])/length(x))

edgeR quasi-likelihood F-tests function

library(edgeR)
run_edgeR <- function(y,plotit=T) {
  # y is DGElist object
  y <- calcNormFactors(y)
  group= y$samples[,"group"]
  design <- model.matrix(~group)
  y <- estimateDisp(y,design)

  fitqlf <- glmQLFit(y,design)
  qlf <- glmQLFTest(fitqlf,coef=2)
  out <- topTags(qlf, n=Inf, adjust.method = "BH")

  if (plotit==T) {

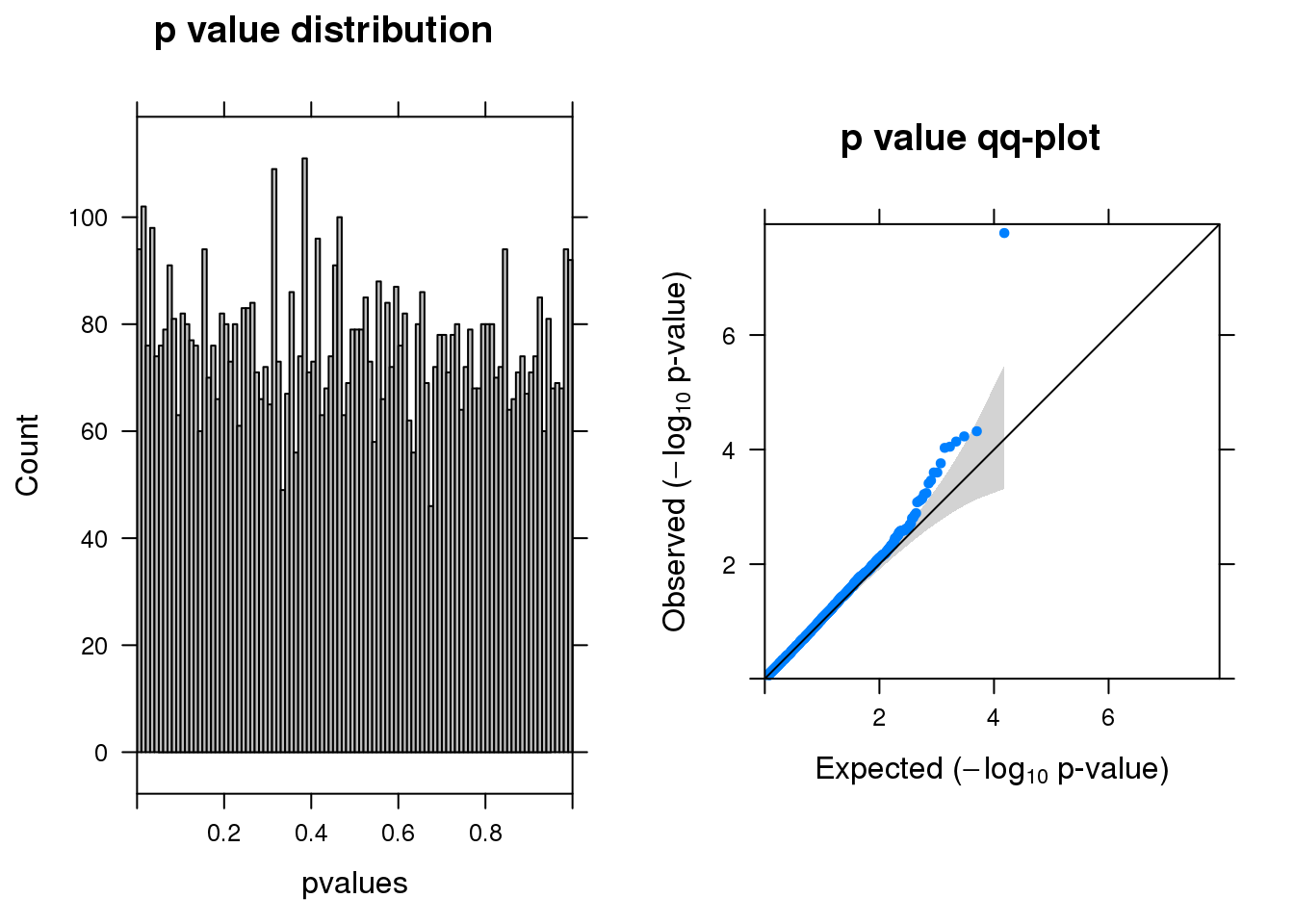

    summ_pvalues(qlf$table$PValue)
    outsig <- subset(out$table,FDR <0.1)
    print(paste0("There are ",dim(outsig)[1], " genes passed FDR <0.1 cutoff"))
    print(knitr::kable(signif(as.matrix(head(out$table[order(out$table$PValue),])),digit=2)))
  }
  return(out)
}

y <- DGEList(counts= countall,group=coldata$condition)

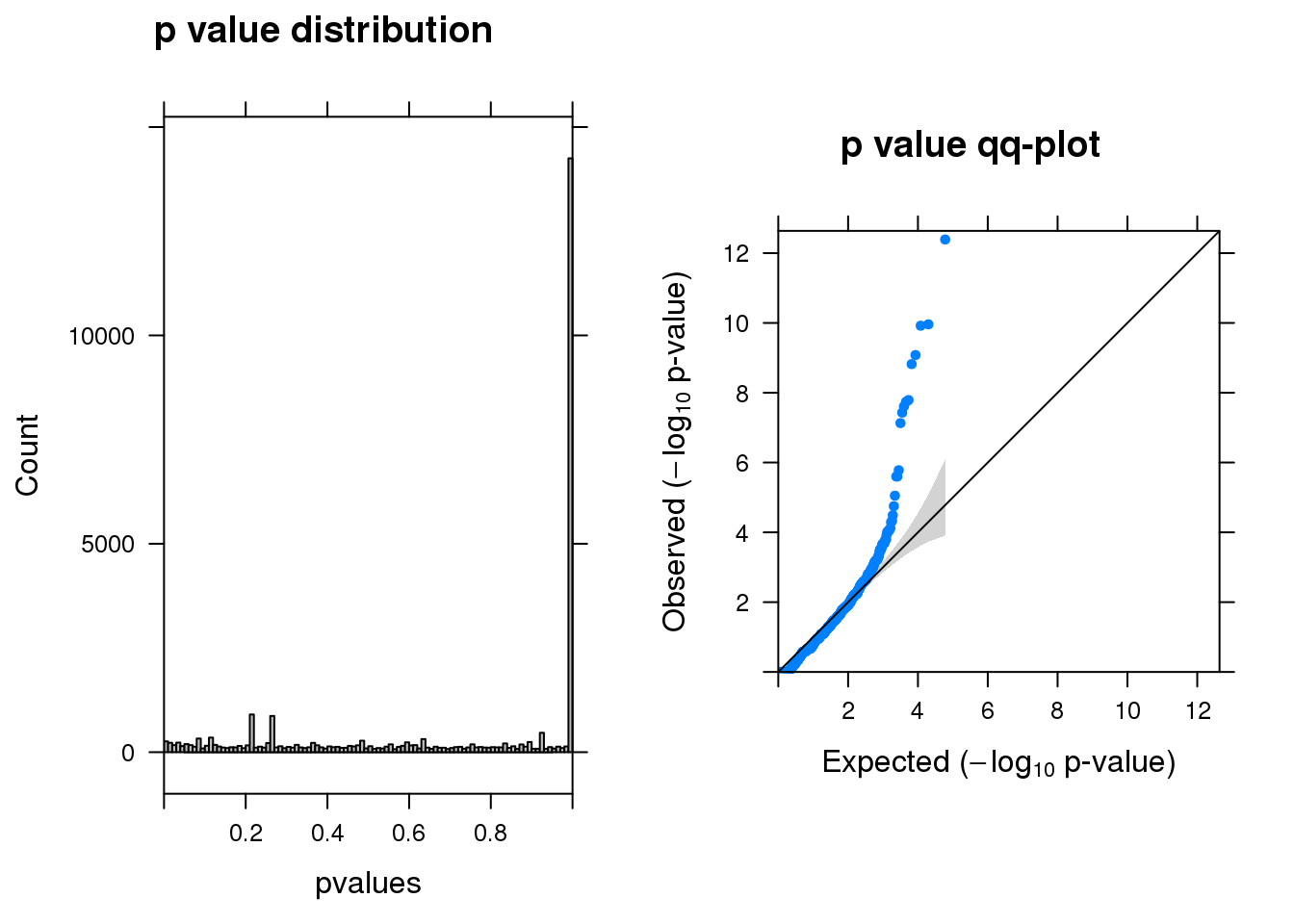

resm <- run_edgeR(y)

[1] "There are 18 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F   PValue       FDR
-------  ------  -------  ---  -------  --------
LY6H       -2.8      6.6   59        0   0.0e+00
LGALS1     -2.3      6.6   45        0   1.2e-06
APOE       -1.8      6.4   45        0   1.2e-06
TSPO       -1.6      6.4   41        0   6.2e-06
LBX1       -2.0      6.4   39        0   9.0e-06
LHX5       -1.5      6.3   37        0   7.8e-05

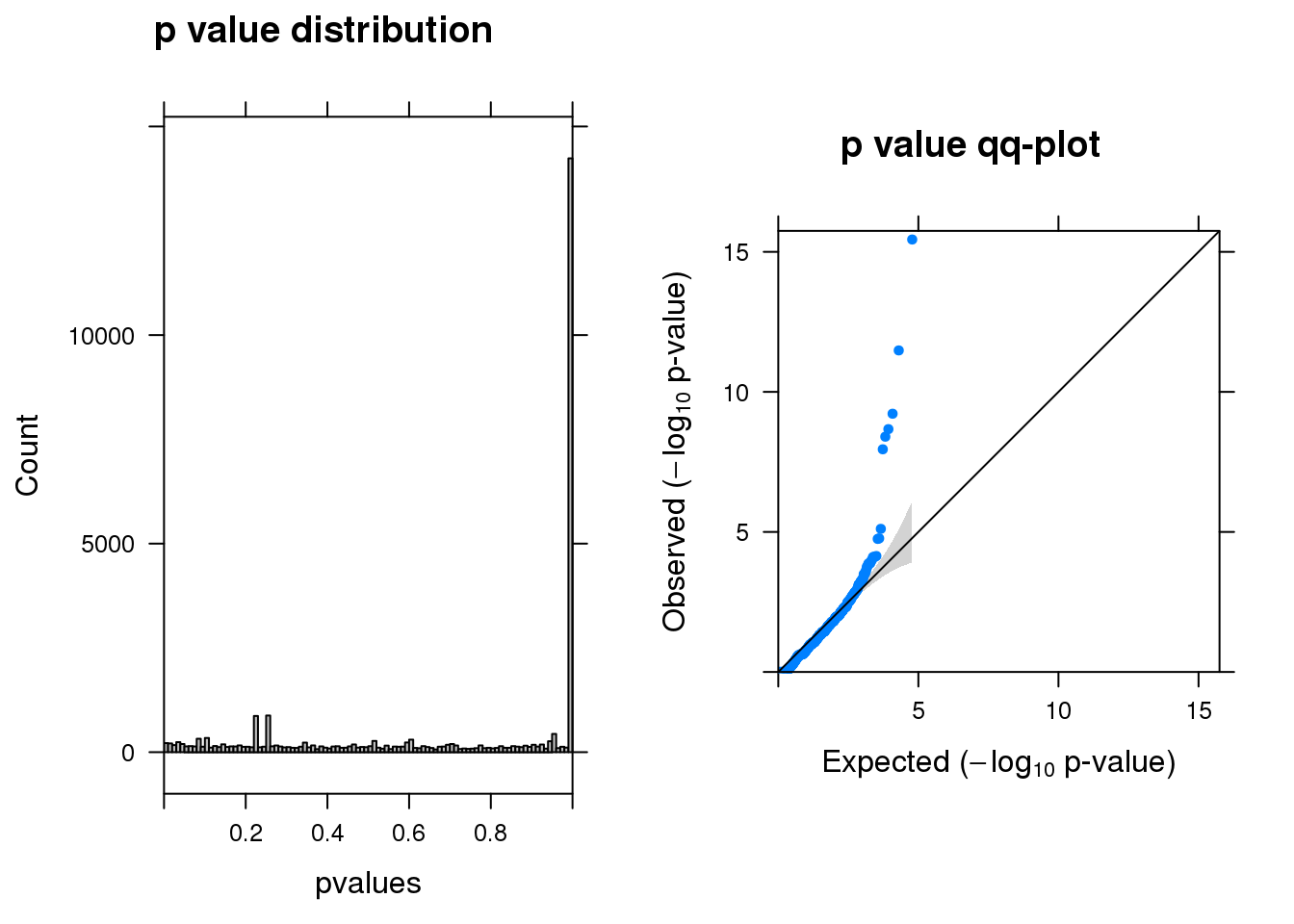

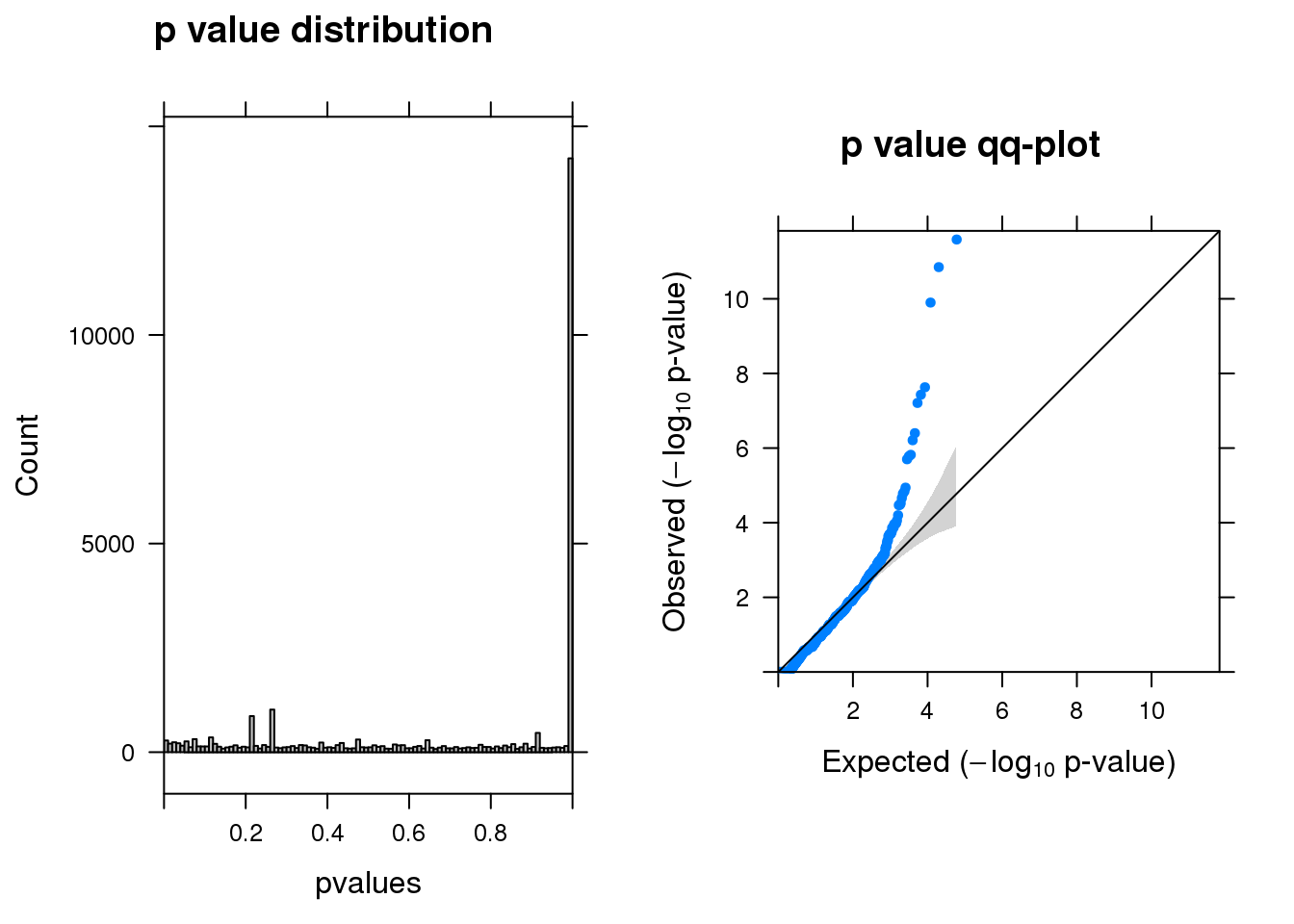

permreslist <- list()
permreslist[[1]] <- data.table(gene=rownames(resm$table), p=resm$table$PValue, fdr=resm$table$FDR, key="gene")
for (n in 2:(Nperm+1)){
  y <- DGEList(counts= countall,group=permute(coldata$condition))
  res <- run_edgeR(y,plotit = T)
  resp <- data.table(gene=rownames(res$table), p=res$table$PValue, fdr=res$table$FDR, key="gene")
  colnames(resp) <- c("gene", paste0("perm.p_",n-1), paste0("perm.fdr_",n-1))
  permreslist[[n]] <- resp
}

[1] "There are 9 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F   PValue       FDR
--------  ------  -------  ---  -------  --------
MYC         -3.3      7.4   76        0   0.0e+00
LY6H         2.8      6.6   54        0   0.0e+00
APOE         1.8      6.4   41        0   6.0e-06
S100A11      1.8      6.4   39        0   1.6e-05
NEUROD1      1.7      6.4   39        0   2.4e-05
LGALS1       2.1      6.6   35        0   5.6e-05

[1] "There are 9 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F    PValue       FDR
--------  ------  -------  ---  --------  --------
LY6H        -2.9      6.6   65   0.0e+00   0.0e+00
NEUROD1     -1.8      6.4   47   0.0e+00   1.7e-06
APOE        -1.8      6.4   44   0.0e+00   1.7e-06
LGALS1      -2.1      6.6   39   0.0e+00   1.6e-05
GAL         -1.6      6.4   34   0.0e+00   9.9e-05
TFF3        -1.2      6.4   29   3.9e-06   1.9e-02

[1] "There are 18 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F   PValue       FDR
--------  ------  -------  ---  -------  --------
LY6H         2.7      6.6   52        0   2.0e-07
LGALS1       2.4      6.6   47        0   7.0e-07
NEUROD1      1.9      6.4   49        0   8.0e-07
S100A11      1.9      6.4   45        0   8.0e-07
APOE         1.7      6.4   37        0   2.7e-05
KCNMA1      -1.5      6.4   32        0   1.7e-04

[1] "There are 13 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F   PValue       FDR
--------  ------  -------  ---  -------  --------
LY6H        -2.6      6.6   50    0e+00   4.0e-07
S100A11     -1.9      6.4   44    0e+00   3.1e-06
APOE        -1.8      6.4   41    0e+00   8.0e-06
LBX1         2.3      6.4   37    0e+00   6.0e-05
LGALS1      -2.0      6.6   34    0e+00   8.6e-05
LHX5         1.5      6.3   34    1e-07   4.6e-04

[1] "There are 19 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F   PValue       FDR
--------  ------  -------  ---  -------  --------
NEUROD1     -2.0      6.4   58    0e+00   1.0e-07
LY6H         2.7      6.6   50    0e+00   2.0e-07
APOE         1.9      6.4   45    0e+00   1.2e-06
MT1F        -1.6      6.4   33    0e+00   1.8e-04
CYP26A1      1.8      6.5   32    0e+00   2.2e-04
MYC         -2.0      7.4   31    1e-07   3.0e-04

mergedres <- Reduce(merge,permreslist)
knitr::kable(mergedres[fdr <0.1,],digits = 2)

y <- DGEList(counts= countall[totalcount>0,],group=coldata$condition)
resm <- run_edgeR(y)

[1] "There are 26 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F   PValue       FDR
-------  ------  -------  ---  -------  --------
LY6H       -2.8      6.6   59        0   0.0e+00
LGALS1     -2.3      6.6   45        0   6.0e-07
APOE       -1.8      6.4   45        0   6.0e-07
TSPO       -1.6      6.4   41        0   3.3e-06
LBX1       -2.0      6.4   39        0   4.8e-06
LHX5       -1.5      6.3   37        0   4.1e-05

permreslist <- list()
permreslist[[1]] <- data.table(gene=rownames(resm$table), p=resm$table$PValue, fdr=resm$table$FDR, key="gene")
for (n in 2:(Nperm+1)){
  y <- DGEList(counts= countall[totalcount>0,],group=permute(coldata$condition))
  res <- run_edgeR(y,plotit = T)
  resp <- data.table(gene=rownames(res$table), p=res$table$PValue, fdr=res$table$FDR, key="gene")
  colnames(resp) <- c("gene", paste0("perm.p_",n-1), paste0("perm.fdr_",n-1))
  permreslist[[n]] <- resp
}

[1] "There are 16 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F    PValue       FDR
--------  ------  -------  ---  --------  --------
CLDN5        3.4      6.8   69   0.0e+00   0.0e+00
LY6H        -2.8      6.6   58   0.0e+00   0.0e+00
APOE        -1.8      6.4   43   0.0e+00   1.9e-06
NEUROD1     -1.7      6.4   38   0.0e+00   2.4e-05
LGALS1      -1.7      6.6   26   7.0e-07   2.2e-03
SPARCL1     -1.0      6.3   40   6.5e-06   1.7e-02

[1] "There are 9 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F   PValue       FDR
--------  ------  -------  ---  -------  --------
APOE         1.9      6.4   46    0e+00   8.0e-07
NEUROD1     -1.8      6.4   48    0e+00   8.0e-07
LY6H         2.5      6.6   42    0e+00   2.5e-06
MT1F        -1.6      6.4   33    0e+00   1.3e-04
LGALS1       1.9      6.6   30    1e-07   3.6e-04
GAL          1.5      6.4   27    4e-07   1.2e-03

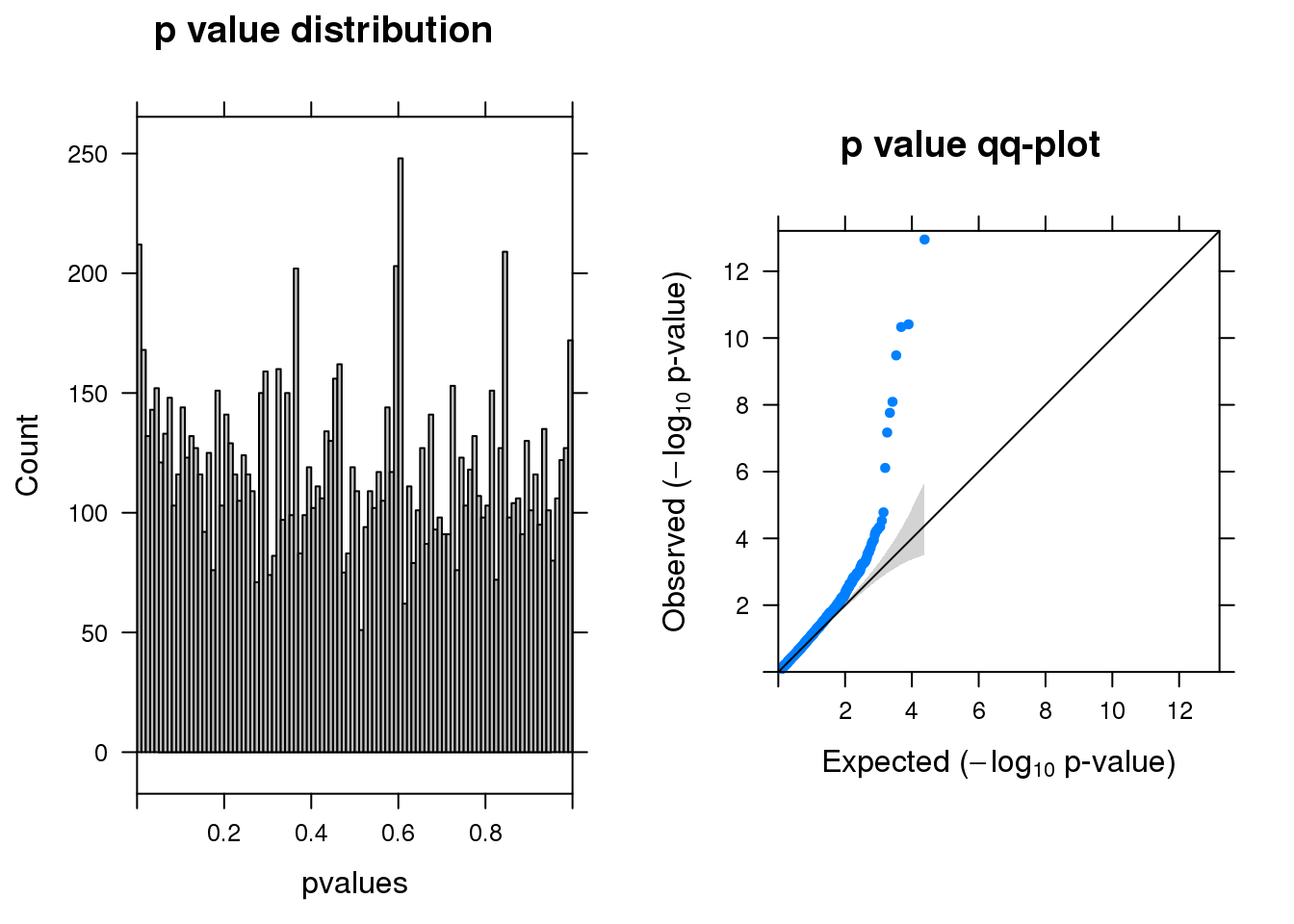

y <- DGEList(counts= countall[cellpercent > 0.03,],group=coldata$condition)
resm <- run_edgeR(y)

[1] "There are 20 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F   PValue       FDR
-------  ------  -------  ---  -------  --------
LY6H       -2.8      6.6   61        0   0.0e+00
LGALS1     -2.3      6.6   47        0   2.0e-07
APOE       -1.9      6.4   47        0   2.0e-07
TSPO       -1.6      6.4   43        0   1.0e-06
A2M        -1.6      6.9   35        0   1.9e-05
MT1F       -1.6      6.4   34        0   3.5e-05

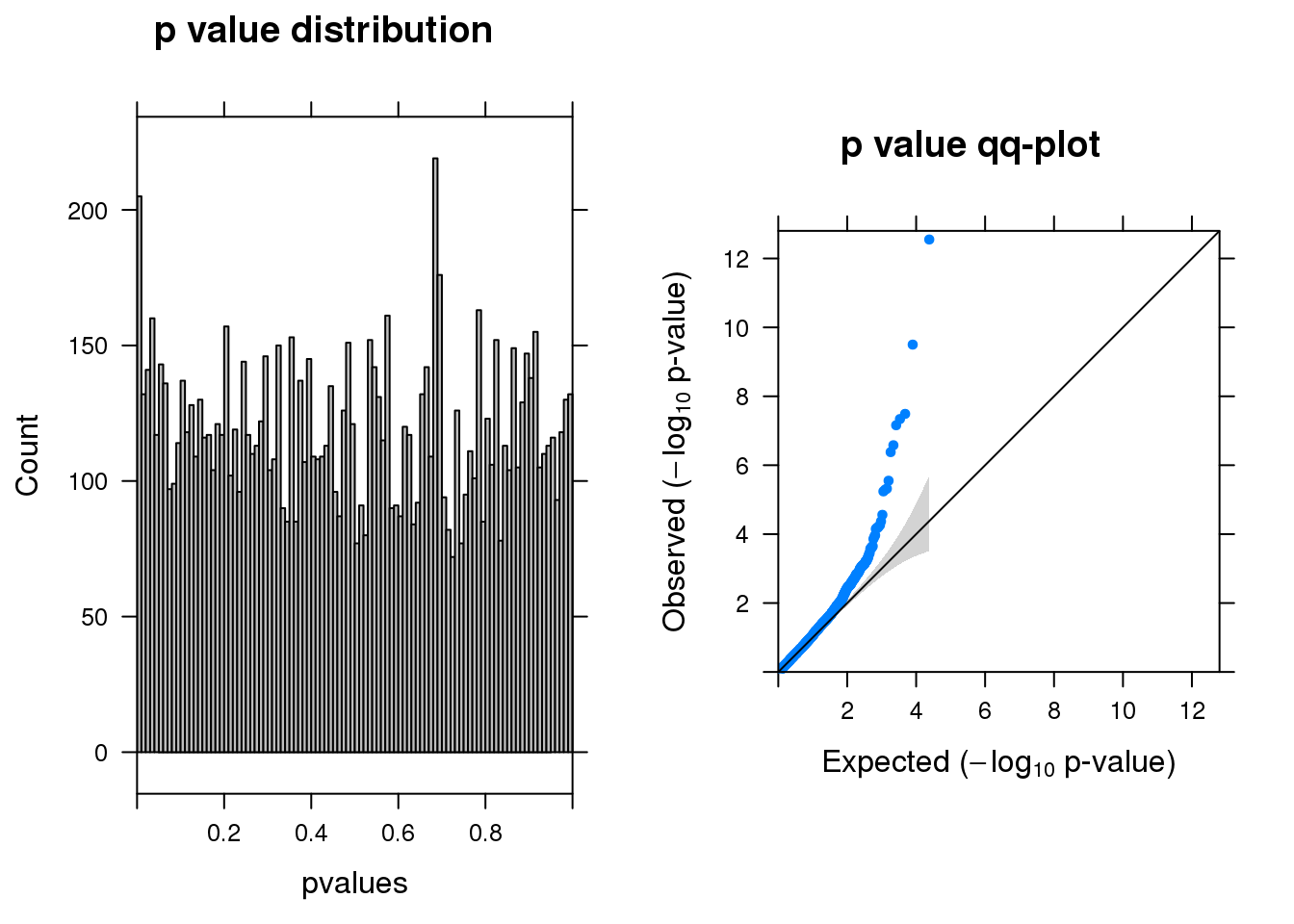

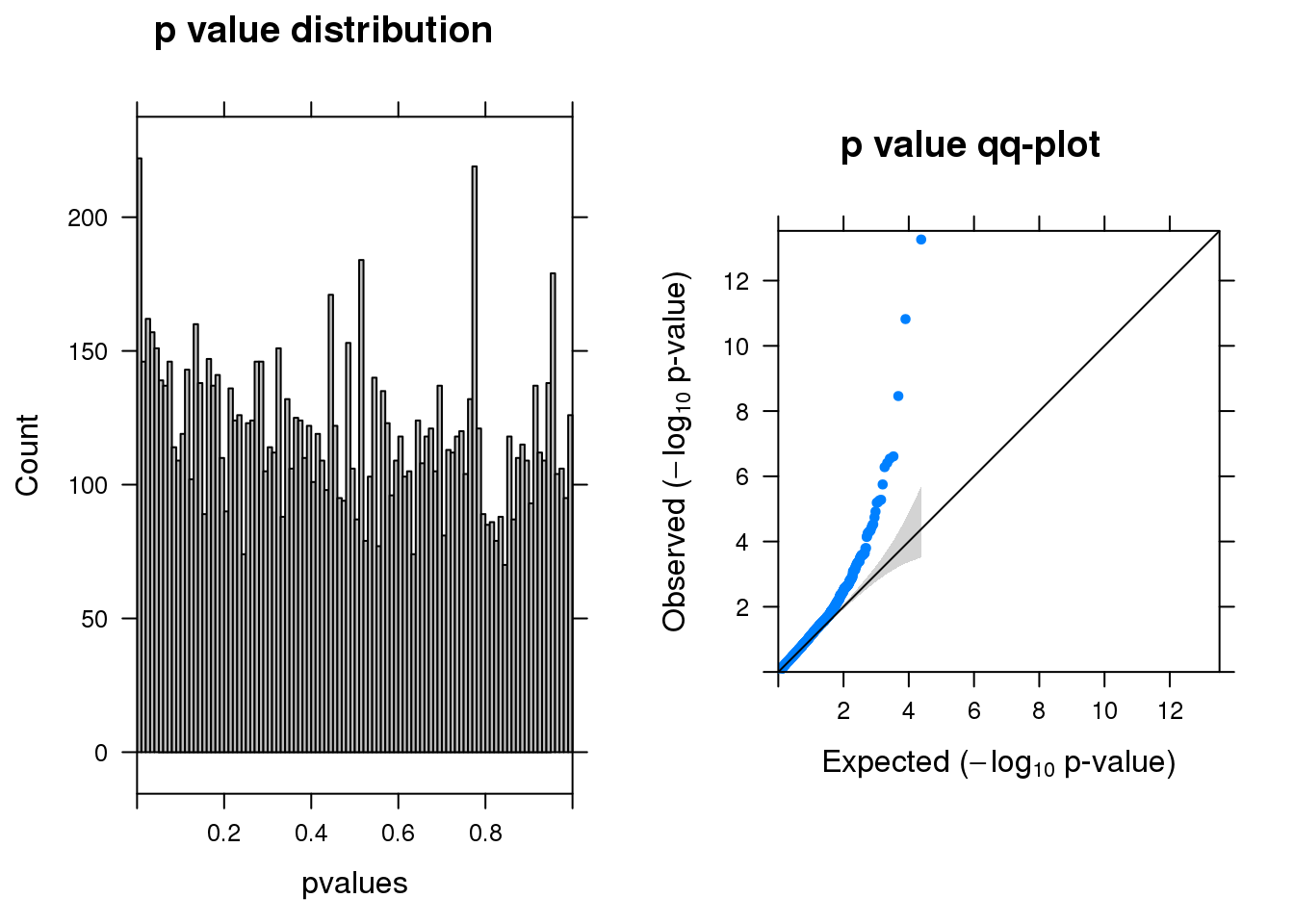

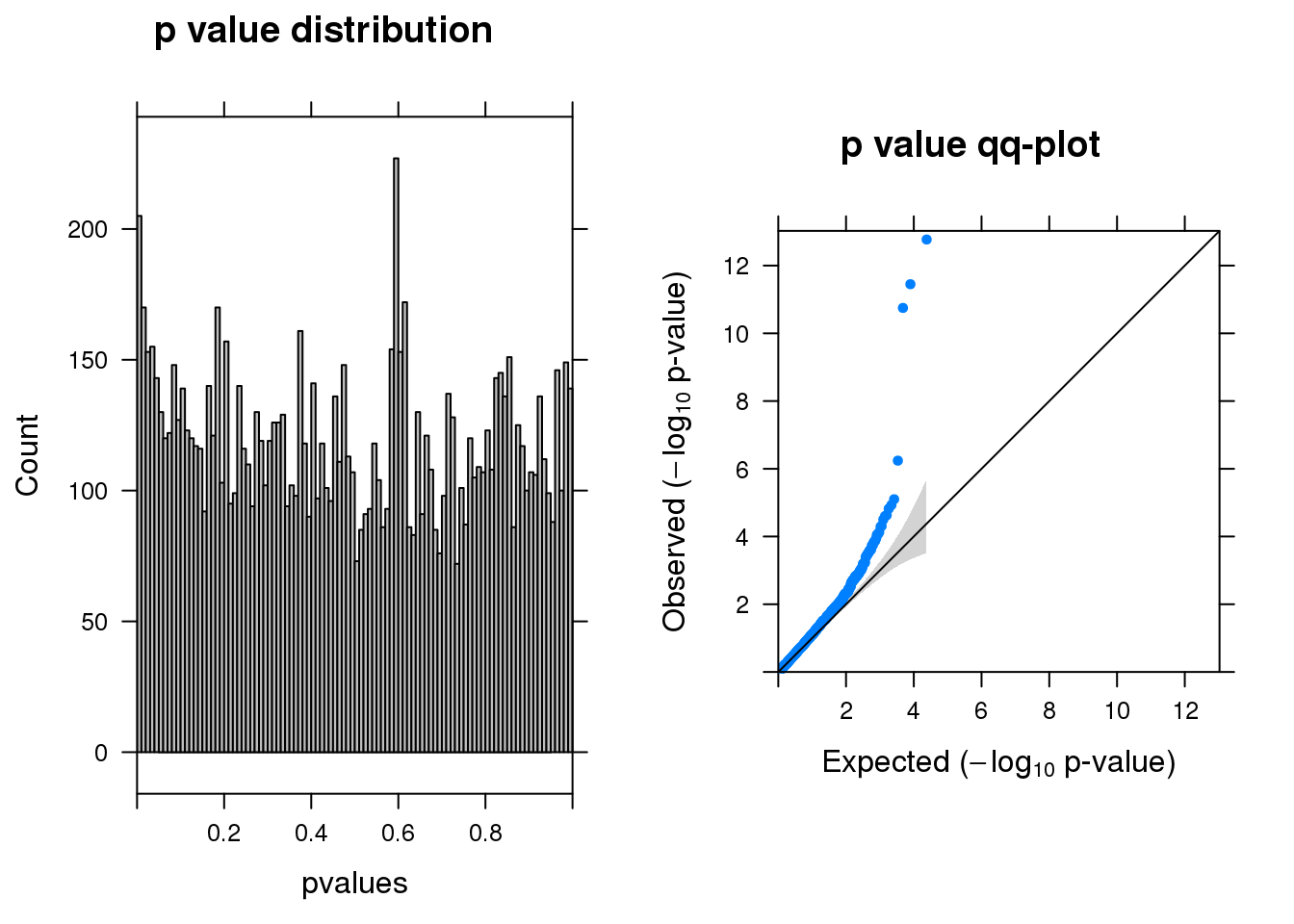

permreslist <- list()
permreslist[[1]] <- data.table(gene=rownames(resm$table), p=resm$table$PValue, fdr=resm$table$FDR, key="gene")
for (n in 2:(Nperm+1)){
  y <- DGEList(counts= countall[cellpercent > 0.03,],group=permute(coldata$condition))

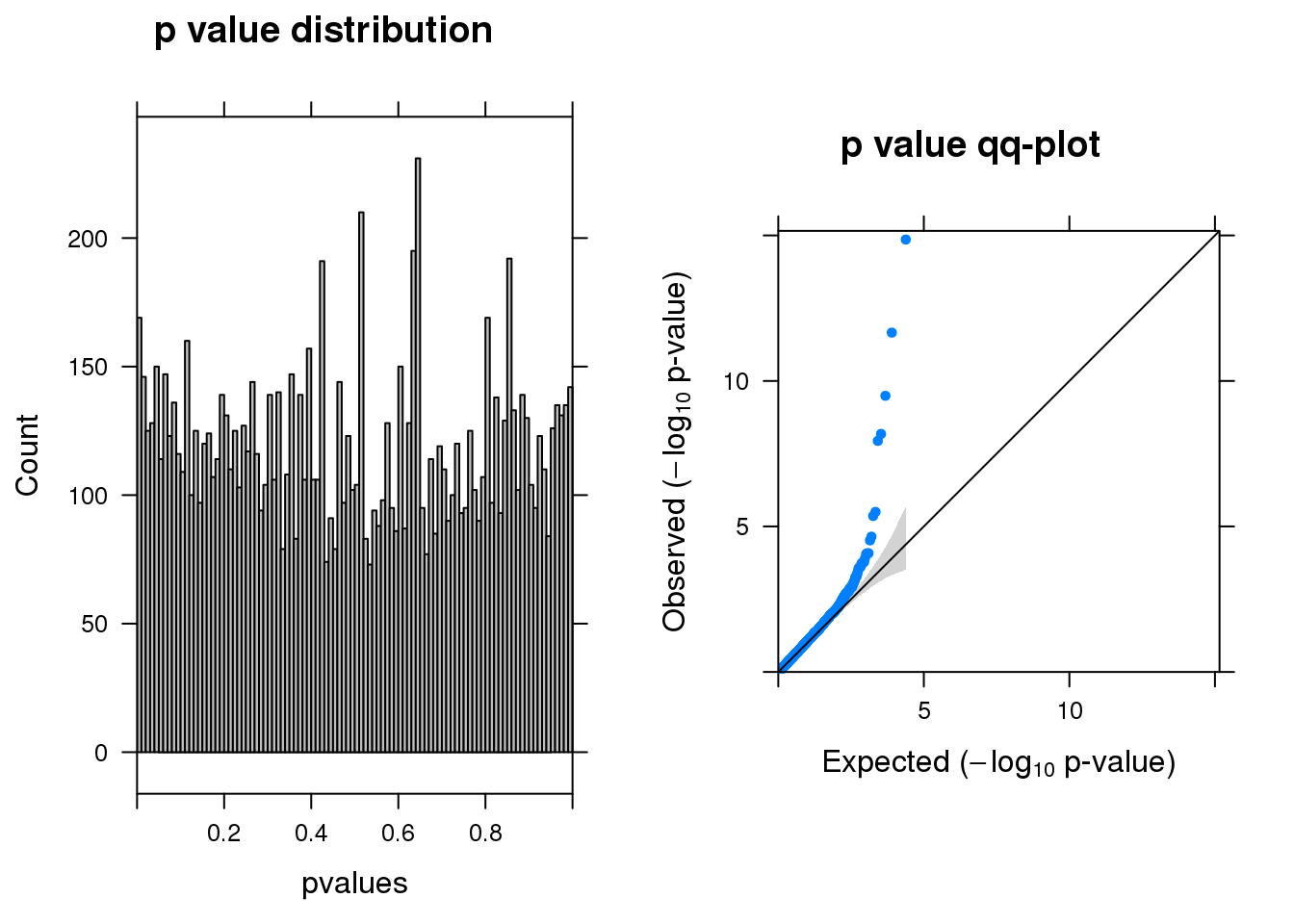

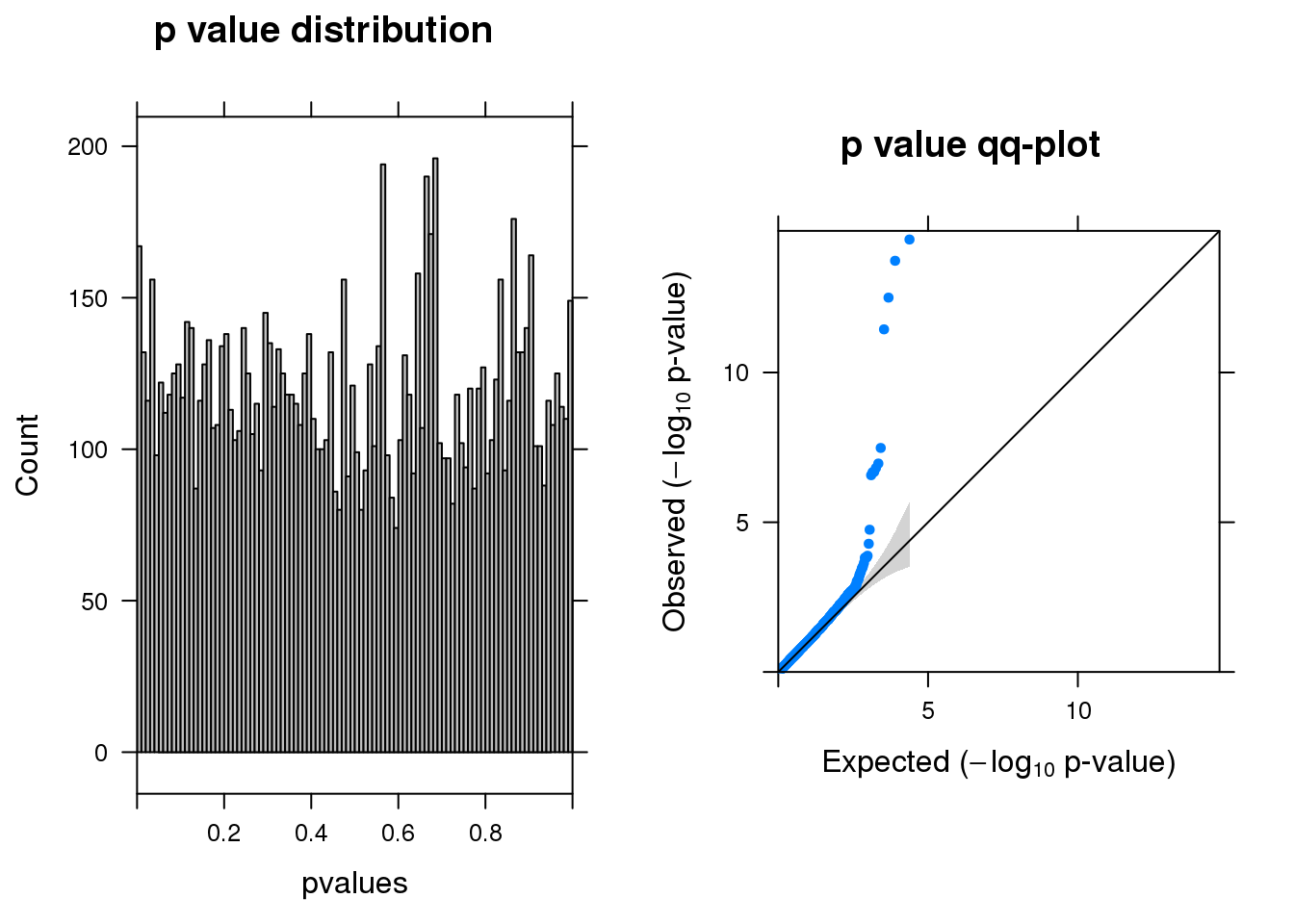

  res <- run_edgeR(y,plotit = T)
  resp <- data.table(gene=rownames(res$table), p=res$table$PValue, fdr=res$table$FDR, key="gene")
  colnames(resp) <- c("gene", paste0("perm.p_",n-1), paste0("perm.fdr_",n-1))
  permreslist[[n]] <- resp
}

[1] "There are 12 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F   PValue       FDR
--------  ------  -------  ---  -------  --------
MYC          3.2      7.4   70    0e+00   0.0e+00
LY6H        -2.9      6.6   66    0e+00   0.0e+00
APOE        -2.0      6.4   59    0e+00   0.0e+00
LGALS1      -2.5      6.6   53    0e+00   0.0e+00
SSTR2        1.7      6.4   32    0e+00   7.9e-05
DENND2A     -1.4      6.3   75    1e-07   2.2e-04

[1] "There are 21 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F   PValue       FDR
-------  ------  -------  ---  -------  --------
LY6H        2.9      6.6   59    0e+00   0.0e+00
APOE        1.8      6.4   43    0e+00   1.9e-06
ELAVL4      1.7      6.4   32    0e+00   1.3e-04
STMN4       1.9      6.5   32    0e+00   1.4e-04
LGALS1      1.9      6.6   31    1e-07   1.7e-04
KCNMA1      1.4      6.4   28    3e-07   5.2e-04

[1] "There are 12 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F    PValue       FDR
--------  ------  -------  ---  --------  --------
MYC          3.3      7.4   72   0.0e+00   0.0e+00
LY6H         2.8      6.6   54   0.0e+00   0.0e+00
LGALS1       2.3      6.6   43   0.0e+00   1.3e-06
APOE         1.7      6.4   36   0.0e+00   1.9e-05
CYP26A1      1.8      6.5   35   0.0e+00   2.7e-05
GAL          1.3      6.4   23   3.2e-06   6.3e-03

[1] "There are 19 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F    PValue       FDR
-------  ------  -------  ---  --------  --------
LY6H       -2.8      6.6   60   0.0e+00   0.0e+00
APOE       -2.0      6.4   53   0.0e+00   0.0e+00
LGALS1     -2.4      6.6   49   0.0e+00   1.0e-07
KCNMA1      1.4      6.4   26   6.0e-07   1.7e-03
RASD1      -1.5      6.5   21   8.0e-06   1.9e-02
NPTX2      -1.3      6.4   20   1.2e-05   2.4e-02

[1] "There are 36 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F   PValue       FDR
--------  ------  -------  ---  -------  --------
LY6H        -2.9      6.6   63    0e+00   0.0e+00
LGALS1      -2.4      6.6   50    0e+00   1.0e-07
APOE        -1.7      6.4   37    0e+00   1.4e-05
CALB1       -1.4      6.3   45    2e-07   6.9e-04
HES6         1.3      9.1   28    3e-07   6.9e-04
CYP26A1      1.6      6.5   27    4e-07   7.7e-04

mergedres <- Reduce(merge,permreslist)
knitr::kable(mergedres[fdr <0.1,],digits = 2)

y <- DGEList(counts= countall[cellpercent > 0.1,],group=coldata$condition)

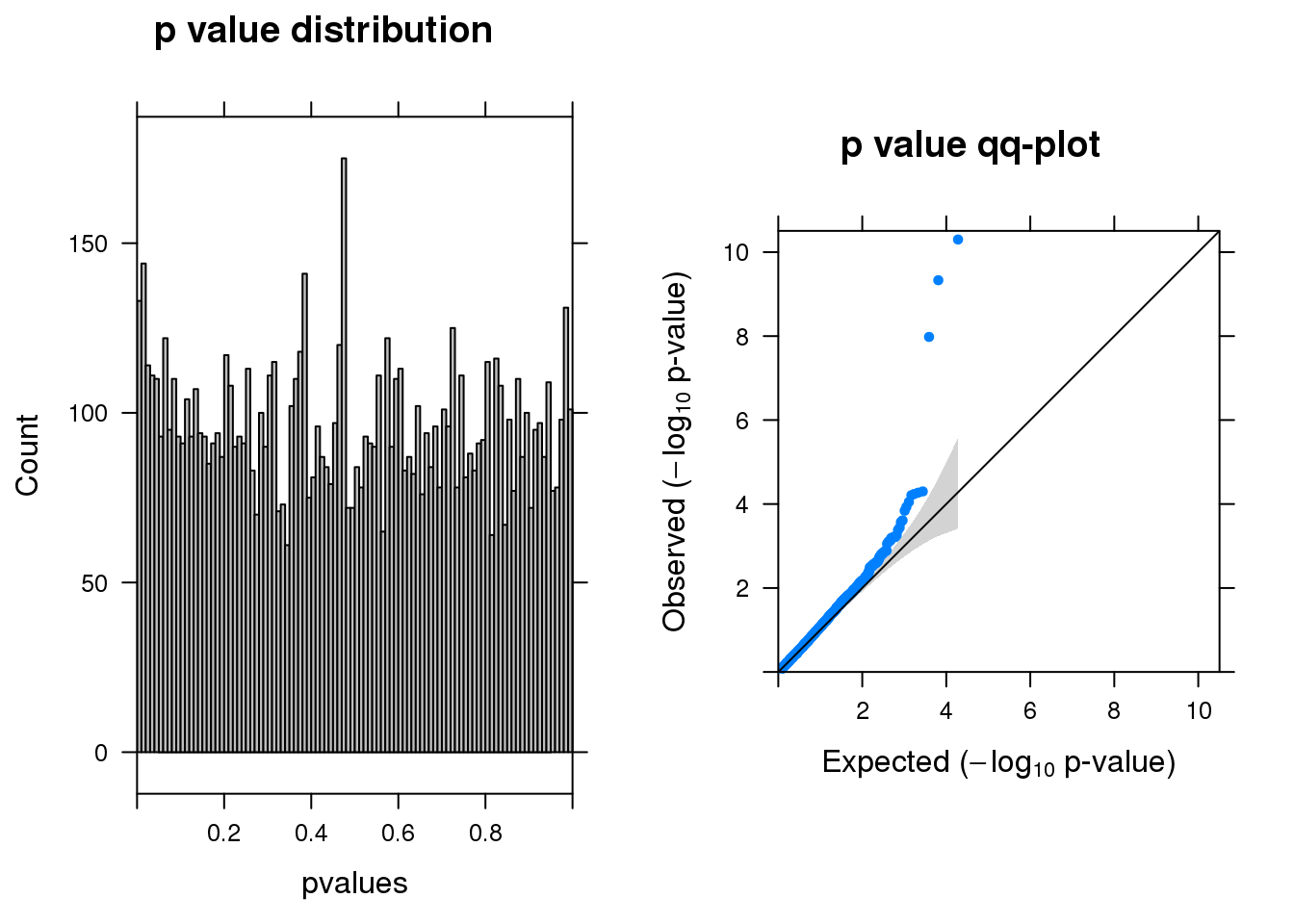

resm <- run_edgeR(y)

[1] "There are 7 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F    PValue       FDR
-------  ------  -------  ---  --------  --------
LGALS1     -2.3      6.6   47   0.0e+00   5.0e-07
TSPO       -1.6      6.4   42   0.0e+00   2.3e-06
A2M        -1.6      6.9   35   0.0e+00   3.4e-05
SLF2        1.1      6.5   20   5.0e-05   8.6e-02
KRT18       1.3      7.1   17   5.3e-05   8.6e-02
CMTM8       1.1      6.6   17   5.7e-05   8.6e-02

save(resm, file="data/edgeR-qlf-10%filter_res.Rd")

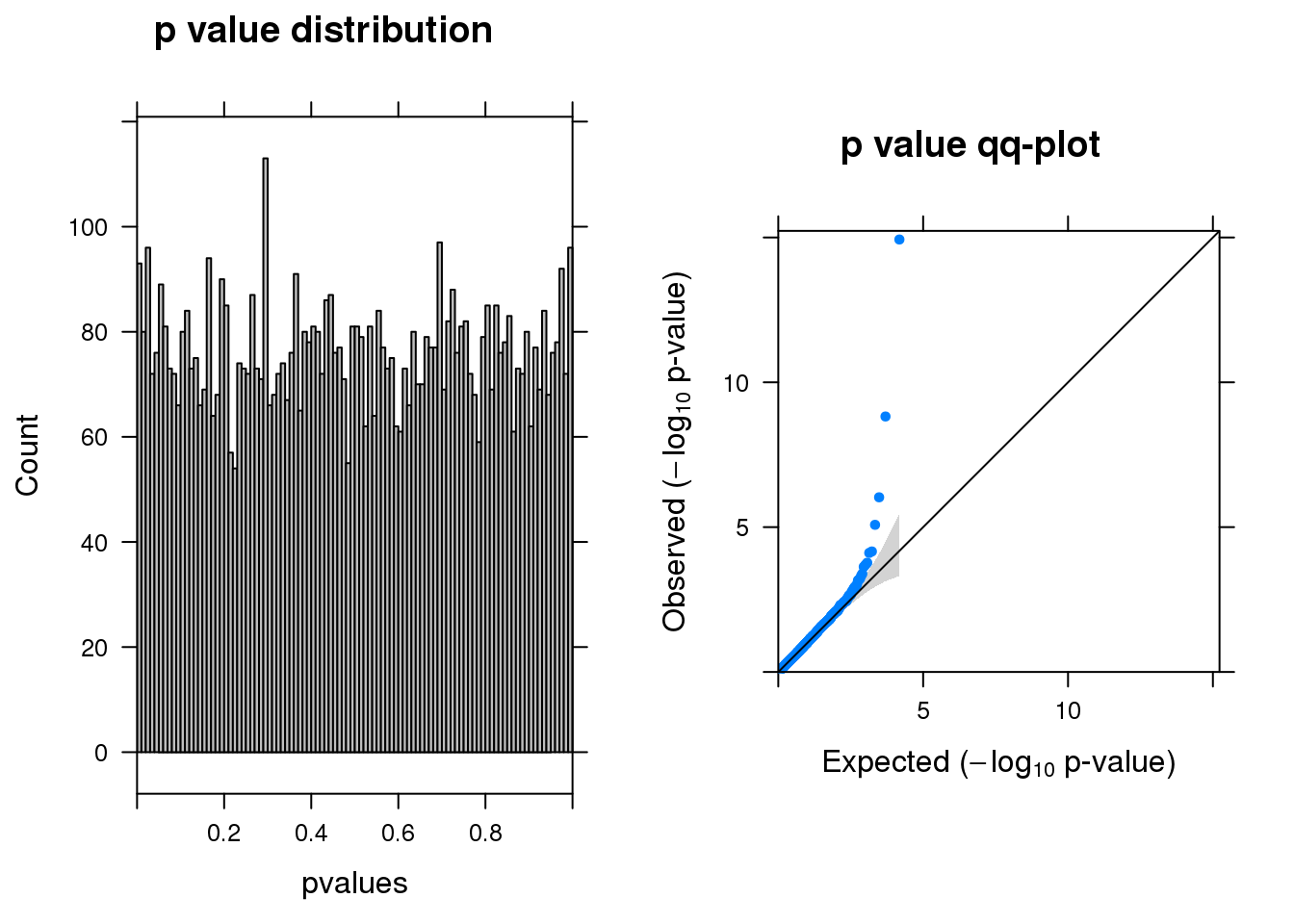

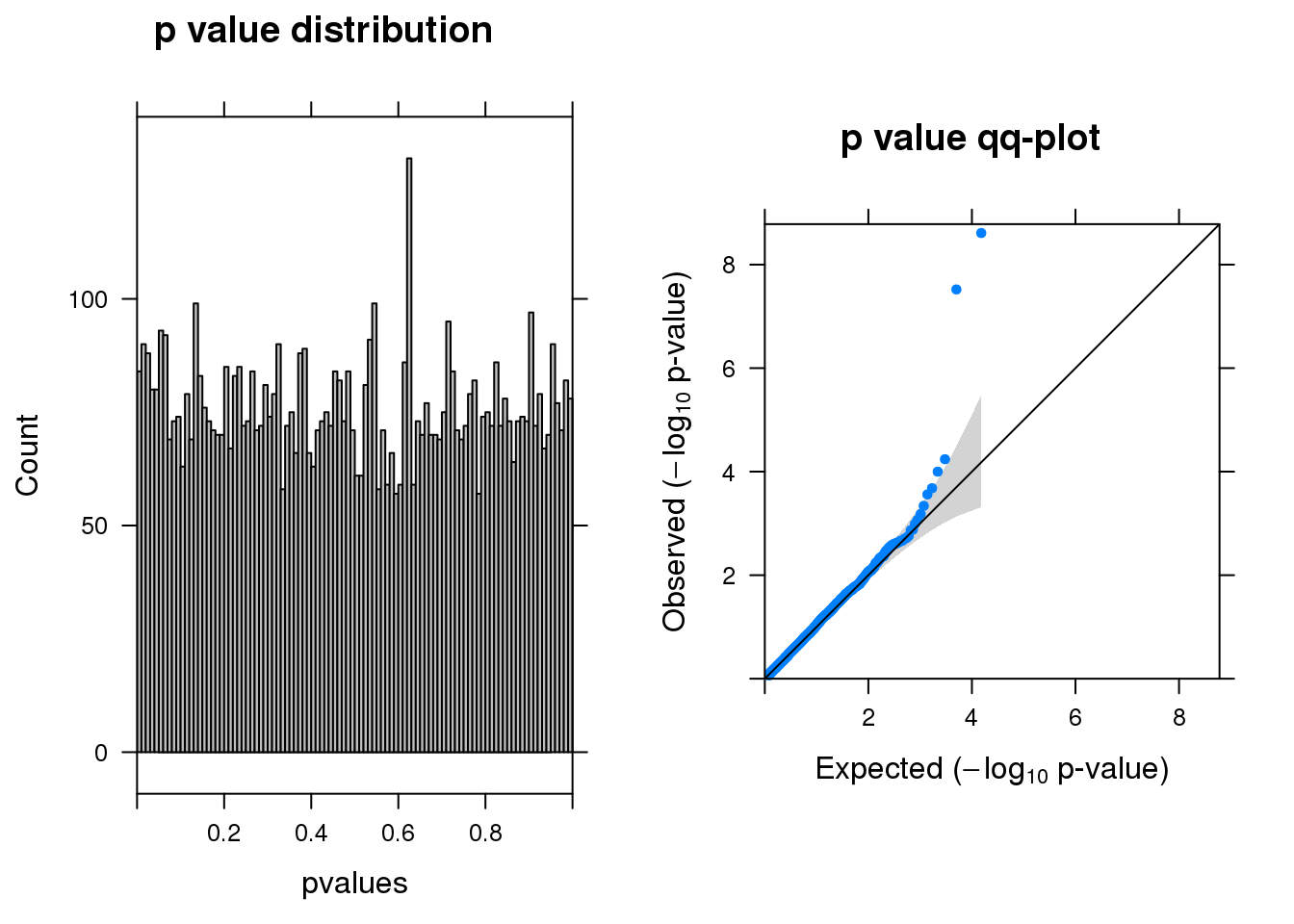

permreslist <- list()
permreslist[[1]] <- data.table(gene=rownames(resm$table), p=resm$table$PValue, fdr=resm$table$FDR, key="gene")
for (n in 2:(Nperm+1)){
  y <- DGEList(counts= countall[cellpercent > 0.1,],group=permute(coldata$condition))

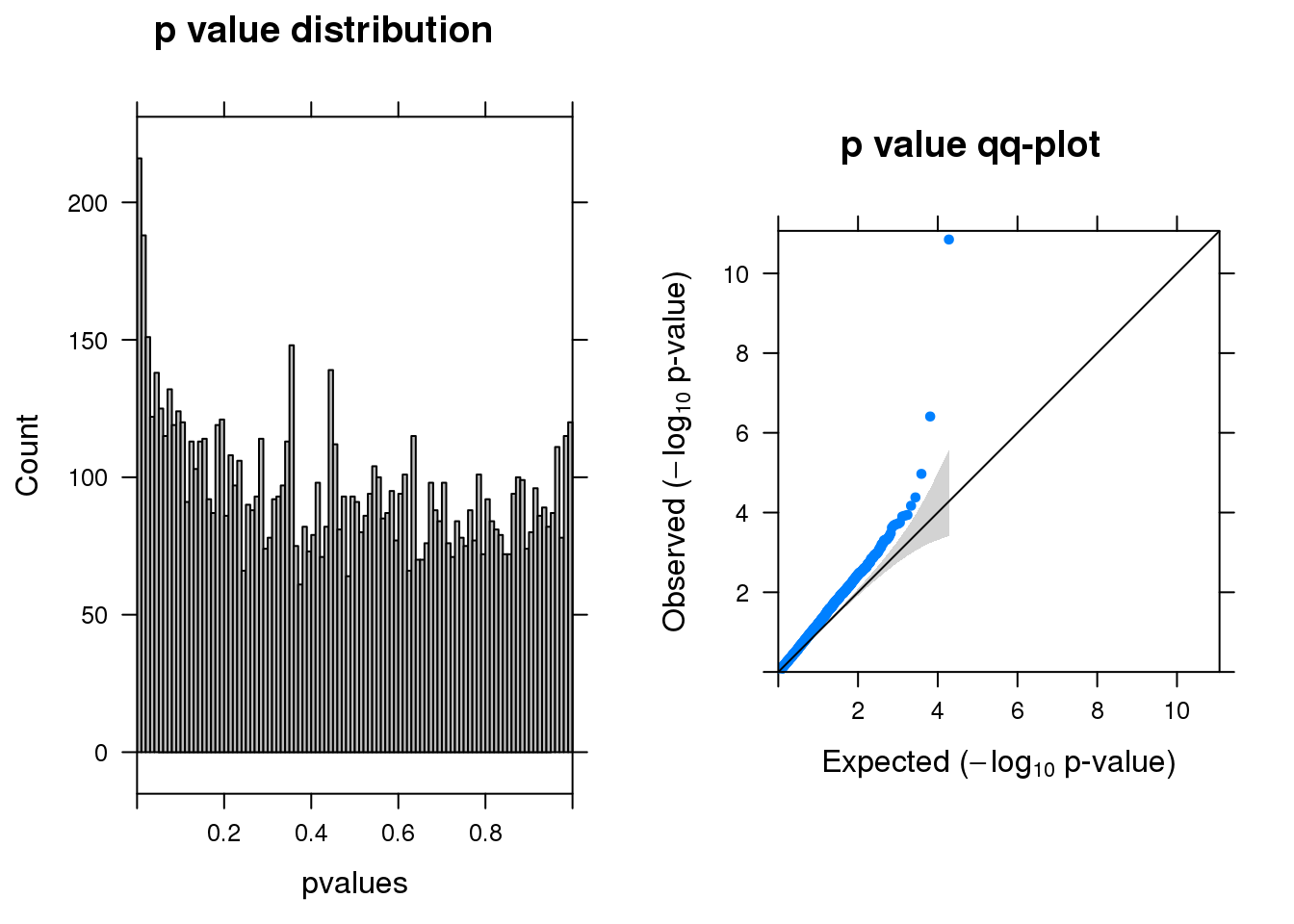

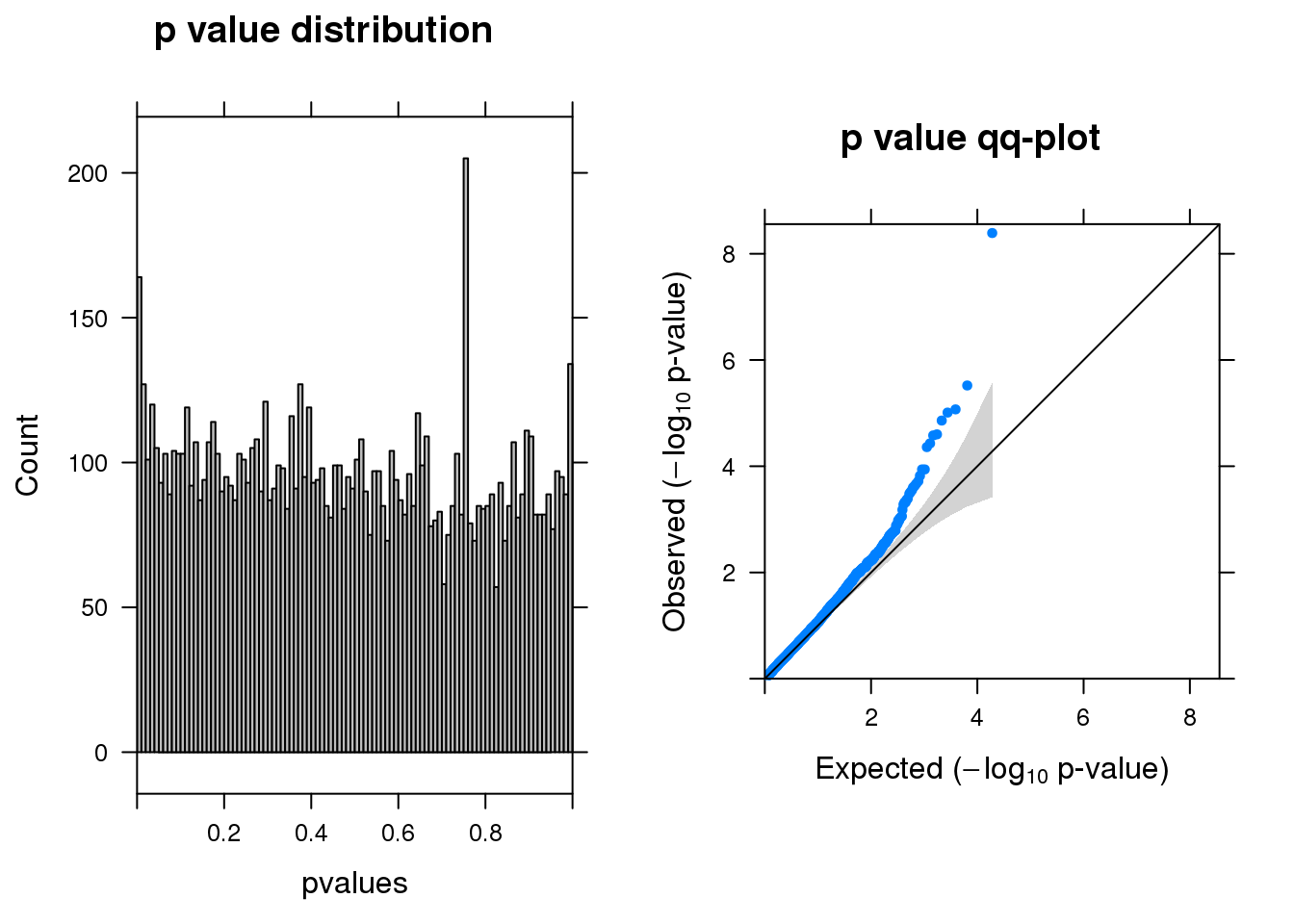

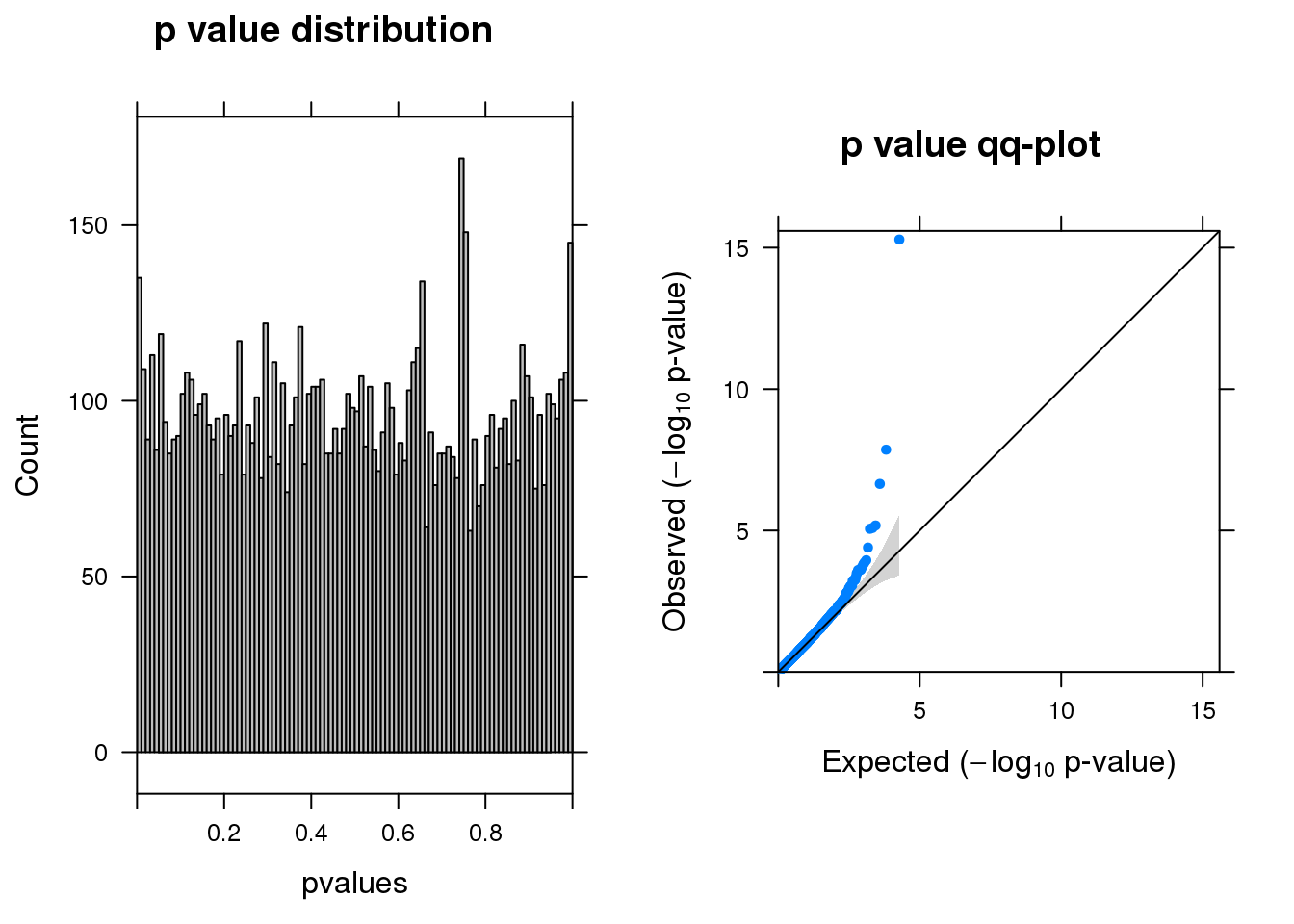

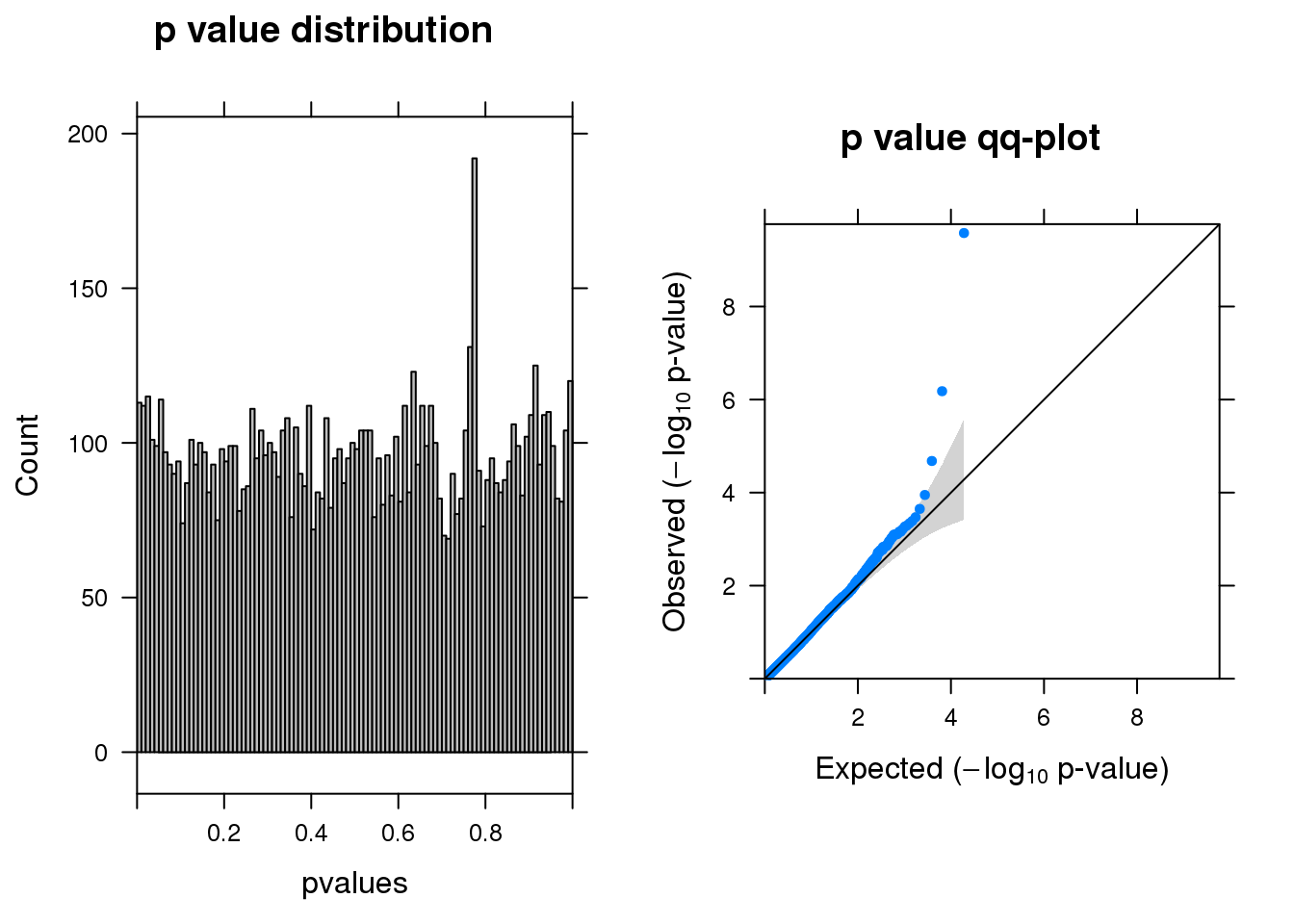

  res <- run_edgeR(y,plotit = T)
  resp <- data.table(gene=rownames(res$table), p=res$table$PValue, fdr=res$table$FDR, key="gene")
  colnames(resp) <- c("gene", paste0("perm.p_",n-1), paste0("perm.fdr_",n-1))
  permreslist[[n]] <- resp
}

[1] "There are 4 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F    PValue       FDR
-------  ------  -------  ---  --------  --------
LGALS1    -2.40      6.6   50   0.0e+00   1.0e-07
GDF15     -1.60      6.6   27   4.0e-07   1.9e-03
KRT18     -1.40      7.1   20   1.1e-05   3.4e-02
AHNAK     -1.10      6.4   21   4.2e-05   1.0e-01
FAM83D     1.00      6.5   16   6.8e-05   1.3e-01
ZNF91     -0.93      6.5   15   1.2e-04   1.5e-01

[1] "There are 9 genes passed FDR <0.1 cutoff"

            logFC   logCPM    F    PValue       FDR
---------  ------  -------  ---  --------  --------
LGALS1        2.1      6.6   37   0.0e+00   3.9e-05
LGALS3BP      1.3      6.4   25   3.0e-06   1.5e-02
TOB1         -1.1      6.5   21   8.5e-06   2.3e-02
SORT1        -1.1      6.6   20   9.7e-06   2.3e-02
VAV2         -1.1      6.5   22   1.4e-05   2.7e-02
VWA1          1.1      6.5   19   2.5e-05   3.6e-02

[1] "There are 7 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F    PValue       FDR
-------  ------  -------  ---  --------  --------
MYC         3.3      7.4   75   0.0e+00   0.0e+00
LGALS1     -2.0      6.6   34   0.0e+00   6.6e-05
ACTC1      -1.4      6.4   28   2.0e-07   7.1e-04
GDF15      -1.4      6.6   21   6.6e-06   1.4e-02
RASD1       1.5      6.5   21   8.1e-06   1.4e-02
CHKB       -1.2      6.4   36   8.7e-06   1.4e-02

[1] "There are 3 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F    PValue       FDR
-------  ------  -------  ---  --------  --------
LGALS1    -2.20      6.6   43   0.0e+00   2.5e-06
MYC       -1.80      7.4   26   7.0e-07   3.2e-03
PDP1      -1.10      6.5   19   2.1e-05   6.7e-02
PALMD     -0.99      6.5   15   1.1e-04   2.7e-01
EIF4E2    -0.53      7.6   14   2.2e-04   4.3e-01
JOSD2     -0.87      6.5   13   3.4e-04   4.6e-01

[1] "There are 5 genes passed FDR <0.1 cutoff"

            logFC   logCPM    F    PValue       FDR
---------  ------  -------  ---  --------  --------
MYC         -3.30      7.4   79   0.0e+00   0.00000
LGALS1       1.90      6.6   29   1.0e-07   0.00065
MT1X        -1.30      6.5   21   5.8e-06   0.01900
PPP1R14C     1.20      6.9   18   2.4e-05   0.05800
RGS16        1.50      6.8   17   5.1e-05   0.09800
CNN1         0.93      6.5   15   1.7e-04   0.22000

mergedres <- Reduce(merge,permreslist)
knitr::kable(mergedres[fdr <0.1,],digits = 2)

y <- DGEList(counts= countall[cellpercent > 0.2,],group=coldata$condition)
resm <- run_edgeR(y)

[1] "There are 1 genes passed FDR <0.1 cutoff"

           logFC   logCPM    F    PValue       FDR
--------  ------  -------  ---  --------  --------
A2M        -1.60      6.9   34   0.0e+00   0.00013
SLF2        1.10      6.5   20   4.8e-05   0.12000
CMTM8       1.10      6.6   17   5.9e-05   0.12000
KRT18       1.30      7.1   16   7.3e-05   0.12000
GAP43      -0.91      8.2   16   9.0e-05   0.12000
FAM228B    -0.99      6.5   18   9.2e-05   0.12000

permreslist <- list()
permreslist[[1]] <- data.table(gene=rownames(resm$table), p=resm$table$PValue, fdr=resm$table$FDR, key="gene")
for (n in 2:(Nperm+1)){
  y <- DGEList(counts= countall[cellpercent > 0.2,],group=permute(coldata$condition))

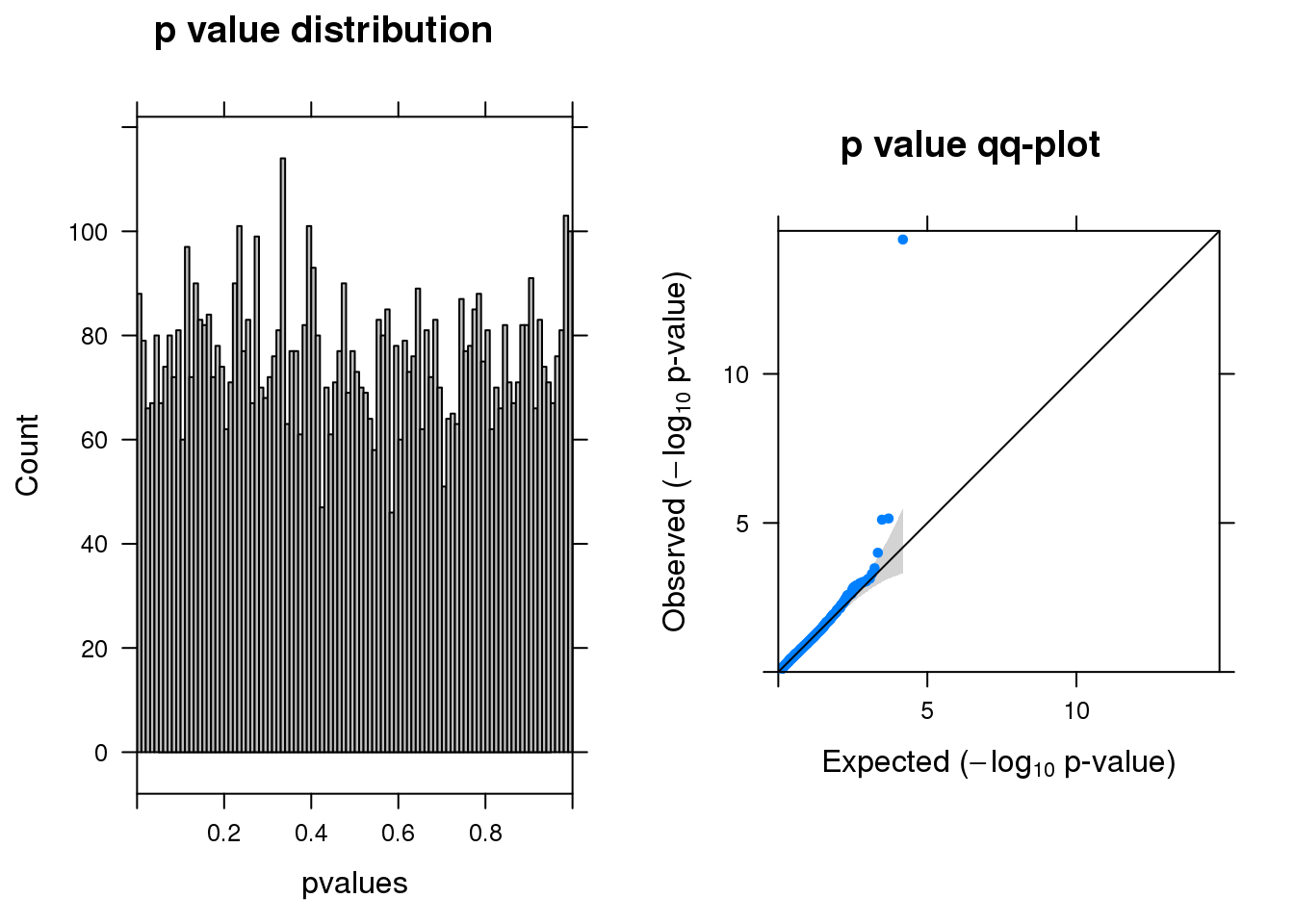

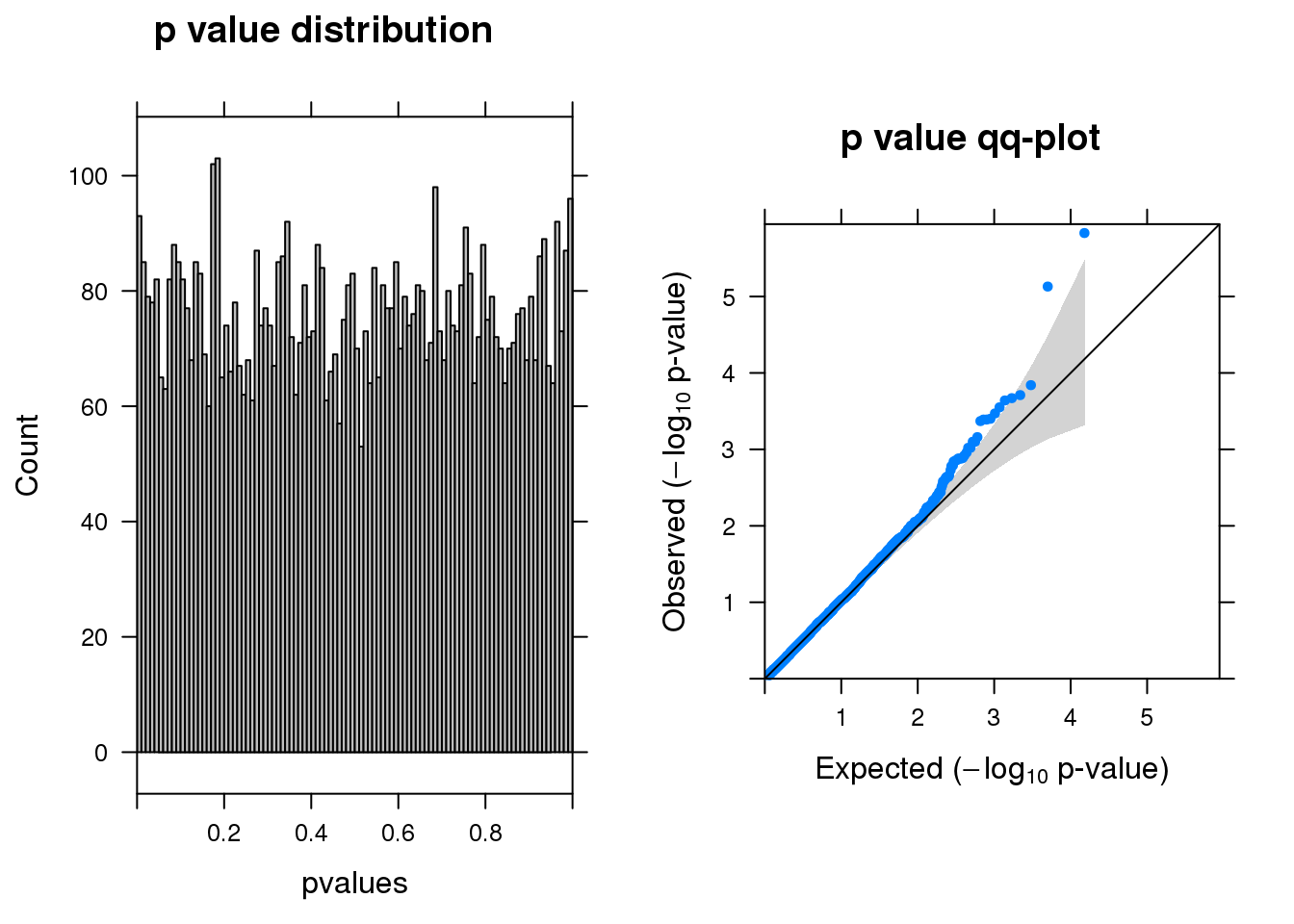

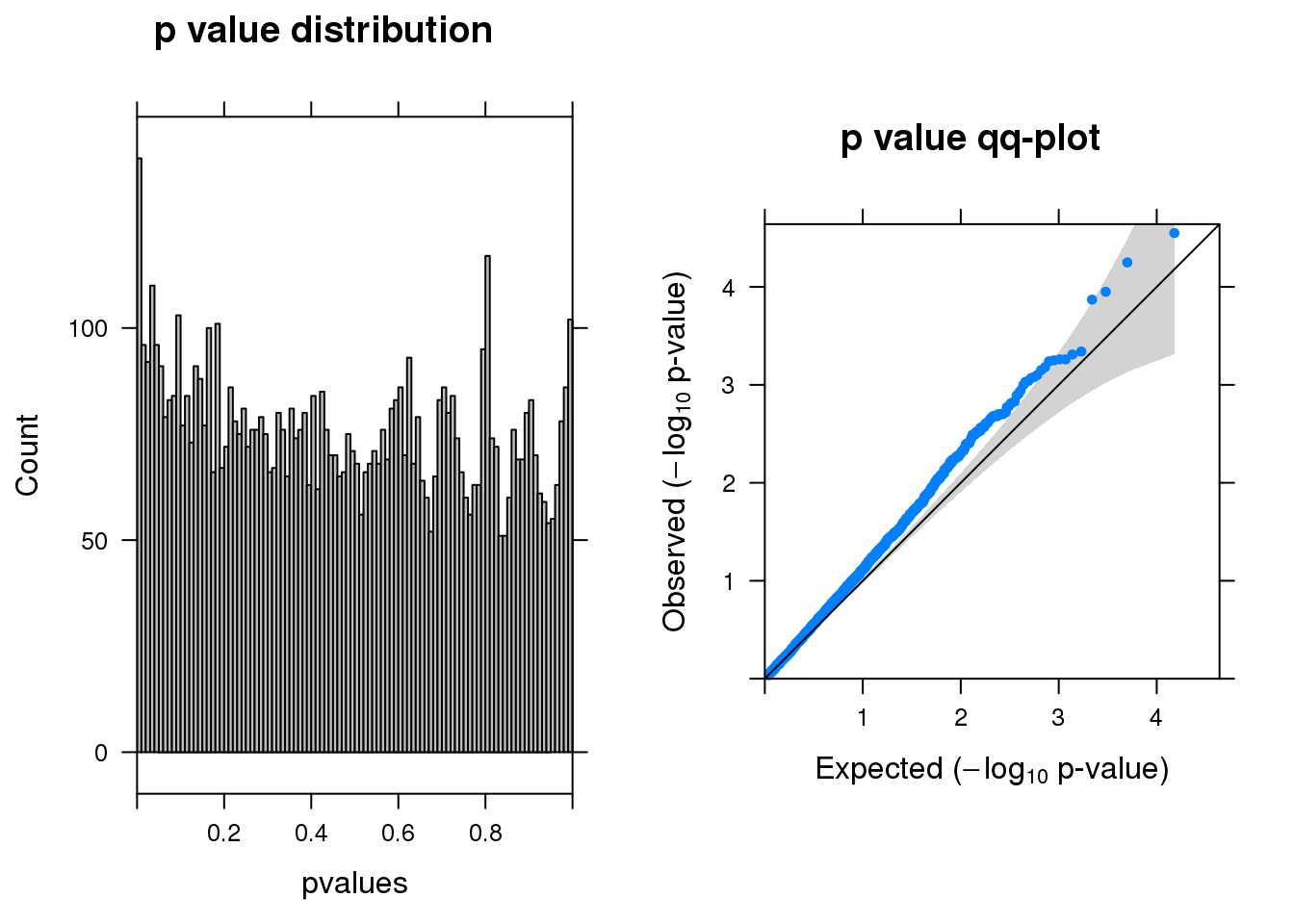

  res <- run_edgeR(y,plotit = T)
  resp <- data.table(gene=rownames(res$table), p=res$table$PValue, fdr=res$table$FDR, key="gene")
  colnames(resp) <- c("gene", paste0("perm.p_",n-1), paste0("perm.fdr_",n-1))
  permreslist[[n]] <- resp
}

[1] "There are 6 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F    PValue       FDR
-------  ------  -------  ---  --------  --------
MYC        -3.1      7.4   73   0.0e+00   0.0e+00
SPP1        2.2      7.0   39   0.0e+00   5.7e-06
DLL3       -1.7      7.5   25   9.0e-07   2.4e-03
VGF         1.3      6.8   21   8.3e-06   1.6e-02
CRABP1     -1.1     10.0   16   7.0e-05   9.9e-02
PLK3       -1.1      6.8   16   7.8e-05   9.9e-02

[1] "There are 2 genes passed FDR <0.1 cutoff"

            logFC   logCPM    F    PValue     FDR
---------  ------  -------  ---  --------  ------
CAV1         1.40      7.1   24   1.5e-06   0.011
SLC4A2       1.10      6.5   21   7.4e-06   0.028
MIS18BP1    -0.92      6.6   15   1.4e-04   0.270
UBQLN2      -0.85      6.6   14   2.0e-04   0.270
RIF1        -0.78      6.8   14   2.1e-04   0.270
TMEM43      -0.85      6.6   14   2.3e-04   0.270

[1] "There are 0 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F    PValue    FDR
-------  ------  -------  ---  --------  -----
MYC       -1.50      7.4   18   2.8e-05   0.21
CCZ1B     -0.96      6.6   17   5.7e-05   0.22
MALAT1    -0.46     14.0   15   1.1e-04   0.26
WSCD1      0.94      6.6   15   1.4e-04   0.26
PEX14     -0.79      6.7   13   4.6e-04   0.42
SLC3A2    -0.67      8.6   12   4.9e-04   0.42

[1] "There are 3 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F    PValue    FDR
-------  ------  -------  ---  --------  -----
MYC       -3.10      7.4   70   0.0e+00   0.00
ATG14      1.20      6.4   29   7.1e-06   0.02
IGFBP5    -1.40      6.7   21   7.7e-06   0.02
SOCS3     -0.93      6.7   16   1.0e-04   0.19
BRAP       0.97      6.4   17   3.3e-04   0.47
UBR5       0.79      6.6   12   5.1e-04   0.47

[1] "There are 2 genes passed FDR <0.1 cutoff"

          logFC   logCPM    F    PValue       FDR
-------  ------  -------  ---  --------  --------
SPP1      -2.00      7.0   38   0.0e+00   1.9e-05
MYC       -2.00      7.4   33   0.0e+00   1.1e-04
GCLM      -1.00      6.8   17   5.7e-05   1.4e-01
OSGIN1    -1.20      6.7   16   9.9e-05   1.9e-01
SPC25     -0.88      6.9   14   2.1e-04   3.2e-01
NTRK3     -0.94      6.5   15   2.7e-04   3.5e-01

mergedres <- Reduce(merge,permreslist)
knitr::kable(mergedres[fdr <0.1,],digits = 2)

sessionInfo()

R version 3.5.1 (2018-07-02)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Scientific Linux 7.4 (Nitrogen)

Matrix products: default
BLAS/LAPACK: /software/openblas-0.2.19-el7-x86_64/lib/libopenblas_haswellp-r0.2.19.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] grid      stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
[1] gridExtra_2.3     edgeR_3.24.3      limma_3.38.2      Matrix_1.2-15
[5] data.table_1.12.0 gtools_3.8.1      dplyr_0.7.8       lattice_0.20-38

loaded via a namespace (and not attached):
 [1] Rcpp_1.0.0        highr_0.7         compiler_3.5.1
 [4] pillar_1.3.1      git2r_0.23.0      workflowr_1.1.1
 [7] bindr_0.1.1       R.methodsS3_1.7.1 R.utils_2.7.0
[10] tools_3.5.1       digest_0.6.18     gtable_0.2.0
[13] evaluate_0.12     tibble_2.0.1      pkgconfig_2.0.2
[16] rlang_0.3.1       yaml_2.2.0        bindrcpp_0.2.2
[19] stringr_1.4.0     knitr_1.20        locfit_1.5-9.1
[22] rprojroot_1.3-2   tidyselect_0.2.5  glue_1.3.0
[25] R6_2.3.0          rmarkdown_1.10    purrr_0.2.5
[28] magrittr_1.5      whisker_0.3-2     backports_1.1.2
[31] htmltools_0.3.6   splines_3.5.1     assertthat_0.2.0
[34] stringi_1.3.1     crayon_1.3.4      R.oo_1.22.0

This reproducible R Markdown analysis was created with workflowr 1.1.1
