SST preparation

Introduction

Building on the work performed in the Polygon preparation vignette, we will now create grouped SST time series for the regions in our study area. We will do this by finding which NOAA OISST pixels fall within each of the region polygons.

# Packages used in this vignette
library(jsonlite, lib.loc = "../R-packages/")
library(tidyverse) # Base suite of functions
library(heatwaveR, lib.loc = "../R-packages/") # For detecting MHWs
# cat(paste0("heatwaveR version = ", packageDescription("heatwaveR")$Version))
library(FNN) # For fastest nearest neighbour searches
# library(ncdf4) # For opening and working with NetCDF files
library(tidync, lib.loc = "../R-packages/") # For a more tidy approach to managing NetCDF data
library(SDMTools) # For finding points within polygons
library(lubridate) # For convenient date manipulation

# Set number of cores
doMC::registerDoMC(cores = 50)

# Disable scientific notation for numeric values
  # I just find it annoying
options(scipen = 999)

# Corners of the study area
NWA_corners <- readRDS("data/NWA_corners.Rda")

# Individual regions
NWA_coords <- readRDS("data/NWA_coords_cabot.Rda")

# The base map
map_base <- ggplot2::fortify(maps::map(fill = TRUE, col = "grey80", plot = FALSE)) %>%
  dplyr::rename(lon = long) %>%
  mutate(group = ifelse(lon > 180, group+9999, group),
         lon = ifelse(lon > 180, lon-360, lon)) %>%
  select(-region, -subregion)

Pixel prep

Up first we take the lon/lat grid from the 1/4 degree daily NOAA OISST product and find which points fall within each region. We will save this information to allow us to then easily pull out the desired pixels from the cube of OISST data.

# Load NAPA bathymetry
# NAPA_bathy <- readRDS("data/NAPA_bathy.Rda")# %>%
  # mutate(index = paste0(lon, lat))
OISST_grid <- data.frame(expand.grid(c(seq(0.125, 179.875, by = 0.25), seq(-179.875, -0.125, by = 0.25)),
                                        seq(-89.875, 89.875, by = 0.25)))
colnames(OISST_grid) <- c("lon", "lat")
# saveRDS(OISST_grid, "data/OISST_grid.Rda")

# Trim down OISST grid for faster processing
OISST_grid_trim <- OISST_grid %>%
  filter(lon >= min(NWA_coords$lon),
         lon <= max(NWA_coords$lon),
         lat >= min(NWA_coords$lat),
         lat <= max(NWA_coords$lat))

# Function for finding and cleaning up points within a given region polygon
pnts_in_region <- function(region_in){
  region_sub <- NWA_coords %>%
    filter(region == region_in)
  coords_in <- pnt.in.poly(pnts = OISST_grid_trim[1:2], poly.pnts = region_sub[2:3]) %>%
    filter(pip == 1) %>%
    dplyr::select(-pip) %>%
    mutate(region = region_in)
  return(coords_in)
}

# Run the function
NWA_info <- plyr::ldply(unique(NWA_coords$region), pnts_in_region)

# Visualise to ensure success
ggplot(NWA_coords, aes(x = lon, y = lat)) +
  geom_polygon(data = map_base, aes(group = group), show.legend = F) +
  geom_polygon(aes(fill = region), alpha = 0.2) +
  geom_point(data = NWA_info, aes(colour = region)) +
    coord_cartesian(xlim = NWA_corners[1:2],
                  ylim = NWA_corners[3:4]) +
  labs(x = NULL, y = NULL)

Expand here to see past versions of pixel-regions-1.png:

Version	Author	Date
5cb8e8f	robwschlegel	2019-05-28
c09b4f7	robwschlegel	2019-05-24

SST prep

With the OISST pixels successfully assigned to regions based on their thermal properties we now need to go about clumping these SST pixels into one mean time series per region.

# The OISST data location
OISST_files <- dir("../../data/OISST", full.names = T)

# The files with data in the study area
OISST_files_sub <- data.frame(files = OISST_files,
                              lon = c(seq(0.125, 179.875, by = 0.25), seq(-179.875, -0.125, by = 0.25))) %>%
  filter(lon >= min(NWA_info$lon), lon <= max(NWA_info$lon)) %>%
  mutate(files = as.character(files))

# Function for loading the individual OISST NetCDF files and subsetting SST accordingly
# file_name <- OISST_files_sub$files[1]
load_OISST_sub <- function(file_name, coords = NWA_info){
  res <- tidync(file_name) %>%
    hyper_filter(lat = dplyr::between(lat, min(coords$lat), max(coords$lat)),
                 time = dplyr::between(time, as.integer(as.Date("1993-01-01")),
                                       as.integer(as.Date("2018-12-31")))) %>%
    hyper_tibble() %>%
    mutate(time = as.Date(time, origin = "1970-01-01")) %>%
    dplyr::rename(temp = sst, t = time) %>%
    select(lon, lat, t, temp) %>%
    left_join(coords, by = c("lon", "lat")) %>%
    filter(!is.na(region))
  # return(res)
}

# Clomp'em
system.time(
  OISST_region <- plyr::ldply(OISST_files_sub$files,
                           .fun = load_OISST_sub,
                           .parallel = TRUE) %>%
    group_by(region, t) %>%
    summarise(temp = mean(temp, na.rm = T))
) # 18 seconds

# Save
# saveRDS(OISST_region, "data/OISST_region.Rda")

MHW detection

With our clumped SST time series ready the last step in this vignette is to detect the MHWs within each.

# Load the time series data
OISST_region <- readRDS("data/OISST_region.Rda")

# Calculate base results
system.time(
OISST_region_MHW <- OISST_region %>%
  # NB: Should not use data before 1998-01-01 as this is model spin-up
  # filter(t >= "1998-01-01") %>%
  group_by(region) %>%
  nest() %>%
  mutate(clims = map(data, ts2clm,
                     # NB: I've chosen here to use as much of the 2015 data as exists,
                     # rather than to use none of it as I think it will create a better climatology
                     # even though the last two days of the year are missing
                     climatologyPeriod = c("1993-01-01", "2018-12-31")),
         events = map(clims, detect_event),
         cats = map(events, category)) %>%
  select(-data, -clims)
) # 2 seconds
# saveRDS(OISST_region_MHW, "data/OISST_region_MHW.Rda")

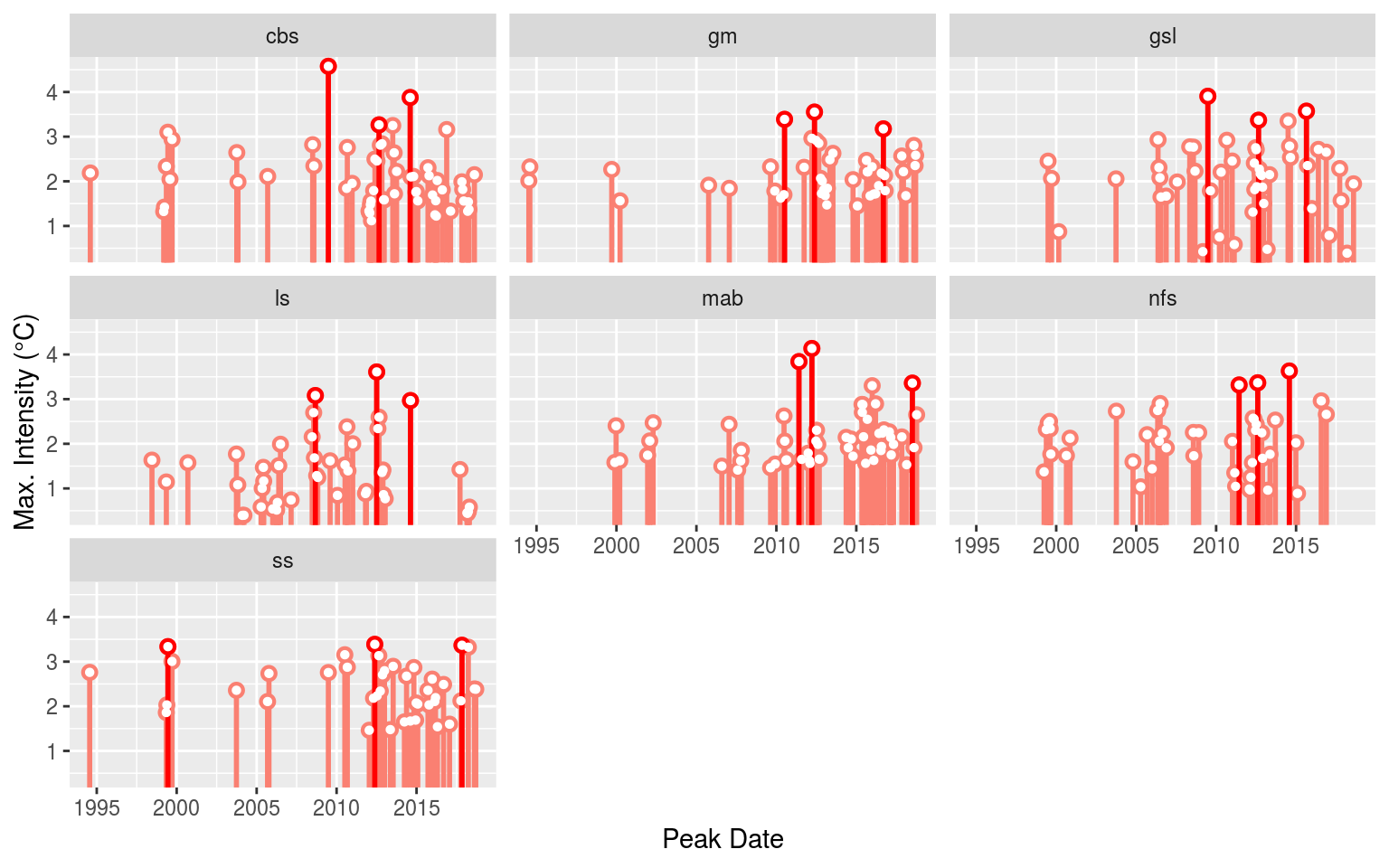

With the MHWs detected, let’s visualise the results to ensure everything worked as expected.

# Load MHW results
OISST_region_MHW <- readRDS("data/OISST_region_MHW.Rda")

# Events
OISST_MHW_event <- OISST_region_MHW %>%
  select(-cats) %>%
  unnest(events) %>%
  filter(row_number() %% 2 == 0) %>%
  unnest(events)

event_lolli_plot <- ggplot(data = OISST_MHW_event , aes(x = date_peak, y = intensity_max)) +
        geom_lolli(colour = "salmon", colour_n = "red", n = 3) +
  labs(x = "Peak Date", y = "Max. Intensity (°C)") +
  # scale_y_continuous(expand = c(0, 0))+
  facet_wrap(~region)
# ggsave(plot = event_lolli_plot, filename = "output/event_lolli_plot.pdf", height = 7, width = 13)

# Visualise
event_lolli_plot

Expand here to see past versions of MHW-vis-1.png:

Version	Author	Date
81e961d	robwschlegel	2019-07-09
6dd6da8	robwschlegel	2019-06-06
c09b4f7	robwschlegel	2019-05-24

Everything appears to check out. Up next in the Variable preparation vignette we will go through the steps necessary to build the data that will be fed into our self-organising maps as seen in the Self-organising map (SOM) analysis vignette.
