Introduction

Following previous simulation, we are adding \(l_1\) regularization to the primal form such that

\[ \begin{array}{rl} \min\limits_{f \in \mathbb{R}^m, \ \ g \in \mathbb{R}^n} & -\sum\limits_{i = 1}^n\log\left(g_i\right) + \sum\limits_{j = 1}^m\lambda_j\left|f_j\right| \\ \text{s.t.} & Af + a = g\\ & g \geq 0 \ . \end{array} \]

Its dual form is

\[ \begin{array}{rl} \min\limits_{\nu \in \mathbb{R}^n} & a^T\nu-\sum\limits_{i = 1}^n\log\left(\nu_i\right) \\ \text{s.t.} & \left|A^T\nu\right| \leq \lambda\\ & \nu\geq0 \ . \end{array} \]

Right now we haven’t figured out how to program the \(l_1\) regularized primal form in Rmosek, so here we are only comparing the dual form with or without regularization.

Simulation

Let \(\lambda\) be

\[ \lambda_i = \begin{cases} 0 & i \text{ odd ;}\\ a / \rho^{i/2} & i \text{ even .}\\ \end{cases} \] with \(a = 10\), \(\rho = 0.5\). \(n = 10^4\), \(m = 10\), \(A\) and \(a\) are generated in the same way.

The dual optimization in all \(1000\) simulation trials reaches the optimal solution both with and without regularization.

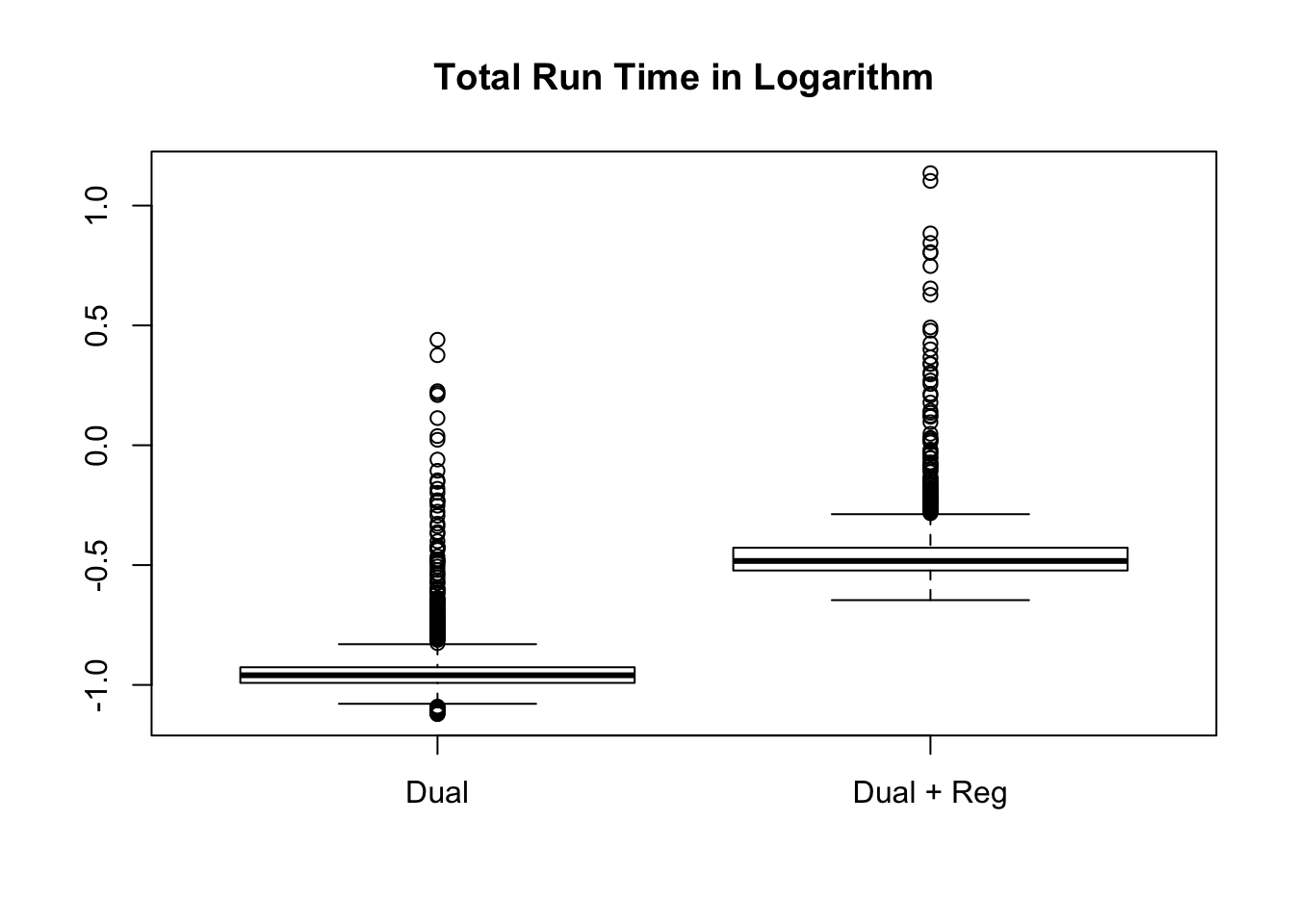

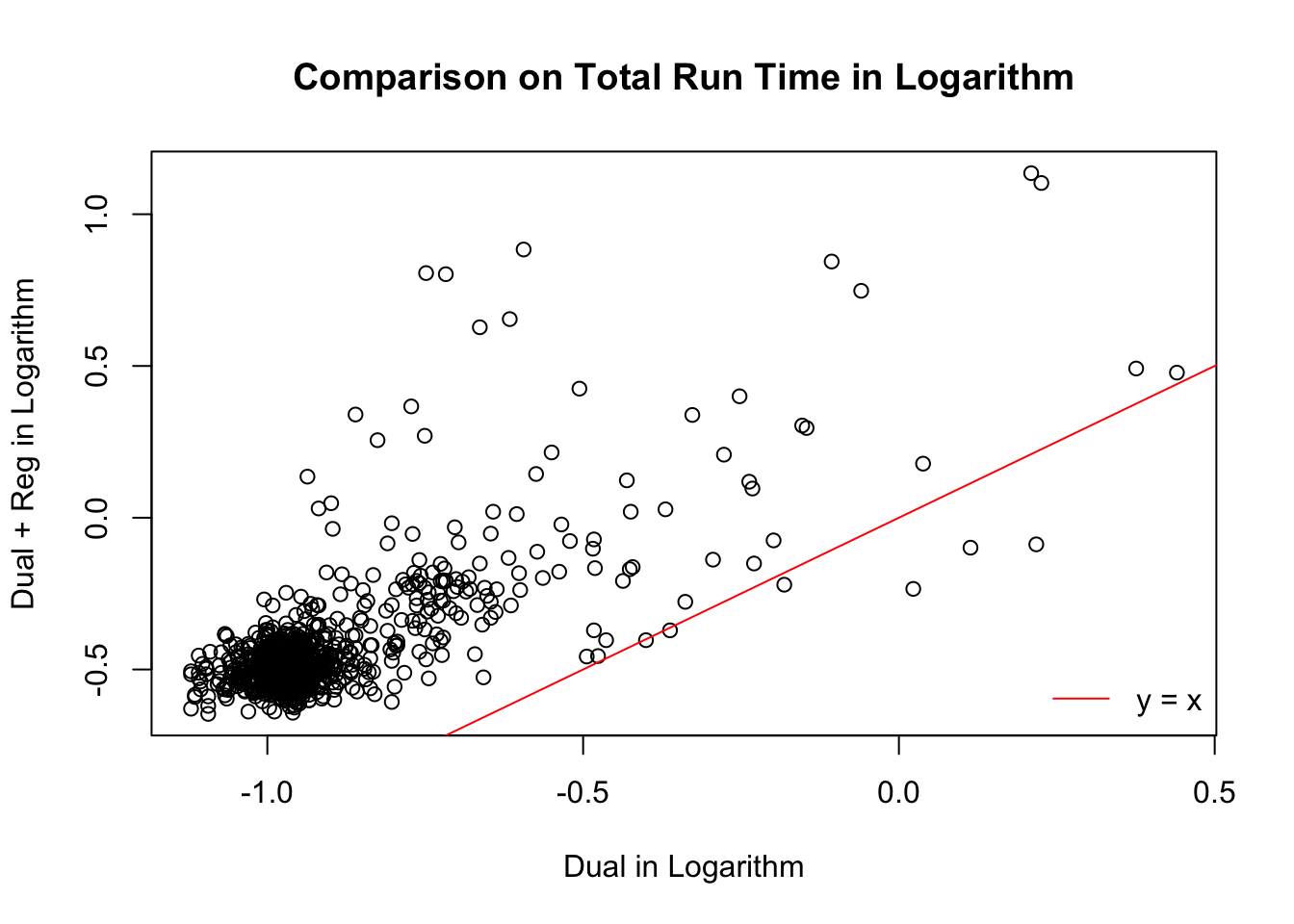

Total time cost

Expand here to see past versions of unnamed-chunk-3-1.png:
Version Author Date
0f36d99 LSun 2017-12-21
7c74e1a LSun 2017-06-23

Expand here to see past versions of unnamed-chunk-3-2.png:
Version Author Date
0f36d99 LSun 2017-12-21
7c74e1a LSun 2017-06-23

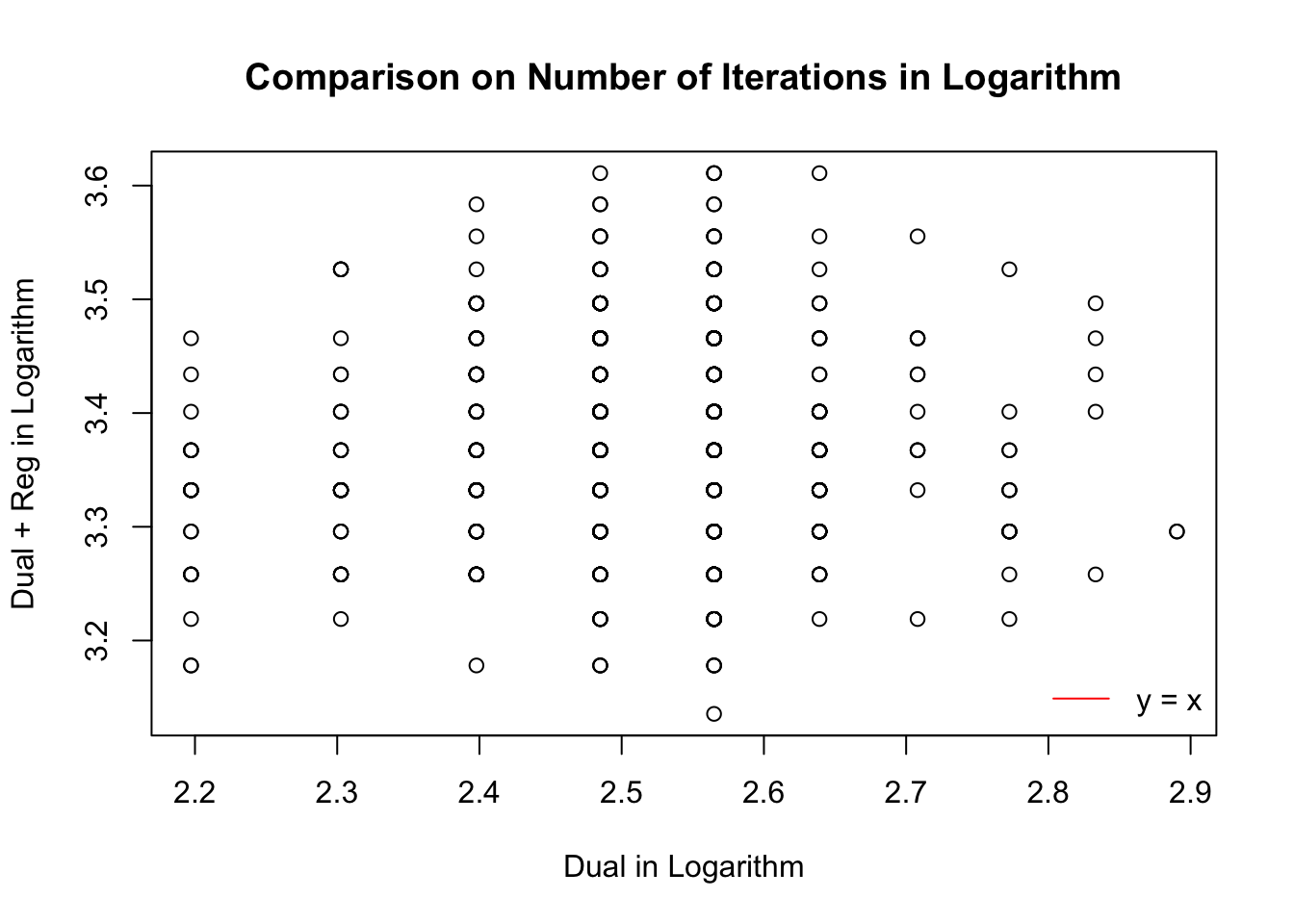

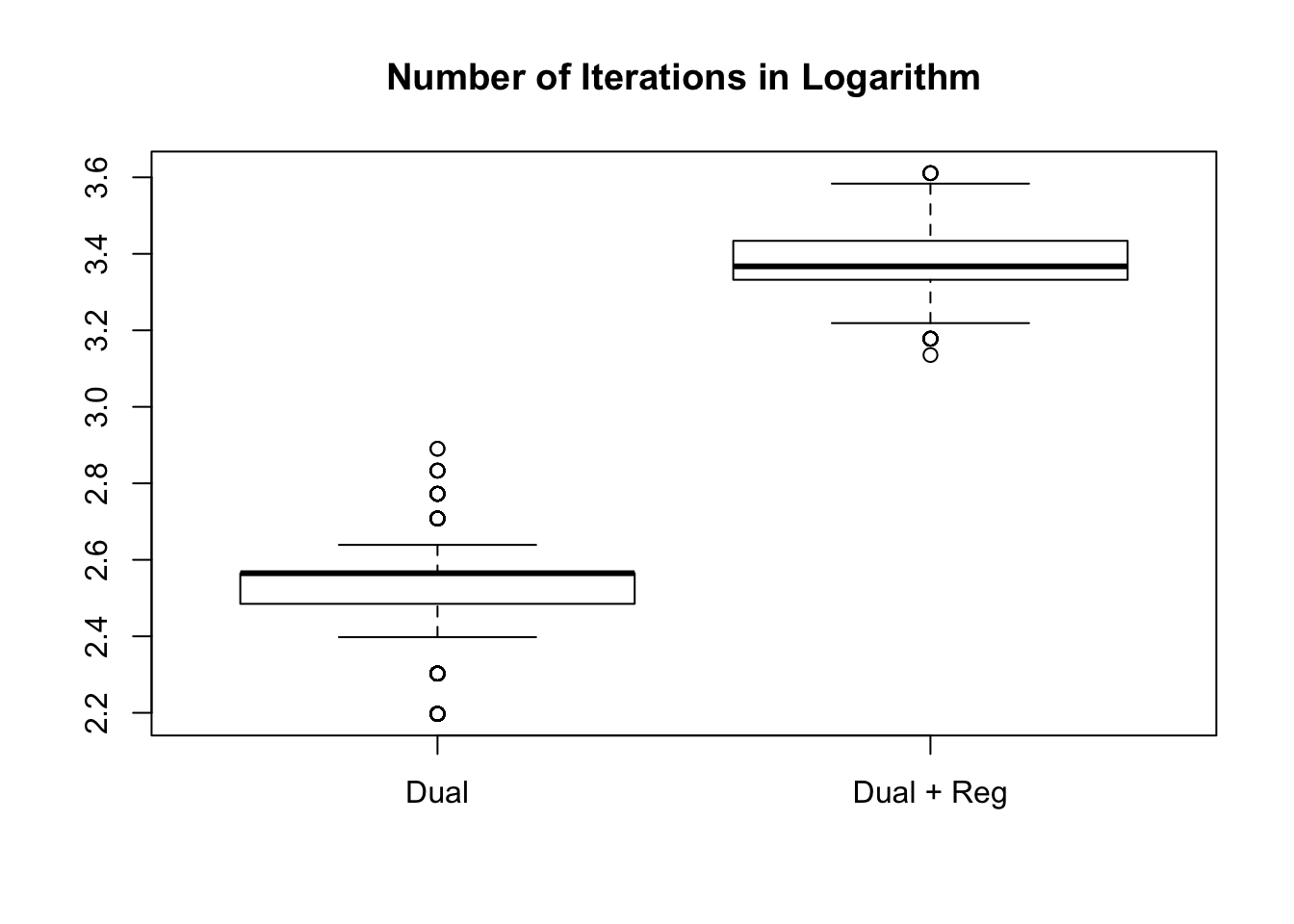

Number of iterations

Expand here to see past versions of unnamed-chunk-4-1.png:
Version Author Date
0f36d99 LSun 2017-12-21
7c74e1a LSun 2017-06-23

Expand here to see past versions of unnamed-chunk-4-2.png:
Version Author Date
0f36d99 LSun 2017-12-21
7c74e1a LSun 2017-06-23

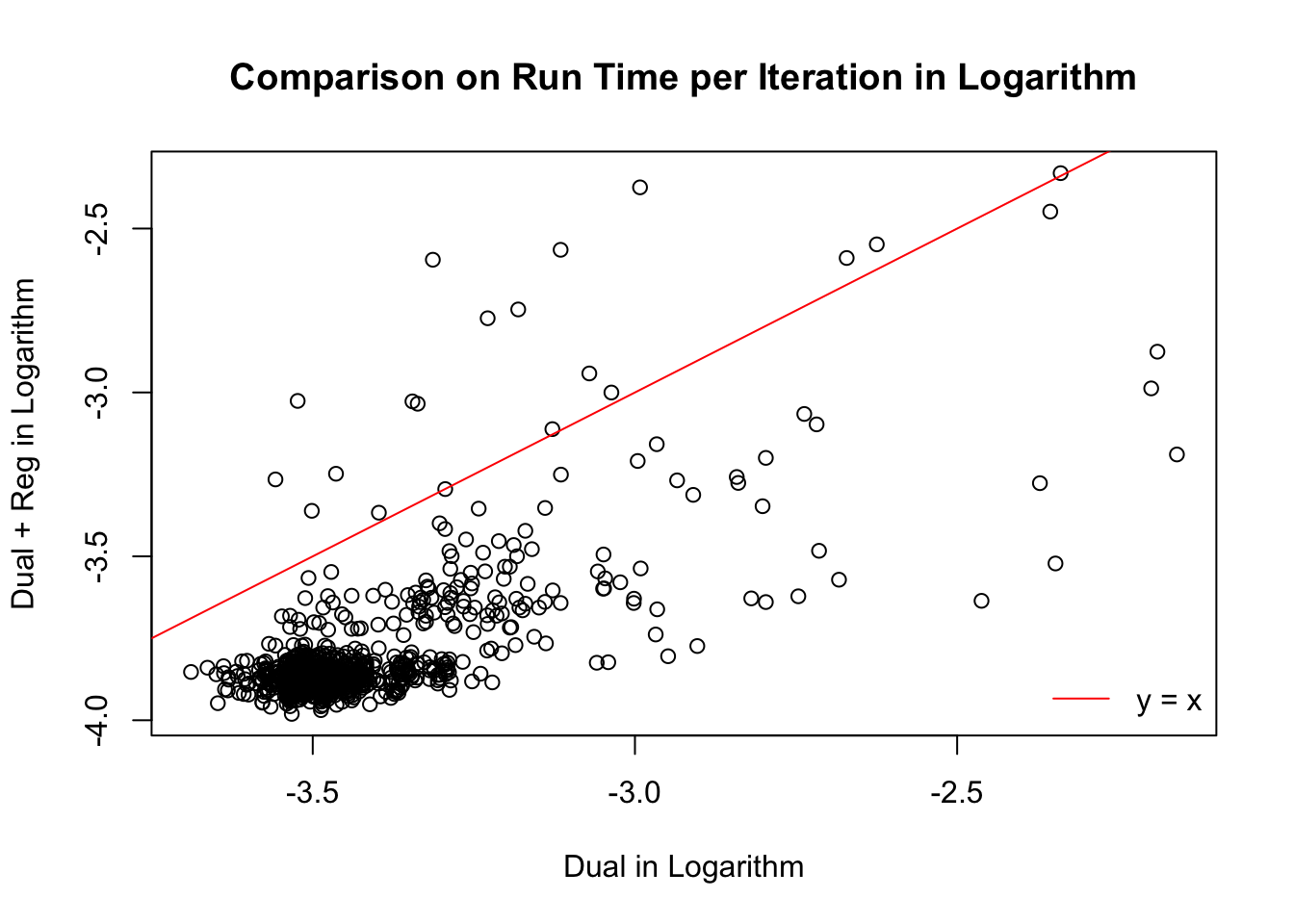

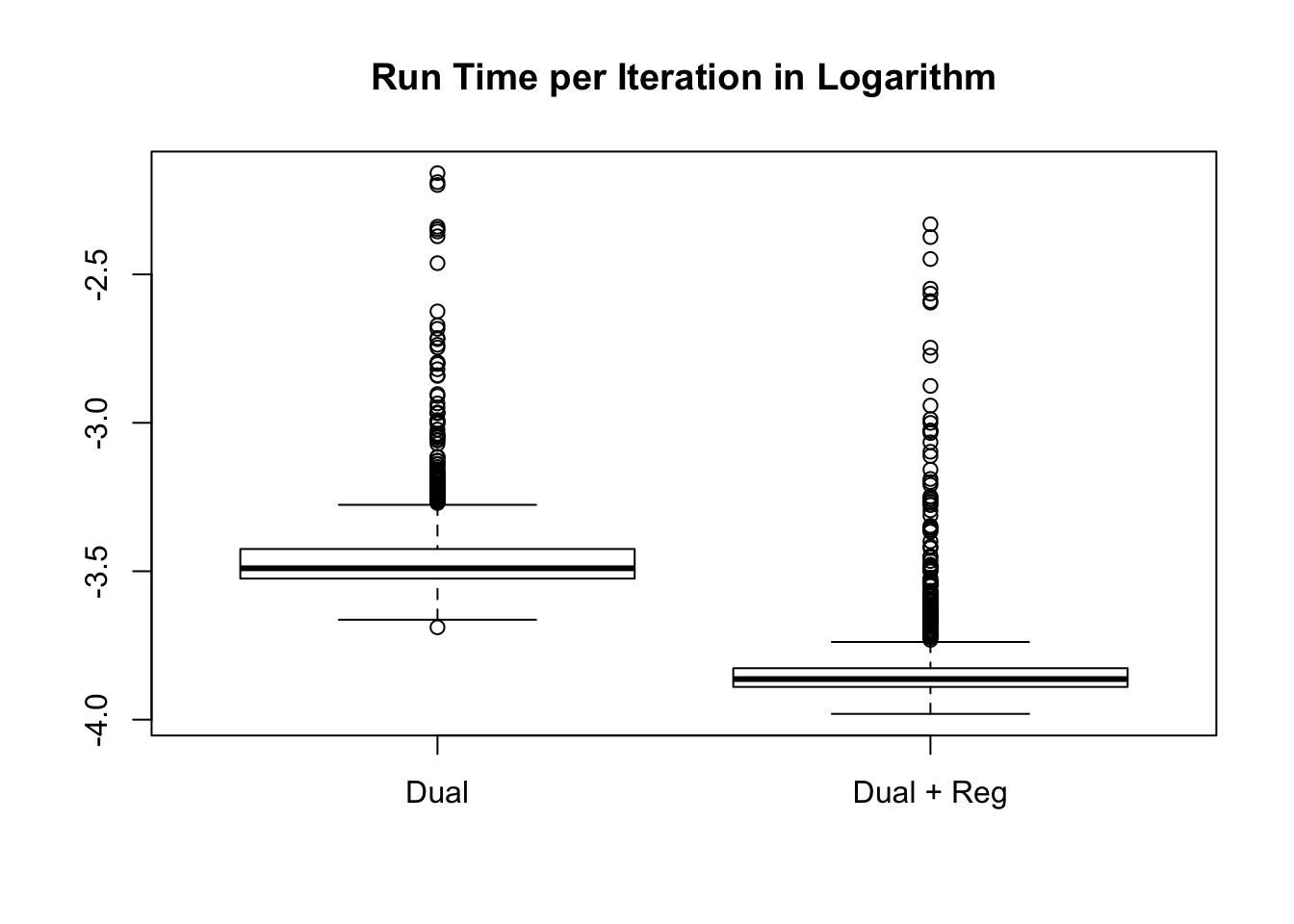

Time per iteration

Expand here to see past versions of unnamed-chunk-5-1.png:
Version Author Date
0f36d99 LSun 2017-12-21
7c74e1a LSun 2017-06-23

Expand here to see past versions of unnamed-chunk-5-2.png:
Version Author Date
0f36d99 LSun 2017-12-21
7c74e1a LSun 2017-06-23
