Introduction

Similar to previous simulations, only that the design matrix \(X\) is simulated such that \(\Sigma_{\hat\beta} = \sigma_e^2(X^TX)^{-1}\) has non negligible off-diagnoal correlations.

\(d\) and \(\Sigma_{\hat\beta}\)

Let \(\Sigma_{\hat\beta} / \sigma_e^2 = B_{p \times d} \cdot B_{p \times d}^T + I\), where \(B_{i, j} \stackrel{\text{iid}}{\sim} N(0, 1)\). Then rescale the matrix such that the mean of its diagnal \(= 1\). Generate \(X_{n \times p}\) such that \((X^TX)^{-1} = \Sigma_{\hat\beta} / \sigma_e^2\).

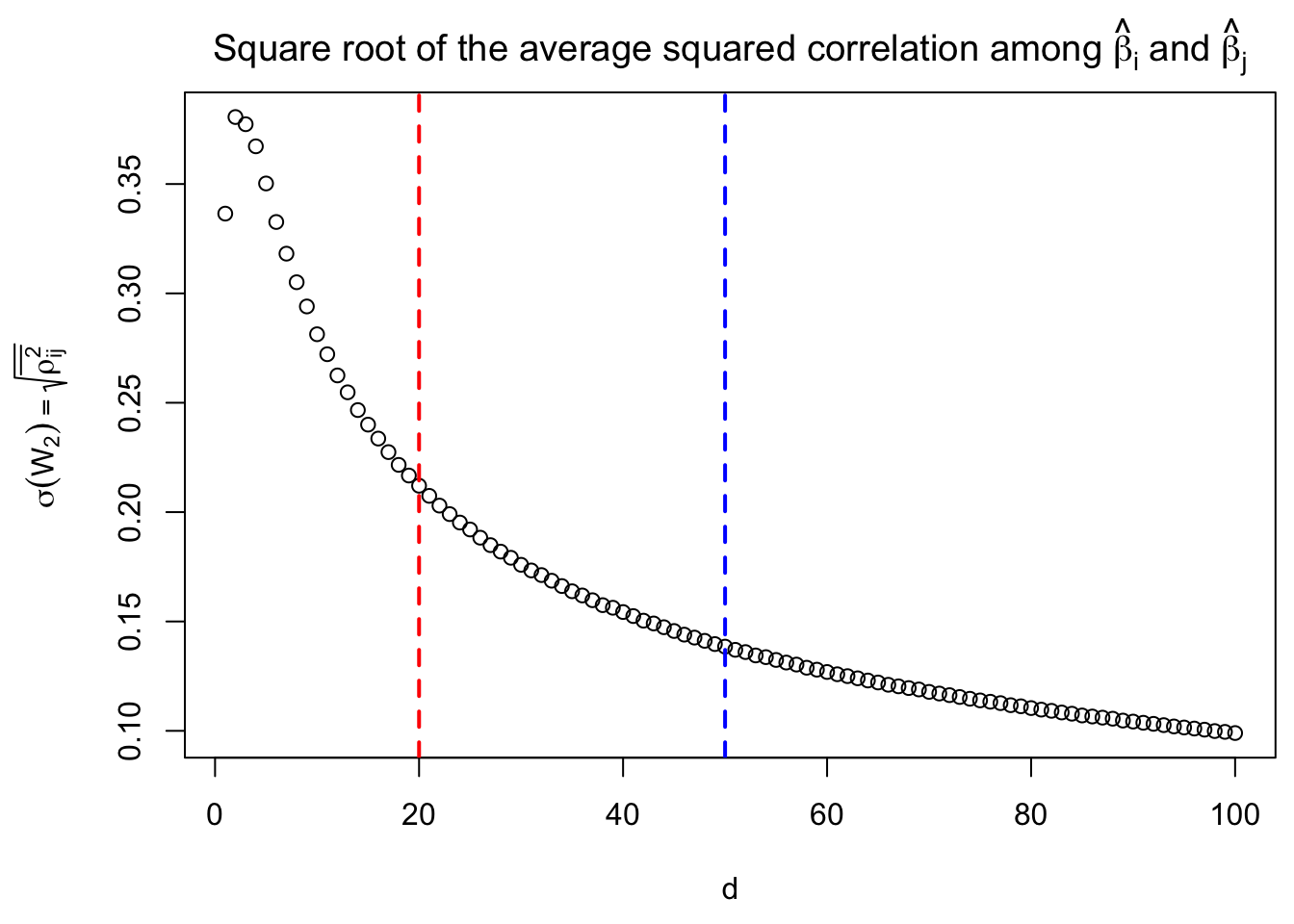

Recall that the random coefficient of the second order of Gaussian deviative with the empirical distribution of correlated null \(W_2\) has the property \[ Var(W_2) = \bar{\rho_{ij}^2} \] We take a look at how \(d\) is related to this quantity.

\(\eta \in \{0.5, 0.6, 0.7, 0.8, 0.9\}\), \(\sigma_\beta / \sigma_e = 3\), \(d \sim Unif\{1, 2, \cdots, 50\}\)

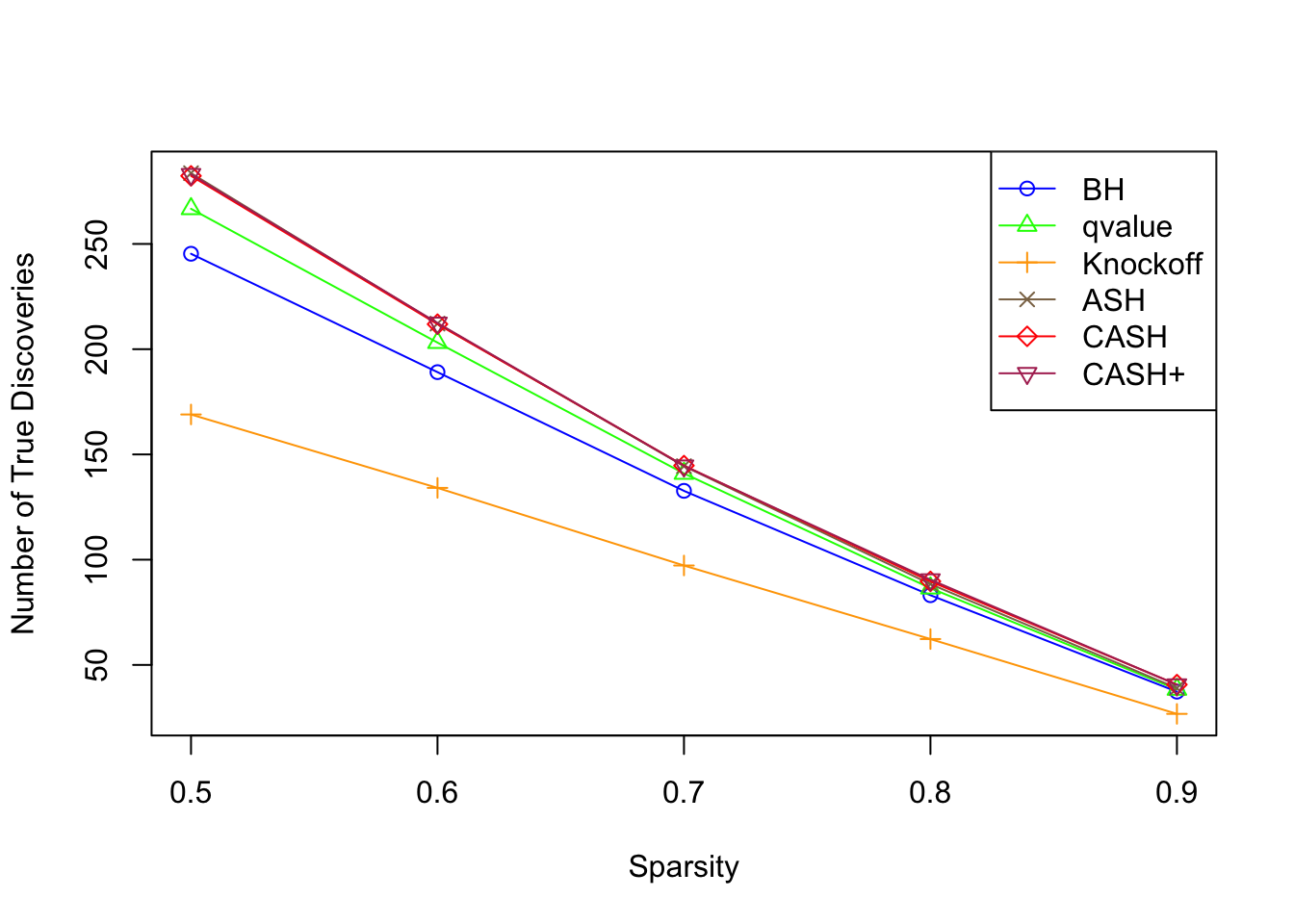

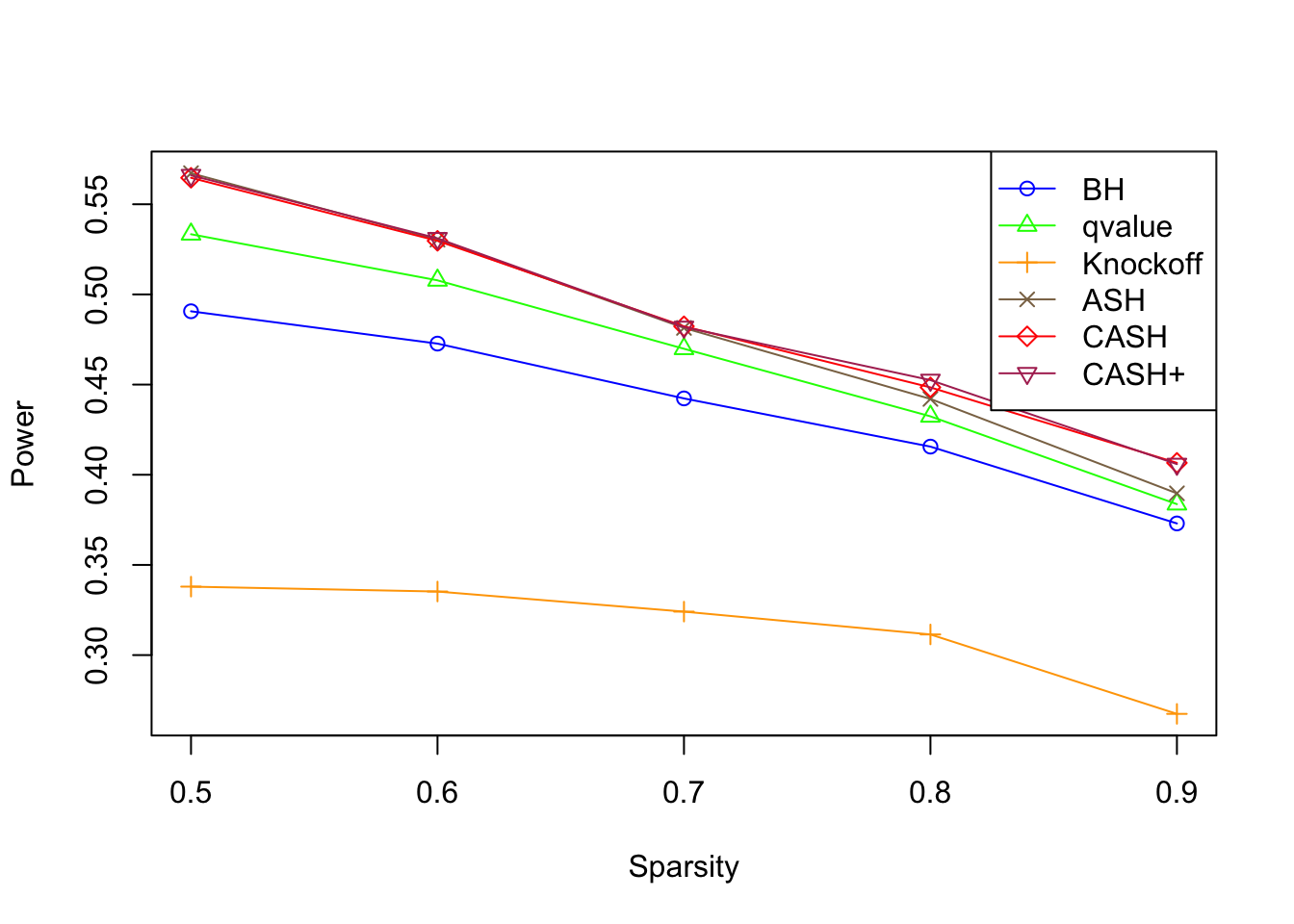

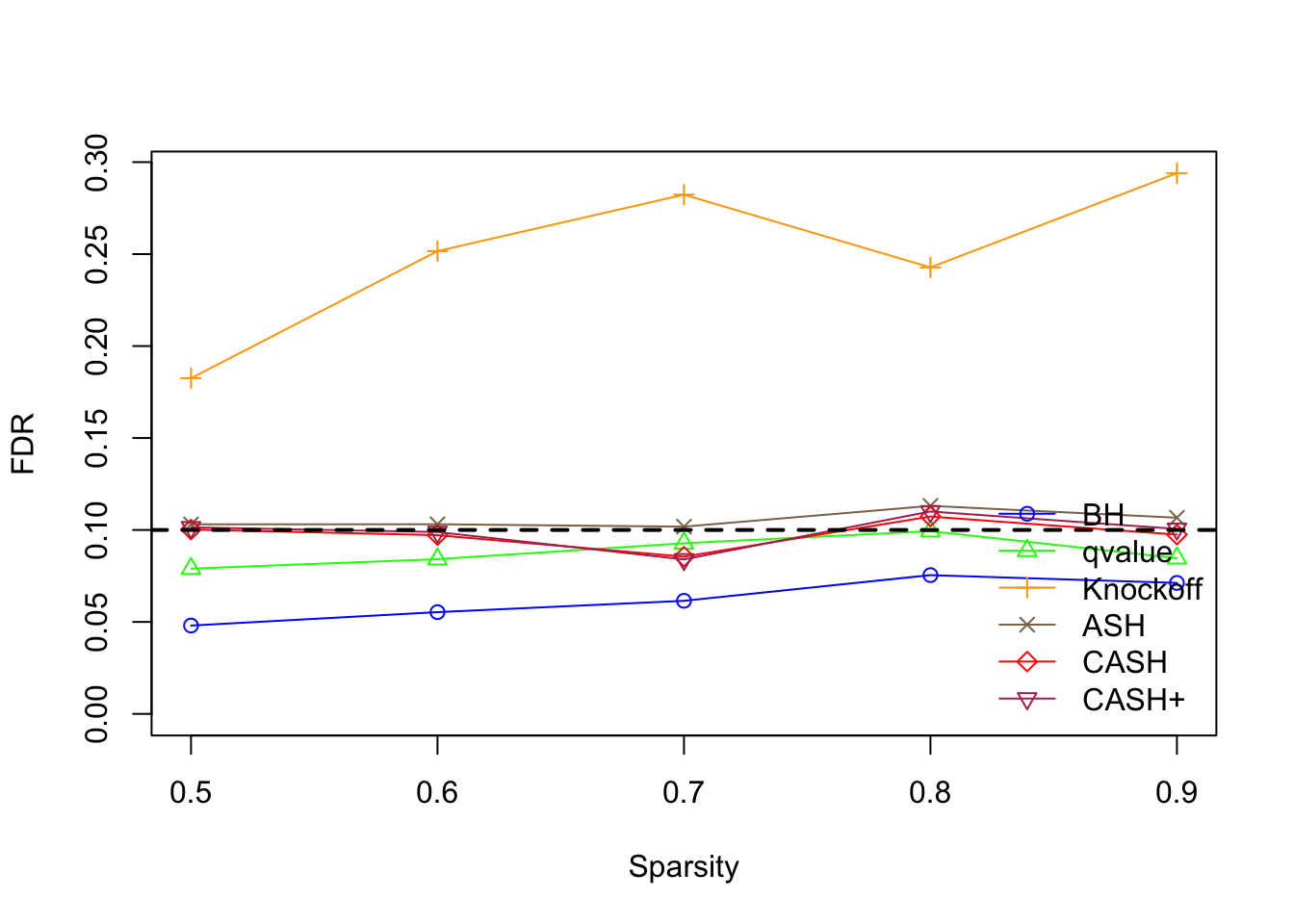

Overall FDR and Power comparison

FDR and Power at low sparsity: \(50\%\) true signal

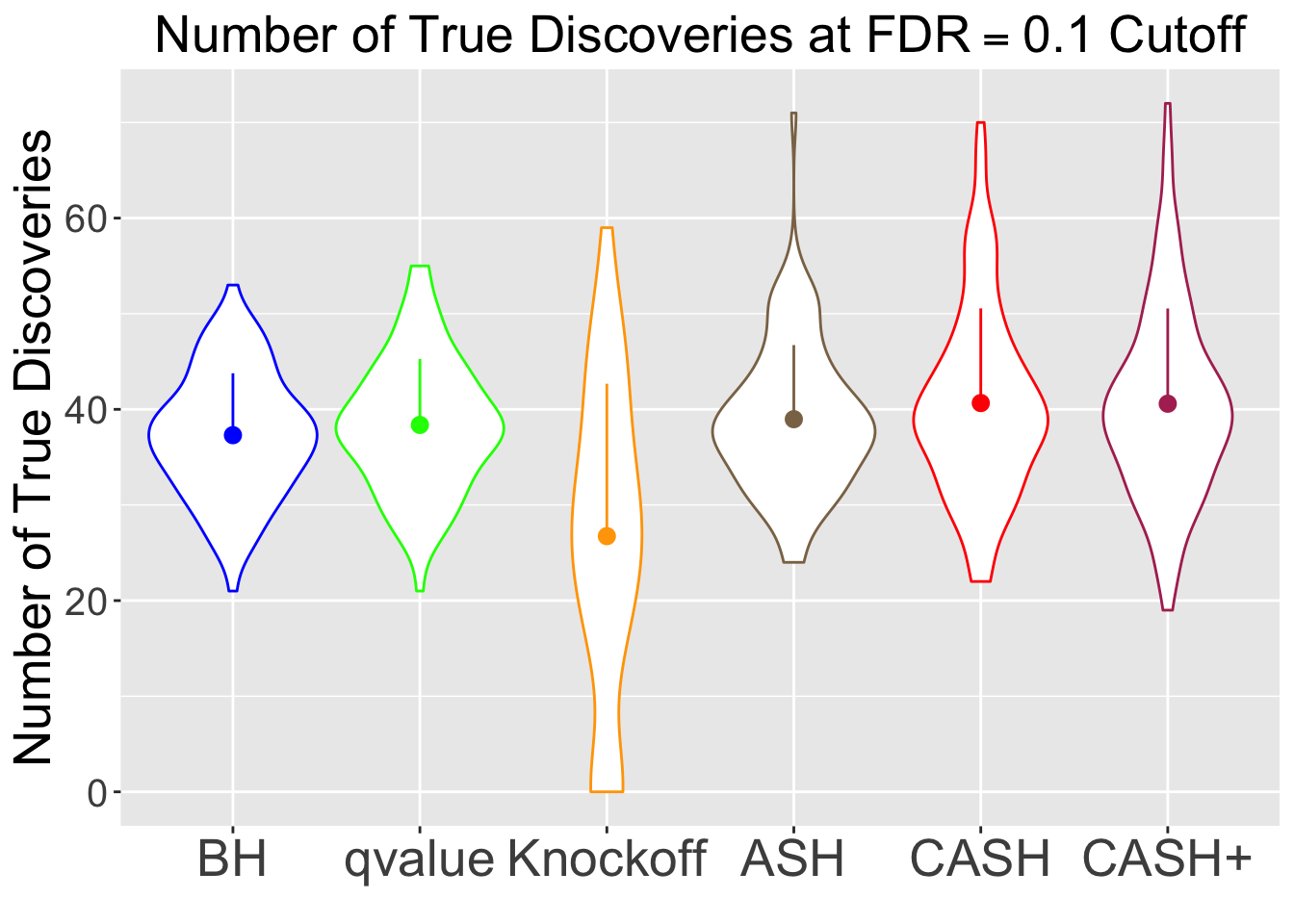

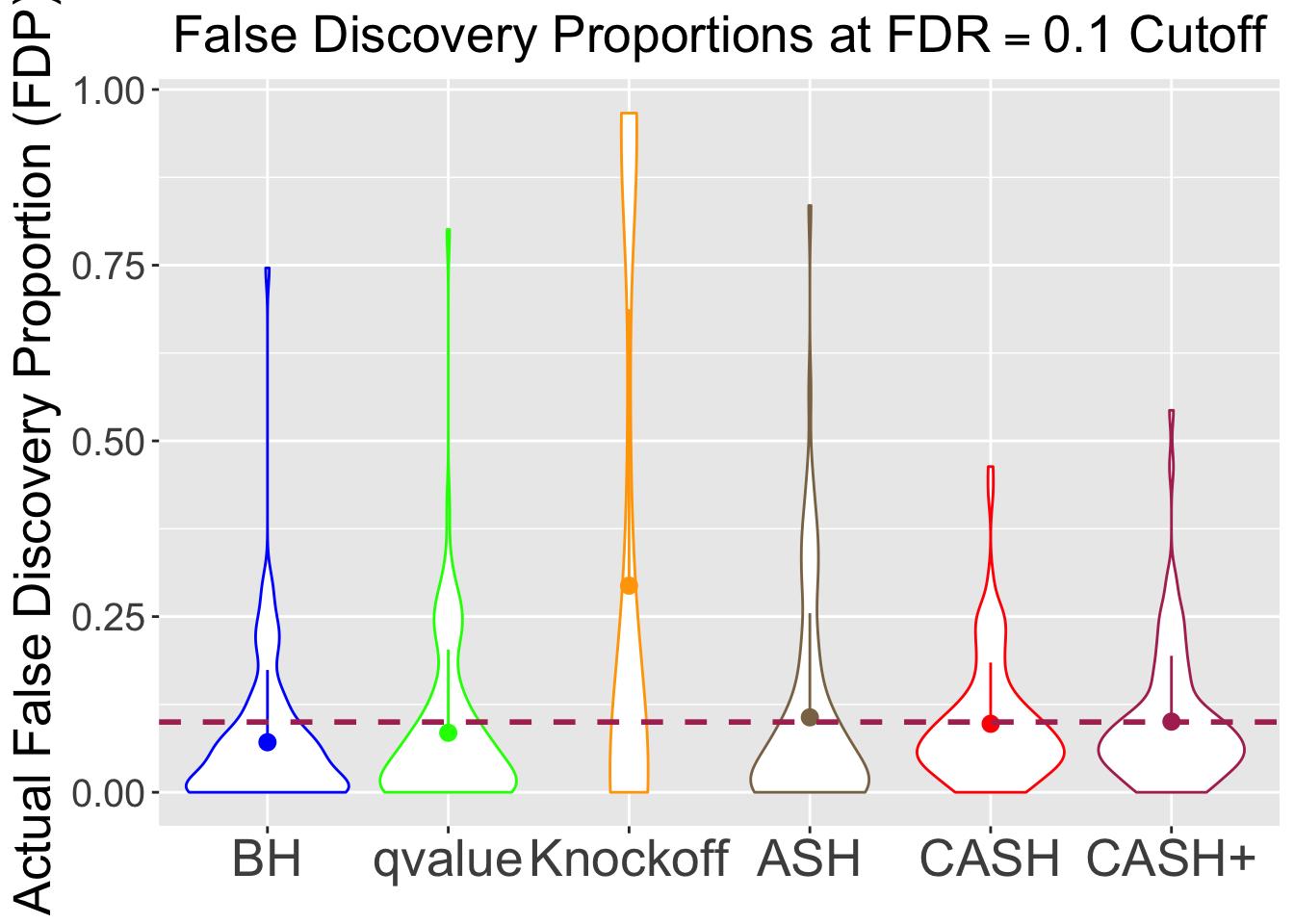

FDR and Power at high sparsity: \(10\%\) true signal

\(\eta \in \{0.75, 0.80, 0.85, 0.90, 0.95\}\), \(\sigma_\beta / \sigma_e = 3\), \(d \sim Unif\{1, 2, \cdots, 20\}\)

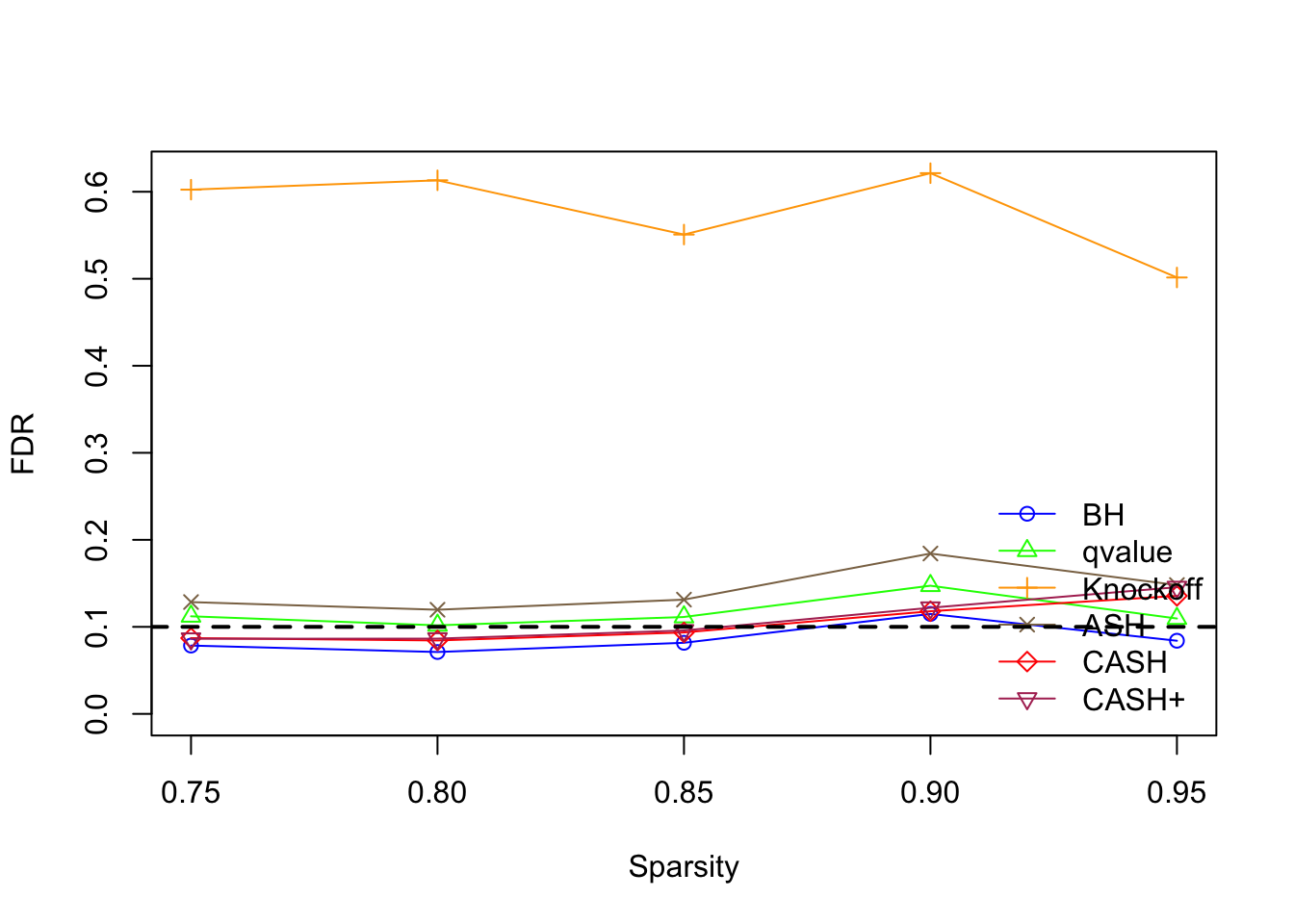

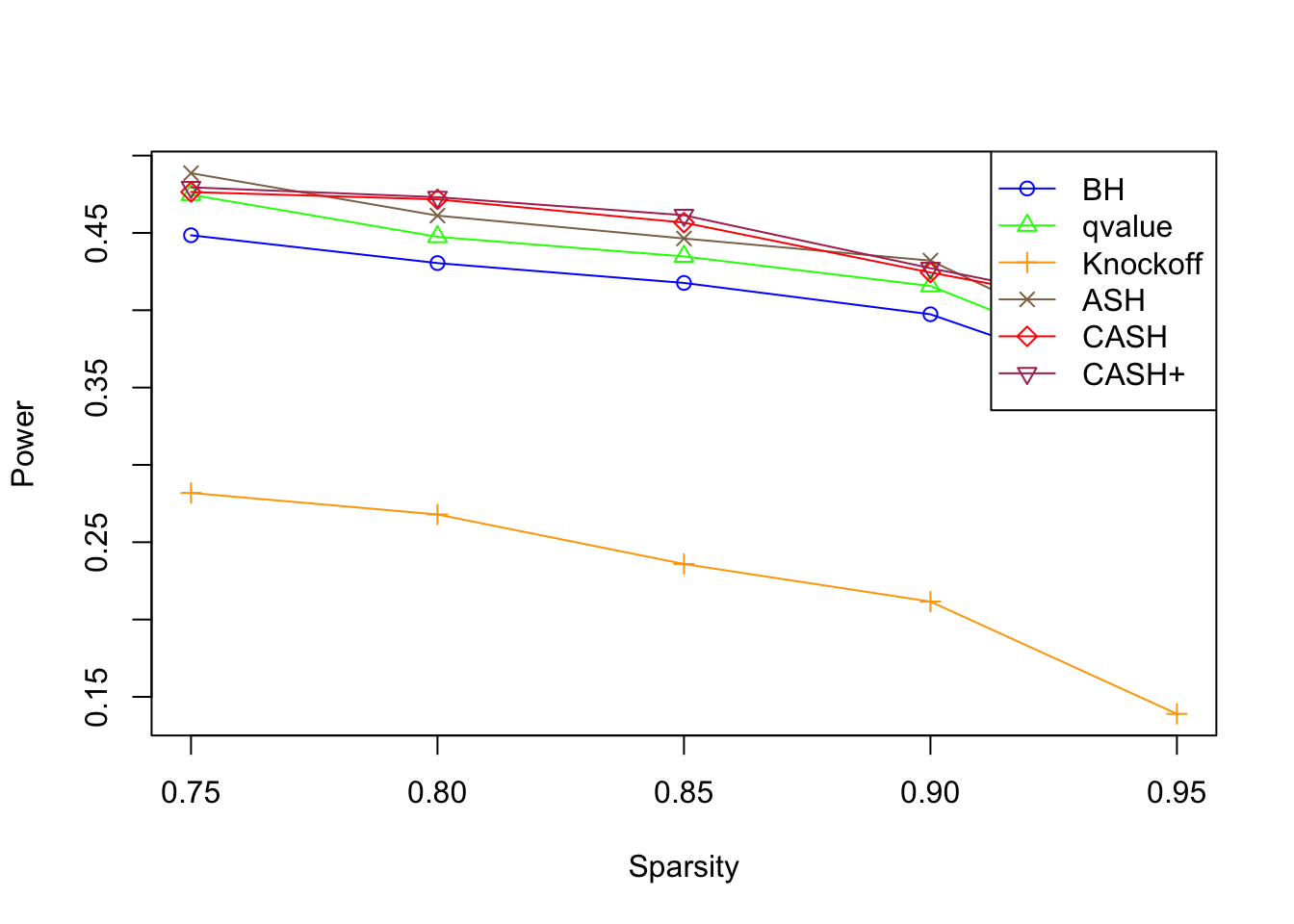

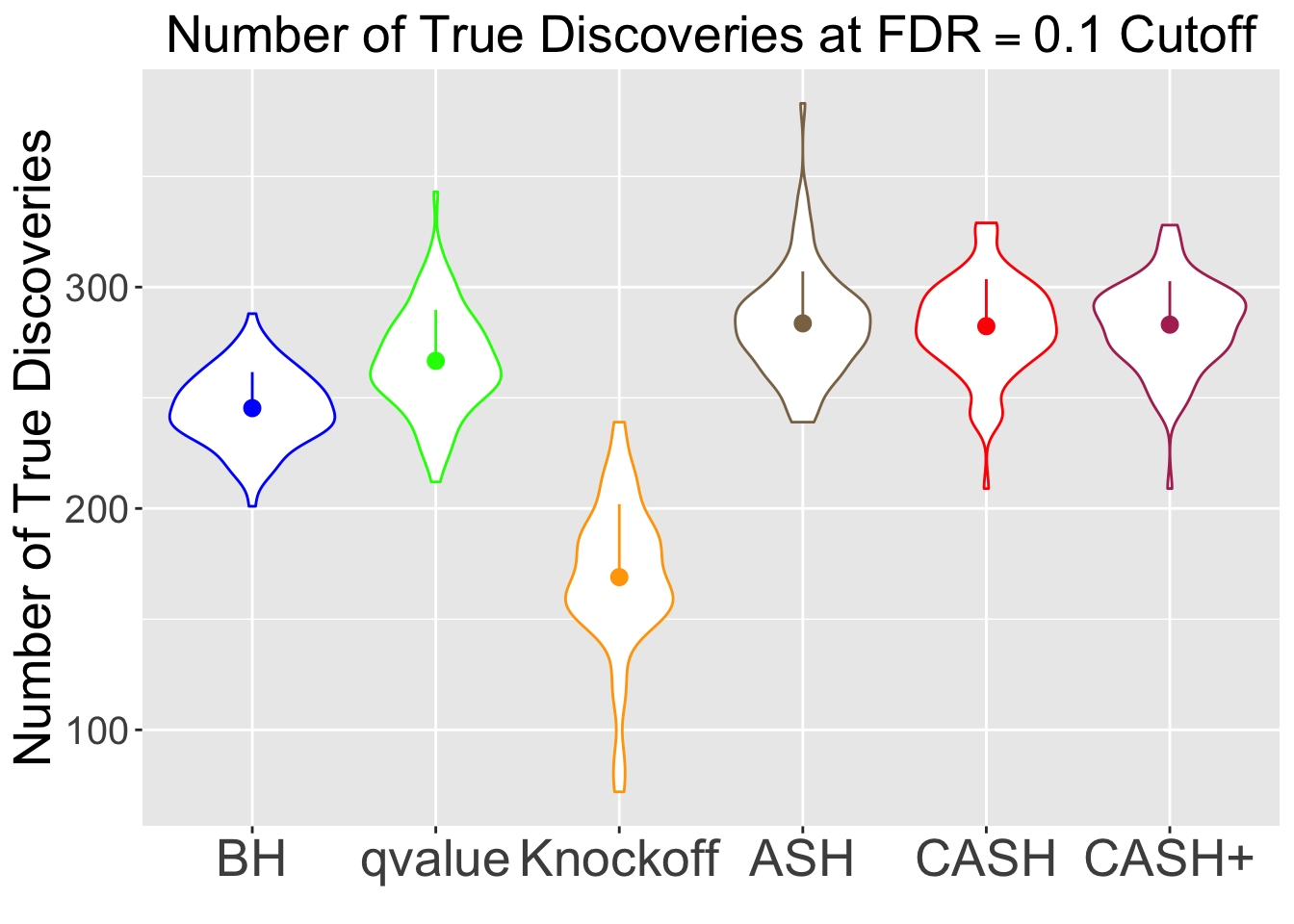

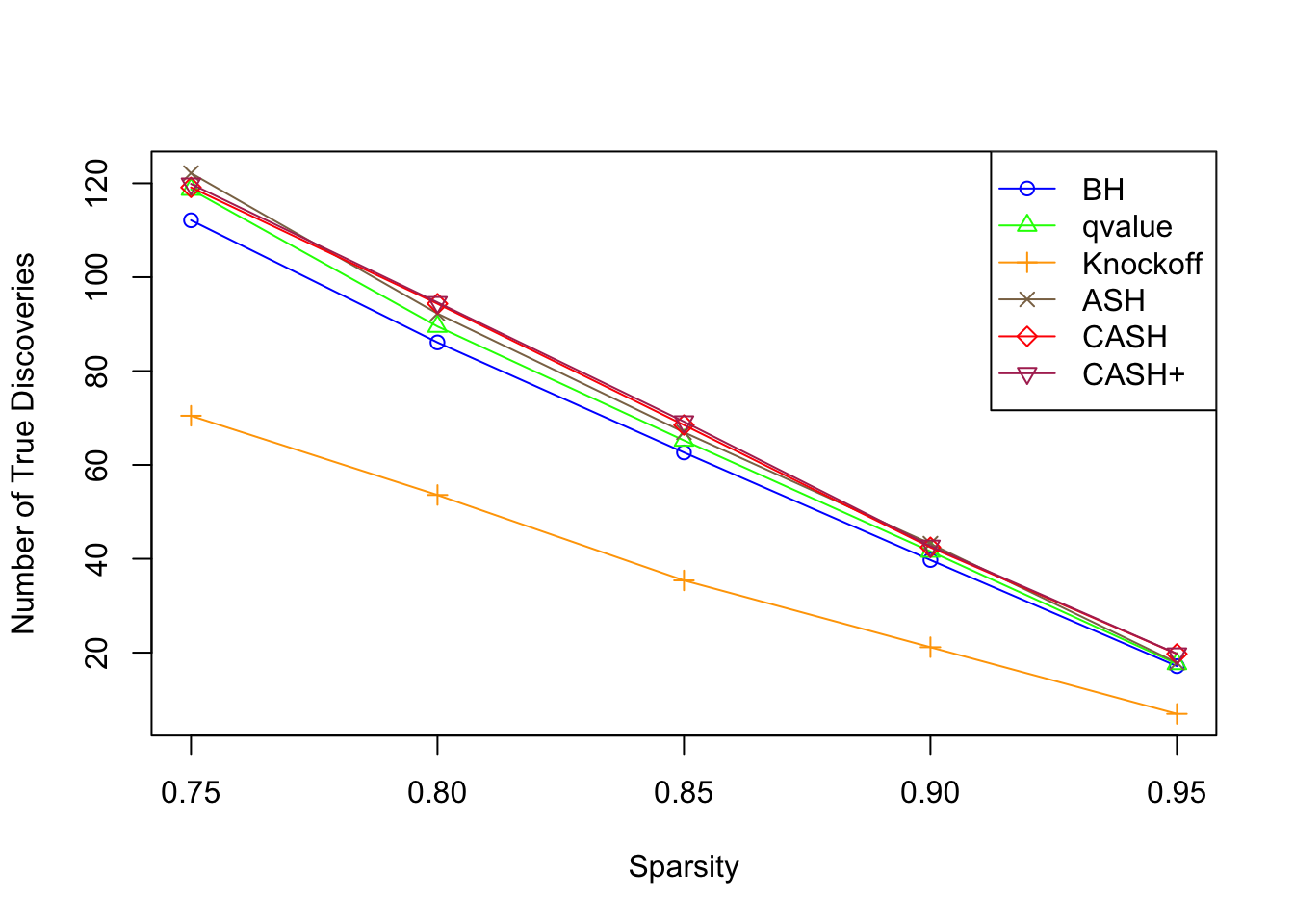

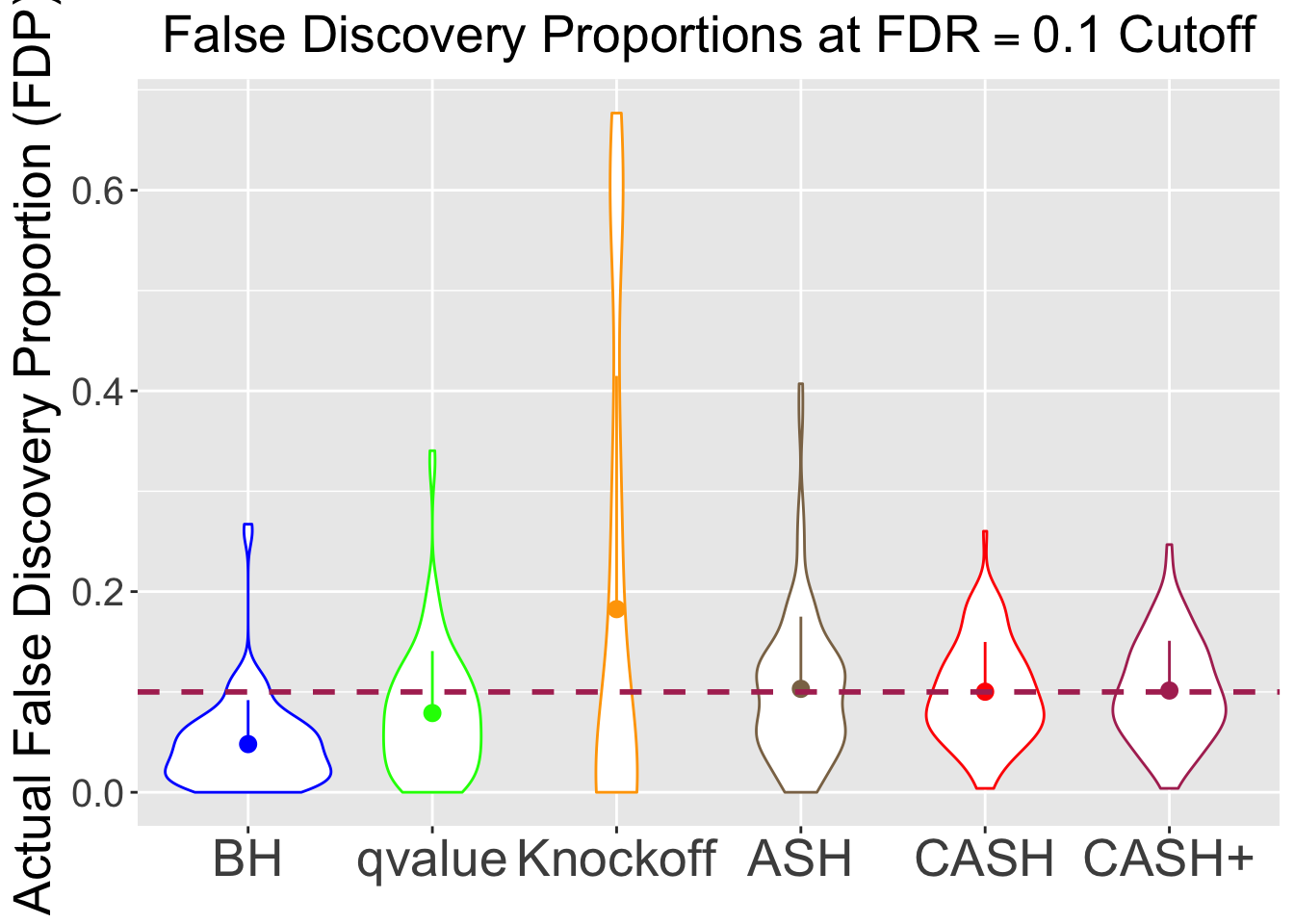

Overall FDR and Power comparison

FDR and Power at low sparsity: \(25\%\) true signal

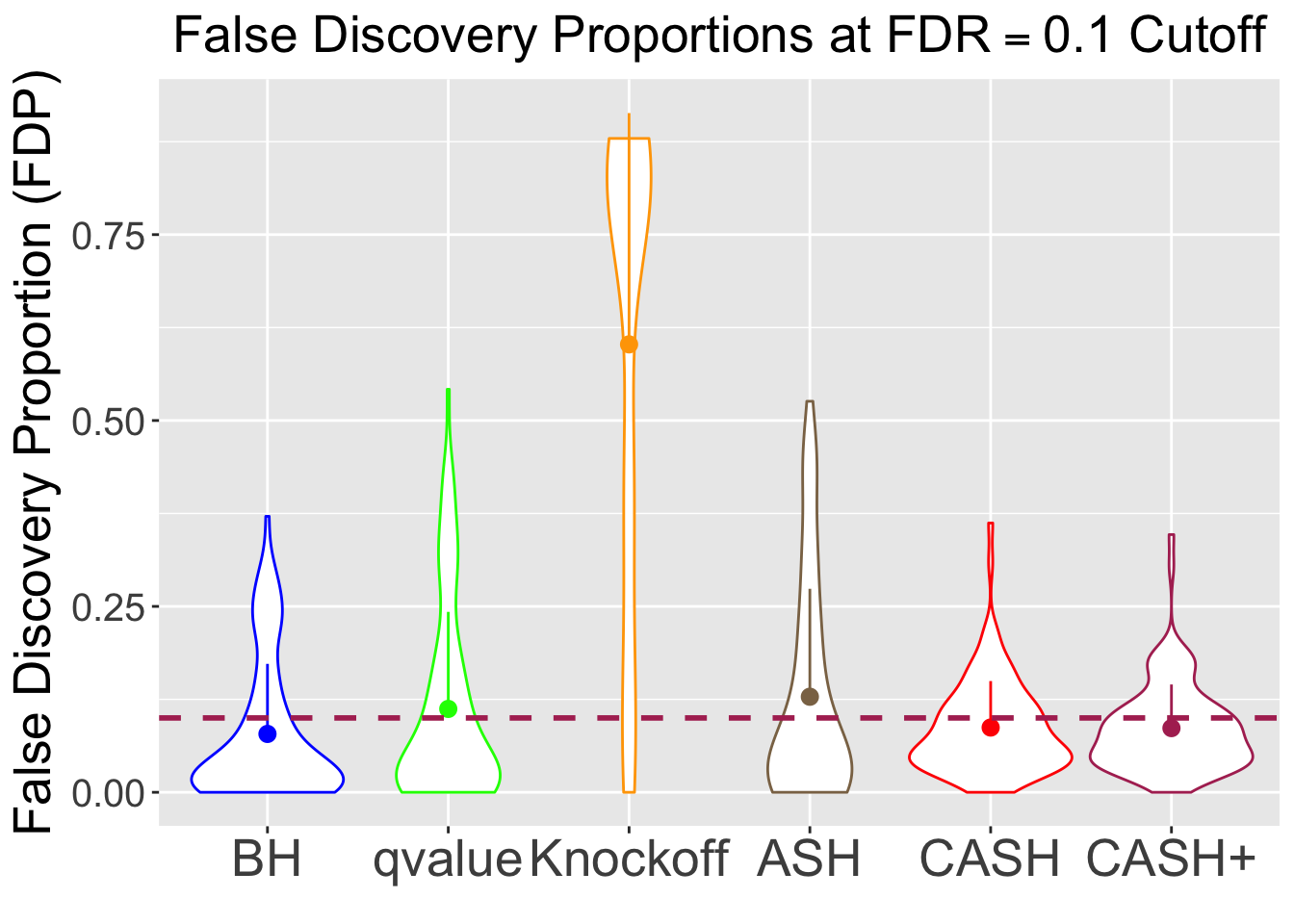

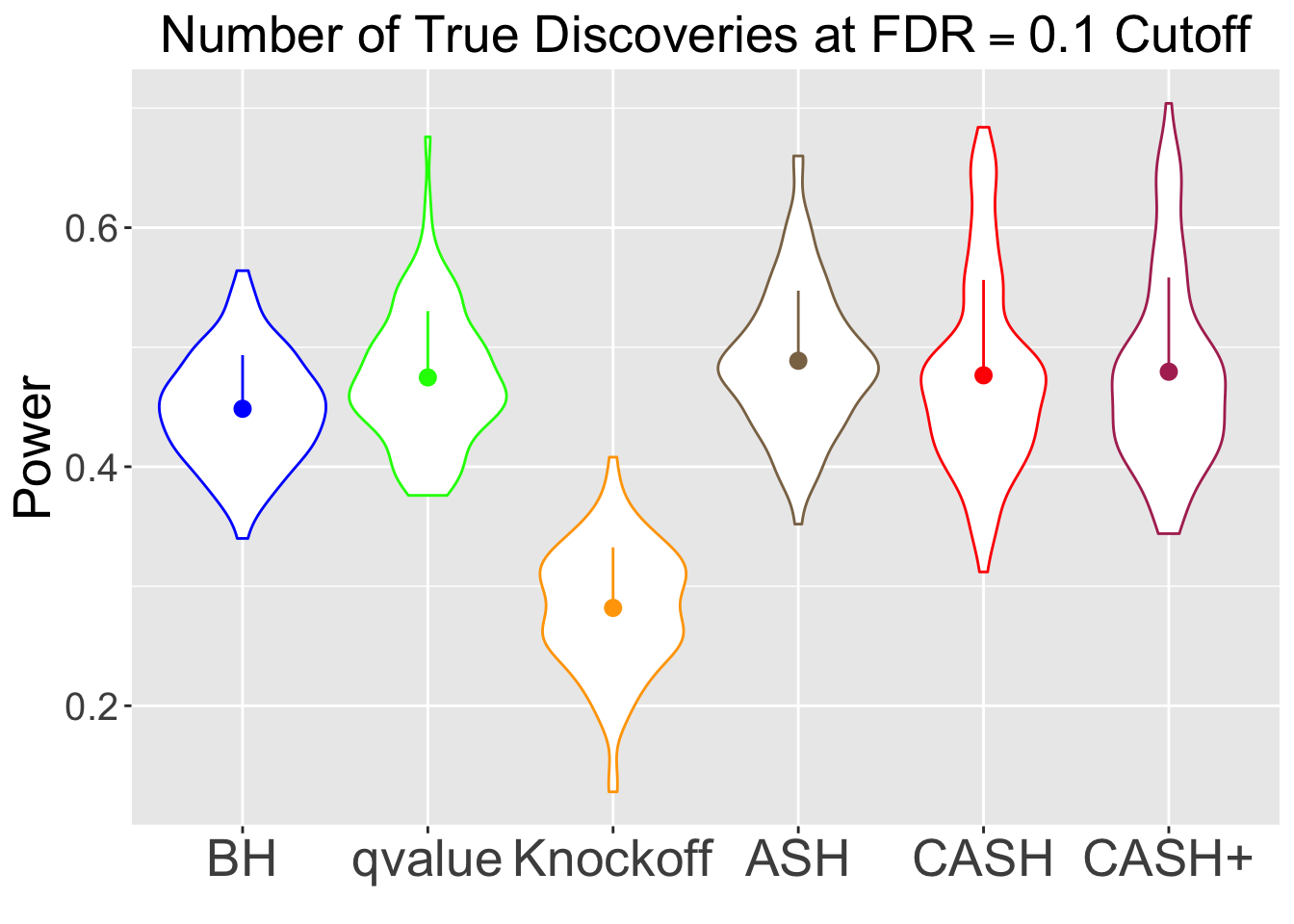

FDR and Power at high sparsity: \(5\%\) true signal

Session information

sessionInfo()
R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.2

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] ggplot2_2.2.1     reshape2_1.4.3    knockoff_0.3.0
 [4] qvalue_2.10.0     ashr_2.2-2        Rmosek_8.0.69
 [7] PolynomF_1.0-1    CVXR_0.94-4       REBayes_1.2
[10] Matrix_1.2-12     SQUAREM_2017.10-1 EQL_1.0-0
[13] ttutils_1.0-1
