Introduction

Re-analyze Smemo et al 2014’s mouse heart RNA-seq data after discussion with Matthew.

counts.mat = read.table("../data/smemo.txt", header = T, row.name = 1)
counts.mat = counts.mat[, -5]

Gene selection

Only use genes with total counts of \(4\) samples \(\geq 5\).

counts = counts.mat[rowSums(counts.mat) >= 5, ]
design = model.matrix(~c(0, 0, 1, 1))
Number of selected genes: 17191

Summary statistics

source("../code/count_to_summary.R")
summary <- count_to_summary(counts, design)
betahat <- summary$betahat
sebetahat <- summary$sebetahat
z <- summary$z

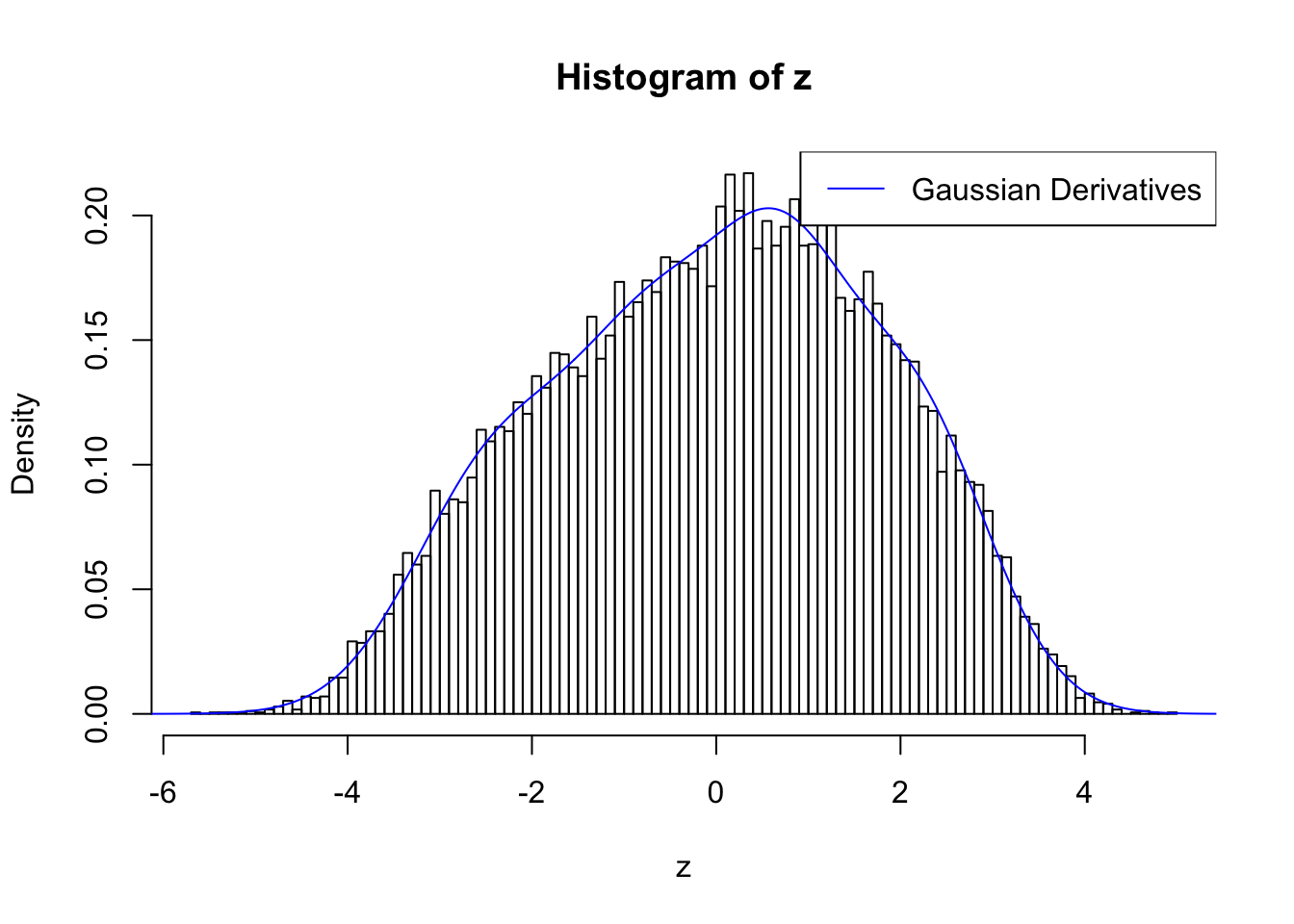

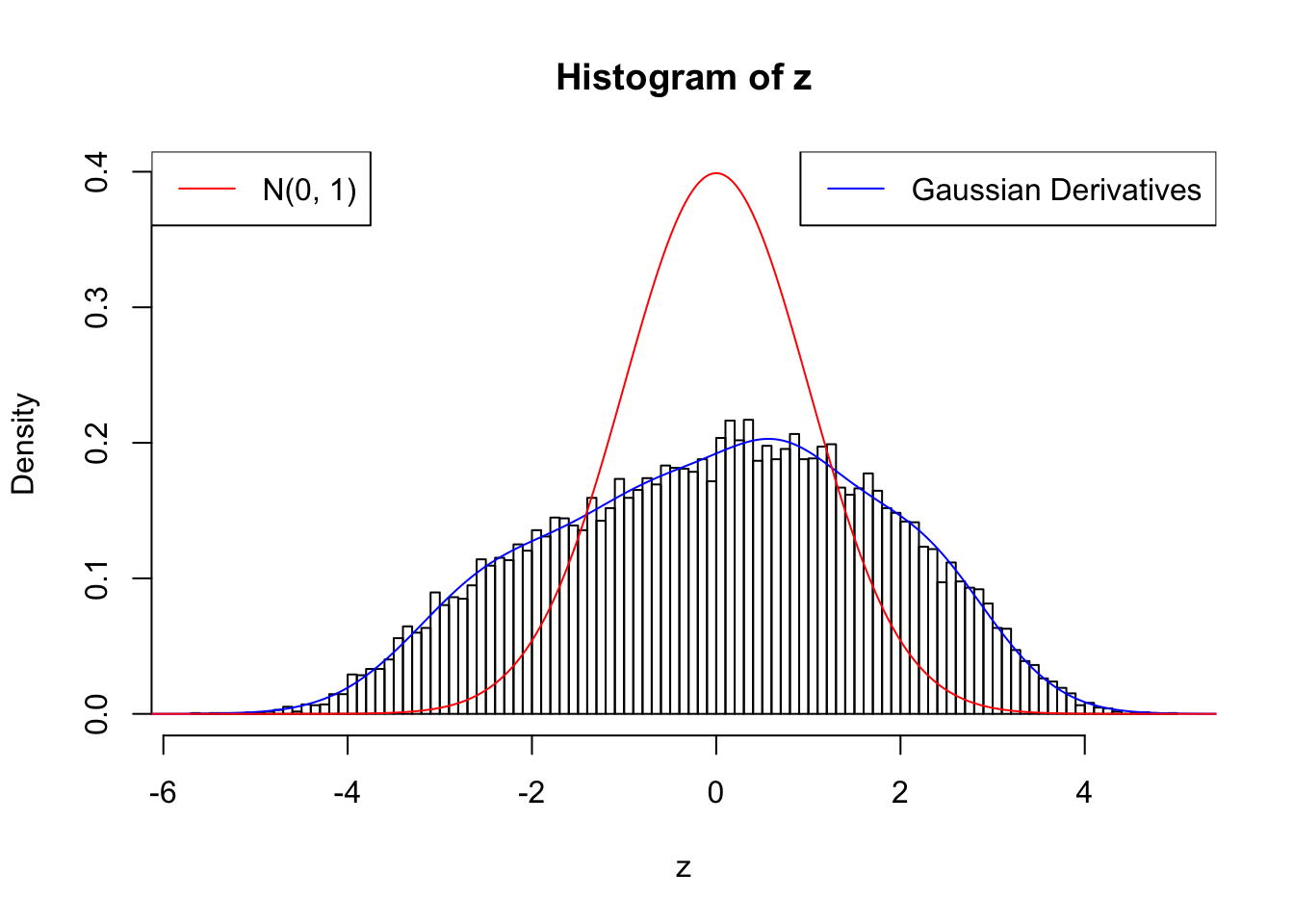

Fitting \(z\) with Gaussian derivatives

With stretch GD can fit \(z\) scores, but it seems there should be signals.

GD Coefficients:
0 : 1 ; 1 : 0.011943001812549 ; 2 : 1.61071078428794 ; 3 : 0.366170906280825 ; 4 : 1.70110410088397 ; 5 : 0.676196157714041 ; 6 : 0.938754567207026 ; 7 : 0.550191966320357 ; 8 : 0.238942600377754 ; 9 : 0.161306266268357 ; 10 : 0.0430996146901972 ;

Expand here to see past versions of fitting gaussian derivatives-1.png:
Version Author Date
0f36d99 LSun 2017-12-21
f2fdaf0 LSun 2017-06-18

Expand here to see past versions of fitting gaussian derivatives-2.png:
Version Author Date
0f36d99 LSun 2017-12-21
f2fdaf0 LSun 2017-06-18

Discovered by BH and ASH

Feeding summary statistics to BH and ASH, both give thousands of discoveries.

fit.BH = p.adjust((1 - pnorm(abs(z))) * 2, method = "BH")
## Number of discoveries by BH
sum(fit.BH <= 0.05)
[1] 2541
fit.ash = ashr::ash(betahat, sebetahat, method = "fdr")
## Number of discoveries by ASH
sum(get_svalue(fit.ash) <= 0.05)
[1] 6440

Fitting ASH first or Gaussian derivatives first

Using default setting \(L = 10\), \(\lambda = 10\), \(\rho = 0.5\), compare the GD-ASH results by fitting ASH first vs fitting GD first. They indeed arrive at different local minima.

fit.gdash.ASH <- gdash(betahat, sebetahat,
                       gd.priority = FALSE)
## Regularized log-likelihood by fitting ASH first
fit.gdash.ASH$loglik
[1] -12483.86
fit.gdash.GD <- gdash(betahat, sebetahat)
## Regularized log-likelihood by fitting GD first
fit.gdash.GD$loglik
[1] -22136.92

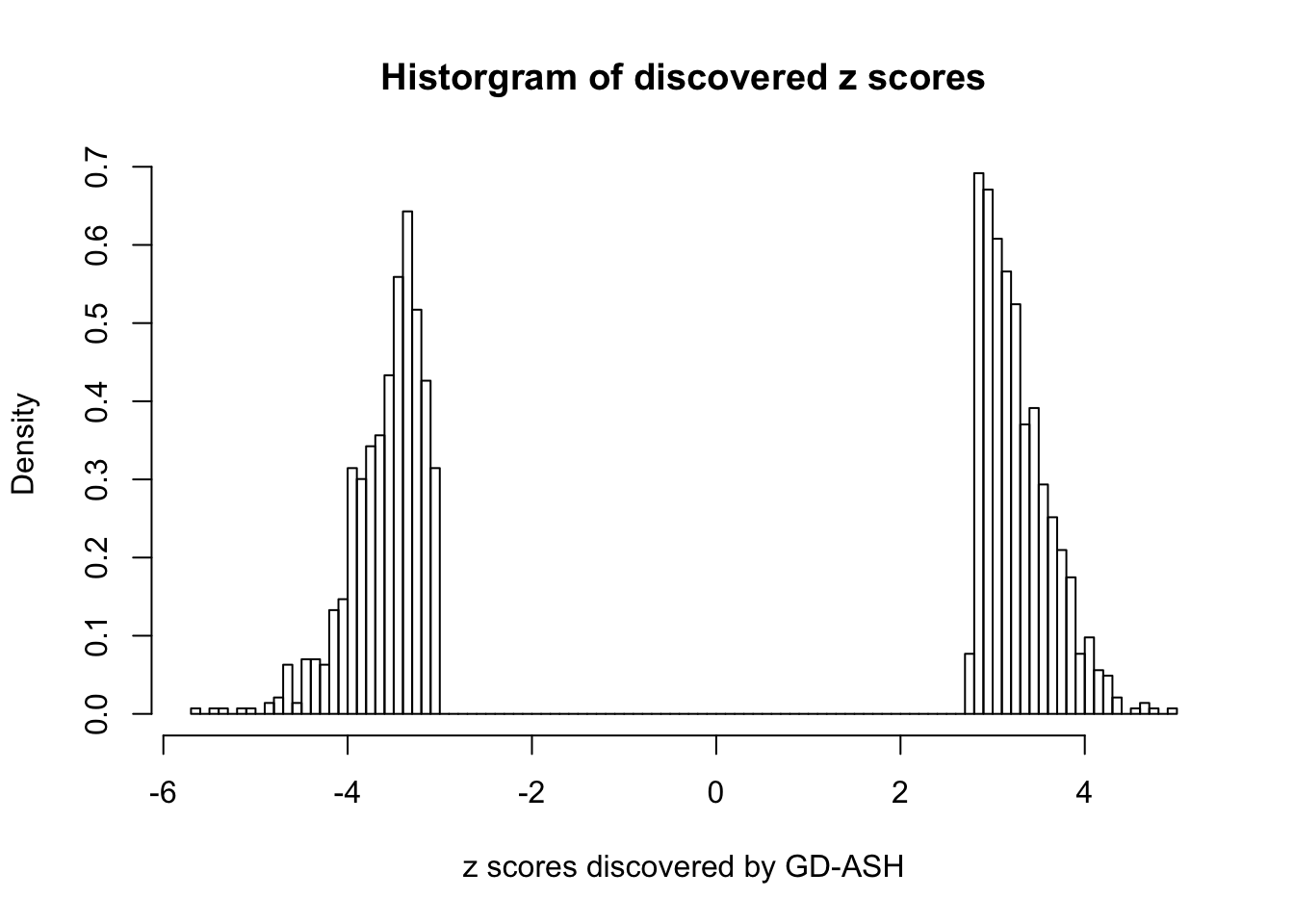

GD-ASH with larger penalties on \(w\)

Using \(\lambda = 50\), \(\rho = 0.1\), fitting ASH first and GD first give the same result, and produce 1400+ discoveries with \(q\) values \(\leq 0.05\), all of which are discovered by BH.

L = 10
lambda = 50
rho = 0.1
fit.gdash.ASH <- gdash(betahat, sebetahat,
                       gd.ord = L, w.lambda = lambda, w.rho = rho,
                       gd.priority = FALSE)
## Regularized log-likelihood by fitting ASH first
fit.gdash.ASH$loglik
[1] -13651.59
## Number of discoveries
sum(fit.gdash.ASH$qvalue <= 0.05)
[1] 1431
fit.gdash.GD <- gdash(betahat, sebetahat,
                      gd.ord = L, w.lambda = lambda, w.rho = rho,
                      gd.priority = TRUE)
## Regularized log-likelihood by fitting GD first
fit.gdash.GD$loglik
[1] -13651.59
## Number of discoveries
sum(fit.gdash.GD$qvalue <= 0.05)
[1] 1431
GD Coefficients:
0 : 1 ; 1 : -0.0475544308510135 ; 2 : 0.707888470469342 ; 3 : 0.149489828947119 ; 4 : -8.97499076623316e-14 ; 5 : 0.109281416075664 ; 6 : -3.00530934822662e-13 ; 7 : 0.0783545592042359 ; 8 : -2.99572304462426e-13 ; 9 : 0.0911488252640105 ; 10 : -2.99578347875936e-13 ;

Expand here to see past versions of GD-ASH discoveries histogram-1.png:
Version Author Date
0f36d99 LSun 2017-12-21
f2fdaf0 LSun 2017-06-18
