The Distribution of \(W_j\)

Introduction

Simulated Data

set.seed(777)
d <- 10
n <- 1e4
B <- matrix(rnorm(n * d), n, d)
Sigma <- B %*% t(B) + diag(n)
sigma <- diag(Sigma)
Rho <- cov2cor(Sigma)
rhobar <- c()
for (l in 1 : 10) {
  rhobar[l] <- (sum(Rho^l) - n) / (n * (n - 1))
}

par(mar = c(5.1, 4.1, 1, 2.1))
hist(Rho[lower.tri(Rho)], xlab = expression(rho[ij]), main = "")

set.seed(20)
z <- rnorm(d)
Z <- B %*% z + rnorm(n)
Z <- Z / sqrt(sigma)
cat("sd(Z) =", sd(Z))

sd(Z) = 1.262205

hist(Z, breaks = 20, prob = TRUE, ylim = c(0, dnorm(0)))
lines(seq(-5, 5, by = 0.1), dnorm(seq(-5, 5, by = 0.1)), col = "blue")

p <- pnorm(-abs(Z)) * 2

par(mfcol = c(2, 2))
par(mar = c(5.1, 4.1, 3, 2.1))
hist(p, breaks = 100, main = "Correlated", xlab = "p-value")

par(mar = c(5.1, 4.1, 1, 2.1))
plot(-log(p), ylim = range(-log(p), -log(pnorm(-sqrt(2 * log(n))) * 2), -log(0.05 / n)))
abline(h = -log(pnorm(-sqrt(2 * log(n))) * 2), col = "maroon")
abline(h = -log(0.05 / n), col = "red")
abline(h = -log(0.001), col = "green")
abline(h = -log(0.05), col = "blue")

Z <- rnorm(n)
p <- pnorm(-abs(Z)) * 2
par(mar = c(5.1, 4.1, 3, 2.1))
hist(p, breaks = 100, main = "Independent", xlab = "p-value")

par(mar = c(5.1, 4.1, 1, 2.1))
plot(-log(p), ylim = range(-log(p), -log(pnorm(-sqrt(2 * log(n))) * 2), -log(0.05 / n)))
abline(h = -log(pnorm(-sqrt(2 * log(n))) * 2), col = "maroon")
abline(h = -log(0.05 / n), col = "red")
abline(h = -log(0.001), col = "green")
abline(h = -log(0.05), col = "blue")

set.seed(777)
nsim <- 1e4
Z.list <- W <- list()
for (i in 1 : nsim) {
z <- rnorm(d)
Z <- B %*% z + rnorm(n)
Z <- Z / sqrt(sigma)
Z.list[[i]] <- Z
Z.GD <- gdfit.mom(Z, 100)
W[[i]] <- Z.GD$w
}
Z.sim <- Z.list
W.sim <- W

Real Data from GTEx

r <- readRDS("../data/liver.rds")

top_genes_index = function (g, X) {
  return(order(rowSums(X), decreasing = TRUE)[1 : g])
}
lcpm = function (r) {
  R = colSums(r)
  t(log2(((t(r) + 0.5) / (R + 1)) * 10^6))
}

nsamp <- 5
ngene <- 1e4

Y = lcpm(r)
subset = top_genes_index(ngene, Y)
r = r[subset,]

set.seed(7)
nsim <- 1e4
Z.list <- W <- list()
for (i in 1 : nsim) {
  ## generate data
  counts <- r[, sample(ncol(r), 2 * nsamp)]
  design <- model.matrix(~c(rep(0, nsamp), rep(1, nsamp)))
  summary <- count_to_summary(counts, design)
  Z <- summary$z
  Z.list[[i]] <- Z
  Z.GD <- gdfit.mom(Z, 100)
  W[[i]] <- Z.GD$w
}
Z.gtex <- Z.list
W.gtex <- W

quantile.vec1 <- exp(seq(-21, -5, by = 0.01))
quantile.vec2 <- seq(0.007, 0.993, by = 0.001)
quantile.vec3 <- exp(seq(-5, -21, by = -0.01))
emp.cdf.Z1 <- sapply(quantile.vec1, function(x) {sapply(Z.gtex, function(y) mean(y <= qnorm(x)))})
emp.cdf.Z2 <- sapply(quantile.vec2, function(x) {sapply(Z.gtex, function(y) mean(y <= qnorm(x)))})
emp.cdf.Z3 <- sapply(quantile.vec3, function(x) {sapply(Z.gtex, function(y) mean(y <= -qnorm(x)))})
emp.cdf.Z4 <- sapply(quantile.vec3, function(x) {sapply(Z.gtex, function(y) mean(y > -qnorm(x)))})

ecdf.avg1 <- colMeans(emp.cdf.Z1)
ecdf.avg2 <- colMeans(emp.cdf.Z2)
ecdf.avg3 <- colMeans(emp.cdf.Z3)
ecdf.avg4 <- colMeans(emp.cdf.Z4)
ecdf.avg <- c(ecdf.avg1, ecdf.avg2, ecdf.avg3)
ecdf.tail.avg.conf.int1 <- apply(emp.cdf.Z1, 2, function(x) {t.test(x)$conf.int})
ecdf.tail.avg.conf.int4 <- apply(emp.cdf.Z4, 2, function(x) {t.test(x)$conf.int})

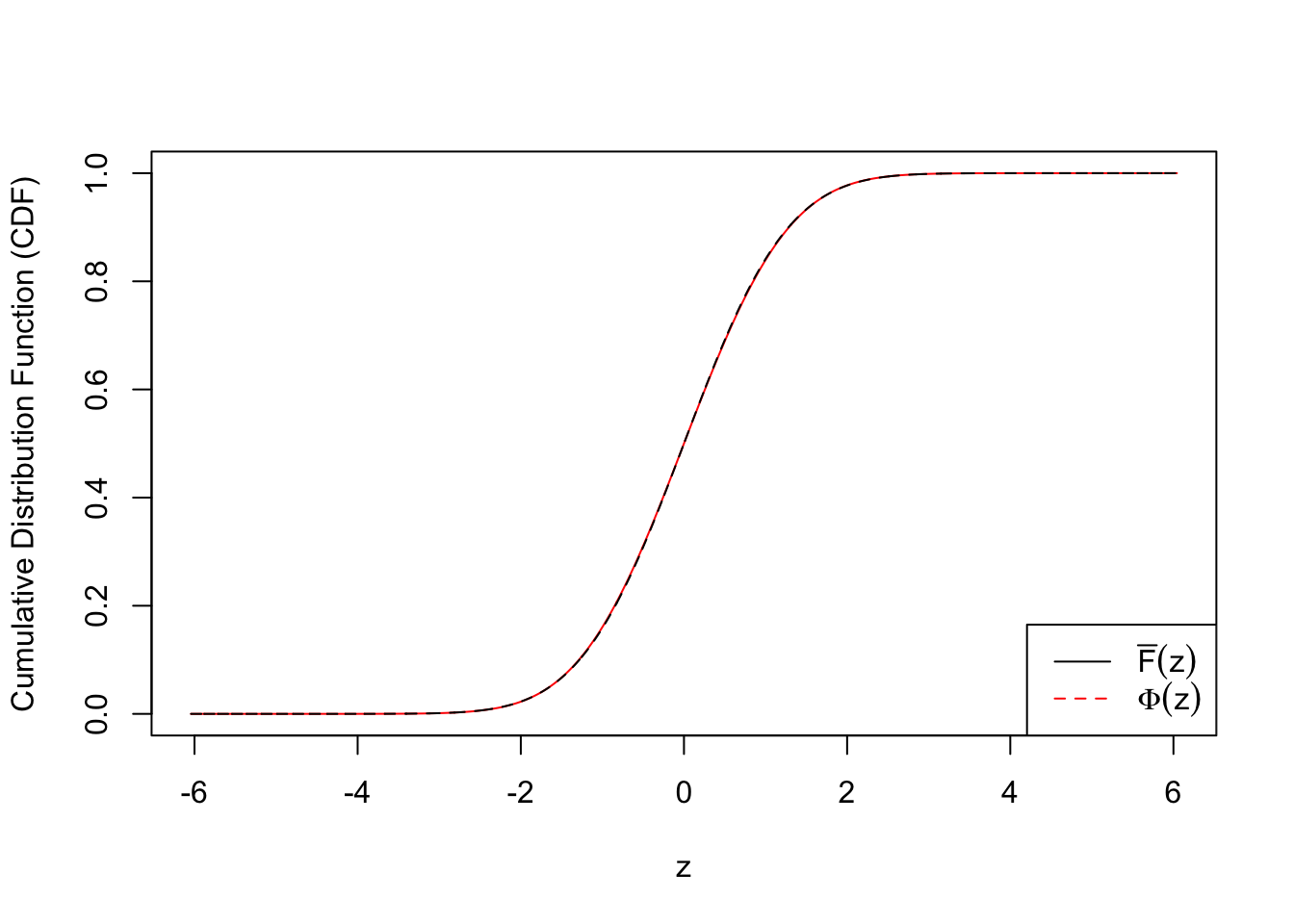

plot(c(qnorm(quantile.vec1), qnorm(quantile.vec2), -qnorm(quantile.vec3)), ecdf.avg, type = "l", col = "red", xlab = "z", ylab = "Cumulative Distribution Function (CDF)")
lines(c(qnorm(quantile.vec1), qnorm(quantile.vec2), -qnorm(quantile.vec3)), c(quantile.vec1, quantile.vec2, pnorm(-qnorm(quantile.vec3))), lty = 2)
legend("bottomright", lty = c(1, 2), col = c(1, 2), legend = c(expression(bar("F")(z)), expression(Phi(z))))

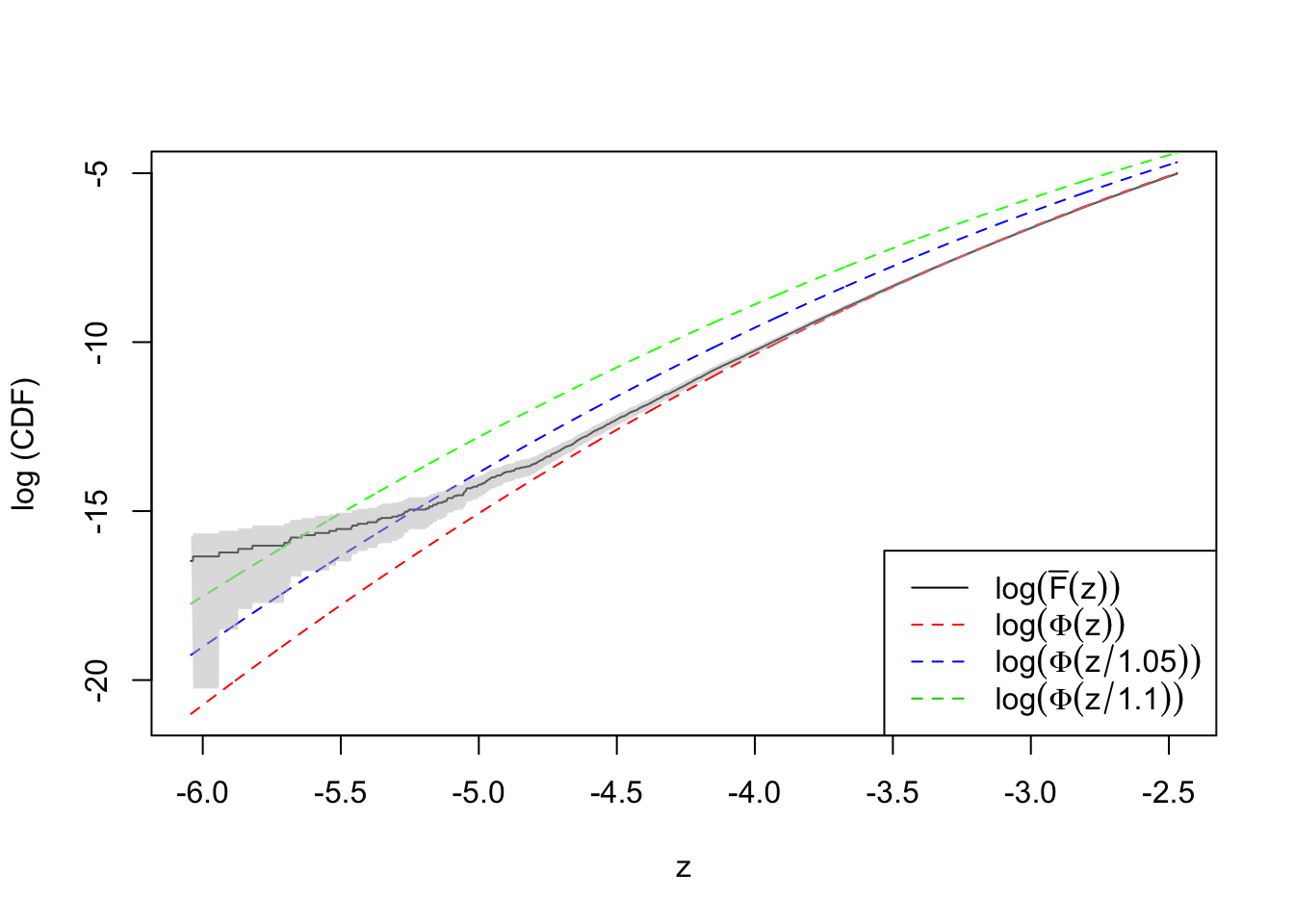

plot(qnorm(quantile.vec1), log(ecdf.avg1), type = "l",
     ylim = range(log(quantile.vec1), log(ecdf.avg1)),
     xlab = "z", ylab = "log (CDF)")
lines(qnorm(quantile.vec1), log(quantile.vec1), lty = 2, col = "red")
lines(qnorm(quantile.vec1), log(pnorm(qnorm(quantile.vec1), 0, 1.1)), lty = 2, col = "green")
lines(qnorm(quantile.vec1), log(pnorm(qnorm(quantile.vec1), 0, 1.05)), lty = 2, col = "blue")
polygon(x = c(qnorm(quantile.vec1), rev(qnorm(quantile.vec1))),
        y = c(log(ecdf.tail.avg.conf.int1[1, ]), rev(log(ecdf.tail.avg.conf.int1[2, ]))),
        border = NA,
        col = grDevices::adjustcolor("grey75", alpha.f = 0.5))

Warning in log(ecdf.tail.avg.conf.int1[1, ]): NaNs produced

legend("bottomright", lty = c(1, 2, 2, 2), col = c(1, 2, 4, 3), legend = c(
  expression(log(bar("F")(z))),
  expression(log(Phi(z))),
  expression(log(Phi(z / 1.05))),
  expression(log(Phi(z / 1.1)))
))

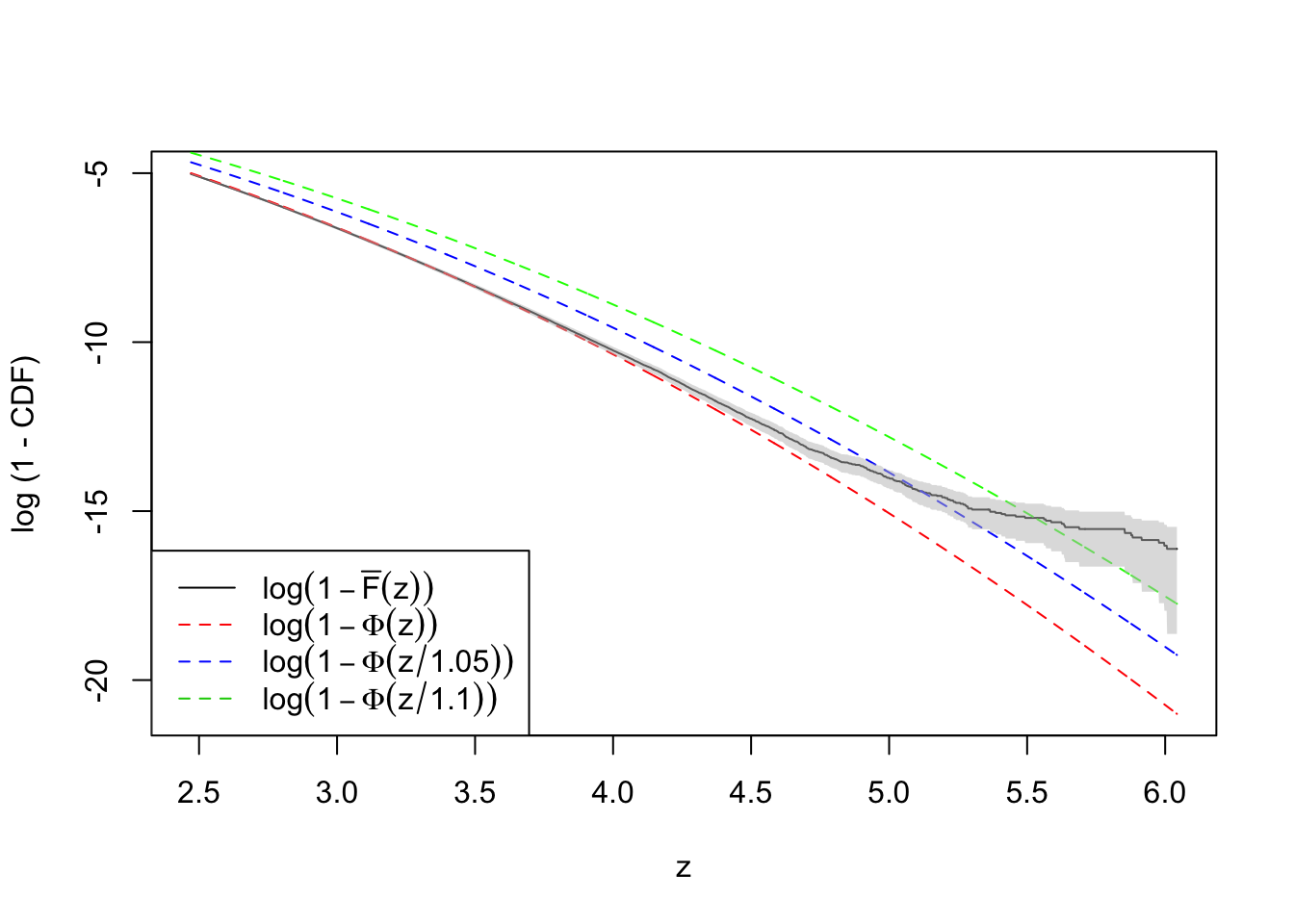

plot(-qnorm(quantile.vec3), log(ecdf.avg4), type = "l",
     ylim = range(log(quantile.vec3), log(ecdf.avg4)),
     xlab = "z", ylab = "log (1 - CDF)")
lines(-qnorm(quantile.vec3), log(quantile.vec3), lty = 2, col = "red")
lines(-qnorm(quantile.vec3), log(pnorm(qnorm(quantile.vec3), 0, 1.1)), lty = 2, col = "green")
lines(-qnorm(quantile.vec3), log(pnorm(qnorm(quantile.vec3), 0, 1.05)), lty = 2, col = "blue")
polygon(x = c(-qnorm(quantile.vec3), rev(-qnorm(quantile.vec3))),
        y = c(log(ecdf.tail.avg.conf.int4[1, ]), rev(log(ecdf.tail.avg.conf.int4[2, ]))),
        border = NA,
        col = grDevices::adjustcolor("grey75", alpha.f = 0.5))
legend("bottomleft", lty = c(1, 2, 2, 2), col = c(1, 2, 4, 3), legend = c(
  expression(log(1 - bar("F")(z))),
  expression(log(1 - Phi(z))),
  expression(log(1 - Phi(z / 1.05))),
  expression(log(1 - Phi(z / 1.1)))
))

set.seed(777)
nsamp <- 50
nsim <- 1e3
z <- sebetahat <- list()
for (i in 1 : nsim) {
  ## generate data
  counts <- r[, sample(ncol(r), 2 * nsamp)]
  design <- model.matrix(~c(rep(0, nsamp), rep(1, nsamp)))
  summary <- count_to_summary(counts, design)
  z[[i]] <- summary$z
  sebetahat[[i]] <- summary$sebetahat
}

sd.vec <- sapply(z, sd)
median.vec <- sapply(z, median)
fd.vec <- sapply(z, function(x) {
  p <- pnorm(-abs(x)) * 2
  sum(p <= 0.005)
})

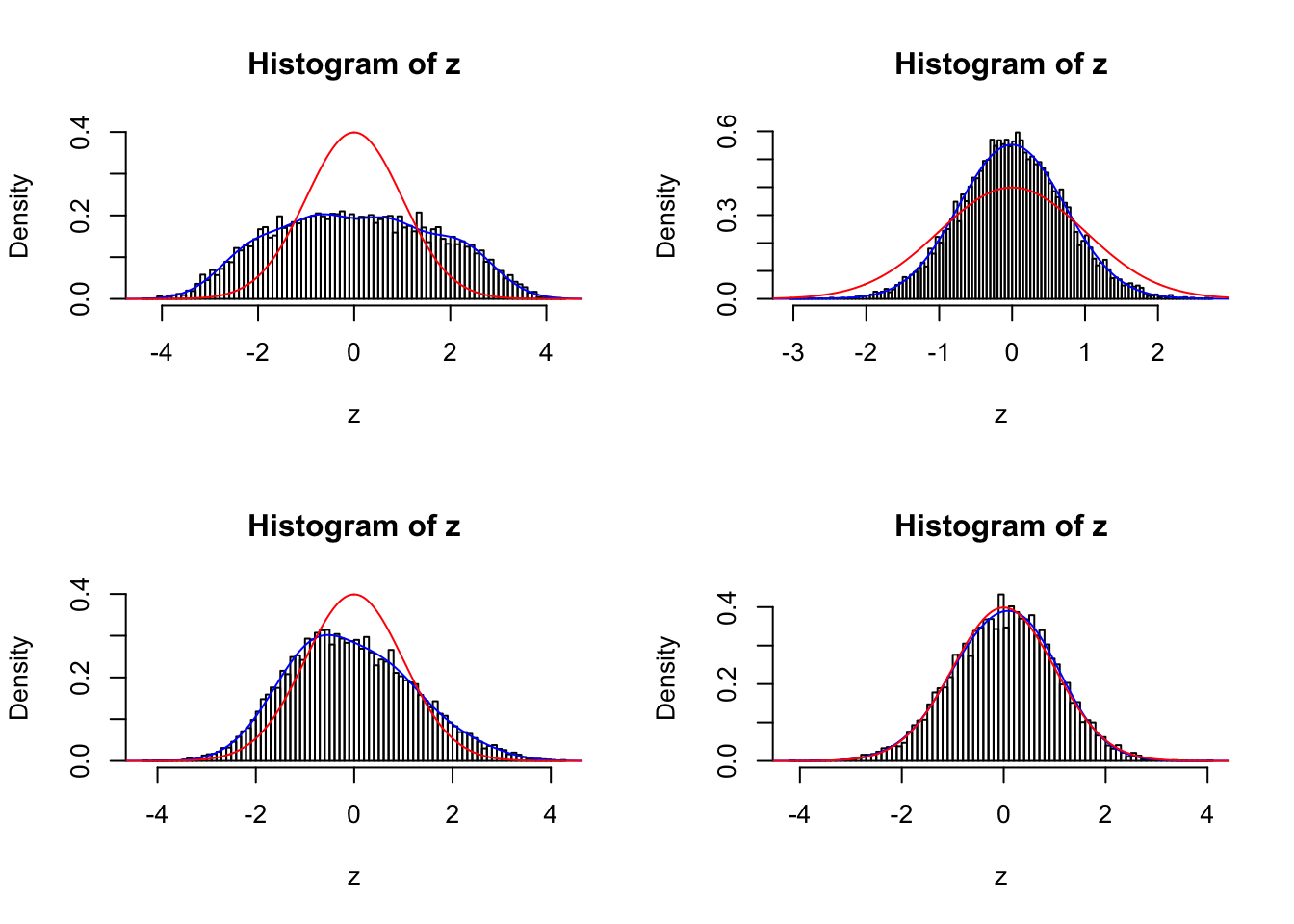

sel <- c(834, 211, 397, 748)
par(mfrow = c(2, 2))
for (i in seq(sel)) {
  fit <- gdfit(z[[sel[i]]], 10)
  plot.gdfit(z[[sel[i]]], fit$w, fit$L, legend = FALSE)
}

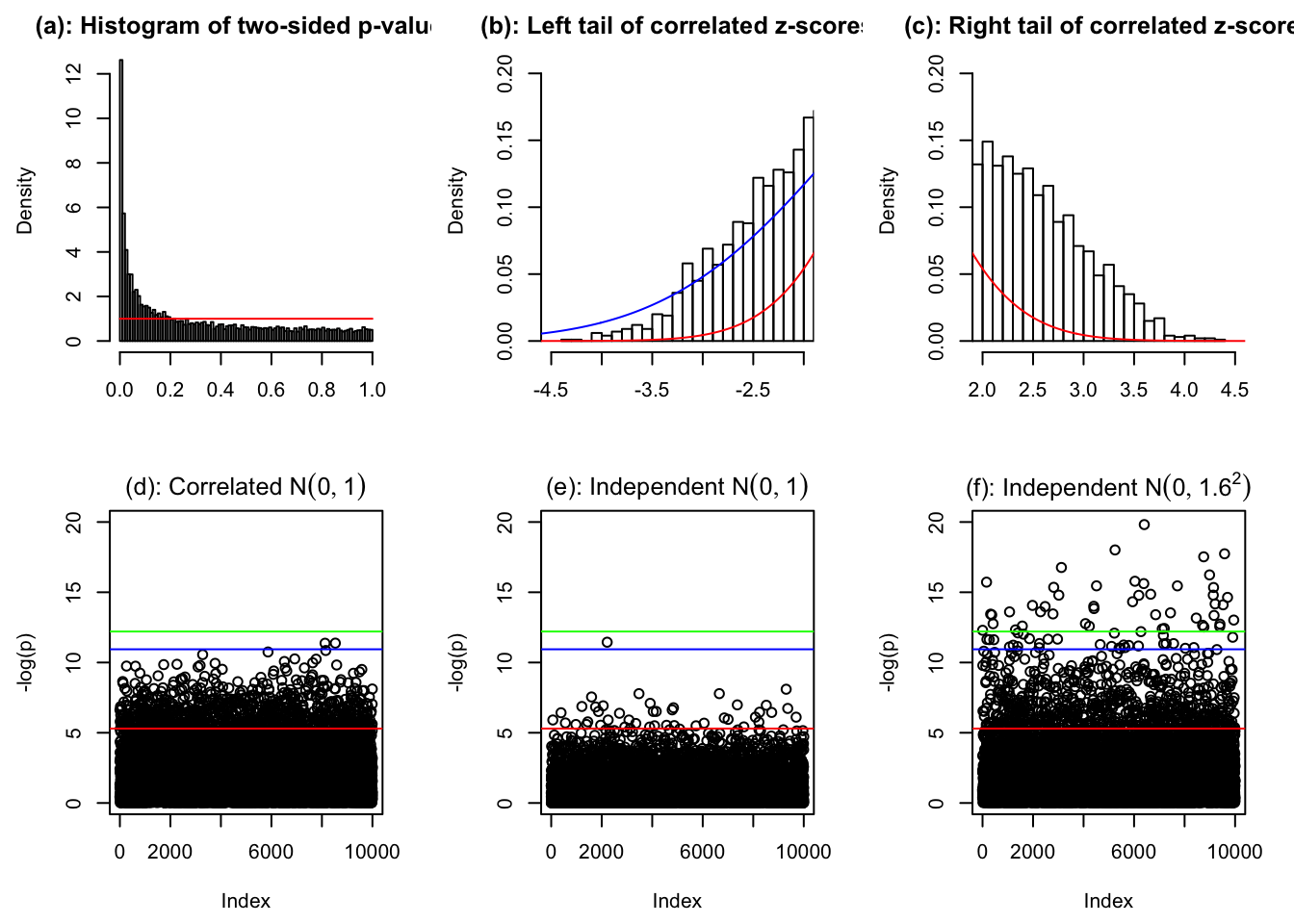

set.seed(6)
par(mfrow = c(2, 3))
par(mar = c(4.5, 4.5, 2, 2))
hist(pnorm(-abs(z[[834]])) * 2, prob = TRUE, xlab = "", breaks = 100, main = "(a): Histogram of two-sided p-values")
lines(c(0, 1), c(1, 1), col = "red")
hist(z[[834]], prob = TRUE, breaks = 100, xlab = "", xlim = c(-4.5, -2), main = "(b): Left tail of correlated z-scores")
lines(seq(-6, 6, by = 0.01), dnorm(seq(-6, 6, by = 0.01), 0, sd(z[[834]])), col = "blue")
lines(seq(-6, 6, by = 0.01), dnorm(seq(-6, 6, by = 0.01)), col = "red")
hist(z[[834]], prob = TRUE, breaks = 100, xlab = "", xlim = c(2, 4.5), main = "(c): Right tail of correlated z-scores")
lines(seq(-6, 6, by = 0.01), dnorm(seq(-6, 6, by = 0.01)), col = "red")
p <- pnorm(-abs(z[[834]])) * 2
plot(sample(-log(pnorm(-abs(z[[834]])) * 2)), ylim = c(0, 20), ylab = "-log(p)", main = expression(paste("(d): Correlated ", N(0, 1))))
abline(h = -log(0.005), col = "red")
abline(h = -log(pnorm(-sqrt(2 * log(1e4))) * 2), col = "blue")
abline(h = -log(0.05 / 1e4), col = "green")
plot(-log(pnorm(-abs(rnorm(1e4))) * 2), ylim = c(0, 20), ylab = "-log(p)", main = expression(paste("(e): Independent ", N(0, 1))))
abline(h = -log(0.005), col = "red")
abline(h = -log(pnorm(-sqrt(2 * log(1e4))) * 2), col = "blue")
abline(h = -log(0.05 / 1e4), col = "green")
plot(-log(pnorm(-abs(rnorm(1e4, 0, 1.6))) * 2), ylim = c(0, 20), ylab = "-log(p)", main = expression(paste("(f): Independent ", N(0, 1.6^2))))
abline(h = -log(0.005), col = "red")
abline(h = -log(pnorm(-sqrt(2 * log(1e4))) * 2), col = "blue")
abline(h = -log(0.05 / 1e4), col = "green")

p.bh <- p.adjust(p, method = "BH")
sum(p.bh <= 0.05)

[1] 575

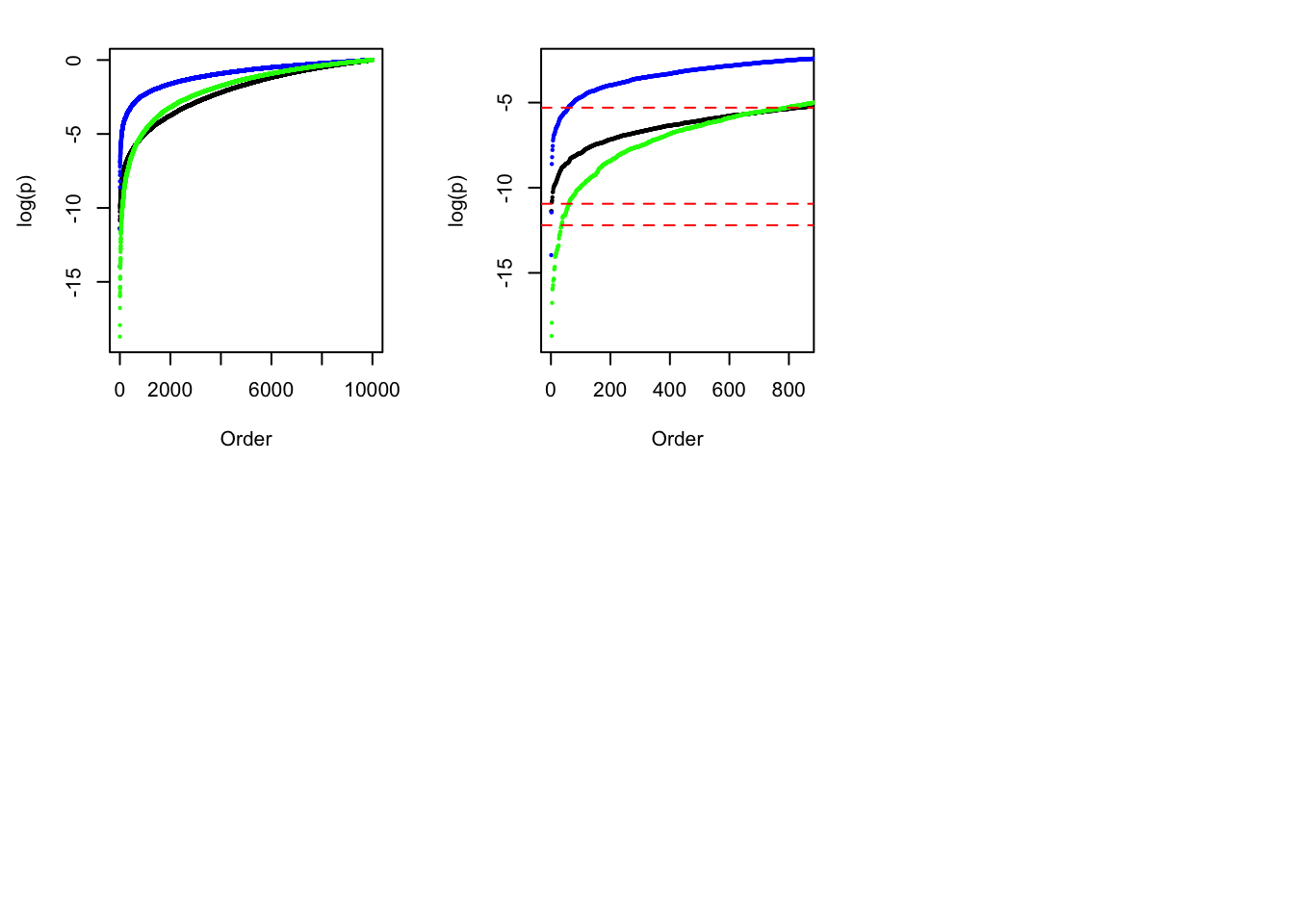

plot(sort(log(p)), cex = 0.25, pch = 19, ylim = c(-19, 0), xlab = "Order", ylab = "log(p)")

set.seed(6)
z.indep <- rnorm(1e4)
points(sort(log(pnorm(-abs(z.indep)) * 2)), cex = 0.25, pch = 19, col = "blue")
z.indep <- rnorm(1e4, 0, 1.6)
points(sort(log(pnorm(-abs(z.indep)) * 2)), cex = 0.25, pch = 19, col = "green")

plot(sort(log(p)), cex = 0.25, pch = 19, ylim = c(-19, -2.5), xlim = c(1, 850), xlab = "Order", ylab = "log(p)")

set.seed(6)
z.indep <- rnorm(1e4)
points(sort(log(pnorm(-abs(z.indep)) * 2)), cex = 0.25, pch = 19, col = "blue")
z.indep <- rnorm(1e4, 0, 1.6)
points(sort(log(pnorm(-abs(z.indep)) * 2)), cex = 0.25, pch = 19, col = "green")
abline(h = log(0.005), col = "red", lty = 2)
abline(h = log(pnorm(-sqrt(2 * log(1e4))) * 2), col = "red", lty = 2)
abline(h = log(0.05 / 1e4), col = "red", lty = 2)

W.sim.gd <- sapply(Z.sim, function (z) {fit.z <- gdfit(z, L = 10); return(
  list(w = fit.z$w, status = fit.z$status))})

W.gtex.gd <- sapply(Z.gtex, function (z) {fit.z <- gdfit(z, L = 10); return(
  list(w = fit.z$w, status = fit.z$status))})

Correlated null

quartz_off_screen
                2

Shoulder inflation

z <- z.mat.sel[3, ]
p <- pnorm(-abs(z)) * 2

## the image is 7.5 * 3
setEPS()
postscript("../output/fig/cor_z_cdf.eps", width = 7.5, height = 3)

par(mfrow = c(1, 3))
par(oma = c(4, 2.5, 0, 0)) # make room (i.e. the 4's) for the overall x and y axis titles
par(mar = c(2, 2, 2.5, 1)) # make the plots be closer together

plot(ecdf(z), xlab = "", ylab = "", lwd = 2, main = expression("(a): CDF of All"), cex.main = 1.5)
lines(seq(-6, 6, by = 0.01), pnorm(seq(-6, 6, by = 0.01)), col = "blue", lwd = 2)
lines(seq(-6, 6, by = 0.01), pnorm(seq(-6, 6, by = 0.01), 0, 1.6), col = "green", lwd = 2)
rect(xleft = c(-5, 2.5),
     xright = c(-2.5, 5),
     ytop = c(0.05, 1),
     ybottom = c(0, 0.95), border = "red", lty = c(1, 5))

plot(ecdf(z), xlab = "", ylab = "", main = expression("(b): Left Tail"), lwd = 2, xlim = c(-5, -2.5), ylim = c(0, 0.05), cex.main = 1.5, bty = "n")
box(col = "red")
lines(seq(-6, 6, by = 0.01), pnorm(seq(-6, 6, by = 0.01)), col = "blue", lwd = 2)
lines(seq(-6, 6, by = 0.01), pnorm(seq(-6, 6, by = 0.01), 0, 1.6), col = "green", lwd = 2)

plot(ecdf(z), xlab = "", ylab = "", main = expression("(c): Right tail"), lwd = 2, xlim = c(2.5, 5), ylim = c(0.95, 1), cex.main = 1.5, bty = "n")
box(col = "red", lty = 5)
lines(seq(-6, 6, by = 0.01), pnorm(seq(-6, 6, by = 0.01)), col = "blue", lwd = 2)
lines(seq(-6, 6, by = 0.01), pnorm(seq(-6, 6, by = 0.01), 0, 1.6), col = "green", lwd = 2)

mtext('CDF', side = 2, outer = TRUE, line = 1)

legend("bottomleft", inset = c(-1.275, -0.35), legend = c("N(0, 1)", expression(N(0, 1.6^2))), lty = 1, lwd = 2, xpd = NA, col = c("blue", "green"), ncol = 2, cex = 1.25)

dev.off()

quartz_off_screen
                2

# 7.5 * 3
setEPS()
postscript("../output/fig/cor_z_pval.eps", width = 7.5, height = 3.3)

par(mfrow = c(1, 3))
par(oma = c(4, 2.5, 0, 0)) # make room (i.e. the 4's) for the overall x and y axis titles
par(mar = c(4.5, 2, 2.5, 1)) # make the plots be closer together

set.seed(5)
p.norm.1 <- pnorm(-abs(rnorm(1e4))) * 2
set.seed(25)
p.norm.1.6 <- pnorm(-abs(rnorm(1e4, 0, 1.6))) * 2
y.max <- -log(min(p.norm.1, p, p.norm.1.6))
y.max <- 20

plot(sample(-log(p)), ylim = c(0, y.max), ylab = "-log(p)", main = expression(paste("(d): Correlated ", N(0, 1))), cex.main = 1.5, cex.lab = 1.5)
abline(h = -log(0.005), col = "red", lwd = 2)
abline(h = -log(pnorm(-sqrt(2 * log(1e4))) * 2), col = "orange", lwd = 2)
abline(h = -log(0.05 / 1e4), col = "yellow", lwd = 2)

plot(-log(p.norm.1), ylim = c(0, y.max), ylab = "-log(p)", main = expression(paste("(e): Independent ", N(0, 1))), col = "blue", cex.main = 1.5, cex.lab = 1.5)
abline(h = -log(0.005), col = "red", lwd = 2)
abline(h = -log(pnorm(-sqrt(2 * log(1e4))) * 2), col = "orange", lwd = 2)
abline(h = -log(0.05 / 1e4), col = "yellow", lwd = 2)

plot(-log(p.norm.1.6), ylim = c(0, y.max), ylab = "-log(p)", main = expression(paste("(f): Independent ", N(0, 1.6^2))), col = "green", cex.main = 1.5, cex.lab = 1.5)
abline(h = -log(0.005), col = "red", lwd = 2)
abline(h = -log(pnorm(-sqrt(2 * log(1e4))) * 2), col = "orange", lwd = 2)
abline(h = -log(0.05 / 1e4), col = "yellow", lwd = 2)

mtext('-log(p)', side = 2, outer = TRUE, line = 1)

legend("bottomleft", inset = c(-2.01, -0.51), legend = c("0.005", "Universal Threshold", "Bonferroni"), lty = 1, lwd = 2, xpd = NA, col = c("red", "orange", "yellow"), ncol = 3, cex = 1.25)

dev.off()

quartz_off_screen
                2

## under 0.005
sum(p <= 0.005)

[1] 809

p.bh <- p.adjust(p, method = "BH")
## BHq at FDR 0.05
sum(p.bh <= 0.05)

[1] 506

fit.q <- qvalue::qvalue(p)
## pi0 by qvalue
1 - fit.q$pi0

[1] 0.566462

## qvalue at FDR 0.05
sum(fit.q$qvalues <= 0.05)

[1] 2162

## pi0 by ashr
fit.a <- ashr::ash(z, 1, method = "fdr")
1 - ashr::get_pi0(fit.a)

[1] 0.98599

## ashr at FDR 0.05
sum(ashr::get_qvalue(fit.a) <= 0.05)

[1] 10000

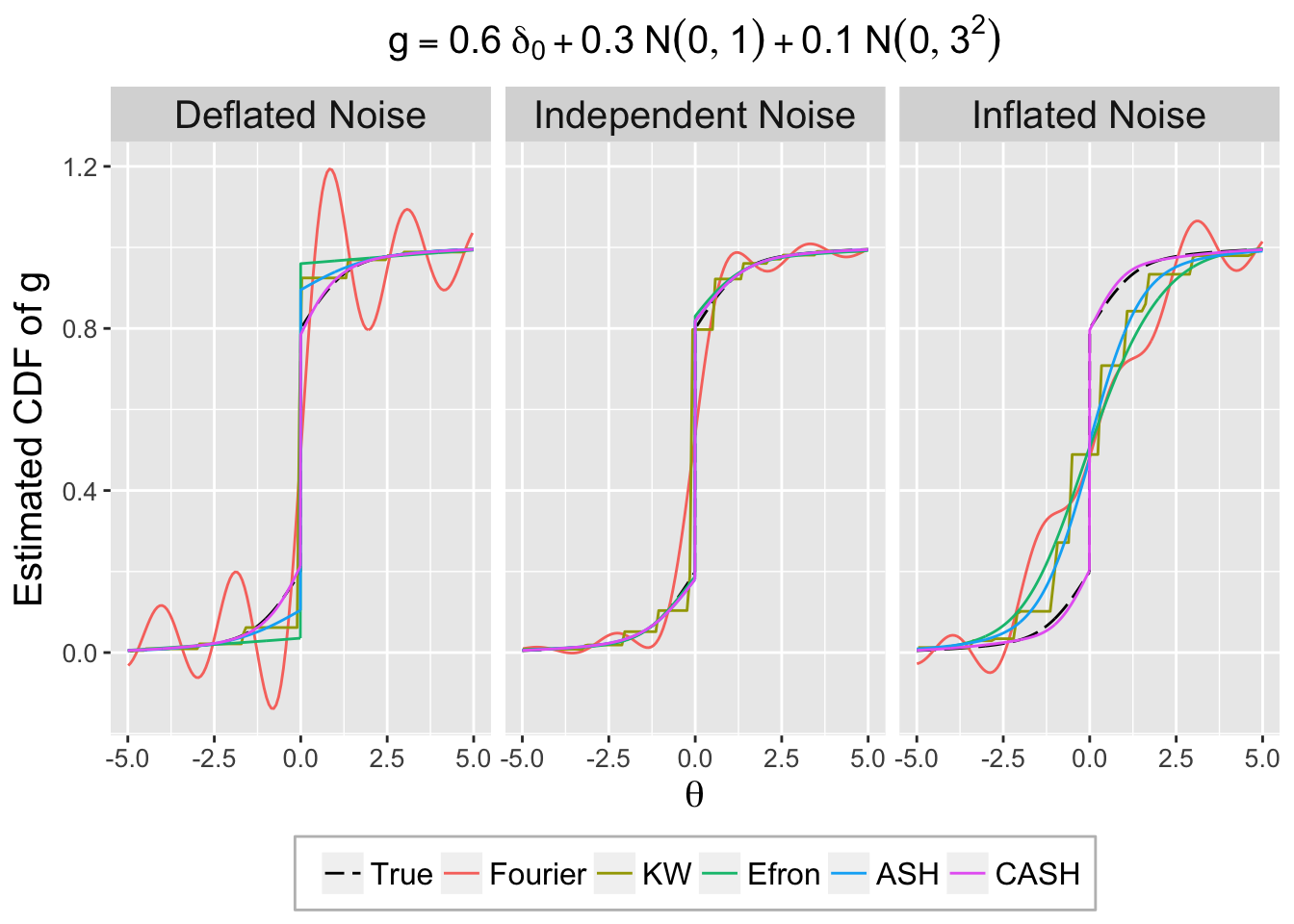

Deconvolution

KFE <- function(y, T = 300, lambda = 1/3){
    # Kernel Fourier Estimator: Stefanski and Carroll (Statistics, 1990)
    ks <- function(s,x) exp(s^2/2) * cos(s * x)
    K <- function(t, y, lambda = 1/3){
    k <- y
    for(i in 1:length(y)){
        k[i] <- integrate(ks, 0, 1/lambda, x = (y[i] - t))$value/pi
    }
    mean(k)
    }
    eps <- 1e-04
    if(length(T) == 1) T <- seq(min(y)-eps, max(y)+eps, length = T)
    g <- T
    for(j in 1:length(T))
    g[j] <- K(T[j], y, lambda = lambda)
    list(x = T, y = g)
}

biweight <- function(x0, x, bw){
    t <- (x - x0)/bw
    (1-t^2)^2*((t> -1 & t<1)-0) *15/16
}

CDF.KW <- function(h, interp = FALSE, eps = 0.001, bw = 0.7){
    #Wasserstein distance:  ||G-H||_W
    if(interp == "biweight"){
    yk = h$x
    for (j in 1:length(yk))
        yk[j] = sum(biweight(h$x[j], h$x, bw = bw)*h$y/sum(h$y))
    H <- cumsum(yk)
    H <- H/H[length(H)]
    }
    else {
    H <- cumsum(h$y)
    H <- H/H[length(H)]
    }
    return(H)
}

library(deconvolveR)

G <- function (t) {
# 0.6 * pnorm(t, 0, 0.1) + 0.3 * pnorm(t, 0, 1) + 0.1 * pnorm(t, 0, 3)
  0.6 * pnorm(t, 0, 0) + 0.3 * pnorm(t, 0, 1) + 0.1 * pnorm(t, 0, 3)
}

set.seed(777)

theta <- sample(c(
  rnorm(6e3, 0, 0),
  rnorm(3e3, 0, 1),
  rnorm(1e3, 0, 3)
))

set.seed(777)
r <- readRDS("../data/liver.rds")
nsamp <- 5
ngene <- 1e4
Y = lcpm(r)
subset = top_genes_index(ngene, Y)
r = r[subset,]
counts <- r[, sample(ncol(r), 2 * nsamp)]
design <- model.matrix(~c(rep(0, nsamp), rep(1, nsamp)))
summary <- count_to_summary(counts, design)
s <- summary$sebetahat
s <- s / sqrt(mean(s^2))

x.plot <- seq(-6, 6, by = 0.01)

G.plot <- G(x.plot)

for (i in 3 : 5) {
  if (i != 5) {
    z <- z.mat.sel[i, ]
  } else {
    z <- rnorm(1e4)
  }
  X <- theta + s * z
  Z <- theta + z

  ## Truth
  True.data <- cbind.data.frame(
    Method = "True",
    x = x.plot,
    cdfhat = G.plot
  )

  ## ASH
  fit.ash <- ashr::ash(X, s, method = "fdr", mixcompdist = "normal")
  ash.plot <- as.numeric(ashr::mixcdf(ashr::get_fitted_g(fit.ash), x.plot))
  ASH.data <- cbind.data.frame(
    Method = "ASH",
    x = x.plot,
    cdfhat = ash.plot
  )

  ## CASH
  gd.priority = ifelse(i == 3, TRUE, FALSE)
  fit.cash <- gdash(X, s)
  cash.plot <- as.numeric(ashr::mixcdf(ashr::get_fitted_g(fit.cash), x.plot))
  CASH.data <- cbind.data.frame(
    Method = "CASH",
    x = x.plot,
    cdfhat = cash.plot
  )

  ## Efron's BD (2016)
  fit.bd <- deconvolveR::deconv(tau = x.plot, X = Z, family = "Normal", deltaAt = 0)
  BD.data <- cbind.data.frame(
    Method = "Efron",
    x = fit.bd$stats[, 1],
    cdfhat = fit.bd$stats[, 4]
  )

  ## Kiefer-Wolfowitz's NPMLE (1956)
  fit.kw <- REBayes::GLmix(x = X, sigma = s)
  kw.plot <- CDF.KW(fit.kw)
  KW.data <- cbind.data.frame(
    Method = "KW",
    x = fit.kw$x,
    cdfhat = kw.plot
  )

  kws.plot <- CDF.KW(fit.kw, interp = "biweight")
  KWs.data <- cbind.data.frame(
    Method = "KWs",
    x = fit.kw$x,
    cdfhat = kws.plot
  )

  ## kernal deconvolution by Stefanski and Carroll 1990
  fit.sc <- KFE(Z)
  sc.plot <- CDF.KW(fit.sc)
  SC.data <- cbind.data.frame(
    Method = "SC-FK",
    x = fit.sc$x,
    cdfhat = sc.plot
  )

  if (i == 3) {
    deconv.inf.ggdata <- cbind.data.frame(
      Noise = "Inflated Noise",
      rbind.data.frame(
        True.data,
        SC.data,
        KW.data,
        BD.data,
        ASH.data,
        CASH.data
      )
    )
  } else if (i == 4) {
    deconv.def.ggdata <- cbind.data.frame(
      Noise = "Deflated Noise",
      rbind.data.frame(
        True.data,
        SC.data,
        KW.data,
        BD.data,
        ASH.data,
        CASH.data
      )
    )
  } else {
    deconv.ind.ggdata <- cbind.data.frame(
      Noise = "Independent Noise",
      rbind.data.frame(
        True.data,
        SC.data,
        KW.data,
        BD.data,
        ASH.data,
        CASH.data
      )
    )
  }
}

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in stats::nlm(f = loglik, p = aStart, gradtol = 1e-10, ...): NA/Inf
replaced by maximum positive value

Warning in stats::nlm(f = loglik, p = aStart, gradtol = 1e-10, ...): NA/Inf
replaced by maximum positive value

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in stats::nlm(f = loglik, p = aStart, gradtol = 1e-10, ...): NA/Inf
replaced by maximum positive value

Warning in stats::nlm(f = loglik, p = aStart, gradtol = 1e-10, ...): NA/Inf
replaced by maximum positive value

Warning in stats::nlm(f = loglik, p = aStart, gradtol = 1e-10, ...): NA/Inf
replaced by maximum positive value

Warning in stats::nlm(f = loglik, p = aStart, gradtol = 1e-10, ...): NA/Inf
replaced by maximum positive value

Warning in stats::nlm(f = loglik, p = aStart, gradtol = 1e-10, ...): NA/Inf
replaced by maximum positive value

deconv.ggdata <- rbind.data.frame(
  deconv.def.ggdata,
  deconv.ind.ggdata,
  deconv.inf.ggdata
)

method.name <- c("True", "Fourier", "KW", "Efron", "ASH", "CASH")
method.col <- c("black", scales::hue_pal()(5))
method.linetype <- c("longdash", rep("solid", 5))

## plotting
ggplot(data = deconv.ggdata, aes(x = x, y = cdfhat, col = Method, linetype = Method)) +
  geom_line() +
  facet_wrap(~Noise, nrow = 1) +
  xlim(-5, 5) +
  scale_linetype_manual(values = method.linetype, labels = method.name, guide = guide_legend(nrow = 1)) +
  scale_color_manual(values = method.col, labels = method.name, guide = guide_legend(nrow = 1)) +
  labs(x = expression(theta), y = "Estimated CDF of g", title = expression(g == 0.6~delta[0] + 0.3~N(0, 1) + 0.1~N(0, 3^2))) +
  theme(plot.title = element_text(size = 15, hjust = 0.5),
        axis.title.x = element_text(size = 15),
        axis.text.x = element_text(size = 10),
        axis.title.y = element_text(size = 15),
        axis.text.y = element_text(size = 10),
        strip.text = element_text(size = 15),
        legend.position = "bottom",
        legend.title = element_blank(),
        legend.background = element_rect(color = "grey"),
        legend.text = element_text(size = 12)) +

ggsave("../output/fig/deconv.eps", height = 4, width = 9)

Warning: Removed 1158 rows containing missing values (geom_path).

Warning: Removed 1158 rows containing missing values (geom_path).

Session information

sessionInfo()

R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.4

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] deconvolveR_1.1   reshape2_1.4.3    ggplot2_2.2.1
 [4] plyr_1.8.4        edgeR_3.20.9      limma_3.34.9
 [7] ashr_2.2-7        Rmosek_8.0.69     PolynomF_1.0-2
[10] CVXR_0.95         REBayes_1.3       Matrix_1.2-14
[13] SQUAREM_2017.10-1 EQL_1.0-0         ttutils_1.0-1

loaded via a namespace (and not attached):
 [1] qvalue_2.10.0     locfit_1.5-9.1    splines_3.4.3
 [4] lattice_0.20-35   colorspace_1.3-2  htmltools_0.3.6
 [7] yaml_2.1.19       gmp_0.5-13.1      rlang_0.2.0
[10] R.oo_1.22.0       pillar_1.2.2      Rmpfr_0.7-0
[13] R.utils_2.6.0     bit64_0.9-7       scs_1.1-1
[16] foreach_1.4.4     stringr_1.3.1     munsell_0.4.3
[19] gtable_0.2.0      workflowr_1.0.1   R.methodsS3_1.7.1
[22] codetools_0.2-15  evaluate_0.10.1   labeling_0.3
[25] knitr_1.20        doParallel_1.0.11 pscl_1.5.2
[28] parallel_3.4.3    Rcpp_0.12.16      backports_1.1.2
[31] scales_0.5.0      truncnorm_1.0-8   bit_1.1-13
[34] digest_0.6.15     stringi_1.2.2     grid_3.4.3
[37] rprojroot_1.3-2   ECOSolveR_0.4     tools_3.4.3
[40] magrittr_1.5      lazyeval_0.2.1    tibble_1.4.2
[43] whisker_0.3-2     MASS_7.3-50       assertthat_0.2.0
[46] rmarkdown_1.9     iterators_1.0.9   R6_2.2.2
[49] git2r_0.21.0      compiler_3.4.3
