Shrink Coefficient of Multiple correlation

Background

In multiple linear regression \(y=X\beta+\epsilon\), where \(y\in R^n\), \(X\in R^{n\times p}\) whose first column is a 1 vector, and \(\epsilon\sim N(0,\sigma^2I_n)\).

Definition of ANOVA terms:

1. Total sum of squares \(SST=y^Ty-\frac{1}{n}Y^T11^Ty\) where \(1\) is \(n\times 1\) 1 vector. df=n-1
2. Error sum of squares \(SSE=y^T(I-H)y\) where \(H\) is hat matrix defined as \(X(X^TX)^{-1}X^T\). df=n-p

3. Regression sum of squares \(SSR=\Sigma_i(\hat y_i-\bar y)^2=y^T(H-\frac{1}{n}11^T)y\). df=p-1

4. \(MSE=\frac{SSE}{n-p}\), \(E(MSE)=\sigma^2\); \(MSR=\frac{SSR}{p-1}\), \(E(MSR)=\sigma^2+nonnegative.quantity\)

\(\frac{MSR}{MSE}\sim F_{df_1=p-1,df_2=n-p}\).

Definition of Coefficient of Multiple correlation \(R^2\):

The proportion of the total sum of squares due to regression is \(R^2=\frac{SSR}{SST}=1-\frac{SSE}{SST}\); Adjusted R squared proposed by Ezekiel (1930): \(R_a^2=1-\frac{n-1}{n-p}\frac{SSE}{SST}\), mainly to correct 1. Adding a variable x to the model increases \(R^2\); 2. When all \(\beta\)s except intercept are 0, \(E(R^2)=\frac{p-1}{n-1}\)

Shrink \(R^2\)

Rewrite adjusted \(R^2\) as \(R_a^2=1-\frac{n-1}{n-p}\frac{SSE}{SST}=1-\frac{SSE/(n-p)}{SST/(n-1)}=1-\frac{\hat\sigma_\epsilon^2}{\hat\sigma^2_y}\) where \(\hat\sigma_\epsilon^2\) is the estimate of \(\sigma^2\) and \(\hat\sigma^2_y\) is the estimated variance of \(y\). My understanding of \(\sigma^2_y\): if no model assumption but just view \(y\) standalone, \(\sigma^2_y\) is the ‘population’ variance of y.

Now we have a ratio of sample variances, which fits into fash frame work: \(\tilde F=\log\frac{\hat\sigma_\epsilon^2}{\hat\sigma^2_y}\sim \log\frac{\sigma_\epsilon^2}{\sigma^2_y}\times F_{df_1=n-p,df_2=n-1}\). fash shrinks \(\log\frac{\sigma_\epsilon^2}{\sigma^2_y}\) towards zero hence \(\frac{\sigma_\epsilon^2}{\sigma^2_y}\) towards 1 and so shrinks \(R^2\) towards 0.

Example:

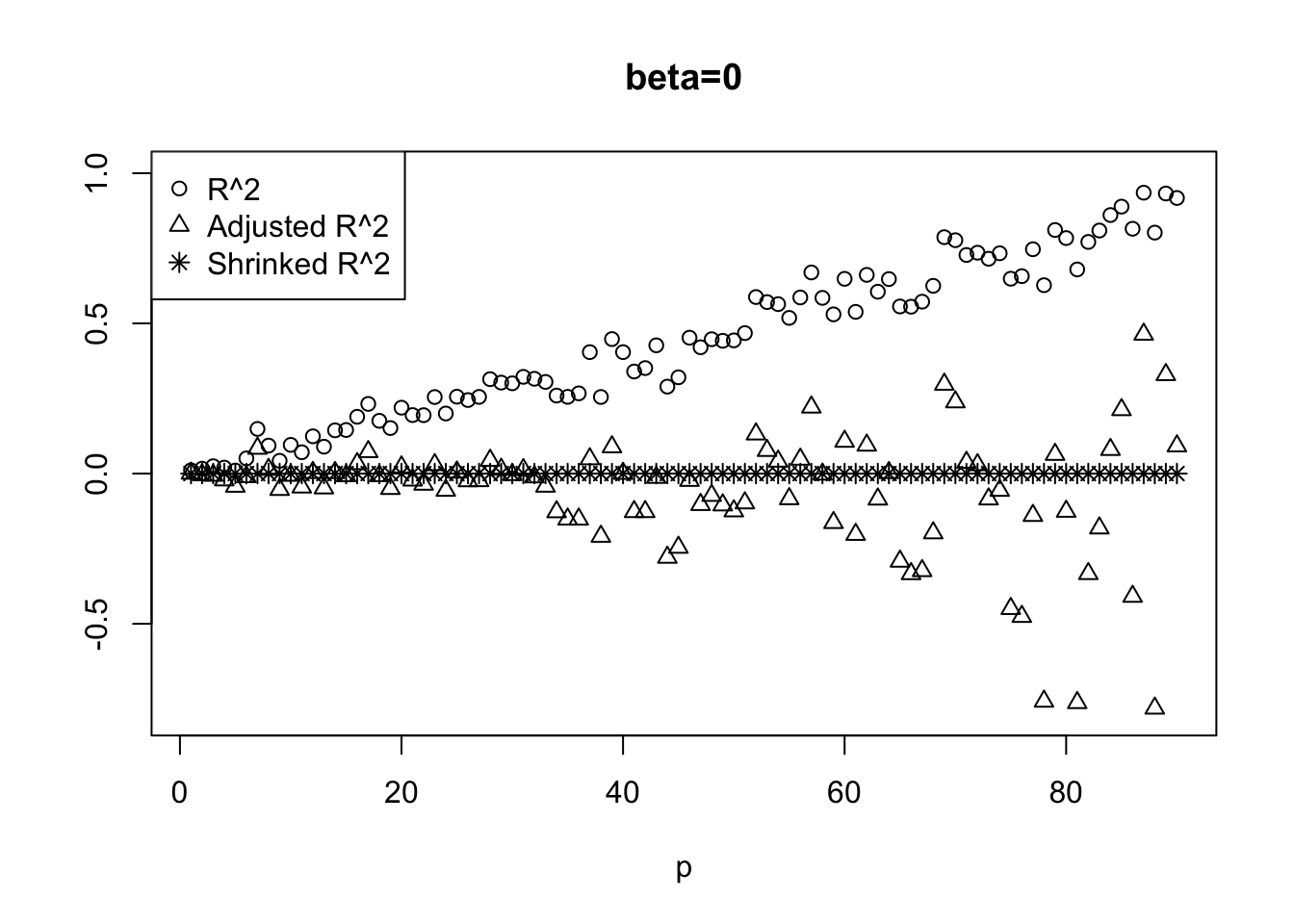

1. \(y=\mu+X\beta+\epsilon\) where all \(\betas\) are 0 and \(\epsilon\sim N(0,I_n)\).

Fix \(n=100\) and change \(p\) from 1 to 90. Here \(p\) is the dimension excluding intercept.

library(ashr)
set.seed(12345)
p.list=1:90
n=100

R2=c()
R2a=c()
R2s=c()
for (i in 1:length(p.list)) {
  p=p.list[i]
  X=matrix(rnorm(n*(p)),n,p)
  #X.data=cbind(rep(1,n),X)
  beta=rep(0,p)
  y=X%*%beta+rnorm(n)
  datax=data.frame(X=X,y=y)
  mod=lm(y~X,datax)
  mod.sy=summary(mod)
  R2[i]=mod.sy$r.squared
  R2a[i]=mod.sy$adj.r.squared

  mst=sum((y-mean(y))^2)/(n-1)
  mse=sum((y-fitted(mod))^2)/(n-p)
  aa=ash(log(mse/mst),1,lik=lik_logF(df1=n-p,df2=n-1))
  R2s[i]=1-exp(aa$result$PosteriorMean)
}
plot(p.list,R2,ylim=c(-0.8,1),main='beta=0',xlab='p',ylab='')
lines(p.list,R2a,type='p',pch=2)
lines(p.list,R2s,type='p',pch=8)
legend('topleft',c('R^2','Adjusted R^2','Shrinked R^2'),pch=c(1,2,8))

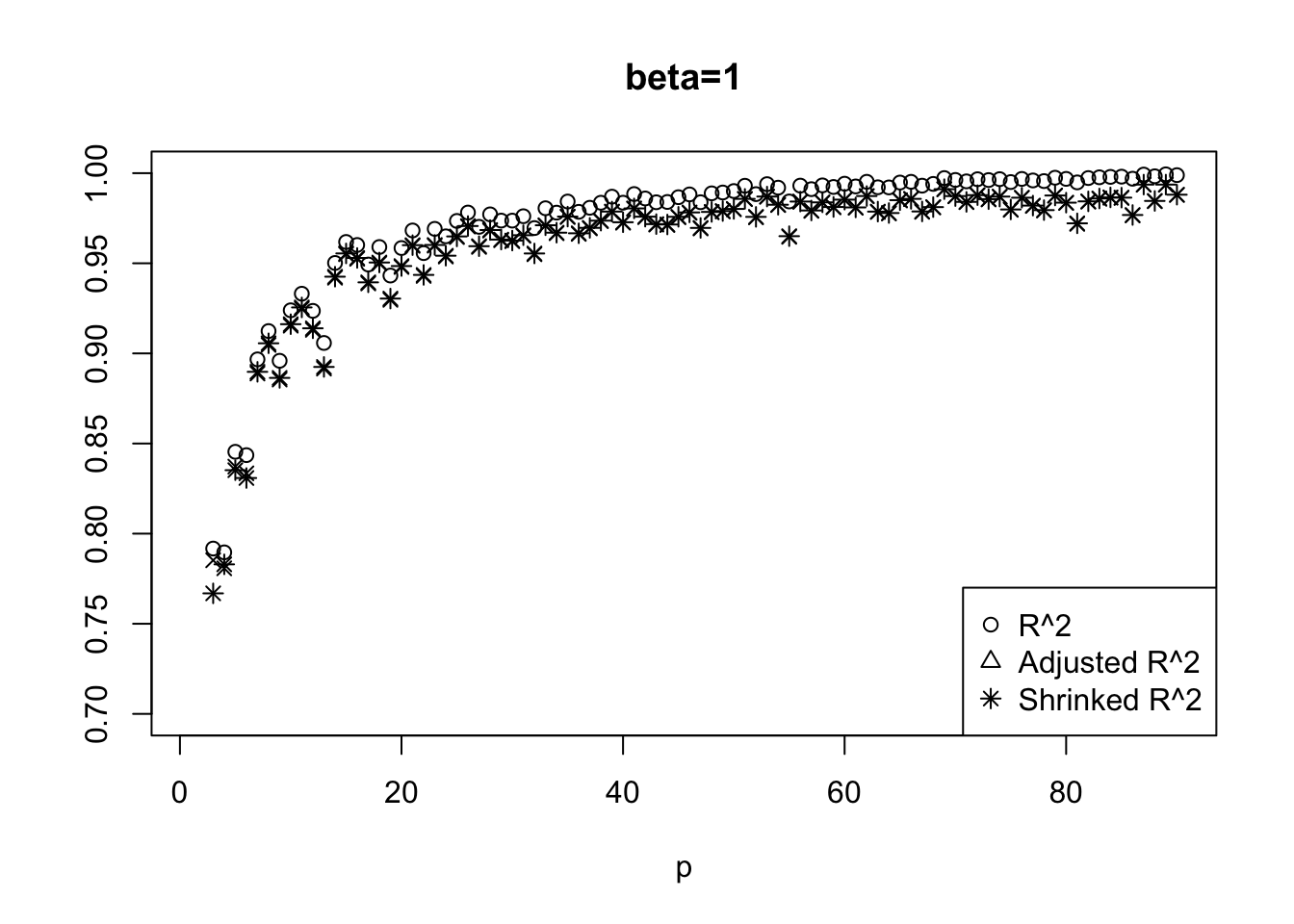

2. \(y=\mu+X\beta+\epsilon\) where all \(\betas\) are 1 and \(\epsilon\sim N(0,I_n)\).

Fix \(n=100\) and change \(p\) from 1 to 90.

set.seed(12345)
R2=c()
R2a=c()
R2s=c()
for (i in 1:length(p.list)) {
  p=p.list[i]
  X=matrix(rnorm(n*(p)),n,p)
  #X.data=cbind(rep(1,n),X)
  beta=rep(1,p)
  y=X%*%beta+rnorm(n)
  datax=data.frame(X=X,y=y)
  mod=lm(y~X,datax)
  mod.sy=summary(mod)
  R2[i]=mod.sy$r.squared
  R2a[i]=mod.sy$adj.r.squared

  mst=sum((y-mean(y))^2)/(n-1)
  mse=sum((y-fitted(mod))^2)/(n-p)
  aa=ash(log(mse/mst),1,lik=lik_logF(df1=n-p,df2=n-1))
  R2s[i]=1-exp(aa$result$PosteriorMean)
}
plot(p.list,R2,ylim=c(0.7,1),main='beta=1',xlab='p',ylab='')
lines(p.list,R2a,type='p',pch=4)
lines(p.list,R2s,type='p',pch=8)
legend('bottomright',c('R^2','Adjusted R^2','Shrinked R^2'),pch=c(1,2,8))

Facts might be useful

1. Now try to relate \(R^2\) to F-statistics:

Define $ F^*=$, then \(F^*=\frac{SSR/(p-1)}{SSE/(n-p)}\sim F_{df_1=p-1,df_2=n-p}\) when \(\beta_1,...,\beta_{p-1}\) are 0. Otherwise, \(F^*\) follows non-central F distribution whose non-central parameter is \((X\beta)^T(H-\frac{11^T}{n})(X\beta)\).

2. \(R=r_{y\hat y}\) where \(r\) is correlation coefficient.
