<h1 class="title toc-ignore">Estimate Null Correlation Problem</h1>
<h4 class="author"><em>Yuxin Zou</em></h4>
<h4 class="date"><em>2018-07-09</em></h4>
</div>
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2018-08-15</p>
<pre class="r"><code>library(mashr)</code></pre>
<pre><code>Loading required package: ashr</code></pre>
<pre class="r"><code>library(knitr)
library(kableExtra)
source('../code/generateDataV.R')
source('../code/summary.R')</code></pre>
<p>We illustrate the problem about estimating the correlation matrix in <code>mashr</code>.</p>
<p>In my simple simulation, the current approach underestimates the null correlation. We want to find better positive definite estimator. We could try to estimate the pairwise correlation, ie. mle of <span class="math inline">\(\sum_{l,k} \pi_{lk} N_{2}(0, V + w_{l}U_{k})\)</span> for any pair of conditions.</p>
<div id="problem" class="section level1">
<h1>Problem</h1>
<p>Simple simulation in <span class="math inline">\(R^2\)</span> to illustrate the problem: <span class="math display">\[
\hat{\beta}|\beta \sim N_{2}(\hat{\beta}; \beta, \left(\begin{matrix} 1 & 0.5 \\
0.5 & 1 \end{matrix}\right))
\]</span></p>
<p><span class="math display">\[
\beta \sim \frac{1}{4}\delta_{0} + \frac{1}{4}N_{2}(0, \left(\begin{matrix} 1 & 0 \\
0 & 0 \end{matrix}\right)) + \frac{1}{4}N_{2}(0, \left(\begin{matrix} 0 & 0 \\
0 & 1 \end{matrix}\right)) + \frac{1}{4}N_{2}(0, \left(\begin{matrix} 1 & 1 \\
1 & 1 \end{matrix}\right))
\]</span></p>
<p><span class="math inline">\(\Rightarrow\)</span> <span class="math display">\[
\hat{\beta} \sim \frac{1}{4}N_{2}(0, \left( \begin{matrix} 1 & 0.5 \\
0.5 & 1 \end{matrix} \right)) + \frac{1}{4}N_{2}(0, \left( \begin{matrix} 2 & 0.5 \\
0.5 & 1 \end{matrix} \right)) + \frac{1}{4}N_{2}(0, \left( \begin{matrix} 1 & 0.5 \\
0.5 & 2 \end{matrix} \right)) + \frac{1}{4}N_{2}(0, \left( \begin{matrix} 2 & 1.5 \\
1.5 & 2 \end{matrix} \right))
\]</span></p>
<p>n = 4000</p>
<pre class="r"><code>set.seed(1)
n = 4000; p = 2
Sigma = matrix(c(1,0.5,0.5,1),p,p)
U0 = matrix(0,2,2)
U1 = U0; U1[1,1] = 1
U2 = U0; U2[2,2] = 1
U3 = matrix(1,2,2)
Utrue = list(U0=U0, U1=U1, U2=U2, U3=U3)
data = generate_data(n, p, Sigma, Utrue)</code></pre>
<p>Let’s check the result of <code>mash</code> under different correlation matrix:</p>
<ol style="list-style-type: decimal">
<li>Identity <span class="math display">\[
V.I = I_{2}
\]</span></li>
</ol>
<pre class="r"><code>m.data = mash_set_data(data$Bhat, data$Shat)
U.c = cov_canonical(m.data)
m.I = mash(m.data, U.c, verbose= FALSE)</code></pre>
<ol start="2" style="list-style-type: decimal">
<li>The current approach: truncated empirical correlation <span class="math inline">\(V.trun\)</span></li>
</ol>
<pre class="r"><code>Vhat = estimate_null_correlation(m.data, apply_lower_bound = FALSE)
Vhat</code></pre>
<pre><code> [,1] [,2]
[1,] 1.0000000 0.3439205
[2,] 0.3439205 1.0000000</code></pre>
<p>It underestimates the correlation.</p>
<pre class="r"><code># Use underestimate cor
m.data.V = mash_set_data(data$Bhat, data$Shat, V=Vhat)
m.V = mash(m.data.V, U.c, verbose = FALSE)</code></pre>
<ol start="3" style="list-style-type: decimal">
<li>Overestimate correlation <span class="math display">\[
V.o = \left( \begin{matrix} 1 & 0.65 \\ 0.65 & 1\end{matrix} \right)
\]</span></li>
</ol>
<pre class="r"><code># If we overestimate cor
V.o = matrix(c(1,0.65,0.65,1),2,2)
m.data.Vo = mash_set_data(data$Bhat, data$Shat, V=V.o)
m.Vo = mash(m.data.Vo, U.c, verbose=FALSE)</code></pre>
<ol start="4" style="list-style-type: decimal">
<li>mash.1by1</li>
</ol>
<p>We run ash for each condition, and estimate correlation matrix based on the non-significant genes. The estimated cor is closer to the truth.</p>
<pre class="r"><code>m.1by1 = mash_1by1(m.data)
strong = get_significant_results(m.1by1)
V.mash = cor(data$Bhat[-strong,])
V.mash</code></pre>
<pre><code> [,1] [,2]
[1,] 1.0000000 0.4597745
[2,] 0.4597745 1.0000000</code></pre>
<pre class="r"><code>m.data.1by1 = mash_set_data(data$Bhat, data$Shat, V=V.mash)
m.V1by1 = mash(m.data.1by1, U.c, verbose = FALSE)</code></pre>
<ol start="5" style="list-style-type: decimal">
<li>True correlation</li>
</ol>
<pre class="r"><code># With correct cor
m.data.correct = mash_set_data(data$Bhat, data$Shat, V=Sigma)
m.correct = mash(m.data.correct, U.c, verbose = FALSE)</code></pre>
<p>The results are summarized in table:</p>
<pre class="r"><code>null.ind = which(apply(data$B,1,sum) == 0)
V.trun = c(get_loglik(m.V), length(get_significant_results(m.V)), sum(get_significant_results(m.V) %in% null.ind))
V.I = c(get_loglik(m.I), length(get_significant_results(m.I)), sum(get_significant_results(m.I) %in% null.ind))
V.over = c(get_loglik(m.Vo), length(get_significant_results(m.Vo)), sum(get_significant_results(m.Vo) %in% null.ind))
V.1by1 = c(get_loglik(m.V1by1), length(get_significant_results(m.V1by1)), sum(get_significant_results(m.V1by1) %in% null.ind))
V.correct = c(get_loglik(m.correct), length(get_significant_results(m.correct)), sum(get_significant_results(m.correct) %in% null.ind))
temp = cbind(V.I, V.trun, V.1by1, V.correct, V.over)
colnames(temp) = c('Identity','truncate', 'm.1by1', 'true', 'overestimate')
row.names(temp) = c('log likelihood', '# significance', '# False positive')
temp %>% kable() %>% kable_styling()</code></pre>
<table class="table" style="margin-left: auto; margin-right: auto;">
<thead>
<tr>
<th style="text-align:left;">
</th>
<th style="text-align:right;">
Identity
</th>
<th style="text-align:right;">
truncate
</th>
<th style="text-align:right;">
m.1by1
</th>
<th style="text-align:right;">
true
</th>
<th style="text-align:right;">
overestimate
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
log likelihood
</td>
<td style="text-align:right;">
-12390.14
</td>
<td style="text-align:right;">
-12307.65
</td>
<td style="text-align:right;">
-12304.13
</td>
<td style="text-align:right;">
-12302.62
</td>
<td style="text-align:right;">
-12301.81
</td>
</tr>
<tr>
<td style="text-align:left;">
# significance
</td>
<td style="text-align:right;">
166.00
</td>
<td style="text-align:right;">
30.00
</td>
<td style="text-align:right;">
25.00
</td>
<td style="text-align:right;">
25.00
</td>
<td style="text-align:right;">
70.00
</td>
</tr>
<tr>
<td style="text-align:left;">
# False positive
</td>
<td style="text-align:right;">
14.00
</td>
<td style="text-align:right;">
1.00
</td>
<td style="text-align:right;">
0.00
</td>
<td style="text-align:right;">
0.00
</td>
<td style="text-align:right;">
4.00
</td>
</tr>
</tbody>
</table>

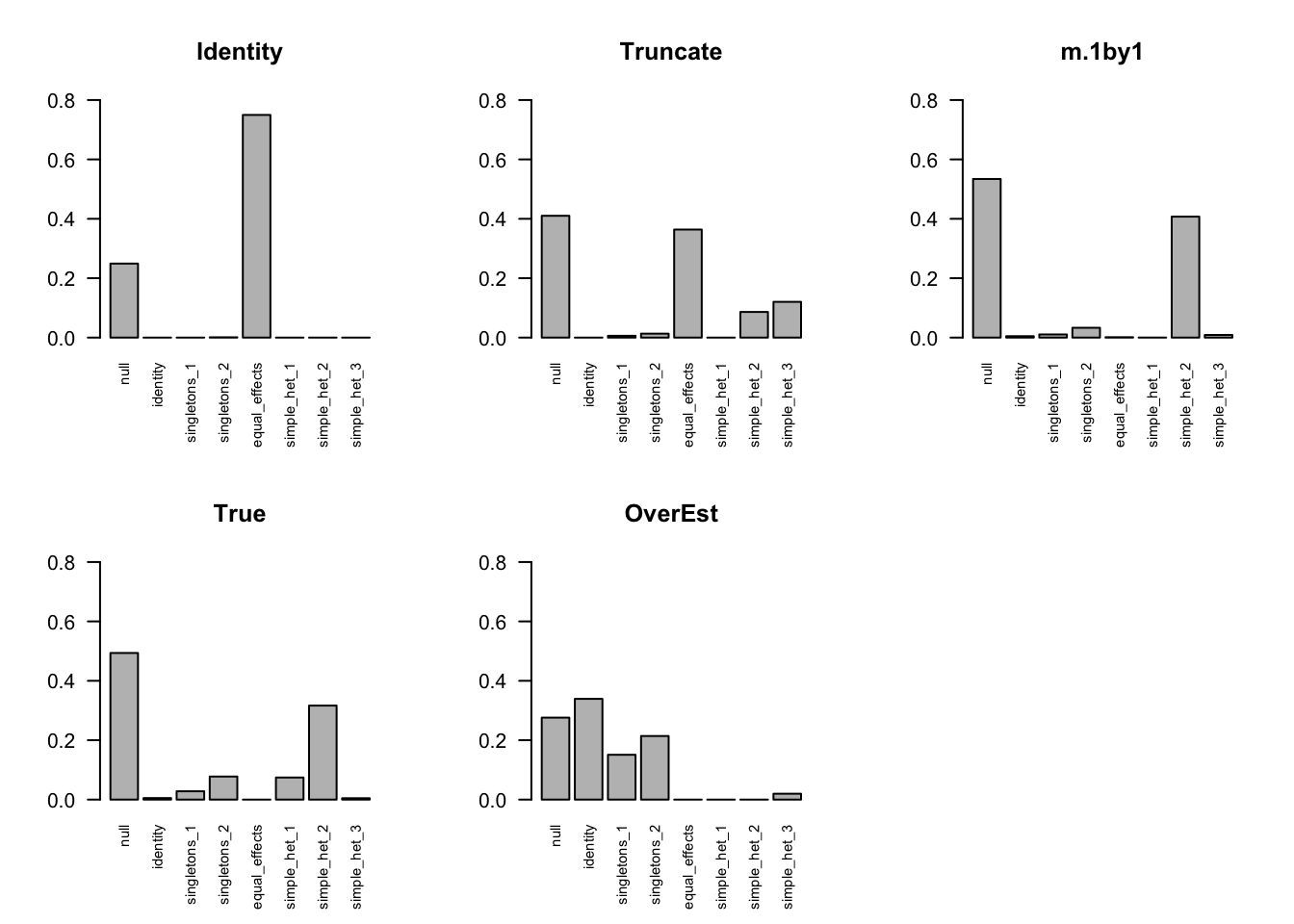

<p>The estimated <code>pi</code> is</p>
<pre class="r"><code>par(mfrow=c(2,3))
barplot(get_estimated_pi(m.I), las=2, cex.names = 0.7, main='Identity', ylim=c(0,0.8))
barplot(get_estimated_pi(m.V), las=2, cex.names = 0.7, main='Truncate', ylim=c(0,0.8))
barplot(get_estimated_pi(m.V1by1), las=2, cex.names = 0.7, main='m.1by1', ylim=c(0,0.8))
barplot(get_estimated_pi(m.correct), las=2, cex.names = 0.7, main='True', ylim=c(0,0.8))
barplot(get_estimated_pi(m.Vo), las=2, cex.names = 0.7, main='OverEst', ylim=c(0,0.8))</code></pre>
<p><img src="figure/EstimateCor.Rmd/unnamed-chunk-10-1.png" width="672" style="display: block; margin: auto;" /></p>

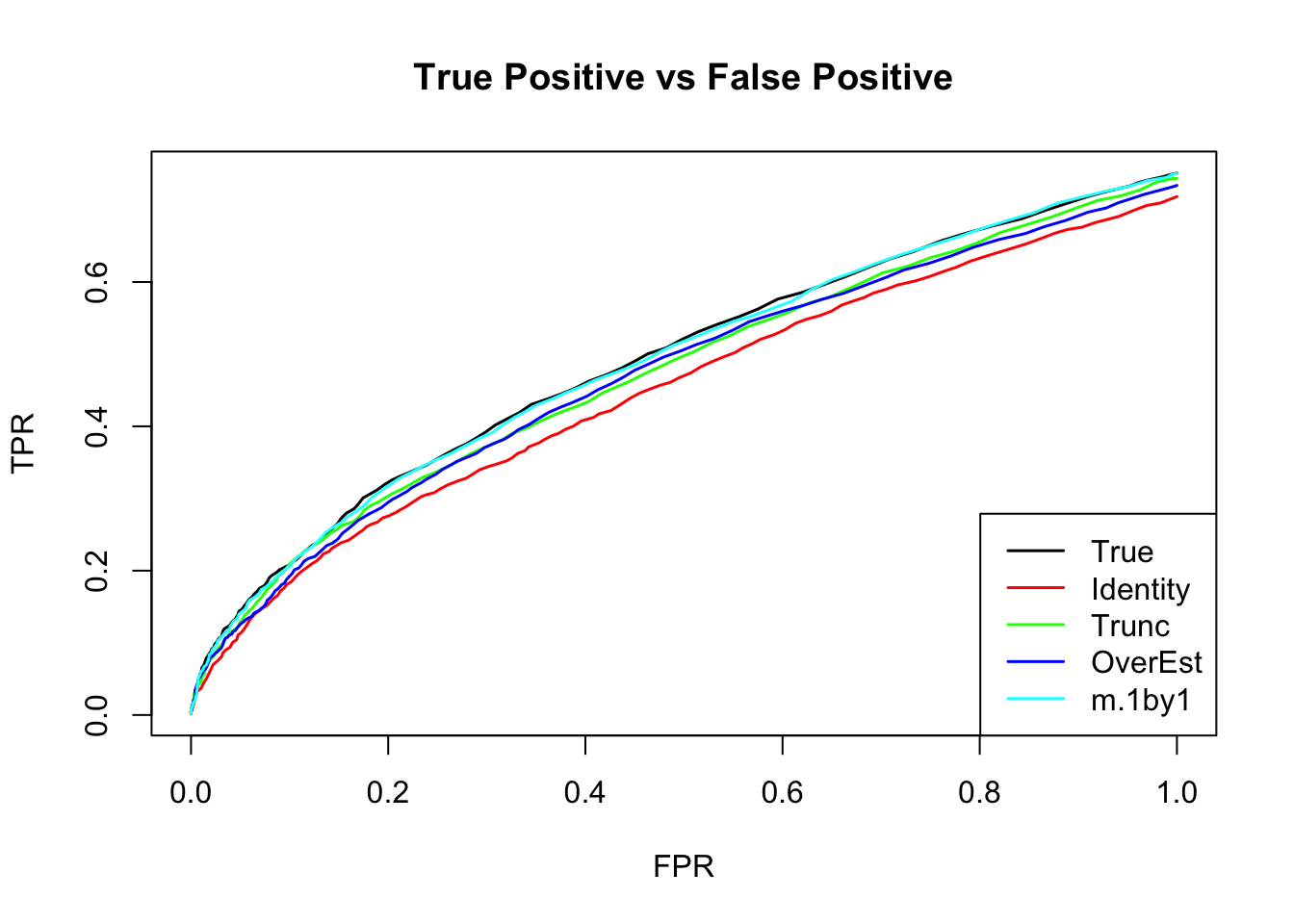

<p>The ROC curve:</p>
<pre class="r"><code>m.I.seq = ROC.table(data$B, m.I)
m.V.seq = ROC.table(data$B, m.V)
m.Vo.seq = ROC.table(data$B, m.Vo)
m.V1by1.seq = ROC.table(data$B, m.V1by1)
m.correct.seq = ROC.table(data$B, m.correct)</code></pre>
<p><img src="figure/EstimateCor.Rmd/unnamed-chunk-12-1.png" width="672" style="display: block; margin: auto;" /></p>
<p>Comparing accuracy</p>
<pre class="r"><code>rrmse = rbind(RRMSE(data$B, data$Bhat, list(m.I = m.I, m.V = m.V, m.1by1 = m.V1by1, m.true = m.correct, m.over = m.Vo)))
colnames(rrmse) = c('Identity','V.trun','V.1by1','V.true','V.over')
row.names(rrmse) = 'RRMSE'
rrmse %>% kable() %>% kable_styling()</code></pre>
<table class="table" style="margin-left: auto; margin-right: auto;">
<thead>
<tr>
<th style="text-align:left;">
</th>
<th style="text-align:right;">
Identity
</th>
<th style="text-align:right;">
V.trun
</th>
<th style="text-align:right;">
V.1by1
</th>
<th style="text-align:right;">
V.true
</th>
<th style="text-align:right;">
V.over
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
RRMSE
</td>
<td style="text-align:right;">
0.6522463
</td>
<td style="text-align:right;">
0.5925754
</td>
<td style="text-align:right;">
0.5811472
</td>
<td style="text-align:right;">
0.5817699
</td>
<td style="text-align:right;">
0.6052702
</td>
</tr>
</tbody>
</table>
<pre class="r"><code>barplot(rrmse, ylim=c(0,(1+max(rrmse))/2), las=2, cex.names = 0.7, main='RRMSE')</code></pre>
<p><img src="figure/EstimateCor.Rmd/unnamed-chunk-14-1.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="solution-mle" class="section level1">
<h1>Solution: MLE</h1>
<div id="k1" class="section level2">
<h2>K=1</h2>
<p>Suppose a simple extreme case <span class="math display">\[
\left(\begin{matrix} \hat{x} \\ \hat{y} \end{matrix} \right)| \left(\begin{matrix} x \\ y \end{matrix} \right) \sim N_{2}(\left(\begin{matrix} \hat{x} \\ \hat{y} \end{matrix} \right); \left(\begin{matrix} x \\ y \end{matrix} \right), \left( \begin{matrix} 1 & \rho \\ \rho & 1 \end{matrix}\right))
\]</span> <span class="math display">\[
\left(\begin{matrix} x \\ y \end{matrix} \right) \sim \delta_{0}
\]</span> <span class="math inline">\(\Rightarrow\)</span> <span class="math display">\[
\left(\begin{matrix} \hat{x} \\ \hat{y} \end{matrix} \right) \sim N_{2}(\left(\begin{matrix} \hat{x} \\ \hat{y} \end{matrix} \right); \left(\begin{matrix} 0 \\ 0 \end{matrix} \right), \left( \begin{matrix} 1 & \rho \\ \rho & 1 \end{matrix}\right))
\]</span></p>
<p><span class="math display">\[
f(\hat{x},\hat{y}) = \prod_{i=1}^{n} \frac{1}{2\pi\sqrt{1-\rho^2}} \exp \{-\frac{1}{2(1-\rho^2)}\left[ \hat{x}_{i}^2 + \hat{y}_{i}^2 - 2\rho \hat{x}_{i}\hat{y}_{i}\right] \}
\]</span> The MLE of <span class="math inline">\(\rho\)</span>: <span class="math display">\[
\begin{align*}
l(\rho) &= -\frac{n}{2}\log(1-\rho^2) - \frac{1}{2(1-\rho^2)}\left( \sum_{i=1}^{n} x_{i}^2 + y_{i}^2 - 2\rho x_{i}y_{i} \right) \\
l(\rho)' &= \frac{n\rho}{1-\rho^2} - \frac{\rho}{(1-\rho^2)^2} \sum_{i=1}^{n} (x_{i}^2 + y_{i}^2) + \frac{\rho^2 + 1}{(1-\rho^2)^2} \sum_{i=1}^{n} x_{i}y_{i} = 0 \\
&= \rho^{3} - \rho^{2}\frac{1}{n}\sum_{i=1}^{n} x_{i}y_{i} - \left( 1- \frac{1}{n} \sum_{i=1}^{n} x_{i}^{2} + y_{i}^{2} \right) \rho - \frac{1}{n}\sum_{i=1}^{n} x_{i}y_{i} = 0 \\
l(\rho)'' &= \frac{n(\rho^2+1)}{(1-\rho^2)^2} - \frac{1}{2}\left( \frac{8\rho^2}{(1-\rho^2)^{3}} + \frac{2}{(1-\rho^2)^2} \right)\sum_{i=1}^{n}(x_{i}^2 + y_{i}^2) + \{ \left( \frac{8\rho^2}{(1-\rho^2)^{3}} + \frac{2}{(1-\rho^2)^2} \right)\rho + \frac{4\rho}{(1-\rho^2)^2} \}\sum_{i=1}^{n}x_{i}y_{i}
\end{align*}
\]</span></p>
<p><strong>The log likelihood is not a concave function in general.</strong> The score function has either 1 or 3 real solutions.</p>
<p>Kendall and Stuart (1979) noted that at least one of the roots is real and lies in the interval [−1, 1]. However, it is possible that all three roots are real and in the admissible interval, in which case the likelihood can be evaluated at each root to determine the true maximum likelihood estimate.</p>

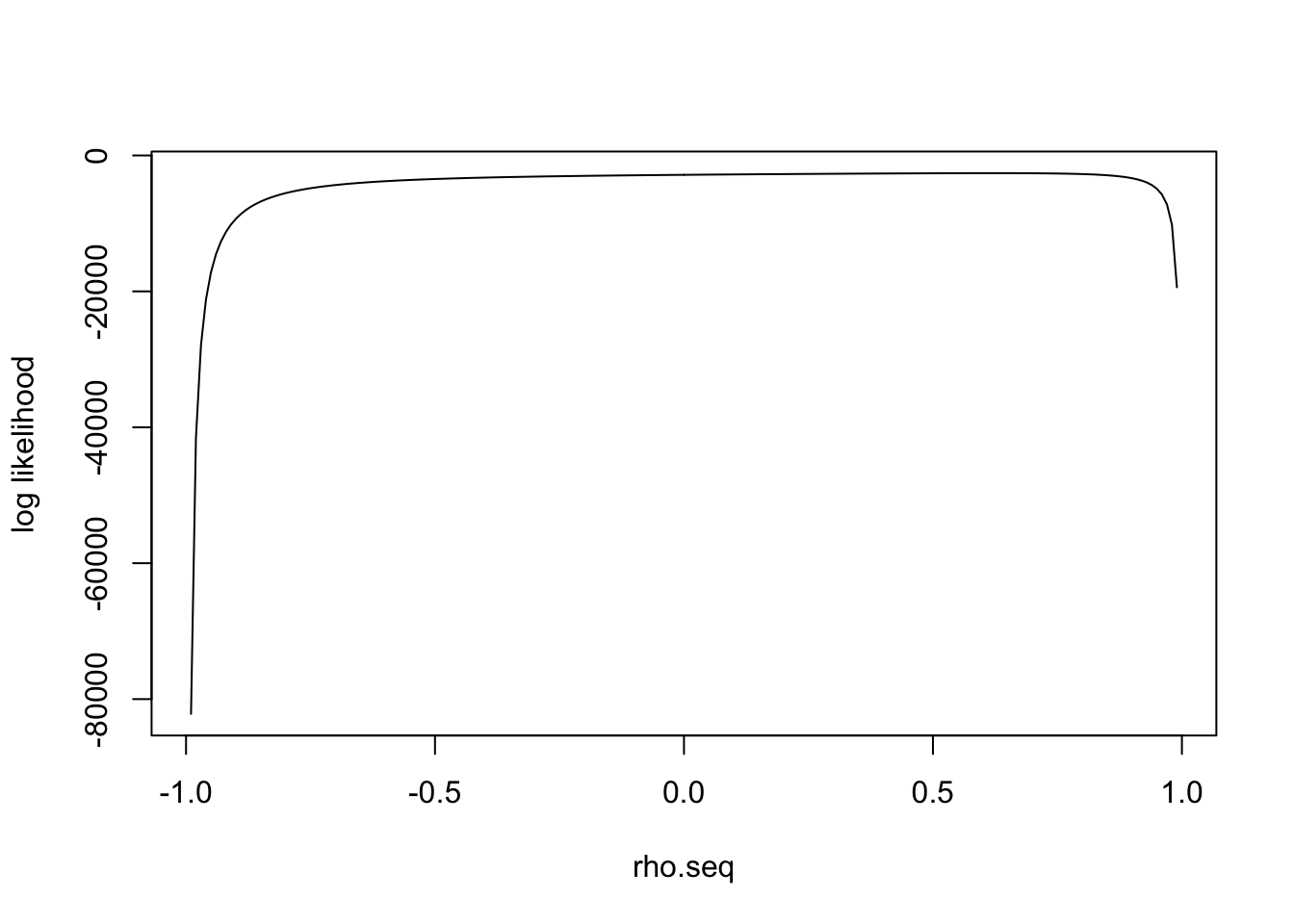

<p>I simulate the data with <span class="math inline">\(\rho=0.6\)</span> and plot the loglikelihood function:</p>
<p><img src="figure/EstimateCor.Rmd/unnamed-chunk-15-1.png" width="672" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(l(\rho)'\)</span> has one real solution</p>
<pre class="r"><code>polyroot(c(- sum(data$Bhat[,1]*data$Bhat[,2]), - (n - sum(data$Bhat[,1]^2 + data$Bhat[,2]^2)), - sum(data$Bhat[,1]*data$Bhat[,2]), n))</code></pre>
<pre><code>[1] 0.6193031+0.000000i 0.0058209+1.009339i 0.0058209-1.009339i</code></pre>
</div>
<div id="in-general" class="section level2">
<h2>In general</h2>
<p>The general derivation is in <a href="EstimateCorMax.html">estimate correlation mle</a></p>
</div>
</div>
<div id="session-information" class="section level1">
<h1>Session information</h1>
<!-- Insert the session information into the document -->
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.5.1 (2018-07-02)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.6
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] kableExtra_0.9.0 knitr_1.20 mashr_0.2-11 ashr_2.2-10
loaded via a namespace (and not attached):
[1] Rcpp_0.12.18 highr_0.7 compiler_3.5.1
[4] pillar_1.3.0 plyr_1.8.4 iterators_1.0.10
[7] tools_3.5.1 digest_0.6.15 viridisLite_0.3.0
[10] evaluate_0.11 tibble_1.4.2 lattice_0.20-35
[13] pkgconfig_2.0.1 rlang_0.2.1 Matrix_1.2-14
[16] foreach_1.4.4 rstudioapi_0.7 yaml_2.2.0
[19] parallel_3.5.1 mvtnorm_1.0-8 xml2_1.2.0
[22] httr_1.3.1 stringr_1.3.1 REBayes_1.3
[25] hms_0.4.2 rprojroot_1.3-2 grid_3.5.1
[28] R6_2.2.2 rmarkdown_1.10 rmeta_3.0
[31] readr_1.1.1 magrittr_1.5 scales_0.5.0
[34] backports_1.1.2 codetools_0.2-15 htmltools_0.3.6
[37] MASS_7.3-50 rvest_0.3.2 assertthat_0.2.0
[40] colorspace_1.3-2 stringi_1.2.4 Rmosek_8.0.69
[43] munsell_0.5.0 pscl_1.5.2 doParallel_1.0.11
[46] truncnorm_1.0-8 SQUAREM_2017.10-1 crayon_1.3.4 </code></pre>
</div>
<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html. This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
MathJax.Hub.Config({
"HTML-CSS": { availableFonts: ["TeX"] }
});
</script>
<hr>
<p>
This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>
<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->
<!-- disqus
<div id="disqus_thread"></div>
<script type="text/javascript">
/* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname
/* * * DON'T EDIT BELOW THIS LINE * * */
(function() {
var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
(document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
})();
</script>
<noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
<a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->
</div>
</div>
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
