library(mashr)
Loading required package: ashr
source('../code/generateDataV.R')
source('../code/estimate_cor.R')
source('../code/summary.R')
library(knitr)
library(kableExtra)
library(ggplot2)
library(reshape2)

Apply the max likelihood methods for correlation matrix on mash data.

After we estimate each pairwise correlation, the final resulting \(p\times p\) correlation matrix may not be positive definite. I estimate the nearest PD cor matrix with nearPD function. In the simulations, there is no non pd resulting matrix.

The estimated V from optim(optim function), \(M_{\rho}\) and \(MV\) perform better than the truncated correlation (error, mash log likelihood, ROC).

Comparing the estimated V from optim, \(M_{\rho}\) and \(MV\), \(MV\) algorithm computes much faster than \(M_{\rho}\), faster than optim. The estimated V from optim and \(M_{\rho}\) are very similar. They have smaller error to the true V than \(MV\), most of the time. The estimated V from \(MV\) has larger log likelihood in the final mash model. In terms of ROC and RRMSE, the estimated V from optim, \(M_{\rho}\) and \(MV\) performs similarly.

Based on the simulation results, I prefer the \(MV\) method.

One example: p = 3

\[ \hat{\beta}|\beta \sim N_{3}(\hat{\beta}; \beta, \left(\begin{matrix} 1 & 0.7 & 0.2 \\ 0.7 & 1 & 0.4 \\ 0.2 & 0.4 & 1 \end{matrix}\right)) \]

\[ \beta \sim \frac{1}{4}\delta_{0} + \frac{1}{4}N_{3}(0, \left(\begin{matrix} 1 & 0 &0\\ 0 & 0 & 0 \\ 0 & 0 & 0 \end{matrix}\right)) + \frac{1}{4}N_{3}(0, \left(\begin{matrix} 1 & 0 & 0 \\ 0 & 1 & 0 \\ 0 & 0 & 0 \end{matrix}\right)) + \frac{1}{4}N_{3}(0, \left(\begin{matrix} 1 & 1 & 1 \\ 1 & 1 & 1 \\ 1 & 1 & 1 \end{matrix}\right)) \]

set.seed(1)
Sigma = cbind(c(1,0.7,0.2), c(0.7,1,0.4), c(0.2,0.4,1))
U0 = matrix(0,3,3)
U1 = matrix(0,3,3); U1[1,1] = 1
U2 = diag(3); U2[3,3] = 0
U3 = matrix(1,3,3)
data = generate_data(n=4000, p=3, V=Sigma, Utrue = list(U0=U0, U1=U1,U2=U2,U3=U3))

We find the estimate of V with canonical covariances and the PCA covariances.

m.data = mash_set_data(data$Bhat, data$Shat)
m.1by1 = mash_1by1(m.data)
strong = get_significant_results(m.1by1)

U.pca = cov_pca(m.data, 3, subset = strong)
U.ed = cov_ed(m.data, U.pca, subset = strong)
U.c = cov_canonical(m.data)

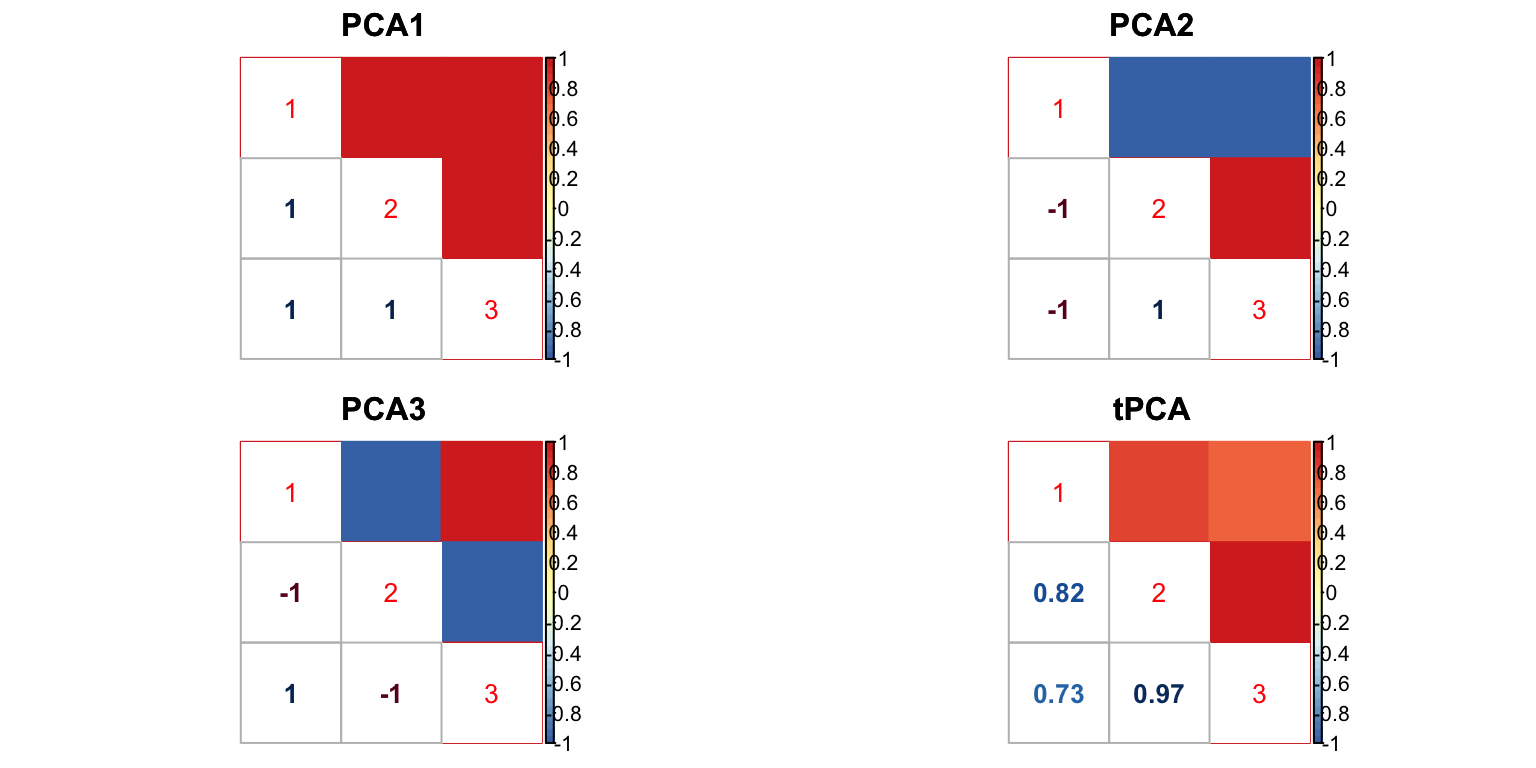

The PCA correlation matrices are:

Expand here to see past versions of unnamed-chunk-3-1.png:
Version Author Date
78b075a zouyuxin 2018-08-20

  1. We run the algorithm in estimate cor optim with 3 different initial points for \(\rho\), (-0.5,0,0.5). The \(\rho\) in each iteration is estimated using optim function. The estimated correlation is
Vhat.optim = estimateV(m.data, c(U.c, U.ed), init_rho = c(-0.5,0,0.5), tol=1e-4, optmethod = 'optim')
Vhat.optim$V
          [,1]      [,2]      [,3]
[1,] 1.0000000 0.7004633 0.1571929
[2,] 0.7004633 1.0000000 0.4174847
[3,] 0.1571929 0.4174847 1.0000000
  1. The result uses algorithm in estimate cor em. \(\rho\) in each iteration is the root of a third degree polynomial.
Vhat.mrho = estimateV(m.data, c(U.c, U.ed), init_rho = c(-0.5,0,0.5), tol = 1e-4, optmethod = 'mrho')
Vhat.mrho$V
          [,1]      [,2]      [,3]
[1,] 1.0000000 0.6997223 0.1568695
[2,] 0.6997223 1.0000000 0.4171466
[3,] 0.1568695 0.4171466 1.0000000

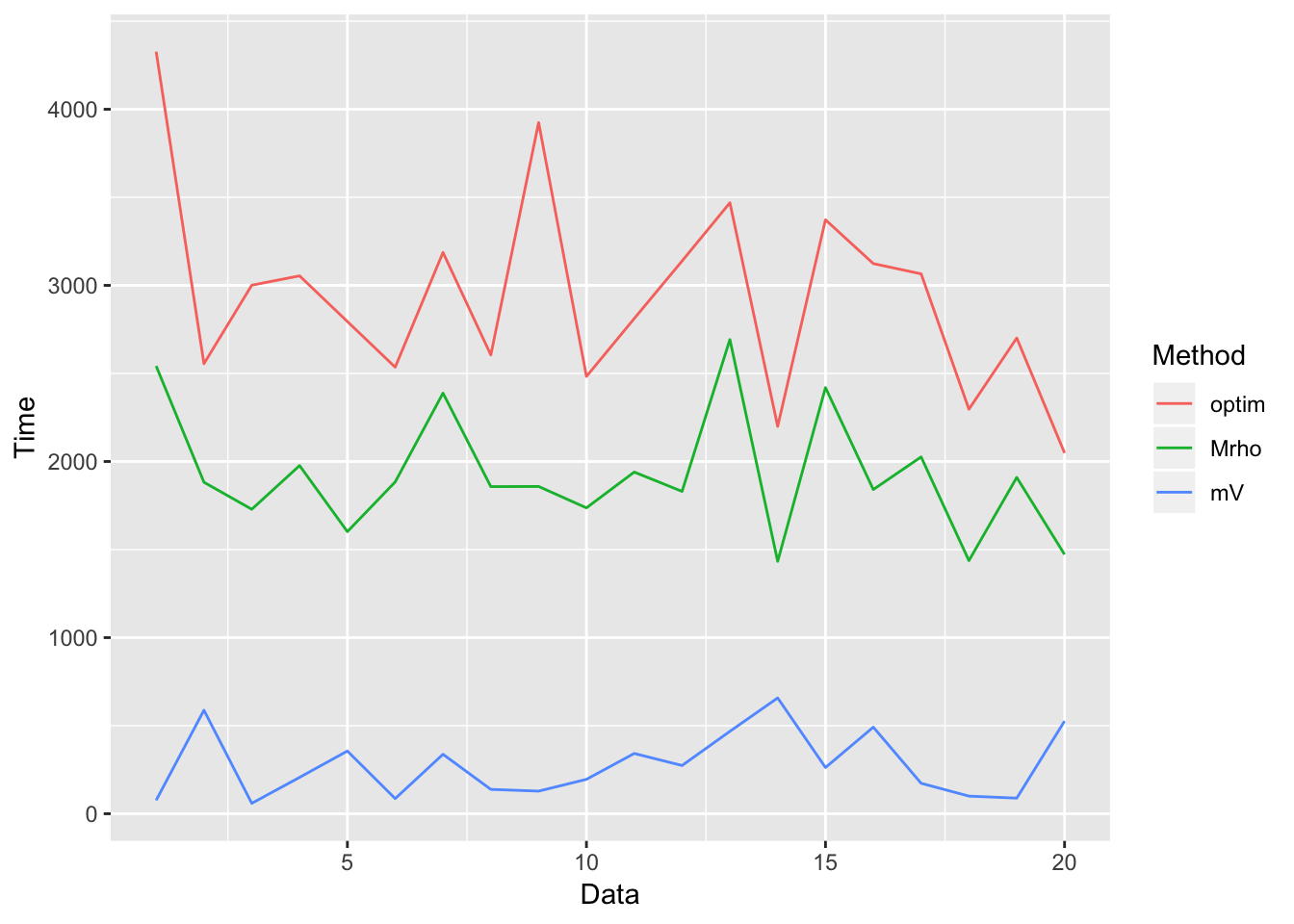

The running time (in sec.) for each pairwise correlation is

table = data.frame(rbind(Vhat.optim$ttime, Vhat.mrho$ttime), row.names = c('optim', 'mrho'))
colnames(table) = c('12','13','23')
table %>% kable() %>% kable_styling()
12 13 23
optim 222.186 250.286 273.947
mrho 284.993 158.585 152.670

The time is the total running time with different initial point.

  1. The result uses algorithm in estimate cor em V.
Vhat.mV = estimateV(m.data, c(U.c, U.ed), init_V = list(diag(ncol(m.data$Bhat)), clusterGeneration::rcorrmatrix(3), clusterGeneration::rcorrmatrix(3)), tol = 1e-4, optmethod = 'mV')
Vhat.mV$V
          [,1]      [,2]      [,3]
[1,] 1.0000000 0.6714335 0.1961885
[2,] 0.6714335 1.0000000 0.3782850
[3,] 0.1961885 0.3782850 1.0000000
  1. Using the original truncated correlation:
Vhat.tru = estimate_null_correlation(m.data)
Vhat.tru
          [,1]      [,2]      [,3]
[1,] 1.0000000 0.4296283 0.1222433
[2,] 0.4296283 1.0000000 0.3324459
[3,] 0.1222433 0.3324459 1.0000000

The truncated correlation underestimates the correlations.

  1. mash 1by1: Run ash for each condition, and estimate correlation matrix based on the non-significant samples.
V.mash = cor((data$Bhat/data$Shat)[-strong,])
V.mash
          [,1]      [,2]      [,3]
[1,] 1.0000000 0.5313446 0.2445663
[2,] 0.5313446 1.0000000 0.4490049
[3,] 0.2445663 0.4490049 1.0000000

All the estimated correlation matrices above are positive definite.

Error

Check the estimation error:

FError = c(norm(Vhat.optim$V - Sigma, 'F'),
           norm(Vhat.mrho$V - Sigma, 'F'),
           norm(Vhat.mV$V - Sigma, 'F'),
           norm(Vhat.tru - Sigma, 'F'),
           norm(V.mash - Sigma, 'F'))
OpError = c(norm(Vhat.optim$V - Sigma, '2'),
           norm(Vhat.mrho$V - Sigma, '2'),
           norm(Vhat.mV$V - Sigma, '2'),
           norm(Vhat.tru - Sigma, '2'),
           norm(V.mash - Sigma, '2'))
table = data.frame(FrobeniusError = FError, SpectralError = OpError, row.names = c('optim','mrho','mV','trunc','m.1by1'))
table %>% kable() %>% kable_styling()
FrobeniusError SpectralError
optim 0.0653970 0.0464039
mrho 0.0656403 0.0465097
mV 0.0510317 0.0377794
trunc 0.4091712 0.3049974
m.1by1 0.2562509 0.1915171

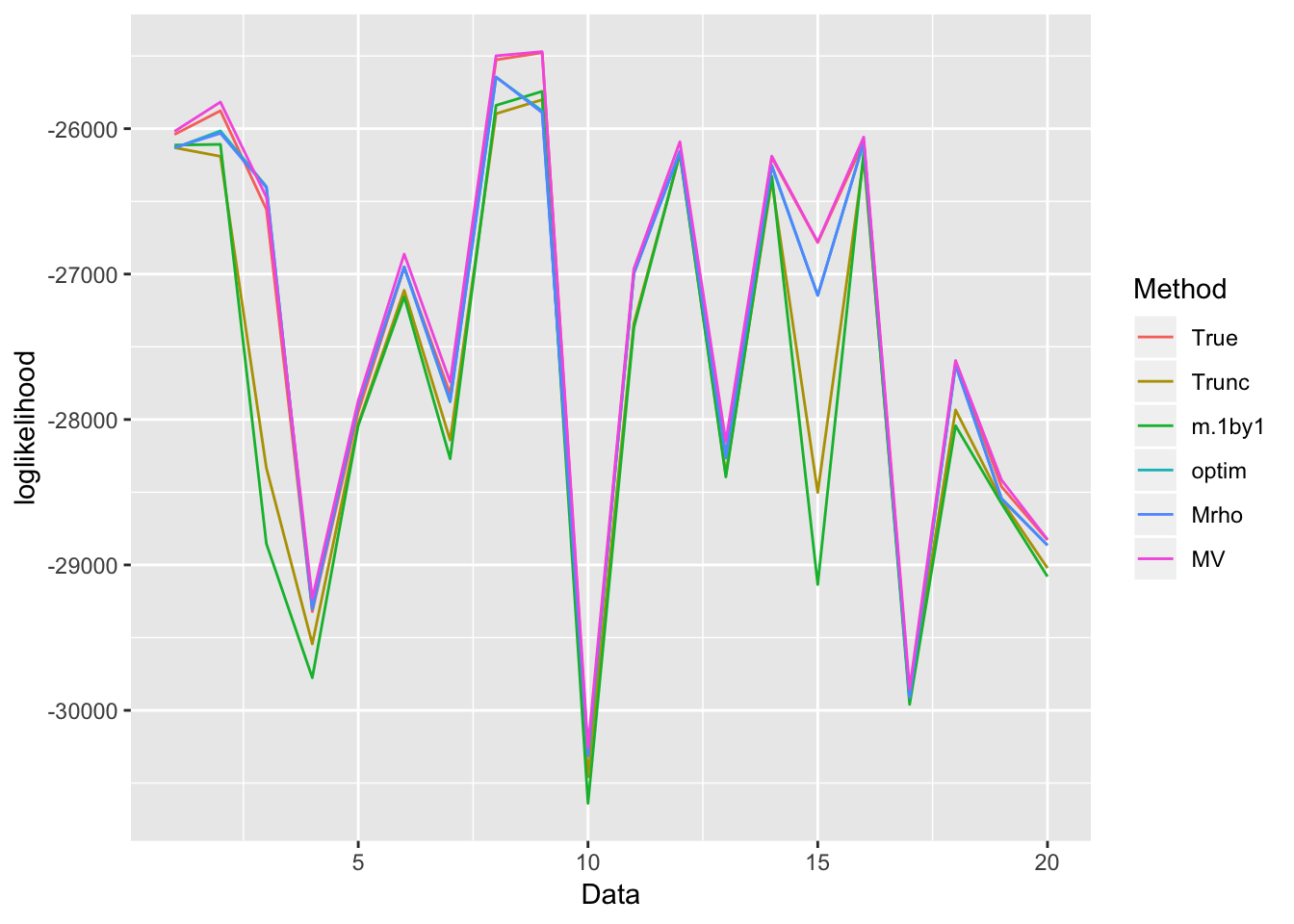

mash log likelihood

In mash model, the model with correlation from optim has larger loglikelihood.

m.data.optim = mash_set_data(data$Bhat, data$Shat, V=Vhat.optim$V)
m.model.optim = mash(m.data.optim, c(U.c,U.ed), verbose = FALSE)
m.data.mrho = mash_set_data(data$Bhat, data$Shat, V=Vhat.mrho$V)
m.model.mrho = mash(m.data.mrho, c(U.c,U.ed), verbose = FALSE)
m.data.mV = mash_set_data(data$Bhat, data$Shat, V=Vhat.mV$V)
m.model.mV = mash(m.data.mV, c(U.c,U.ed), verbose = FALSE)
m.data.trunc = mash_set_data(data$Bhat, data$Shat, V=Vhat.tru)
m.model.trunc = mash(m.data.trunc, c(U.c,U.ed), verbose = FALSE)
m.data.1by1 = mash_set_data(data$Bhat, data$Shat, V=V.mash)
m.model.1by1 = mash(m.data.1by1, c(U.c,U.ed), verbose = FALSE)
m.data.correct = mash_set_data(data$Bhat, data$Shat, V=Sigma)
m.model.correct = mash(m.data.correct, c(U.c,U.ed), verbose = FALSE)

The results are summarized in table:

null.ind = which(apply(data$B,1,sum) == 0)
V.trun = c(get_loglik(m.model.trunc), length(get_significant_results(m.model.trunc)), sum(get_significant_results(m.model.trunc) %in% null.ind))
V.optim = c(get_loglik(m.model.optim), length(get_significant_results(m.model.optim)), sum(get_significant_results(m.model.optim) %in% null.ind))
V.mrho = c(get_loglik(m.model.mrho), length(get_significant_results(m.model.mrho)), sum(get_significant_results(m.model.mrho) %in% null.ind))
V.mV = c(get_loglik(m.model.mV), length(get_significant_results(m.model.mV)), sum(get_significant_results(m.model.mV) %in% null.ind))
V.1by1 = c(get_loglik(m.model.1by1), length(get_significant_results(m.model.1by1)), sum(get_significant_results(m.model.1by1) %in% null.ind))
V.correct = c(get_loglik(m.model.correct), length(get_significant_results(m.model.correct)), sum(get_significant_results(m.model.correct) %in% null.ind))
temp = cbind(V.optim, V.mrho, V.mV, V.trun, V.1by1, V.correct)
colnames(temp) = c('optim','Mrho','MV', 'Truncate', 'm.1by1', 'True')
row.names(temp) = c('log likelihood', '# significance', '# False positive')
temp %>% kable() %>% kable_styling()
optim Mrho MV Truncate m.1by1 True
log likelihood -17920.2 -17920.1 -17912.63 -17951.46 -17943.49 -17913.58
# significance 146.0 146.0 131.00 85.00 73.00 149.00
# False positive 1.0 1.0 0.00 1.00 0.00 1.00

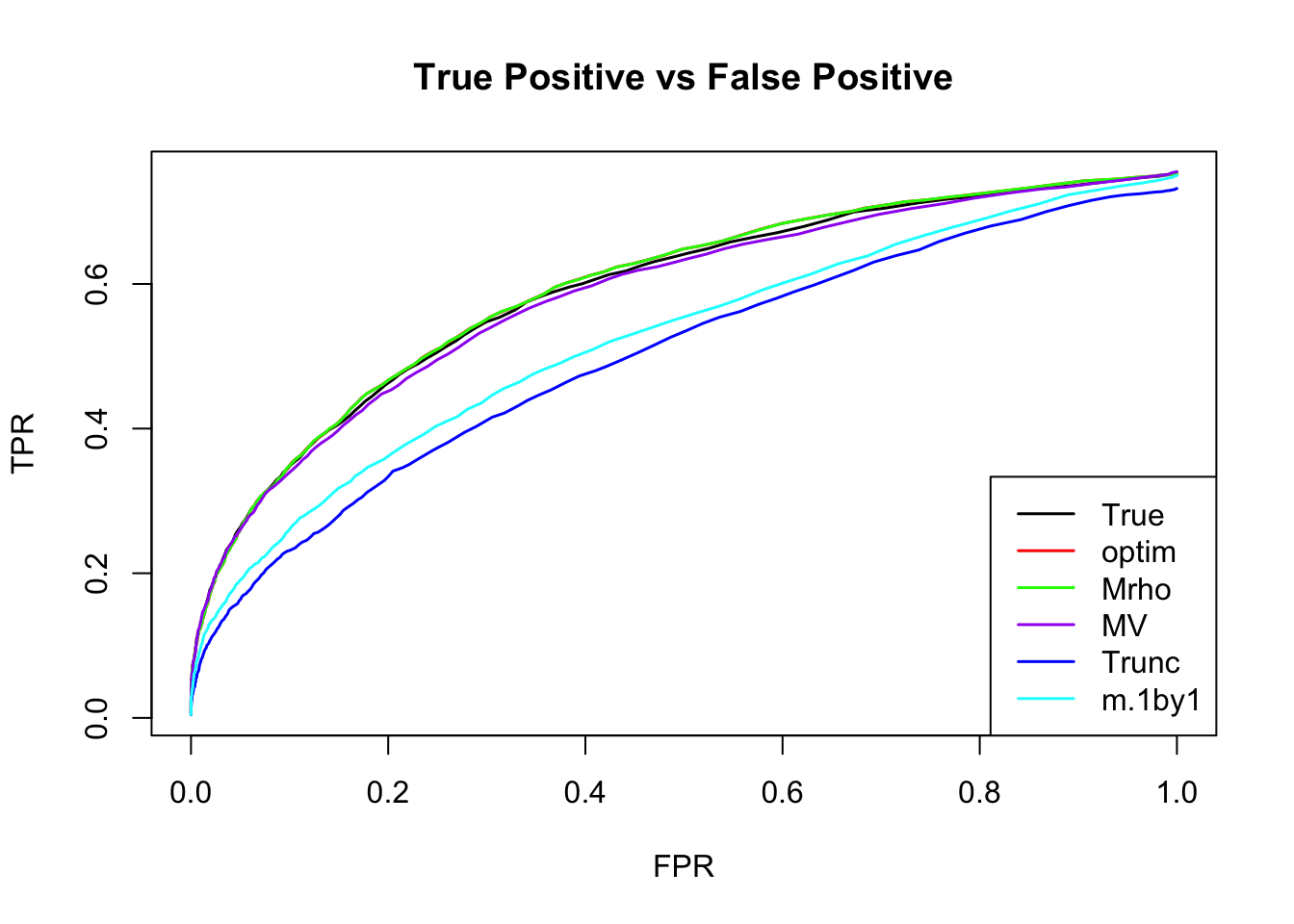

ROC

m.optim.seq = ROC.table(data$B, m.model.optim)
m.mrho.seq = ROC.table(data$B, m.model.mrho)
m.mV.seq = ROC.table(data$B, m.model.mV)
m.trun.seq = ROC.table(data$B, m.model.trunc)
m.1by1.seq = ROC.table(data$B, m.model.1by1)
m.correct.seq = ROC.table(data$B, m.model.correct)

Expand here to see past versions of unnamed-chunk-19-1.png:
Version Author Date
802266a zouyuxin 2018-08-15

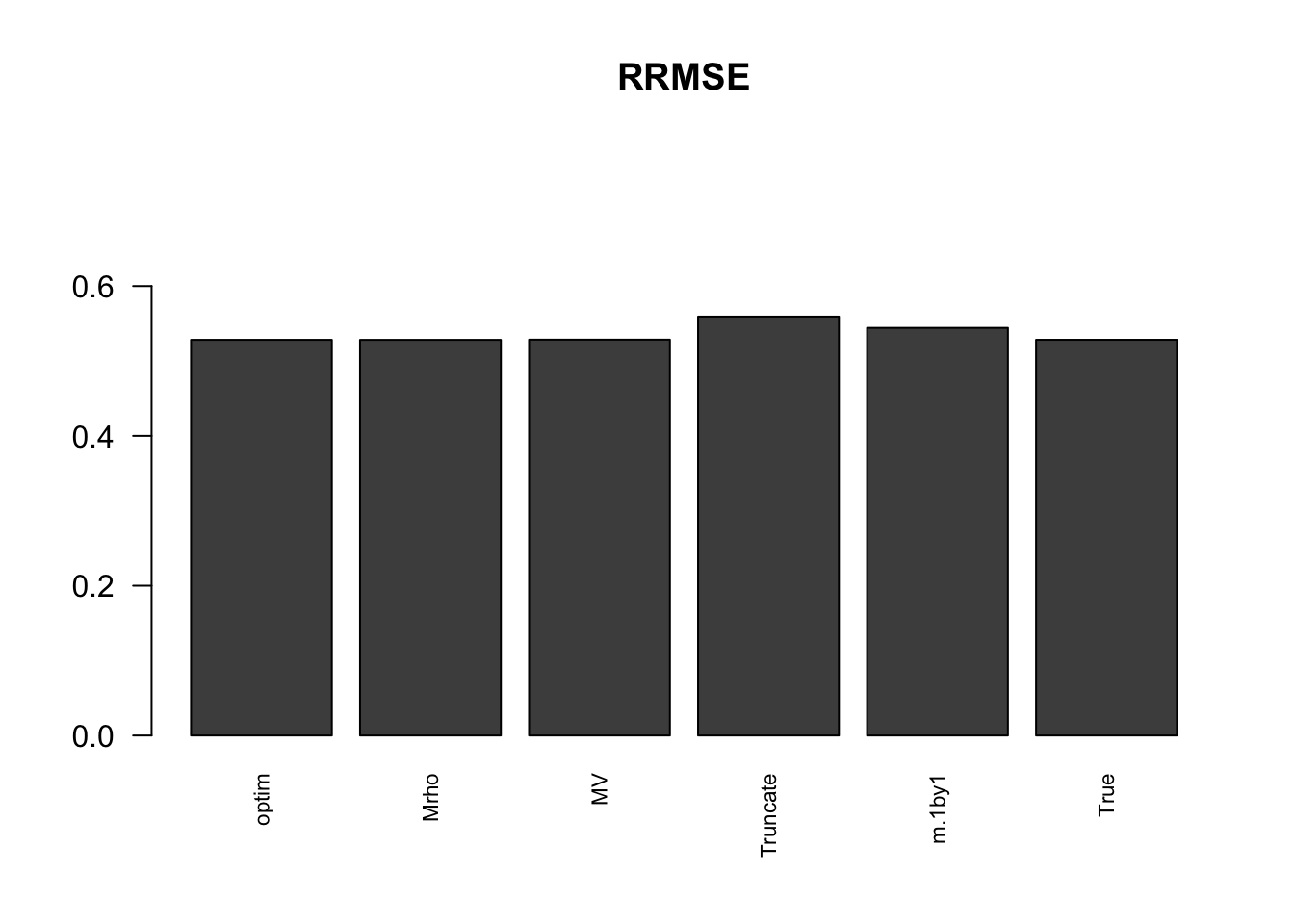

RRMSE

rrmse = rbind(RRMSE(data$B, data$Bhat, list(m.model.optim, m.model.mrho, m.model.mV, m.model.trunc, m.model.1by1, m.model.correct)))
colnames(rrmse) = c('optim','Mrho','MV', 'Truncate','m.1by1','True')
row.names(rrmse) = 'RRMSE'
rrmse %>% kable() %>% kable_styling()
optim Mrho MV Truncate m.1by1 True
RRMSE 0.528246 0.5282098 0.5285035 0.5592648 0.5442074 0.5283068
barplot(rrmse, ylim=c(0,(1+max(rrmse))/2), names.arg = c('optim','Mrho', 'MV','Truncate','m.1by1','True'), las=2, cex.names = 0.7, main='RRMSE')

Expand here to see past versions of unnamed-chunk-21-1.png:
Version Author Date
802266a zouyuxin 2018-08-15

More simulations: p = 5

I randomly generate 10 positive definite correlation matrices, V. The sample size is 4000.

\[ \hat{z}|z \sim N_{5}(z, V) \] \[ z\sim\frac{1}{4}\delta_{0} + \frac{1}{4}N_{5}(0,\left(\begin{matrix} 1 & \mathbf{0}_{1\times 4} \\ \mathbf{0}_{4\times 1} & \mathbf{0}_{4\times 4} \end{matrix}\right)) + \frac{1}{4}N_{5}(0,\left(\begin{matrix} \mathbf{1}_{2\times 2} & \mathbf{0}_{1\times 3} \\ \mathbf{0}_{3\times 1} & \mathbf{0}_{3\times 3} \end{matrix}\right)) + \frac{1}{4}N_{5}(0,\mathbf{1}_{5\times 5}) \]

set.seed(100)
n=4000; p = 5
U0 = matrix(0,p,p)
U1 = U0; U1[1,1] = 1
U2 = U0; U2[c(1:2), c(1:2)] = 1
U3 = matrix(1, p,p)
Utrue = list(U0 = U0, U1 = U1, U2 = U2, U3 = U3)
for(t in 1:20){
  Vtrue = clusterGeneration::rcorrmatrix(p)
  data = generate_data(n, p, Vtrue, Utrue)
  # mash cov
  m.data = mash_set_data(Bhat = data$Bhat, Shat = data$Shat)
  m.1by1 = mash_1by1(m.data)
  strong = get_significant_results(m.1by1)

  U.pca = cov_pca(m.data, 3, subset = strong)
  U.ed = cov_ed(m.data, U.pca, subset = strong)
  U.c = cov_canonical(m.data)
  Vhat.optim <- estimateV(m.data, c(U.c, U.ed), init_rho = c(-0.5,0,0.5), tol=1e-4, optmethod = 'optim')
  Vhat.mrho <- estimateV(m.data, c(U.c, U.ed), init_rho = c(-0.5,0,0.5), tol=1e-4, optmethod = 'mrho')
  Vhat.mV <- estimateV(m.data, c(U.c, U.ed), init_V = list(diag(ncol(m.data$Bhat)), clusterGeneration::rcorrmatrix(p), clusterGeneration::rcorrmatrix(p)),tol=1e-4, optmethod = 'mV')
  saveRDS(list(V.true = Vtrue, V.optim = Vhat.optim, V.mrho = Vhat.mrho, V.mV = Vhat.mV, data = data, strong=strong),
          paste0('../output/MASH.result.',t,'.rds'))
}
files = dir("../output/AddEMV/"); files = files[grep("MASH.result",files)]
times = length(files)
result = vector(mode="list",length = times)
for(i in 1:times) {
  result[[i]] = readRDS(paste("../output/AddEMV/", files[[i]], sep=""))
}
optim.pd = numeric(times)
mrho.pd = numeric(times)
for(i in 1:times){
  m.data = mash_set_data(result[[i]]$data$Bhat, result[[i]]$data$Shat)

  result[[i]]$V.trun = estimate_null_correlation(m.data, apply_lower_bound = FALSE)
  m.1by1 = mash_1by1(m.data)
  strong = get_significant_results(m.1by1)
  result[[i]]$V.1by1 = cor(m.data$Bhat[-strong,])
  U.c = cov_canonical(m.data)
  U.pca = cov_pca(m.data, 3, subset = strong)
  U.ed = cov_ed(m.data, U.pca, subset = strong)

  m.data.true = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = result[[i]]$V.true)
  m.model.true = mash(m.data.true, c(U.c,U.ed), verbose = FALSE)

  m.data.trunc = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = result[[i]]$V.trun)
  m.model.trunc = mash(m.data.trunc, c(U.c,U.ed), verbose = FALSE)

  m.data.1by1 = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = result[[i]]$V.1by1)
  m.model.1by1 = mash(m.data.1by1, c(U.c,U.ed), verbose = FALSE)

  m.data.mV = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = result[[i]]$V.mV$V)
  m.model.mV = mash(m.data.mV, c(U.c,U.ed), verbose = FALSE)

  # optim

  m.model.optim = m.model.optim.F = m.model.optim.2 = list()
  R <- tryCatch(chol(result[[i]]$V.optim$V),error = function (e) FALSE)
  if(is.matrix(R)){
    optim.pd[i] = 1
    m.data.optim = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = result[[i]]$V.optim$V)
    m.model.optim = mash(m.data.optim, c(U.c,U.ed), verbose = FALSE)
  }else{
    V.optim.near.F = as.matrix(Matrix::nearPD(result[[i]]$V.optim$V, conv.norm.type = 'F', keepDiag = TRUE)$mat)
    V.optim.near.2 = as.matrix(Matrix::nearPD(result[[i]]$V.optim$V, conv.norm.type = '2', keepDiag = TRUE)$mat)

    result[[i]]$V.optim.F = V.optim.near.F
    result[[i]]$V.optim.2 = V.optim.near.2

    # mashmodel
    m.data.optim.F = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = V.optim.near.F)
    m.model.optim.F = mash(m.data.optim.F, c(U.c,U.ed), verbose = FALSE)

    m.data.optim.2 = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = V.optim.near.2)
    m.model.optim.2 = mash(m.data.optim.2, c(U.c,U.ed), verbose = FALSE)
  }

  # Mrho
  m.model.mrho = m.model.mrho.F = m.model.mrho.2 = list()
  R <- tryCatch(chol(result[[i]]$V.mrho$V),error = function (e) FALSE)
  if(is.matrix(R)){
    mrho.pd[i] = 1
    m.data.mrho = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = result[[i]]$V.mrho$V)
    m.model.mrho = mash(m.data.mrho, c(U.c,U.ed), verbose = FALSE)
  }else{
    V.mrho.near.F = as.matrix(Matrix::nearPD(result[[i]]$V.mrho$V, conv.norm.type = 'F', keepDiag = TRUE)$mat)
    V.mrho.near.2 = as.matrix(Matrix::nearPD(result[[i]]$V.mrho$V, conv.norm.type = '2', keepDiag = TRUE)$mat)

    result[[i]]$V.mrho.F = V.mrho.near.F
    result[[i]]$V.mrho.2 = V.mrho.near.2

    # mashmodel
    m.data.mrho.F = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = V.mrho.near.F)
    m.model.mrho.F = mash(m.data.mrho.F, c(U.c,U.ed), verbose = FALSE)

    m.data.mrho.2 = mash_set_data(Bhat = m.data$Bhat, Shat = m.data$Shat, V = V.mrho.near.2)
    m.model.mrho.2 = mash(m.data.mrho.2, c(U.c,U.ed), verbose = FALSE)
  }

  result[[i]]$m.model = list(m.model.true = m.model.true, m.model.trunc = m.model.trunc,
                             m.model.1by1 = m.model.1by1, m.model.mV = m.model.mV,
                             m.model.optim = m.model.optim,
                             m.model.optim.F = m.model.optim.F, m.model.optim.2 = m.model.optim.2,
                             m.model.mrho = m.model.mrho,
                             m.model.mrho.F = m.model.mrho.F, m.model.mrho.2 = m.model.mrho.2)
}

Error

The Frobenius norm is

temp = matrix(0,nrow = times, ncol = 7)
for(i in 1:times){
  temp[i, ] = error.cor(result[[i]], norm.type='F', optim.pd = optim.pd[i], mrho.pd = mrho.pd[i])
}
colnames(temp) = c('Trunc','m.1by1', 'optim','optim.F', 'Mrho', 'Mrho.F', 'MV')
temp = reshape2::melt(temp[,c(-4,-6)])
colnames(temp) = c('Data', 'Method', 'FrobError')
ggplot(temp, aes(x = Data, y=FrobError, group = Method, color = Method)) + geom_line()

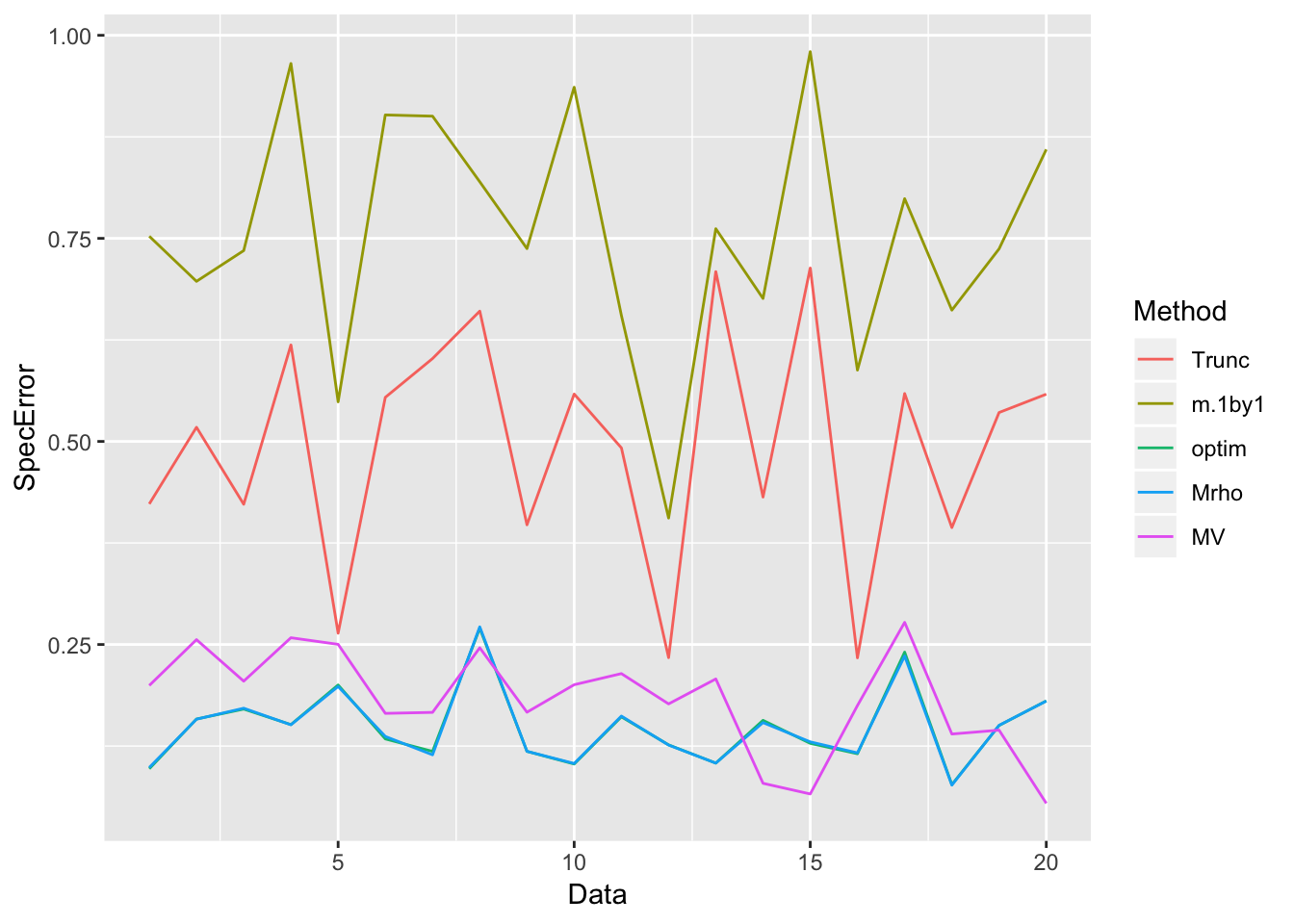

The spectral norm is

temp = matrix(0,nrow = times, ncol = 7)
for(i in 1:times){
  temp[i, ] = error.cor(result[[i]], norm.type='2', optim.pd = optim.pd[i], mrho.pd = mrho.pd[i])
}
colnames(temp) = c('Trunc','m.1by1', 'optim','optim.2', 'Mrho', 'Mrho.2', 'MV')
temp = reshape2::melt(temp[,c(-4,-6)])
colnames(temp) = c('Data', 'Method', 'SpecError')
ggplot(temp, aes(x = Data, y=SpecError, group = Method, color = Method)) + geom_line()

Time

The total running time for each matrix is

optim.time = mrho.time = mV.time = numeric(times)
for(i in 1:times){
  optim.time[i] = sum(result[[i]]$V.optim$ttime)
  mrho.time[i] = sum(result[[i]]$V.mrho$ttime)
  mV.time[i] = sum(result[[i]]$V.mV$ttime)
}
temp = cbind(optim.time, mrho.time, mV.time)
colnames(temp) = c('optim', 'Mrho', 'mV')
row.names(temp) = 1:20

temp = melt(temp)
colnames(temp) = c('Data', 'Method', 'Time')
ggplot(temp, aes(x = Data, y=Time, group = Method, color = Method)) + geom_line()

mash log likelihood

temp = matrix(0,nrow = times, ncol = 10)
for(i in 1:times){
  temp[i, ] = loglik.cor(result[[i]]$m.model, optim.pd = optim.pd[i], mrho.pd = mrho.pd[i])
}
colnames(temp) = c('True', 'Trunc','m.1by1', 'optim','optim.F', 'optim.2', 'Mrho', 'Mrho.F', 'Mrho.2','MV')
temp = melt(temp[,-c(5,6,8,9)])
colnames(temp) = c('Data', 'Method', 'loglikelihood')
ggplot(temp, aes(x = Data, y=loglikelihood, group = Method, color = Method)) + geom_line()

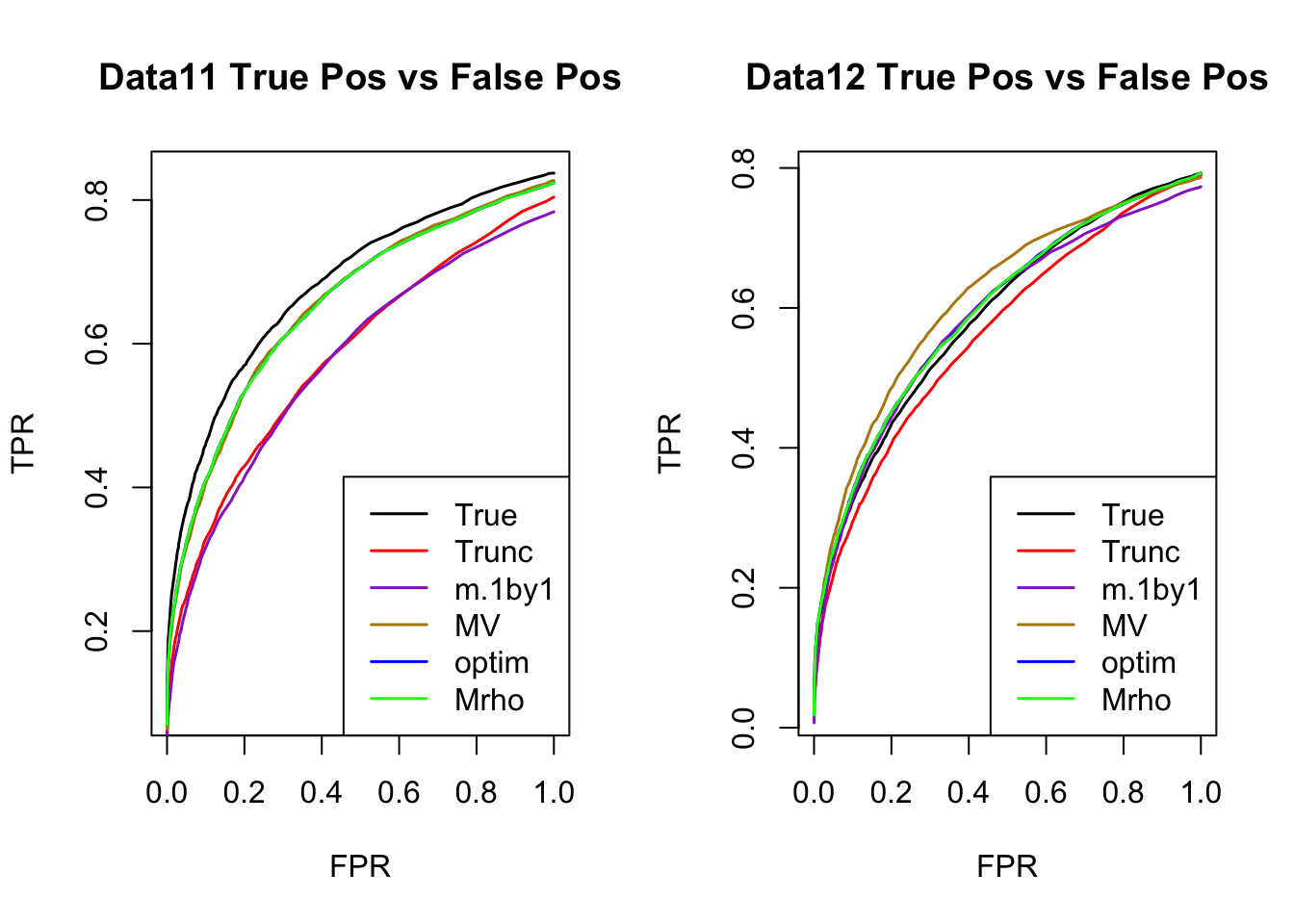

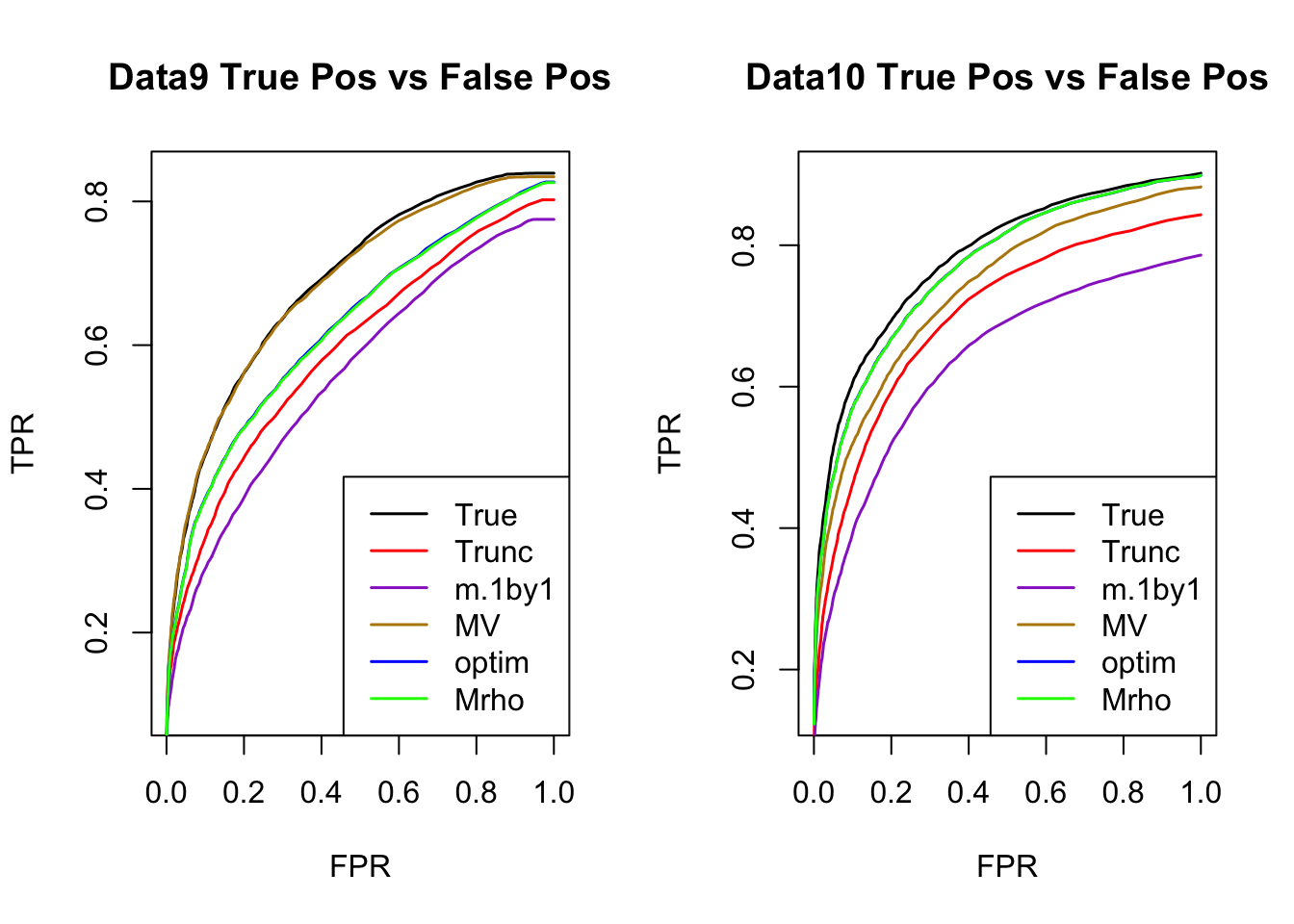

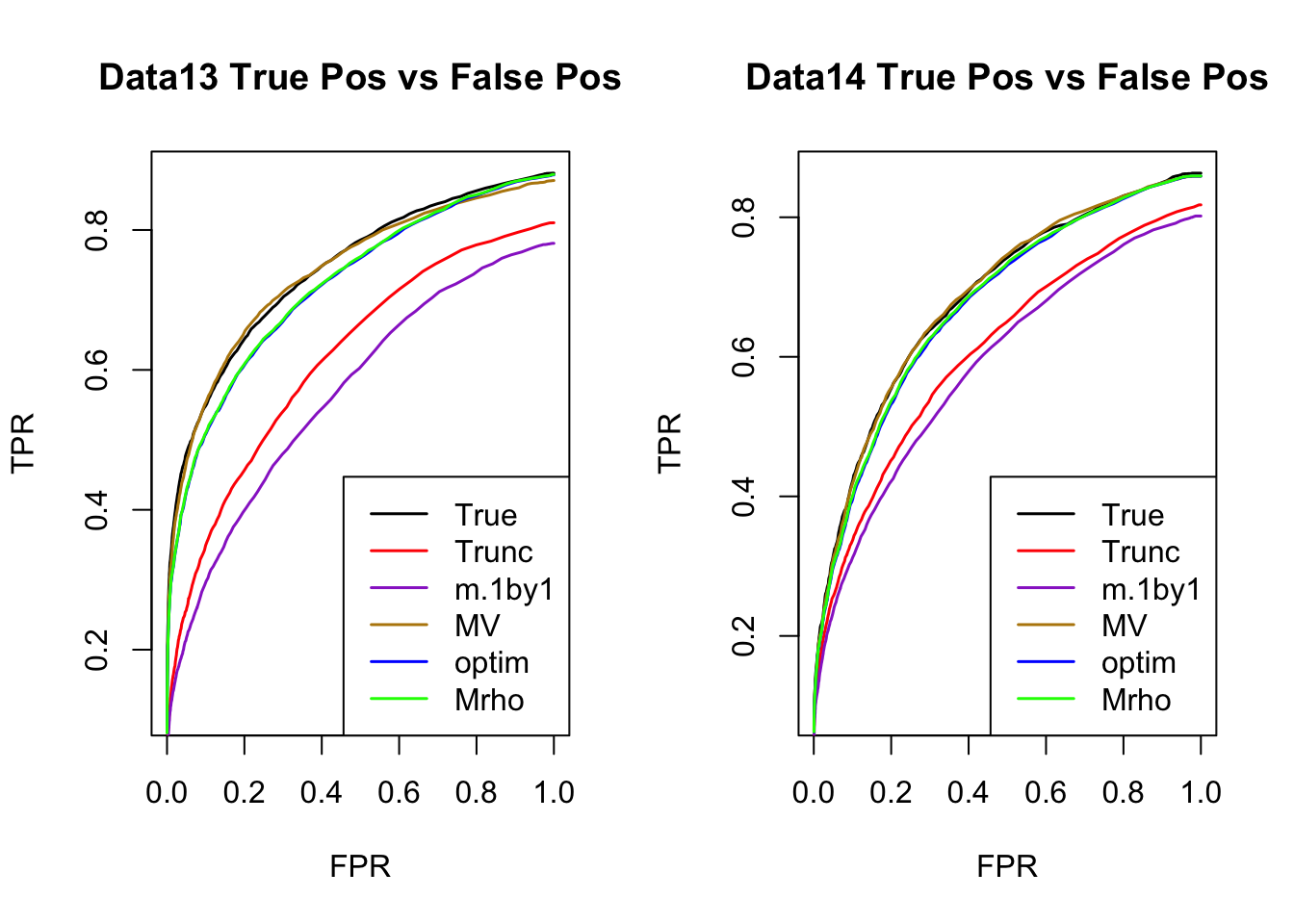

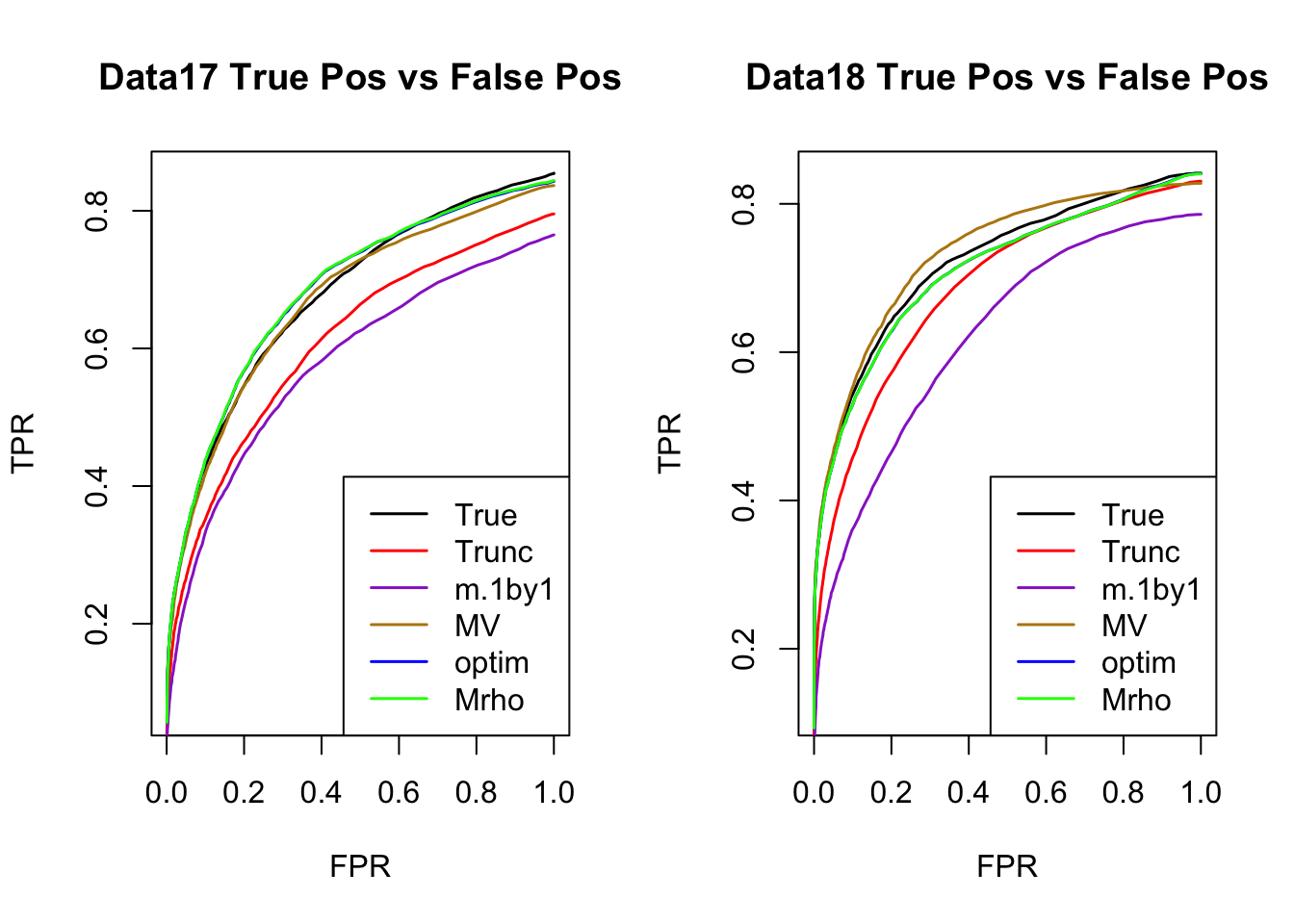

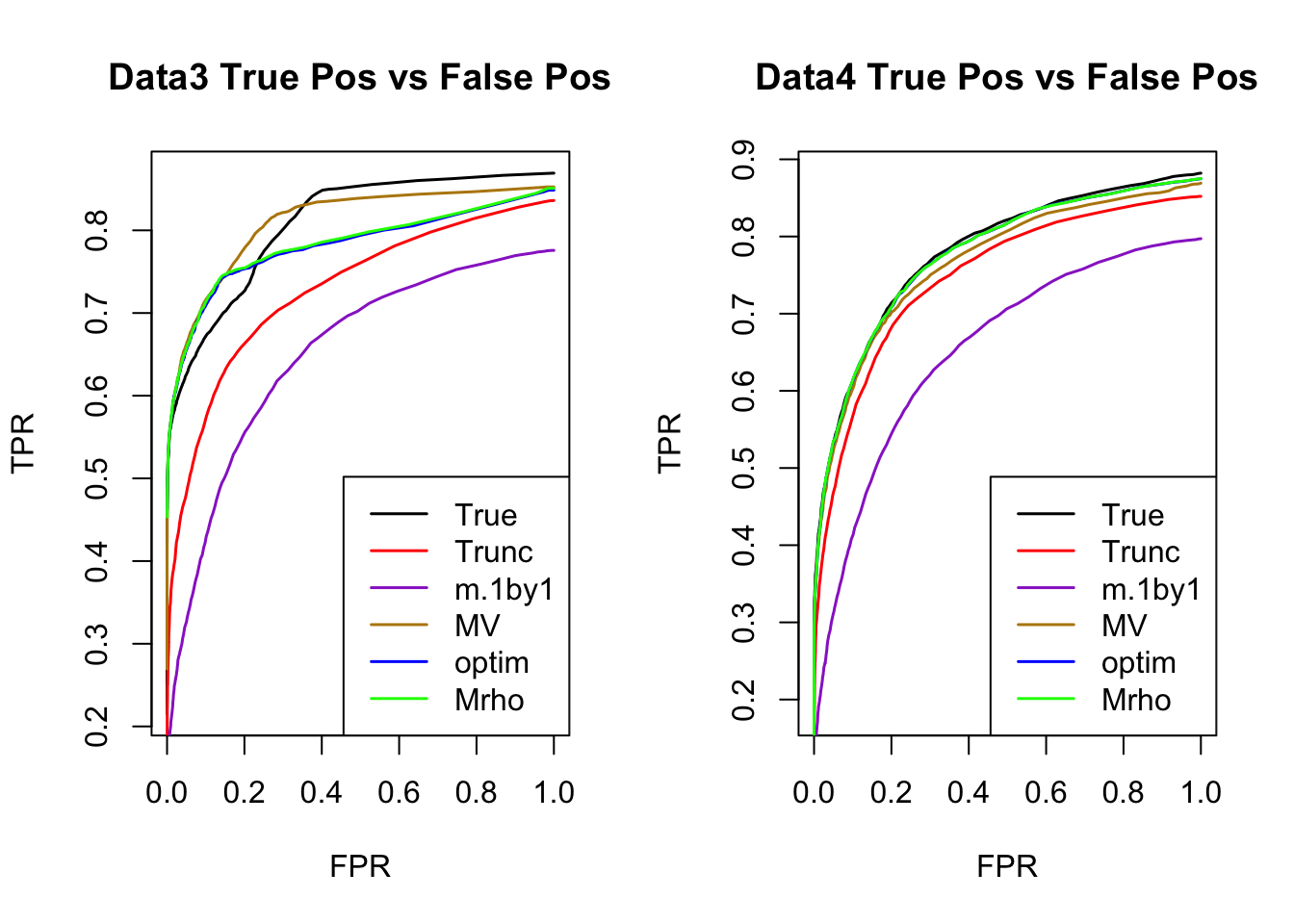

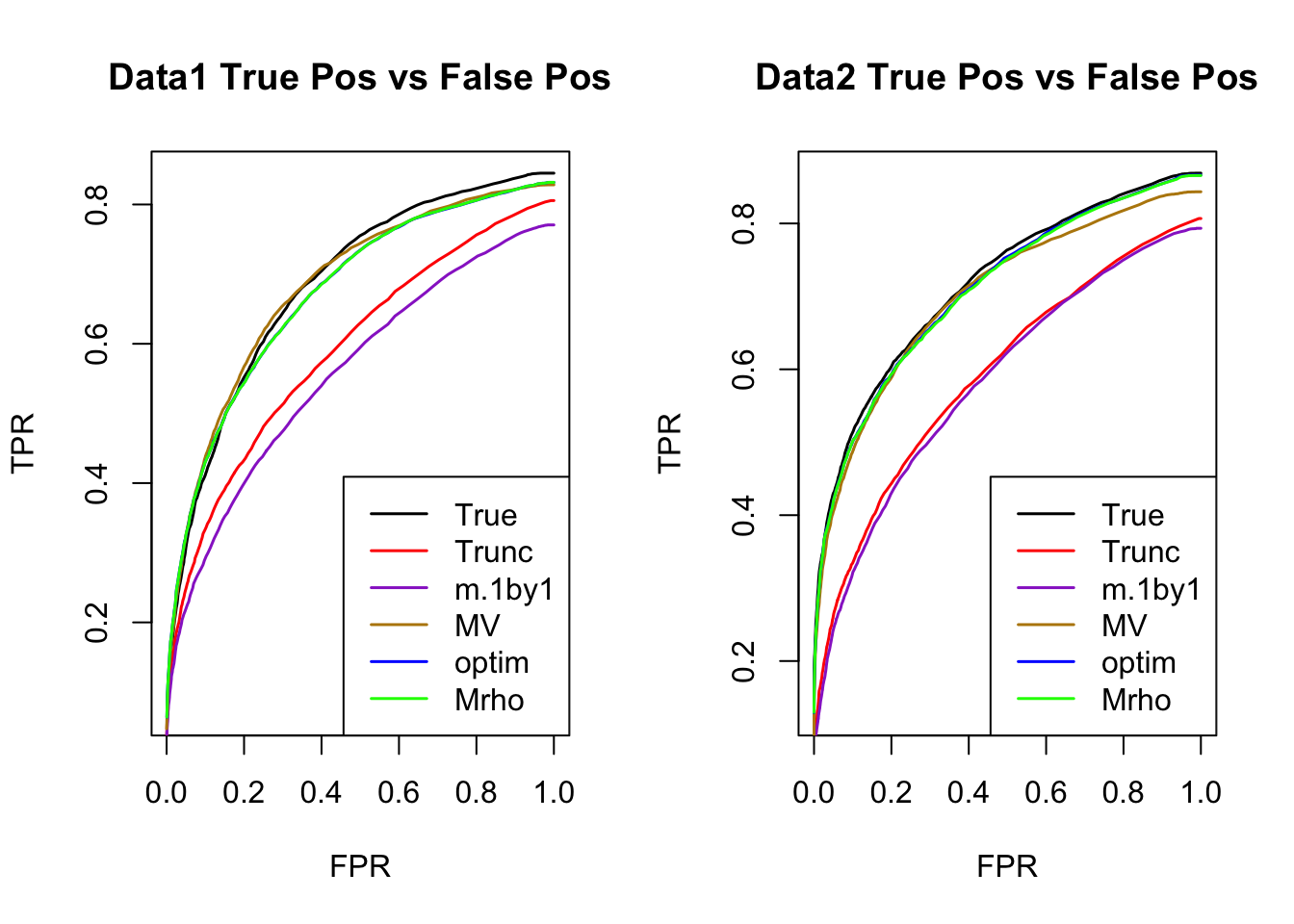

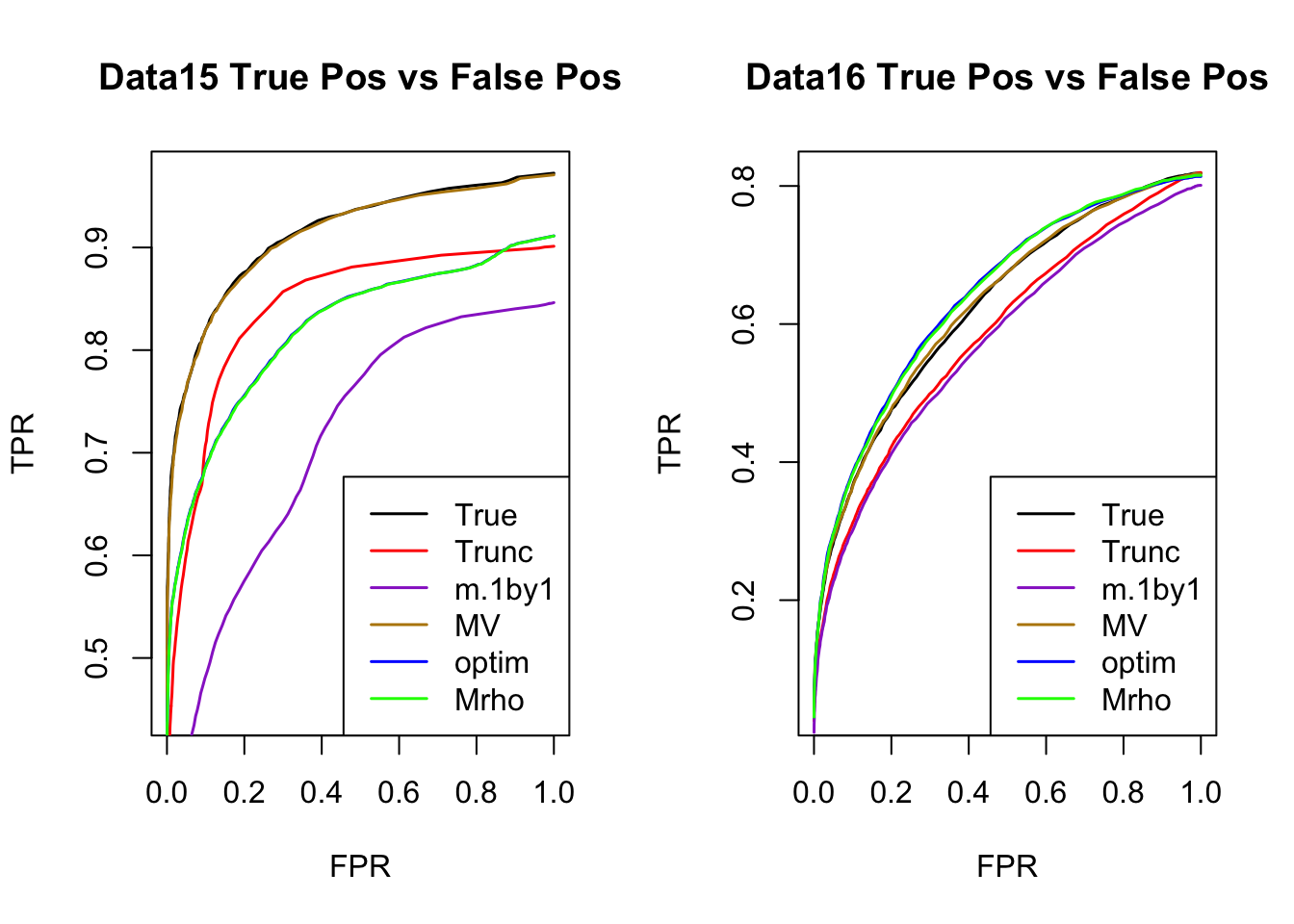

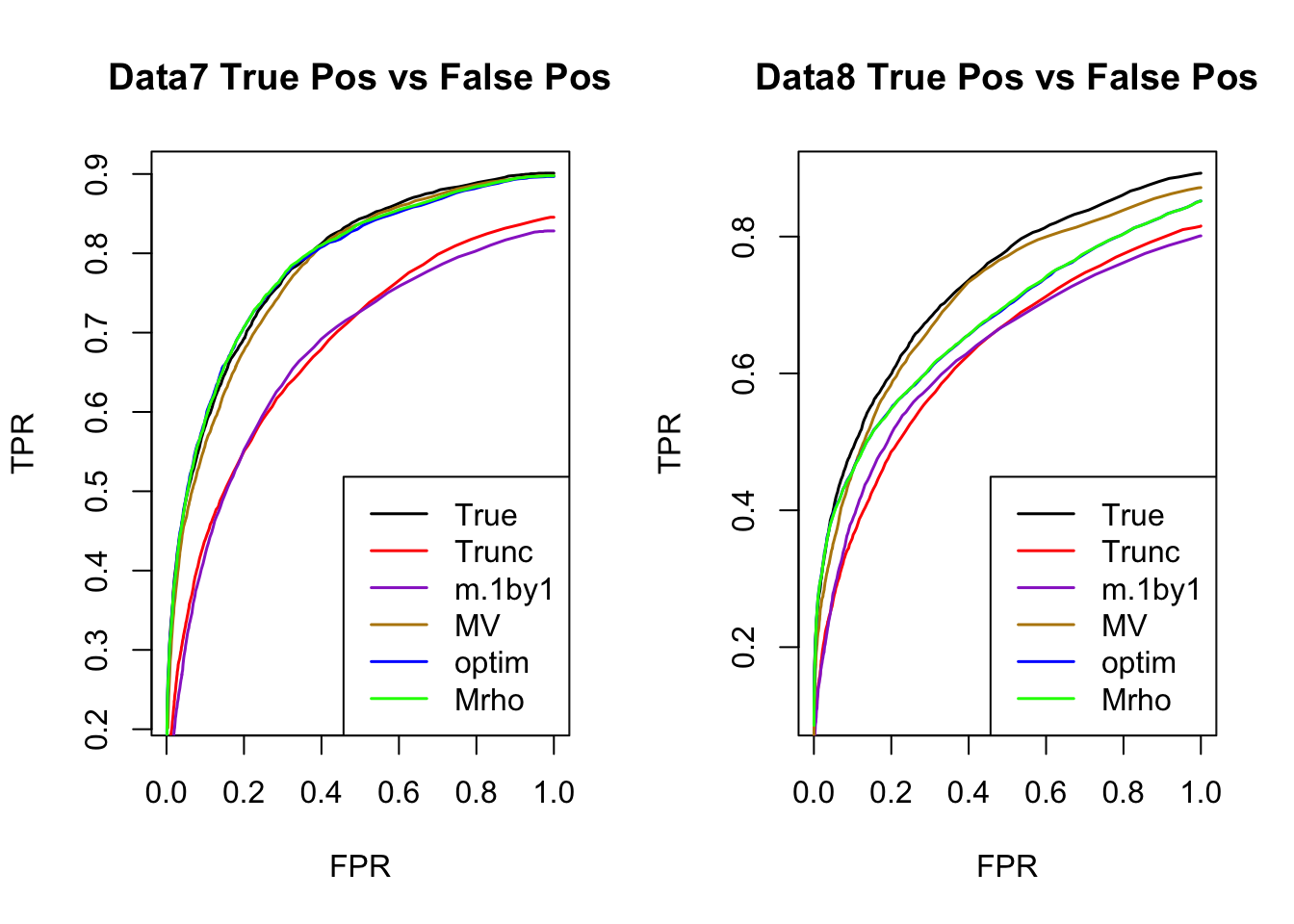

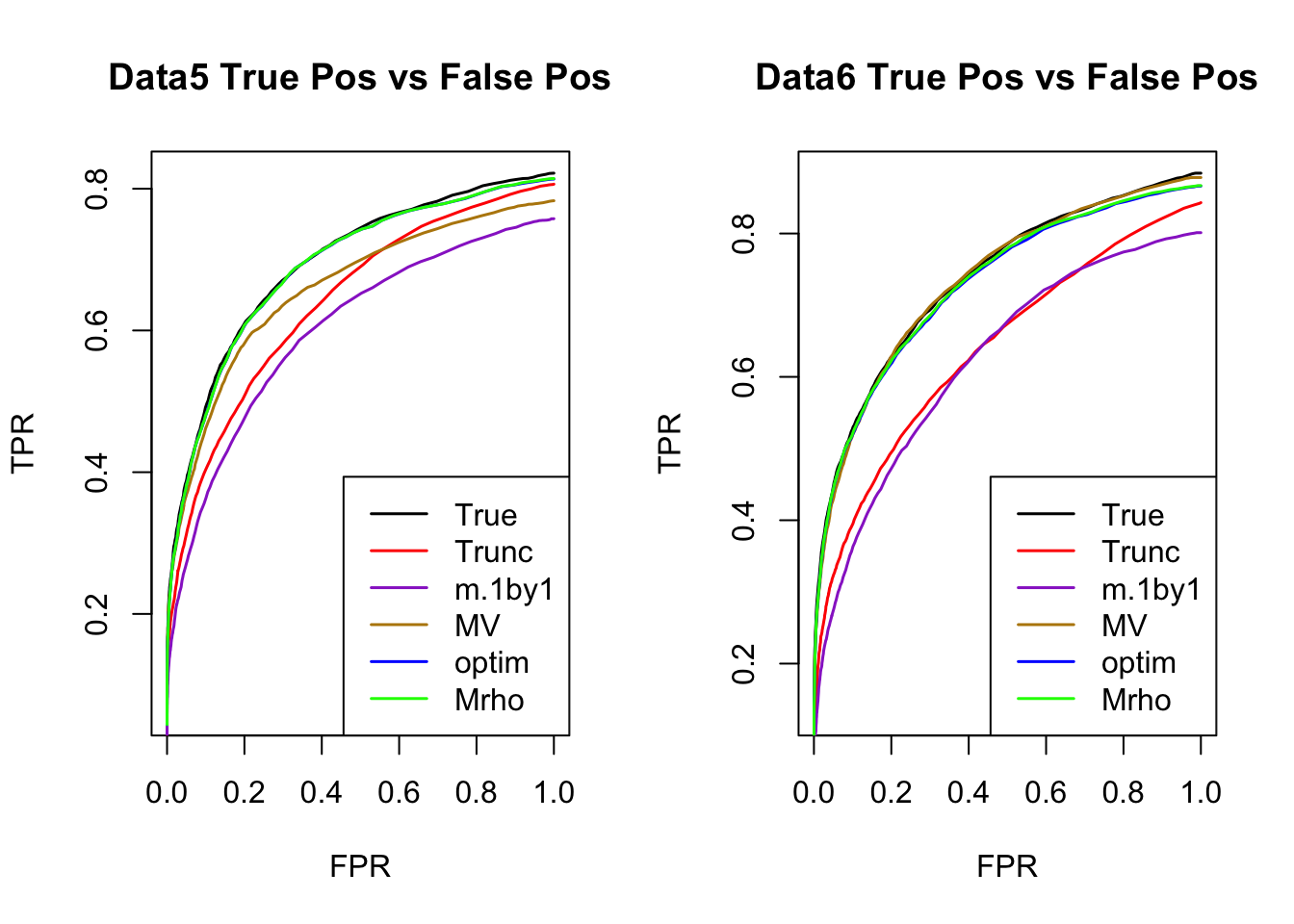

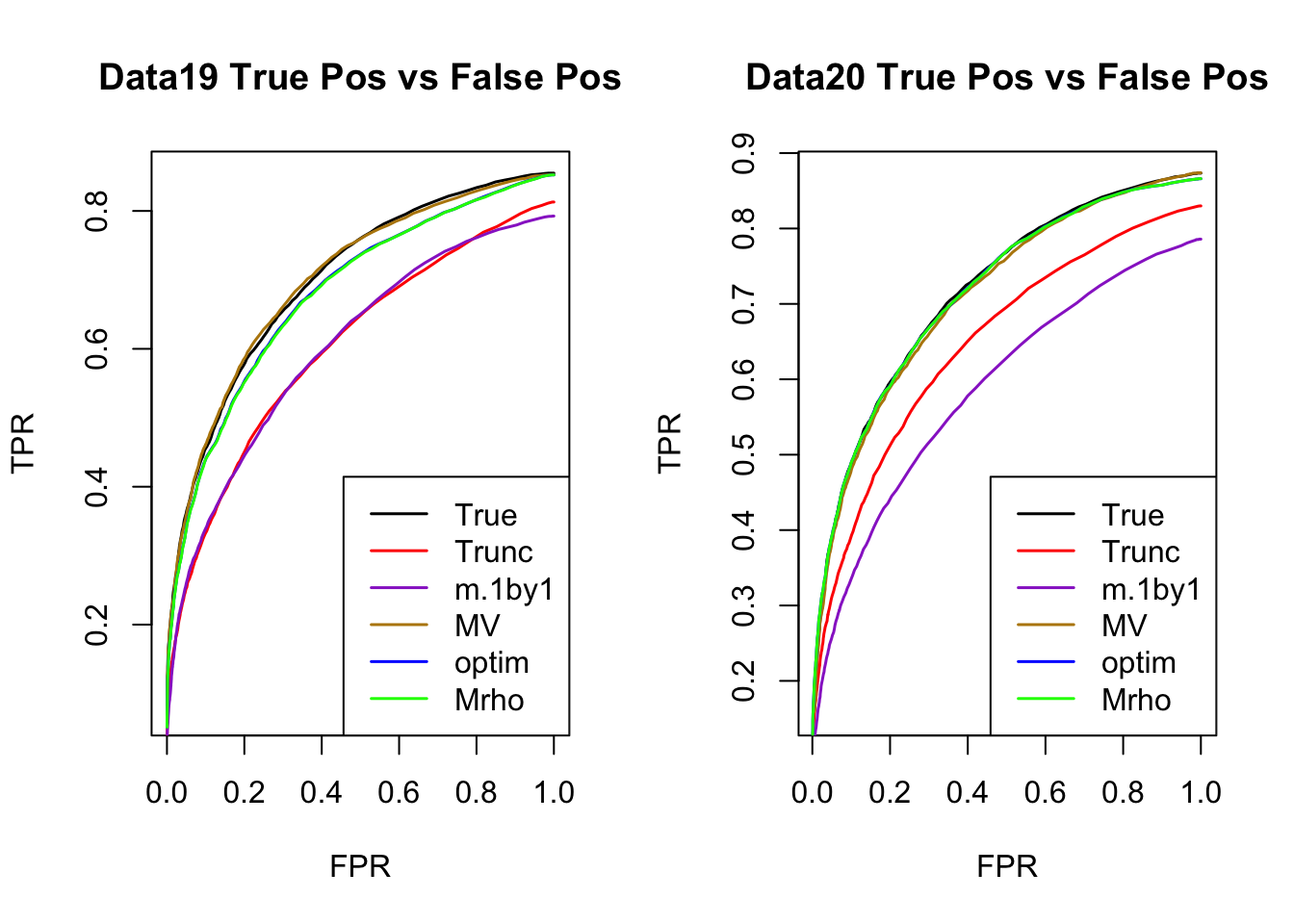

ROC

par(mfrow=c(1,2))
for(i in 1:times){
  plotROC(result[[i]]$data$B, result[[i]]$m.model, optim.pd = optim.pd[i], mrho.pd = mrho.pd[i], title=paste0('Data', i, ' '))
}

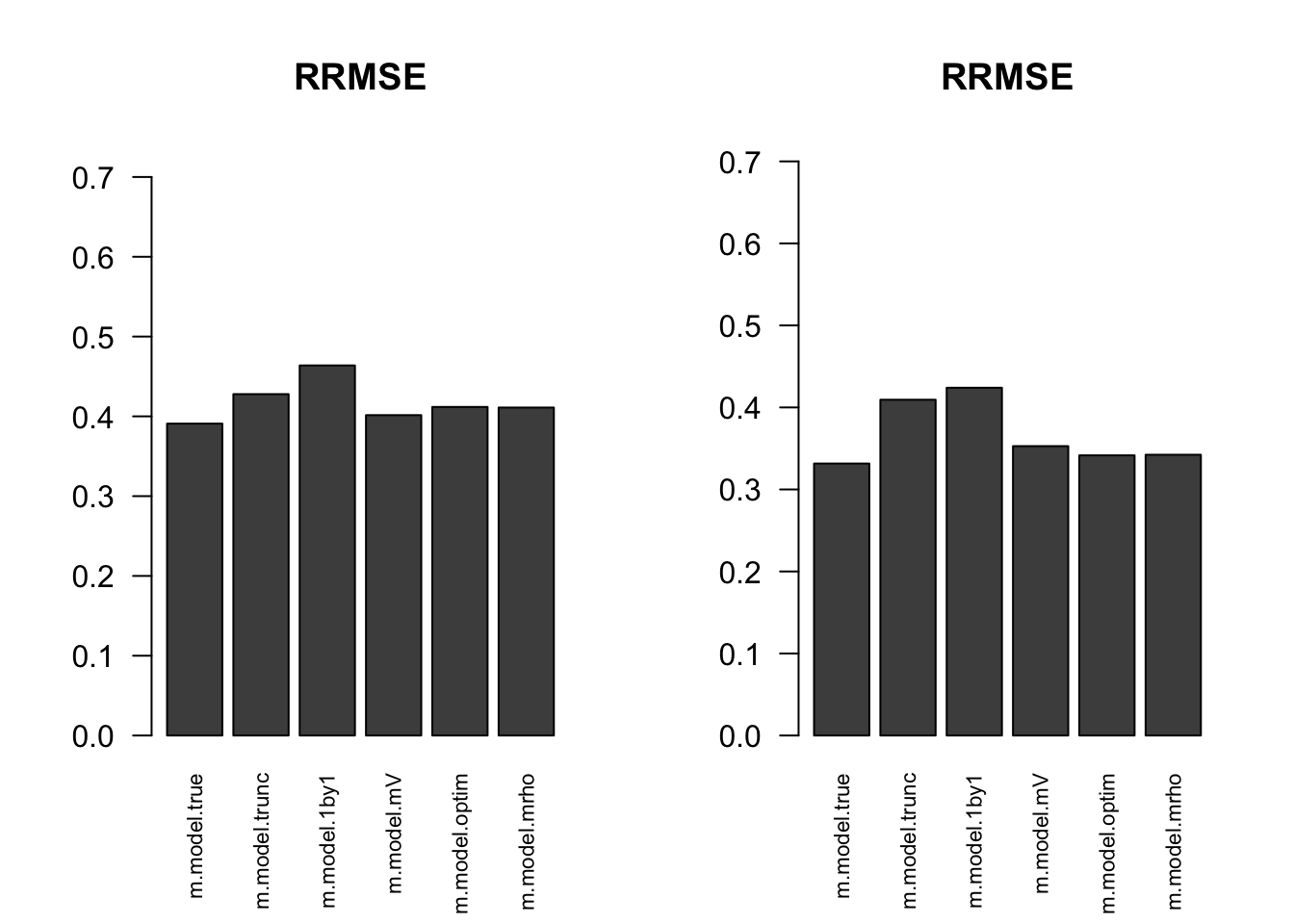

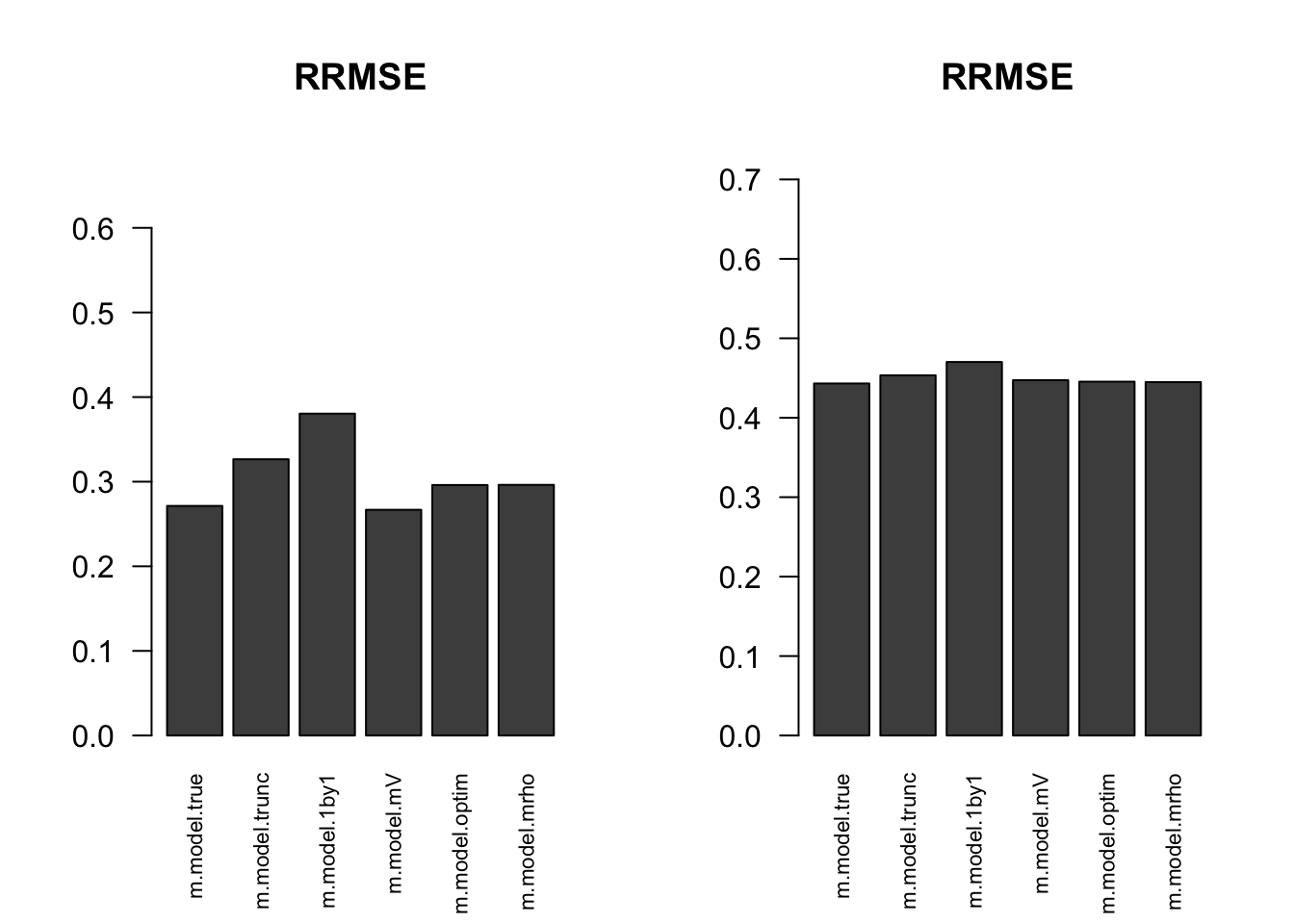

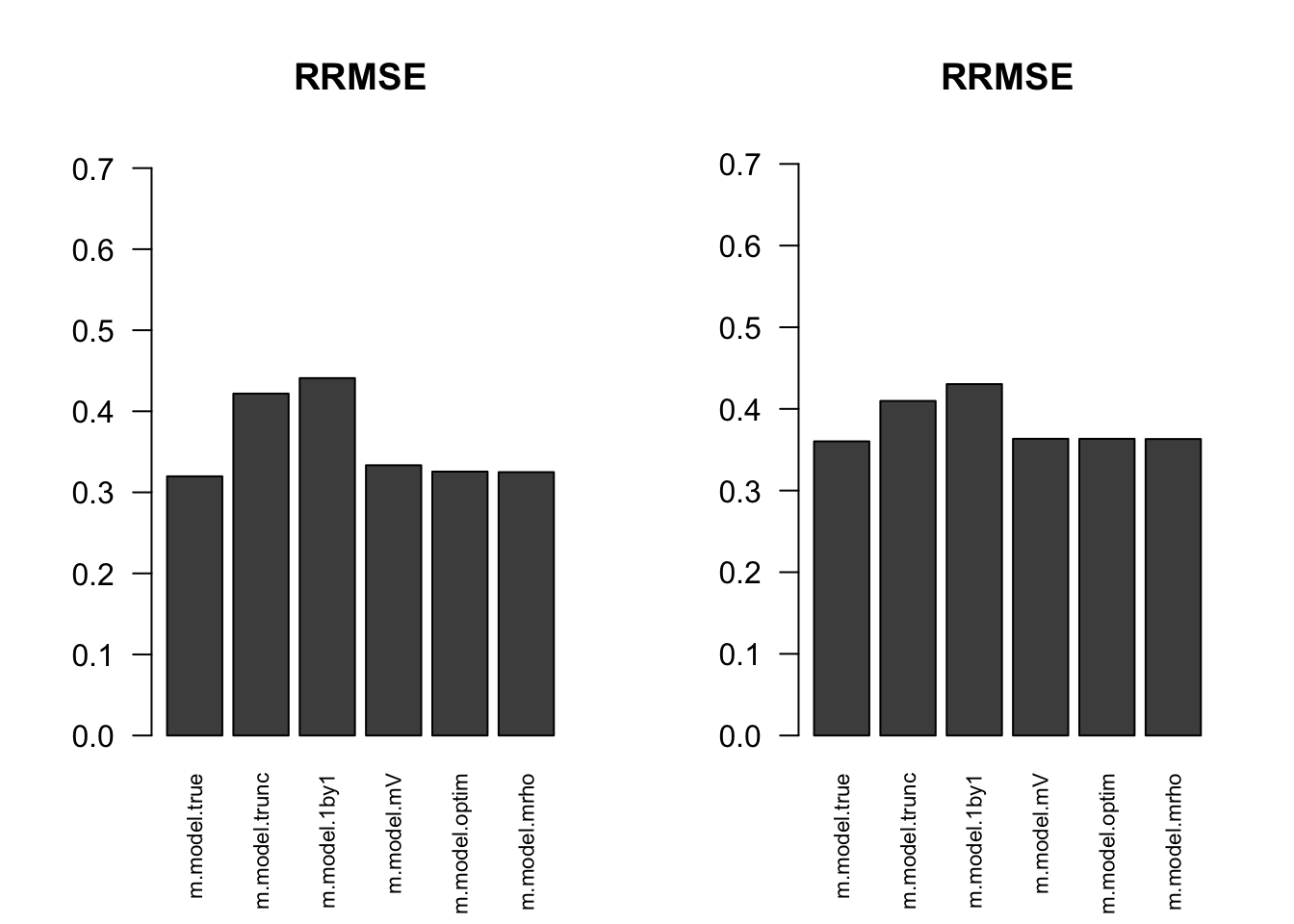

RRMSE

par(mfrow=c(1,2))
for(i in 1:times){
  rrmse = rbind(RRMSE(result[[i]]$data$B, result[[i]]$data$Bhat, result[[i]]$m.model))
  barplot(rrmse, ylim=c(0,(1+max(rrmse))/2), las=2, cex.names = 0.7, main='RRMSE')
}

Expand here to see past versions of unnamed-chunk-30-1.png:
Version Author Date
78b075a zouyuxin 2018-08-20

Expand here to see past versions of unnamed-chunk-30-2.png:
Version Author Date
78b075a zouyuxin 2018-08-20

Expand here to see past versions of unnamed-chunk-30-3.png:
Version Author Date
78b075a zouyuxin 2018-08-20

Expand here to see past versions of unnamed-chunk-30-4.png:
Version Author Date
78b075a zouyuxin 2018-08-20

Expand here to see past versions of unnamed-chunk-30-5.png:
Version Author Date
78b075a zouyuxin 2018-08-20

Session information

sessionInfo()
R version 3.5.1 (2018-07-02)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.6

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] reshape2_1.4.3    ggplot2_3.0.0     kableExtra_0.9.0  knitr_1.20
[5] plyr_1.8.4        mashr_0.2.16.0442 ashr_2.2-18

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.19             mvtnorm_1.0-8
 [3] lattice_0.20-35          Rmosek_8.0.69
 [5] assertthat_0.2.0         rprojroot_1.3-2
 [7] digest_0.6.15            foreach_1.4.4
 [9] truncnorm_1.0-8          R6_2.2.2
[11] backports_1.1.2          evaluate_0.11
[13] httr_1.3.1               highr_0.7
[15] pillar_1.3.0             rlang_0.2.2
[17] lazyeval_0.2.1           pscl_1.5.2
[19] rstudioapi_0.7           whisker_0.3-2
[21] R.utils_2.6.0            R.oo_1.22.0
[23] Matrix_1.2-14            rmarkdown_1.10
[25] labeling_0.3             readr_1.1.1
[27] stringr_1.3.1            REBayes_1.3
[29] munsell_0.5.0            compiler_3.5.1
[31] pkgconfig_2.0.2          SQUAREM_2017.10-1
[33] htmltools_0.3.6          tidyselect_0.2.4
[35] tibble_1.4.2             workflowr_1.1.1
[37] codetools_0.2-15         viridisLite_0.3.0
[39] crayon_1.3.4             dplyr_0.7.6
[41] withr_2.1.2              MASS_7.3-50
[43] R.methodsS3_1.7.1        grid_3.5.1
[45] gtable_0.2.0             git2r_0.23.0
[47] magrittr_1.5             ExtremeDeconvolution_1.3
[49] scales_1.0.0             stringi_1.2.4
[51] doParallel_1.0.14        bindrcpp_0.2.2
[53] xml2_1.2.0               rmeta_3.0
[55] iterators_1.0.10         tools_3.5.1
[57] glue_1.3.0               purrr_0.2.5
[59] hms_0.4.2                parallel_3.5.1
[61] yaml_2.2.0               colorspace_1.3-2
[63] rvest_0.3.2              corrplot_0.84
[65] clusterGeneration_1.3.4  bindr_0.1.1

This reproducible R Markdown analysis was created with workflowr 1.1.1
