Comparing methods for fitting flash to single-cell data

Introduction

Here I compare various methods for fitting flash objects to single-cell data. I use the drop-seq dataset discussed in Montoro et al., which includes counts for approximately 18000 genes and 7000 cells. Close to 90% of counts are equal to zero.

I perform 50 trials. For each trial, I subsample 200 cells, then I subsample 500 genes from the set of genes that have at least 3 non-zero counts among the subsampled cells. I remove 1000 entries at random from the resulting data matrix, fit a series of flash objects, and calculate mean squared errors, using flash posterior means as fitted values and the original data as ground truth. I compare different variance structures, data transformations, scaling methods, priors, and numbers of factors.

Additionally, to paint a more granular picture of how additional factors affect mean squared error, I incrementally fit “greedy” flash objects with 1 to 60 factors using the full drop-seq dataset (not just a subsample).

Code

Click “Code” to view the code used to run the tests.

# library(ashr) -- uncomment after negative mixture proportions bug is fixed
devtools::load_all("~/Github/ashr")
# library(flashier) -- uncomment after pushing 0.1.1 updates to master
devtools::load_all("~/Github/flashier")
library(Matrix)
library(ggplot2)


# Load data ---------------------------------------------------------------

# The drop-seq dataset in Montoro et al. can be downloaded here:
#     https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE103354
trachea <- read.table("./data/GSE103354_Trachea_droplet_UMIcounts.txt")
trachea <- as.matrix(trachea)
trachea <- Matrix(trachea)


# Set test parameters -----------------------------------------------------

# Number of times to subsample data and run fits.
ntrials <- 50

# Size of subsampled data matrices.
ncells <- 200
ngenes <- 500

# Minimum number of nonzero counts needed to include a gene.
min.cts <- 3

# Proportion of entries to impute.
prop.missing <- 0.01
nmissing <- ceiling(prop.missing * ncells * ngenes)

# Number of factors to add to each fit.
K <- 5

# Verbose flag for flashier output.
verbose <- FALSE


# Set up data frames ------------------------------------------------------

create.df <- function(names) {
  names <- paste0(names, ".")
  df.names <- outer(names, c("mse", "elbo"), FUN = paste0)
  df <- data.frame(rep(list(numeric(0)), length(df.names)))
  names(df) <- t(df.names)
  return(df)
}

# Test 1: variance structure.
var.df <- create.df(c("constant", "genewise", "fixed", "noisyA", "noisyB"))

# Test 2: data transformation.
trans.df <- create.df(c("log1p", "anscombe", "arcsin", "raw", "pearson"))

# Test 3: normalization method.
norm.df <- create.df(c("none", "fitmean", "scale"))

# Test 4: prior type.
prior.df <- create.df(c("normal", "nngeneA", "nngeneB", "nncellA", "nncellB"))

# Test 5: number of factors and backfit.
nfactors.df <- create.df(c("g1", "bf1", "g2", "bf2", "g3", "bf3"))


# Functions for populating data frames ------------------------------------

get.fitted <- function(fl) {
  # Get fitted values on the log1p scale.
  fitted.vals <- flashier:::lowrank.expand(fl$fit$EF)
  # Convert to raw counts.
  return(exp(fitted.vals) - 1)
}

log1p.mse <- function(true, preds) {
  # Threshold out negative counts.
  preds <- pmax(preds, 0)
  return(mean((log1p(true) - log1p(preds))^2))
}

get.elbo <- function(fl, adjustment) {
  return(fl$objective + adjustment)
}

all.metrics <- function(data, missing.vals,
                        fl, fitted.vals, elbo.adjustment) {
  missing.idx <- which(is.na(data))
  if (is.null(fitted.vals)) {
    fitted.vals <- get.fitted(fl)
  }
  return(list(mse = log1p.mse(missing.vals, fitted.vals[missing.idx]),
              elbo = get.elbo(fl, elbo.adjustment)))
}

get.df.row <- function(data, missing.vals,
                       fl.list,
                       mean.factors = NULL,
                       fitted.vals = NULL,
                       elbo.adjustment = NULL) {
  if (is.null(fitted.vals)) {
    fitted.vals = rep(list(NULL), length(fl.list))
  }
  if (is.null(elbo.adjustment)) {
    elbo.adjustment = rep(list(0), length(fl.list))
  }

  return(unlist(mapply(all.metrics,
                       fl = fl.list,
                       fitted.vals = fitted.vals,
                       elbo.adjustment = elbo.adjustment,
                       MoreArgs = list(data = data,
                                       missing.vals = missing.vals))))
}


# Run tests ---------------------------------------------------------------

for (i in 1:ntrials) {
  cat("TRIAL", i, "\n")

  set.seed(i)
  rand.cells <- sample(1:ncol(trachea), ncells)
  samp <- trachea[, rand.cells]

  rand.genes <- sample(which(rowSums(samp > 0) >= min.cts), ngenes)
  samp <- samp[rand.genes, ]

  missing.idx <- sample(1:length(samp), nmissing)
  missing.vals <- samp[missing.idx]
  samp[missing.idx] <- NA

  # Test 1: variance structure.
  cat("  Running variance structure tests.\n")

  fl.var0 <- flashier(log1p(samp), var.type = 0,
                      prior.type = "normal.mix",
                      greedy.Kmax = K + 1, backfit = "none",
                      verbose.lvl = 1L * verbose)

  fl.var1 <- flashier(log1p(samp), var.type = 1,
                      prior.type = "normal.mix",
                      greedy.Kmax = K + 1, backfit = "none",
                      verbose.lvl = 1L * verbose)

  S <- sqrt(samp) / (samp + 1)
  nz.prop <- sum(samp > 0, na.rm = TRUE) / (length(samp) - length(missing.idx))
  S[S == 0] <- sqrt(nz.prop) / (nz.prop + 1)

  fl.fixS <- flashier(log1p(samp), S = S,
                      var.type = NULL,
                      prior.type = "normal.mix",
                      greedy.Kmax = K + 1, backfit = "none",
                      verbose.lvl = 1L * verbose)

  suppressMessages({
    fl.noisyA <- flashier(log1p(samp), S = S,
                          var.type = 0,
                          prior.type = "normal.mix",
                          greedy.Kmax = K + 1, backfit = "none",
                          verbose.lvl = 1L * verbose)
  })

  suppressMessages({
    fl.noisyB <- flashier(log1p(samp), S = sqrt(samp) / (samp + 1),
                          var.type = 0,
                          prior.type = "normal.mix",
                          greedy.Kmax = K + 1, backfit = "none",
                          verbose.lvl = 1L * verbose)
  })

  var.df[i, ] <- get.df.row(samp, missing.vals,
                            fl.list = list(fl.var0, fl.var1, fl.fixS,
                                           fl.noisyA, fl.noisyB))

  # Test 2: data transformation.
  cat("  Running data transformation tests.\n")

  fl.log1p <- fl.var0
  log1p.adj <- -sum(log1p(samp), na.rm = TRUE)

  fl.ans <- flashier(sqrt(samp + 0.375), var.type = 0,
                     prior.type = "normal.mix",
                     greedy.Kmax = K + 1, backfit = "none",
                     verbose.lvl = 1L * verbose)
  ans.fitted <- flashier:::lowrank.expand(fl.ans$fit$EF)^2 - 0.375
  ans.adj <- -sum(log(2) + 0.5 * log(samp + 0.375), na.rm = TRUE)

  cell.sums <- colSums(samp, na.rm = TRUE)
  props <- samp / rep(cell.sums, each = nrow(samp))
  fl.arcsin <- flashier(asin(sqrt(props)), var.type = 0,
                        prior.type = "normal.mix",
                        greedy.Kmax = K + 1, backfit = "none",
                        verbose.lvl = 1L * verbose)
  arcsin.fitted <- (sin(flashier:::lowrank.expand(fl.arcsin$fit$EF)^2)
                    * rep(cell.sums, each = nrow(samp)))
  arcsin.adj <- NA

  fl.raw <- flashier(props, var.type = 0,
                     prior.type = "normal.mix",
                     greedy.Kmax = K + 1, backfit = "none",
                     verbose.lvl = 1L * verbose)
  raw.fitted <- (flashier:::lowrank.expand(fl.raw$fit$EF)
                 * rep(cell.sums, each = nrow(samp)))
  raw.adj <- -sum(rep(log(cell.sums), each = nrow(samp))[-missing.idx])

  gene.props <- rowSums(samp, na.rm = TRUE) / sum(samp, na.rm = TRUE)
  mu <- outer(gene.props, cell.sums)
  sd.mat <- sqrt(mu - mu^2 / rep(cell.sums, each = nrow(samp)))
  resid <- (samp - mu) / sd.mat

  fl.pearson <- flashier(resid, var.type = 0,
                         prior.type = "normal.mix",
                         greedy.Kmax = K + 1, backfit = "none",
                         verbose.lvl = 1L * verbose)
  pearson.fitted <- mu + sd.mat * flashier:::lowrank.expand(fl.pearson$fit$EF)
  pearson.adj <- -sum(log(sd.mat)[-missing.idx])

  trans.df[i, ] <- get.df.row(samp, missing.vals,
                              fl.list = list(fl.log1p, fl.ans, fl.arcsin,
                                             fl.raw, fl.pearson),
                              fitted.vals = list(get.fitted(fl.log1p),
                                                 ans.fitted, arcsin.fitted,
                                                 raw.fitted, pearson.fitted),
                              elbo.adjustment = list(log1p.adj,
                                                     ans.adj, arcsin.adj,
                                                     raw.adj, pearson.adj))

  # Test 3: scaling method.
  cat("  Running scaling tests.\n")

  fl.none <- fl.var0
  none.adj <- log1p.adj

  fl.ones <- flashier(log1p(samp), var.type = 0,
                      prior.type = "normal.mix",
                      fixed.factors = c(ones.factor(2), ones.factor(1)),
                      greedy.Kmax = K,
                      backfit.after = 2, final.backfit = FALSE,
                      verbose.lvl = 1L * verbose)
  ones.adj <- log1p.adj

  scaled.samp <- samp * median(cell.sums) / rep(cell.sums, each = nrow(samp))
  fl.scale <- flashier(log1p(scaled.samp), var.type = 0,
                       prior.type = "normal.mix",
                       fixed.factors = ones.factor(2),
                       greedy.Kmax = K, backfit = "none",
                       verbose.lvl = 1L * verbose)
  scale.fitted <- (get.fitted(fl.scale)
                   * rep(cell.sums, each = nrow(samp)) / median(cell.sums))
  scale.adj <- sum(log(median(cell.sums)) - rep(log(cell.sums), each = nrow(samp))
                   - log1p(scaled.samp), na.rm = TRUE)

  norm.df[i, ] <- get.df.row(samp, missing.vals,
                             fl.list = list(fl.none, fl.ones, fl.scale),
                             fitted.vals = list(get.fitted(fl.none),
                                                get.fitted(fl.ones),
                                                scale.fitted),
                             elbo.adjustment = list(none.adj, ones.adj,
                                                    scale.adj))

  # Test 4: prior type.
  cat("  Running prior type tests.\n")

  fl.normalmix <- fl.var0

  fl.nngenes <- flashier(log1p(samp), var.type = 0,
                         prior.type = c("nonnegative", "normal.mix"),
                         greedy.Kmax = K + 1, backfit = "none",
                         verbose.lvl = 1L * verbose)

  fl.nngenes.pm <- flashier(log1p(samp), var.type = 0,
                            prior.type = c("nonnegative", "normal.mix"),
                            ash.param = list(method = "fdr"),
                            greedy.Kmax = K + 1, backfit = "none",
                            verbose.lvl = 1L * verbose)

  fl.nncells <- flashier(log1p(samp), var.type = 0,
                         prior.type = c("normal.mix", "nonnegative"),
                         greedy.Kmax = K + 1, backfit = "none",
                         verbose.lvl = 1L * verbose)

  fl.nncells.pm <- flashier(log1p(samp), var.type = 0,
                            prior.type = c("normal.mix", "nonnegative"),
                            ash.param = list(method = "fdr"),
                            greedy.Kmax = K + 1, backfit = "none",
                            verbose.lvl = 1L * verbose)

  prior.df[i, ] <- get.df.row(samp, missing.vals,
                              fl.list = list(fl.normalmix,
                                             fl.nngenes, fl.nngenes.pm,
                                             fl.nncells, fl.nncells.pm))

  # Test 5: number of factors and backfit.
  cat("  Running backfitting tests.\n")

  fl.g <- fl.var0

  fl.b <- flashier(flash.init = fl.g, backfit = "only",
                   backfit.reltol = 10,
                   verbose.lvl = 3L * verbose)

  # Add K more factors, then K more.
  fl.g2 <- flashier(flash.init = fl.g,
                    greedy.Kmax = K, backfit = "none",
                    verbose.lvl = 1L * verbose)
  fl.b2 <- flashier(flash.init = fl.b,
                    greedy.Kmax = K, backfit = "final",
                    backfit.reltol = 10,
                    verbose.lvl = 3L * verbose)
  fl.g3 <- flashier(flash.init = fl.g2,
                    greedy.Kmax = K, backfit = "none",
                    verbose.lvl = 1L * verbose)
  fl.b3 <- flashier(flash.init = fl.b2,
                    greedy.Kmax = K, backfit = "final",
                    backfit.reltol = 10,
                    verbose.lvl = 3L * verbose)

  nfactors.df[i, ] <- get.df.row(samp, missing.vals,
                                 fl.list = list(fl.g, fl.b,
                                                fl.g2, fl.b2,
                                                fl.g3, fl.b3))
}

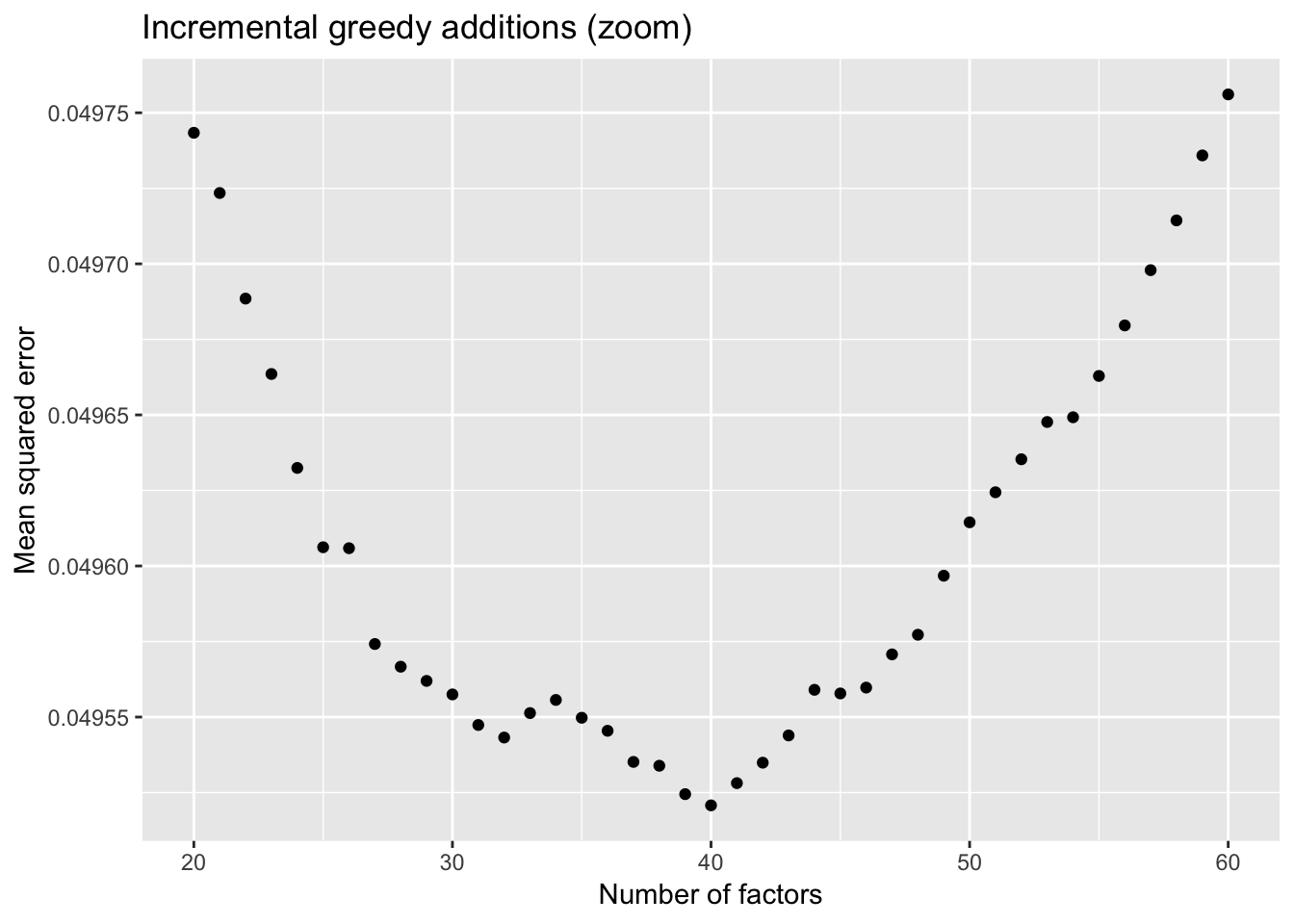

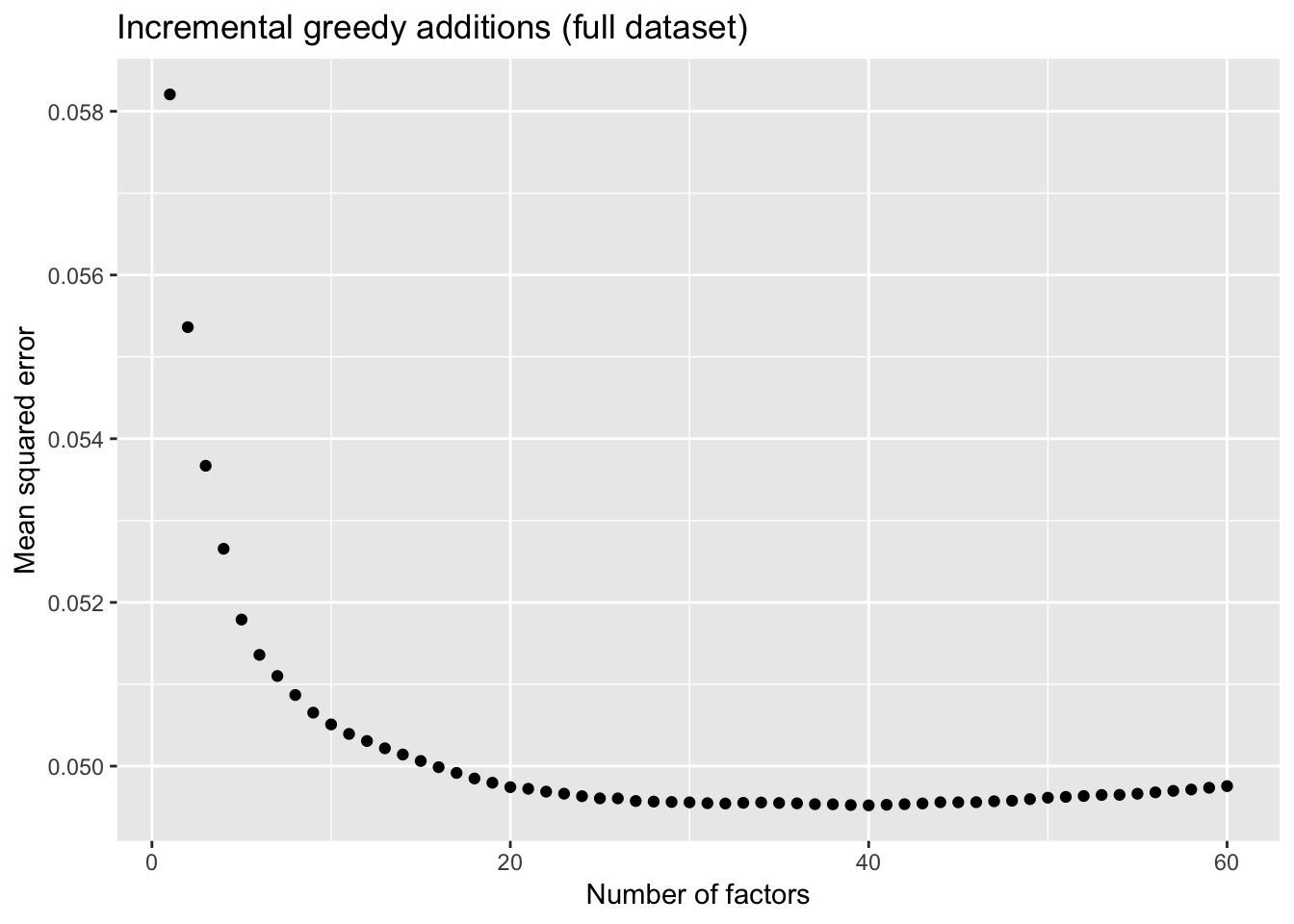

# Test 6: incremental addition of factors

set.seed(666)
data <- log1p(trachea[rowSums(trachea > 0) >= min.cts, ])
missing.idx <- sample(1:length(data), ceiling(prop.missing * length(data)))
true.vals <- data[missing.idx]
data[missing.idx] <- NA

Kmax <- 60

fl <- flashier(data, var.type = 0,
               prior.type = "normal.mix",
               fixed.factors = c(ones.factor(1), ones.factor(2)),
               greedy.Kmax = 1, backfit = "none",
               final.nullchk = FALSE,
               verbose.lvl = 3)
mse.vec <- mse(true.vals, preds(fl, missing.idx), 1:length(true.vals))

for (k in 2:Kmax) {
  fl <- flashier(flash.init = fl,
                 greedy.Kmax = 1, backfit = "none",
                 final.nullchk = FALSE,
                 verbose.lvl = 3)
  mse.vec <- c(mse.vec,
               mse(true.vals, preds(fl, missing.idx), 1:length(true.vals)))
}

mse.diff <- c(NA, mse.vec[2:length(mse.vec)] - mse.vec[1:(length(mse.vec) - 1)])
mse.df <- data.frame(k = 1:Kmax, mse = mse.vec, mse.diff = mse.diff)


# Save results ------------------------------------------------------------

all.res <- list(var.df = var.df,
                trans.df = trans.df,
                norm.df = norm.df,
                prior.df = prior.df,
                nfactors.df = nfactors.df,
                mse.df = mse.df)
saveRDS(all.res, "./output/sc_comparisons/allres.rds")

allres <- readRDS("./output/sc_comparisons/allres.rds")

Introduction to plots

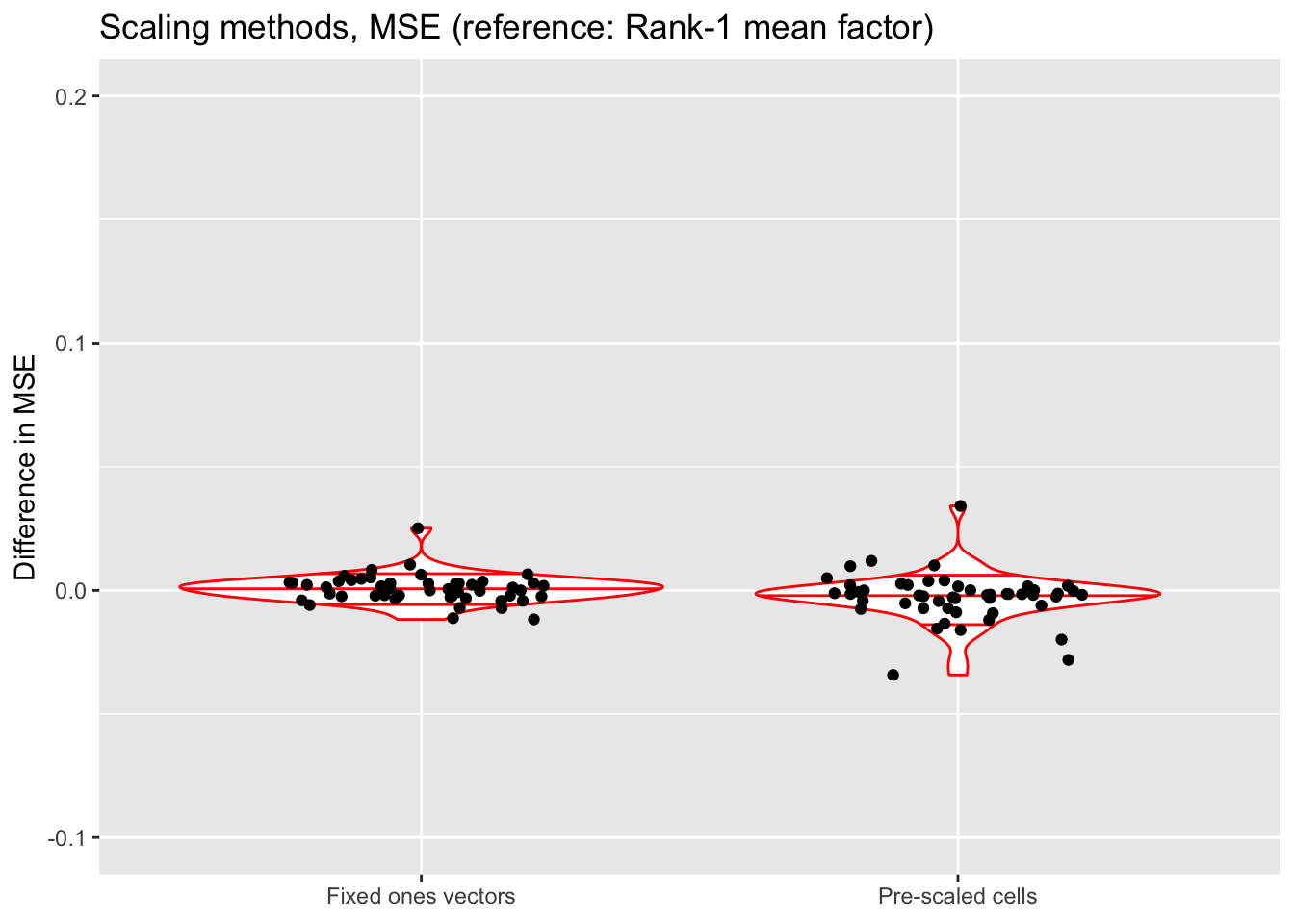

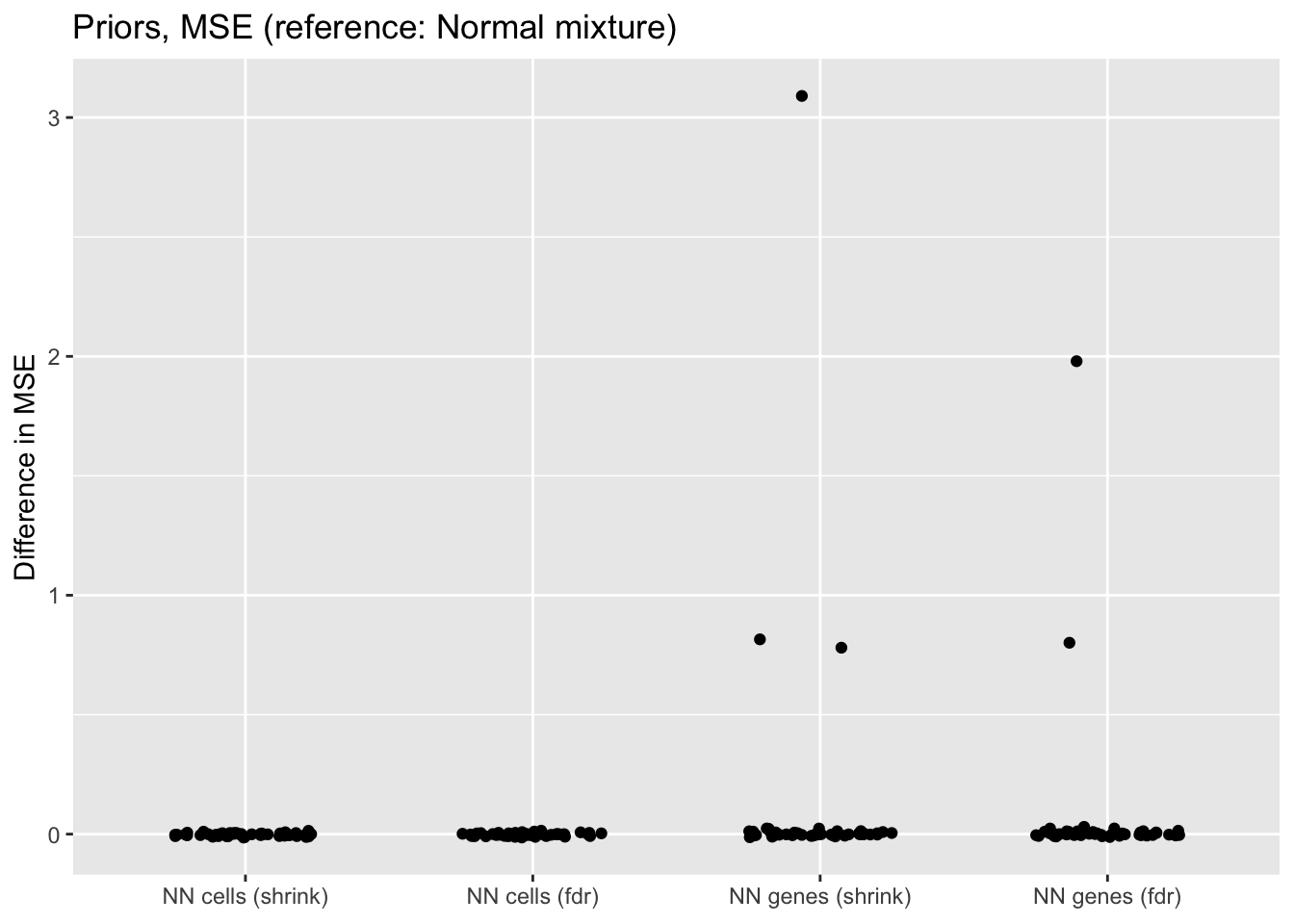

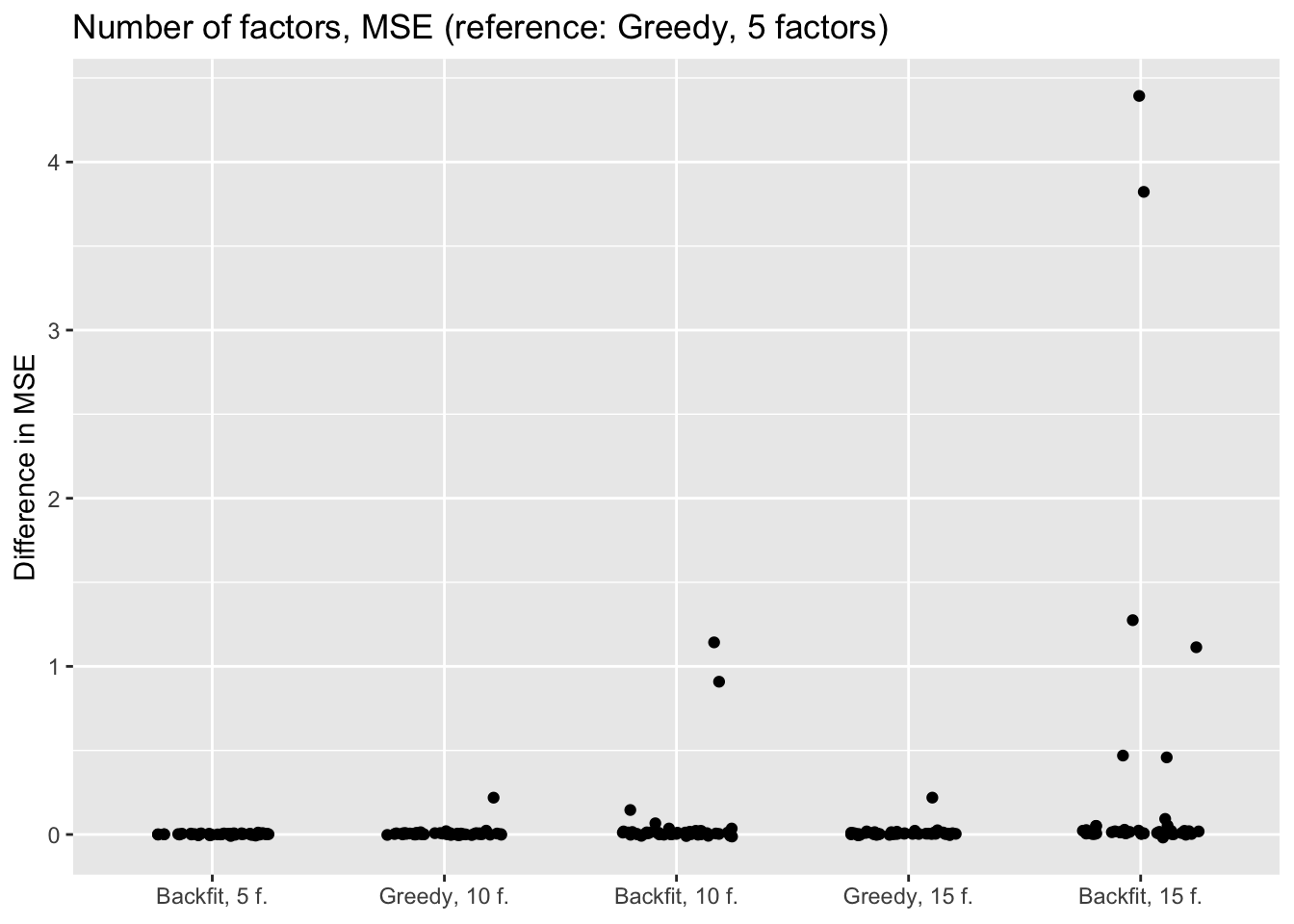

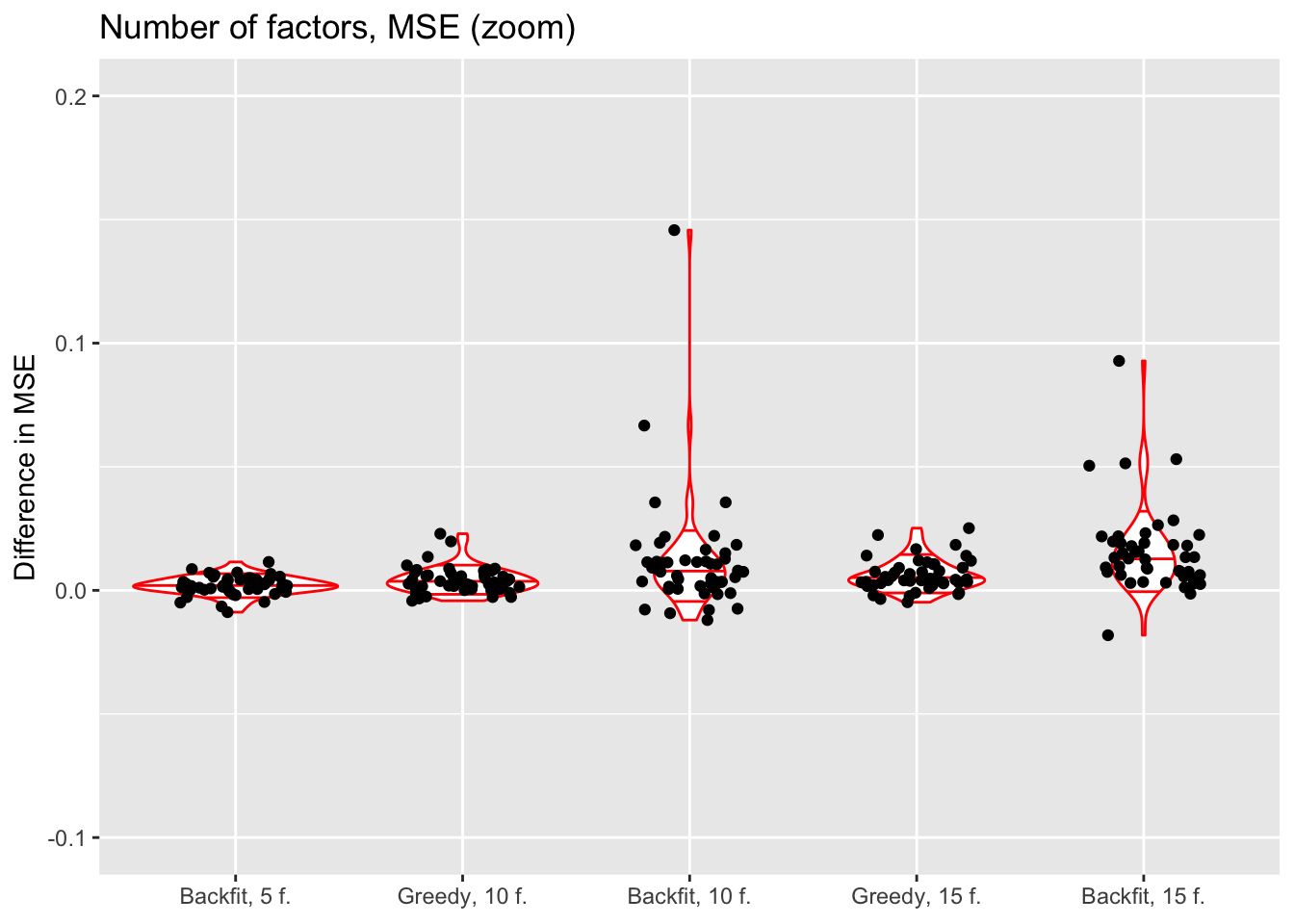

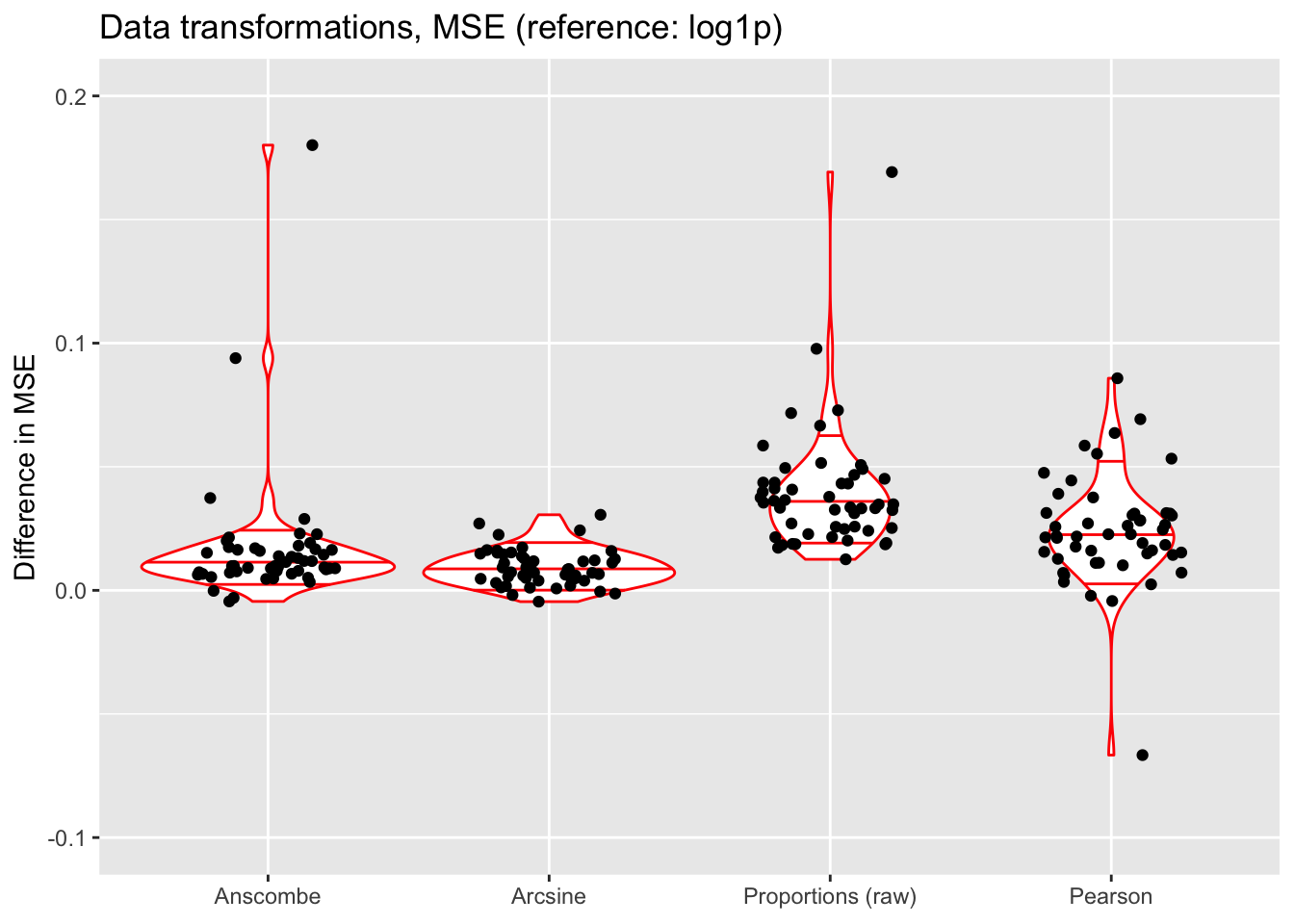

For each comparison, I choose a “reference” method and plot the difference in mean squared error for each other method over all 50 trials. A positive value indicates worse performance. Importantly, mean squared error is calculated on the log1p scale in all cases.

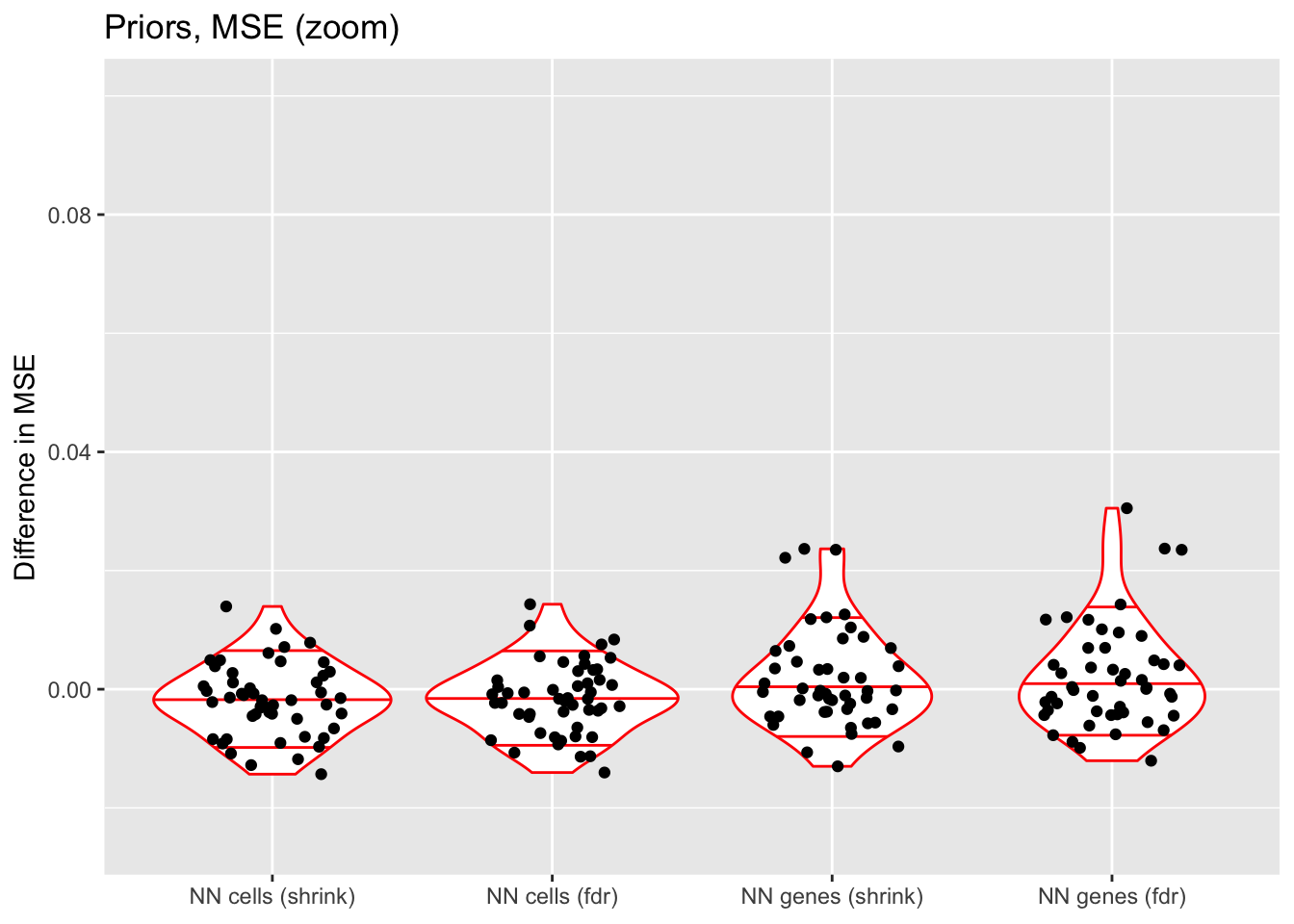

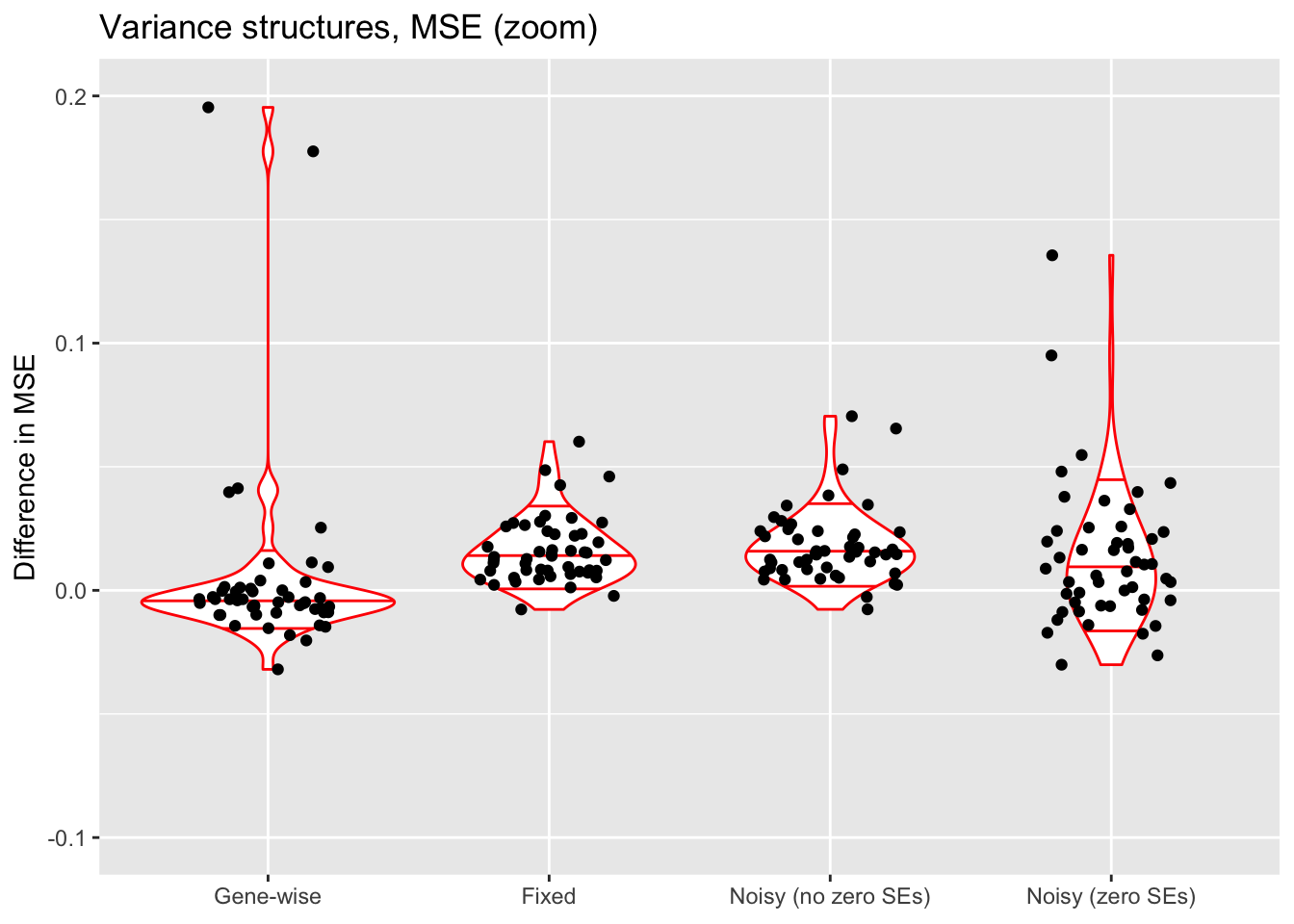

Note that the violin plots all have the same y-axis limits (from -0.025 to +0.1). This is to underscore the relative importance of each aspect. For example, the scrunched-up appearance of the scaling methods plot is intentional: as it turns out, the scaling method used does not affect the mean squared error nearly as much as, say, the variance structure. In several cases, there are a few outlying fits with very large MSEs. When this occurs, I display all trials in addition to displaying a “zoom” view with y-axis limits from -0.025 to +0.1.

The red horizontal lines indicate the median and the 10% and 90% quantiles (unfortunately, ggplot2 ignores any outlying data points when calculating these quantities).

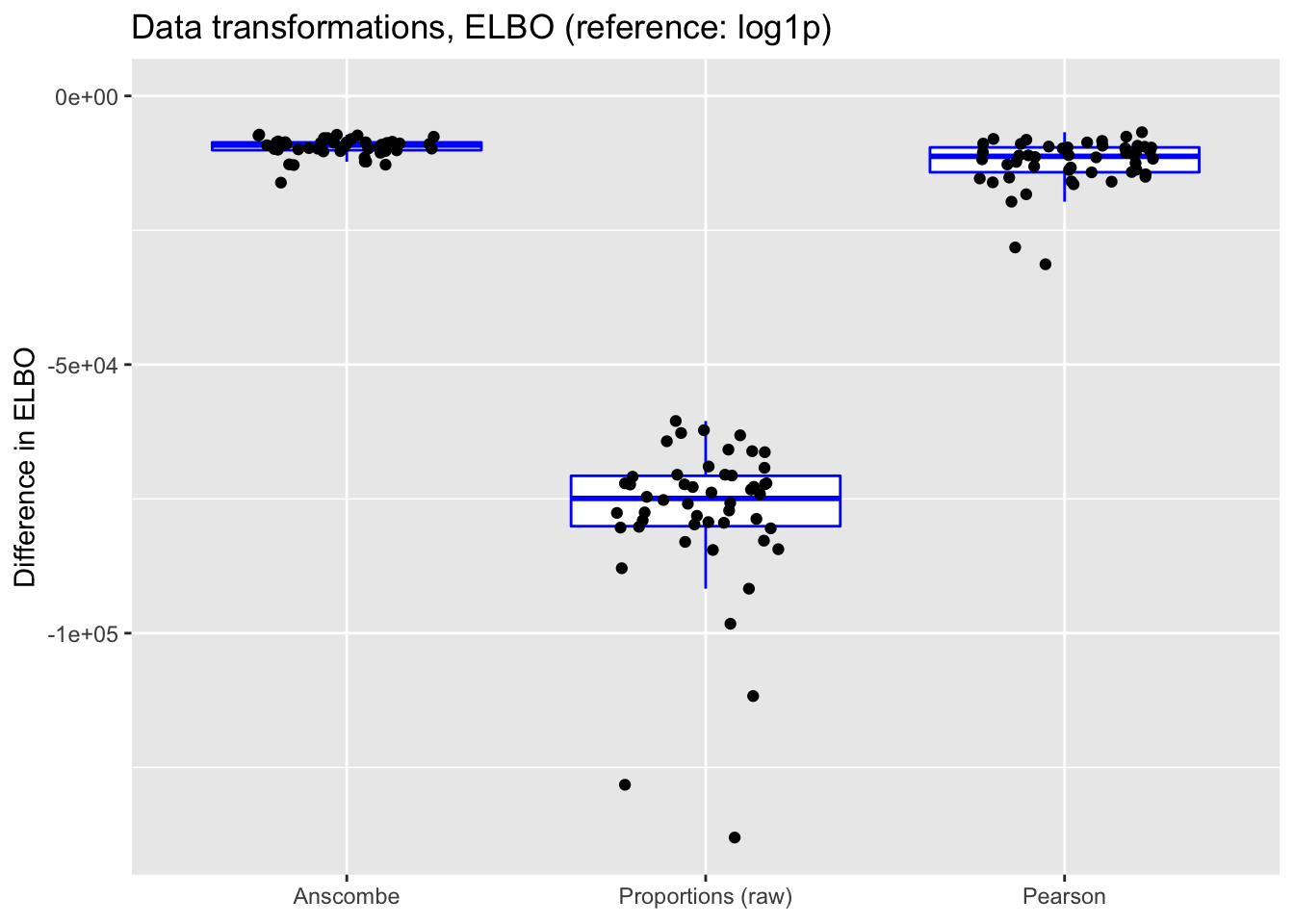

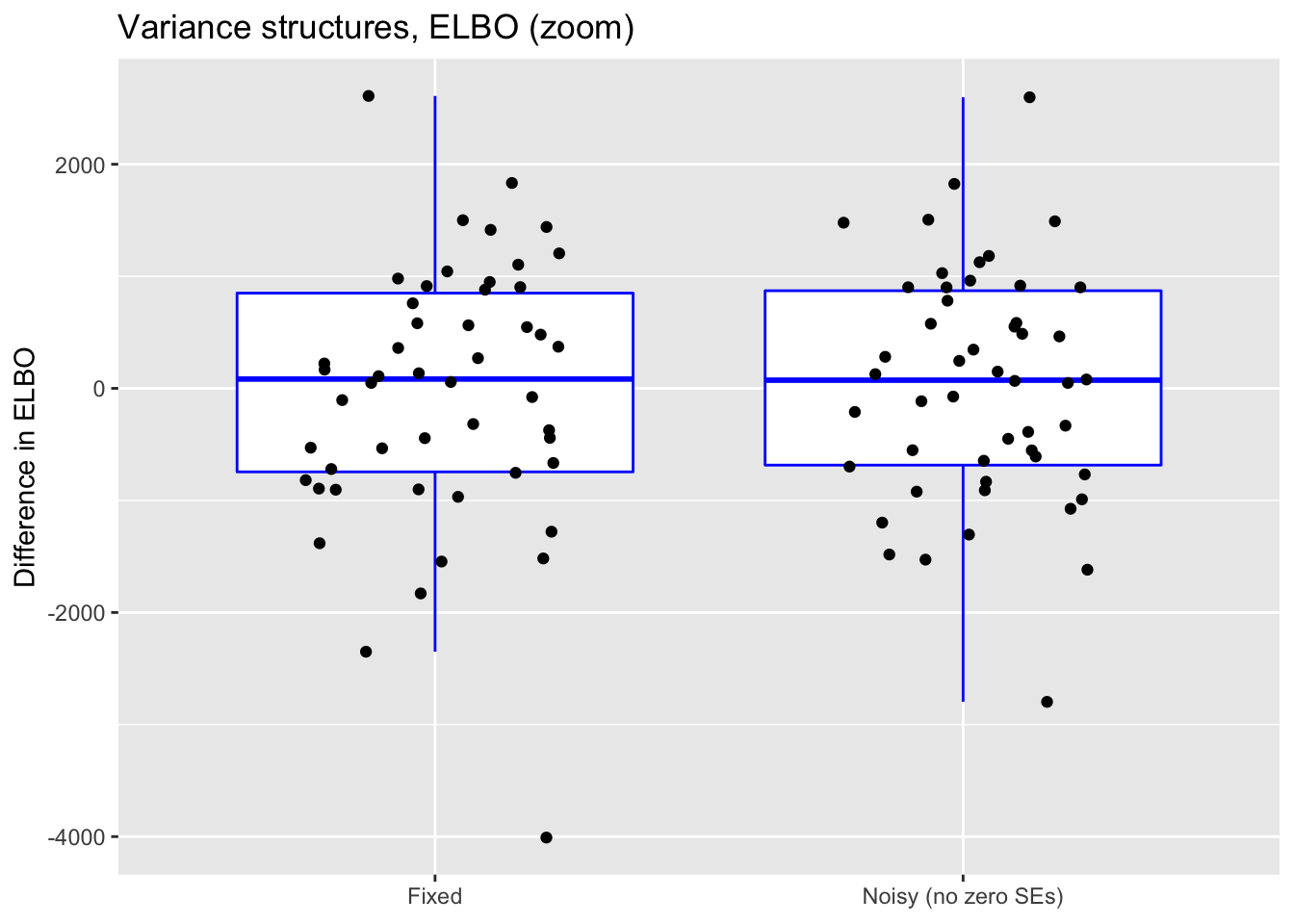

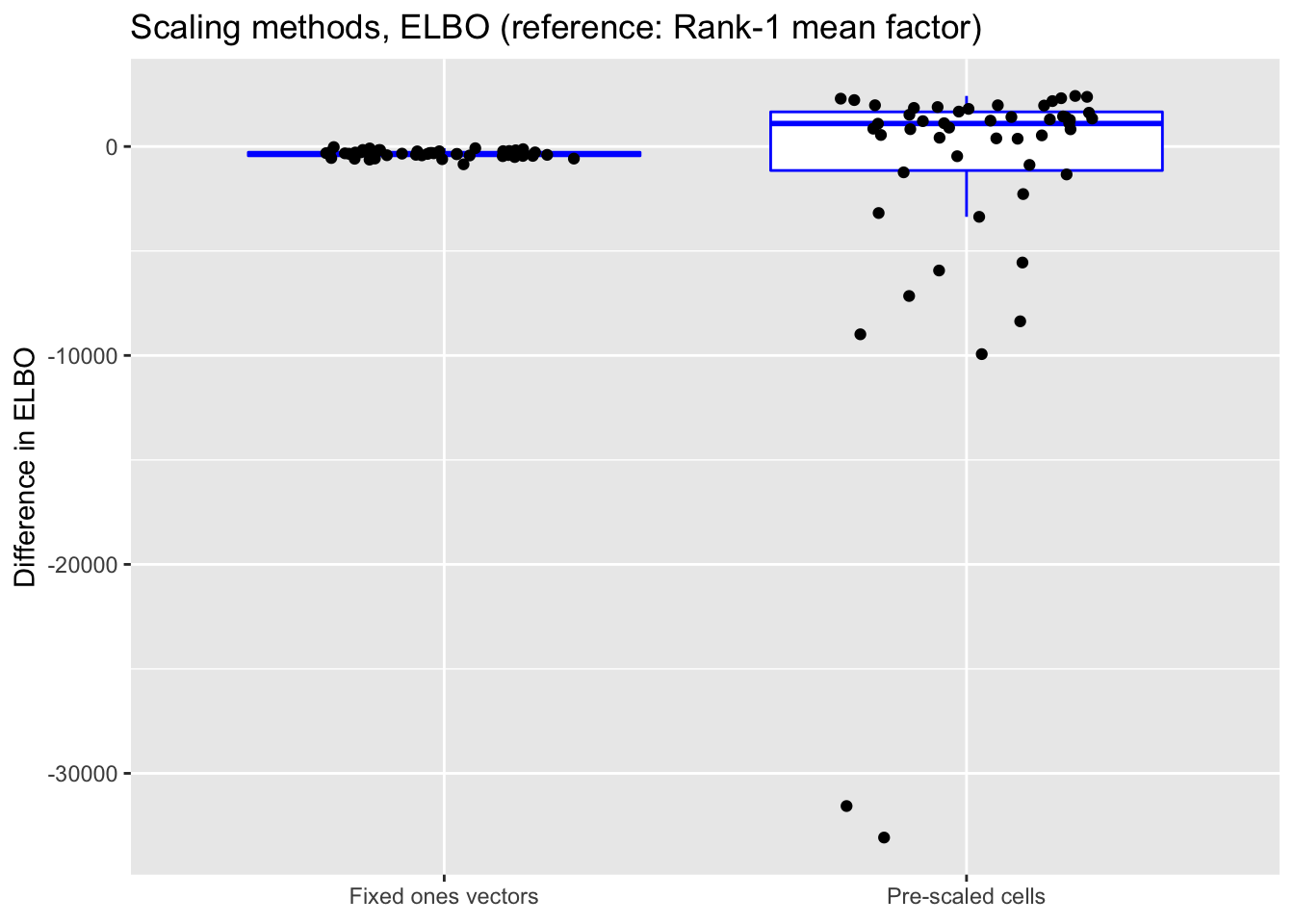

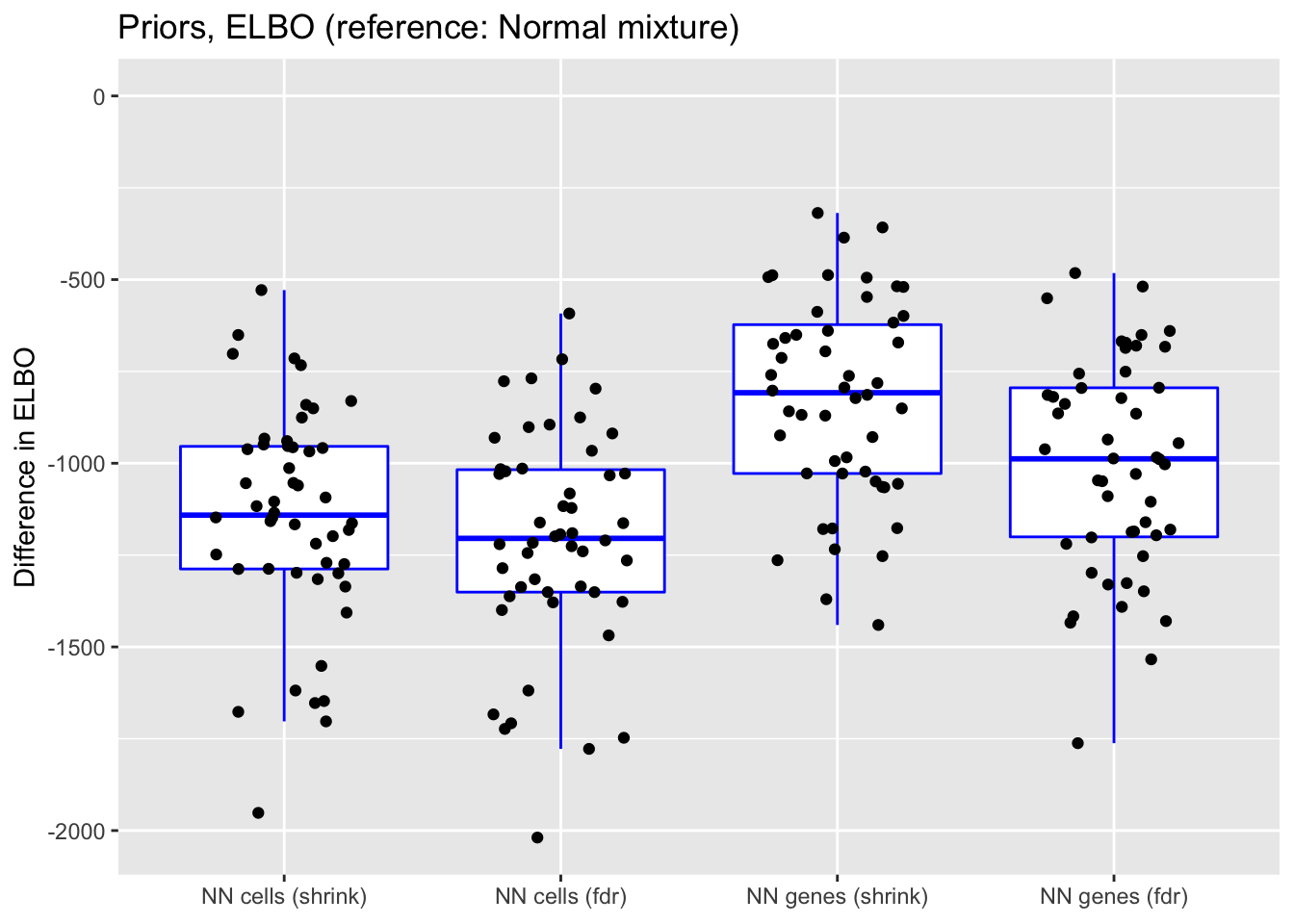

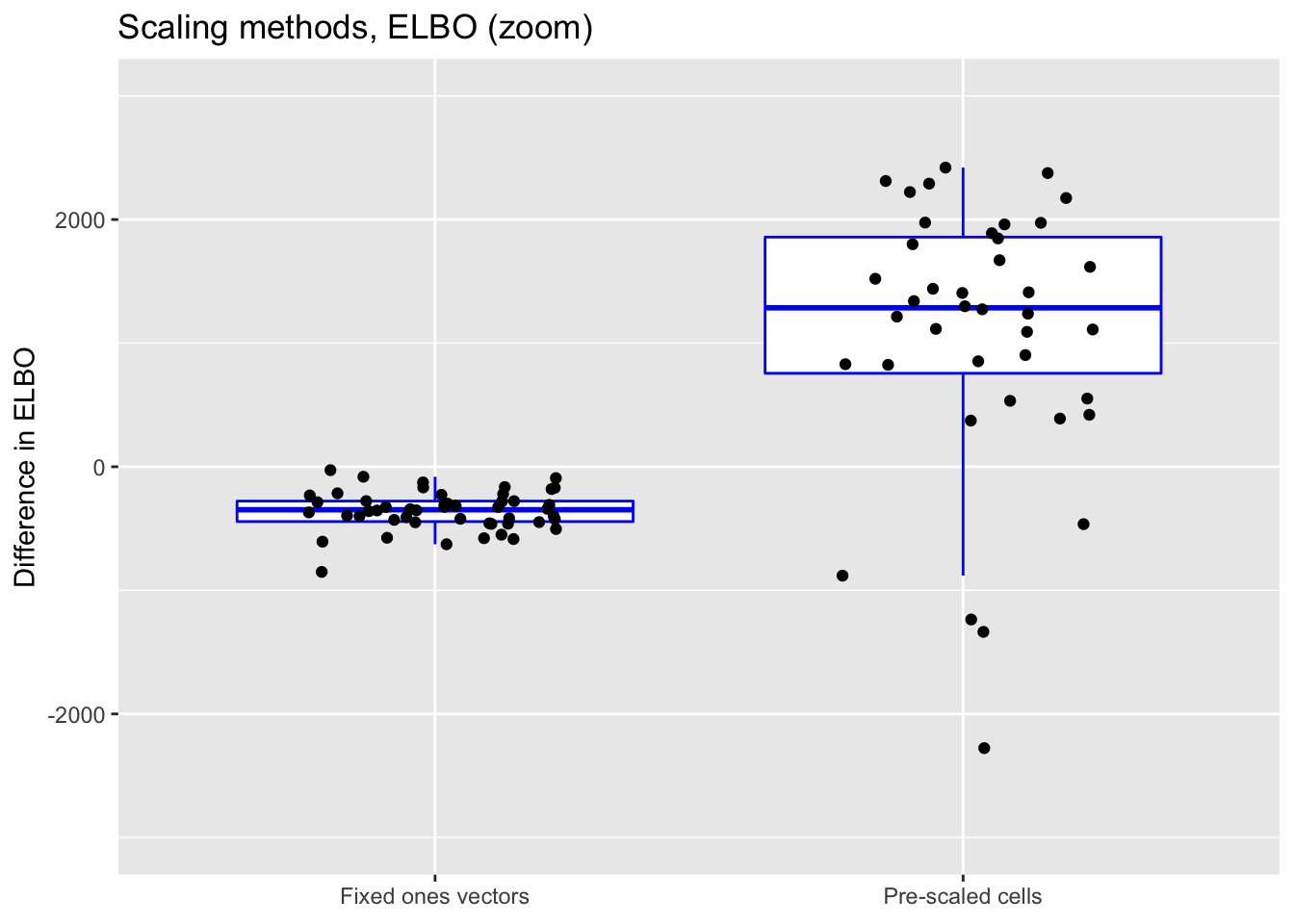

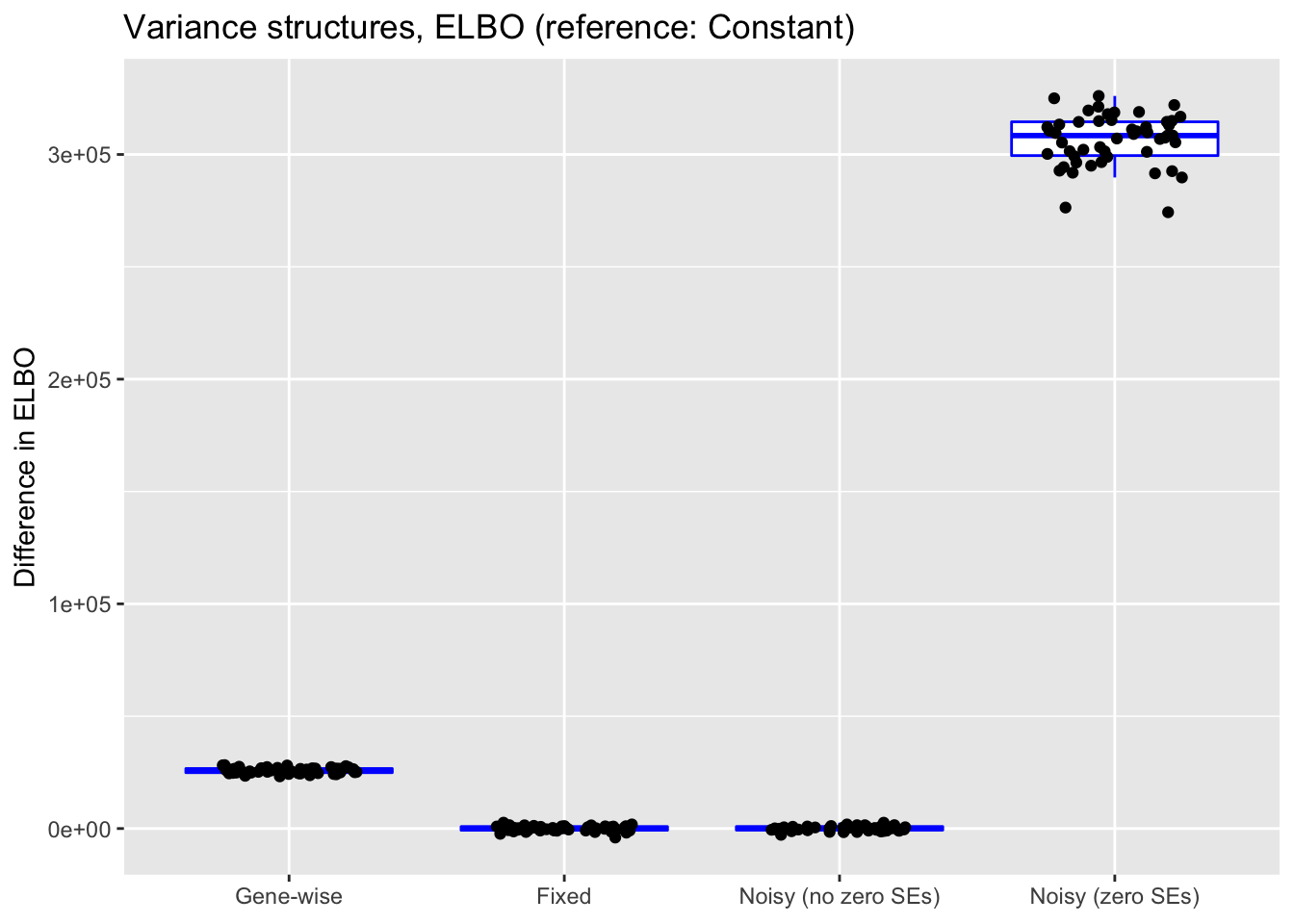

For reference, I also plot (without comment) differences in ELBO, adjusting via a change-of-variables formula where necessary. In principle, a higher ELBO should indicate a better fit.

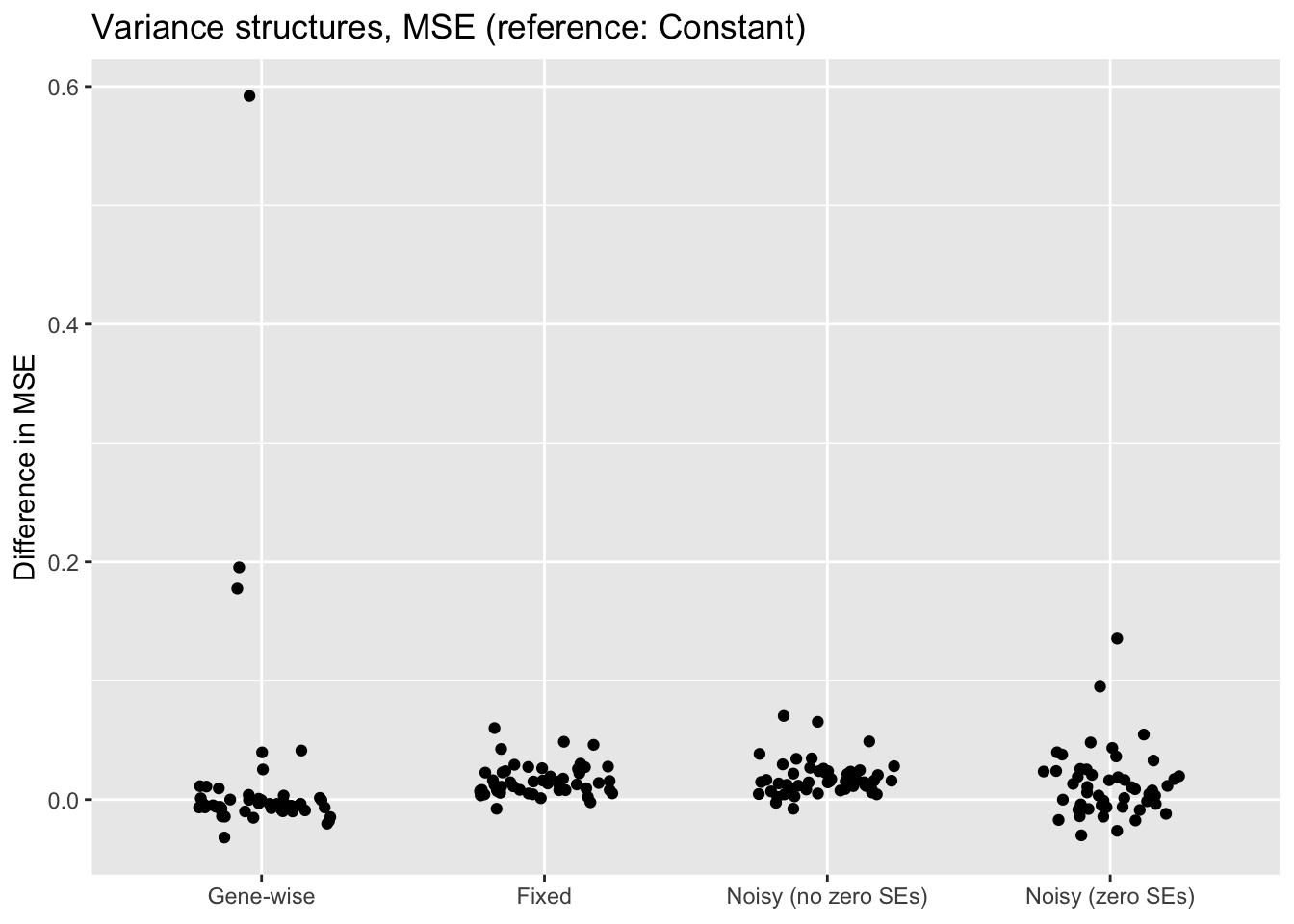

Variance structures

The most commonly used transformations of single-cell data are log transforms with pseudocounts. Throughout these tests, my default procedure is to transform the raw counts using the log1p transform: \[ Y_{ij} = \log \left( X_{ij} + 1 \right) \]

Thus, the model that flashier fits is \[ \log \left( X_{ij} + 1 \right) = \sum_k L_{ik} F_{jk} + E_{ij}, \] with \[E_{ij} \sim N(0, \sigma_{ij}^2)\]

If one disregards sampling error, one can simply fit a constant variance structure \(\sigma_{ij}^2 = \sigma^2\) or a gene-wise variance structure \(\sigma_{ij}^2 = \sigma_j^2\), with \(\sigma^2\) (viz. \(\sigma_j^2\)) to be estimated.

However, if (as is reasonable to assume) the data is Poisson for some true expression levels \(\lambda_{ij}\): \[ X_{ij} \sim \text{Poisson} (\lambda_{ij}), \] then sampling errors will be much different for large and small counts. Expanding around the MLE \(\hat{\lambda}_{ij} = X_{ij}\): \[ \log (\lambda_{ij} + 1) \approx \log(X_{ij} + 1) + \frac{\lambda_{ij} - X_{ij}}{X_{ij} + 1} \] so that \[ \text{Var} \left( \log (\lambda_{ij} + 1) \right) \approx \frac{\lambda_{ij}}{(X_{ij} + 1)^2} \approx \frac{X_{ij}}{(X_{ij} + 1)^2}\] Ignoring approximation error, one can thus fix the standard errors at \[ S_{ij} = \frac{\sqrt{X_{ij}}}{X_{ij} + 1} \] Unfortunately, this sets \(S_{ij} = 0\) when \(X_{ij} = 0\). To circumvent this problem, I replace zeros with a very rough estimate of the baseline Poisson noise: \[ \lambda_0 := \frac{\#\{X_{ij}: X_{ij} \ne 0\}}{\#\{X_{ij}\}} \] That is, when \(X_{ij} = 0\), I set \[ S_{ij} = \frac{\sqrt{\lambda_0}}{\lambda_0 + 1} \]

Using flashier, one can also fit a model that includes both fixed sampling errors and an approximation error to be estimated, so that \[E_{ij} \sim N(0, S_{ij}^2 + \sigma^2)\] I try two approaches. One fixes the standard errors as described above, replacing \(S_{ij} = 0\) with \(S_{ij} = \sqrt{\lambda_0} / (\lambda_0 + 1)\). The other leaves standard errors of zero as they are and hopes that the estimated \(\sigma^2\) will be able to make up the difference. In both cases, the estimated \(\sigma^2\) is constant across genes and cells (estimating a noisy gene-wise variance structure is at present far too slow for large datasets).

library(ggplot2)

get.plot.df <- function(df, ref.lvl, type) {
  tests <- colnames(df)
  category <- sapply(strsplit(tests, '[.]'), `[`, 1)
  metric <- sapply(strsplit(tests, '[.]'), `[`, 2)
  df <- df[, which(metric == type)]
  category <- category[which(metric == type)]
  which.ref <- which(category == ref.lvl)
  df <- df - df[, which.ref]
  df <- df[, -which.ref]
  category <- category[-which.ref]

  return(data.frame(value = as.vector(as.matrix(df)),
                    category = rep(category, each = nrow(df))))
}

var.mse <- get.plot.df(allres$var.df, ref.lvl = "constant", type = "mse")

ggplot(var.mse, aes(x = category, y = value)) +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in MSE",
       title = "Variance structures, MSE (reference: Constant)") +
  scale_x_discrete(limits = c("genewise", "fixed", "noisyA", "noisyB"),
                   labels = c("Gene-wise", "Fixed", "Noisy (no zero SEs)",
                              "Noisy (zero SEs)"))

ggplot(var.mse, aes(x = category, y = value)) +
  geom_violin(adjust = 1.5,
              draw_quantiles = c(0.1, 0.5, 0.9),
              color = "red") +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in MSE",
       title = "Variance structures, MSE (zoom)") +
  scale_x_discrete(limits = c("genewise", "fixed", "noisyA", "noisyB"),
                   labels = c("Gene-wise", "Fixed", "Noisy (no zero SEs)",
                              "Noisy (zero SEs)")) +
  ylim(-0.1, 0.2)

var.elbo <- get.plot.df(allres$var.df, ref.lvl = "constant", type = "elbo")

ggplot(var.elbo, aes(x = category, y = value)) +
  geom_boxplot(colour = "blue", outlier.shape = NA) +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in ELBO",
       title = "Variance structures, ELBO (reference: Constant)") +
  scale_x_discrete(limits = c("genewise", "fixed", "noisyA", "noisyB"),
                   labels = c("Gene-wise", "Fixed", "Noisy (no zero SEs)",
                              "Noisy (zero SEs)"))

ggplot(subset(var.elbo, category %in% c("fixed", "noisyA")),
       aes(x = category, y = value)) +
  geom_boxplot(colour = "blue", outlier.shape = NA) +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in ELBO",
       title = "Variance structures, ELBO (zoom)") +
  scale_x_discrete(labels = c("Fixed", "Noisy (no zero SEs)"))

Data transformations

Another way to handle unequal sampling errors is to use a variance-stabilizing transformation. I compare the log1p transform to the Anscombe transform (which stabilizes variance for Poisson data): \[ Y_{ij} = \sqrt{X_{ij} + \frac{3}{8}},\] and the arcsine transform (which stabilizes variance for proportions): \[ Y_{ij} = \text{arcsin}\left(\sqrt{\frac{X_{ij}}{\sum_j X_{ij}}}\right)\] In both cases, the magnitude of the sampling errors should be similar across all entries, so it should suffice to fit a constant variance structure.

Note that almost all gene proportions are small, and that the arcsine function is approximately linear for small \(x\). Thus the arcsine transformation is not much different from a square-root transformation of the proportions, which in turn might not be much different from the untransformed proportions. For purposes of comparison, then, I also fit a flash object to the untransformed proportions: \[ Y_{ij} = \frac{X_{ij}}{\sum_j X_{ij}} \]

Finally, I fit a flash object to Pearson residuals, using a binomial approximation to the multinomial distribution as recommended by Townes et al. (The authors prefer to use deviance residuals, but transforming predicted deviance residuals to raw counts is not trivial.)

In all cases, I calculate mean-squared error on the log1p scale. While it is true that this might bias the results in favor of the log1p transform, it can be justified as the relative error in the fitted counts (adding a pseudocount to avoid division by zero).

For the log1p and Anscombe transforms, I fit an additional rank-one “mean” factor (which simply amounts to fitting 6 factors instead of 5). Since the other transforms fit scaled data, no additional mean factor needs to be fitted.

trans.mse <- get.plot.df(allres$trans.df, ref.lvl = "log1p", type = "mse")

ggplot(trans.mse, aes(x = category, y = value)) +
  geom_violin(adjust = 1.5,
              draw_quantiles = c(0.1, 0.5, 0.9),
              color = "red") +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in MSE",
       title = "Data transformations, MSE (reference: log1p)") +
  scale_x_discrete(limits = c("anscombe", "arcsin", "raw", "pearson"),
                   labels = c("Anscombe", "Arcsine",
                              "Proportions (raw)", "Pearson")) +
  ylim(-0.1, 0.2)

trans.elbo <- get.plot.df(allres$trans.df, ref.lvl = "log1p", type = "elbo")

ggplot(subset(trans.elbo, category != "arcsin"),
       aes(x = category, y = value)) +
  geom_boxplot(colour = "blue", outlier.shape = NA) +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in ELBO",
       title = "Data transformations, ELBO (reference: log1p)") +
  scale_x_discrete(limits = c("anscombe", "raw", "pearson"),
                   labels = c("Anscombe", "Proportions (raw)", "Pearson")) +
  ylim(NA, 0)

Scaling methods

Ideally, one would like factor loadings to be comparable across genes even though mean expression can vary by several orders of magnitude. Mean expression varies much less across cells, but one should also account for differences in cell size. One way to achieve both of these goals is to add fixed mean factors to perform row- and column-specific scaling. Specifically, I fit a fixed row vector of all ones with column loadings \(c_j\) to be estimated and a fixed column vector of all ones with row loadings \(r_i\) to be estimated. This is approximately equivalent to estimating separate scaling factors for the rows and columns of the count data: \[ X_{ij} + 1 = e^{r_i}e^{c_j} \]

Compare to the case where FLASH estimates a single rank-one factor with row loadings \(r_i\) and column loadings \(c_j\): \[ X_{ij} + 1 = e^{r_i c_j} \] Here, the scaling factors are not independent. Do note, however, that when \(r_i\) and \(c_j\) are both small, \[ X_{ij} = e^{r_i c_j} - 1 \approx r_i c_j, \] so fitting a single factor might actually work well for small counts.

A third possible method scales the cells in advance (that is, before the log1p transform). Letting \(R_i\) be the total count for cell \(i\), I scale each cell by the factor \[ \frac{\text{median}(R_i)}{R_i} \] so that, in particular, each scaled cell has the same total count. (A mean factor for genes still needs to be fit so that gene loadings are comparable.) Although this method is conceptually simpler, it risks over-relying on a few genes with large counts. In principle, a bi-scaling method like the two discussed above should be more accurate.

norm.mse <- get.plot.df(allres$norm.df, ref.lvl = "none", type = "mse")

ggplot(norm.mse, aes(x = category, y = value)) +
  geom_violin(adjust = 1.5,
              draw_quantiles = c(0.1, 0.5, 0.9),
              color = "red") +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in MSE",
       title = "Scaling methods, MSE (reference: Rank-1 mean factor)") +
  scale_x_discrete(labels = c("Fixed ones vectors",
                              "Pre-scaled cells")) +
  ylim(-0.1, 0.2)

norm.elbo <- get.plot.df(allres$norm.df, ref.lvl = "none", type = "elbo")

ggplot(norm.elbo,
       aes(x = category, y = value)) +
  geom_boxplot(colour = "blue", outlier.shape = NA) +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in ELBO",
       title = "Scaling methods, ELBO (reference: Rank-1 mean factor)") +
  scale_x_discrete(labels = c("Fixed ones vectors",
                              "Pre-scaled cells"))

ggplot(norm.elbo,
       aes(x = category, y = value)) +
  geom_boxplot(colour = "blue", outlier.shape = NA) +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in ELBO",
       title = "Scaling methods, ELBO (zoom)") +
  scale_x_discrete(labels = c("Fixed ones vectors",
                              "Pre-scaled cells")) +
  ylim(-3000, 3000)

Priors

For simplicity, I use normal-mixture priors as the default priors throughout this analysis, but using nonnegative priors for either genes or cells can enhance interpretability. The former yields sets of genes that co-express in the same direction, with cell loadings indicating whether expression levels for the gene set are above or below the mean. The latter can work better for clustering cells, since it yields sets of cells with one set of genes that is overexpressed and a second set that is underexpressed.

In both cases, I test two ashr parameter settings. method = "fdr" includes a point mass at zero in the prior, whereas method = "shrink" includes small mixture components but no point mass. In general, fdr is better for false discovery rate control while shrink tends to be slightly more accurate.

Since the normal-mixture prior is in principle the most flexible of all of these priors, I don’t expect the other priors to improve on the mean squared error. The primary reason for choosing to put a nonnegative prior along one of the two dimensions is interpretability, not accuracy.

prior.mse <- get.plot.df(allres$prior.df, ref.lvl = "normal", type = "mse")

ggplot(prior.mse, aes(x = category, y = value)) +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in MSE",
       title = "Priors, MSE (reference: Normal mixture)") +
  scale_x_discrete(labels = c("NN cells (shrink)",
                              "NN cells (fdr)",
                              "NN genes (shrink)",
                              "NN genes (fdr)"))

ggplot(prior.mse, aes(x = category, y = value)) +
  geom_violin(adjust = 1.5,
              draw_quantiles = c(0.1, 0.5, 0.9),
              color = "red") +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in MSE",
       title = "Priors, MSE (zoom)") +
  scale_x_discrete(labels = c("NN cells (shrink)",
                              "NN cells (fdr)",
                              "NN genes (shrink)",
                              "NN genes (fdr)")) +
  ylim(-0.025, 0.1)

prior.elbo <- get.plot.df(allres$prior.df, ref.lvl = "normal", type = "elbo")

ggplot(prior.elbo,
       aes(x = category, y = value)) +
  geom_boxplot(colour = "blue", outlier.shape = NA) +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in ELBO",
       title = "Priors, ELBO (reference: Normal mixture)") +
  scale_x_discrete(labels = c("NN cells (shrink)",
                              "NN cells (fdr)",
                              "NN genes (shrink)",
                              "NN genes (fdr)")) +
  ylim(NA, 0)

Number of factors and backfitting

In all previous tests, I fit 5 factors to each flash object. Here, I also fit 10 and 15 factors to see whether there’s any evidence of overfitting. Additionally, I look at how backfitting changes mean squared error.

nfactors.mse <- get.plot.df(allres$nfactors.df, ref.lvl = "g1", type = "mse")

ggplot(nfactors.mse, aes(x = category, y = value)) +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in MSE",
       title = "Number of factors, MSE (reference: Greedy, 5 factors)") +
  scale_x_discrete(limits = c("bf1", "g2", "bf2", "g3", "bf3"),
                   labels = c("Backfit, 5 f.",
                              "Greedy, 10 f.",
                              "Backfit, 10 f.",
                              "Greedy, 15 f.",
                              "Backfit, 15 f."))

ggplot(nfactors.mse, aes(x = category, y = value)) +
  geom_violin(adjust = 1.5,
              draw_quantiles = c(0.1, 0.5, 0.9),
              color = "red") +
  geom_jitter(position = position_jitter(0.25)) +
  labs(x = NULL, y = "Difference in MSE",
       title = "Number of factors, MSE (zoom)") +
  scale_x_discrete(limits = c("bf1", "g2", "bf2", "g3", "bf3"),
                   labels = c("Backfit, 5 f.",
                              "Greedy, 10 f.",
                              "Backfit, 10 f.",
                              "Greedy, 15 f.",
                              "Backfit, 15 f.")) +
  ylim(-0.1, 0.2)

mse.df <- allres$mse.df

ggplot(mse.df, aes(x = k, y = mse)) + geom_point() +
  labs(x = "Number of factors", y = "Mean squared error",
       title = "Incremental greedy additions (full dataset)")

ggplot(subset(mse.df, k > 19), aes(x = k, y = mse)) + geom_point() +
  labs(x = "Number of factors", y = "Mean squared error",
       title = "Incremental greedy additions (zoom)")

Session information

sessionInfo()

R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.6

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] ggplot2_3.1.0

loaded via a namespace (and not attached):
 [1] Rcpp_1.0.0        bindr_0.1         knitr_1.21.6
 [4] whisker_0.3-2     magrittr_1.5      workflowr_1.0.1
 [7] munsell_0.5.0     colorspace_1.3-2  R6_2.3.0
[10] rlang_0.3.0.1     dplyr_0.7.4       stringr_1.3.1
[13] plyr_1.8.4        tools_3.4.3       grid_3.4.3
[16] gtable_0.2.0      xfun_0.4          R.oo_1.21.0
[19] withr_2.1.2.9000  git2r_0.21.0      htmltools_0.3.6
[22] assertthat_0.2.0  yaml_2.2.0        lazyeval_0.2.1
[25] digest_0.6.18     rprojroot_1.3-2   tibble_1.4.2
[28] bindrcpp_0.2      R.utils_2.6.0     glue_1.3.0
[31] evaluate_0.12     rmarkdown_1.11    labeling_0.3
[34] stringi_1.2.4     pillar_1.2.1      compiler_3.4.3
[37] scales_1.0.0      backports_1.1.2   R.methodsS3_1.7.1
[40] pkgconfig_2.0.1
