MASH v FLASH analysis of GTEx data

Introduction

Here I analyze some GTEx data. The dataset can be found at https://stephenslab.github.io/gtexresults/. I use the “random.z” dataset, which consists of \(z\)-scores for 44 tissues and a random subset of 20000 tests. For the code used in this analysis, see below.

Fitting methods

I used the same methods to fit the data that I used in my simulation study. These methods assume that noise is independent among conditions. It is not, but it is still useful to see how the methods compare when applied to a real dataset.

The simulation study suggested that the “one-hots last” method typically produces a better fit than the “one-hots first” method, even though it can take quite a bit longer. Here I enter into some more detail.

First I load the data and the fits.

devtools::load_all("/Users/willwerscheid/GitHub/flashr/")

Loading flashr

library(mashr)

Loading required package: ashr

gtex <- readRDS(gzcon(url("https://github.com/stephenslab/gtexresults/blob/master/data/MatrixEQTLSumStats.Portable.Z.rds?raw=TRUE")))

data <- gtex$random.z
data <- t(data)
fl_data <- flash_set_data(data, S = 1)

gtex_mfit <- readRDS("./output/gtexmfit.rds")
gtex_flfit <- readRDS("./output/gtexflfit.rds")

The OHL fit was produced by greedily adding a total of 17 factors, then adding 44 fixed one-hot factors (one per condition), then backfitting the whole thing. The objective attained was -1277727.

The OHF fit added the 44 fixed one-hot factors, then backfit them, then added only 4 (!) more factors greedily. The resulting objective was much worse than that of the OHL fit, at -1315285.

Finally, I tried applying an additional backfitting step to the OHF fit to see how much the objective improved (I call this method “FLASH-OHF+” in the simulation study). The final objective was -1279011: better, but still not as good as the OHL fit.

It seems clear that the OHL method is the way to go. However, it does take a long time (about 50% longer than MASH):

data <- c(gtex_mfit$timing$ed, gtex_mfit$timing$mash,
          gtex_flfit$timing$OHL$greedy, gtex_flfit$timing$OHL$backfit,
          gtex_flfit$timing$OHF$greedy, gtex_flfit$timing$OHF$backfit,
          gtex_flfit$timing$OHFp$greedy, gtex_flfit$timing$OHFp$backfit)
time_units <- units(data)
data <- matrix(as.numeric(data), 2, 4)
barplot(data, axes=T,
        main=paste("Average time to fit in", time_units),
        names.arg = c("MASH", "FL-OHL", "FL-OHF", "FL-OHF+"),
        legend.text = c("ED/Greedy", "MASH/Backfit"),
        ylim = c(0, max(colSums(data))*1.5))

MASH v FLASH posterior means

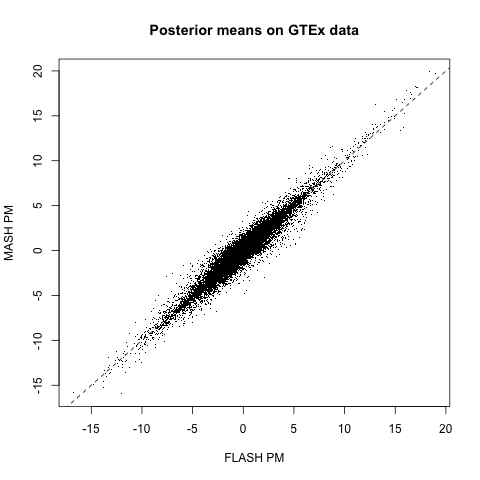

The posterior means are quite similar (correlation coefficient = 0.95). The dashed line plots \(y = x\):

MASH v FLASH LFSR

Next I look at confusion matrices for gene-condition pairs that are declared significant at a given LFSR threshold. As in the simulation study, I used a built-in function to evaluate LFSR for the MASH fit and I sampled from the posterior for the FLASH fit. In general, FLASH appears be more conservative than MASH.

m_lfsr <- t(get_lfsr(gtex_mfit$m))
fl_lfsr <- readRDS("./output/gtexfllfsr.rds")

confusion_matrix <- function(t) {
  mash_signif <- m_lfsr <= t
  flash_signif <- fl_lfsr <= t
  round(table(mash_signif, flash_signif)
        / length(mash_signif), digits=3)
}

At 5%:

confusion_matrix(.05)

           flash_signif
mash_signif FALSE  TRUE
      FALSE 0.746 0.023
      TRUE  0.086 0.145

At 1%:

confusion_matrix(.01)

           flash_signif
mash_signif FALSE  TRUE
      FALSE 0.863 0.016
      TRUE  0.040 0.081

Code

Click “Code” to view the code used to obtain the above results.

devtools::load_all("/Users/willwerscheid/GitHub/flashr/")
library(mashr)

gtex <- readRDS(gzcon(url("https://github.com/stephenslab/gtexresults/blob/master/data/MatrixEQTLSumStats.Portable.Z.rds?raw=TRUE")))

data <- gtex$random.z
data <- t(data)
fl_data <- flash_set_data(data, S = 1)

source("./code/fits.R")
source("./code/sims.R")
source("./code/utils.R")

set.seed(1)
gtex_mfit <- fit_mash(data)
saveRDS(gtex_mfit, "./output/gtexmfit.rds")

gtex_flfit <- fit_flash(data, Kmax = 40, methods=2:5)
saveRDS(gtex_flfit, "./output/gtexflfit.rds")

flash_get_objective(fl_data, gtex_flfit$fits$Zero) # -1277881
flash_get_objective(fl_data, gtex_flfit$fits$OHL) # -1277145
flash_get_objective(fl_data, gtex_flfit$fits$OHF) # -1315285
flash_get_objective(fl_data, gtex_flfit$fits$OHFp) # -1278991


# Use PM from each method as "true Y" and do diagnostics
# fl_pm <- flash_get_fitted_values(gtex_flfit$fl)
# gtex_mres <- mash_diagnostics(gtex_mfit$m, fl_pm)
# saveRDS(gtex_mres, "./output/gtexmres.rds")
#
# m_pm <- t(get_pm(gtex_mfit$m))
# gtex_flres <- flash_diagnostics(gtex_flfit$fl, data, m_pm, nsamp = 200)
# saveRDS(gtex_flres, "./output/gtexflres.rds")


# Plot FLASH PM vs. MASH PM
fl_pm <- flash_get_fitted_values(gtex_flfit$fits$OHL)
m_pm <- t(get_pm(gtex_mfit$m))
png("./output/gtexcompare.png")
plot(as.vector(fl_pm), as.vector(m_pm), xlab="FLASH PM", ylab="MASH PM",
     main="Posterior means on GTEx data", pch='.')
abline(0, 1, lty=2)
dev.off()
cor(as.vector(fl_pm), as.vector(m_pm)) # 0.952

# Use LFSR to get "significant" effects and get confusion matrices
m_lfsr <- t(get_lfsr(gtex_mfit$m))

fl_sampler <- flash_sampler(data, gtex_flfit$fits$OHL, fixed="loadings")
fl_lfsr <- flash_lfsr(fl_sampler(200))
saveRDS(fl_lfsr, "./output/gtexfllfsr.rds")

confusion_matrix <- function(t) {
  mash_signif <- m_lfsr <= t
  flash_signif <- fl_lfsr <= t
  round(table(mash_signif, flash_signif)
        / length(mash_signif), digits=3)
}
confusion_matrix(.05)
confusion_matrix(.01)

Session information

sessionInfo()

R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.1

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] mashr_0.2-7   ashr_2.2-10   flashr_0.5-12

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.17        pillar_1.2.1        plyr_1.8.4
 [4] compiler_3.4.3      git2r_0.21.0        workflowr_1.0.1
 [7] R.methodsS3_1.7.1   R.utils_2.6.0       iterators_1.0.9
[10] tools_3.4.3         testthat_2.0.0      digest_0.6.15
[13] tibble_1.4.2        evaluate_0.10.1     memoise_1.1.0
[16] gtable_0.2.0        lattice_0.20-35     rlang_0.2.0
[19] Matrix_1.2-12       foreach_1.4.4       commonmark_1.4
[22] yaml_2.1.17         parallel_3.4.3      mvtnorm_1.0-7
[25] ebnm_0.1-12         withr_2.1.1.9000    stringr_1.3.0
[28] roxygen2_6.0.1.9000 xml2_1.2.0          knitr_1.20
[31] devtools_1.13.4     rprojroot_1.3-2     grid_3.4.3
[34] R6_2.2.2            rmarkdown_1.8       rmeta_3.0
[37] ggplot2_2.2.1       magrittr_1.5        whisker_0.3-2
[40] backports_1.1.2     scales_0.5.0        codetools_0.2-15
[43] htmltools_0.3.6     MASS_7.3-48         assertthat_0.2.0
[46] softImpute_1.4      colorspace_1.3-2    stringi_1.1.6
[49] lazyeval_0.2.1      munsell_0.4.3       doParallel_1.0.11
[52] pscl_1.5.2          truncnorm_1.0-8     SQUAREM_2017.10-1
[55] R.oo_1.21.0
