Tensor Decomposition of GTEx Brain Data

Data

TODO: describe data here.

Code

for preprocessing GTEx data and fitting flash objects to the brain subtensor…

# Download GTEx data from GTEx Portal and load into R using Peter's code ------

samples.file <- "https://storage.googleapis.com/gtex_analysis_v7/annotations/GTEx_v7_Annotations_SampleAttributesDS.txt"
read.counts.file <- "~/Downloads/GTEx_Analysis_2016-01-15_v7_RNASeQCv1.1.8_gene_reads.gct.gz"

source("https://raw.githubusercontent.com/stephenslab/topics/master/code/gtex.R?token=AWTMG_VIxH9P52pyv6O3a3tRQEFn0F9Zks5cN431wA%3D%3D")
gtex <- read.gtex.data(samples.file, read.counts.file)


# Pre-process the data as described in Wang, Fischer, and Song (2017) ---------

# "Normalization was performed using the size factors produced by the
#   estimateSizeFactors function of DESeq2."

#     Calculate the (logged) geometric means of the counts for each gene.
gene.geom.means <- apply(gtex$counts, 2, function(x) {
  if (all(x == 0)) {-Inf} else {sum(log(x[x > 0])) / length(x)}
})
#     Take the median of the normalized counts for each sample:
size.factors <- apply(gtex$counts, 1, function(x) {
  exp(median((log(x) - gene.geom.means)[x > 0]))
})
#     Normalize the samples:
gtex$counts <- apply(gtex$counts, 2, `/`, size.factors)

# "We required at least 15 samples to include a given tissue and an average of
#   at least 500 normalized reads in one or more tissues to retain a gene."

tissues.to.include <- names(which(table(gtex$samples$specific) > 14))
samples.to.retain <- samples$specific %in% tissues.to.include
gtex$counts <- gtex$counts[samples.to.retain, ]
gtex$samples <- gtex$samples[samples.to.retain, ]

gene.max.avg.reads <- apply(gtex$counts, 2, function(x) {
  max(aggregate(x, by = list(gtex$samples$specific), FUN = mean)$x)
})
genes.to.retain <- gene.max.avg.reads > 500
gtex$counts <- gtex$counts[, genes.to.retain]

# Log-transform data:

gtex$counts <- log1p(gtex$counts)


# Convert the data from a matrix to a tissue x individual x gene array --------

individual <- as.factor(sapply(strsplit(rownames(gtex$counts), "-"), function(x) {
  paste(x[1:2], collapse = "-")
}))
gtex.df <- data.frame(individual = individual,
                      tissue = droplevels(gtex$samples$specific))
gtex.df <- cbind(gtex.df, gtex$counts)
gtex <- reshape2::melt(gtex.df)
colnames(gtex)[3] <- "gene"
rm(gtex.df)

gtex <- reshape2::acast(gtex, tissue ~ individual ~ gene)
# object size: 4.6 Gb (a 49 x 714 x 17792 array)

saveRDS(gtex, "~/Downloads/gtex_v7_array.rds") # temporary


# Create smaller array using only brain tissues -------------------------------

brain.tissues <- which(substr(dimnames(gtex)[[1]], 1, 5) == "brain")
brain <- gtex[brain.tissues, , ]
# Remove individuals with no brains:
brain <- brain[, apply(brain, 2, function(x) sum(!is.na(x))) > 0, ]
# object size: 450 Mb (a 13 x 254 x 17792 array)

saveRDS(brain, "~/Downloads/gtex_v7_brain.rds") # temporary


# Fit flash object ------------------------------------------------------------

devtools::load_all("~/Github/ashr")
devtools::load_all("~/Github/flashier")
devtools::load_all("~/Github/ebnm")

brain <- set.flash.data(brain) # object size: 675 Mb
brain.flash <- flashier(brain,
                        var.type = 3,
                        prior.type = c("nonnegative", "nonzero.mode", "normal.mix"),
                        conv.crit.fn = function(new, old, k) {
                          flashier:::calc.max.abs.chg.EF(new, old, k, n = 1)
                        },
                        greedy.Kmax = 10,
                        greedy.tol = 5e-4,
                        backfit.after = 2,
                        backfit.every = 1,
                        inner.backfit.maxiter = 1,
                        ash.param = list(optmethod = "mixSQP"),
                        nonmissing.thresh = c(0, 0.05, 0),
                        verbose = "O L1 E2")

saveRDS(brain.flash, "~/Downloads/brain_flash.rds") # temporary

brain.flash <- flashier(brain,
                        flash.init = brain.flash,
                        backfit = "only",
                        backfit.order = "dropout",
                        conv.crit.fn = function(new, old, k) {
                          flashier:::calc.max.abs.chg.EF(new, old, k, n = 1)
                        },
                        backfit.tol = 5e-4,
                        verbose = "O L1 E2")

saveRDS(brain.flash, "~/Downloads/brain_flash_bf.rds") # temporary

# Remove large fields from flash object.
brain.flash$fit$Y <- NULL
brain.flash$fit$Z <- NULL
brain.flash$sampler <- NULL

saveRDS(brain.flash, "./data/brain/brain05.rds")

# Other "brain" objects were created using a different nonmissing.thresh.


# Create data frame containing demographics and technical factors -------------

phenotypes <- readRDS("~/Downloads/GTEx_v7_Subjects.rds")
class(phenotypes) <- "data.frame"
rownames(phenotypes) <- phenotypes$SUBJID
phenotypes <- phenotypes[, -1]
# Get subset corresponding to individuals with brains.
phenotypes <- phenotypes[rownames(brain.flash$loadings$normalized.loadings[[2]]), ]
# Remove COHORT because they're all postmortem.
phenotypes <- phenotypes[, -1]
# Remove ETHNCTY because there are no hispanics.
phenotypes <- phenotypes[, -4]

samples <- readr::read_delim("https://storage.googleapis.com/gtex_analysis_v7/annotations/GTEx_v7_Annotations_SampleAttributesDS.txt",
                             delim = "\t")
samples <- samples[, c("SAMPID", "SMGEBTCHD")]
# Extract individuals from sample IDs.
samples$SAMPID <- sapply(lapply(strsplit(samples$SAMPID, "-"), `[`, 1:2),
                         paste, collapse = "-")
# Convert sequencing date to number of days after first sequencing date.
samples$SMGEBTCHD <- as.numeric(as.POSIXct(samples$SMGEBTCHD, format = "%m/%d/%Y"))
samples$SMGEBTCHD <- samples$SMGEBTCHD - min(samples$SMGEBTCHD, na.rm = TRUE)
samples$SMGEBTCHD <- samples$SMGEBTCHD / (60 * 60 * 24)

SEQDATE <- aggregate(SMGEBTCHD ~ SAMPID, data = samples,
                       FUN = mean, na.rm = TRUE)
rownames(SEQDATE) <- SEQDATE$SAMPID
SEQDATE <- SEQDATE[, 2, drop = FALSE]
SEQDATE <- SEQDATE[rownames(brain.flash$loadings$normalized.loadings[[2]]), ]

all.covar <- cbind(phenotypes, SEQDATE)

# Do not upload to GitHub (data includes protected attributes)!
saveRDS(all.covar, "~/Downloads/GTEx_v7_brain_covar.rds")

…and for producing the plots and tables below.

# Flip signs so that individual loadings are mostly postive -------------------

align.data <- function(brain) {
  for (k in 1:brain$n.factors) {
    if (mean(brain$loadings$normalized.loadings[[2]][, k]) < 0) {
      brain$loadings$normalized.loadings[[2]][, k] <- -1 *
        brain$loadings$normalized.loadings[[2]][, k]
      brain$loadings$normalized.loadings[[3]][, k] <- -1 *
        brain$loadings$normalized.loadings[[3]][, k]
    }
  }
  return(brain)
}

# Barplots --------------------------------------------------------------------

do.plots <- function(brain, k, incl.gene.plot = TRUE, fix.ind.ylim = FALSE) {
  brain.colors <- c("hotpink", "gray40", "green3", "blue1", "blue3",
                    "gray20", "black", "lightpink", "red1", "green4",
                    "green1", "red4", "red3")

  tissue.idx <- order(brain$loadings$normalized.loadings[[1]][, k],
               decreasing = TRUE)
  barplot(brain$loadings$normalized.loadings[[1]][tissue.idx, k],
          col = brain.colors[tissue.idx],
          axisnames = FALSE,
          xlab = "Tissues")

  if (incl.gene.plot) {
    barplot(sort(brain$loadings$normalized.loadings[[3]][, k],
                 decreasing = TRUE),
            axisnames = FALSE,
            xlab = "Genes",
            main = paste0("Factor ", k, ": ",
                          100 * round(brain$pve[k], 4), "% PVE"))
  }

  vals <- brain$loadings$normalized.loadings[[2]][, k]
  exclusions <- brain$fit$exclusions[[k]][[2]]
  if (length(exclusions) > 0)
    vals <- vals[-exclusions]
  ylim <- NULL
  if (fix.ind.ylim)
    ylim <- c(-0.15, 0.25)
  barplot(sort(vals, decreasing = TRUE),
          axisnames = FALSE,
          xlab = "Individuals",
          ylim = ylim)
}

all.plots <- function(brain) {
  par(mfrow = c(2, 3))
  for (k in order(brain$pve, decreasing = TRUE)) {
    do.plots(brain, k)
  }
}

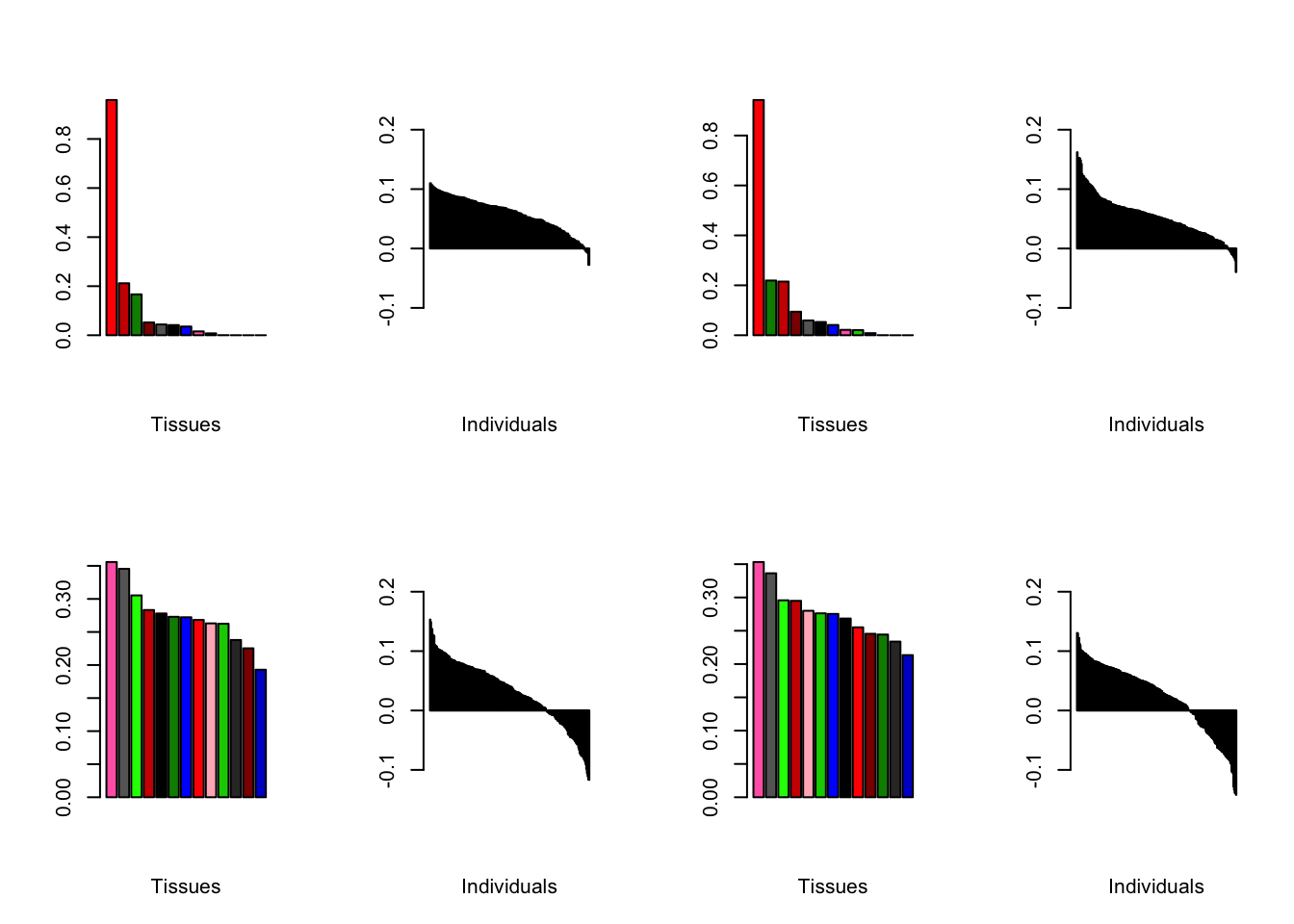

all.plots.comparison <- function(brain1, brain2) {
  par(mfrow = c(2, 4))
  for (k in 1:brain1$n.factors) {
    do.plots(brain1, k, incl.gene.plot = FALSE, fix.ind.ylim = TRUE)
    do.plots(brain2, k, incl.gene.plot = FALSE, fix.ind.ylim = TRUE)
  }
}

# Top tissues and genes -------------------------------------------------------

get.top.tissues <- function(brain, k) {
  tissue.names <- c("amygdala", "ac cortex", "caudate bg",
                    "cerebral hemisphere", "cerebellum",
                    "cortex", "fr cortex", "hippocampus",
                    "hypothalamus", "nuc acc bg", "putamen bg",
                    "spinal cord", "substantia nigra")

  loadings <- round(brain$loadings$normalized.loadings[[1]][, k], 2)
  tissue.labels <- paste0(tissue.names, " (", loadings, ")")

  n.tissues <- sum(loadings > 0.1)
  if (n.tissues > 6)
    return("most tissues")

  tissue.idx <- order(loadings, decreasing = TRUE)[1:n.tissues]
  return(paste(tissue.labels[tissue.idx], collapse = ", "))
}

get.top.go <- function(brain, k, n.loadings = 200) {
  loadings <- brain$loadings$normalized.loadings[[3]][, k]
  names(loadings) <- sapply(strsplit(names(loadings), ".", fixed = TRUE),
                            `[`, 1)
  overexpressed <- names(sort(loadings, decreasing = TRUE)[1:n.loadings])
  cp.res <- clusterProfiler::enrichGO(overexpressed, "org.Hs.eg.db",
                                      ont = "BP", keyType = "ENSEMBL",
                                      universe = names(loadings),
                                      minGSSize = 10)
  over <- paste(head(cp.res, 3)$Description, collapse = ", ")

  if (k == 1) {
    under <- NA
  } else {
    underexpressed <- names(sort(loadings, decreasing = FALSE)[1:n.loadings])
    cp.res2 <- clusterProfiler::enrichGO(underexpressed, "org.Hs.eg.db",
                                         ont = "BP", keyType = "ENSEMBL",
                                         universe = names(loadings),
                                         minGSSize = 10)
    under <- paste(head(cp.res2, 3)$Description, collapse = ", ")
  }

  list(over = over, under = under)
}

# Regression on demographic and technical variables ---------------------------

do.regression <- function(brain, covar, k) {
  excl <- brain$fit$exclusions[[k]][[2]]
  loadings <- brain$loadings$normalized.loadings[[2]][, k]
  if (length(excl) > 0) {
    covar <- covar[-excl, ]
    loadings <- loadings[-excl]
  }
  df <- cbind(covar, loadings = loadings)
  mod <- lm(loadings ~ ., data = df)

  p.vals <- round(coefficients(summary(mod))[-1, 4], 3)
  sex.col <- which(substr(names(p.vals), 1, 1) == "S")
  age.col <- which(substr(names(p.vals), 1, 1) == "A")
  race.col <- which(substr(names(p.vals), 1, 1) == "R")
  tech.col <- (1:length(p.vals))[-c(sex.col, age.col, race.col)]

  mod.anova <- anova(mod)
  resid.ss <- mod.anova$`Sum Sq`[8]
  sex.pve <- mod.anova$`Sum Sq`[1] / resid.ss
  age.pve <- mod.anova$`Sum Sq`[2] / resid.ss
  race.pve <- mod.anova$`Sum Sq`[3] / resid.ss
  tech.pve <- sum(mod.anova$`Sum Sq`[4:7]) / resid.ss

  sex.res <- paste0("PVE: ", 100 * round(sex.pve, 4), "% (p: ",
                    paste(p.vals[sex.col], collapse = ", "), ")")
  age.res <- paste0("PVE: ", 100 * round(age.pve, 4), "% (p: ",
                    paste(p.vals[age.col], collapse = ", "), ")")
  race.res <- paste0("PVE: ", 100 * round(race.pve, 4), "% (p: ",
                    paste(p.vals[race.col], collapse = ", "), ")")
  tech.res <- paste0("PVE: ", 100 * round(tech.pve, 4), "% (p: ",
                    paste(p.vals[tech.col], collapse = ", "), ")")

  return(list(sex = sex.res, age = age.res, race = race.res, tech = tech.res))
}

# Table of results ------------------------------------------------------------

do.table <- function(brain, covar, k) {
  top.go <- get.top.go(brain, k)
  regress.res <- do.regression(brain, covar, k)
  tabl <- rbind(c("PVE: ", paste0(100 * round(brain$pve[k], 4), "%")),
                c("top tissues: ", get.top.tissues(brain, k)),
                c("overexpressed: ", top.go$over),
                c("underexpressed: ", top.go$under),
                c("age effect: ", regress.res$age),
                c("sex effect: ", regress.res$sex),
                c("race effect: ", regress.res$race),
                c("technical factors:", regress.res$tech))
  return(tabl)
}

all.tables <- function(brain, covar) {
  cat("\n")
  for (k in order(brain$pve, decreasing = TRUE)) {
    print(knitr::kable(do.table(brain, covar, k),
                       caption = paste("Factor", k)))
    cat("\n")
  }
}

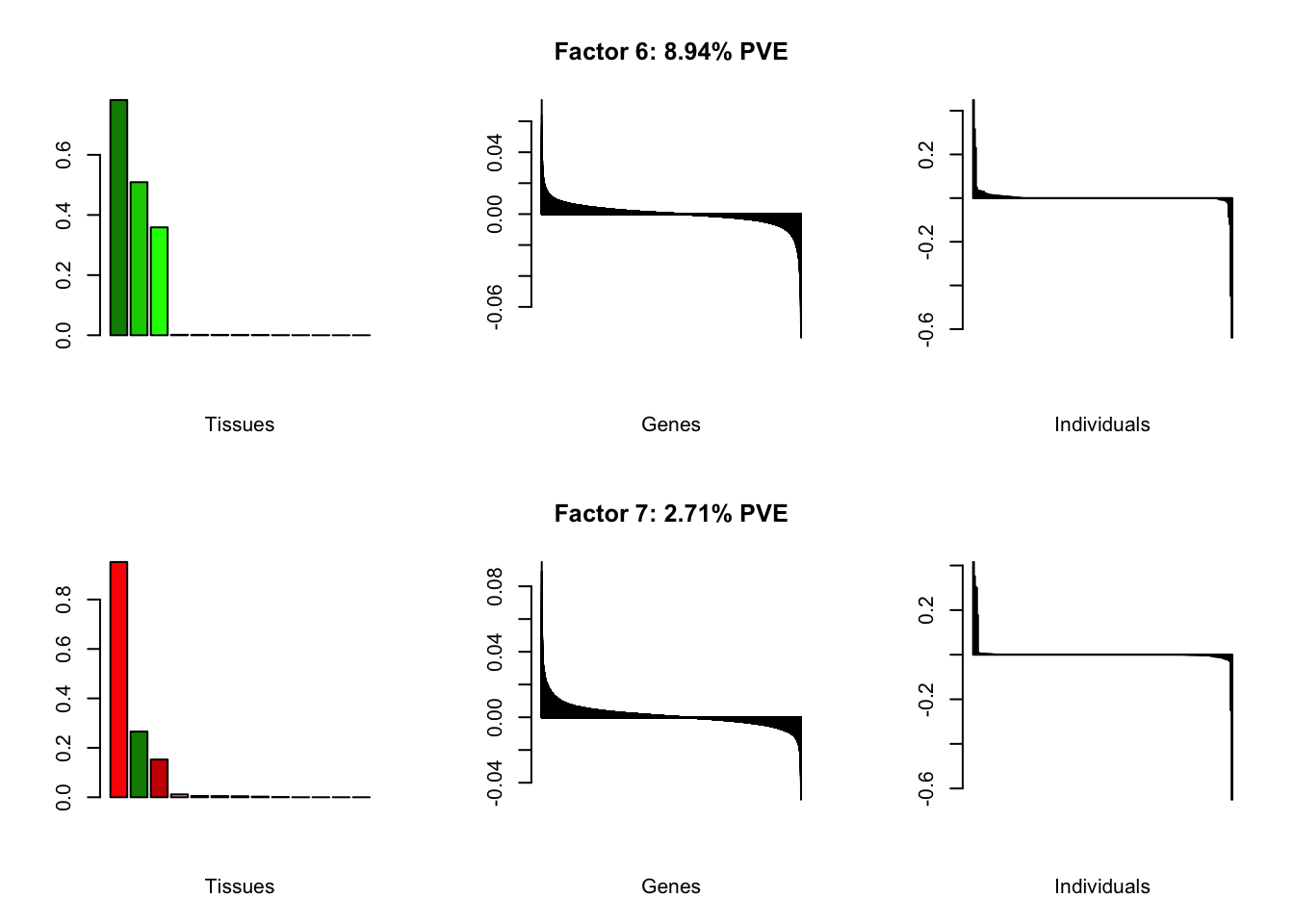

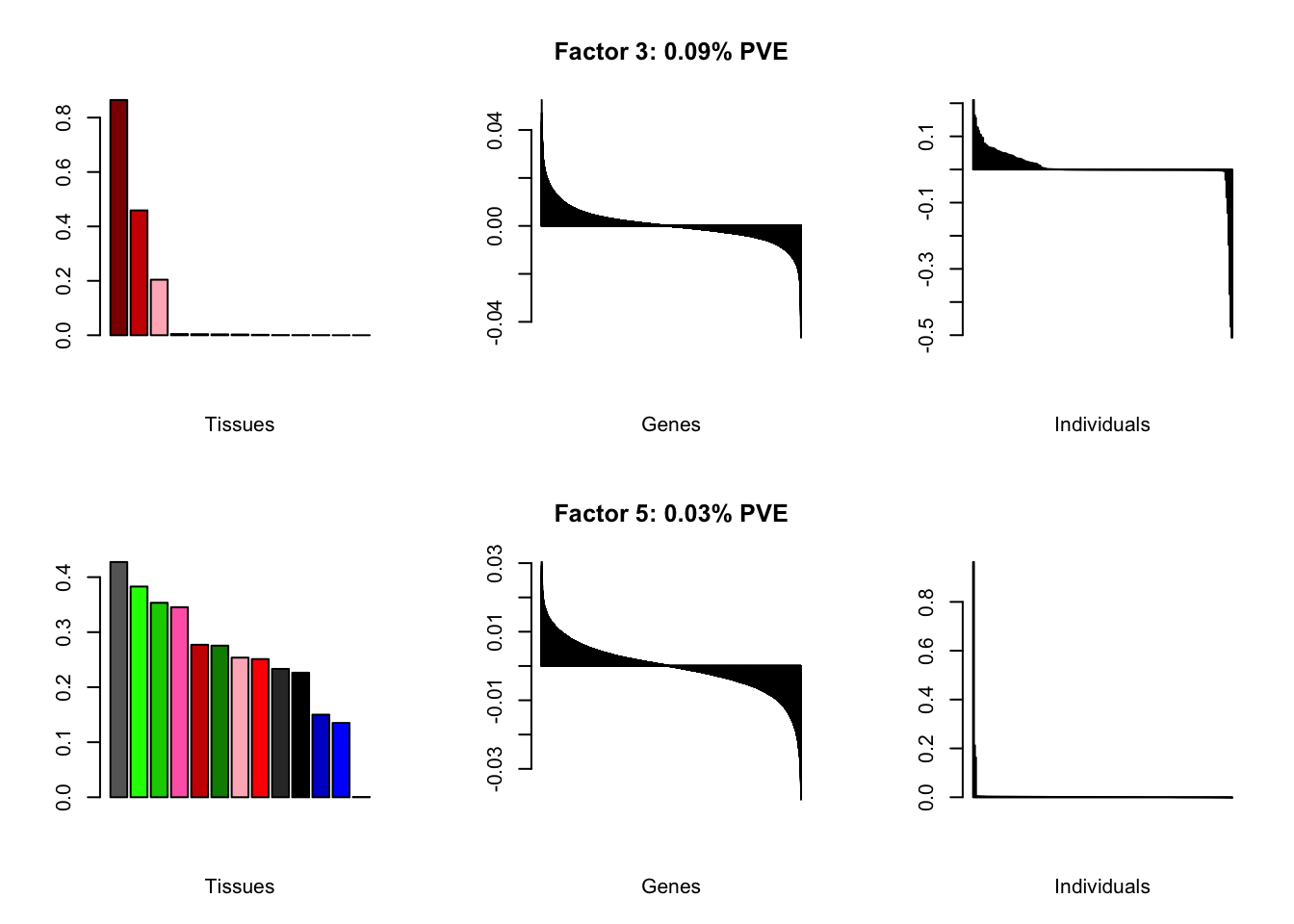

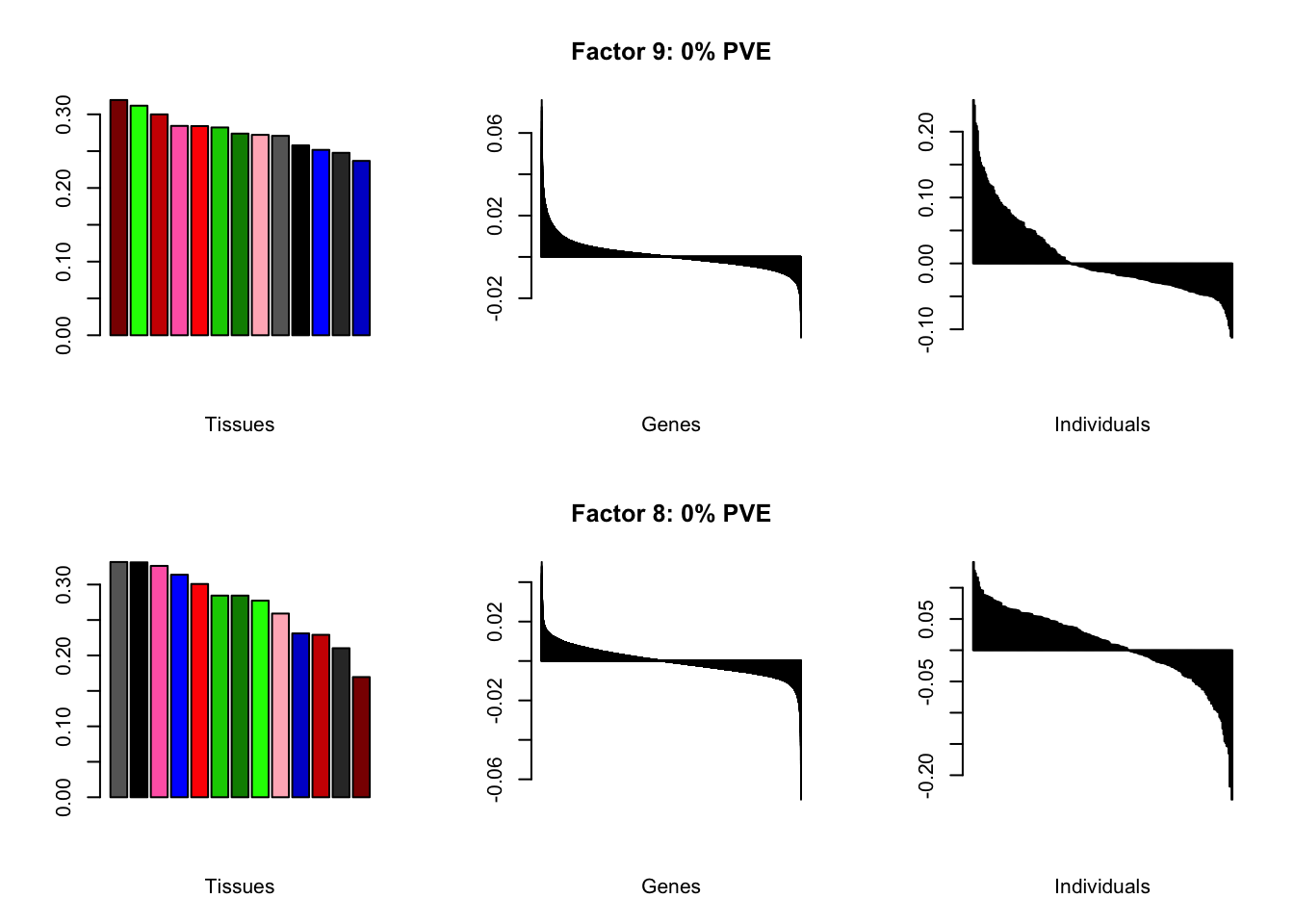

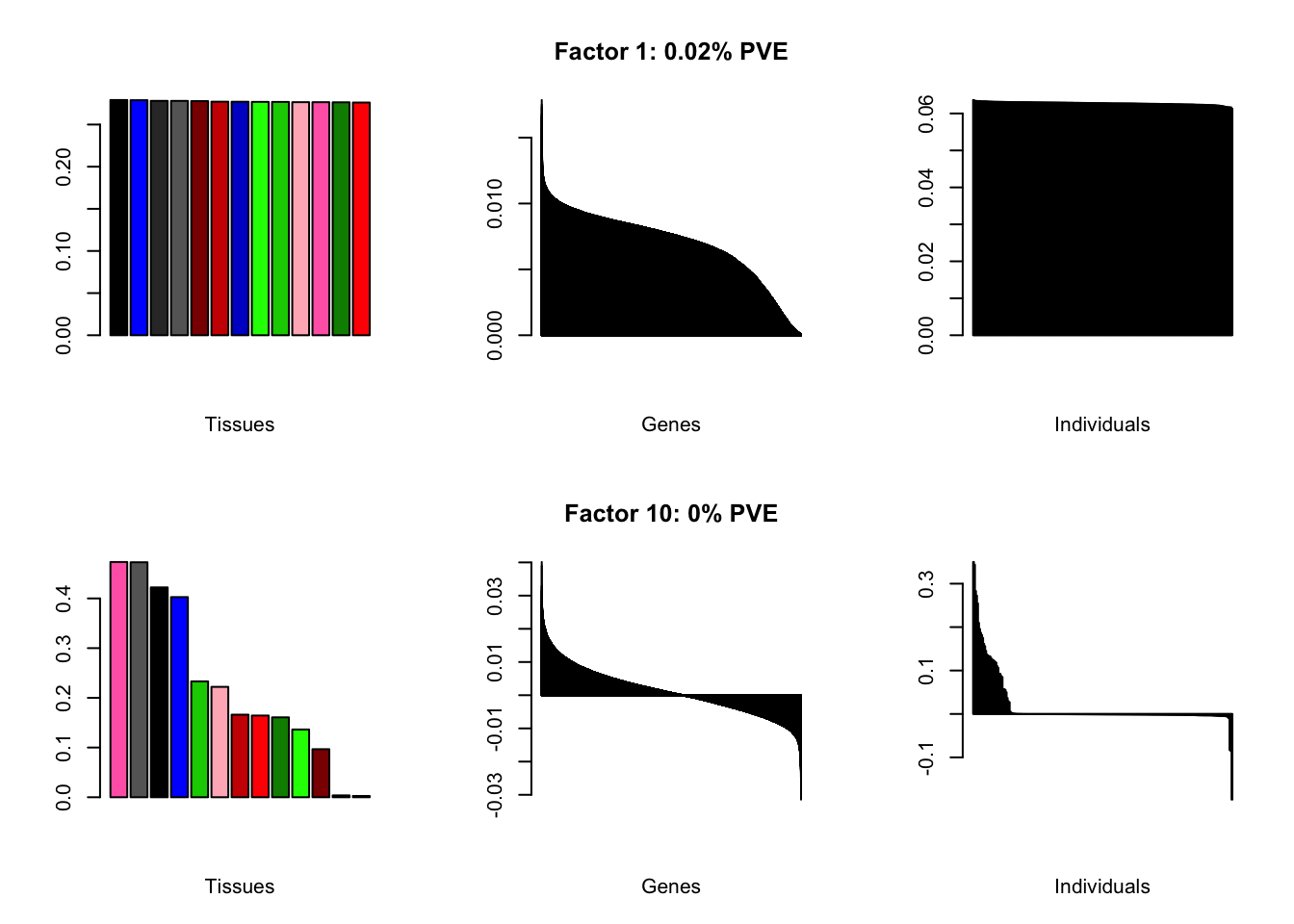

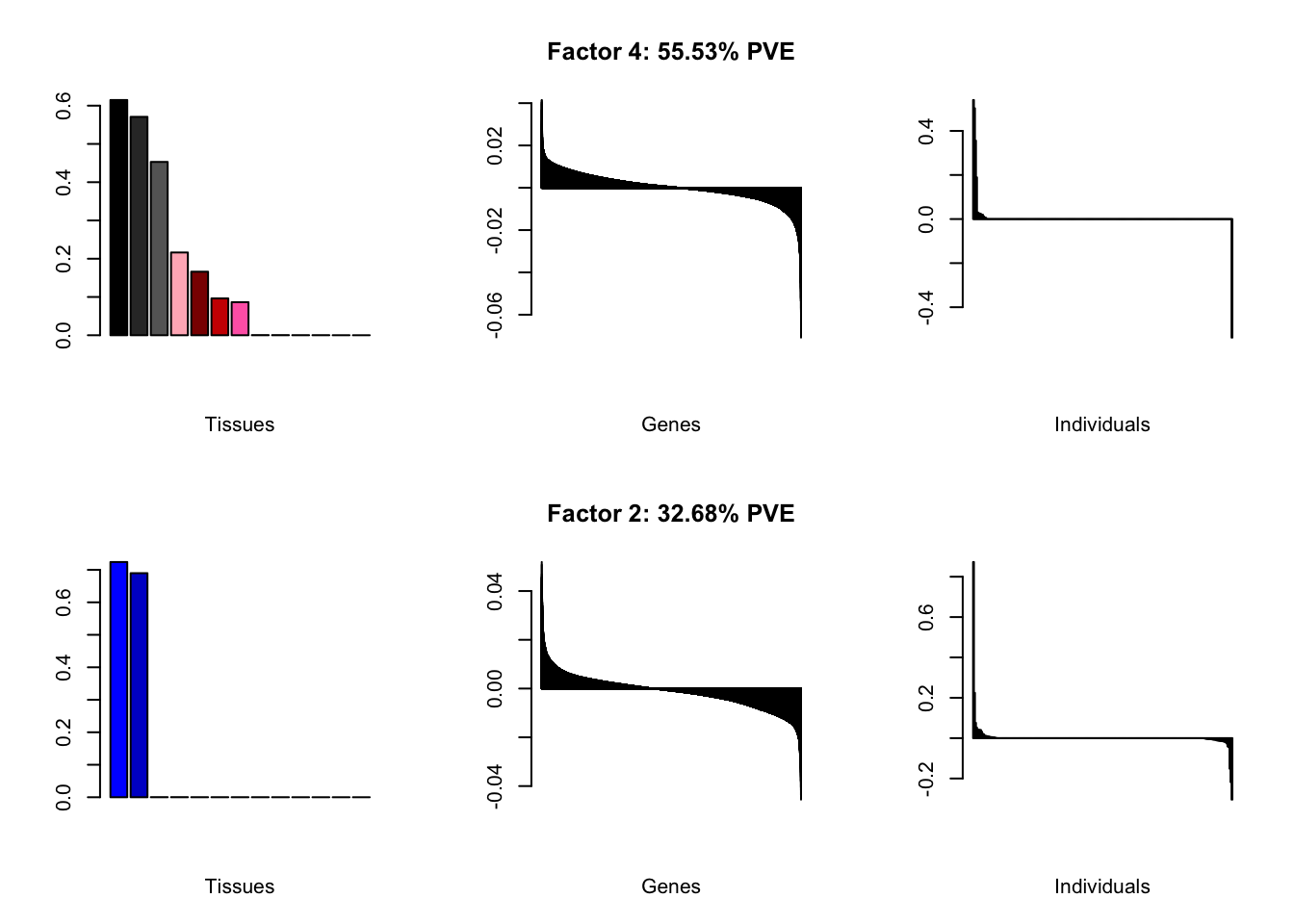

A first attempt

At first, results look good. Different factors clearly correspond to different types of brain tissue. But there are problems….

brain00 <- readRDS("./data/brain/brain00.rds")
brain00 <- align.data(brain00)
all.plots(brain00)

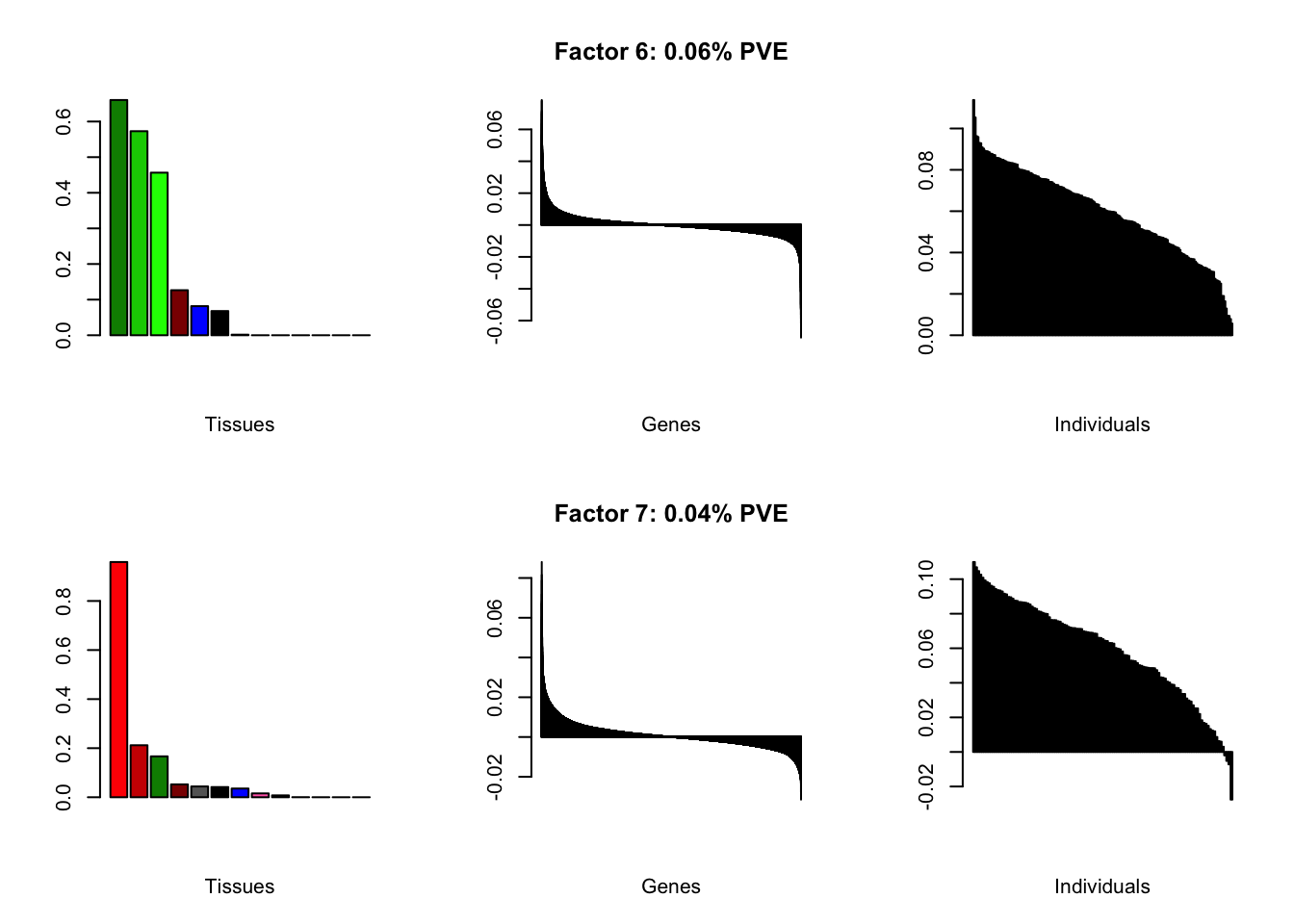

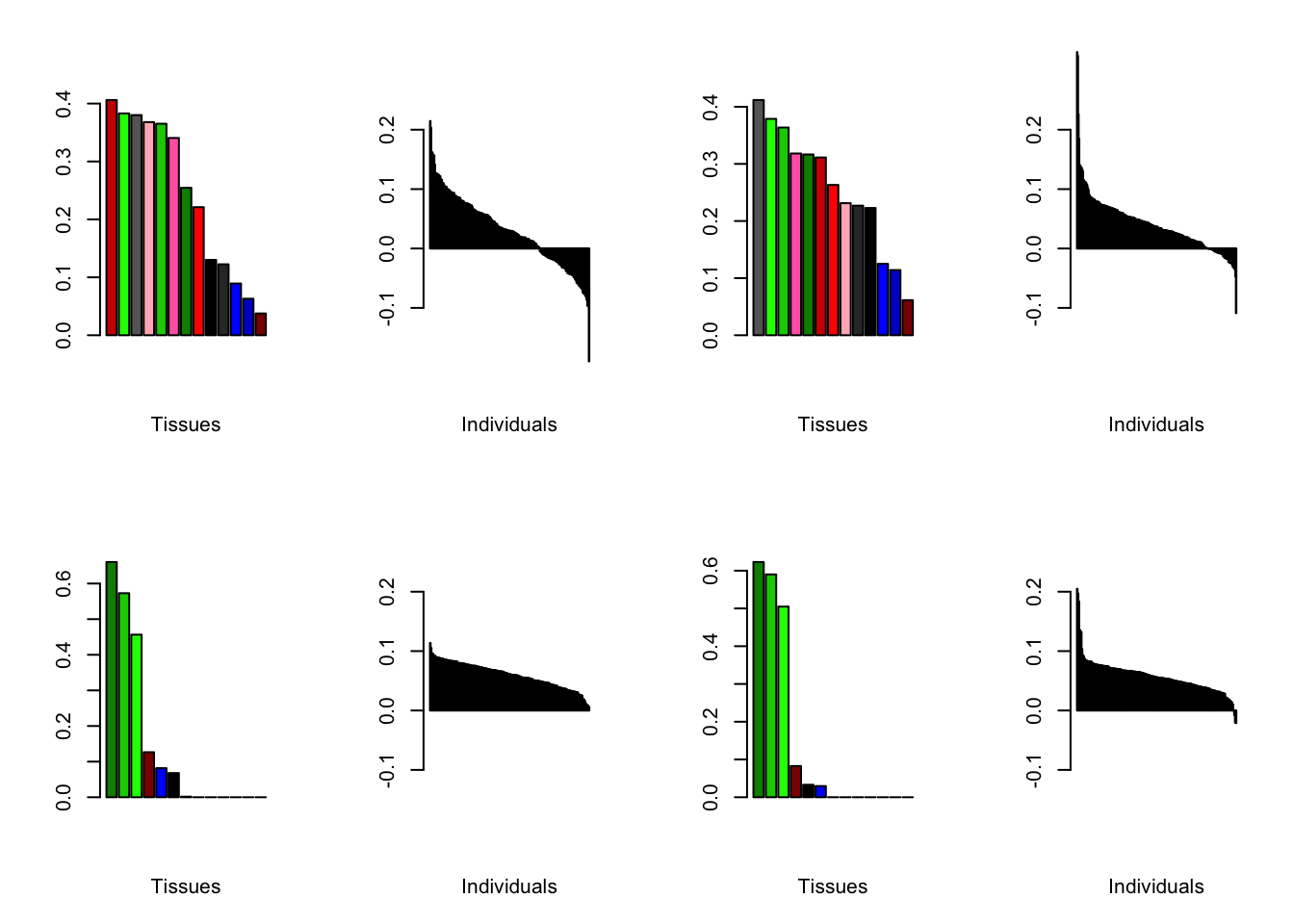

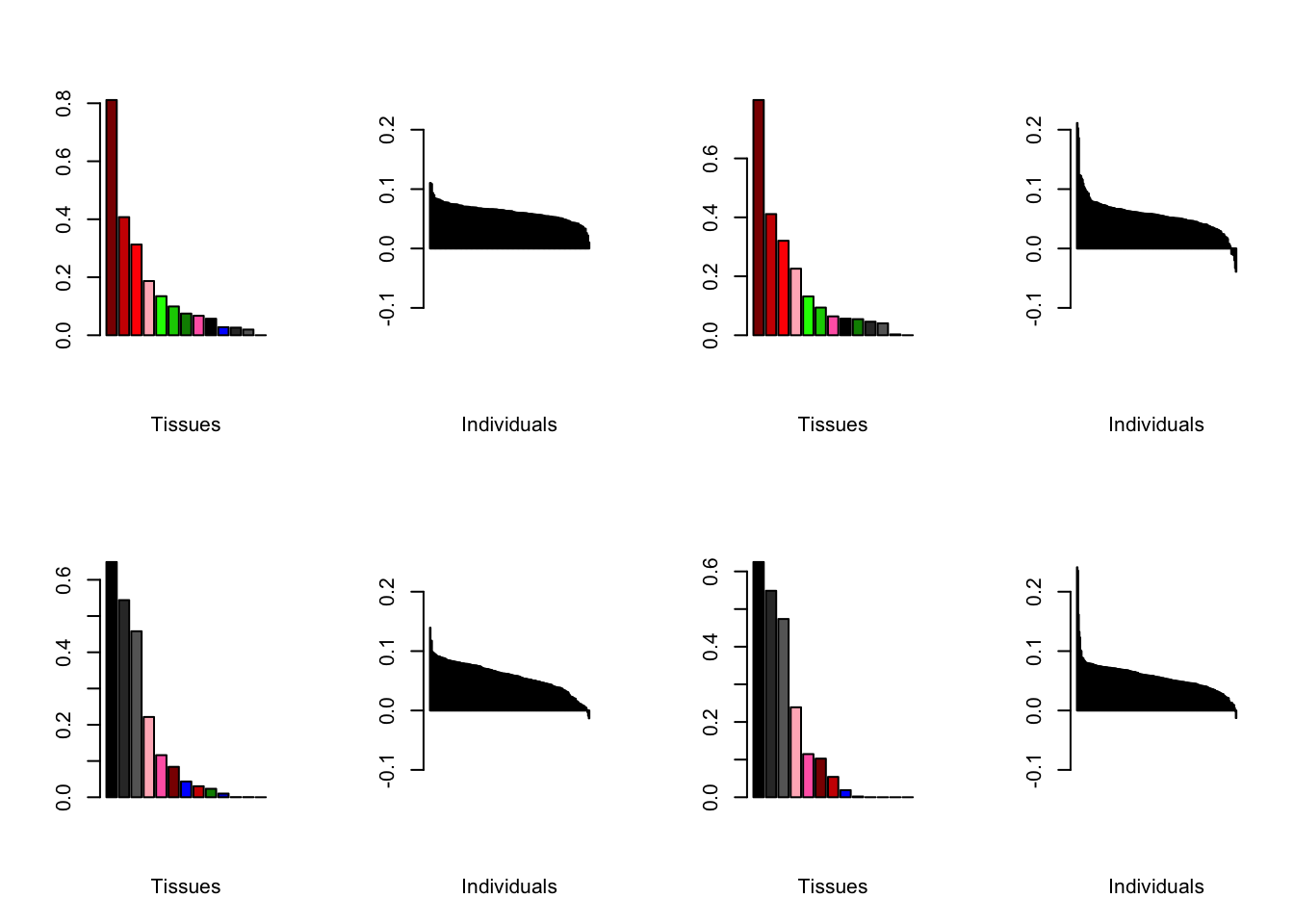

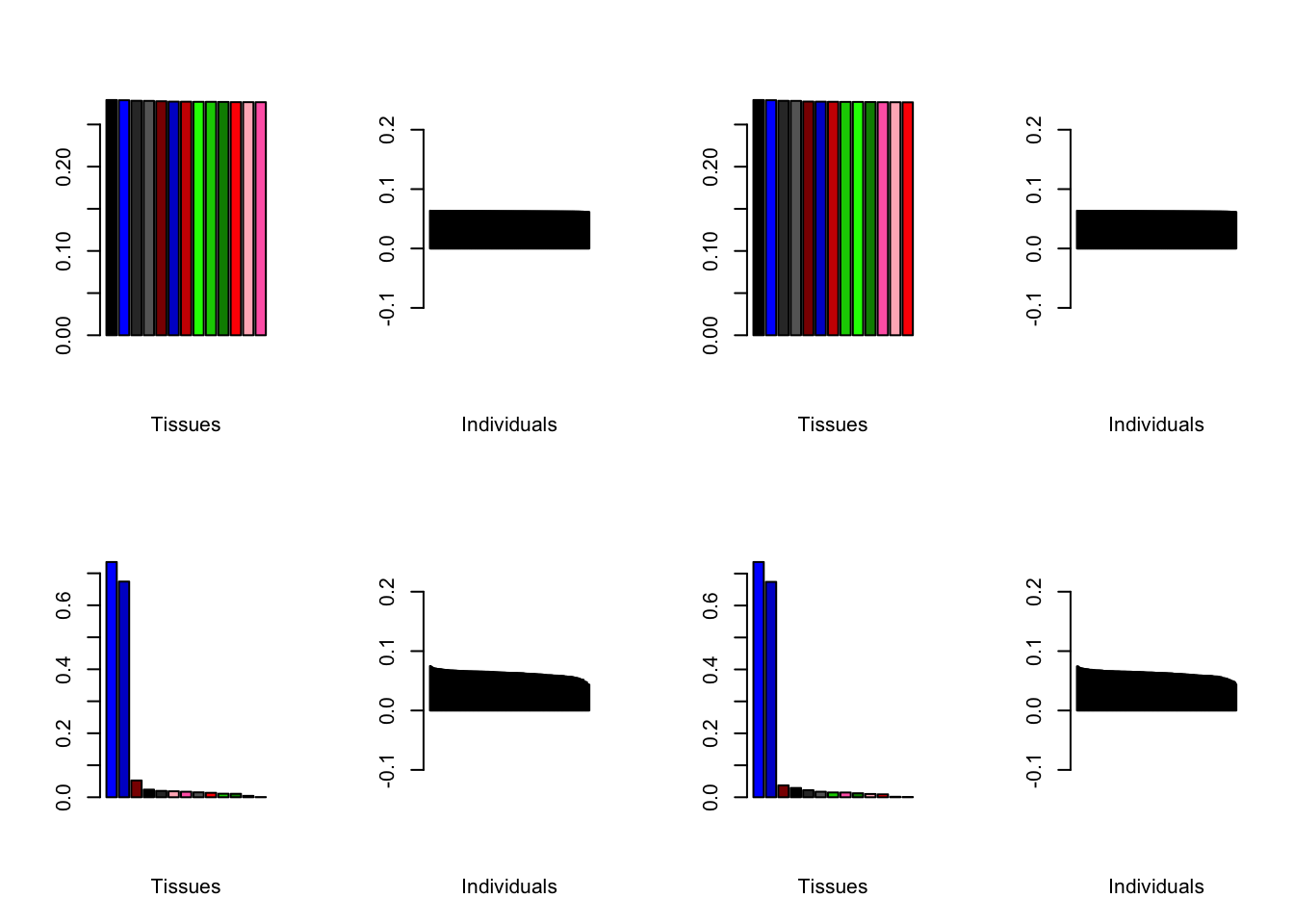

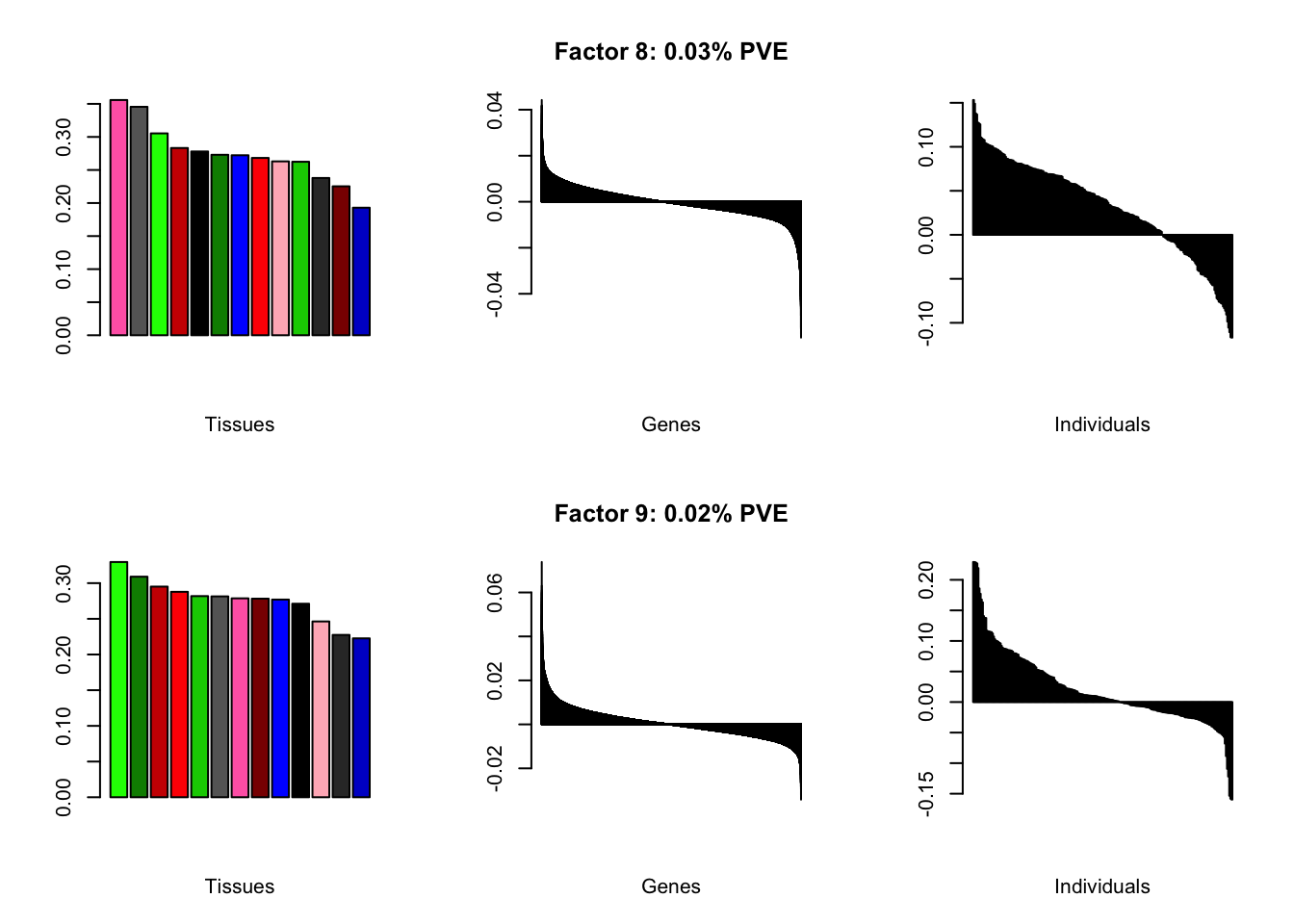

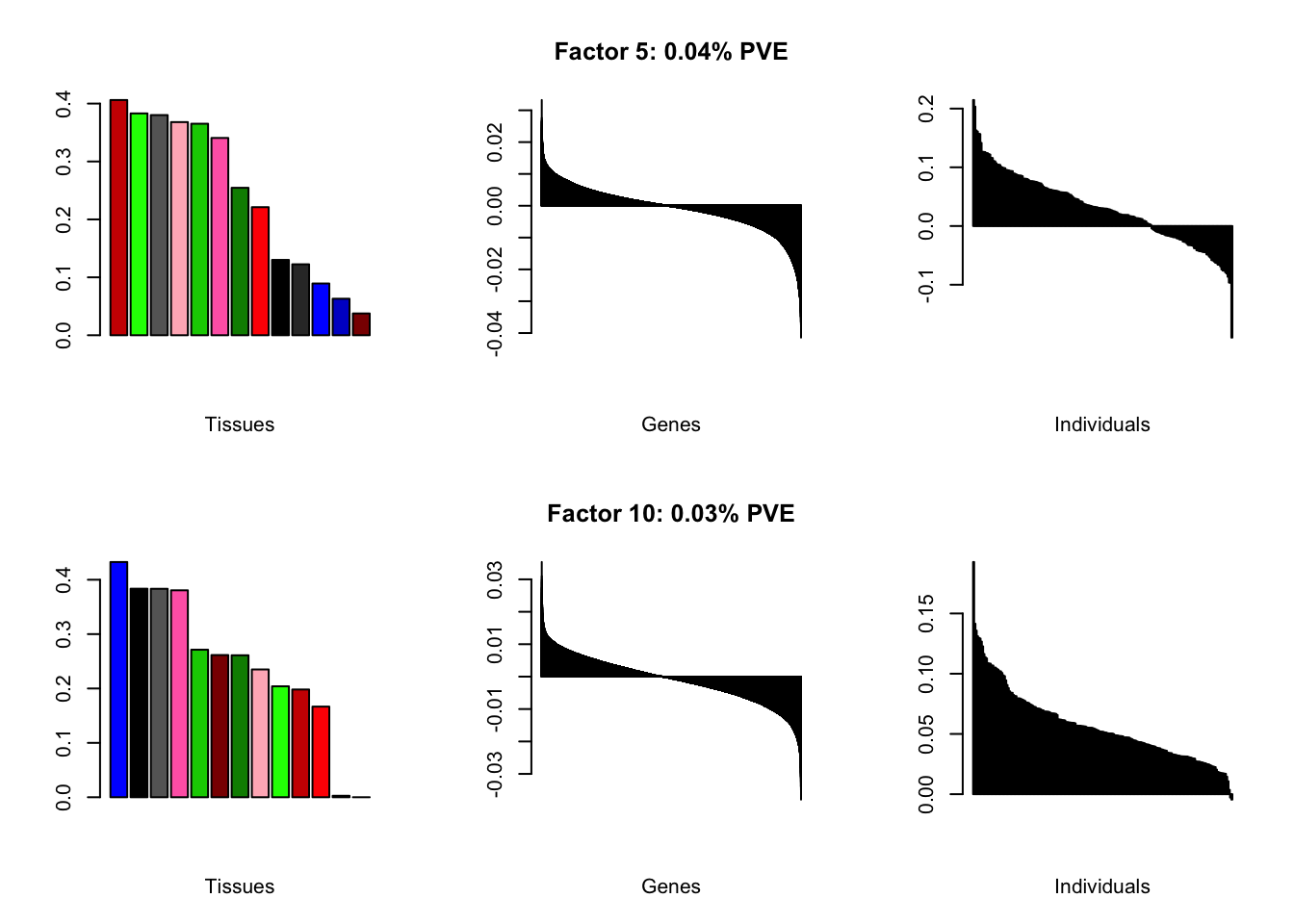

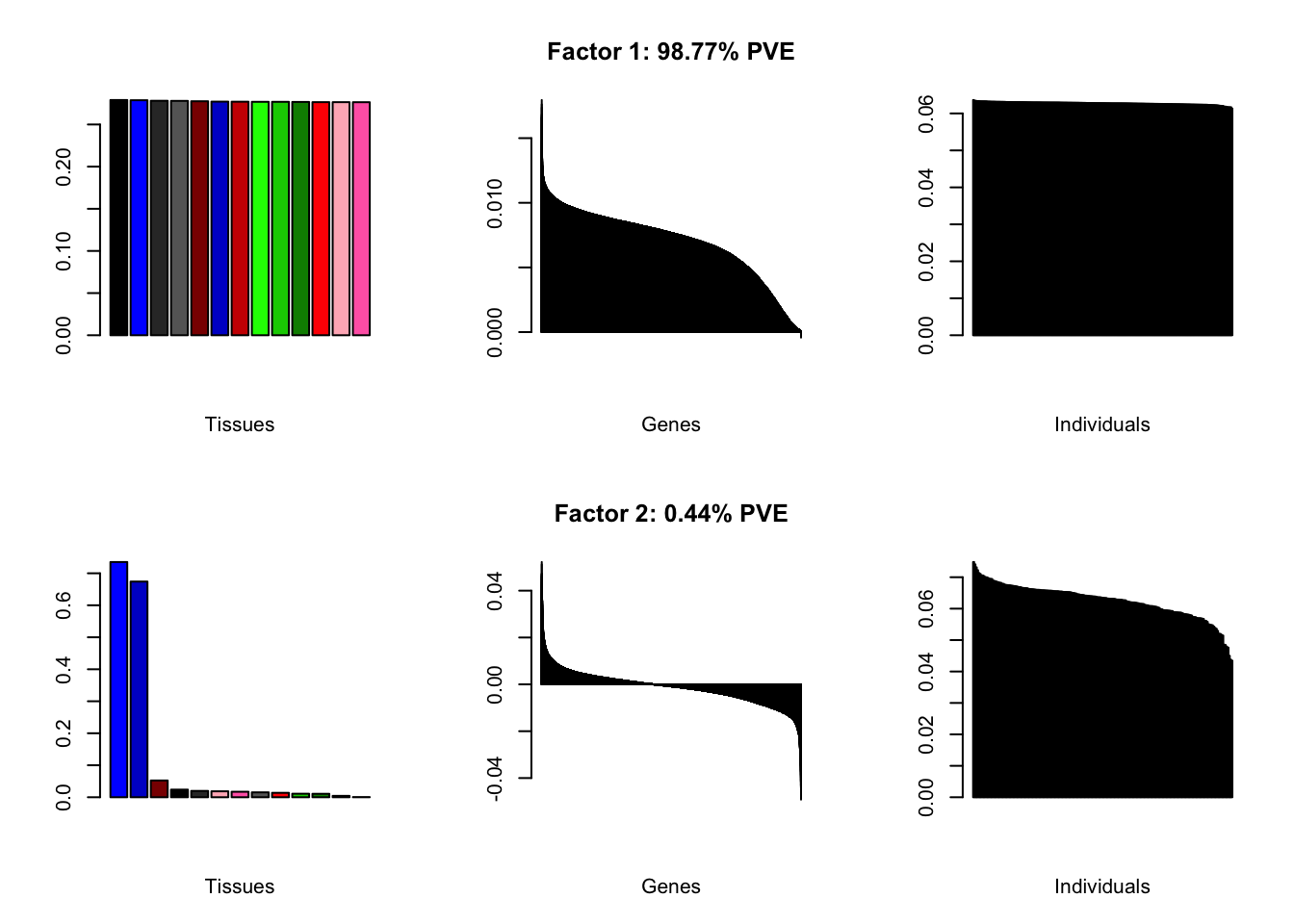

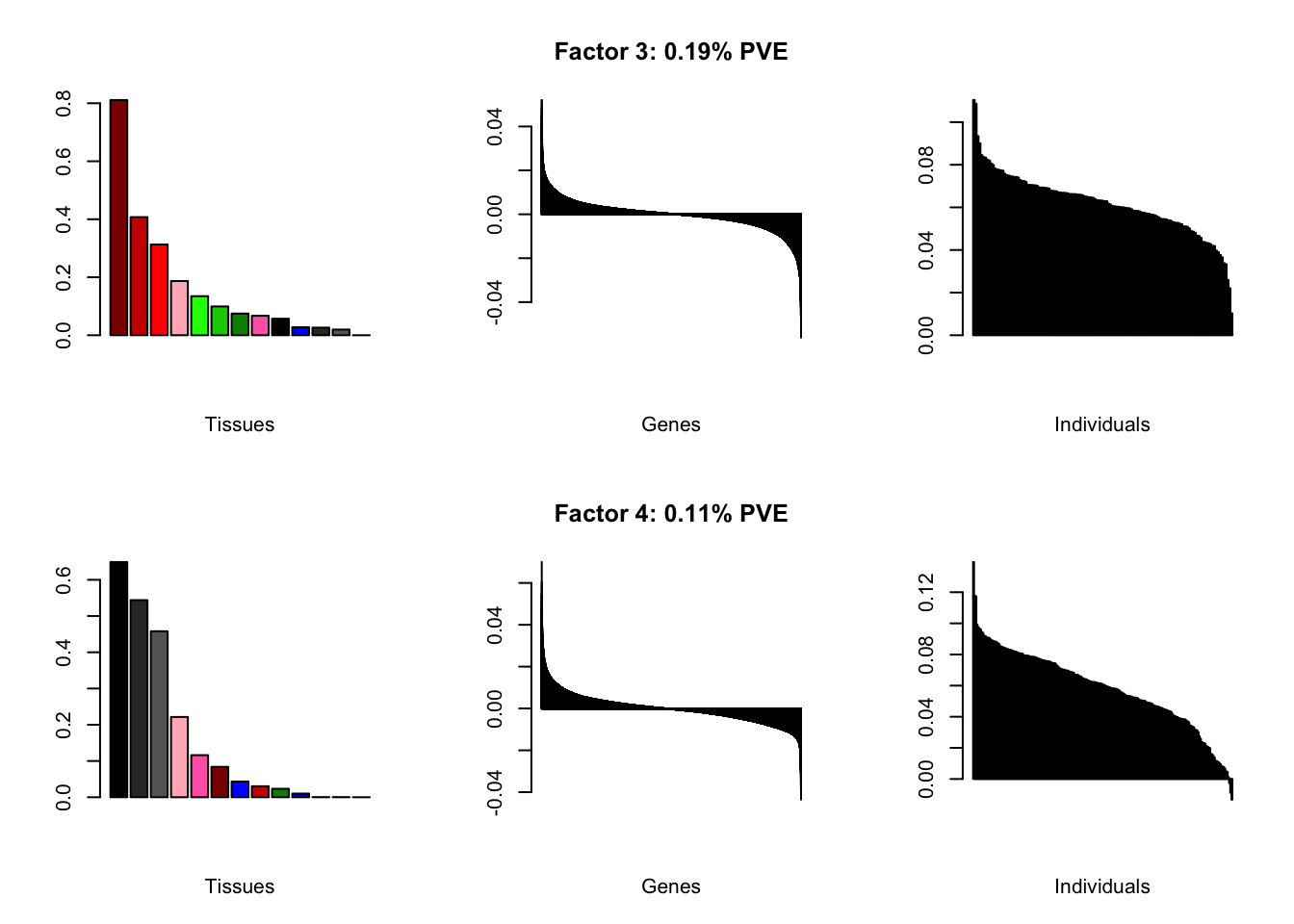

Using a nonmissingness threshold

Results look better.

brain05 <- readRDS("./data/brain/brain05.rds")
brain05 <- align.data(brain05)

brain001 <- readRDS("./data/brain/brain001.rds")
brain001 <- align.data(brain001)

all.plots(brain05)

Factor details

Note, in particular, the large differences from the paper in proportions of variance explained by demographic effects.

covar <- readRDS("~/Downloads/GTEx_v7_brain_covar.rds")
all.tables(brain05, covar)
#>
#> Loading required package: org.Hs.eg.db
#> Loading required package: AnnotationDbi
#> Loading required package: stats4
#> Loading required package: BiocGenerics
#> Loading required package: parallel
#>
#> Attaching package: 'BiocGenerics'
#> The following objects are masked from 'package:parallel':
#>
#>     clusterApply, clusterApplyLB, clusterCall, clusterEvalQ,
#>     clusterExport, clusterMap, parApply, parCapply, parLapply,
#>     parLapplyLB, parRapply, parSapply, parSapplyLB
#> The following objects are masked from 'package:stats':
#>
#>     IQR, mad, sd, var, xtabs
#> The following objects are masked from 'package:base':
#>
#>     anyDuplicated, append, as.data.frame, cbind, colMeans,
#>     colnames, colSums, do.call, duplicated, eval, evalq, Filter,
#>     Find, get, grep, grepl, intersect, is.unsorted, lapply,
#>     lengths, Map, mapply, match, mget, order, paste, pmax,
#>     pmax.int, pmin, pmin.int, Position, rank, rbind, Reduce,
#>     rowMeans, rownames, rowSums, sapply, setdiff, sort, table,
#>     tapply, union, unique, unsplit, which, which.max, which.min
#> Loading required package: Biobase
#> Welcome to Bioconductor
#>
#>     Vignettes contain introductory material; view with
#>     'browseVignettes()'. To cite Bioconductor, see
#>     'citation("Biobase")', and for packages 'citation("pkgname")'.
#> Loading required package: IRanges
#> Loading required package: S4Vectors
#>
#> Attaching package: 'S4Vectors'
#> The following object is masked from 'package:base':
#>
#>     expand.grid
#>

Varying the threshold

Below are plots of loadings with the nonmissingness threshold set at .05 (left) and .001 (right).

all.plots.comparison(brain05, brain001)

Session information

sessionInfo()
#> R version 3.4.3 (2017-11-30)
#> Platform: x86_64-apple-darwin15.6.0 (64-bit)
#> Running under: macOS High Sierra 10.13.6
#>
#> Matrix products: default
#> BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
#> LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib
#>
#> locale:
#> [1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
#>
#> attached base packages:
#> [1] parallel  stats4    stats     graphics  grDevices utils     datasets
#> [8] methods   base
#>
#> other attached packages:
#> [1] org.Hs.eg.db_3.5.0   AnnotationDbi_1.40.0 IRanges_2.12.0
#> [4] S4Vectors_0.16.0     Biobase_2.38.0       BiocGenerics_0.24.0
#>
#> loaded via a namespace (and not attached):
#>  [1] qvalue_2.10.0         clusterProfiler_3.6.0 fgsea_1.4.1
#>  [4] xfun_0.4              purrr_0.2.4           reshape2_1.4.3
#>  [7] splines_3.4.3         colorspace_1.3-2      htmltools_0.3.6
#> [10] yaml_2.2.0            blob_1.1.0            rlang_0.3.0.1
#> [13] R.oo_1.21.0           pillar_1.2.1          glue_1.3.0
#> [16] DBI_0.7               R.utils_2.6.0         BiocParallel_1.12.0
#> [19] bit64_0.9-7           bindrcpp_0.2          rvcheck_0.1.3
#> [22] plyr_1.8.4            bindr_0.1             stringr_1.3.1
#> [25] munsell_0.5.0         GOSemSim_2.4.1        gtable_0.2.0
#> [28] workflowr_1.0.1       flashier_0.1.0        R.methodsS3_1.7.1
#> [31] memoise_1.1.0         evaluate_0.12         knitr_1.20.22
#> [34] highr_0.7             Rcpp_1.0.0            backports_1.1.2
#> [37] scales_1.0.0          DO.db_2.9             bit_1.1-12
#> [40] gridExtra_2.3         fastmatch_1.1-0       ggplot2_3.1.0
#> [43] digest_0.6.18         stringi_1.2.4         dplyr_0.7.4
#> [46] rprojroot_1.3-2       grid_3.4.3            DOSE_3.4.0
#> [49] tools_3.4.3           magrittr_1.5          lazyeval_0.2.1
#> [52] tibble_1.4.2          RSQLite_2.0           tidyr_0.7.2
#> [55] whisker_0.3-2         GO.db_3.5.0           pkgconfig_2.0.1
#> [58] data.table_1.10.4-3   assertthat_0.2.0      rmarkdown_1.10
#> [61] R6_2.3.0              igraph_1.1.2          git2r_0.21.0
#> [64] compiler_3.4.3
