Introduction

Here I use ebnm_ash to see if I obtain similar decreases in the objective function as were obtained in the previous investigation.

Fits

I use the same dataset as in the previous investigation.

# devtools::install_github("stephenslab/flashr", ref="trackObj")
devtools::load_all("/Users/willwerscheid/GitHub/flashr")
Loading flashr
# devtools::install_github("stephenslab/ebnm")
devtools::load_all("/Users/willwerscheid/GitHub/ebnm")
Loading ebnm
gtex <- readRDS(gzcon(url("https://github.com/stephenslab/gtexresults/blob/master/data/MatrixEQTLSumStats.Portable.Z.rds?raw=TRUE")))
strong <- gtex$strong.z

I fit four factors greedily using both ebnm_pn and ebnm_ash.

pn_res <- flash_add_greedy(strong, Kmax=4, verbose=FALSE)
fitting factor/loading 1
fitting factor/loading 2
fitting factor/loading 3
fitting factor/loading 4
ash_res <- flash_add_greedy(strong, Kmax=4, ebnm_fn = "ebnm_ash",
                            verbose=FALSE)
fitting factor/loading 1
fitting factor/loading 2
fitting factor/loading 3
fitting factor/loading 4
plot_obj <- function(res, k, niters) {
  obj_data <- as.vector(rbind(res$obj[[k]]$after_tau,
                              res$obj[[k]]$after_f,
                              res$obj[[k]]$after_l))
  max_obj <- max(obj_data)
  obj_data <- obj_data - max_obj
  iter <- 1:length(obj_data) / 3

  if (length(obj_data) > niters*3) {
    idx <- (length(obj_data) - niters*3 + 1):length(obj_data)
    obj_data <- obj_data[idx]
    iter <- iter[idx]
  }

  plt_xlab = "Iteration"
  plt_ylab = "Diff. from maximum obj."
  plt_colors <- c("indianred1", "indianred3", "indianred4")
  plt_pch <- c(16, 17, 15)

  plot(iter, obj_data, col=plt_colors, pch=plt_pch,
       xlab=plt_xlab, ylab=plt_ylab)
  legend("bottomright", c("after tau", "after f", "after l"),
         col=plt_colors, pch=plt_pch)
}

Results: ebnm_pn

The problem discussed in the previous investigation occurs every time.

plot_obj(pn_res, 1, niters=3)

Expand here to see past versions of plot_pn-1.png:
Version Author Date
019bf35 Jason Willwerscheid 2018-07-15

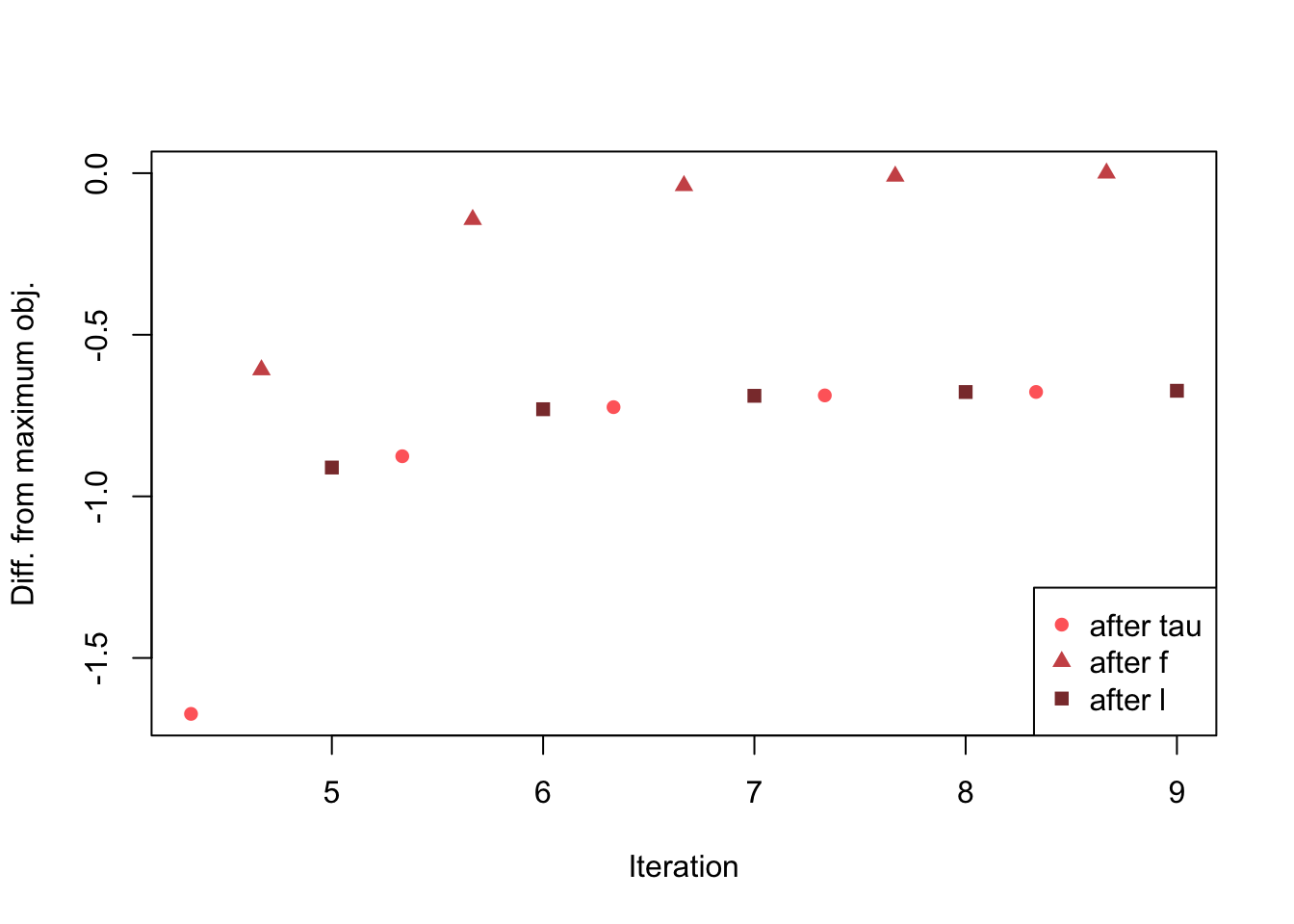

plot_obj(pn_res, 2, niters=5)

Expand here to see past versions of plot_pn-2.png:
Version Author Date
019bf35 Jason Willwerscheid 2018-07-15

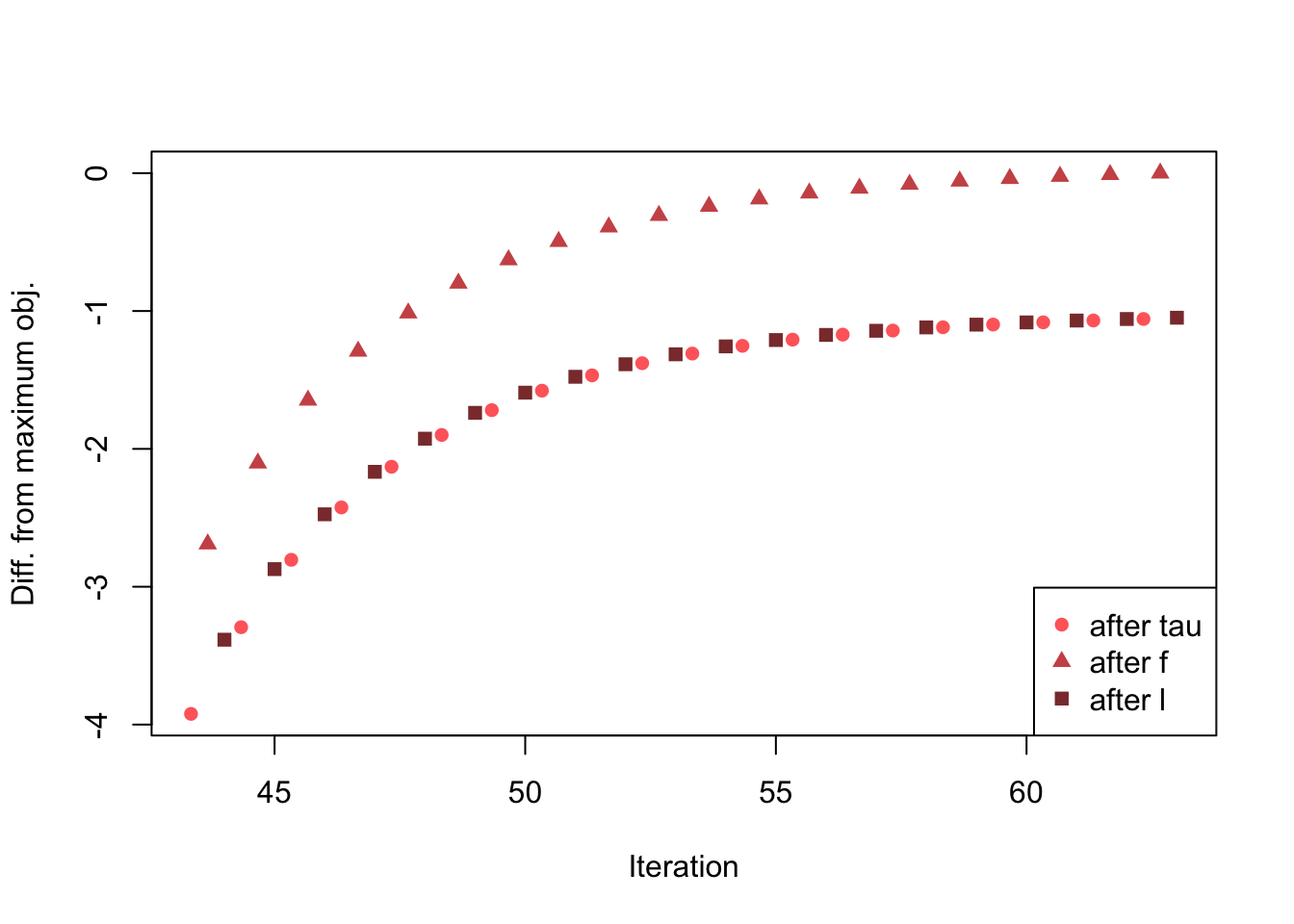

plot_obj(pn_res, 3, niters=20)

Expand here to see past versions of plot_pn-3.png:
Version Author Date
019bf35 Jason Willwerscheid 2018-07-15

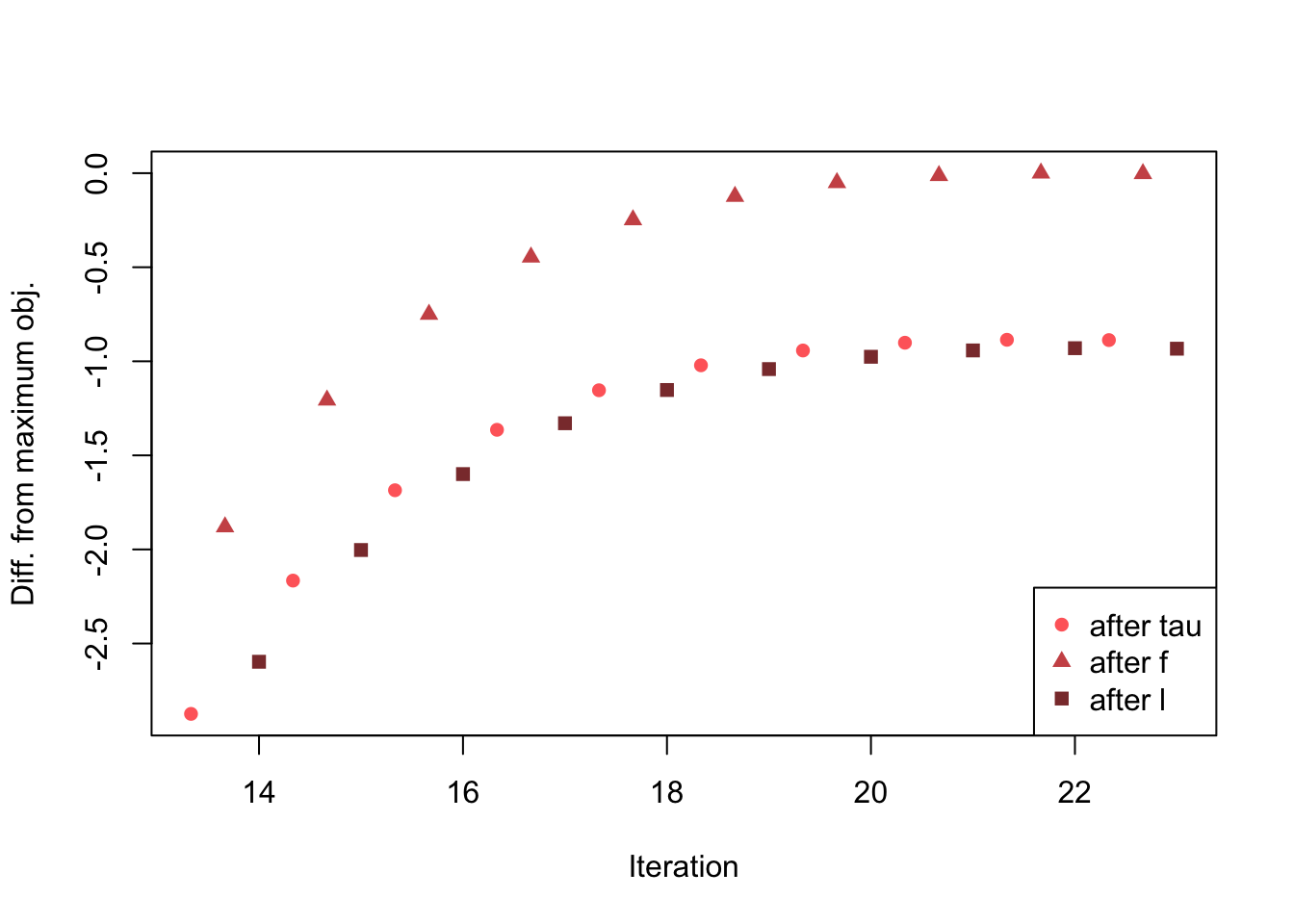

plot_obj(pn_res, 4, niters=10)

Expand here to see past versions of plot_pn-4.png:
Version Author Date
019bf35 Jason Willwerscheid 2018-07-15

Results: ebnm_ash

But no obvious problems occur when using ebnm_ash.

plot_obj(ash_res, 1, niters=3)

Expand here to see past versions of plot_ash-1.png:
Version Author Date
019bf35 Jason Willwerscheid 2018-07-15

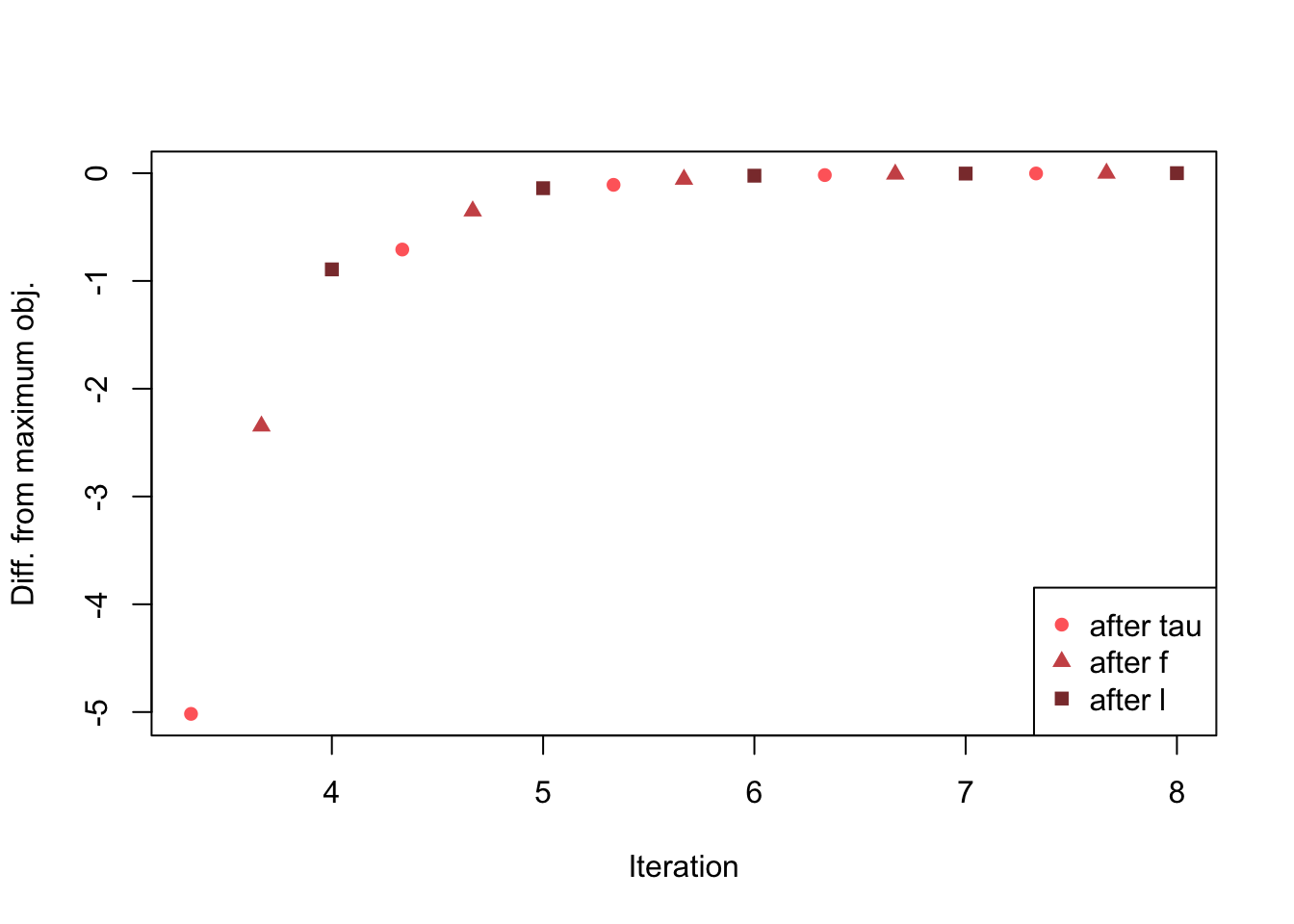

plot_obj(ash_res, 2, niters=5)

Expand here to see past versions of plot_ash-2.png:
Version Author Date
019bf35 Jason Willwerscheid 2018-07-15

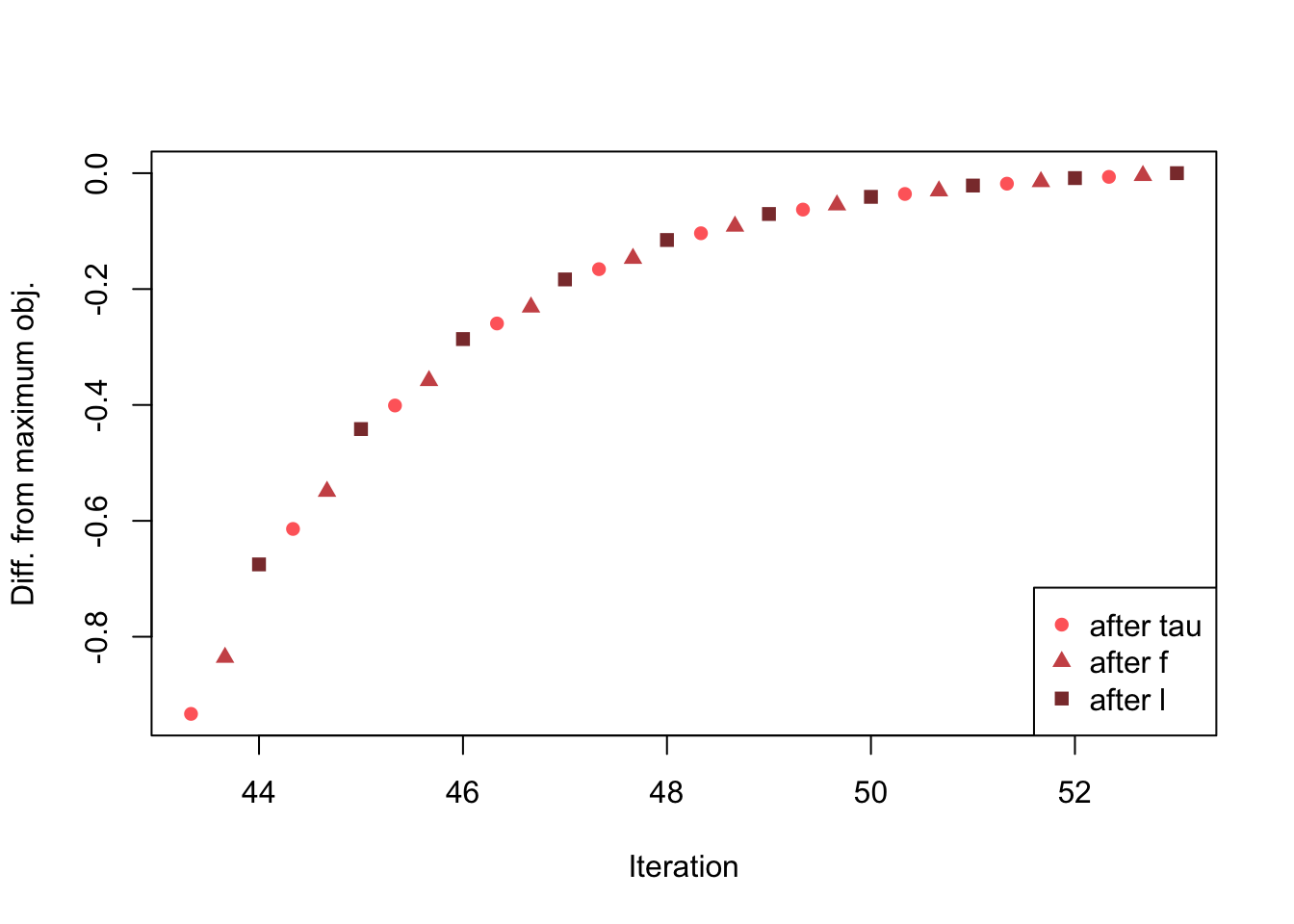

plot_obj(ash_res, 3, niters=10)

Expand here to see past versions of plot_ash-3.png:
Version Author Date
019bf35 Jason Willwerscheid 2018-07-15

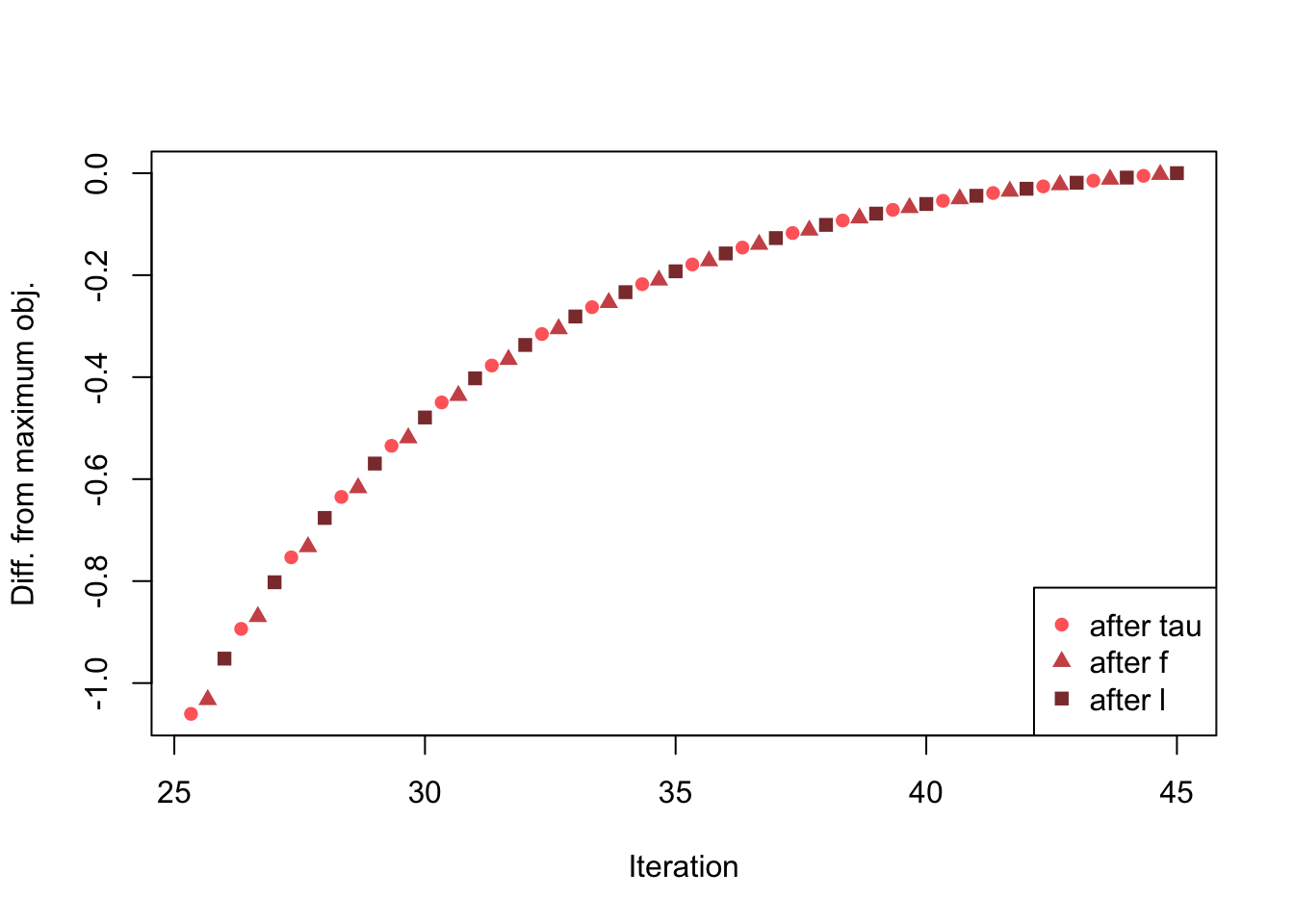

plot_obj(ash_res, 4, niters=20)

Expand here to see past versions of plot_ash-4.png:
Version Author Date
019bf35 Jason Willwerscheid 2018-07-15

Conclusions

When using ebnm_ash, the objective does not suffer from the same erratic behavior as when using ebnm_pn. Is there a weird bug somewhere in the computation of the likelihood function for ebnm_pn?
