Nonnegative FLASH example

Introduction

Nonnegative matrix factorization is straightforward in FLASH; we need only put a class of nonnegative priors on the factors and loadings. In ASH, the +uniform priors constitute such a class (and, at present, this is the only such class in ASH).

As an example of nonnegative matrix factorization via FLASH, I analyze the GTEx donation matrix.

Data

First I set up the donation matrix. As in previous analyses, I use GTEx v6 data rather than the more recent v7 data.

raw <- read.csv("https://storage.googleapis.com/gtex_analysis_v6/annotations/GTEx_Data_V6_Annotations_SampleAttributesDS.txt",
                header=TRUE, sep='\t')

data <- raw[, c("SAMPID", "SMTSD")] # sample ID, tissue type
tmp <- strsplit(as.character(data$SAMPID), "-")
# Extract donor ID:
data$SAMPID <- as.factor(sapply(tmp, function(x) {x[[2]]}))
names(data) <- c("DonorID", "TissueType")

data <- suppressMessages(reshape2::acast(data, TissueType ~ DonorID))

missing.tissues <- c(1, 8, 9, 20, 21, 24, 26, 27, 33, 36, 39)
data <- data[-missing.tissues, ]

gtex.colors <- read.table("https://github.com/stephenslab/gtexresults/blob/master/data/GTExColors.txt?raw=TRUE",
                          sep = '\t', comment.char = '')
gtex.colors <- gtex.colors[-c(7, 8, 19, 20, 24, 25, 31, 34, 37), 2]
gtex.colors <- as.character(gtex.colors)

Initialization function

We can likely do better than using the default SVD-type initialization. Here I use the nonnegative matrix factorization implemented in package NNLM.

udv_nn = function(Y, K = 1) {
  tmp = NNLM::nnmf(Y, K, verbose = FALSE)
  return(list(d = rep(1, K), u = tmp$W, v = t(tmp$H)))
}

Greedy loadings

One round of greedily adding factors and then backfitting produces five factor/loading pairs, but repeated rounds yield additional factor/loadings. Here I do three rounds of fitting. I obtain the following loadings:

devtools::load_all("~/GitHub/flashr")

Loading flashr

devtools::load_all("~/GitHub/ebnm")

Loading ebnm

ebnm_fn = "ebnm_ash"
ebnm_param = list(mixcompdist = "+uniform", warmstart = TRUE)

run_flash_once <- function(f_init) {
  flash(data, f_init = f_init,
        ebnm_fn = ebnm_fn, ebnm_param = ebnm_param,
        var_type="constant", init_fn = udv_nn,
        backfit = TRUE, verbose = FALSE)
}

fl_g <- run_flash_once(f_init = NULL)

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in mixIP(matrix_lik = structure(c(0, 0, 0, 0, 0, 0, 0, 0, 0,
0, : Optimization step yields mixture weights that are either too small,
or negative; weights have been corrected and renormalized after the
optimization.

fl_g <- run_flash_once(f_init = fl_g)

Warning in verbose_obj_decrease_warning(): An iteration decreased the
objective. This happens occasionally, perhaps due to numeric reasons.
You could ignore this warning, but you might like to check out https://
github.com/stephenslab/flashr/issues/26 for more details.

fl_g <- run_flash_once(f_init = fl_g)
fl_g$objective

[1] -15156.65

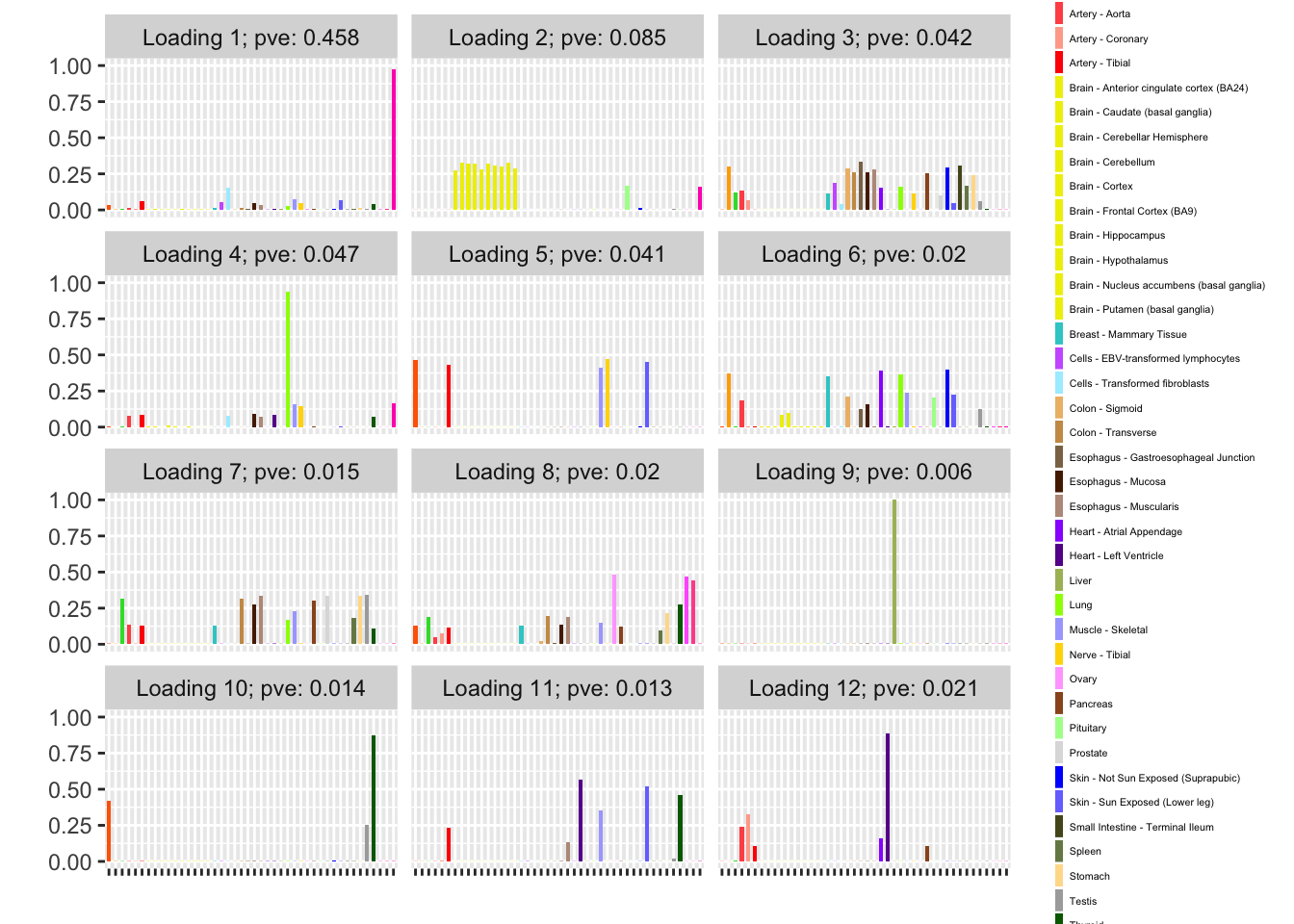

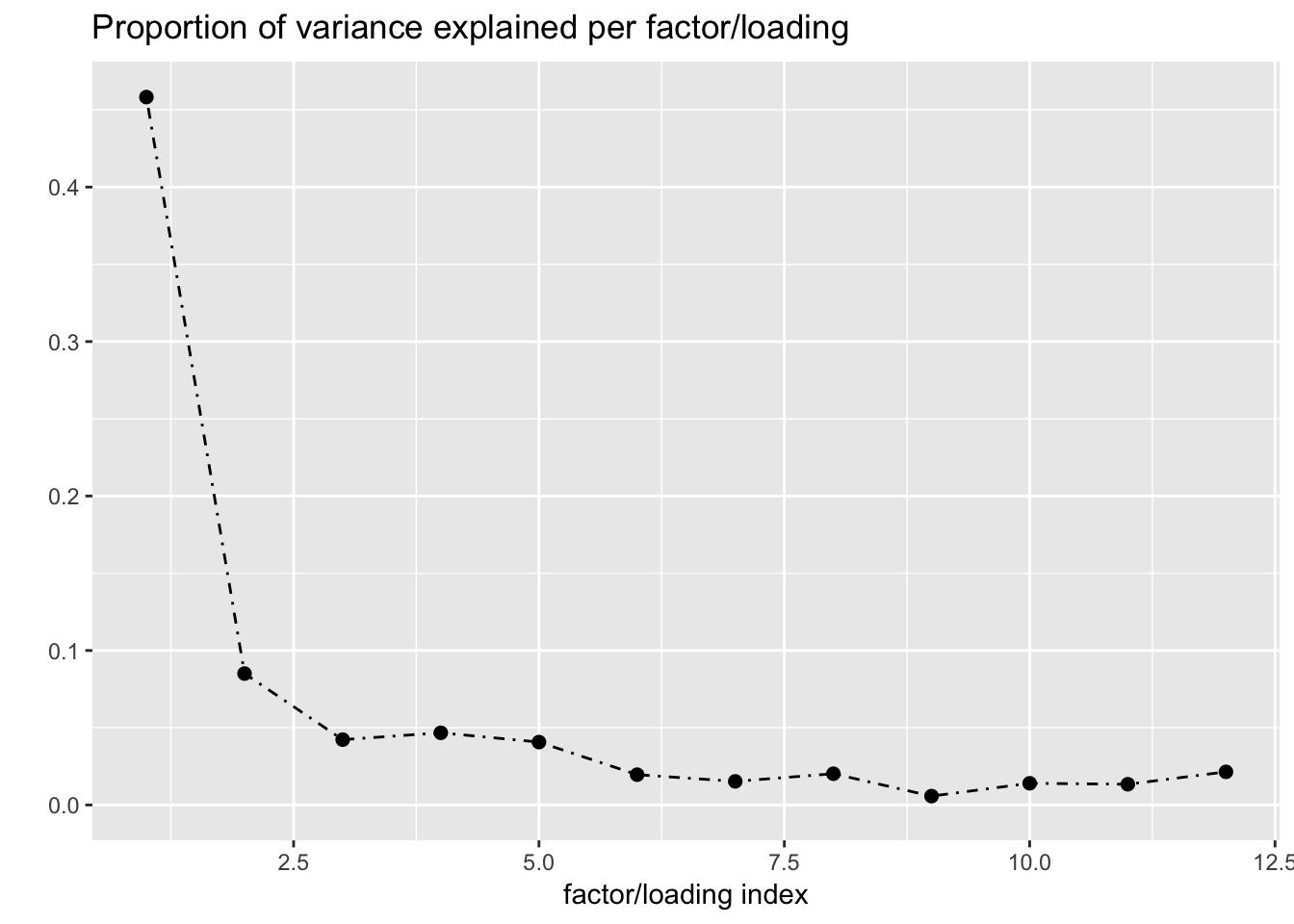

plot(fl_g, plot_loadings = TRUE, loading_colors = gtex.colors,
     loading_legend_size = 4,
     plot_grid_nrow = 4, plot_grid_ncol = 3)

Backfitted loadings

Next I add 12 factors at once using NNLM and then backfit. Note that the objective obtained using this method is significantly better than the above.

fl_nnmf <- flash_add_factors_from_data(data, 12,
                                       init_fn = udv_nn,
                                       backfit = FALSE)

fl_b <- flash_backfit(data, fl_nnmf,
                      ebnm_fn = ebnm_fn,
                      ebnm_param = ebnm_param,
                      var_type = "constant",
                      verbose = FALSE)
fl_b$objective

[1] -14666.36

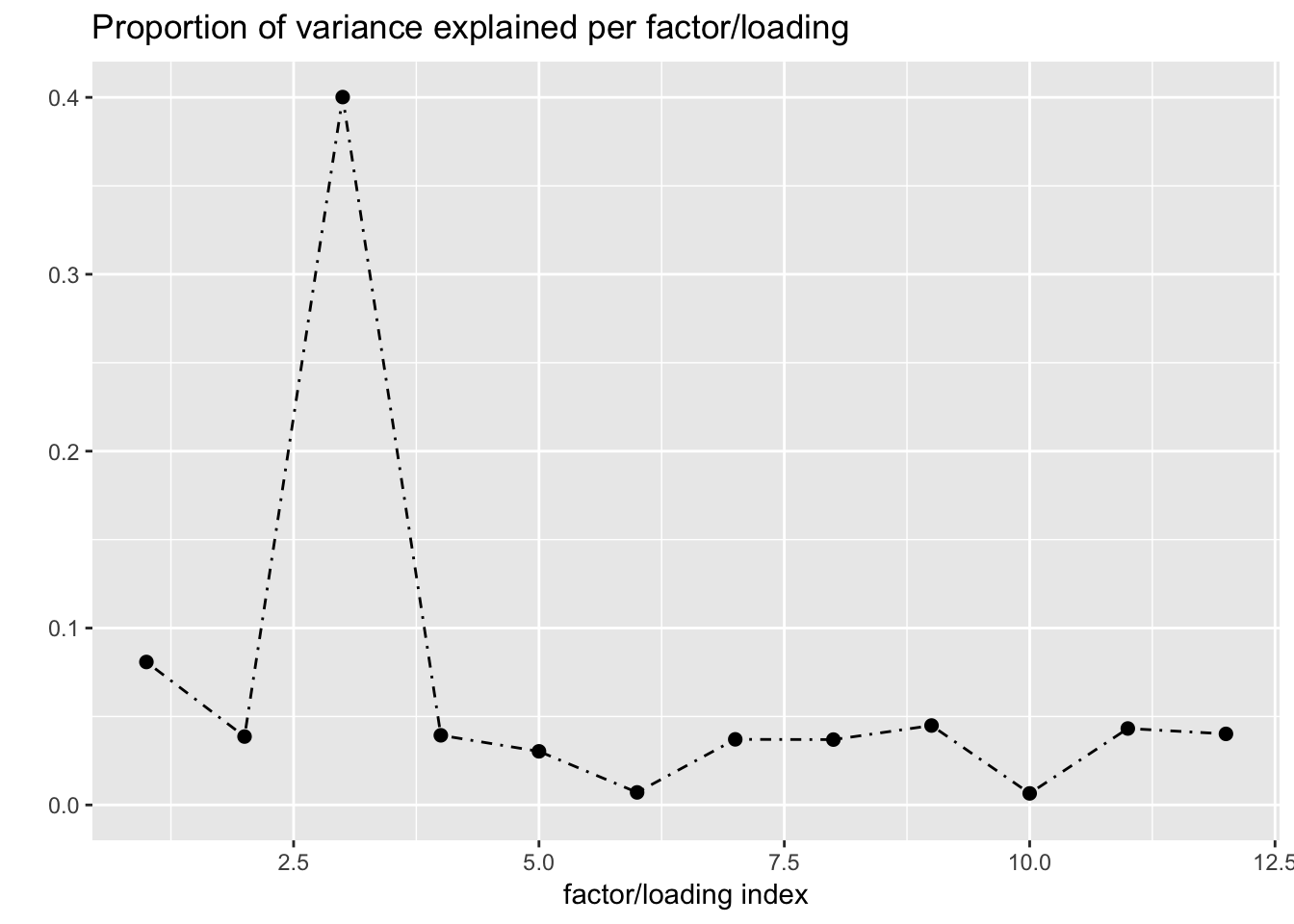

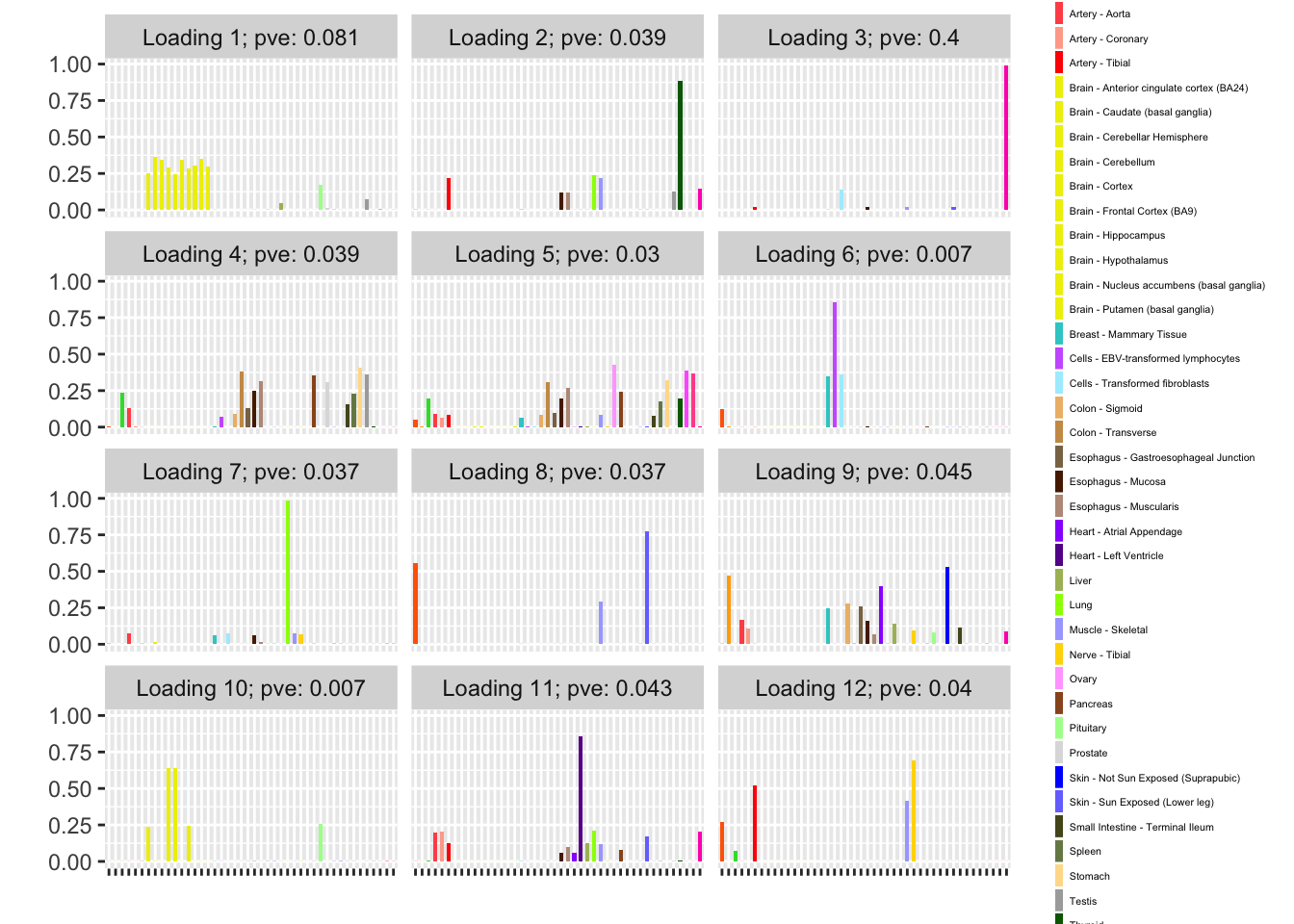

plot(fl_b, plot_loadings = TRUE, loading_colors = gtex.colors,
     loading_legend_size = 4,
     plot_grid_nrow = 4, plot_grid_ncol = 3)

NNLM loadings

The backfitted loadings can be compared with the loadings that are obtained by simply running NNLM. Results are very similar; I’m not sure there’s much benefit to using FLASH in this case.

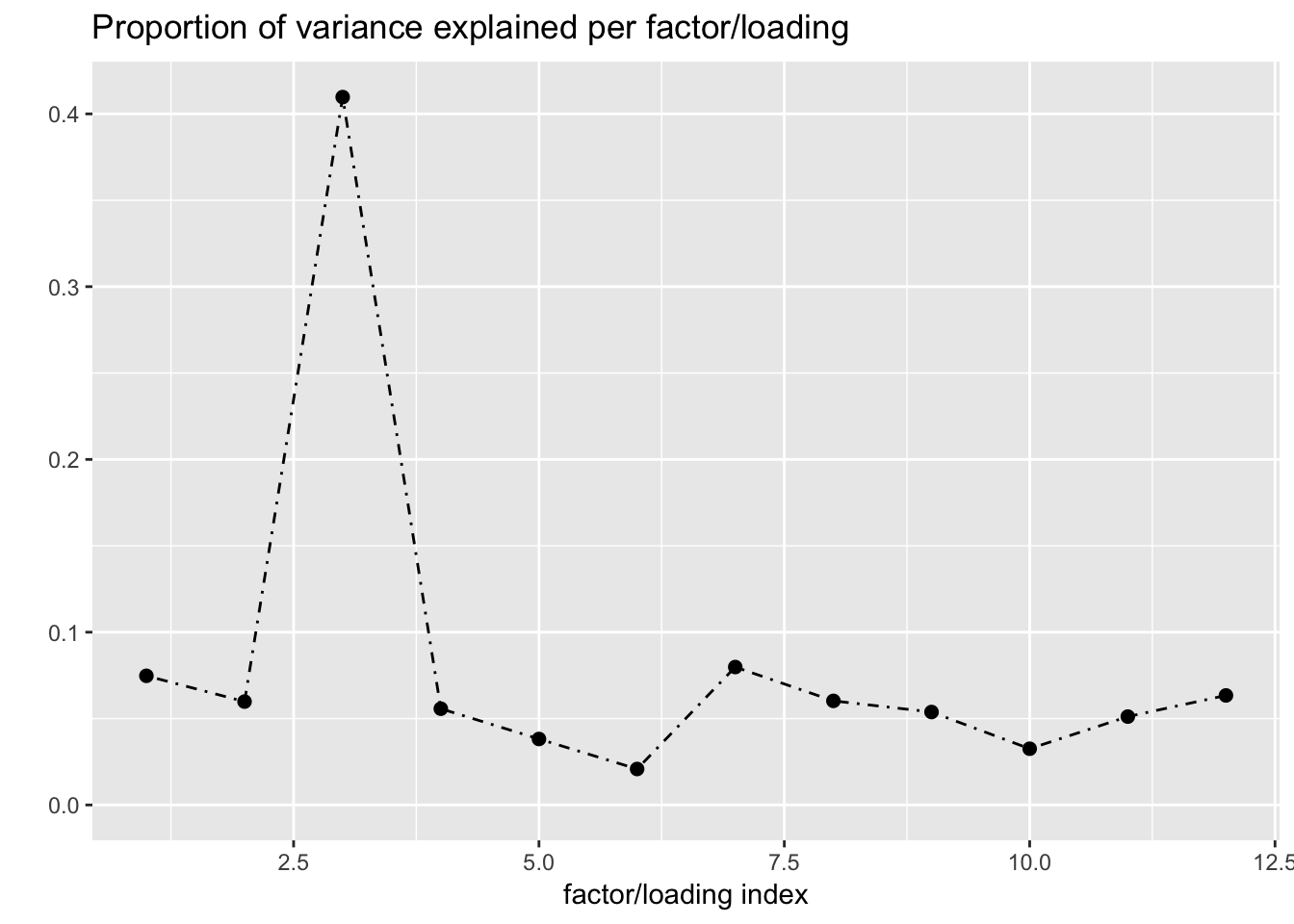

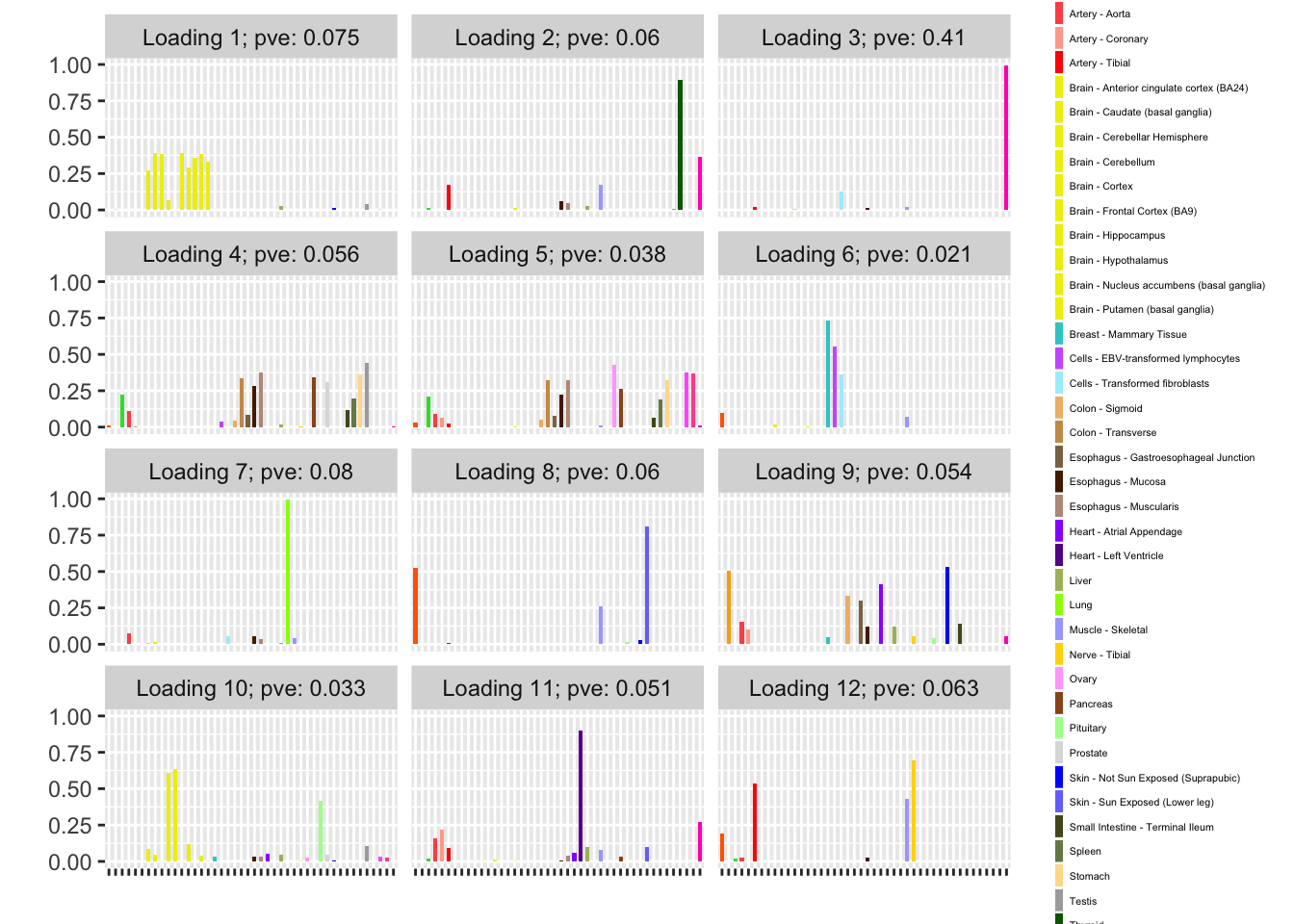

plot(fl_nnmf, plot_loadings=TRUE, loading_colors = gtex.colors,
     loading_legend_size = 4,
     plot_grid_nrow = 4, plot_grid_ncol = 3)

Session information

sessionInfo()

R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.6

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] ebnm_0.1-13  flashr_0.6-1

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.18        pillar_1.2.1        compiler_3.4.3
 [4] git2r_0.21.0        plyr_1.8.4          workflowr_1.0.1
 [7] R.methodsS3_1.7.1   R.utils_2.6.0       iterators_1.0.9
[10] tools_3.4.3         testthat_2.0.0      digest_0.6.15
[13] tibble_1.4.2        evaluate_0.10.1     memoise_1.1.0
[16] gtable_0.2.0        lattice_0.20-35     rlang_0.2.0
[19] Matrix_1.2-12       foreach_1.4.4       commonmark_1.4
[22] yaml_2.1.17         parallel_3.4.3      withr_2.1.1.9000
[25] stringr_1.3.0       roxygen2_6.0.1.9000 knitr_1.20
[28] xml2_1.2.0          REBayes_1.2         devtools_1.13.4
[31] rprojroot_1.3-2     grid_3.4.3          R6_2.2.2
[34] rmarkdown_1.8       reshape2_1.4.3      ggplot2_2.2.1
[37] ashr_2.2-13         magrittr_1.5        whisker_0.3-2
[40] scales_0.5.0        backports_1.1.2     codetools_0.2-15
[43] htmltools_0.3.6     MASS_7.3-48         assertthat_0.2.0
[46] softImpute_1.4      colorspace_1.3-2    labeling_0.3
[49] stringi_1.1.6       Rmosek_7.1.3        lazyeval_0.2.1
[52] munsell_0.4.3       doParallel_1.0.11   pscl_1.5.2
[55] NNLM_0.4.2          truncnorm_1.0-8     SQUAREM_2017.10-1
[58] R.oo_1.21.0
