This script implements the “Gaussian variance estimation” simulation experiments in the paper. In particular, we compare the Mean Field Variational Bayes (MFVB) method against SMASH in two scenarios. The figure and table generated at the end of this script should match up with the figure and table shown in the paper.

Running the code could take several hours to complete as it runs the two methods on 100 simulated data sets for each of the two scenarios.

We thank M. Menictas & M. Wand for generously sharing code that was used to implement these experiments.

Initial setup instructions

To run this example on your own computer, please follow these setup instructions. These instructions assume you already have R and/or RStudio installed on your computer.

First, download or clone the git repository on your computer.

Launch R, and change the working directory to be the “analysis” folder inside your local copy of the git repository.

Finally, install the smashr package from GitHub:

devtools::install_github("stephenslab/smashr")

See the “Session Info” at the bottom for the versions of the software and R packages that were used to generate the results shown below.

Set up R environment

Load the smashr package, as well as some functions used in the analysis below.

library(smashr)
source("../code/mfvb.R")

Analysis settings

Specify the number of data sets simulated in the first and second simulation scenarios.

nsim1 <- 10
nsim2 <- 10

Next, specify the hyperparameters used in running the MFVB method.

Au.hyp      <- 1e5
Av.hyp      <- 1e5
sigsq.gamma <- 1e10
sigsq.beta  <- 1e10

These variables specify some colours used in the plots.

mainCol <- "darkslateblue"
ptCol   <- "paleturquoise3"
lineCol <- "skyblue"
axisCol <- "black"

These are additional plotting parameters.

cex.pt      <- 0.75
cex.mainVal <- 1.7
cex.labVal  <- 1.3
xlabVal     <- "x"

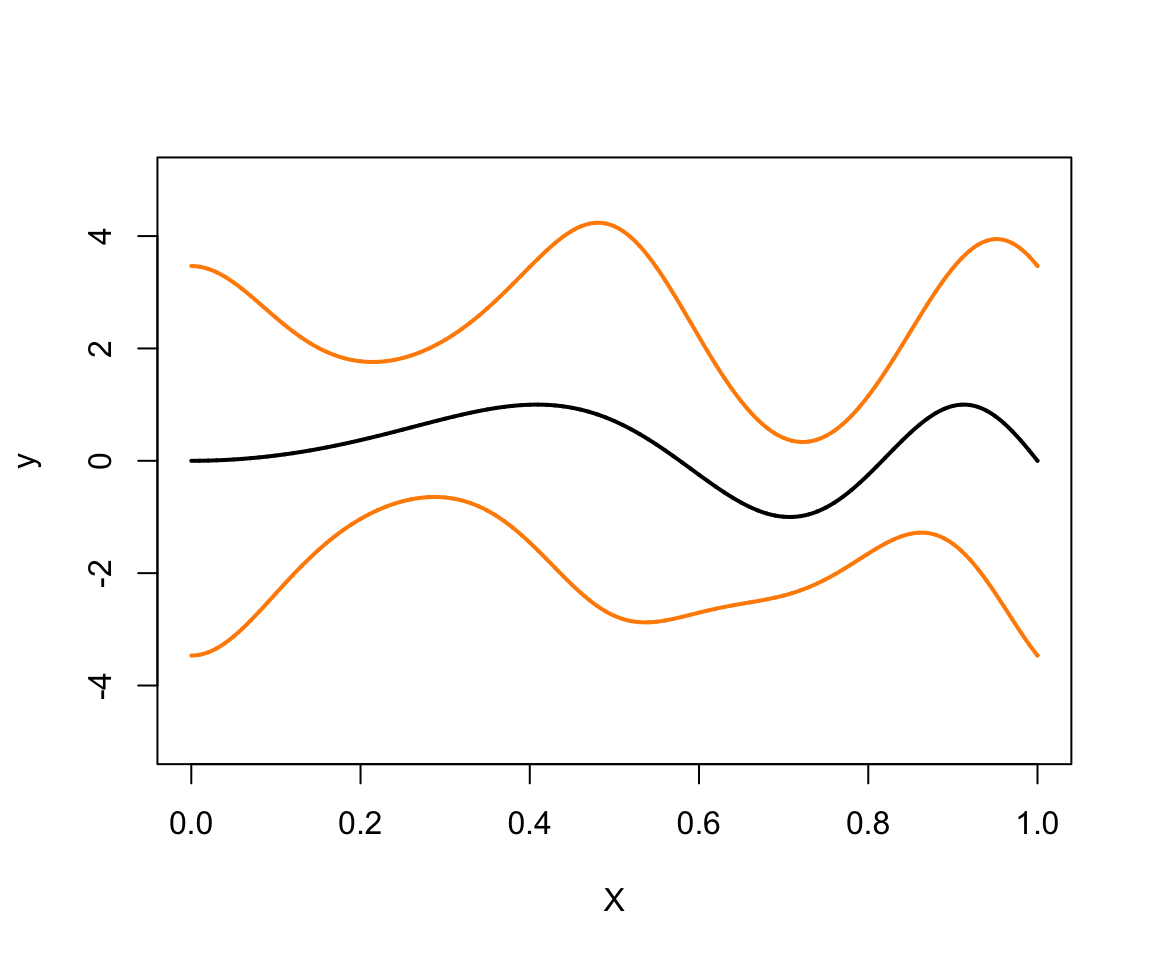

Plot mean and variance functions used to simulate data

Compare this plot against the one shown in Fig. 4 of the paper.

xgrid <- (0:10000)/10000
plot(xgrid,fTrue(xgrid),type = "l",ylim = c(-5,5),ylab = "y",xlab = "X",
     lwd = 2)
lines(xgrid,fTrue(xgrid) + 2*sqrt(gTrue(xgrid)),col = "darkorange",lwd = 2)
lines(xgrid,fTrue(xgrid) - 2*sqrt(gTrue(xgrid)),col = "darkorange",lwd = 2)

Expand here to see past versions of plot-mean-and-variance-1.png:
Version Author Date
613f9b2 Peter Carbonetto 2018-11-09

First simulation scenario: unevenly spaced data

In the first scenario, we simulate data sets with 500 unevenly spaced data points, and assess accuracy by computing the mean of the squared errors (MSE) evaluated at 201 equally spaced points.

mse.mu.uneven.mfvb  <- 0
mse.mu.uneven.smash <- 0
mse.sd.uneven.mfvb  <- 0
mse.sd.uneven.smash <- 0

Run the SMASH and MFVB methods for each simulated data set.

cat(sprintf("Running %d simulations: ",nsim1))
for (j in 1:nsim1) {
  cat(sprintf("%d ",j))

  # SIMULATE DATA
  set.seed(3*j)
  n     <- 500
  xOrig <- runif(n)
  set.seed(3*j)
  yOrig <- fTrue(xOrig) + sqrt(exp(loggTrue(xOrig)))*rnorm(n)

  aOrig  <- min(xOrig)
  bOrig  <- max(xOrig)
  mean.x <- mean(xOrig)
  sd.x   <- sd(xOrig)
  mean.y <- mean(yOrig)
  sd.y   <- sd(yOrig)

  a <- (aOrig - mean.x)/sd.x
  b <- (bOrig - mean.x)/sd.x
  x <- (xOrig - mean.x)/sd.x
  y <- (yOrig - mean.y)/sd.y

  numIntKnotsU <- 17
  intKnotsU <- quantile(x,seq(0,1,length=numIntKnotsU+2)[-c(1,numIntKnotsU+2)])
  Zu        <- ZOSull(x,intKnots=intKnotsU,range.x=c(a,b))
  numKnotsU <- ncol(Zu)

  numIntKnotsV <- numIntKnotsU
  intKnotsV <-
    quantile(x,seq(0,1,length = numIntKnotsV + 2)[-c(1,numIntKnotsV+2)])
  Zv        <- ZOSull(x,intKnots=intKnotsV,range.x=c(a,b))
  numKnotsV <- ncol(Zv)

  # RUN MEAN FIELD VARIATIONAL BAYES
  X     <- cbind(rep(1,n),x)
  Cumat <- cbind(X,Zu)
  Cvmat <- cbind(X,Zv)
  ncX   <- ncol(X)
  ncZu  <- ncol(Zu)
  ncZv  <- ncol(Zv)
  ncCu  <- ncol(Cumat)
  ncCv  <- ncol(Cvmat)

  MFVBfit <- meanVarMFVB(y,X,ncZu,ncZv,Au.hyp,Av.hyp,
                         sigsq.gamma,sigsq.beta)

  ng     <- 201
  xgOrig <- seq(aOrig,bOrig,length=ng)
  xg     <- (xgOrig - mean.x)/sd.x
  Xg     <- cbind(rep(1,ng),xg)
  Zug    <- ZOSull(xg,intKnots=intKnotsU,range.x=c(a,b))
  Cug    <- cbind(Xg,Zug)
  Zvg    <- ZOSull(xg,intKnots=intKnotsV,range.x=c(a,b))
  Cvg    <- cbind(Xg,Zvg)

  mu.q.nu       <- MFVBfit$mu.q.nu
  mu.q.omega    <- MFVBfit$mu.q.omega
  Sigma.q.nu    <- MFVBfit$Sigma.q.nu
  Sigma.q.omega <- MFVBfit$Sigma.q.omega

  fhatMFVBg        <- Cug%*%mu.q.nu
  fhatMFVBgOrig    <- fhatMFVBg*sd.y + mean.y
  logghatMFVBg     <- Cvg%*%mu.q.omega
  logghatMFVBgOrig <- logghatMFVBg + 2*log(sd.y)

  sdloggMFVBgOrig      <- sqrt(diag(Cvg%*%Sigma.q.omega%*%t(Cvg)))
  credLowloggMFVBgOrig <- logghatMFVBgOrig - qnorm(0.975)*sdloggMFVBgOrig
  credUpploggMFVBgOrig <- logghatMFVBgOrig + qnorm(0.975)*sdloggMFVBgOrig

  sqrtghatMFVBg     <- exp(0.5*Cvg %*% mu.q.omega
                           + 0.125*diag(Cvg%*%Sigma.q.omega%*%t(Cvg)))
  sqrtghatMFVBgOrig <- sqrtghatMFVBg*sd.y

  # RUN SMASH
  x.mod <- unique(sort(xOrig))
  y.mod <- 0
  for(i in 1:length(x.mod))
    y.mod[i] <- median(yOrig[xOrig == x.mod[i]])

  y.exp   <- c(y.mod,y.mod[length(y.mod):(2*length(y.mod)-2^9+1)])
  y.final <- c(y.exp,y.exp[length(y.exp):1])

  mu.est  <- smash.gaus(y.final,filter.number=1,family="DaubExPhase")
  var.est <- smash.gaus(y.final,v.est=TRUE)
  mu.est  <- mu.est[1:500]
  var.est <- var.est[1:500]

  mu.est.inter  <- approx(x.mod,mu.est,xgOrig,'linear')$y
  var.est.inter <- approx(x.mod,var.est,xgOrig,'linear')$y

  mse.mu.uneven.mfvb[j]<-mean((fhatMFVBgOrig - fTrue(xgOrig))^2)
  mse.sd.uneven.mfvb[j]<-mean((sqrtghatMFVBgOrig-exp((loggTrue(xgOrig))/2))^2)

  mu.est  <- smash.gaus(y.final,filter.number=8,family="DaubLeAsymm")
  var.est <- smash.gaus(y.final,v.est=TRUE,v.basis=TRUE,filter.number=8,
                        family="DaubLeAsymm")

  mu.est  <- mu.est[1:500]
  var.est <- var.est[1:500]

  mu.est.inter       <- approx(x.mod,mu.est,xgOrig,'linear')$y
  var.est.inter      <- approx(x.mod,var.est,xgOrig,'linear')$y

  mse.mu.uneven.smash[j] <- mean((mu.est.inter-fTrue(xgOrig))^2)
  mse.sd.uneven.smash[j] <-
    mean((sqrt(var.est.inter)-exp((loggTrue(xgOrig))/2))^2)
}
# Running 10 simulations: 1 2 3 4 5 6 7 8 9 10

Second simulation scenario: evenly spaced points

In this scenario, we simulate data sets with 1,024 evenly spaced data points. We assess accuracy separately for the mean and standard deviation as the mean of the MSEs evaluated at each of the locations.

mse.mu.even.mfvb  <- 0
mse.mu.even.smash <- 0
mse.sd.even.mfvb  <- 0
mse.sd.even.smash <- 0

Run the SMASH and MFVB methods for each simulated data set.

cat(sprintf("Running %d simulations: ",nsim2))
for (j in 1:nsim2) {
  cat(sprintf("%d ",j))

  # SIMULATE DATA
  n      <- 2^10
  xOrig  <- (1:n)/n
  set.seed(30*j)
  yOrig  <- fTrue(xOrig) + sqrt(exp(loggTrue(xOrig)))*rnorm(n)
  aOrig  <- min(xOrig)
  bOrig  <- max(xOrig)
  mean.x <- mean(xOrig)
  sd.x   <- sd(xOrig)
  mean.y <- mean(yOrig)
  sd.y   <- sd(yOrig)

  a <- (aOrig - mean.x)/sd.x
  b <- (bOrig - mean.x)/sd.x
  x <- (xOrig - mean.x)/sd.x
  y <- (yOrig - mean.y)/sd.y

  numIntKnotsU <- 17
  intKnotsU <- quantile(x,seq(0,1,length=numIntKnotsU+2)[-c(1,numIntKnotsU+2)])
  Zu        <- ZOSull(x,intKnots=intKnotsU,range.x=c(a,b))
  numKnotsU <- ncol(Zu)

  numIntKnotsV <- numIntKnotsU
  intKnotsV <- quantile(x,seq(0,1,length=numIntKnotsV+2)[-c(1,numIntKnotsV+2)])
  Zv        <- ZOSull(x,intKnots=intKnotsV,range.x=c(a,b))
  numKnotsV <- ncol(Zv)

  # RUN MEAN FIELD VARIATIONAL BAYES
  X     <- cbind(rep(1,n),x)
  Cumat <- cbind(X,Zu)
  Cvmat <- cbind(X,Zv)
  ncX   <- ncol(X)
  ncZu  <- ncol(Zu)
  ncZv  <- ncol(Zv)
  ncCu  <- ncol(Cumat)
  ncCv  <- ncol(Cvmat)

  MFVBfit <- meanVarMFVB(y,X,ncZu,ncZv,Au.hyp,Av.hyp,
                       sigsq.gamma,sigsq.beta)

  ng     <- 2^10
  xgOrig <- seq(aOrig,bOrig,length=ng)
  xg  <- (xgOrig - mean.x)/sd.x
  Xg  <- cbind(rep(1,ng),xg)
  Zug <- ZOSull(xg,intKnots=intKnotsU,range.x=c(a,b))
  Cug <- cbind(Xg,Zug)
  Zvg <- ZOSull(xg,intKnots=intKnotsV,range.x=c(a,b))
  Cvg <- cbind(Xg,Zvg)

  mu.q.nu       <- MFVBfit$mu.q.nu
  mu.q.omega    <- MFVBfit$mu.q.omega
  Sigma.q.nu    <- MFVBfit$Sigma.q.nu
  Sigma.q.omega <- MFVBfit$Sigma.q.omega

  # Get the mean function estimate.
  fhatMFVBg     <- Cug %*% mu.q.nu
  fhatMFVBgOrig <- fhatMFVBg*sd.y + mean.y

  logghatMFVBg     <- Cvg%*%mu.q.omega
  logghatMFVBgOrig <- logghatMFVBg + 2*log(sd.y)

  sdloggMFVBgOrig      <- sqrt(diag(Cvg%*%Sigma.q.omega%*%t(Cvg)))
  credLowloggMFVBgOrig <- logghatMFVBgOrig - qnorm(0.975)*sdloggMFVBgOrig
  credUpploggMFVBgOrig <- logghatMFVBgOrig + qnorm(0.975)*sdloggMFVBgOrig

  sqrtghatMFVBg     <- exp(0.5*Cvg%*%mu.q.omega
                           + 0.125*diag(Cvg%*%Sigma.q.omega%*%t(Cvg)))
  sqrtghatMFVBgOrig <- sqrtghatMFVBg*sd.y

  # RUN SMASH
  mu.est  <- smash.gaus(yOrig,filter.number=1,family="DaubExPhase")
  var.est <- smash.gaus(yOrig,v.est=TRUE)

  mse.mu.even.mfvb[j] <- mean((fhatMFVBgOrig-fTrue(xgOrig))^2)
  mse.sd.even.mfvb[j] <- mean((sqrtghatMFVBgOrig-exp((loggTrue(xgOrig))/2))^2)

  mu.est  <- smash.gaus(yOrig,filter.number=8,family="DaubLeAsymm")
  var.est <- smash.gaus(yOrig,v.est=TRUE,v.basis=TRUE,filter.number=8,
                        family = "DaubLeAsymm")

  mse.mu.even.smash[j]  <- mean((mu.est - fTrue(xgOrig))^2)
  mse.sd.even.smash[j]  <- mean((sqrt(var.est)-exp((loggTrue(xgOrig))/2))^2)
}
# Running 10 simulations: 1 2 3 4 5 6 7 8 9 10

Summarize results of simulations

Compare this table against Table 1 in the paper.

cat(sprintf("MSE averaged across %d simulations in Scenario 1,\n",nsim1))
cat(sprintf("and averaged across %d simulations in Scenario 2:\n",nsim2))
mse.table <- rbind(c(mean(mse.mu.uneven.mfvb),mean(mse.sd.uneven.mfvb),
                     mean(mse.mu.even.mfvb),mean(mse.sd.even.mfvb)),
                   c(mean(mse.mu.uneven.smash),mean(mse.sd.uneven.smash),
                     mean(mse.mu.even.smash),mean(mse.sd.even.smash)))
rownames(mse.table) <- c("MFVB","SMASH")
colnames(mse.table) <- c("mean","sd","mean","sd")
cat("         Scenario 1      Scenario 2   \n")
cat("      --------------- ----------------\n")
print(mse.table)
# MSE averaged across 10 simulations in Scenario 1,
# and averaged across 10 simulations in Scenario 2:
#          Scenario 1      Scenario 2
#       --------------- ----------------
#             mean         sd       mean          sd
# MFVB  0.03129997 0.02329073 0.01608097 0.007067097
# SMASH 0.03616205 0.01815929 0.01468753 0.005463422
