Last updated: 2018-12-08
workflowr checks: (Click a bullet for more information) ✔ R Markdown file: up-to-date
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
✔ Environment: empty
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
✔ Seed:
set.seed(20180414)
The command set.seed(20180414)
was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.
✔ Session information: recorded
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
✔ Repository version: 0be0d0d
wflow_publish
or wflow_git_commit
). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: analysis/.Rhistory
Ignored: docs/.DS_Store
Ignored: docs/figure/.DS_Store
Untracked files:
Untracked: analysis/cp_init_locs.Rmd
Untracked: analysis/null.Rmd
Untracked: analysis/test.Rmd
Untracked: data/geneMatrix.tsv
Untracked: data/liter_data_4_summarize_ld_1_lm_less_3.rds
Untracked: data/meta.tsv
Untracked: docs/figure/cp_init_locs.Rmd/
Untracked: docs/figure/test.Rmd/
Untracked: sim_cp.pdf
Unstaged changes:
Modified: analysis/changepoint.Rmd
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
File | Version | Author | Date | Message |
---|---|---|---|---|
Rmd | 0be0d0d | stephens999 | 2018-12-08 | workflowr::wflow_publish(“analysis/l0learn_challenge.Rmd”) |
The aim here is to illustrate L0learn’s performance on a challenging example that we also use to challenge susie.
library("L0Learn")
library("genlasso")
Loading required package: Matrix
Loading required package: igraph
Attaching package: 'igraph'
The following objects are masked from 'package:stats':
decompose, spectrum
The following object is masked from 'package:base':
union

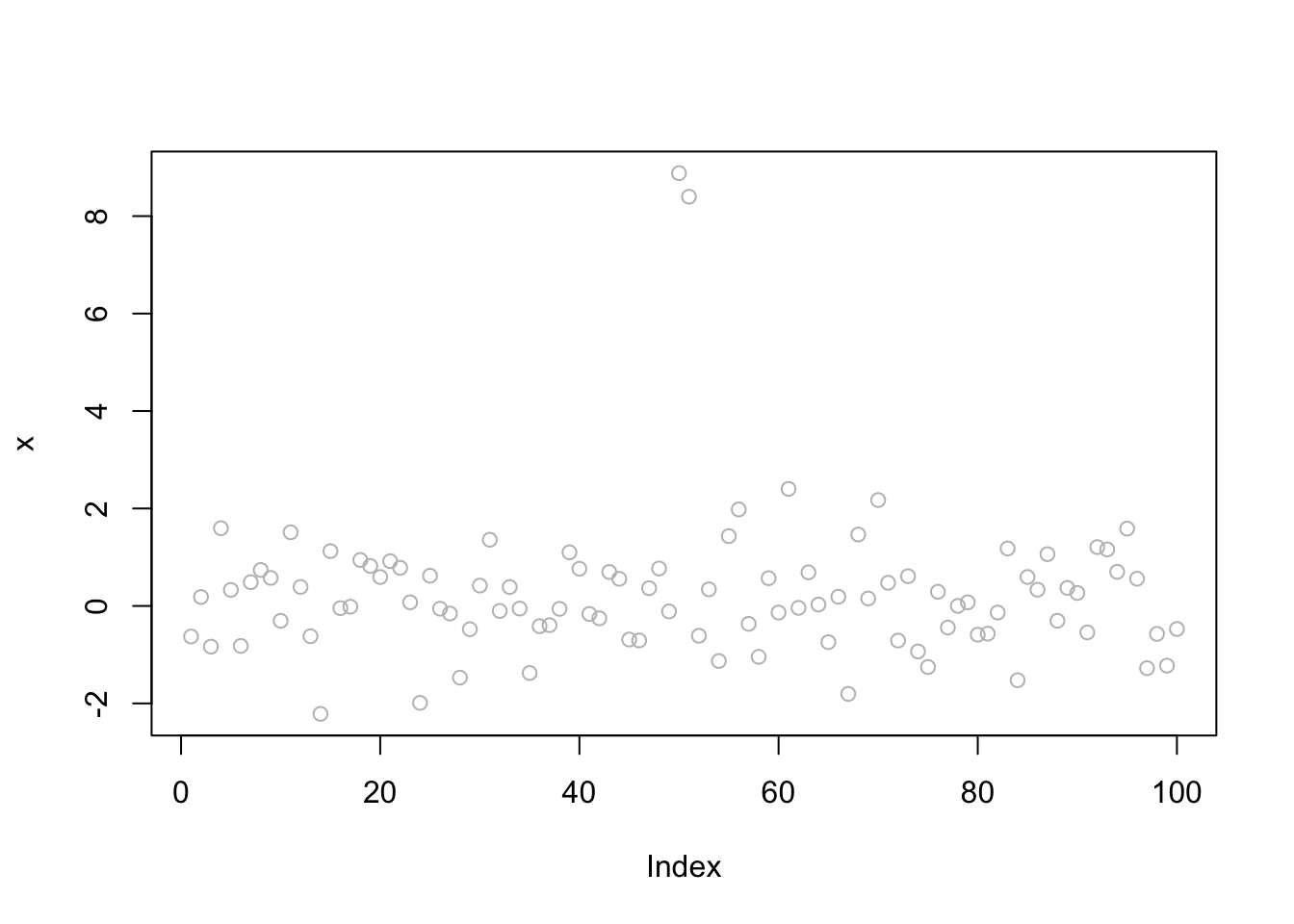

Here we simulate some data with two changepoints, very close together. (Note: a more challenging example still might make these even closer together?)
set.seed(1)
x = rnorm(100)
x[50:51]=x[50:51]+8
plot(x, col="gray")
Now we set up the design matrix \(X\) to use a “step function” basis.
n = length(x)
X = matrix(0,nrow=n,ncol=n-1)
for(j in 1:(n-1)){
for(i in (j+1):n){
X[i,j] = 1
}
}
Now try L0Learn with L0 penalty. (Note: The CS algorithm is the faster and less accurate one.)
y.l0.CS = L0Learn.fit(X,x,penalty="L0",maxSuppSize = 100,autoLambda = FALSE,lambdaGrid = list(seq(0.01,0.001,length=100)),algorithm="CS")
y.l0.CDPSI = L0Learn.fit(X,x,penalty="L0",maxSuppSize = 100,autoLambda = FALSE,lambdaGrid = list(seq(0.0076,0.0075,length=1000)),algorithm="CDPSI")

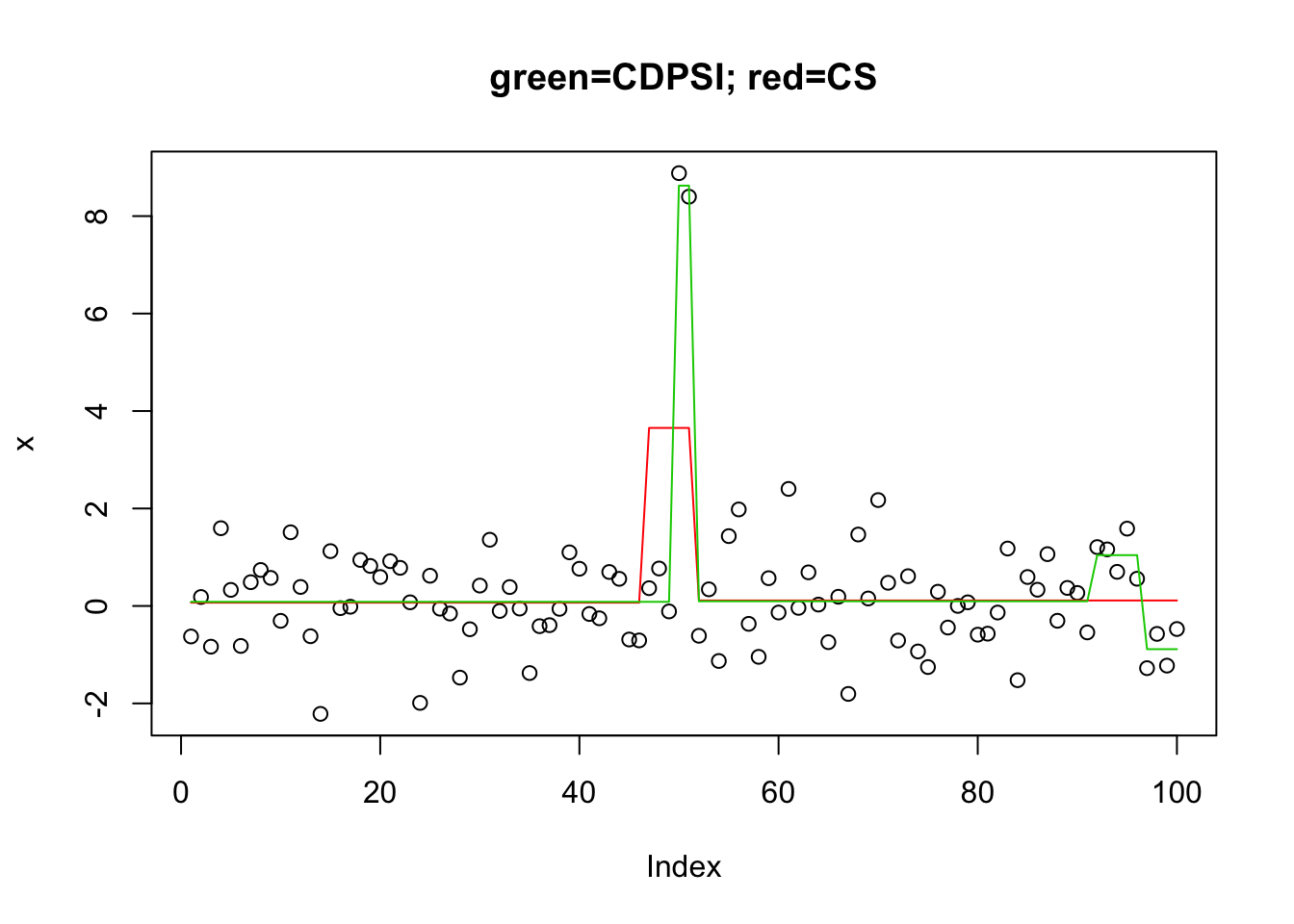

plot(x,main="green=CDPSI; red=CS")
lines(predict(y.l0.CS,newx=X,lambda=y.l0.CS$lambda[[1]][min(which(y.l0.CS$suppSize[[1]]>1))]),col=2)
lines(predict(y.l0.CDPSI,newx=X,lambda=y.l0.CDPSI$lambda[[1]][min(which(y.l0.CDPSI$suppSize[[1]]>1))]),col=3)
head(y.l0.CS$suppSize[[1]])
[1] 2 2 2 2 2 2
head(y.l0.CDPSI$suppSize[[1]])
[1] 4 4 4 4 4 4
Note that the more sophisticated CSPSI algorithm does not find the correct solution here because it does not give 2 changepoints - all solutions have at least 4 changepoints. I guess it might be possible to solve this by playing with the penalty?
sessionInfo()
R version 3.5.1 (2018-07-02)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: OS X El Capitan 10.11.6
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] genlasso_1.4 igraph_1.2.2 Matrix_1.2-14 L0Learn_1.0.7
loaded via a namespace (and not attached):
[1] Rcpp_1.0.0 compiler_3.5.1 pillar_1.3.0
[4] git2r_0.23.0 plyr_1.8.4 workflowr_1.1.1
[7] bindr_0.1.1 R.methodsS3_1.7.1 R.utils_2.7.0
[10] tools_3.5.1 digest_0.6.18 evaluate_0.12
[13] tibble_1.4.2 gtable_0.2.0 lattice_0.20-35
[16] pkgconfig_2.0.2 rlang_0.2.2 yaml_2.2.0
[19] bindrcpp_0.2.2 stringr_1.3.1 dplyr_0.7.7
[22] knitr_1.20 tidyselect_0.2.5 rprojroot_1.3-2
[25] grid_3.5.1 glue_1.3.0 R6_2.3.0
[28] rmarkdown_1.10 reshape2_1.4.3 purrr_0.2.5
[31] ggplot2_3.0.0 magrittr_1.5 whisker_0.3-2
[34] backports_1.1.2 scales_1.0.0 htmltools_0.3.6
[37] assertthat_0.2.0 colorspace_1.3-2 stringi_1.2.4
[40] lazyeval_0.2.1 munsell_0.5.0 crayon_1.3.4
[43] R.oo_1.22.0
This reproducible R Markdown analysis was created with workflowr 1.1.1
