Introduction

Motivated by the desire to apply SVD and related methods to non-gaussian data (eg single cell data), I want to suggest investigating “weighted” versions of SVD that allows each observation to have its own measurement-error variance (in addition to any common variance). We already have this kind of idea in flash and mash, but methods like softImpute and svd are potentially more scalable, and so it would be nice to implement fast general versions of these.

The working model “rank k” model is \[X = UDV' + Z + E\] where \(X\), \(Z\) and \(E\) are all \(n \times p\) matrices, and \(D\) is a \(k \times k\) diagonal matrix. The elements of \(E\) are iid \[E_{ij} \sim N(0,\sigma^2=1/\tau)\] and \[Z_{ij} \sim N(0,s^2_{ij}\] where \(s_{ij}\) are known.

Note: in softImpute (alternating least squares; ALS version) they replace \(UDV'\) by \(AB'\), but the basic idea is the same. Also in softImpute they introduce an L2 penalty, which is a nice feature to have, and which I think may not complicate things much here. (to be checked!)

Given \(Z\) we note that the mle for \(U,D,V\) is given by the SVD of (\(X-Z\)). Following the usual EM idea, each iteration we can replace \(Z\) with its expectation \(\bar{Z} = E(Z | U,D,V)\) where \(U,D,V\) are the current values of these parameters. Then the M step becomes running SVD on \(X-\bar{Z}\).

Given \(U,D,V\) define residuals \(R= X-UDV\). Then from the model \(R_{ij} | Z \sim N(Z_{ij}, \sigma^2)\). Then from standard Bayesian analysis of Gaussians we have: \[Z_{ij} | R \sim N(\mu_1,1/\tau_1)\] where \[\mu_1 = \tau/\tau_1 R_{ij}\] \[\tau_1 = \tau + 1/s_{ij}^2\].

In particular the conditional mean of \(Z\) needed for EM is: \[\bar{Z}_{ij}= \tau/\tau_1 R_{ij}\].

Note that in the special case \(s_{ij}=\Inf\), which is like \(X_{ij}\) is “missing”, this gives \(\bar{Z}_{ij} = R_{ij}\), and when we plug that in to get a “new” value of \(R\) we get \(R_{ij} = X_{ij}-\bar{Z}_{ij} = (UDV)_{ij}\). That is, each iteration

If we look in the softImpute code this is exactly what they use to deal with missing data. For example, line 49 of simpute.als.R is
xfill[xnas] = (U %*% (Dsq * t(V)))[xnas].

Idea

Basically my idea is that we should be able to modify the softImpute code by replacing this line (and similar lines involving xfill) with something based on the above derivation…

Code

Before I had the idea of simply modifying softImpute I started coding an EM algorithm that imputes \(Z\) each iteration. I haven’t tested it and it may be wrong…but the objective seems to increase. This code may or may not be useful.

wSVD = function(x,s,k,niter=100,update_tau=FALSE){
  n = nrow(x)
  p = ncol(x)
  z = matrix(0,nrow=n,ncol=p)
  sigma2 = rep(0,niter)
  obj = rep(0,niter)
  tau = 1e6 #big value mimics minimizing residual
  for(i in 1:niter){
    x.svd = svd(x-z,k,k)
    R = x - x.svd$u %*% diag(x.svd$d[1:k]) %*% t(x.svd$v)
    if(update_tau){
      stop("not implemented; probably should use uniroot to do this")
    }
    tau1 = tau + 1/s^2
    z =  (tau/tau1)*R
    sigma2[i] = 1/tau
    obj[i] = sum(dnorm(R, 0, sqrt(s^2+(1/tau)), log=TRUE))
  }
  return(list(svd = x.svd,sigma2=sigma2,obj=obj))
}

set.seed(1)
n = 100
p = 1000
s = matrix(1,nrow=n,ncol=p)
x = matrix(rnorm(n*p,0,s),nrow=n,ncol=p)
x.wsvd = wSVD(x,s,3,10)

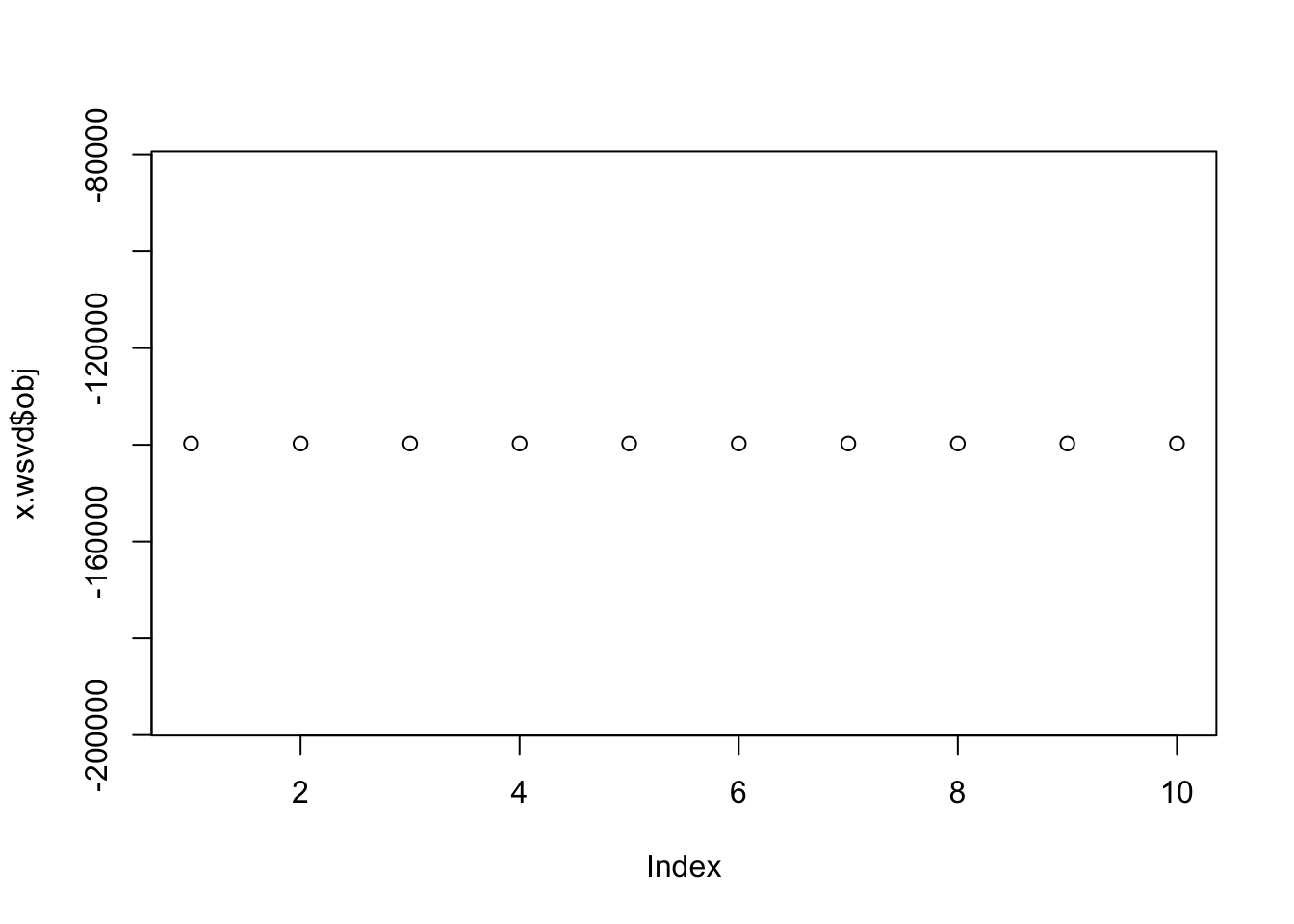

plot(x.wsvd$obj)

s = matrix(rgamma(n*p,1,1),nrow=n,ncol=p)
x = matrix(rnorm(n*p,0,s),nrow=n,ncol=p)
x.wsvd = wSVD(x,s,30,100)

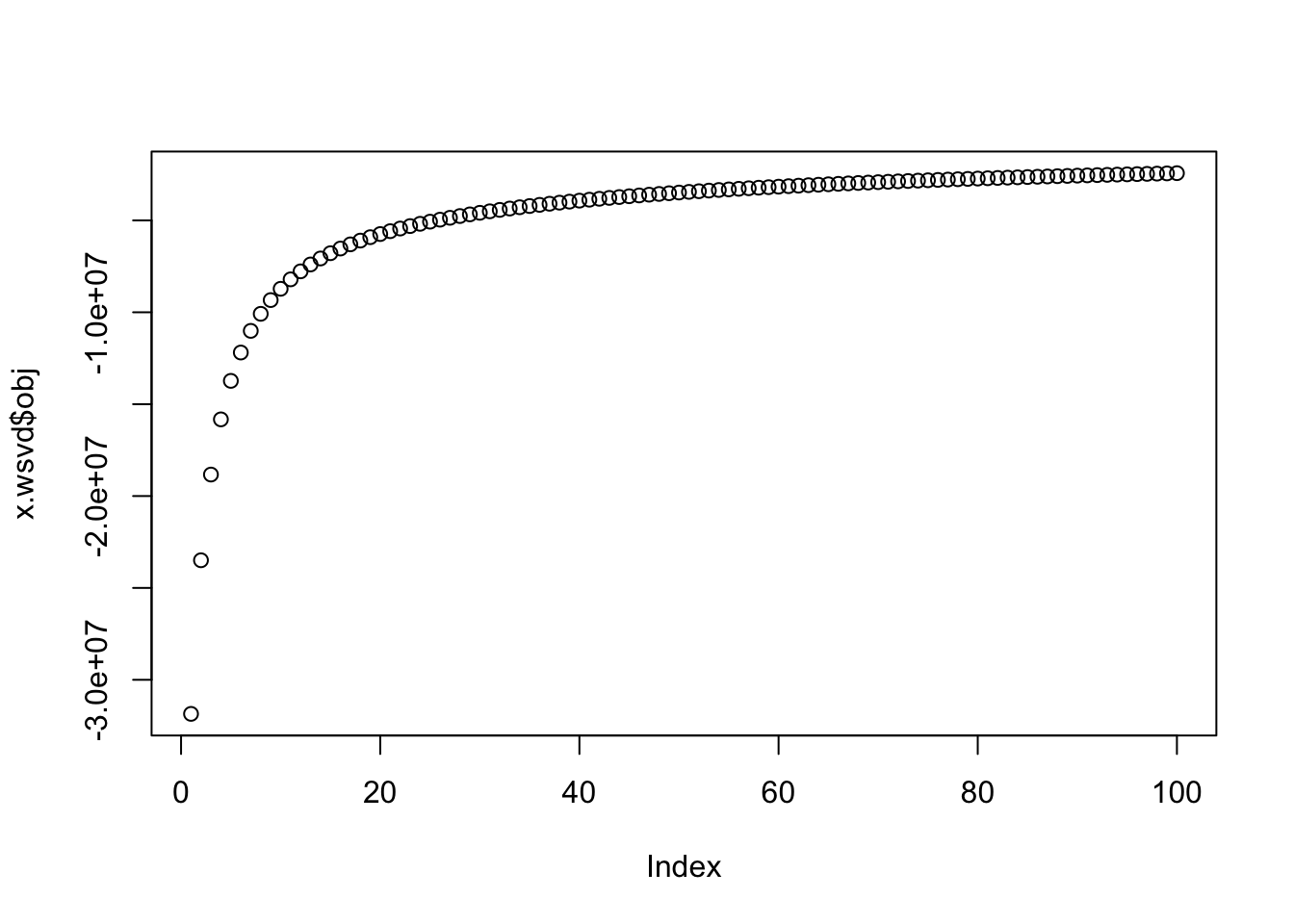

plot(x.wsvd$obj)

Conclusion

It converges pretty slow, particularly if tau is big (so shrinkage of Z each iteration very minimal). This seems intuitive. Possibly could improve by estimating tau, but i think there is no closed-form solution. In any case it seems perhaps more promising to try to adjust softImpute to allow weights?
