Last updated: 2018-06-20

workflowr checks: (Click a bullet for more information)

  • ✔ R Markdown file: up-to-date

    Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

  • ✔ Environment: empty

    Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

  • ✔ Seed: set.seed(20180613)

    The command set.seed(20180613) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

  • ✔ Session information: recorded

    Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

  • ✔ Repository version: a1c2b7c

    Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.

    Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:

Ignored files:
    Ignored:    .DS_Store
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/

Untracked files:
    Untracked:  analysis/ATACseq_footprinting_pipeline.Rmd
    Untracked:  code_RCC/
    Untracked:  docs/figure/compare_centipede_predictions.Rmd/
    Untracked:  workflow_setup.R
    Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
Expand here to see past versions:
    File Version Author Date Message
    Rmd a1c2b7c kevinlkx 2018-06-20 compare centipede predictions for CTCF

library(ggplot2)
library(grid)
library(gridExtra)
library(limma)
library(edgeR)

select TF

tf_name <- "CTCF"
pwm_name <- "CTCF_MA0139.1_1e-4"

thresh_PostPr_bound <- 0.99
cat(pwm_name, "\n")
CTCF_MA0139.1_1e-4

load CENTIPEDE predictions

dir_predictions <- paste0("~/Dropbox/research//ATAC-seq/for_Olivia_Gray/results/centipede_predictions/", pwm_name)

## condition: N
bam_namelist_N <- c("N1_nomito_rdup.bam", "N2_nomito_rdup.bam", "N3_nomito_rdup.bam")

site_predictions_N.l <- vector("list", 3)
names(site_predictions_N.l) <- bam_namelist_N

for(i in 1:length(bam_namelist_N)){
  bam_basename <- tools::file_path_sans_ext(basename(bam_namelist_N[[i]]))
  site_predictions_N.l[[i]] <- read.table(paste0(dir_predictions, "/", pwm_name, "_", bam_basename, "_predictions.txt.gz"), header = T, stringsAsFactors = F)
}

CentPostPr_N.df <- data.frame(N1 = site_predictions_N.l[[1]]$CentPostPr,
                              N2 = site_predictions_N.l[[2]]$CentPostPr,
                              N3 = site_predictions_N.l[[3]]$CentPostPr)

CentLogRatios_N.df <- data.frame(N1 = site_predictions_N.l[[1]]$CentLogRatios,
                                 N2 = site_predictions_N.l[[2]]$CentLogRatios,
                                 N3 = site_predictions_N.l[[3]]$CentLogRatios)


## condition: H
bam_namelist_H <- c("H1_nomito_rdup.bam", "H2_nomito_rdup.bam", "H3_nomito_rdup.bam")

site_predictions_H.l <- vector("list", 3)
names(site_predictions_H.l) <- bam_namelist_H

for(i in 1:length(bam_namelist_H)){
  bam_basename <- tools::file_path_sans_ext(basename(bam_namelist_H[[i]]))
  site_predictions_H.l[[i]] <- read.table(paste0(dir_predictions, "/", pwm_name, "_", bam_basename, "_predictions.txt.gz"), header = T, stringsAsFactors = F)
}

name_sites <- site_predictions_H.l[[1]]$name

CentPostPr_H.df <- data.frame(H1 = site_predictions_H.l[[1]]$CentPostPr,
                              H2 = site_predictions_H.l[[2]]$CentPostPr,
                              H3 = site_predictions_H.l[[3]]$CentPostPr)

CentLogRatios_H.df <- data.frame(H1 = site_predictions_H.l[[1]]$CentLogRatios,
                                 H2 = site_predictions_H.l[[2]]$CentLogRatios,
                                 H3 = site_predictions_H.l[[3]]$CentLogRatios)

CentPostPr.df <- cbind(CentPostPr_N.df, CentPostPr_H.df)
CentLogRatios.df <- cbind(CentLogRatios_N.df, CentLogRatios_H.df)

binarize to bound and unbound

cat("Number of bound sites: \n")
Number of bound sites:
colSums(CentPostPr.df > thresh_PostPr_bound)
   N1    N2    N3    H1    H2    H3
37688 33636 30943 18018 17260 24842
idx_bound <- which(rowSums(CentPostPr.df > thresh_PostPr_bound) >= 2)
cat(length(idx_bound), "sites are bound in at least two samples \n")
34309 sites are bound in at least two samples
cat(length(idx_bound), "(",round(length(idx_bound)/nrow(CentPostPr.df) *100, 2), "% ) sites are bound in at least two samples \n")
34309 ( 8.74 % ) sites are bound in at least two samples

Plot average binding and average logRatios

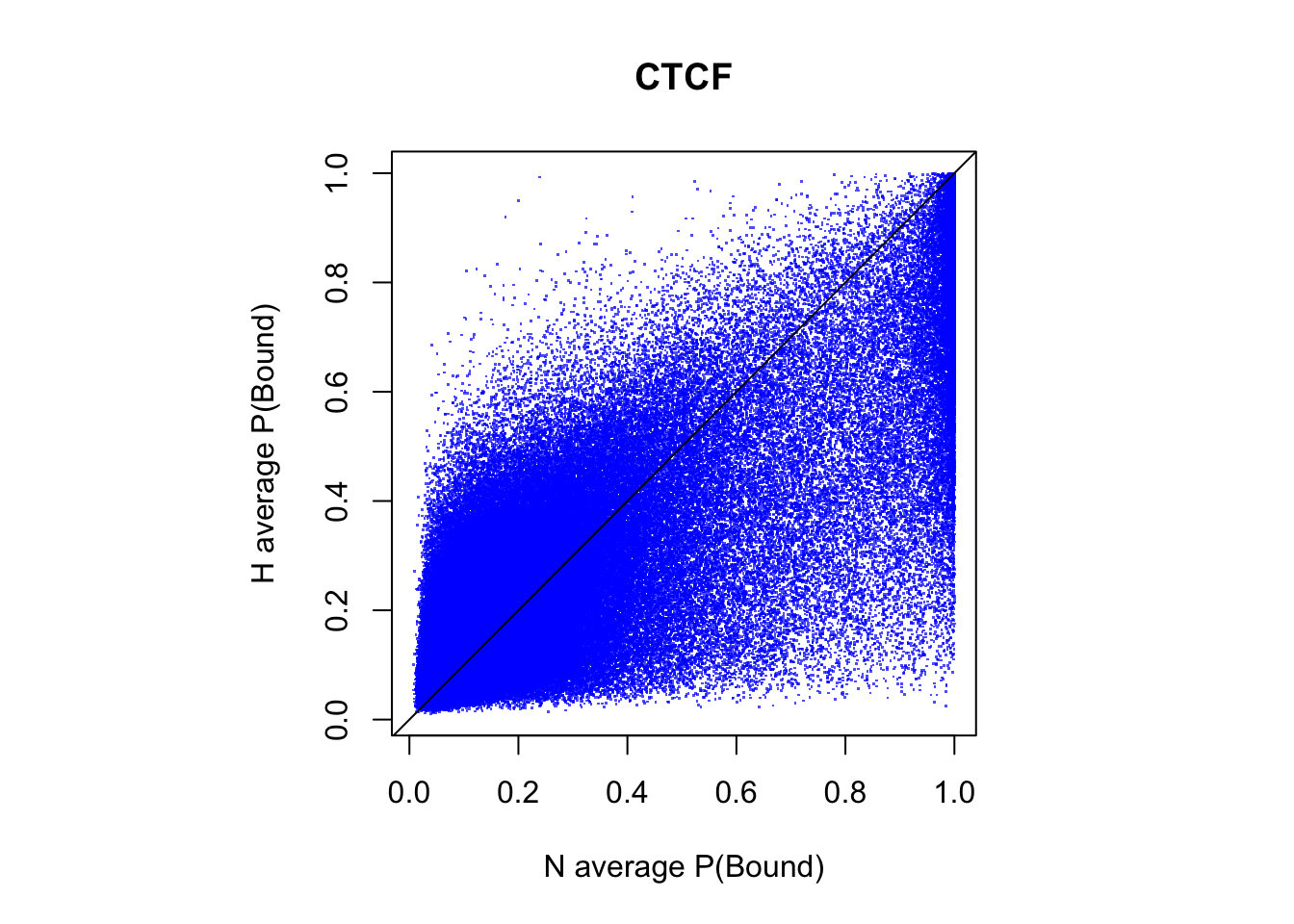

all sites

par(pty="s")
plot(rowMeans(CentPostPr_N.df), rowMeans(CentPostPr_H.df),
     xlab = "N average P(Bound)", ylab = "H average P(Bound)", main = tf_name,
     pch = ".", col = rgb(0,0,1,0.7))
abline(a=0,b=1)

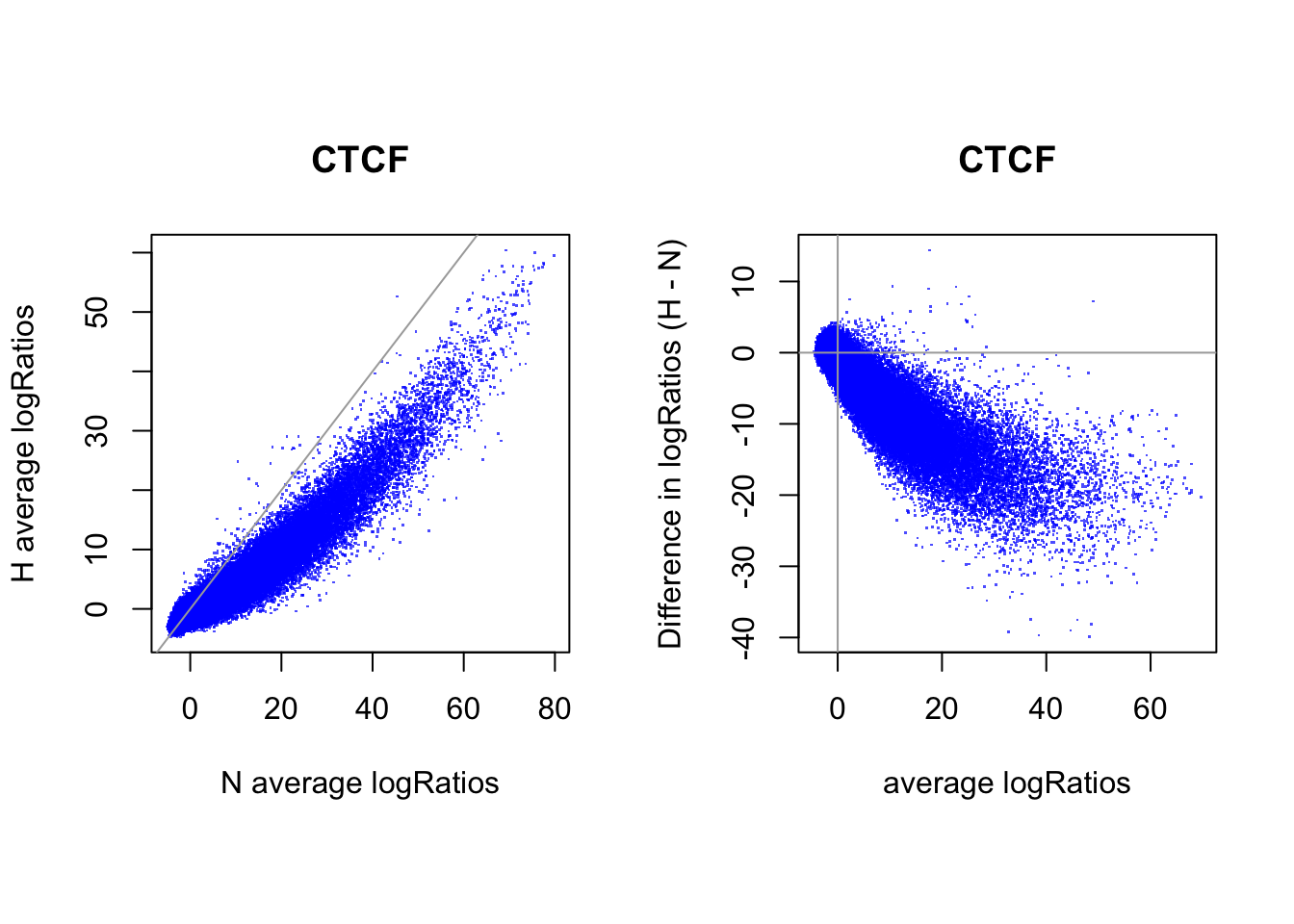

par(mfrow = c(1,2))
par(pty="s")
plot(rowMeans(CentLogRatios_N.df), rowMeans(CentLogRatios_H.df),
     xlab = "N average logRatios", ylab = "H average logRatios", main = tf_name,
     pch = ".", col = rgb(0,0,1,0.7))
abline(a=0,b=1,col = "darkgray")

plot(x = (rowMeans(CentLogRatios_H.df)+rowMeans(CentLogRatios_N.df))/2,
     y = rowMeans(CentLogRatios_H.df) - rowMeans(CentLogRatios_N.df),
     xlab = "average logRatios", ylab = "Difference in logRatios (H - N)", main = tf_name,
     pch = ".", col = rgb(0,0,1,0.7))
abline(v=0, h=0, col = "darkgray")

bound sites

par(pty="s")
plot(rowMeans(CentPostPr_N.df[idx_bound,]), rowMeans(CentPostPr_H.df[idx_bound,]),
     xlab = "N average P(Bound)", ylab = "H average P(Bound)", main = paste(tf_name, "bound sites"),
     pch = ".", col = rgb(0,0,1,0.7))
abline(a=0,b=1)

par(mfrow = c(1,2))
par(pty="s")
plot(rowMeans(CentLogRatios_N.df[idx_bound,]), rowMeans(CentLogRatios_H.df[idx_bound,]),
     xlab = "N average logRatios", ylab = "H average logRatios", main = tf_name,
     pch = ".", col = rgb(0,0,1,0.7))
abline(a=0,b=1,col = "darkgray")

plot(x = (rowMeans(CentLogRatios_H.df[idx_bound,])+rowMeans(CentLogRatios_N.df[idx_bound,]))/2,
     y = rowMeans(CentLogRatios_H.df[idx_bound,]) - rowMeans(CentLogRatios_N.df[idx_bound,]),
     xlab = "average logRatios", ylab = "Difference in logRatios (H - N)", main = tf_name,
     pch = ".", col = rgb(0,0,1,0.7))
abline(v=0, h=0, col = "darkgray")

PCA

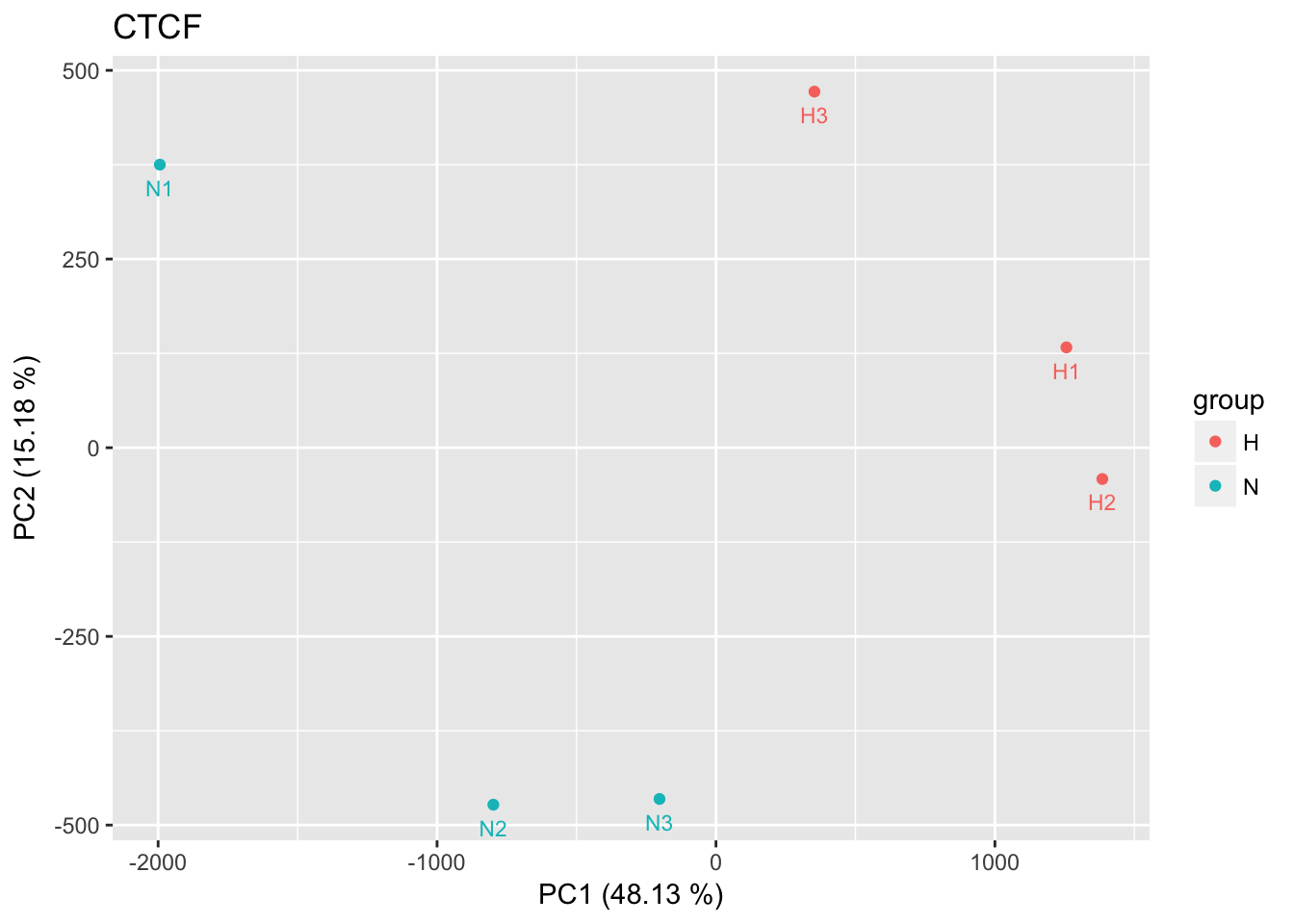

all sites

pca_logRatios <- prcomp(t(CentLogRatios.df))
percentage <- round(pca_logRatios$sdev / sum(pca_logRatios$sdev) * 100, 2)
percentage <- paste0( colnames(pca_logRatios$x), " (", paste( as.character(percentage), "%)") )

pca_logRatios.df <- as.data.frame(pca_logRatios$x)
pca_logRatios.df$group <- rep(c("N","H"), each = 3)
p <- ggplot(pca_logRatios.df, aes(x=PC1,y=PC2,color=group,label=row.names(pca_logRatios.df)))
p <- p + geom_point() + geom_text(size = 3, show.legend = F, vjust = 2, nudge_y = 0.5) +
  labs(title = tf_name, x = percentage[1], y = percentage[2])
p

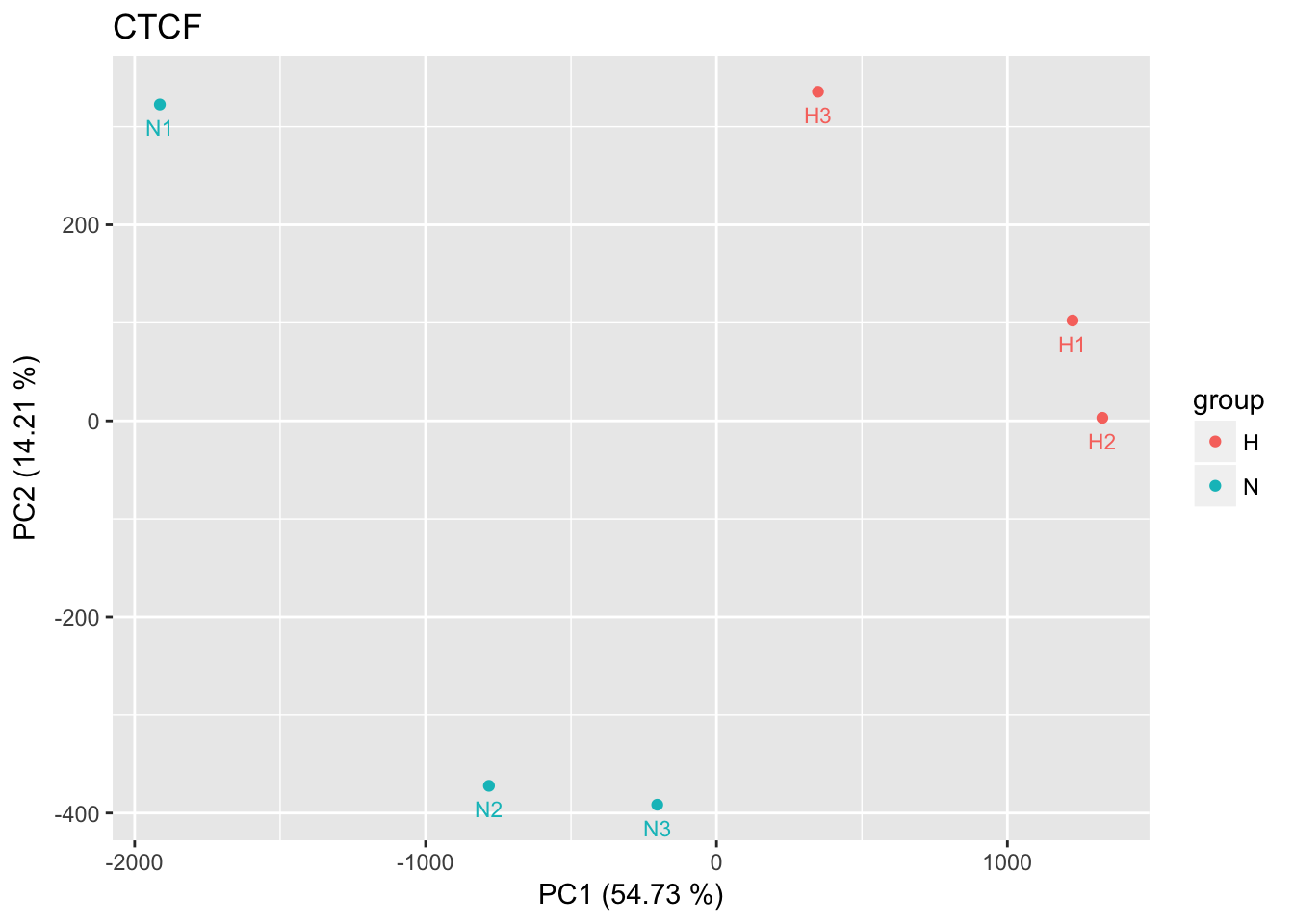

bound sites

pca_logRatios <- prcomp(t(CentLogRatios.df[idx_bound, ]))
percentage <- round(pca_logRatios$sdev / sum(pca_logRatios$sdev) * 100, 2)
percentage <- paste0( colnames(pca_logRatios$x), " (", paste( as.character(percentage), "%)") )

pca_logRatios.df <- as.data.frame(pca_logRatios$x)
pca_logRatios.df$group <- rep(c("N","H"), each = 3)
p <- ggplot(pca_logRatios.df, aes(x=PC1,y=PC2,color=group,label=row.names(pca_logRatios.df)))
p <- p + geom_point() + geom_text(size = 3, show.legend = F, vjust = 2, nudge_y = 0.5) +
  labs(title = tf_name, x = percentage[1], y = percentage[2])
p

Differential logRatios for bound sites using limma

targets <- data.frame(bam = c(bam_namelist_N, bam_namelist_H),
                      label = colnames(CentLogRatios.df),
                      condition = rep(c("N", "H"), each = 3))

print(targets)
                 bam label condition
1 N1_nomito_rdup.bam    N1         N
2 N2_nomito_rdup.bam    N2         N
3 N3_nomito_rdup.bam    N3         N
4 H1_nomito_rdup.bam    H1         H
5 H2_nomito_rdup.bam    H2         H
6 H3_nomito_rdup.bam    H3         H
condition <- factor(targets$condition, levels = c("N", "H"))
design <- model.matrix(~0+condition)
colnames(design) <- levels(condition)
print(design)
  N H
1 1 0
2 1 0
3 1 0
4 0 1
5 0 1
6 0 1
attr(,"assign")
[1] 1 1
attr(,"contrasts")
attr(,"contrasts")$condition
[1] "contr.treatment"
CentLogRatios_Bound.df <- CentLogRatios.df[idx_bound, ]

fit <- lmFit(CentLogRatios_Bound.df, design)
contrasts <- makeContrasts(H-N, levels=design)
fit2 <- contrasts.fit(fit, contrasts)
fit2 <- eBayes(fit2, trend=TRUE)
num_diffbind <- summary(decideTests(fit2))
percent_diffbind <- round(num_diffbind / sum(num_diffbind) * 100, 2)
cat(percent_diffbind[1], "% down in H vs. N,", percent_diffbind[3], "% up in H vs. N \n")
63.53 % down in H vs. N, 0.01 % up in H vs. N
# volcanoplot(fit2, main="H vs. N", xlab = "Difference in logRatios (H - N)")

plot(x = fit2$coef, y = -log10(fit2$p.value),
     xlab = "Difference in logRatios (H - N)", ylab = "-log10(P-value)", main= paste(tf_name, "H vs. N"),
     pch = 16, cex = 0.35)

Session information

sessionInfo()
R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.4

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] grid      stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
[1] edgeR_3.20.9  limma_3.34.9  gridExtra_2.3 ggplot2_2.2.1

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.16      knitr_1.20        whisker_0.3-2
 [4] magrittr_1.5      workflowr_1.0.1   splines_3.4.3
 [7] munsell_0.4.3     lattice_0.20-35   colorspace_1.3-2
[10] rlang_0.2.0       stringr_1.3.0     plyr_1.8.4
[13] tools_3.4.3       gtable_0.2.0      R.oo_1.22.0
[16] git2r_0.21.0      htmltools_0.3.6   yaml_2.1.18
[19] lazyeval_0.2.1    rprojroot_1.3-2   digest_0.6.15
[22] tibble_1.4.2      R.utils_2.6.0     evaluate_0.10.1
[25] rmarkdown_1.9     labeling_0.3      stringi_1.1.7
[28] pillar_1.2.2      compiler_3.4.3    scales_0.5.0
[31] backports_1.1.2   R.methodsS3_1.7.1 locfit_1.5-9.1

This reproducible R Markdown analysis was created with workflowr 1.0.1
