library(ggplot2)
library(grid)
library(gridExtra)
library(limma)
library(edgeR)
library(VennDiagram)
Warning: package 'VennDiagram' was built under R version 3.4.4
Loading required package: futile.logger
message <- futile.logger::flog.threshold(futile.logger::ERROR, name = "VennDiagramLogger")

## venn diagram
plot_venn_overlaps <- function(overlaps.m, title = "", col_fill = NULL, category.names = NULL){
  grid.newpage()
  overlaps_venn.l <- lapply(as.data.frame(overlaps.m), function(x) which(x == 1))
  if(is.null(col_fill)){
    col_fill <-  1:length(overlaps_venn.l)
  }
  if(is.null(category.names)){
    category.names <- names(x)
  }

  venn.plot <- venn.diagram(
    x = overlaps_venn.l,
    category.names = category.names,
    filename = NULL,
    fill = col_fill,
    alpha=rep(0.5, length(overlaps_venn.l)),
    cex = 1.5,
    cat.fontface=4,
    main=title)
  grid.draw(venn.plot)
}

select TF

tf_name <- "MEF2D"
pwm_name <- "MEF2D_MA0773.1_1e-4"

thresh_PostPr_bound <- 0.99
cat(pwm_name, "\n")
MEF2D_MA0773.1_1e-4

load CENTIPEDE predictions

dir_predictions <- paste0("~/Dropbox/research/ATAC_DNase/ATAC-seq_Olivia_Gray/results/centipede_predictions/", pwm_name)

## condition: N
bam_namelist_N <- c("N1_nomito_rdup.bam", "N2_nomito_rdup.bam", "N3_nomito_rdup.bam")

site_predictions_N.l <- vector("list", 3)
names(site_predictions_N.l) <- bam_namelist_N

for(i in 1:length(bam_namelist_N)){
  bam_basename <- tools::file_path_sans_ext(basename(bam_namelist_N[[i]]))
  site_predictions_N.l[[i]] <- read.table(paste0(dir_predictions, "/", pwm_name, "_", bam_basename, "_predictions.txt"), header = T, stringsAsFactors = F)
}

CentPostPr_N.df <- data.frame(N1 = site_predictions_N.l[[1]]$CentPostPr,
                              N2 = site_predictions_N.l[[2]]$CentPostPr,
                              N3 = site_predictions_N.l[[3]]$CentPostPr)

CentLogRatios_N.df <- data.frame(N1 = site_predictions_N.l[[1]]$CentLogRatios,
                                 N2 = site_predictions_N.l[[2]]$CentLogRatios,
                                 N3 = site_predictions_N.l[[3]]$CentLogRatios)


## condition: H
bam_namelist_H <- c("H1_nomito_rdup.bam", "H2_nomito_rdup.bam", "H3_nomito_rdup.bam")

site_predictions_H.l <- vector("list", 3)
names(site_predictions_H.l) <- bam_namelist_H

for(i in 1:length(bam_namelist_H)){
  bam_basename <- tools::file_path_sans_ext(basename(bam_namelist_H[[i]]))
  site_predictions_H.l[[i]] <- read.table(paste0(dir_predictions, "/", pwm_name, "_", bam_basename, "_predictions.txt"), header = T, stringsAsFactors = F)
}

name_sites <- site_predictions_H.l[[1]]$name

CentPostPr_H.df <- data.frame(H1 = site_predictions_H.l[[1]]$CentPostPr,
                              H2 = site_predictions_H.l[[2]]$CentPostPr,
                              H3 = site_predictions_H.l[[3]]$CentPostPr)

CentLogRatios_H.df <- data.frame(H1 = site_predictions_H.l[[1]]$CentLogRatios,
                                 H2 = site_predictions_H.l[[2]]$CentLogRatios,
                                 H3 = site_predictions_H.l[[3]]$CentLogRatios)

CentPostPr.df <- cbind(CentPostPr_N.df, CentPostPr_H.df)
CentLogRatios.df <- cbind(CentLogRatios_N.df, CentLogRatios_H.df)

binarize to bound and unbound

cat("Number of bound sites: \n")
Number of bound sites:
colSums(CentPostPr.df > thresh_PostPr_bound)
   N1    N2    N3    H1    H2    H3
31853 20926 19070 16535 15801 20099
idx_bound <- which(rowSums(CentPostPr.df > thresh_PostPr_bound) >= 2)
cat(length(idx_bound), "(",round(length(idx_bound)/nrow(CentPostPr.df) *100, 2), "% ) sites are bound in at least two samples \n")
25468 ( 1.73 % ) sites are bound in at least two samples
bound_N <- rowSums(CentPostPr.df[,c("N1", "N2", "N3")] > thresh_PostPr_bound) >= 2
bound_H <- rowSums(CentPostPr.df[,c("H1", "H2", "H3")] > thresh_PostPr_bound) >= 2
bound_N_H <- data.frame(N = bound_N, H = bound_H)
plot_venn_overlaps(bound_N_H, title = paste("Number of", tf_name, "bound sites"),
                   category.names = c("Bound in N", "Bound in H"), col_fill = c("blue", "red"))

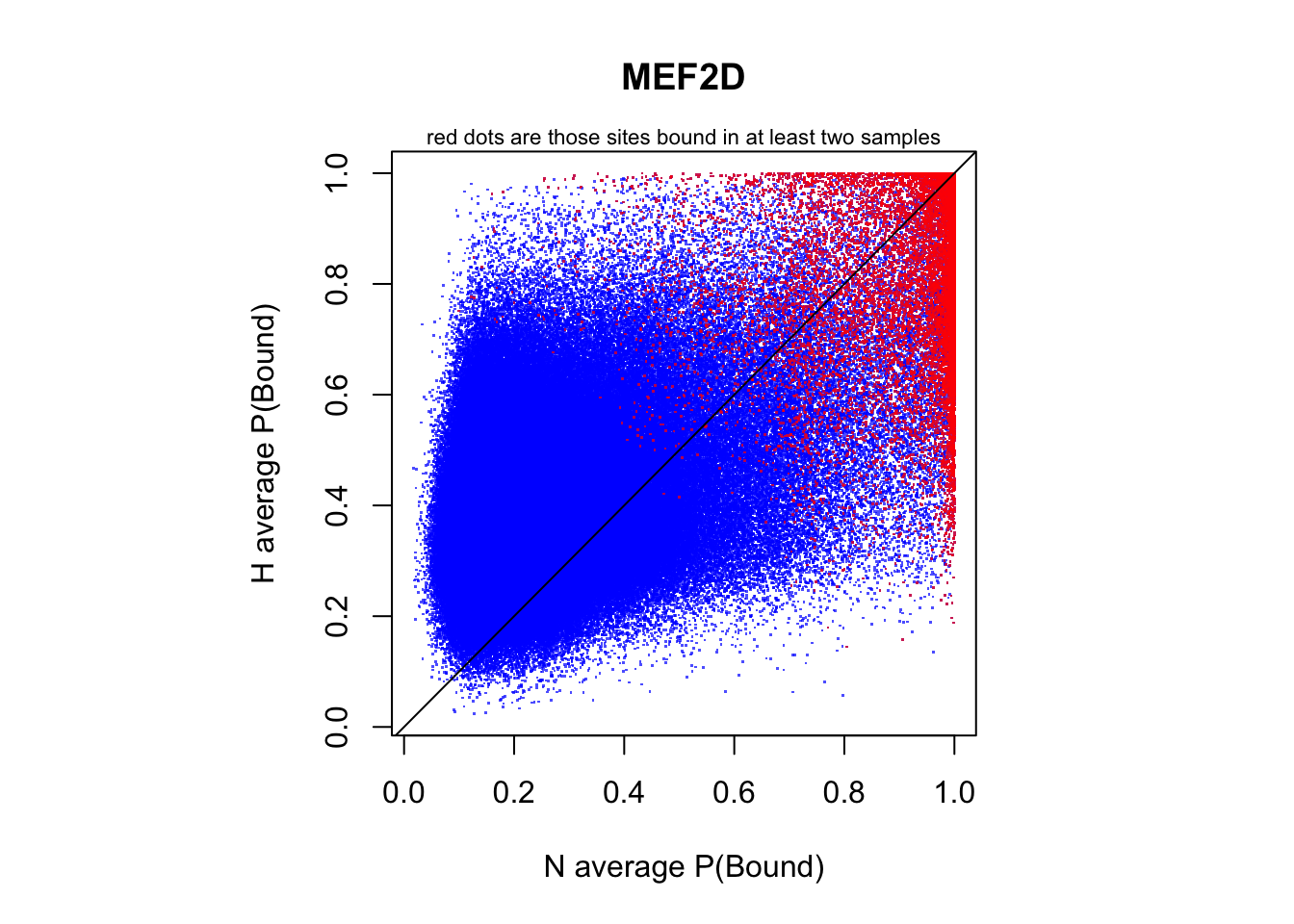

Plot average binding and average logRatios

red dots are those sites bound in at least two samples

par(pty="s")
plot(rowMeans(CentPostPr_N.df), rowMeans(CentPostPr_H.df),
     xlab = "N average P(Bound)", ylab = "H average P(Bound)", main = tf_name,
     pch = ".", col = rgb(0,0,1,0.7))
points(rowMeans(CentPostPr_N.df)[idx_bound], rowMeans(CentPostPr_H.df)[idx_bound],
       pch = ".", col = rgb(1,0,0,0.7))
abline(a=0,b=1)
mtext(text = "red dots are those sites bound in at least two samples", side = 3, line = 0, cex = 0.7)

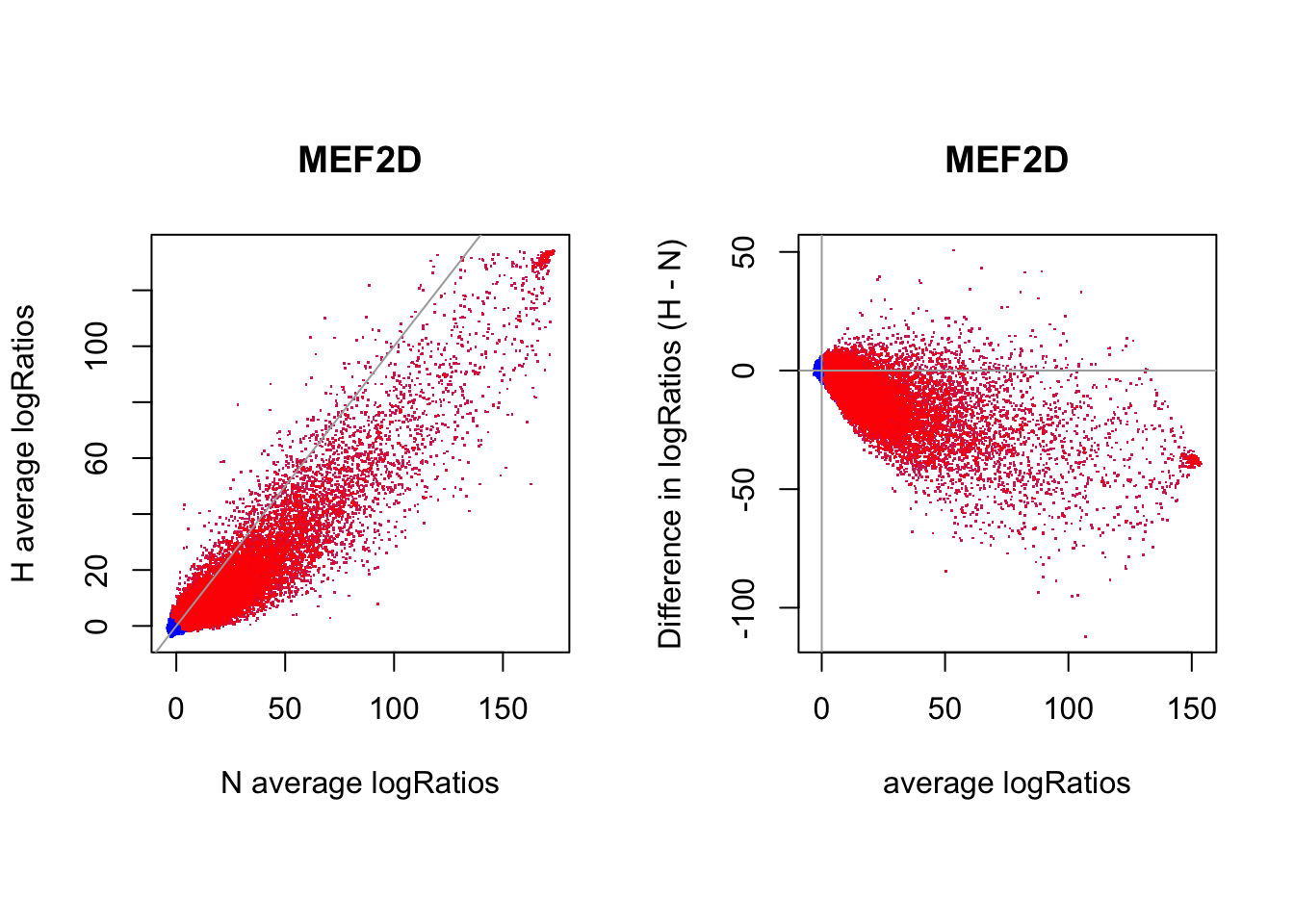

par(mfrow = c(1,2))
par(pty="s")
plot(rowMeans(CentLogRatios_N.df), rowMeans(CentLogRatios_H.df),
     xlab = "N average logRatios", ylab = "H average logRatios", main = tf_name,
     pch = ".", col = rgb(0,0,1,0.7))
points(rowMeans(CentLogRatios_N.df)[idx_bound], rowMeans(CentLogRatios_H.df)[idx_bound],
       pch = ".", col = rgb(1,0,0,0.7))
abline(a=0,b=1,col = "darkgray")

plot(x = (rowMeans(CentLogRatios_H.df) + rowMeans(CentLogRatios_N.df))/2,
     y = rowMeans(CentLogRatios_H.df) - rowMeans(CentLogRatios_N.df),
     xlab = "average logRatios", ylab = "Difference in logRatios (H - N)", main = tf_name,
     pch = ".", col = rgb(0,0,1,0.7))
points(x = ((rowMeans(CentLogRatios_H.df) + rowMeans(CentLogRatios_N.df))/2)[idx_bound],
       y = (rowMeans(CentLogRatios_H.df) - rowMeans(CentLogRatios_N.df))[idx_bound],
       pch = ".", col = rgb(1,0,0,0.7))
abline(v=0, h=0, col = "darkgray")

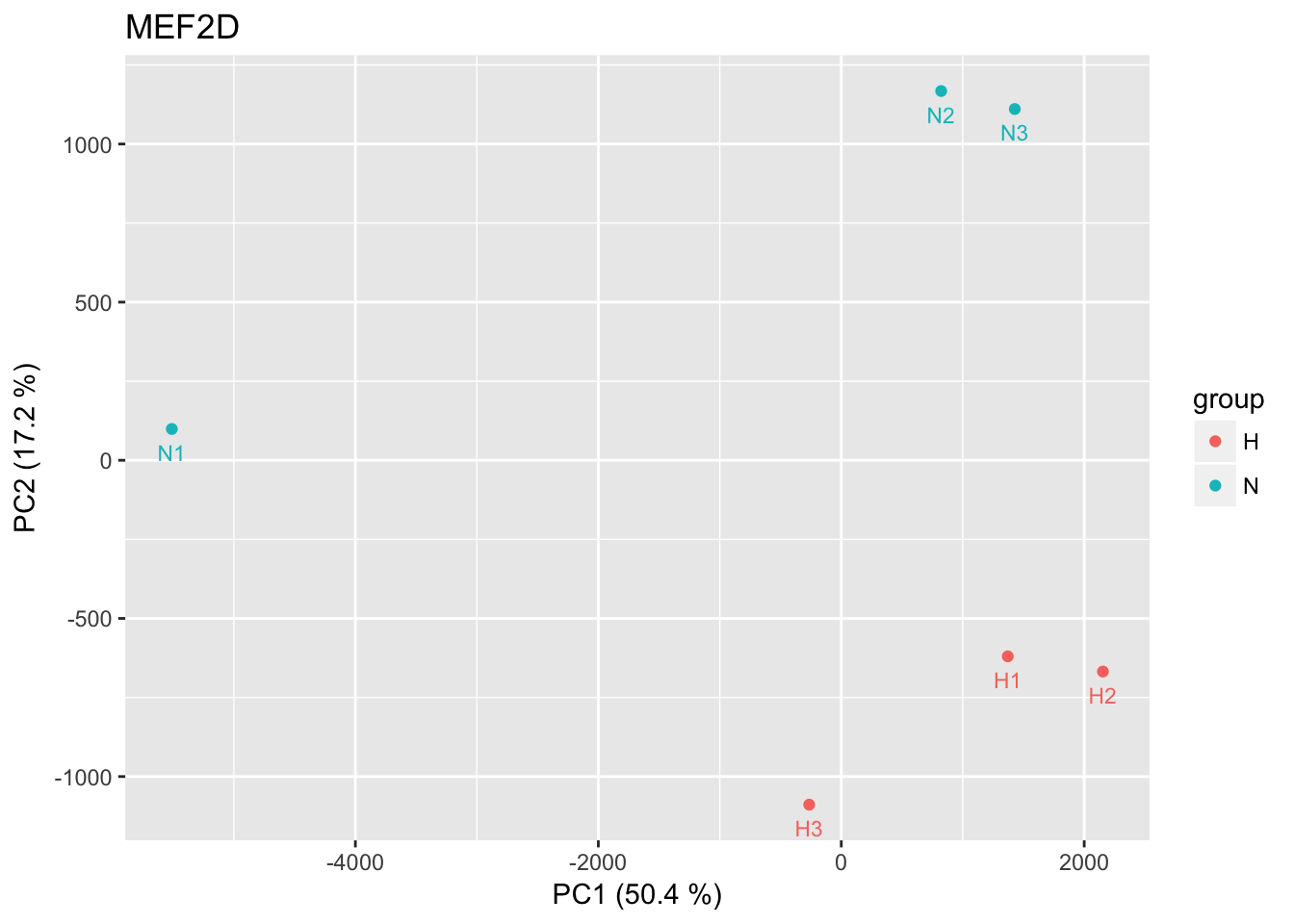

PCA

all sites

pca_logRatios <- prcomp(t(CentLogRatios.df))
percentage <- round(pca_logRatios$sdev / sum(pca_logRatios$sdev) * 100, 2)
percentage <- paste0( colnames(pca_logRatios$x), " (", paste( as.character(percentage), "%)") )

pca_logRatios.df <- as.data.frame(pca_logRatios$x)
pca_logRatios.df$group <- rep(c("N","H"), each = 3)
p <- ggplot(pca_logRatios.df, aes(x=PC1,y=PC2,color=group,label=row.names(pca_logRatios.df)))
p <- p + geom_point() + geom_text(size = 3, show.legend = F, vjust = 2, nudge_y = 0.5) +
  labs(title = tf_name, x = percentage[1], y = percentage[2])
p

bound sites

pca_logRatios <- prcomp(t(CentLogRatios.df[idx_bound, ]))
percentage <- round(pca_logRatios$sdev / sum(pca_logRatios$sdev) * 100, 2)
percentage <- paste0( colnames(pca_logRatios$x), " (", paste( as.character(percentage), "%)") )

pca_logRatios.df <- as.data.frame(pca_logRatios$x)
pca_logRatios.df$group <- rep(c("N","H"), each = 3)
p <- ggplot(pca_logRatios.df, aes(x=PC1,y=PC2,color=group,label=row.names(pca_logRatios.df)))
p <- p + geom_point() + geom_text(size = 3, show.legend = F, vjust = 2, nudge_y = 0.5) +
  labs(title = tf_name, x = percentage[1], y = percentage[2])
p

Differential logRatios for bound sites using limma

targets <- data.frame(bam = c(bam_namelist_N, bam_namelist_H),
                      label = colnames(CentLogRatios.df),
                      condition = rep(c("N", "H"), each = 3))

print(targets)
                 bam label condition
1 N1_nomito_rdup.bam    N1         N
2 N2_nomito_rdup.bam    N2         N
3 N3_nomito_rdup.bam    N3         N
4 H1_nomito_rdup.bam    H1         H
5 H2_nomito_rdup.bam    H2         H
6 H3_nomito_rdup.bam    H3         H
condition <- factor(targets$condition, levels = c("N", "H"))
design <- model.matrix(~0+condition)
colnames(design) <- levels(condition)
print(design)
  N H
1 1 0
2 1 0
3 1 0
4 0 1
5 0 1
6 0 1
attr(,"assign")
[1] 1 1
attr(,"contrasts")
attr(,"contrasts")$condition
[1] "contr.treatment"
CentLogRatios_Bound.df <- CentLogRatios.df[idx_bound, ]

fit <- lmFit(CentLogRatios_Bound.df, design)
contrasts <- makeContrasts(H-N, levels=design)
fit2 <- contrasts.fit(fit, contrasts)
fit2 <- eBayes(fit2, trend=TRUE)
num_diffbind <- summary(decideTests(fit2))
percent_diffbind <- round(num_diffbind / sum(num_diffbind) * 100, 2)

cat(num_diffbind[1], "sites differentially open in normoxia (", percent_diffbind[1], "%) \n",
    num_diffbind[3], "sites differentially open in hypoxia (", percent_diffbind[3], "%) \n",
    num_diffbind[2], "sites not significantly different (", percent_diffbind[2], "%) \n")
0 sites differentially open in normoxia ( 0 %)
 0 sites differentially open in hypoxia ( 0 %)
 25468 sites not significantly different ( 100 %)

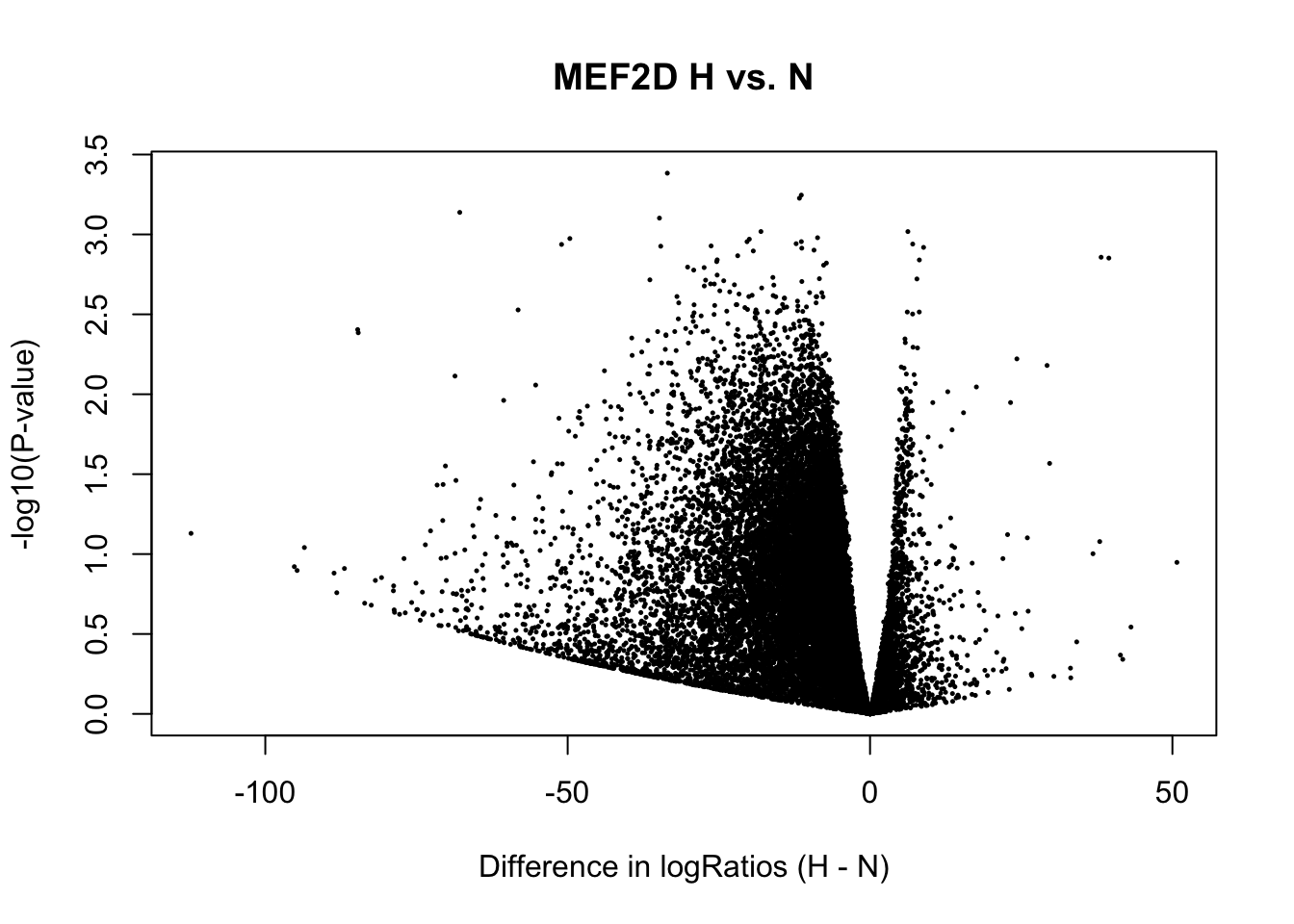

# volcanoplot(fit2, main="H vs. N", xlab = "Difference in logRatios (H - N)")

plot(x = fit2$coef, y = -log10(fit2$p.value),
     xlab = "Difference in logRatios (H - N)", ylab = "-log10(P-value)", main= paste(tf_name, "H vs. N"),
     pch = 16, cex = 0.35)
