Imports

Lets import some needed packages:

library(ggplot2)
library(tidyr)
library(dplyr)
library(RColorBrewer)
source("../code/viz.R")

# this is the color palette we will use over and over
getPalette = colorRampPalette(brewer.pal(12, "Set3"))

Human Origins Global (LD Pruned)

This is the full Human Origins dataset 2068 sampled from around the world. I filtered out rare variants with global minor allele frequency less than 5%, and remove any variants with a missingness level greater than 1%. I then LD pruned the SNPs using standard parameters in plink, resulting in 167178 SNPs.

Greedy

Lets first read the greedy flashier fit

flash_fit = readRDS("../output/flash_greedy/hoa_global_ld/HumanOriginsPublic2068_maf_geno_ldprune.rds")
K = ncol(flash_fit$loadings$normalized.loadings[[1]])
n = nrow(flash_fit$loadings$normalized.loadings[[1]])
p = nrow(flash_fit$loadings$normalized.loadings[[2]])
print(K)
[1] 31
print(n)
[1] 2068
print(p)
[1] 167178

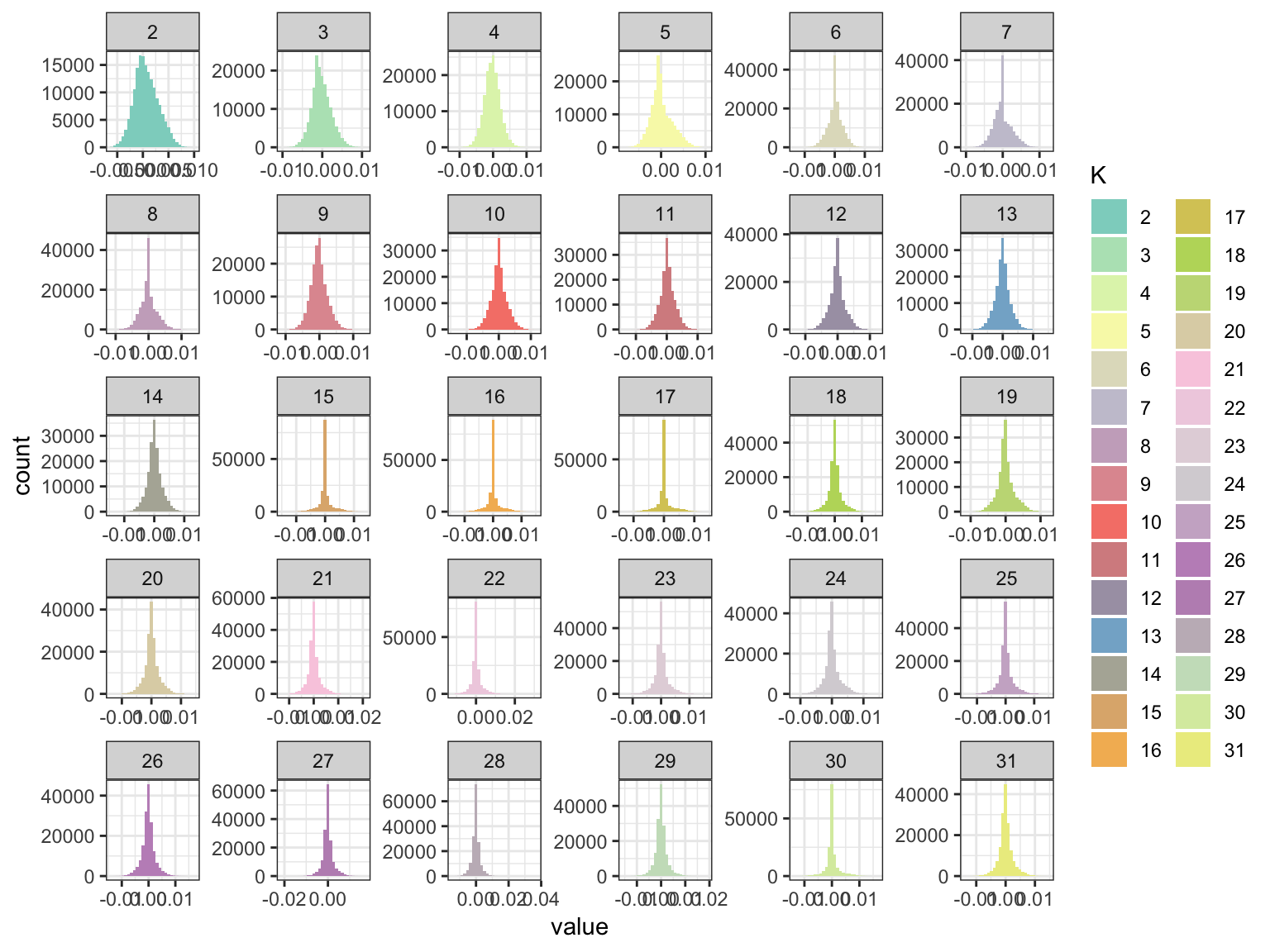

Lets now plot the distribution of factors for each drift event

# read factors
delta_df = as.data.frame(flash_fit$loadings$normalized.loadings[[2]])
colnames(delta_df)[1:K] = 1:K

# gather the data.frame for plotting
delta_gath_df = delta_df %>%
                gather(K, value) %>%
                filter(K!=1)

# plot the factors
K_ = K
p_fct = ggplot(delta_gath_df, aes(x=value, fill=factor(K, 2:K_))) +
        scale_fill_manual(values = getPalette(K_)) +
        geom_histogram() +
        facet_wrap(~factor(K, levels=2:K_), scales = "free") +
        labs(fill="K") +
        scale_x_continuous(breaks = scales::pretty_breaks(n = 3)) +
        scale_y_continuous(breaks = scales::pretty_breaks(n = 3)) +
        theme_bw()
p_fct

Expand here to see past versions of flash-greedy-ld-viz-factors-1.png:
Version Author Date
f5ef1af jhmarcus 2019-02-15

We can see the later factors tend to get sparser but they still seem to contribute! Lets now take a look at the loadings:

############### data ###############

# read the meta data
meta_df = read.table("../data/meta/HumanOriginsPublic2068_maf_geno_ldprune.meta", sep=" ", header=T)

# setup loadings data.frame
l_df = as.data.frame(flash_fit$loadings$normalized.loadings[[1]])
l_df$iid = as.vector(meta_df$iid) # individual ids
l_df$clst = meta_df$clst # population labels

# join with the meta data
l_df = l_df %>% inner_join(meta_df, on="clst")
l_df = l_df %>% arrange(region, clst) # sort by region then by population
l_df$iid = factor(l_df$iid, levels = l_df$iid) # make sure the ids are sorted
colnames(l_df)[1:K] = 1:K

# gather the data.frame for plotting
l_gath_df = l_df %>%
            gather(K, value, -iid, -clst, -region, -country, -lat, -lon, -clst2) %>%
            filter(K!=1)

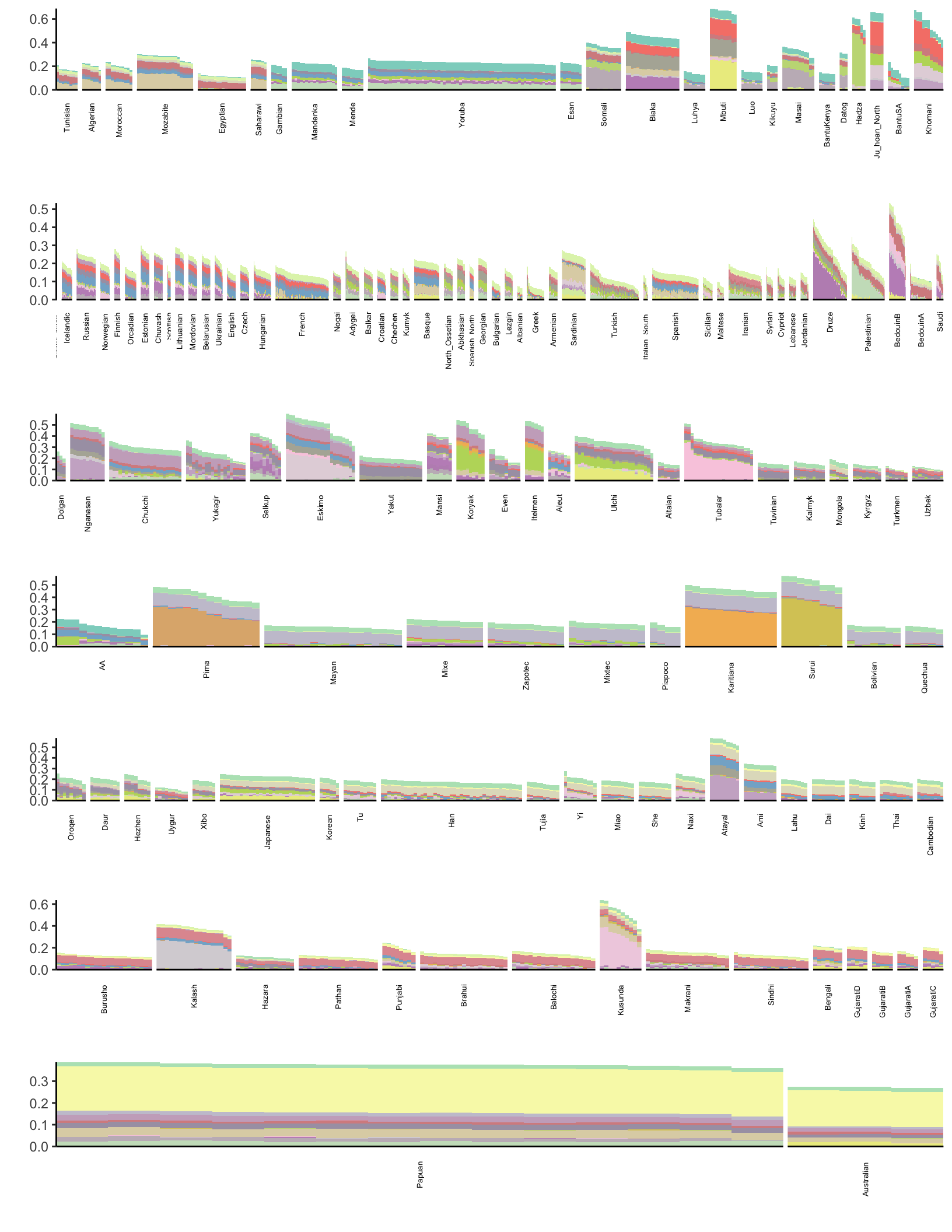

############### viz ###############
pops = unique(l_df$clst)

# Africa
africa_pops = get_pops(meta_df, "Africa")
p_africa = positive_structure_plot(l_gath_df %>% filter(region == "Africa"), africa_pops, K, label_size=5)

# America
america_pops = get_pops(meta_df, "America")
p_america = positive_structure_plot(l_gath_df %>% filter(region == "America"), america_pops, K, label_size=5)

# Central Asia Siberia
central_asia_siberia_pops = get_pops(meta_df, "CentralAsiaSiberia")
p_central_asia_siberia = positive_structure_plot(l_gath_df %>% filter(region == "CentralAsiaSiberia"), central_asia_siberia_pops, K, label_size=5)

# East Asia
east_asia_pops = get_pops(meta_df, "EastAsia")
p_east_asia = positive_structure_plot(l_gath_df %>% filter(region == "EastAsia"), east_asia_pops, K, label_size=5)

# South Asia
south_asia_pops = get_pops(meta_df, "SouthAsia")
p_south_asia= positive_structure_plot(l_gath_df %>% filter(region == "SouthAsia"), south_asia_pops, K, label_size=5)

# West Eurasia
west_eurasia_pops = get_pops(meta_df, "WestEurasia")
p_west_eurasia = positive_structure_plot(l_gath_df %>% filter(region == "WestEurasia"), west_eurasia_pops, K, label_size=5)

# Oceania
oceania_pops = get_pops(meta_df, "Oceania")
p_oceania = positive_structure_plot(l_gath_df %>% filter(region == "Oceania"), oceania_pops, K, label_size=5)

p = cowplot::plot_grid(p_africa, p_west_eurasia, p_central_asia_siberia, p_america, p_east_asia, p_south_asia, p_oceania,
                       rel_heights = c(1.2, 1.3, 1, 1, 1, 1, 1.1),
                       nrow = 7, align = "v")
p

Expand here to see past versions of flash-greedy-ld-viz-loadings-1.png:
Version Author Date
f5ef1af jhmarcus 2019-02-15

Backfitting

Lets first read the backfit flashier fit

flash_fit = readRDS("../output/flash_backfit/hoa_global_ld/HumanOriginsPublic2068_maf_geno_ldprune.rds")
K = ncol(flash_fit$loadings$normalized.loadings[[1]])
n = nrow(flash_fit$loadings$normalized.loadings[[1]])
p = nrow(flash_fit$loadings$normalized.loadings[[2]])
print(K)
[1] 31
print(n)
[1] 2068
print(p)
[1] 167178

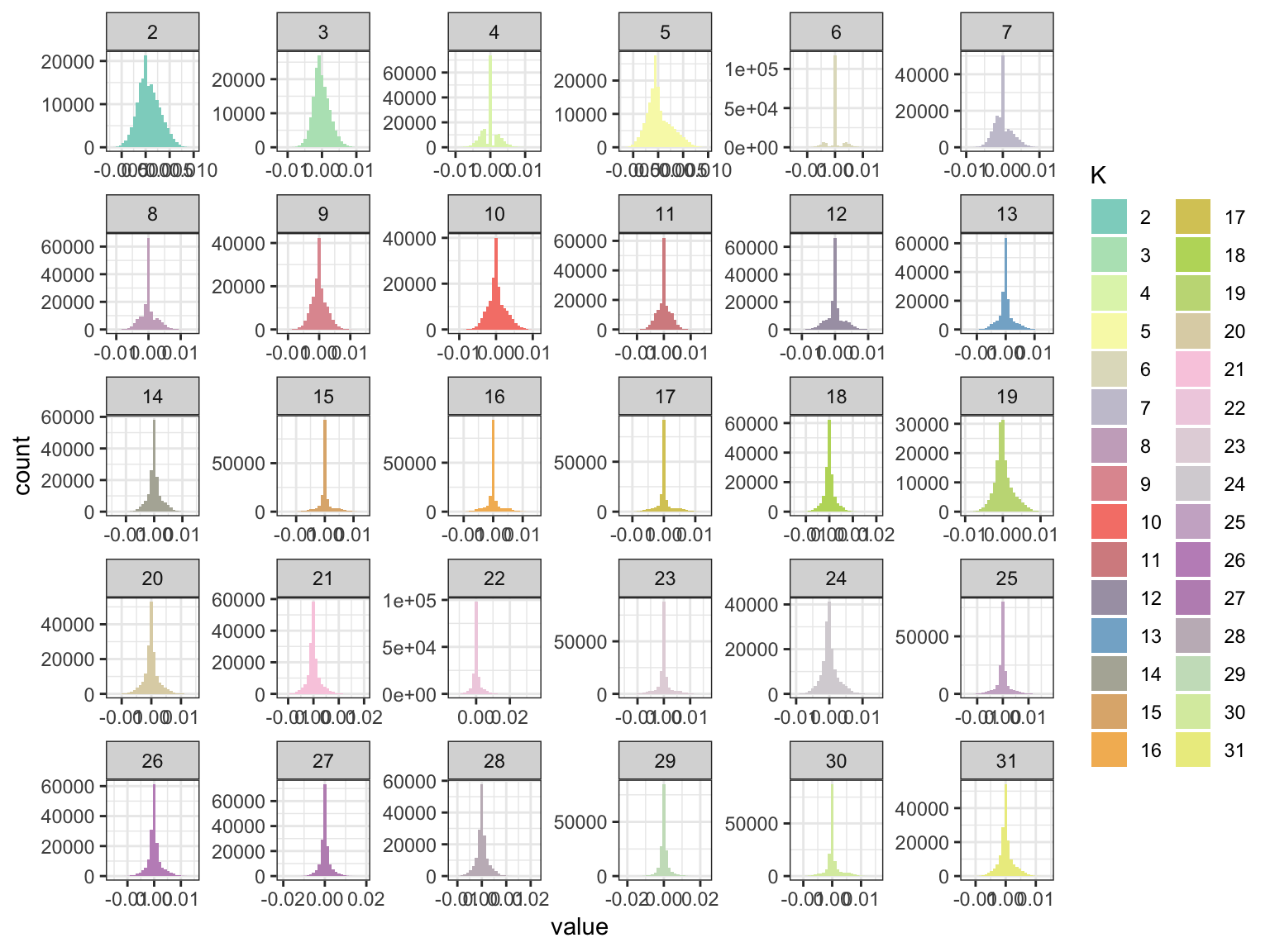

Lets now plot the distribution of factors for each drift event

# read factors
delta_df = as.data.frame(flash_fit$loadings$normalized.loadings[[2]])
colnames(delta_df)[1:K] = 1:K

# gather the data.frame for plotting
delta_gath_df = delta_df %>%
                gather(K, value) %>%
                filter(K!=1)

# plot the factors
K_ = K
p_fct = ggplot(delta_gath_df, aes(x=value, fill=factor(K, 2:K_))) +
        scale_fill_manual(values = getPalette(K_)) +
        geom_histogram() +
        facet_wrap(~factor(K, levels=2:K_), scales = "free") +
        labs(fill="K") +
        scale_x_continuous(breaks = scales::pretty_breaks(n = 3)) +
        scale_y_continuous(breaks = scales::pretty_breaks(n = 3)) +
        theme_bw()
p_fct

Expand here to see past versions of flash-backfit-ld-viz-factors-1.png:
Version Author Date
7a2b6c7 jhmarcus 2019-02-15

Some of the drift event histograms look quite odd i.e. see 4 and 6. Lets now take a look at the loadings:

############### data ###############

# read the meta data
meta_df = read.table("../data/meta/HumanOriginsPublic2068_maf_geno_ldprune.meta", sep=" ", header=T)

# setup loadings data.frame
l_df = as.data.frame(flash_fit$loadings$normalized.loadings[[1]])
l_df$iid = as.vector(meta_df$iid) # individual ids
l_df$clst = meta_df$clst # population labels

# join with the meta data
l_df = l_df %>% inner_join(meta_df, on="clst")
l_df = l_df %>% arrange(region, clst) # sort by region then by population
l_df$iid = factor(l_df$iid, levels = l_df$iid) # make sure the ids are sorted
colnames(l_df)[1:K] = 1:K

# gather the data.frame for plotting
l_gath_df = l_df %>%
            gather(K, value, -iid, -clst, -region, -country, -lat, -lon, -clst2) %>%
            filter(K!=1)

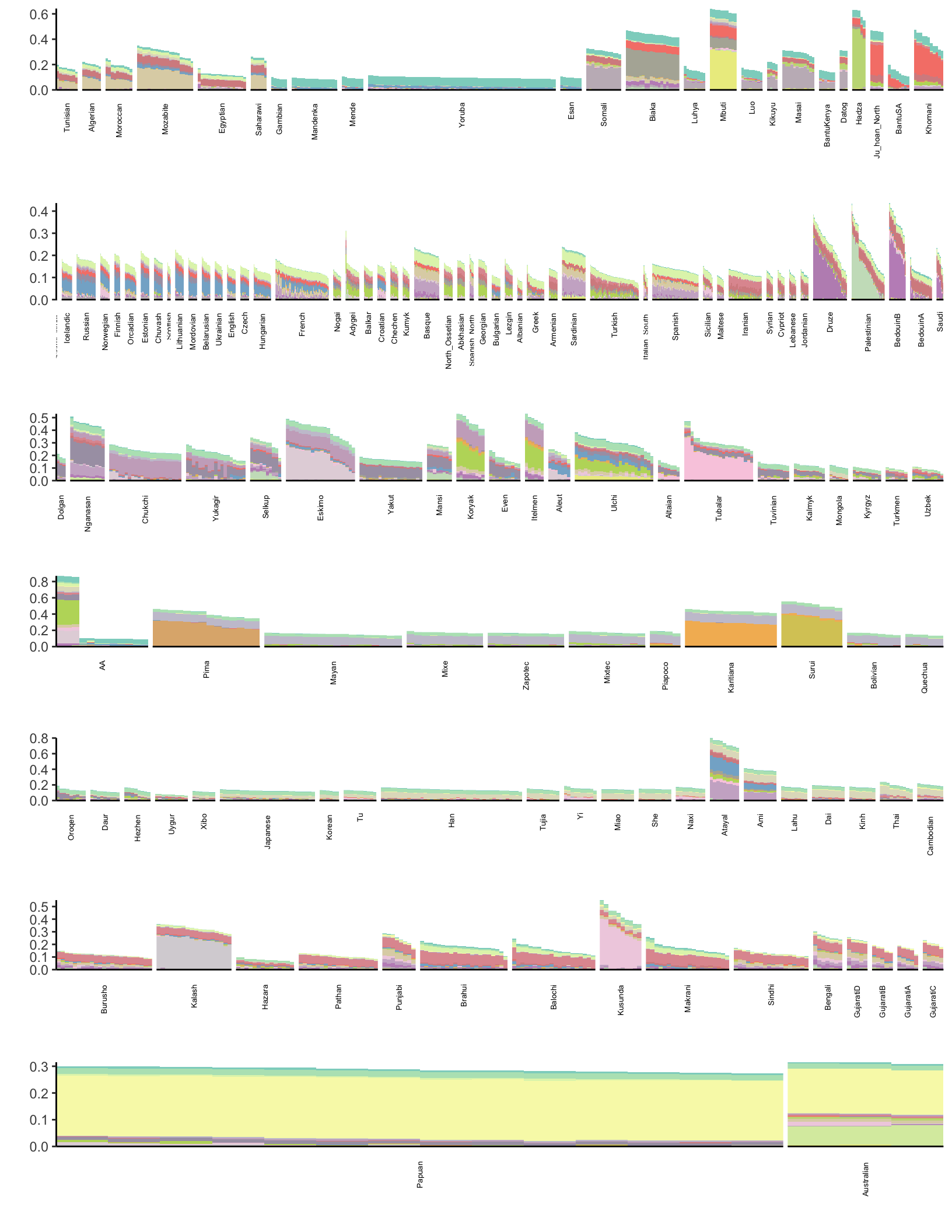

############### viz ###############
pops = unique(l_df$clst)

# Africa
africa_pops = get_pops(meta_df, "Africa")
p_africa = positive_structure_plot(l_gath_df %>% filter(region == "Africa"), africa_pops, K, label_size=5)

# America
america_pops = get_pops(meta_df, "America")
p_america = positive_structure_plot(l_gath_df %>% filter(region == "America"), america_pops, K, label_size=5)

# Central Asia Siberia
central_asia_siberia_pops = get_pops(meta_df, "CentralAsiaSiberia")
p_central_asia_siberia = positive_structure_plot(l_gath_df %>% filter(region == "CentralAsiaSiberia"), central_asia_siberia_pops, K, label_size=5)

# East Asia
east_asia_pops = get_pops(meta_df, "EastAsia")
p_east_asia = positive_structure_plot(l_gath_df %>% filter(region == "EastAsia"), east_asia_pops, K, label_size=5)

# South Asia
south_asia_pops = get_pops(meta_df, "SouthAsia")
p_south_asia= positive_structure_plot(l_gath_df %>% filter(region == "SouthAsia"), south_asia_pops, K, label_size=5)

# West Eurasia
west_eurasia_pops = get_pops(meta_df, "WestEurasia")
p_west_eurasia = positive_structure_plot(l_gath_df %>% filter(region == "WestEurasia"), west_eurasia_pops, K, label_size=5)

# Oceania
oceania_pops = get_pops(meta_df, "Oceania")
p_oceania = positive_structure_plot(l_gath_df %>% filter(region == "Oceania"), oceania_pops, K, label_size=5)

p = cowplot::plot_grid(p_africa, p_west_eurasia, p_central_asia_siberia, p_america, p_east_asia, p_south_asia, p_oceania,
                       rel_heights = c(1.2, 1.3, 1, 1, 1, 1, 1.1),
                       nrow = 7, align = "v")
p

Expand here to see past versions of flash-backfit-ld-viz-loadings-1.png:
Version Author Date
7a2b6c7 jhmarcus 2019-02-15

Its hard to visually tell the difference with so many events.
