This document will walk through a real genome-sized example of how to use CAUSE. Some of the steps will take 5-10 minutes. The LD pruning steps will benefit from access to a cluster or multiple cores. For steps that require long computation we also provide output files that can be downloaded to make it easier to run through the example.
We will be analyzing GWAS data for LDL cholesterol and for coronary artery disease to test for a causal relationship of LDL on CAD. The analysis will have the following steps:
Steps 3 and 4 require obtaining (different) LD pruned sets of variants. To do this you will need LD data in a specific format. We provide LD information estimated from the 1000 Genomes CEU population using LDshrink here. LD data are about 11 Gb. The GWAS data we will use are about 320 Gb.
In R
First install the most up to date versions of mixsqp
and ashr
devtools::install_github("stephenslab/mixsqp")
devtools::install_github("stephens999/ashr")
then install CAUSE:
devtools::install_github("jean997/cause")
We will use read_tsv
to read in summary statistics for a GWAS of LDL cholesterol and a GWAS of coronary artery disease from the internet. We will then combine these and format them for use with CAUSE. First read in the data. For LDL Cholesterol, we use summary statistics from Willer et al (2013) [PMID: 24097068]. For CAD we use summary statistics from van der Harst et al. (2017) [PMID: 29212778]
library(readr)
library(dplyr)
Attaching package: 'dplyr'
The following objects are masked from 'package:stats':
filter, lag
The following objects are masked from 'package:base':
intersect, setdiff, setequal, union
library(cause)
X1 <- read_tsv("http://csg.sph.umich.edu/abecasis/public/lipids2013/jointGwasMc_LDL.txt.gz")
Parsed with column specification:
cols(
SNP_hg18 = col_character(),
SNP_hg19 = col_character(),
rsid = col_character(),
A1 = col_character(),
A2 = col_character(),
beta = col_double(),
se = col_double(),
N = col_double(),
`P-value` = col_double(),
Freq.A1.1000G.EUR = col_double()
)
X2 <- read_tsv("ftp://ftp.ebi.ac.uk/pub/databases/gwas/summary_statistics/vanderHarstP_29212778_GCST005195/CAD_META.gz")
Parsed with column specification:
cols(
MarkerName = col_character(),
Allele1 = col_character(),
Allele2 = col_character(),
Freq1 = col_double(),
FreqSE = col_double(),
MinFreq = col_double(),
MaxFreq = col_double(),
Effect = col_double(),
StdErr = col_double(),
`P-value` = col_double(),
Direction = col_character(),
HetISq = col_double(),
HetChiSq = col_double(),
HetDf = col_integer(),
HetPVal = col_double(),
oldID = col_character(),
CHR = col_integer(),
BP = col_integer()
)
CAUSE needs the following information from each data set: SNP or variant ID, effect size, and standard error, effect allele and other allele. For convenience, we provide a simple function that will merge data sets and produce a cause_data
object that can be used with later functions. This step and the rest of the analysis are done in R.
The function gwas_format_cause
will try to merge two data sets and and align effect sizes to correspond to the same allele. It will remove variants with ambiguous alleles (G/C or A/T) or with alleles that do not match between data sets (e.g A/G in one data set and A/C in the other). It will not remove variants that are simply strand flipped between the two data sets (e. g. A/C in one data set, T/G in the other).
LDL column headers:
CAD column headers:
X <- gwas_format_cause(X1, X2, snp_name_cols = c("rsid", "oldID"),
beta_hat_cols = c("beta", "Effect"),
se_cols = c("se", "StdErr"),
A1_cols = c("A1", "Allele1"),
A2_cols = c("A2", "Allele2"))
There are 2437751 variants in GWAS 1 and 7947837 variants in GWAS 2.
After removing ambiguous SNPs, there are 2062006 variants in GWAS 1 and 6745108 variants in GWAS 2.
After merging and removing variants with inconsistent alleles, there are 2023362 variants that are present in both studies and can be used with CAUSE.
head(X)
snp beta_hat_1 seb1 beta_hat_2 seb2 A1 A2
1 rs4747841 0.0037 0.0052 0.0106 0.0056 a G
2 rs4749917 -0.0033 0.0052 -0.0108 0.0056 a G
3 rs737656 0.0099 0.0054 0.0196 0.0058 a G
4 rs737657 0.0084 0.0054 0.0195 0.0058 a G
5 rs7086391 -0.0075 0.0067 0.0115 0.0072 a G
6 rs878177 -0.0073 0.0055 -0.0225 0.0059 a G
Alternatively, you can download already formatted data here and read it in using readRDS
.
There are likely more efficient ways to do this merge. If you would like to process the data yourself, you can construct a cause_data
object from a data frame using the constructor new_cause_data(X)
where X
is any data frame that includes the columns snp
, beta_hat_1
, seb1
, beta_hat_2
, and seb2
.
Both steps 4 and 5 will require LD pruned sets of variants which we obtain in this step. Importantly, the sets are different. In Step 4, nuisance parameter estimation, we need a random set of variants that are not in LD with each other. In step 5, fitting the CAUSE model, we would like to retain the variants that are most strongly associated with the mediator (LDL) because these are the most informative about the distribution of the parameters. In order to do that we use a greedy algorithm that selects the variant wtih the lowest LDL p-value and removes all variants in LD with the selected variant and then repeats until no variants are left. In step 5, only variants associated with the mediator are informative so we can speed up computation by excluding variants with large p-values. We use a threshold of 0.001 here.
In this step we will obtain both sets of variants simultaneously using the cause::ld_prune
function. This is the most computationally intensive step of the analysis and requires LD estimates from a reference panel as input data. LD estimates made in the 1000 Genomes CEU population can be downloaded here. We first demonstrate use of the function for one chromosome and then show an example of how to parallelize the analysis over all 22 autosomes.
ld <- readRDS("example_data/ld_data/chr22_AF0.05_0.1.RDS")
snp_info <- readRDS("example_data/ld_data/chr22_AF0.05_snpdata.RDS")
head(ld)
rowsnp colsnp r2
1 rs62224609 rs376238049 0.9012642
2 rs62224609 rs62224614 0.9907366
3 rs62224609 rs7286962 0.9907366
4 rs62224609 rs55926024 0.1103000
5 rs62224609 rs117246541 0.9012642
6 rs62224609 rs62224618 0.9907366
head(snp_info)
# A tibble: 6 x 9
AF SNP allele chr pos snp_id region_id map ld_snp_id
<dbl> <chr> <chr> <int> <int> <int> <int> <dbl> <int>
1 0.884 rs62224609 T,C 22 1.61e7 7.98e7 22 0 79758556
2 0.904 rs4965031 G,A 22 1.61e7 7.98e7 22 0 79758578
3 0.646 rs3756846… A,AAAAC 22 1.61e7 7.98e7 22 0 79758584
4 0.894 rs3762380… C,T 22 1.61e7 7.98e7 22 0 79758602
5 0.934 rs2007775… C,A 22 1.61e7 7.98e7 22 0 79758604
6 0.934 rs80167676 A,T 22 1.61e7 7.98e7 22 0 79758627
The format of the ld
data frame is important in that it should contain the column names rowsnp
, colsnp
, and r2
. The snp_info
data frame contains information about all of the chromosome 22 variants with allele frequency greater than 0.05. The only piece of information we need from this data frame is the list of variants snp_info$SNP
which provides the total list of variants used in the LD calculations.
The ld_prune
function is somewhat flexible in its arguments, see help(ld_prune)
.
set.seed(5)
variants <- X %>% mutate(pval1 = 2*pnorm(abs(beta_hat_1/seb1), lower.tail=FALSE))
pruned <- ld_prune(variants = variants,
ld = ld, total_ld_variants = snp_info$SNP,
pval_cols = c(NA, "pval1"),
pval_thresh = c(Inf, 1e-3))
You have suppplied information for 2023362 variants.
Producing 1 random sets of variants and 1 sets of variants using p-values in the data.
Of these, 22835 have LD information.
length(pruned)
[1] 2
sapply(pruned, length)
[1] 1791 15
ld_prune
retunrs a list of vectors of length equal to the length of the pval_cols
argument. In this case pval_cols= c(NA, "pval1")
meaning that the first element of pruned
will be a randomly pruned list and the second will be pruned preferentially choosing variants with low values of pval1
. We also apply a threshold specified by the pval_thresh
argument. For the first list there is no threshold. For the second, the threshold is 0.001.
We highly recommend parallelizing for whole genome LD pruning. One way to do this is with the parallel pacakge, though this option uses a lot of memory.
library(parallel)
cores <- parallel::detectCores()-1
set.seed(5)
ld_files <- paste0("example_data/ld_data/chr", 1:22, "_AF0.05_0.1.RDS")
snp_info_files <- paste0("example_data/ld_data/chr", 1:22, "_AF0.05_snpdata.RDS")
cl <- makeCluster(cores, type="PSOCK")
clusterExport(cl, varlist=c("variants", "ld_files", "snp_info_files"))
clusterEvalQ(cl, library(cause))
system.time(
pruned <- parLapply(cl, seq_along(ld_files[20:22]), fun=function(i){
ld <- readRDS(ld_files[i])
snp_info <- readRDS(snp_info_files[i])
ld_prune(variants = variants,
ld = ld, total_ld_variants = snp_info$SNP,
pval_cols = c(NA, "pval1"),
pval_thresh = c(Inf, 1e-3))
})
)
stopCluster(cl)
random_pruned_vars <- unlist(purrr:map(pruned, 1))
top_ldl_pruned_vars <- unlist(purrr::map(pruned, 2))
A better option is to parallelize over the nodes of a compute cluster and then combine results.
Tip: If you are analyzing many phenotypes first obtain a list of variants present in all data sets and then LD prune this list. You can use this single set of variants estimate nuisance parameters for every pair as long as there are enough of them.
Download the resulting variant lists: genome wide list, top LDL list
The next step is to estimate the mixture proportions that define the bivariate distribution of effect sizes and to estimate \(\rho\), the correlation between summary statistics that is due to sample overlap or population structure. To do this, we need the data set and the genome-wide set of LD pruned variants obtained in Step 3. This step takes a few minutes. est_cause_params
estimates the nuisance parameters by finding the maximum a posteriori estimate of \(\rho\) and the mixing parameters when \(\gamma = \eta = 0\).
varlist <- readRDS("example_data/genome_wide_pruned_vars.RDS")
params <- est_cause_params(X, varlist)
1 0.04269384
2 9.226364e-05
3 4.889476e-07
4 2.369153e-09
The object params
is of class cause_params
and contains information about the fit as well as the maximum a posteriori estimates of the mixing parameters (\(\pi\)) and \(\rho\). The object params$mix_grid
is a data frame defining the distribution of summary statistics. The column S1
is the variance for trait 1 (\(M\)), the column S2
is the variance for trait 2 (\(Y\)) and the column pi
is the mixture proportion assigned to that variance combination.
class(params)
[1] "cause_params"
names(params)
[1] "rho" "pi" "mix_grid" "loglik" "PIS"
[6] "RHO" "LLS" "converged" "prior" "var"
params$rho
[1] 0.04278659
head(params$mix_grid)
S1 S2 pi
1 0.000000000 0.000000000 0.5775164448
2 0.000000000 0.003844598 0.0671561630
3 0.000000000 0.005437082 0.1814078269
4 0.004607137 0.005437082 0.1496411493
5 0.000000000 0.015378390 0.0123144988
6 0.004607137 0.015378390 0.0002248187
So, for example, in this case, we have estimated that 58% of variants have trait 1 variance and trait 2 equal to 0 meaning that they have no association with either trait.
Tip: Do not try to estimate the nuisance parameters with substantially fewer than 100,000 variants. This can lead to poor estimates of the mixing parameters whih leads to bad model comparisons.
Now that we have formatted data, LD pruned SNP sets, and nuisance parameters estimated, we can fit CAUSE! The function cause::cause
will estimate posterior distributions under the confounding and causal models and calculate the elpd for both models as well as for the null model in which there is neither a causal or a confounding effect. This might take 5-10 minutes.
Note: To estimate the posterior distributions, we only need the variants that are most associated with the mediator. This is because other variants don’t add any information about the relationship between the traits. When we LD pruned, we used a \(p\)-value threshold of 0.001. The exact value of this threshold isn’t important as long as it is fairly lenient. Including additional variants may slow down computation but shouldn’t change the results
top_vars <- readRDS("example_data/top_ldl_pruned_vars.RDS")
res <- cause(X=X, variants = top_vars, param_ests = params)
Estimating CAUSE posteriors using 1215 variants.
Warning: replacing previous import 'dplyr::combine' by 'gridExtra::combine'
when loading 'sherlockAsh'
Warning: replacing previous import 'dplyr::count' by 'matrixStats::count'
when loading 'sherlockAsh'
Warning: replacing previous import 'intervals::reduce' by 'purrr::reduce'
when loading 'sherlockAsh'
Warning: replacing previous import 'intervals::expand' by 'tidyr::expand'
when loading 'sherlockAsh'

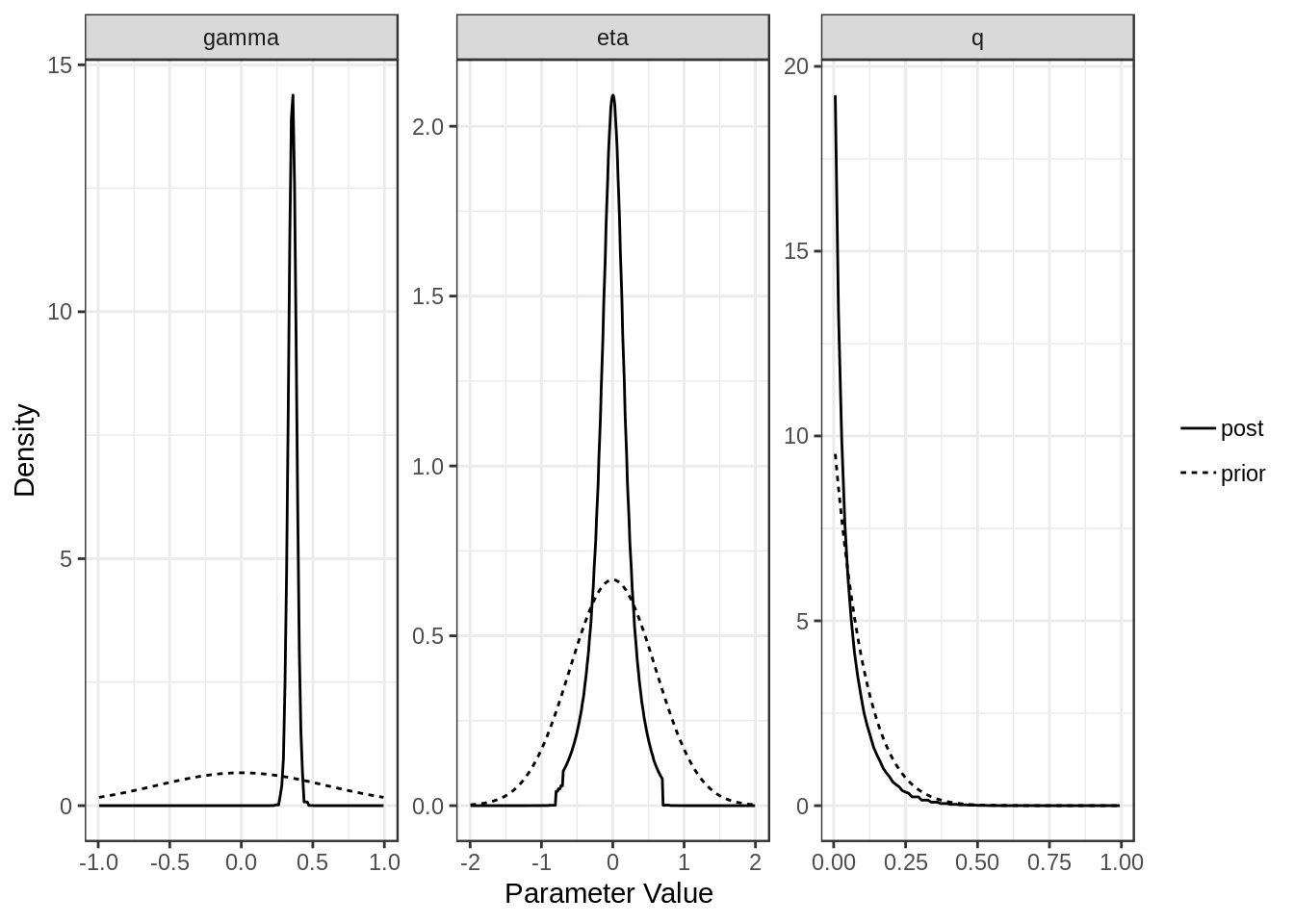

The resulting cause
object contains an object for the confounding only model fit (conf
), and object for the causal model fit (full
) and a table of ELPD results.
class(res)
[1] "cause"
names(res)
[1] "conf" "full" "elpd"
res$elpd
model1 model2 delta_elpd se_delta_elpd z
1 null conf -85.707878 10.152051 -8.442420
2 null full -93.680331 11.277130 -8.307108
3 conf full -7.972453 1.285898 -6.199910
class(res$conf)
[1] "cause_post"
class(res$full)
[1] "cause_post"
The elpd
table has the following columns:
In this case we see that the full (causal) model is significantly better than the confounding model from the thrid line of the table. The \(z\)-score is -6.2 corresponding to a p-value of 2.810^{-10}.
For each model (confounding and full) we can plot the posterior distributions of the parameters. Dotted lines show the prior distributions.
plot(res$conf)
Version | Author | Date |
---|---|---|
a34393d | Jean Morrison | 2018-10-24 |
bbe4901 | Jean Morrison | 2018-10-17 |
73690eb | Jean Morrison | 2018-10-17 |
plot(res$full)
Version | Author | Date |
---|---|---|
a34393d | Jean Morrison | 2018-10-24 |
bbe4901 | Jean Morrison | 2018-10-17 |
73690eb | Jean Morrison | 2018-10-17 |
The summary
method will summarize the posterior medians and credible intervals.
summary(res, ci_size=0.95)
p-value testing that causal model is a better fit: 2.8e-10
Posterior medians and 95 % credible intervals:
model gamma eta
[1,] "Confounding Only" NA "0.4 (0.34, 0.47)"
[2,] "Causal" "0.36 (0.3, 0.41)" "0 (-0.55, 0.5)"
q
[1,] "0.79 (0.67, 0.89)"
[2,] "0.04 (0, 0.25)"
The plot
method applied to a cause
object will arrange all of this information on one spread.
plot(res)
sessionInfo()
R version 3.5.1 (2018-07-02)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Linux Mint 19
Matrix products: default
BLAS: /usr/lib/x86_64-linux-gnu/blas/libblas.so.3.7.1
LAPACK: /usr/lib/x86_64-linux-gnu/lapack/liblapack.so.3.7.1
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] workflowr_1.1.1 bindrcpp_0.2.2 cause_0.2.0.0049 dplyr_0.7.7
[5] readr_1.1.1
loaded via a namespace (and not attached):
[1] tidyselect_0.2.5 ashr_2.2-21 purrr_0.2.5
[4] lattice_0.20-35 colorspace_1.3-2 htmltools_0.3.6
[7] loo_2.0.0 yaml_2.2.0 utf8_1.1.4
[10] rlang_0.2.2 R.oo_1.22.0 mixsqp_0.1-62
[13] pillar_1.3.0 glue_1.3.0 R.utils_2.7.0
[16] matrixStats_0.54.0 foreach_1.4.4 bindr_0.1.1
[19] plyr_1.8.4 stringr_1.3.1 munsell_0.5.0
[22] gtable_0.2.0 R.methodsS3_1.7.1 codetools_0.2-15
[25] evaluate_0.11 labeling_0.3 knitr_1.20
[28] doParallel_1.0.14 pscl_1.5.2 sherlockAsh_0.3.1
[31] curl_3.2 parallel_3.5.1 fansi_0.3.0
[34] Rcpp_0.12.19 backports_1.1.2 scales_1.0.0
[37] RcppParallel_4.4.1 truncnorm_1.0-8 gridExtra_2.3
[40] ggplot2_3.0.0 hms_0.4.2 digest_0.6.18
[43] stringi_1.2.4 numDeriv_2016.8-1 grid_3.5.1
[46] rprojroot_1.3-2 cli_1.0.1 tools_3.5.1
[49] magrittr_1.5 lazyeval_0.2.1 tibble_1.4.2
[52] crayon_1.3.4 whisker_0.3-2 tidyr_0.8.1
[55] pkgconfig_2.0.2 MASS_7.3-50 Matrix_1.2-14
[58] SQUAREM_2017.10-1 assertthat_0.2.0 rmarkdown_1.10
[61] iterators_1.0.10 R6_2.3.0 intervals_0.15.1
[64] git2r_0.23.0 compiler_3.5.1
This reproducible R Markdown analysis was created with workflowr 1.1.1
