Last updated: 2017-12-13

Code version: cf9e702

Setup

library("cowplot")
library("dplyr")
Warning: Installed Rcpp (0.12.14) different from Rcpp used to build dplyr (0.12.10).
Please reinstall dplyr to avoid random crashes or undefined behavior.
library("DT")
library("ggplot2")
library("reshape2")
library("Biobase")
theme_set(theme_cowplot())
fname <- Sys.glob("../data/eset/*.rds")
eset <- Reduce(combine, Map(readRDS, fname))
pData(eset)$experiment <- as.factor(pData(eset)$experiment)

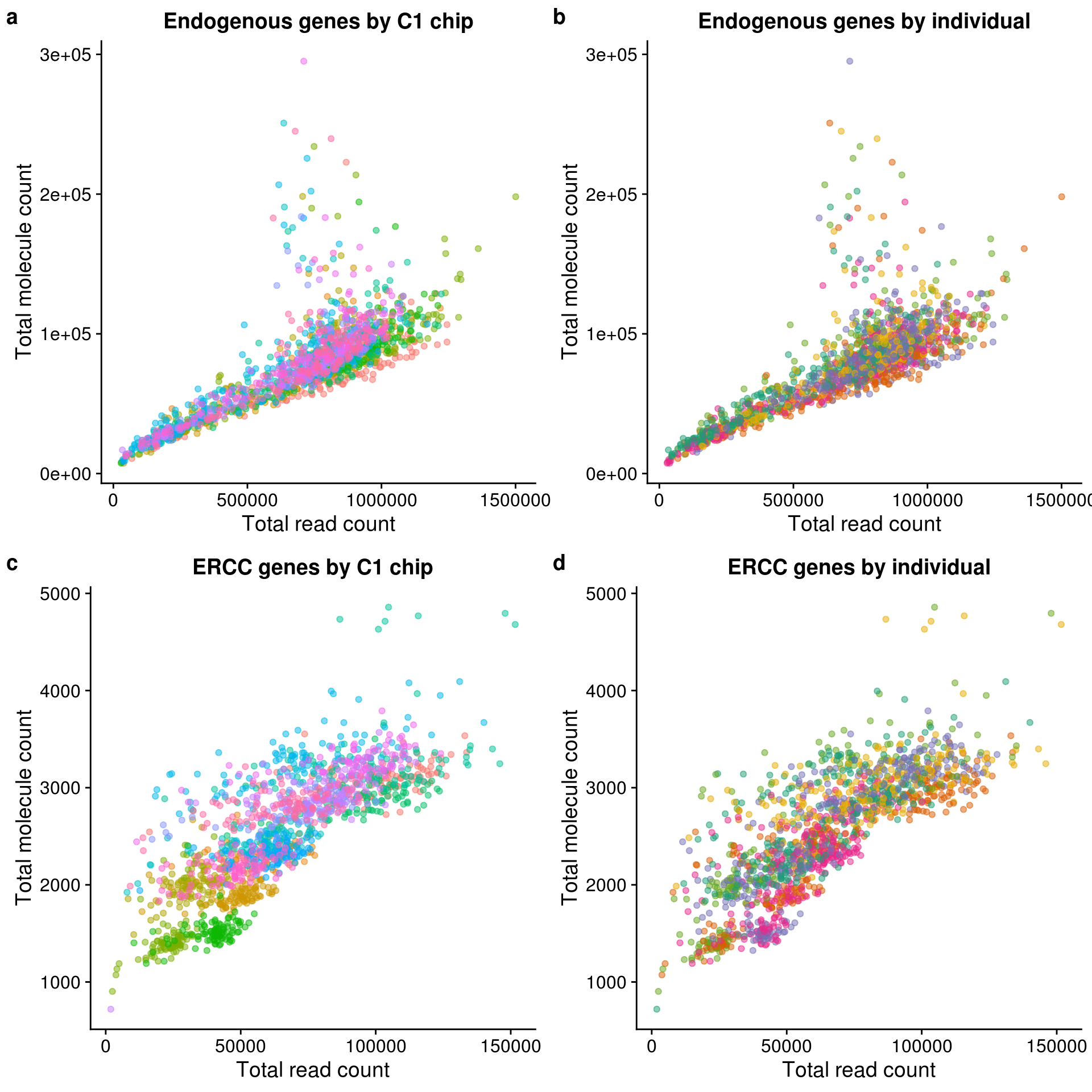

Reads versus molecules

conv_hs_c1 <- ggplot(pData(eset), aes(x = reads_hs, y = mol_hs,
                                     color = experiment)) +
  geom_point(alpha = 1/2) +
  labs(x = "Total read count",
       y = "Total molecule count",
       title = "Endogenous genes by C1 chip") +
  theme(legend.position = "none")
conv_hs_ind <- ggplot(pData(eset), aes(x = reads_hs, y = mol_hs,
                                      color = chip_id)) +
  geom_point(alpha = 1/2) +
  scale_color_brewer(palette = "Dark2") +
  labs(x = "Total read count",
       y = "Total molecule count",
       title = "Endogenous genes by individual") +
  theme(legend.position = "none")
conv_ercc_c1 <- ggplot(pData(eset), aes(x = reads_ercc, y = mol_ercc,
                                        color = experiment)) +
  geom_point(alpha = 1/2) +
  labs(x = "Total read count",
       y = "Total molecule count",
       title = "ERCC genes by C1 chip") +
  theme(legend.position = "none")
conv_ercc_ind <- ggplot(pData(eset), aes(x = reads_ercc, y = mol_ercc,
                                         color = chip_id)) +
  geom_point(alpha = 1/2) +
  scale_color_brewer(palette = "Dark2") +
  labs(x = "Total read count",
       y = "Total molecule count",
       title = "ERCC genes by individual") +
  theme(legend.position = "none")
plot_grid(conv_hs_c1, conv_hs_ind, conv_ercc_c1, conv_ercc_ind,
        labels = letters[1:4])

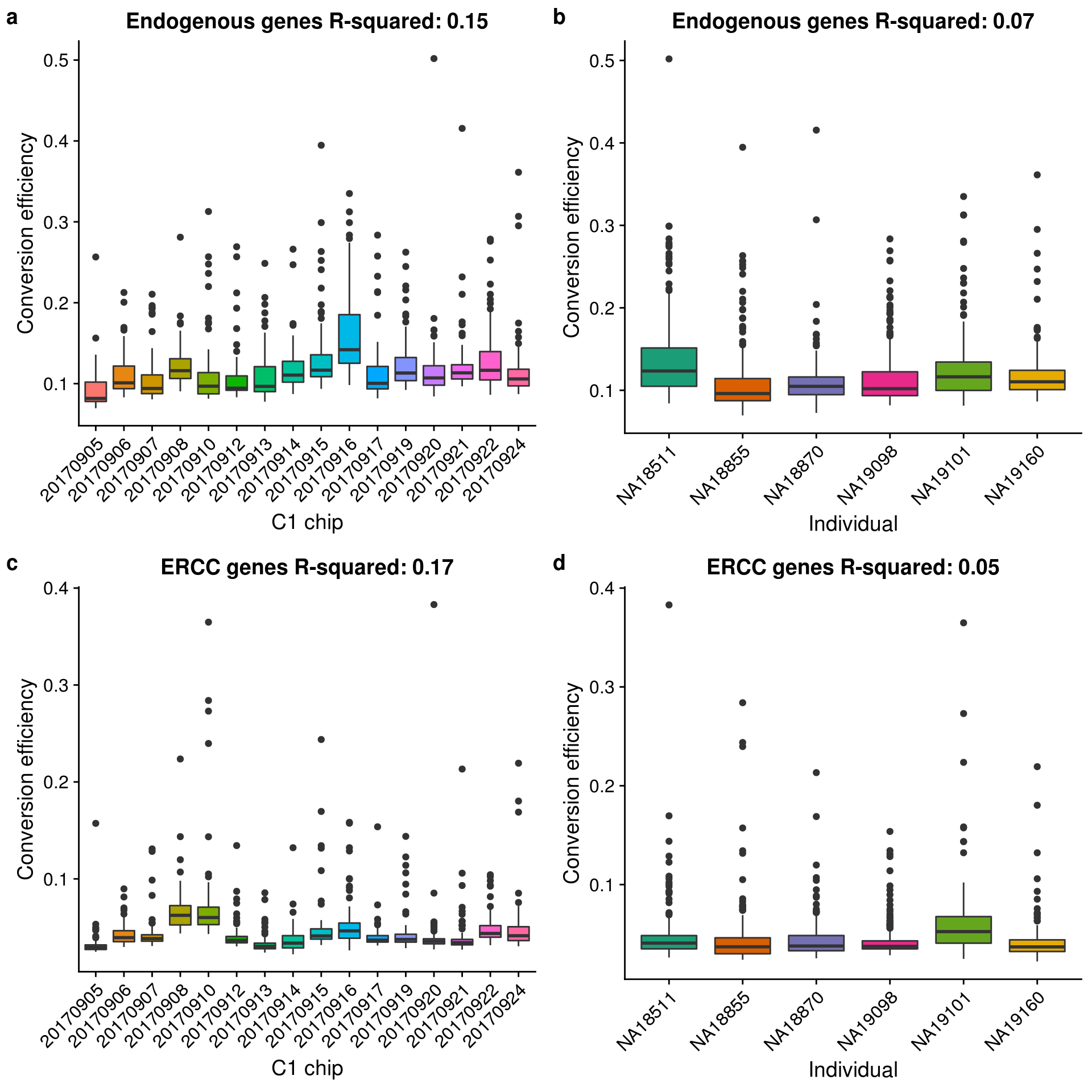

Read to molecule conversion

eset$conv_hs <- eset$mol_hs / eset$reads_hs
eset$conv_ercc <- eset$mol_ercc / eset$reads_ercc
r2_hs_c1 <- summary(lm(conv_hs ~ experiment, data = pData(eset)))$r.squared
box_hs_c1 <- ggplot(pData(eset), aes(x = experiment, y = conv_hs,
                                     fill = experiment)) +
  geom_boxplot() +
  labs(x = "C1 chip", y = "Conversion efficiency",
       title = sprintf("Endogenous genes R-squared: %.2f", r2_hs_c1)) +
  theme(legend.position = "none",
        axis.text.x = element_text(angle = 45, hjust = 1, vjust = 1))
r2_hs_ind <- summary(lm(conv_hs ~ chip_id, data = pData(eset)))$r.squared
box_hs_ind <- ggplot(pData(eset), aes(x = chip_id, y = conv_hs,
                                      fill = chip_id)) +
  geom_boxplot() +
  scale_fill_brewer(palette = "Dark2") +
  labs(x = "Individual", y = "Conversion efficiency",
       title = sprintf("Endogenous genes R-squared: %.2f", r2_hs_ind)) +
  theme(legend.position = "none",
        axis.text.x = element_text(angle = 45, hjust = 1, vjust = 1))
r2_ercc_c1 <- summary(lm(conv_ercc ~ experiment, data = pData(eset)))$r.squared
box_ercc_c1 <- ggplot(pData(eset), aes(x = experiment, y = conv_ercc,
                                       fill = experiment)) +
  geom_boxplot() +
  labs(x = "C1 chip", y = "Conversion efficiency",
       title = sprintf("ERCC genes R-squared: %.2f", r2_ercc_c1)) +
  theme(legend.position = "none",
        axis.text.x = element_text(angle = 45, hjust = 1, vjust = 1))
r2_ercc_ind <- summary(lm(conv_ercc ~ chip_id, data = pData(eset)))$r.squared
box_ercc_ind <- ggplot(pData(eset), aes(x = chip_id, y = conv_ercc,
                                        fill = chip_id)) +
  geom_boxplot() +
  scale_fill_brewer(palette = "Dark2") +
  labs(x = "Individual", y = "Conversion efficiency",
       title = sprintf("ERCC genes R-squared: %.2f", r2_ercc_ind)) +
  theme(legend.position = "none",
        axis.text.x = element_text(angle = 45, hjust = 1, vjust = 1))
plot_grid(box_hs_c1, box_hs_ind, box_ercc_c1, box_ercc_ind,
          labels = letters[1:4])

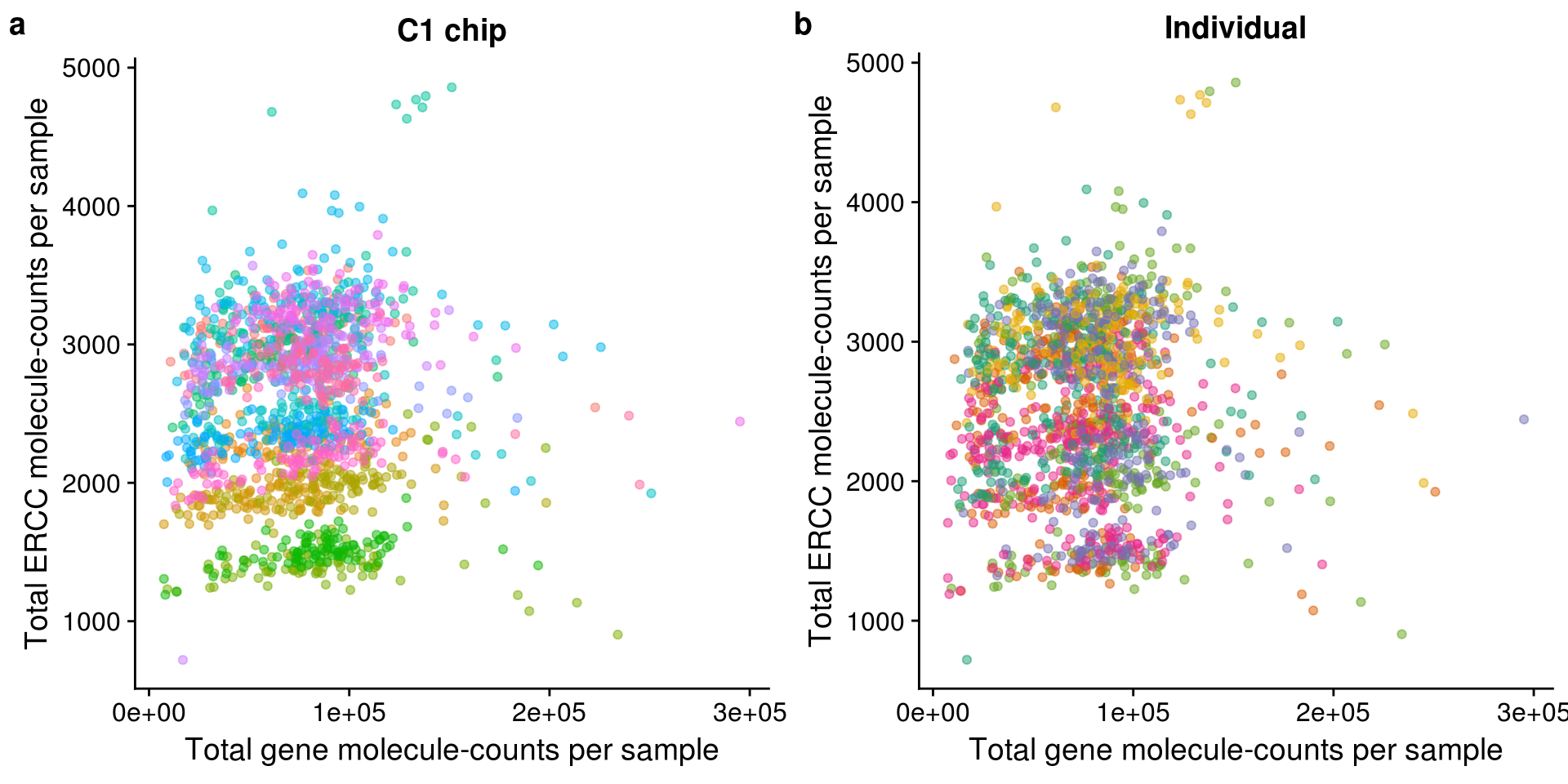

Total ERCC versus total endogenous molecules

Recreating Tung et al., 2017 Figure 3b:

Tung et al., 2017 Figure 3b

Tung et al., 2017 Figure 3b

gene_v_ercc_c1 <- ggplot(pData(eset), aes(x = mol_hs, y = mol_ercc,
                        color = experiment)) +
  geom_point(alpha = 1/2) +
  labs(x = "Total gene molecule-counts per sample",
       y = "Total ERCC molecule-counts per sample",
       title = "C1 chip") +
  theme(legend.position = "none")
gene_v_ercc_ind <- ggplot(pData(eset), aes(x = mol_hs, y = mol_ercc,
                                           color = chip_id)) +
  geom_point(alpha = 1/2) +
  scale_color_brewer(palette = "Dark2") +
  labs(x = "Total gene molecule-counts per sample",
       y = "Total ERCC molecule-counts per sample",
       title = "Individual") +
  theme(legend.position = "none")
plot_grid(gene_v_ercc_c1, gene_v_ercc_ind, labels = letters[1:2])

Session information

sessionInfo()
R version 3.4.1 (2017-06-30)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Scientific Linux 7.2 (Nitrogen)

Matrix products: default
BLAS: /home/joycehsiao/miniconda3/envs/fucci-seq/lib/R/lib/libRblas.so
LAPACK: /home/joycehsiao/miniconda3/envs/fucci-seq/lib/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] parallel  stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
[1] Biobase_2.38.0      BiocGenerics_0.24.0 reshape2_1.4.2
[4] DT_0.2              dplyr_0.7.0         cowplot_0.8.0
[7] ggplot2_2.2.1

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.14       knitr_1.16         magrittr_1.5
 [4] munsell_0.4.3      colorspace_1.3-2   R6_2.2.0
 [7] rlang_0.1.2        stringr_1.2.0      plyr_1.8.4
[10] tools_3.4.1        grid_3.4.1         gtable_0.2.0
[13] git2r_0.19.0       htmltools_0.3.6    assertthat_0.1
[16] yaml_2.1.14        lazyeval_0.2.0     rprojroot_1.2
[19] digest_0.6.12      tibble_1.3.3       RColorBrewer_1.1-2
[22] htmlwidgets_0.9    glue_1.1.1         evaluate_0.10.1
[25] rmarkdown_1.6      labeling_0.3       stringi_1.1.2
[28] compiler_3.4.1     scales_0.4.1       backports_1.0.5
