Clone prevalence analysis

knitr::opts_chunk$set(echo = TRUE)
dir.create("figures/clone_prevalences", showWarnings = FALSE, recursive = TRUE)
library(tidyverse)
library(viridis)
library(cowplot)

params <- list()
params$callset <- "filt_lenient.cell_coverage_sites"
fls <- list.files("data/sces")
fls <- fls[grepl(params$callset, fls)]
lines <- gsub(".*ce_([a-z]+)_.*", "\\1", fls)

cell_assign_list <- list()
for (don in lines) {
    cell_assign_list[[don]] <- readRDS(file.path("data/cell_assignment",
        paste0("cardelino_results.", don, ".", params$callset, ".rds")))
    cat(paste("reading", don, "\n"))
}

canopy_list <- list()

prev_list <- list()
for (don in lines) {
  tmp_df <- data_frame(
    line = don,
    clone = rownames(cell_assign_list[[don]]$tree$P),
    prev_canopy = cell_assign_list[[don]]$tree$P[, 1],
    prev_cardelino = NA,
    n_cells = length(cell_assign_list[[don]]$clone_assigned),
    n_assigned = sum(cell_assign_list[[don]]$clone_assigned != "unassigned"),
    prop_assigned = n_assigned / n_cells
  )
  for (i in seq_len(nrow(tmp_df))) {
    tmp_df$prev_cardelino[i] <- (sum(
      cell_assign_list[[don]]$clone_assigned == tmp_df$clone[i]) /
        tmp_df$n_assigned[i])
  }
  prev_list[[don]] <- tmp_df
}
df_prev <- do.call("rbind", prev_list)

lm_eqn <- function(df) {
    m <- lm(prev_cardelino ~ prev_canopy, df);
    eq <- substitute(italic(r)^2~"="~r2,
         list(a = format(coef(m)[1], digits = 2),
              b = format(coef(m)[2], digits = 2),
             r2 = format(summary(m)$r.squared, digits = 3)))
    as.character(as.expression(eq));
}

## Fit weighted regressions
fits <- df_prev %>%
  group_by(clone) %>%
  do(fit = lm(prev_cardelino ~ prev_canopy, weights = prop_assigned, data = .))

fits_1grp <- df_prev %>%
  do(fit = lm(prev_cardelino ~ prev_canopy, weights = prop_assigned, data = .))

le_lin_fit <- function(dat) {
  the_fit <- lm(prev_cardelino ~ prev_canopy, weights = prop_assigned, dat)
  setNames(data.frame(t(coef(the_fit))), c("x0", "x1"))
}

fits_me <- df_prev %>%
  group_by(clone) %>%
  do(le_lin_fit(.))

fits_me_1grp <- df_prev %>%
  do(le_lin_fit(.))

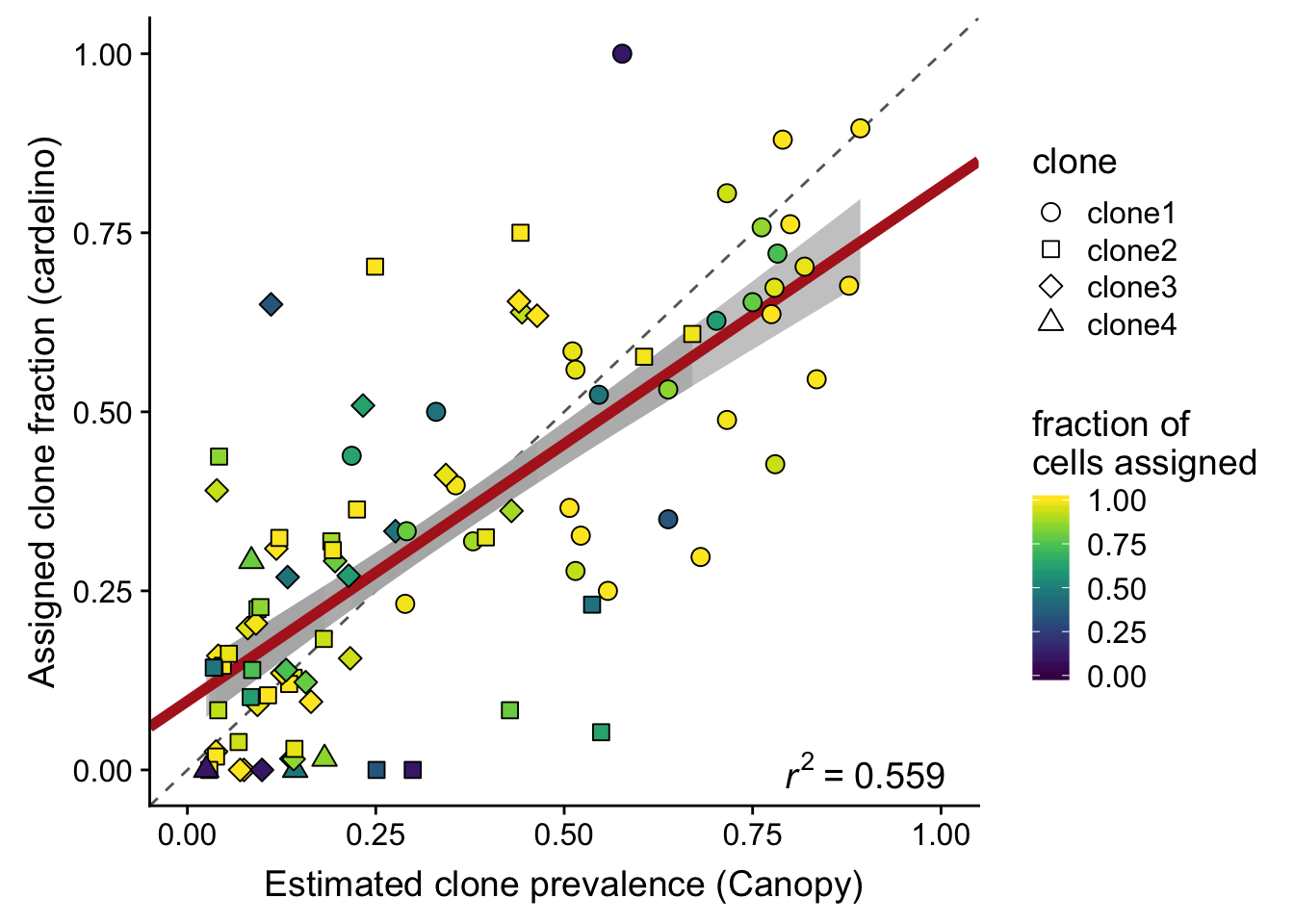

fits_1grp %>%
  broom::augment(fit) %>%
  inner_join(., df_prev) %>%
ggplot(aes(x = prev_canopy, y = prev_cardelino, shape = clone,
                    fill = prop_assigned)) +
  geom_abline(slope = 1, intercept = 0, colour = "gray40", linetype = 2) +
  geom_ribbon(aes(ymin = .fitted - 1.645 * .se.fit, ymax = .fitted + 1.645 * .se.fit),
              fill = "gray70", alpha = 0.7) +
  geom_abline(aes(intercept = x0, slope = x1),
              data = fits_me_1grp,
              colour = "firebrick", size = 2) +
  geom_point(size = 3) +
  xlim(0, 1) + ylim(0, 1) +
  geom_text(x = 0.9, y = 0, colour = "black", label = lm_eqn(df_prev),
            size = 5, parse = TRUE, data = df_prev[1,]) +
  scale_fill_viridis(name = "fraction of\ncells assigned", limits = c(0, 1)) +
  scale_shape_manual(values = 21:25) +
  xlab("Estimated clone prevalence (Canopy)") +
  ylab("Assigned clone fraction (cardelino)")

ggsave("figures/clone_prevalences/clone_prev_scatter.png",
       height = 5, width = 7)
ggsave("figures/clone_prevalences/clone_prev_scatter.pdf",
       height = 5, width = 7)

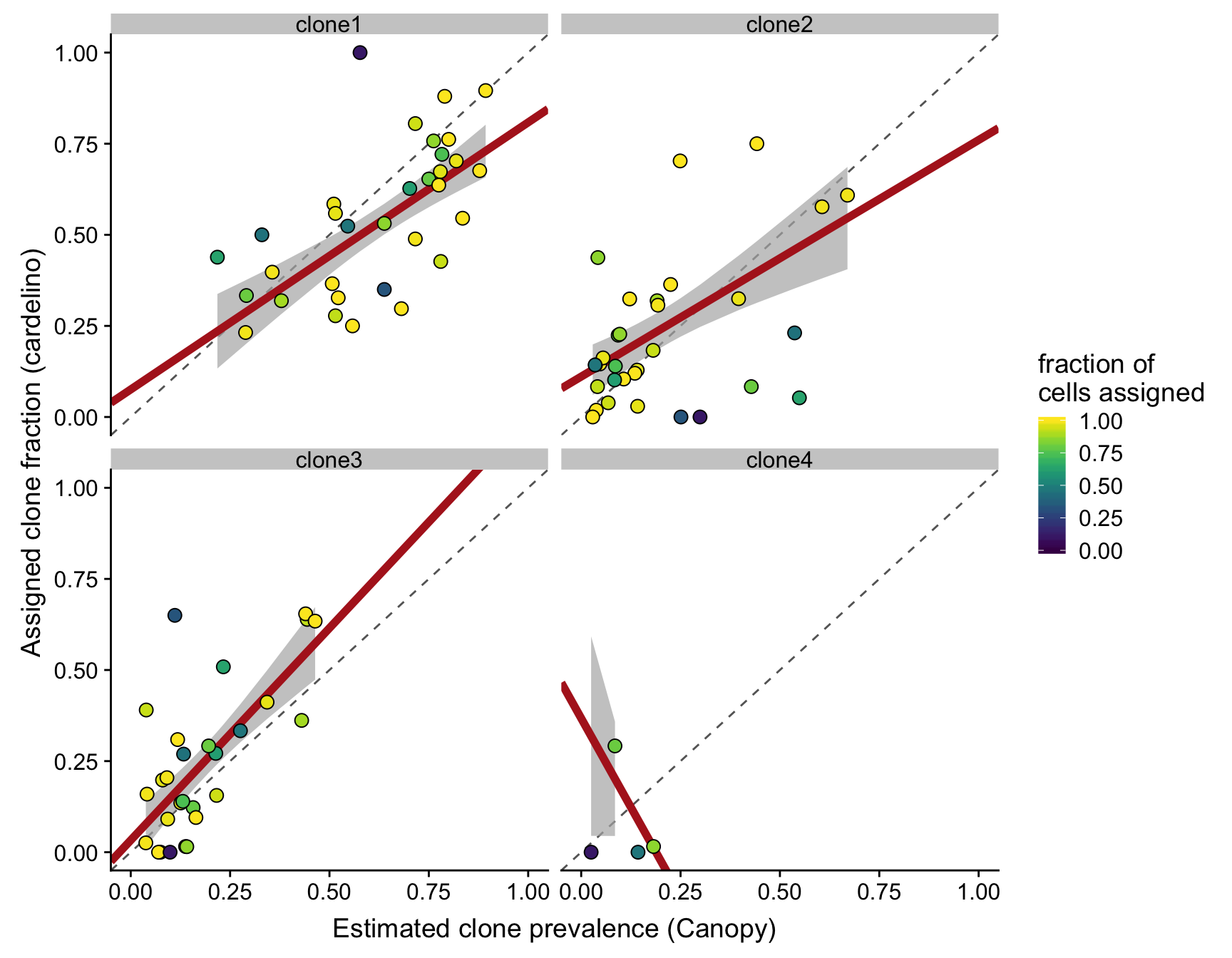

fits %>%
  broom::augment(fit) %>%
  inner_join(., df_prev) %>%
  ggplot(aes(x = prev_canopy, y = prev_cardelino)) +
  geom_abline(slope = 1, intercept = 0, colour = "gray40", linetype = 2) +
  geom_ribbon(aes(ymin = .fitted - 1.645 * .se.fit, ymax = .fitted + 1.645 * .se.fit),
              fill = "gray70", alpha = 0.7) +
  geom_abline(aes(intercept = x0, slope = x1),
              data = fits_me,
              colour = "firebrick", size = 2) +
  geom_point(aes(fill = prop_assigned), size = 3, shape = 21) +
  xlim(0, 1) + ylim(0, 1) +
  facet_wrap(~clone) +
  scale_fill_viridis(name = "fraction of\ncells assigned", limits = c(0, 1)) +
  scale_shape_manual(values = 21:25) +
  xlab("Estimated clone prevalence (Canopy)") +
  ylab("Assigned clone fraction (cardelino)")

ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone.png",
       height = 7, width = 9)
ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone.pdf",
       height = 7, width = 9)

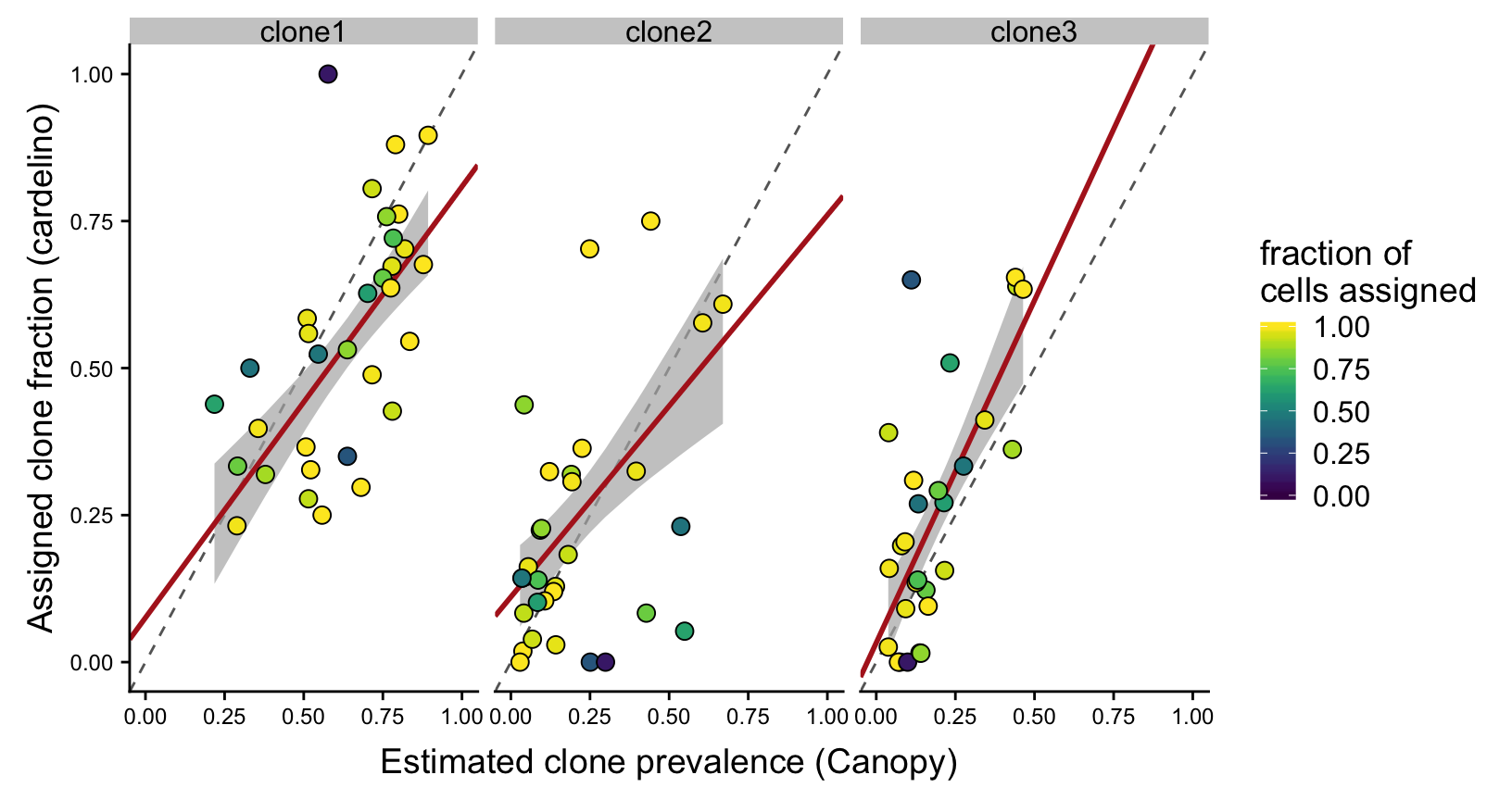

fits %>%
  broom::augment(fit) %>%
  inner_join(., df_prev) %>%
  dplyr::filter(clone != "clone4") %>%
  ggplot(aes(x = prev_canopy, y = prev_cardelino, fill = prop_assigned)) +
  geom_abline(slope = 1, intercept = 0, colour = "gray40", linetype = 2) +
  geom_ribbon(aes(ymin = .fitted - 1.645 * .se.fit, ymax = .fitted + 1.645 * .se.fit),
              fill = "gray70", alpha = 0.7) +
  geom_abline(aes(intercept = x0, slope = x1),
              data = dplyr::filter(fits_me, clone != "clone4"),
              colour = "firebrick", size = 1) +
  geom_point(size = 3, shape = 21) +
  xlim(0, 1) + ylim(0, 1) +
  facet_wrap(~clone, nrow = 1) +
  scale_fill_viridis(name = "fraction of\ncells assigned", limits = c(0, 1)) +
  scale_shape_manual(values = 21:25) +
  xlab("Estimated clone prevalence (Canopy)") +
  ylab("Assigned clone fraction (cardelino)") +
  theme(axis.text = element_text(size = 9))

ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone_no_clone4.png",
       height = 4.5, width = 8.5)
ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone_no_clone4.pdf",
       height = 4.5, width = 8.5)

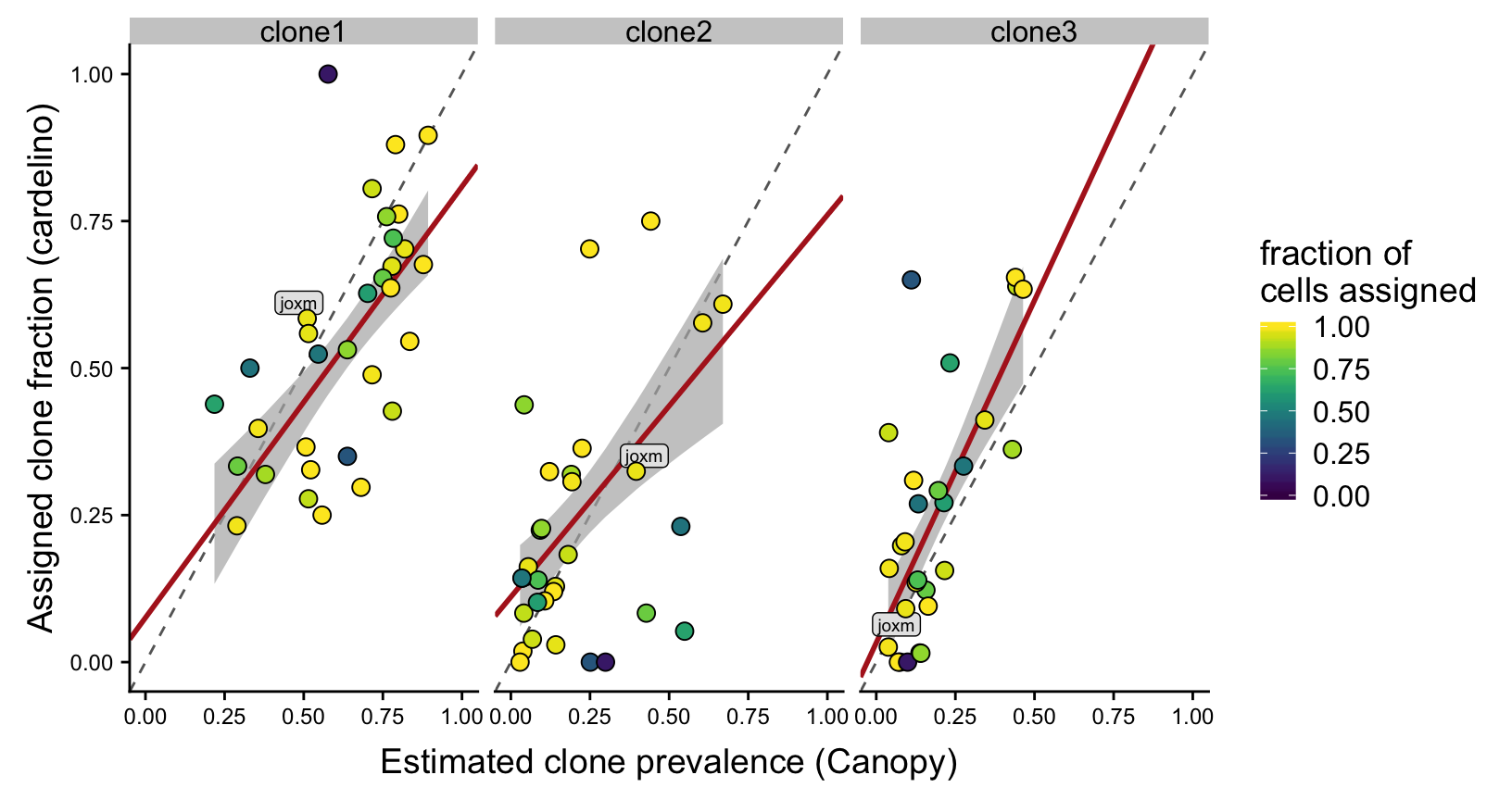

fits %>%
  broom::augment(fit) %>%
  inner_join(., df_prev) %>%
  dplyr::filter(clone != "clone4") %>%
  dplyr::mutate(labs = ifelse(line == "joxm", "joxm", "")) %>%
  ggplot(aes(x = prev_canopy, y = prev_cardelino, fill = prop_assigned)) +
  geom_abline(slope = 1, intercept = 0, colour = "gray40", linetype = 2) +
  geom_ribbon(aes(ymin = .fitted - 1.645 * .se.fit, ymax = .fitted + 1.645 * .se.fit),
              fill = "gray70", alpha = 0.7) +
  geom_abline(aes(intercept = x0, slope = x1),
              data = dplyr::filter(fits_me, clone != "clone4"),
              colour = "firebrick", size = 1) +
  ggrepel::geom_label_repel(aes(label = labs), fill = "gray90", size = 2.5,
                            box.padding = 0.1, label.padding = 0.15) +
  geom_point(size = 3, shape = 21) +
  xlim(0, 1) + ylim(0, 1) +
  facet_wrap(~clone, nrow = 1) +
  scale_fill_viridis(name = "fraction of\ncells assigned", limits = c(0, 1)) +
  scale_shape_manual(values = 21:25) +
  scale_colour_manual(values = c("black", "firebrick"), guide = FALSE) +
  xlab("Estimated clone prevalence (Canopy)") +
  ylab("Assigned clone fraction (cardelino)") +
  theme(axis.text = element_text(size = 9))

ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone_no_clone4_joxmlabel.png",
       height = 4.5, width = 8.5)
ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone_no_clone4_joxmlabel.pdf",
       height = 4.5, width = 8.5)

ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone_no_clone4_joxmlabel_wide.png",
       height = 4.5, width = 13)
ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone_no_clone4_joxmlabel_wide.pdf",
       height = 4.5, width = 13)

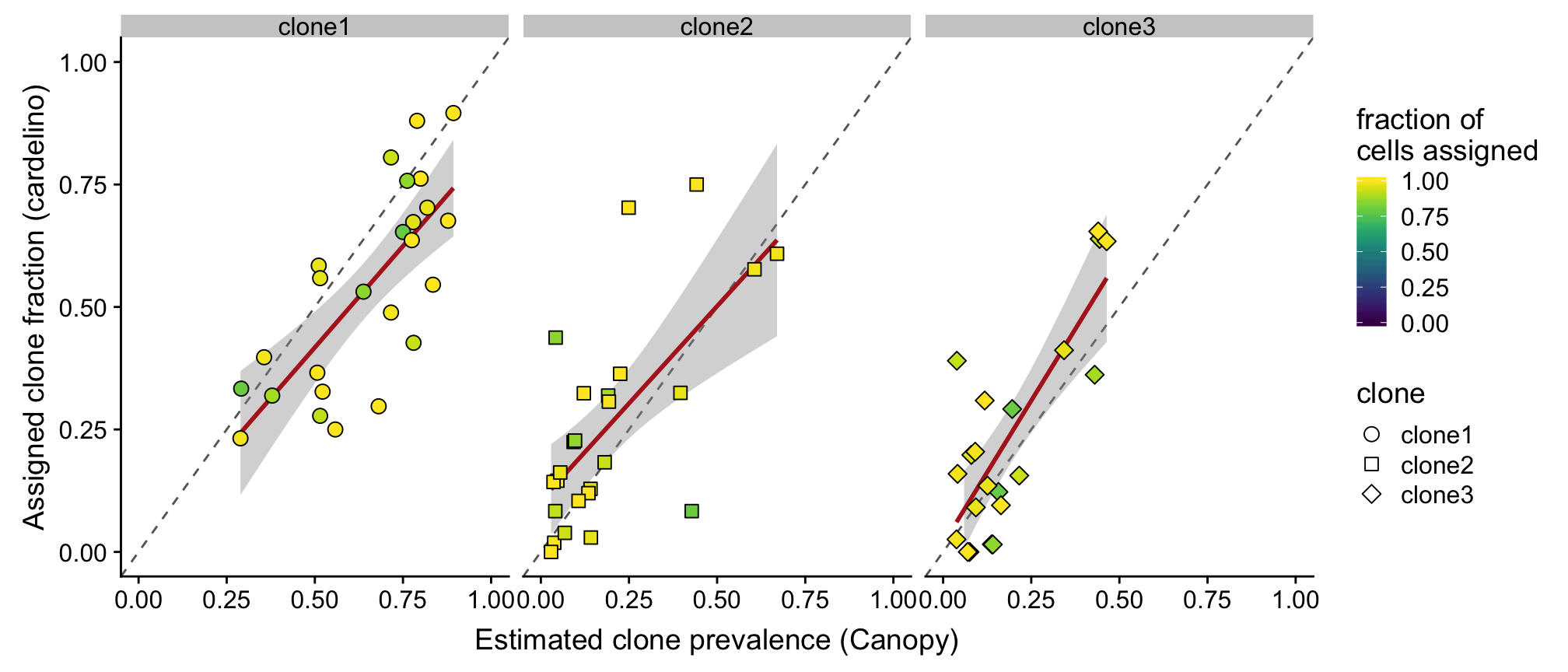

df_prev %>%
  dplyr::filter(clone != "clone4", prop_assigned > 0.75) %>%
  ggplot(aes(x = prev_canopy, y = prev_cardelino, shape = clone,
             fill = prop_assigned)) +
  geom_abline(slope = 1, intercept = 0, colour = "gray40", linetype = 2) +
  geom_smooth(aes(group = 1), method = "lm", colour = "firebrick") +
  geom_point(size = 3) +
  xlim(0, 1) + ylim(0, 1) +
  facet_wrap(~clone, nrow = 1) +
  scale_fill_viridis(name = "fraction of\ncells assigned", limits = c(0, 1)) +
  scale_shape_manual(values = 21:25) +
  xlab("Estimated clone prevalence (Canopy)") +
  ylab("Assigned clone fraction (cardelino)")

ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone_no_clone4_75pctassigned.png",
       height = 4.5, width = 10.5)
ggsave("figures/clone_prevalences/clone_prev_scatter_facet_clone_no_clone4_75pctassigned.pdf",
       height = 4.5, width = 10.5)

devtools::session_info()
