Last updated: 2018-12-12

workflowr checks: (Click a bullet for more information)

✔ R Markdown file: up-to-date

Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
✔ Environment: empty

Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
✔ Seed: set.seed(20181026)

The command set.seed(20181026) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.
✔ Session information: recorded

Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
✔ Repository version: 069d471
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.

Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
```
Ignored files:
    Ignored:    output/markergenes/
    Ignored:    output/monocle/

Untracked files:
    Untracked:  analysis/10x-180504-DEGs-depots.Rmd
    Untracked:  code/REMOVE/
    Untracked:  code/find-depot-markers-180504.R
    Untracked:  code/find-sample-markers-180504.R
    Untracked:  plots/180504_depot_markers.pdf

Unstaged changes:
    Modified:   analysis/index.Rmd
    Modified:   code/find-markers.R
    Deleted:    code/get-genes-monocle-180831.R
    Modified:   code/preprocess-data.R
    Modified:   code/run-monocle.R
    Modified:   plots/180504_mixture.pdf
    Modified:   plots/180504_pca_tsne.pdf
    Modified:   plots/supplementary_figures/sfig_180504_pcelbow.pdf
    Modified:   plots/supplementary_figures/sfig_180504_qcplots.pdf
```
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

Expand here to see past versions:

File	Version	Author	Date	Message
Rmd	069d471	PytrikFolkertsma	2018-12-12	wflow_publish(c(“analysis/10x-180831-first-inspection.Rmd”))
html	3bae44a	PytrikFolkertsma	2018-11-08	Build site.
Rmd	aede8bc	PytrikFolkertsma	2018-11-08	wflow_publish(c(“analysis/10x-180831-first-inspection.Rmd”))
html	b84ca55	PytrikFolkertsma	2018-11-08	Build site.
Rmd	92ef278	PytrikFolkertsma	2018-11-08	wflow_publish(c(“analysis/10x-180831-first-inspection.Rmd”))
html	c8f6254	PytrikFolkertsma	2018-11-08	Build site.
Rmd	f9da1a0	PytrikFolkertsma	2018-11-08	wflow_publish(c(“analysis/10x-180831-first-inspection.Rmd”))

library(Seurat)
data <- readRDS('output/10x-180831-notcleaned')

TSNE plots of the data.

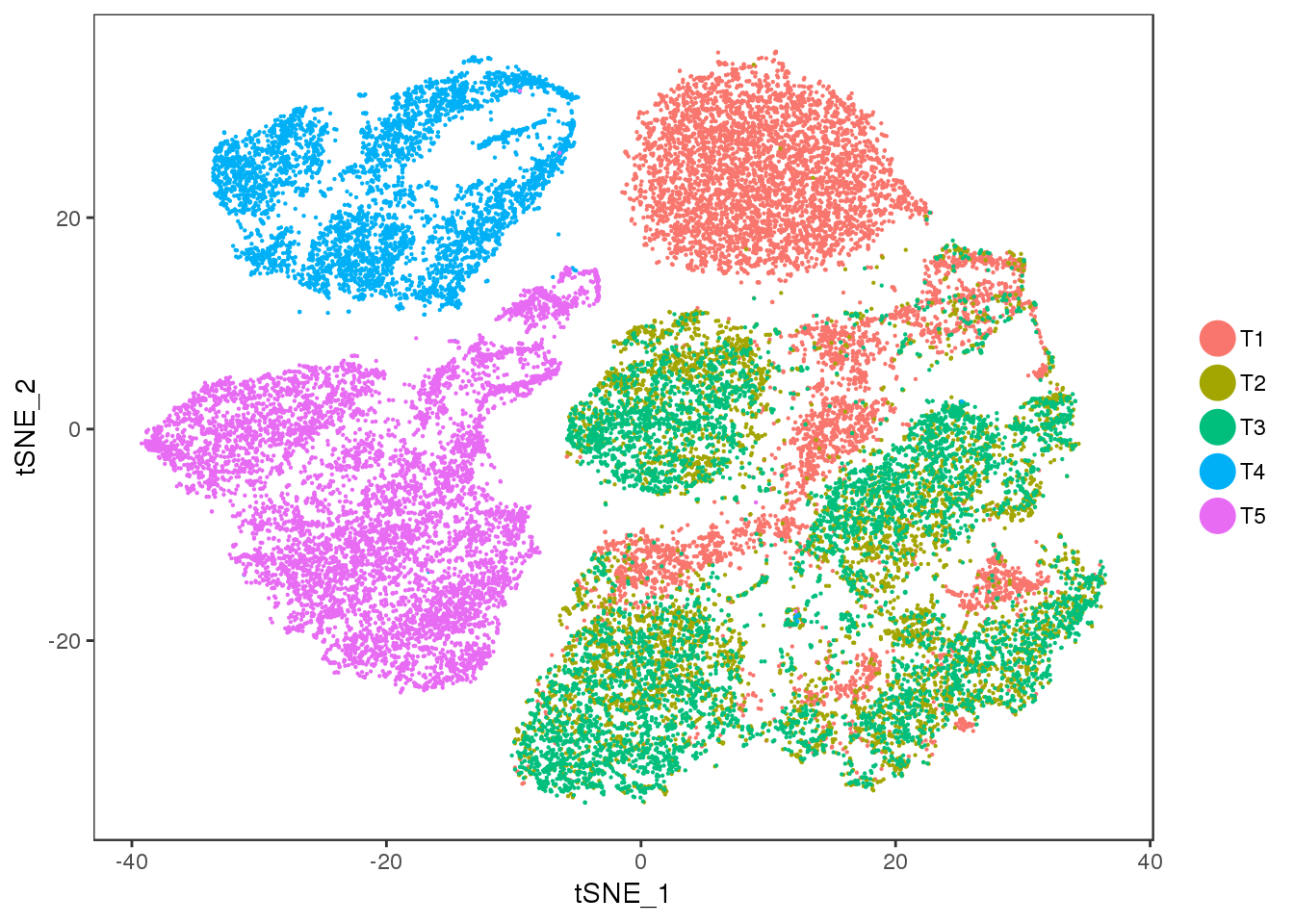

t1 <- TSNEPlot(data, group.by='timepoint', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-2-1.png:

Version	Author	Date
b84ca55	PytrikFolkertsma	2018-11-08
c8f6254	PytrikFolkertsma	2018-11-08

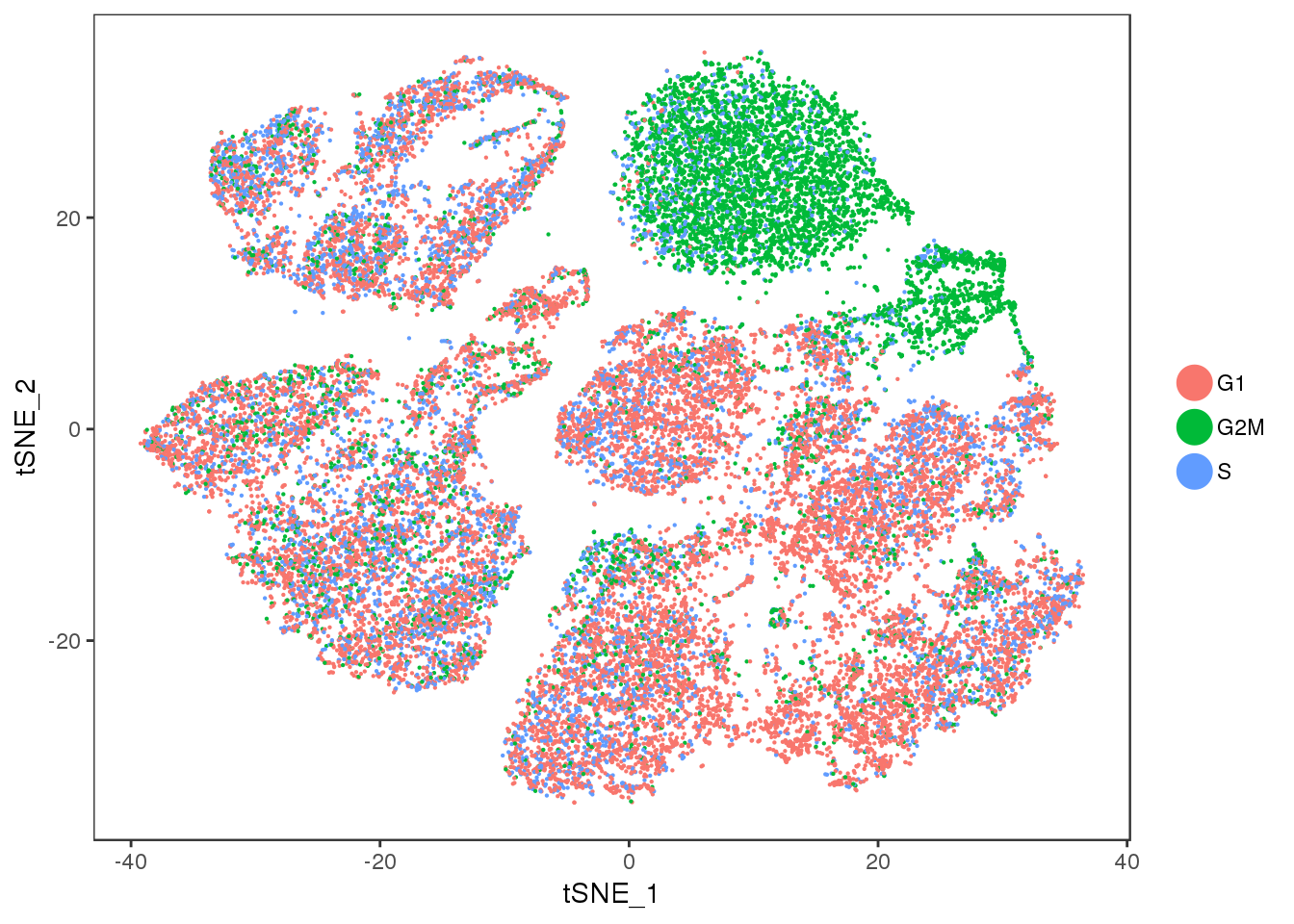

t2 <- TSNEPlot(data, group.by='Phase', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-3-1.png:

Version	Author	Date
b84ca55	PytrikFolkertsma	2018-11-08
c8f6254	PytrikFolkertsma	2018-11-08

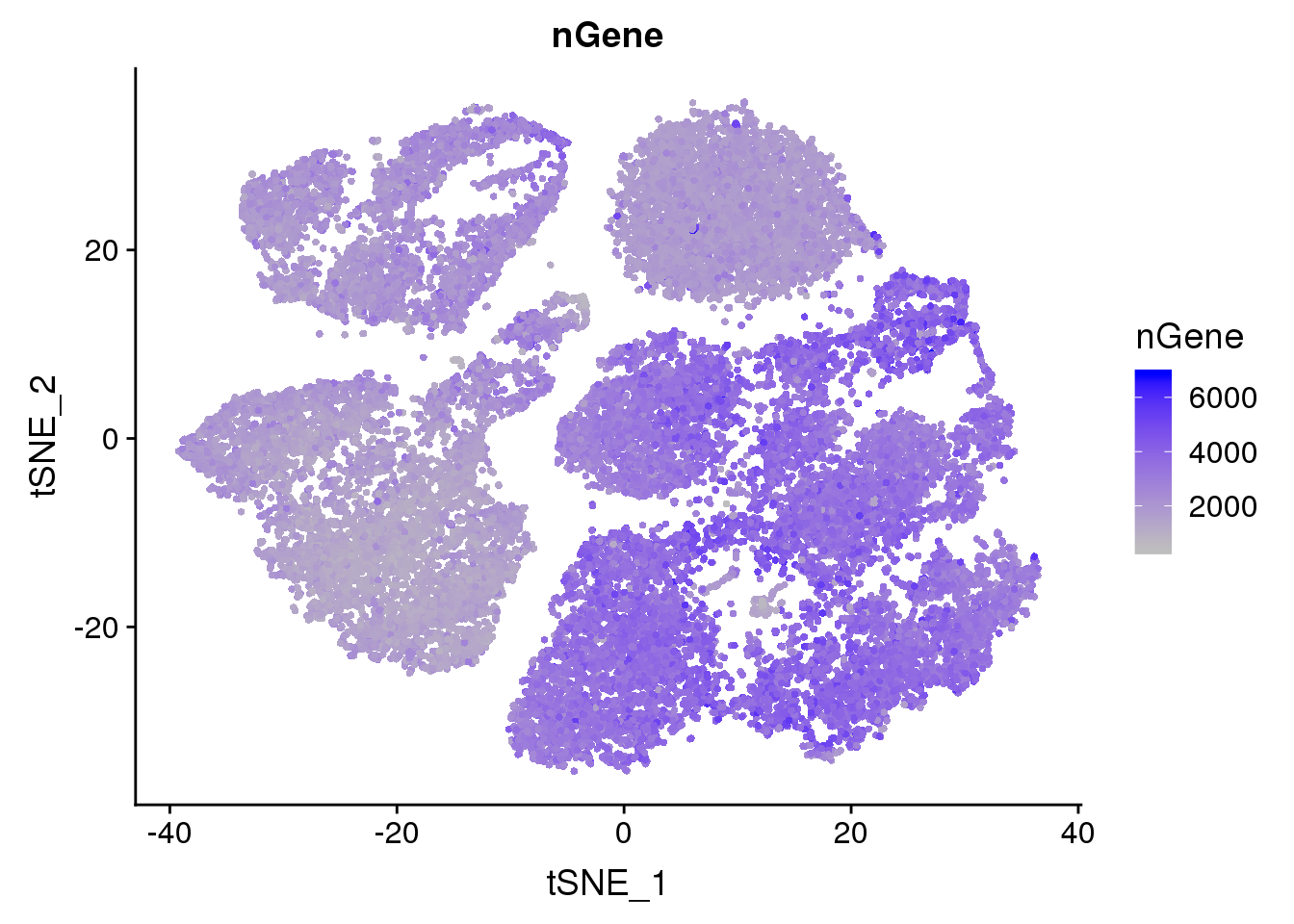

t3 <- FeaturePlot(data, features.plot=c('nGene'), cols.use=c('gray', 'blue'), no.legend = F)

Expand here to see past versions of unnamed-chunk-4-1.png:

Version	Author	Date
b84ca55	PytrikFolkertsma	2018-11-08
c8f6254	PytrikFolkertsma	2018-11-08

#t4 <- DimPlot(data, reduction.use='tsne', cells.highlight = rownames(data@meta.data)[data@meta.data$res.0.5 == 1], cols.highlight = 'blue', cols.use='gray')

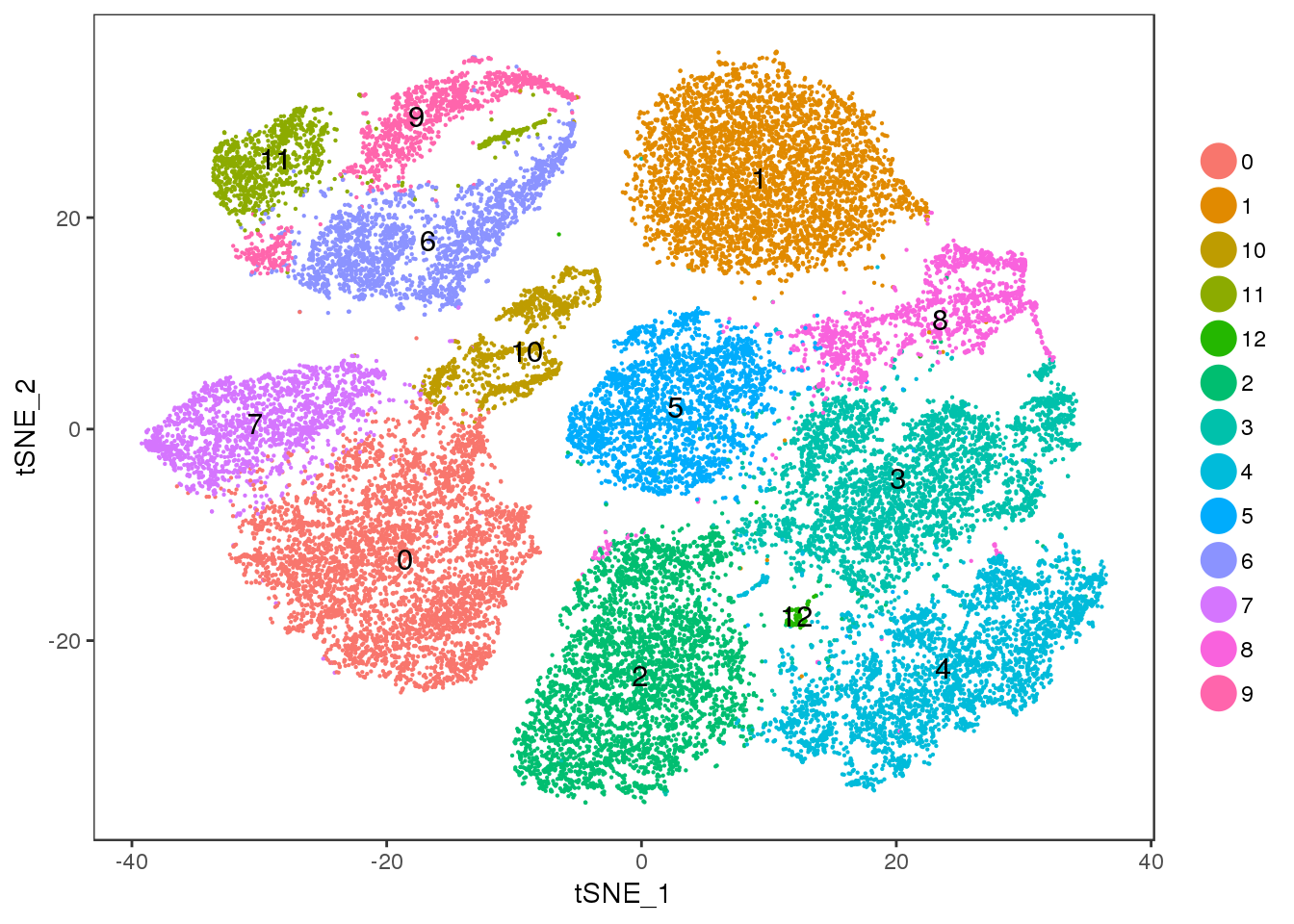

TSNEPlot(data, group.by='res.0.5', pt.size=0.1, do.label=T)

Expand here to see past versions of unnamed-chunk-6-1.png:

Version	Author	Date
b84ca55	PytrikFolkertsma	2018-11-08
c8f6254	PytrikFolkertsma	2018-11-08

Remove bad quality cluster 1 from the data.

data_cleaned <- SubsetData(data, cells.use=rownames(data@meta.data)[data@meta.data$res.0.5 != 1])

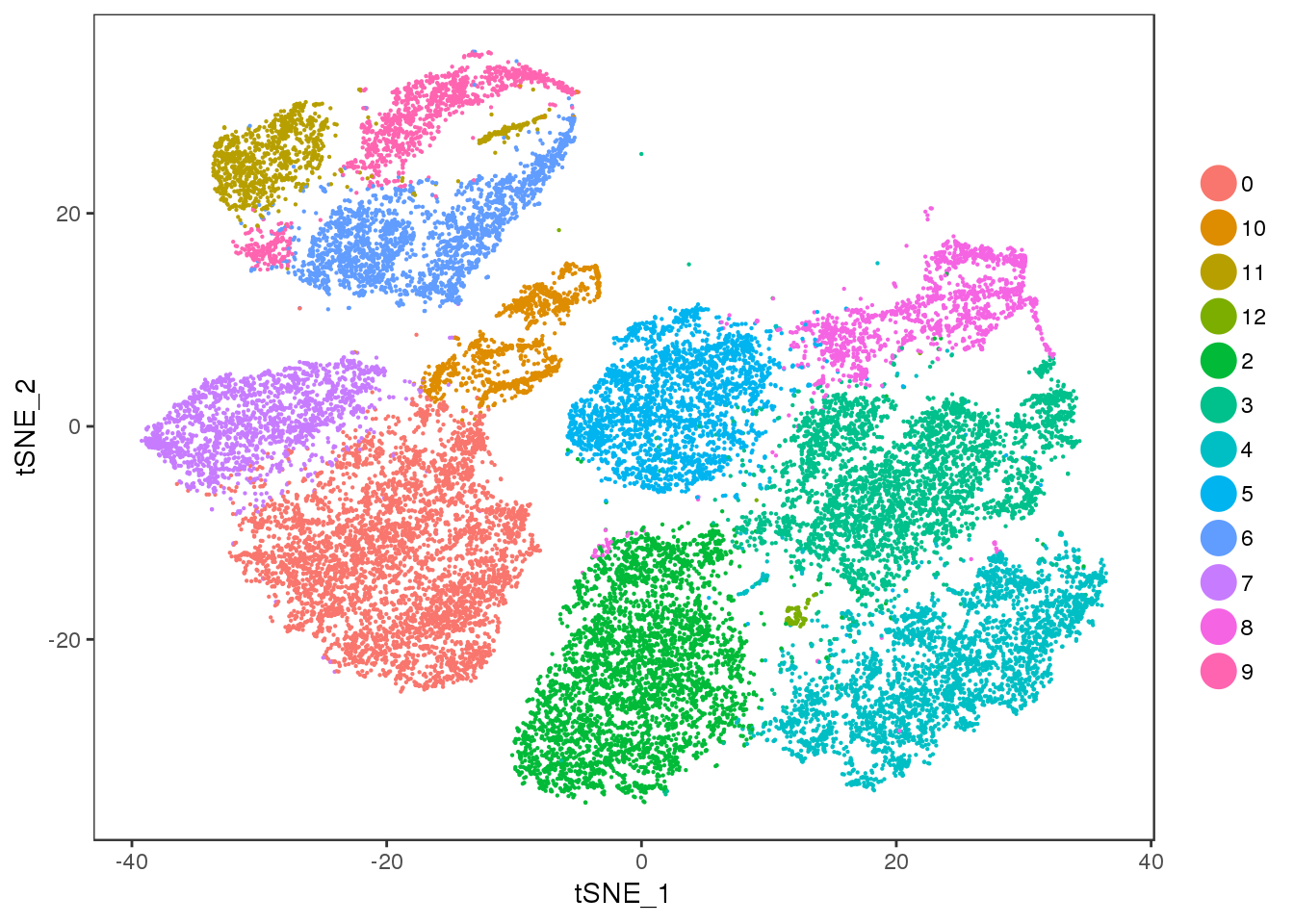

TSNEPlot(data_cleaned, group.by='res.0.5', pt.size=0.1)

Expand here to see past versions of unnamed-chunk-8-1.png:

Version	Author	Date
c8f6254	PytrikFolkertsma	2018-11-08

Save the cleaned up Seurat object to run preprocessing again (new PCA, clustering and tSNE).

saveRDS(data_cleaned, 'output/10x-180831')

Figures for report

#sfig <- plot_grid(
#  t4,
#  t1,
#  t2,
#  t3,
#  nrow=2, labels='auto'
#)
#save_plot('plots/supplementary_figures/sfig_180831_bad-quality-cluster.pdf', sfig, base_width=12, base_height = 9)
#sfig
#

Session information

sessionInfo()

R version 3.4.3 (2017-11-30)
Platform: x86_64-redhat-linux-gnu (64-bit)
Running under: Storage

Matrix products: default
BLAS/LAPACK: /usr/lib64/R/lib/libRblas.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] bindrcpp_0.2.2 Seurat_2.3.4   Matrix_1.2-14  cowplot_0.9.3
[5] ggplot2_3.0.0

loaded via a namespace (and not attached):
  [1] Rtsne_0.13          colorspace_1.3-2    class_7.3-14
  [4] modeltools_0.2-22   ggridges_0.5.0      mclust_5.4.1
  [7] rprojroot_1.3-2     htmlTable_1.12      base64enc_0.1-3
 [10] rstudioapi_0.7      proxy_0.4-22        flexmix_2.3-14
 [13] bit64_0.9-7         mvtnorm_1.0-8       codetools_0.2-15
 [16] splines_3.4.3       R.methodsS3_1.7.1   robustbase_0.93-2
 [19] knitr_1.20          Formula_1.2-3       jsonlite_1.5
 [22] workflowr_1.1.1     ica_1.0-2           cluster_2.0.7-1
 [25] kernlab_0.9-27      png_0.1-7           R.oo_1.22.0
 [28] compiler_3.4.3      httr_1.3.1          backports_1.1.2
 [31] assertthat_0.2.0    lazyeval_0.2.1      lars_1.2
 [34] acepack_1.4.1       htmltools_0.3.6     tools_3.4.3
 [37] igraph_1.2.2        gtable_0.2.0        glue_1.3.0
 [40] RANN_2.6            reshape2_1.4.3      dplyr_0.7.6
 [43] Rcpp_0.12.18        trimcluster_0.1-2.1 gdata_2.18.0
 [46] ape_5.1             nlme_3.1-137        iterators_1.0.10
 [49] fpc_2.1-11.1        gbRd_0.4-11         lmtest_0.9-36
 [52] stringr_1.3.1       irlba_2.3.2         gtools_3.8.1
 [55] DEoptimR_1.0-8      MASS_7.3-50         zoo_1.8-3
 [58] scales_1.0.0        doSNOW_1.0.16       parallel_3.4.3
 [61] RColorBrewer_1.1-2  yaml_2.2.0          reticulate_1.10
 [64] pbapply_1.3-4       gridExtra_2.3       rpart_4.1-13
 [67] segmented_0.5-3.0   latticeExtra_0.6-28 stringi_1.2.4
 [70] foreach_1.4.4       checkmate_1.8.5     caTools_1.17.1.1
 [73] bibtex_0.4.2        Rdpack_0.9-0        SDMTools_1.1-221
 [76] rlang_0.2.2         pkgconfig_2.0.2     dtw_1.20-1
 [79] prabclus_2.2-6      bitops_1.0-6        evaluate_0.11
 [82] lattice_0.20-35     ROCR_1.0-7          purrr_0.2.5
 [85] bindr_0.1.1         labeling_0.3        htmlwidgets_1.2
 [88] bit_1.1-14          tidyselect_0.2.4    plyr_1.8.4
 [91] magrittr_1.5        R6_2.2.2            snow_0.4-2
 [94] gplots_3.0.1        Hmisc_4.1-1         pillar_1.3.0
 [97] whisker_0.3-2       foreign_0.8-71      withr_2.1.2
[100] fitdistrplus_1.0-9  mixtools_1.1.0      survival_2.42-6
[103] nnet_7.3-12         tsne_0.1-3          tibble_1.4.2
[106] crayon_1.3.4        hdf5r_1.0.0         KernSmooth_2.23-15
[109] rmarkdown_1.10      grid_3.4.3          data.table_1.11.4
[112] git2r_0.23.0        metap_1.0           digest_0.6.16
[115] diptest_0.75-7      tidyr_0.8.1         R.utils_2.7.0
[118] stats4_3.4.3        munsell_0.5.0

This reproducible R Markdown analysis was created with workflowr 1.1.1
