Introduction

Using correlated global null data simulated from GTEx/Liver, \(\hat\pi_0\) is estimated by truncash and ashr. Ideally the estimates should be close to \(1\).

Simulation

In truncash, the threshold is \(T = 1.96\).

library(ashr)
source("../code/truncash.R")
p = read.table("../output/p_null_liver_777.txt")
z = read.table("../output/z_null_liver_777.txt")
betahat = read.table("../output/betahat_null_liver_777.txt")

m = dim(p)[1]
n = dim(p)[2]
pihat0.ash = pihat0.truncash = c()

for (i in 1:m) {
  betahat_trial = as.numeric(betahat[i, ])
  sebetahat_trial = - betahat_trial / as.numeric(z[i, ])
  fit.ash = ashr::ash(betahat_trial, sebetahat_trial, method = "fdr", mixcompdist = "normal")
  pihat0.ash[i] = get_pi0(fit.ash)
  fit.truncash = truncash(betahat_trial, sebetahat_trial, t = qnorm(0.975))
  pihat0.truncash[i] = get_pi0(fit.truncash)
}

Result

False positive rate by ash

mean(pihat0.ash < 1)
[1] 0.287

False positive rate by truncash

mean(pihat0.truncash < 1)
[1] 0.202

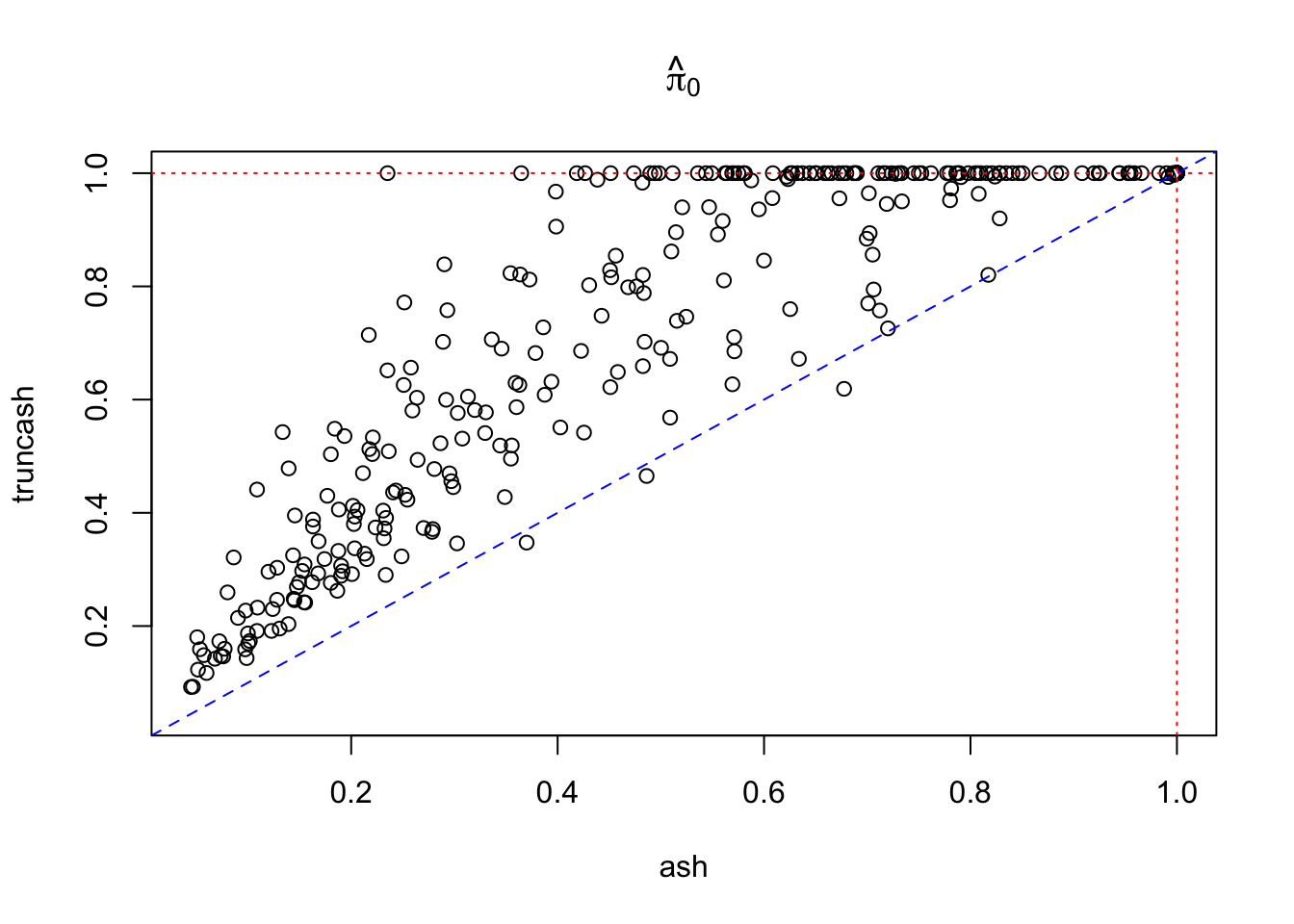

Compare \(\hat\pi_0\) estimated by ash and truncash

xlim = c(min(c(pihat0.ash, pihat0.truncash)), 1)
plot(pihat0.ash, pihat0.truncash, xlim = xlim, ylim = xlim, xlab = "ash", ylab = "truncash", main = expression(hat(pi)[0]))
abline(0, 1, lty = 2, col = "blue")
abline(v = 1, lty = 3, col = "red")
abline(h = 1, lty = 3, col = "red")

Expand here to see past versions of unnamed-chunk-5-1.png:
Version Author Date
0f36d99 LSun 2017-12-21
242b122 LSun 2017-02-22

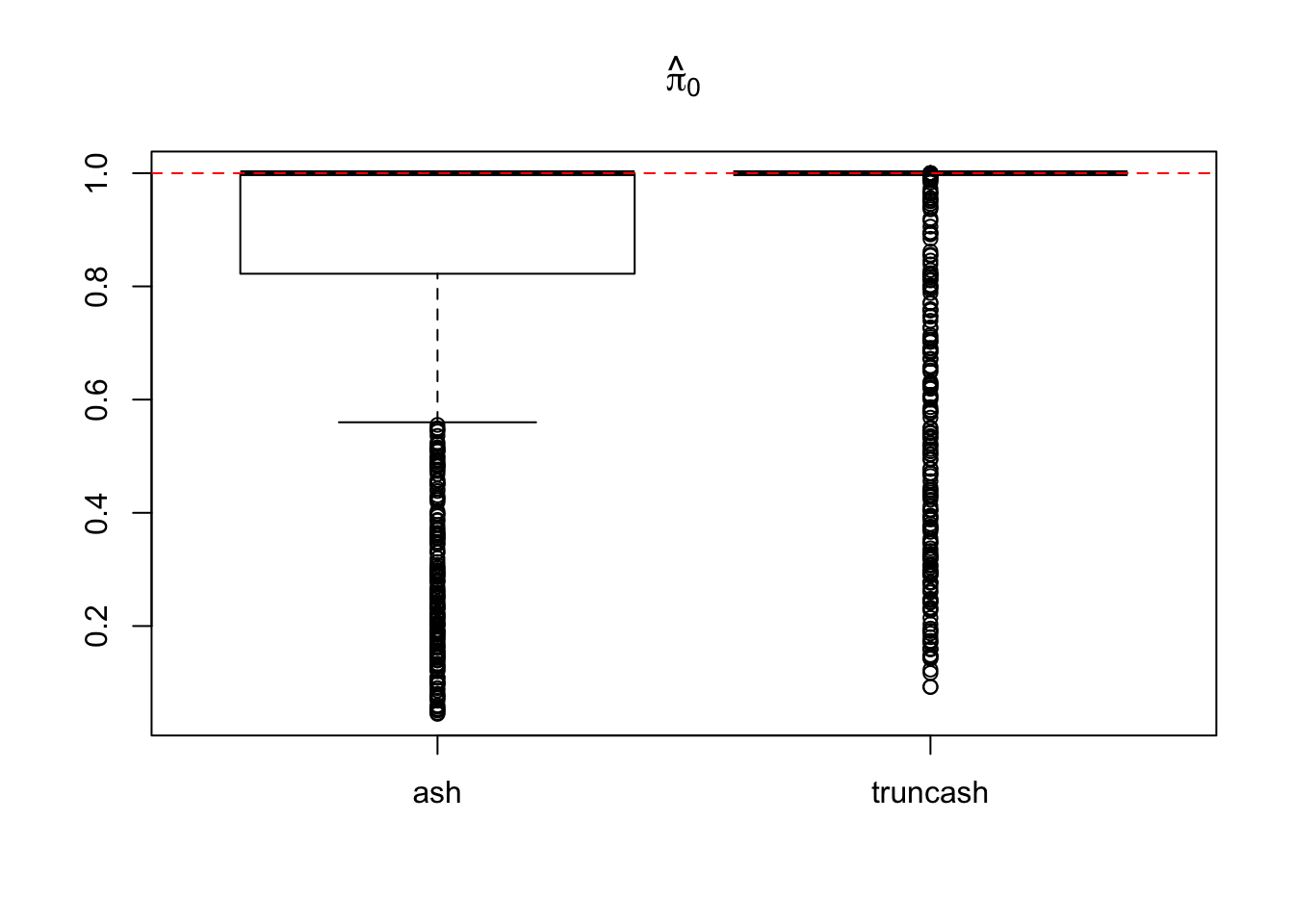

boxplot(pihat0.ash, pihat0.truncash, main = expression(hat(pi)[0]), names = c("ash", "truncash"))
abline(h = 1, lty = 2, col = "red")

Expand here to see past versions of unnamed-chunk-5-2.png:
Version Author Date
0f36d99 LSun 2017-12-21
242b122 LSun 2017-02-22
