Introduction

In the Knockoff paper simulations, the columns of \(X\) are either independent or simulated from a Toeplitz correlation where \(Cor(X_i, X_j) = \rho^{|i - j|}\). Here we are replicating the independent results, and investigating how well Knockoff deal with other correlation structures.

In the following simulations, we always have \(n = 3000\), \(p = 1000\). Out of \(p = 1000\) \(\beta_j\)’s, \(950\) of them are zeroes, and the rest \(k = 50\) signals all have \(\beta_j = A\). For a certain \(X\), \(Y_n \sim N(X_{n\times p}\beta_p, I_n)\). Here are three scenarios to generate the columns of \(X_{n \times p}\). All simulations use \(q = 0.1\) cutoff.

n <- 3000
p <- 1000
k <- 50
q <- 0.1
  • Scenario 1: Each row of \(X\) are independently drawn from \(N(0, I_p)\). All columns of \(X\) are normalized such that \(\|X_j\|_2^2 = 1\). The signal magnitude \(A = 3.5\).
  • Scenario 2: Each row of \(X\) are independently drawn from \(N(0, \Sigma_X)\), where \(\Sigma_X = \texttt{cov2cor}(B_{p \times d}B_{d\times p}^T + I)\), \(d = 5\). All columns of \(X\) are normalized such that \(\|X_j\|_2^2 = 1\). The signal magnitude \(A = 9\) to make sure that the signal is significantly stronger than the noise level \(\text{SE}(\hat\beta) = \sqrt{\text{diag}[(X^TX)^{-1}]}\) . In this case the columns of \(X\) will have substantial average correlation, but not necessarily so for \(\hat\beta\).
  • Scenario 3: Each row of \(X\) (with normalization) are independently drawn from \(N(0, \Sigma_{\hat\beta}^{-1})\), where \(\Sigma_{\hat\beta} = \texttt{cov2cor}(B_{p \times d}B_{d\times p}^T + I)\), \(d = 5\). We’ll have \((X^TX)^{-1}\approx\Sigma_{\hat\beta}\). In this case \(\hat\beta_j\)’s will have substantial average correlation. The signal magnitude \(A = 3.5\).

Scenario 1: Independent \(X\) columns

set.seed(777)
## Independent columns
X <- matrix(rnorm(n * p), n , p)
## Normalization
X <- t(t(X) / sqrt(colSums(X^2)))
## Generate knockoffs
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk
## Average sebetahat
sqrt(mean(diag(solve(crossprod(X)))))
[1] 1.224379
## Signal strength
A <- 3.5
## Set beta
beta <- rep(0, p)
nonzero <- sample(p, k)
beta[nonzero] <- A

Scenario 2: \(X\) from a factor model

set.seed(777)
## Generate correlation matrix of X
d <- 5
B <- matrix(rnorm(p * d, 0, 1), p, d)
Sigma.X <- tcrossprod(B) + diag(p)
Rho.X <- cov2cor(Sigma.X)
## Simulate X
X <- matrix(rnorm(n * p), n, p) %*% chol(Rho.X)
## Normalization
X <- t(t(X) / sqrt(colSums(X^2)))
## Generate knockoffs
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk
## Average sebetahat
sqrt(mean(diag(solve(crossprod(X)))))
[1] 3.015966
## Signal strength
A <- 9
## Set beta
beta <- rep(0, p)
nonzero <- sample(p, k)
beta[nonzero] <- A

Scenario 3: \(\hat\beta\) from a factor model

set.seed(777)
## Generate correlation matrix of betahat
d <- 5
B <- matrix(rnorm(p * d, 0, 1), p, d)
Sigma.betahat <- tcrossprod(B) + diag(p)
Cor.betahat <- cov2cor(Sigma.betahat)
## Simulate X with independent columns
X <- matrix(rnorm(n * p), n, p)
## Normalize X
X <- t(t(X) / sqrt(colSums(X^2)))
## Transform independent columns to have Sigma_betahat^{-1} correlation structure
X <- X %*% chol(solve(Cor.betahat))
## Generate knockoffs
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk
## Average sebetahat
sqrt(mean(diag(solve(crossprod(X)))))
[1] 1.227621
## Signal strength
A <- 3.5
## Set beta
beta <- rep(0, p)
nonzero <- sample(p, k)
beta[nonzero] <- A
F DP.BH F DP.Knockoff F DP.Knockoff.Plus P ower.BH P ower.Knockoff P ower.Knockoff.Plus
Independent Columns 0.0936 0.0677 0.0431 0.4277 0.5400 0.4076
Factor Model for X 0.0956 0.4223 0.0000 0.6241 0.0066 0.0000
Factor Model for betahat 0.0755 0.3853 0.1986 0.4024 0.1322 0.0694

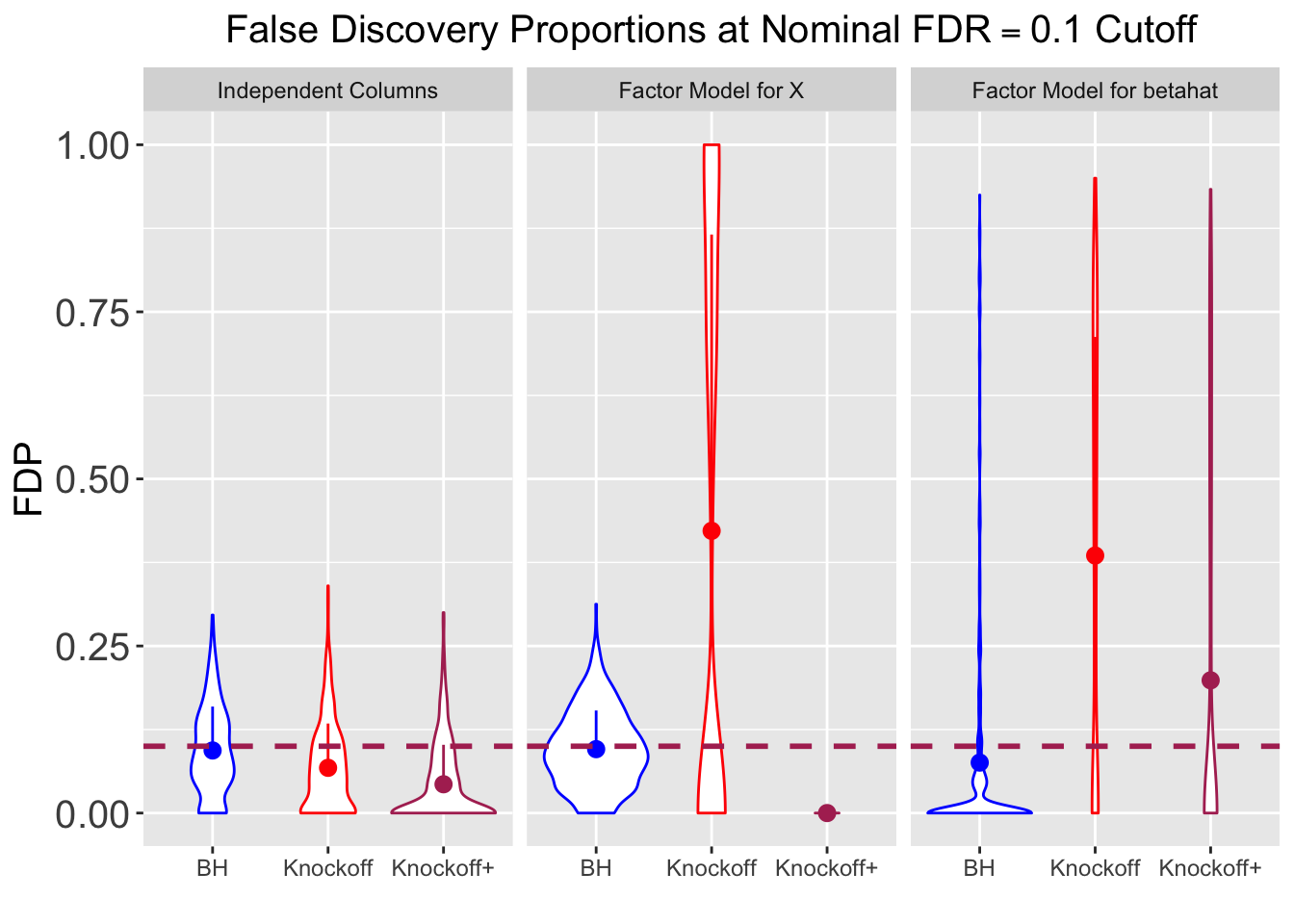

Expand here to see past versions of unnamed-chunk-14-1.png:
Version Author Date
ab63fb3 LSun 2018-02-08

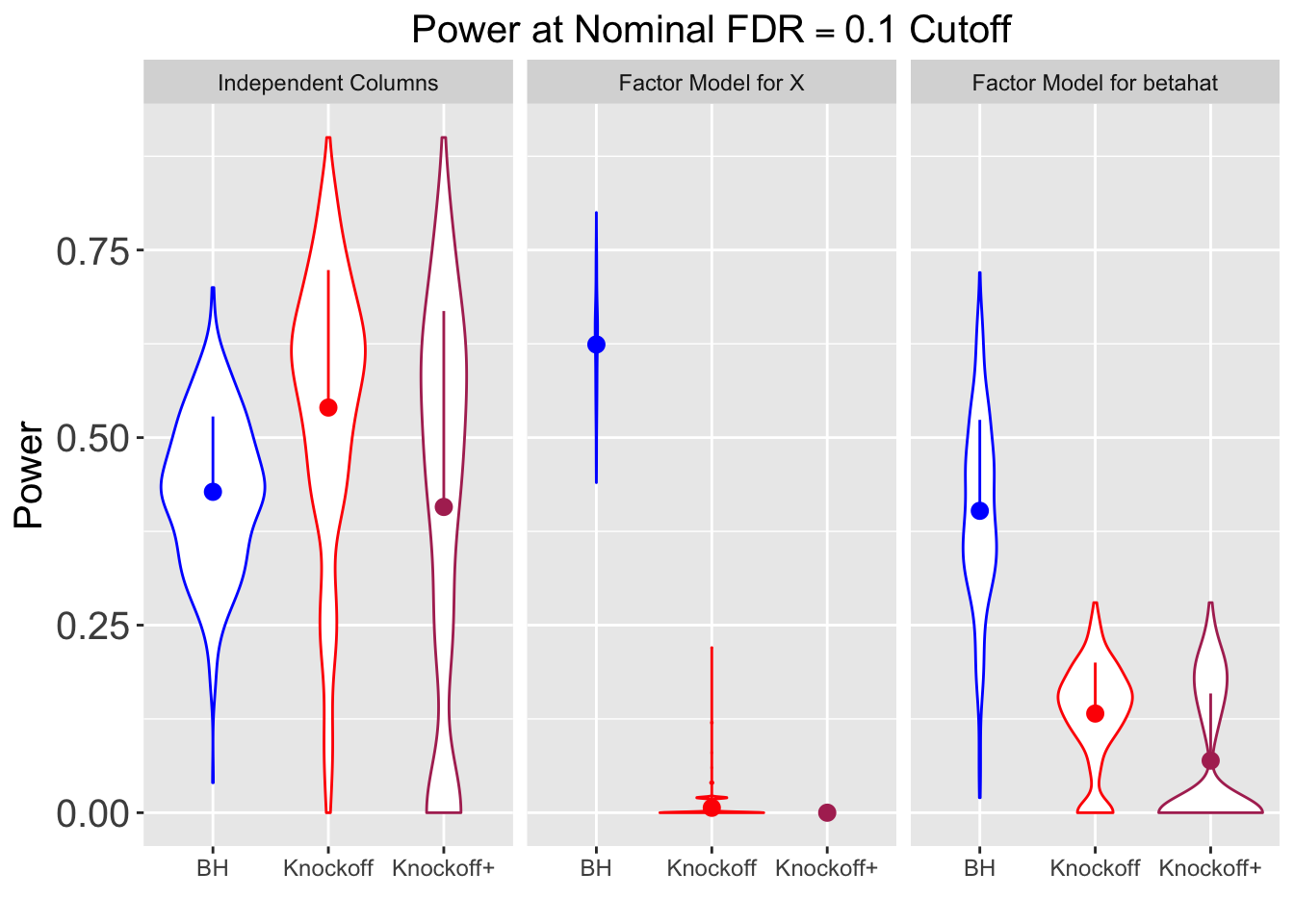

Expand here to see past versions of unnamed-chunk-15-1.png:
Version Author Date
ab63fb3 LSun 2018-02-08

Comparison across correlation levels (various \(d\))

Scenario 2: \(X\) from a factor model

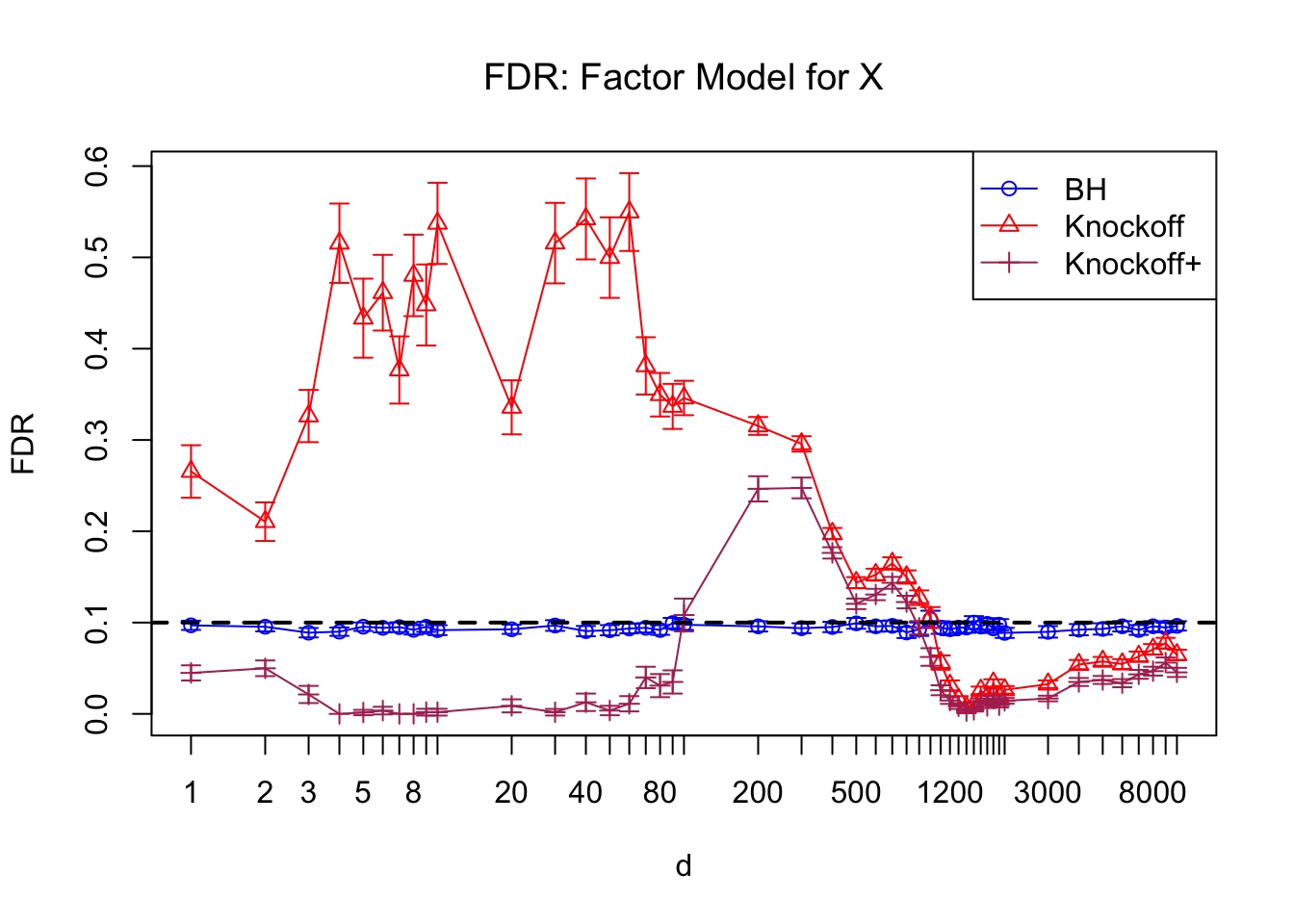

Expand here to see past versions of unnamed-chunk-16-1.png:
Version Author Date
cfa8e9d LSun 2018-02-28
d6a6285 LSun 2018-02-17
27dd85c LSun 2018-02-17
ab63fb3 LSun 2018-02-08

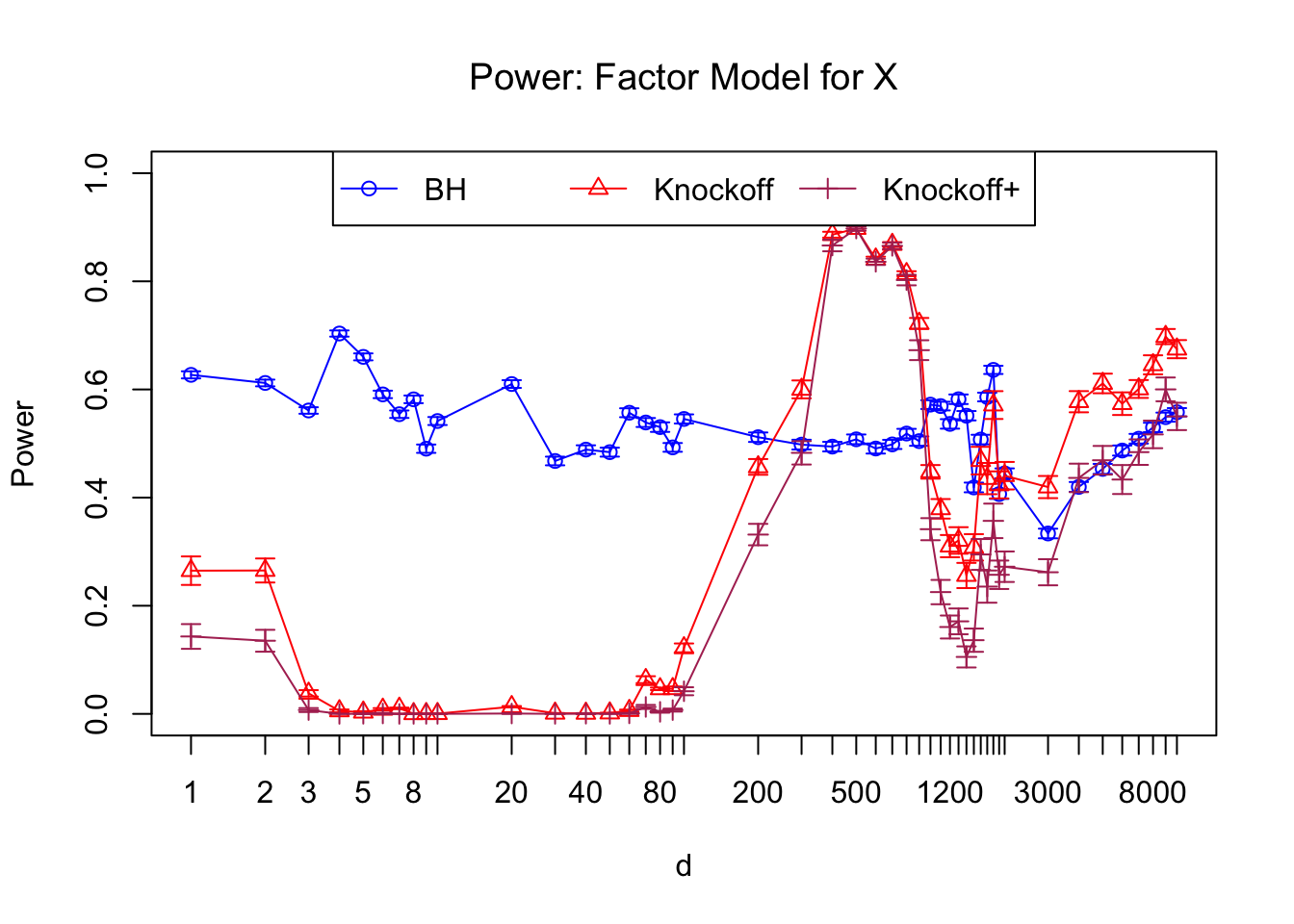

Expand here to see past versions of unnamed-chunk-16-2.png:
Version Author Date
cfa8e9d LSun 2018-02-28
d6a6285 LSun 2018-02-17
27dd85c LSun 2018-02-17
ab63fb3 LSun 2018-02-08

Scenario 3: \(\hat\beta\) from a factor model

Expand here to see past versions of unnamed-chunk-17-1.png:
Version Author Date
cfa8e9d LSun 2018-02-28
d6a6285 LSun 2018-02-17
27dd85c LSun 2018-02-17
ab63fb3 LSun 2018-02-08

Expand here to see past versions of unnamed-chunk-17-2.png:
Version Author Date
cfa8e9d LSun 2018-02-28
d6a6285 LSun 2018-02-17
27dd85c LSun 2018-02-17
ab63fb3 LSun 2018-02-08
