CASH Simulation, Part 6: Simulated vs Read data

Simulated correlated data

\[ z_i = L_i^Tx / \sqrt{L_i^TL_i} \ , \] where both \(x\) and \(L_i\) are \(d\)-dimentional independent \(N(0,1)\) random variates, and a large number of \(z_i\) are generated by the same \(x\) and different, independent \(L_i\).

Observation

After extensive exploratory simulations, it seems completely simulated data give cleaner results than simulated real data, which is expected.

source("../code/gdash_lik.R")

set.seed(777)
z.mat <- se.mat <- matrix(0, ncol = 1e4, nrow = 1e3)
for (i in 1 : nrow(z.mat)) {
  L <- matrix(rnorm(1e4 * 10), ncol = 10)
  z.mat[i, ] <- L %*% rnorm(10) / sqrt(rowSums(L^2))
  se.mat[i, ] <- sqrt(rchisq(1e4, 1))
}

Simulation

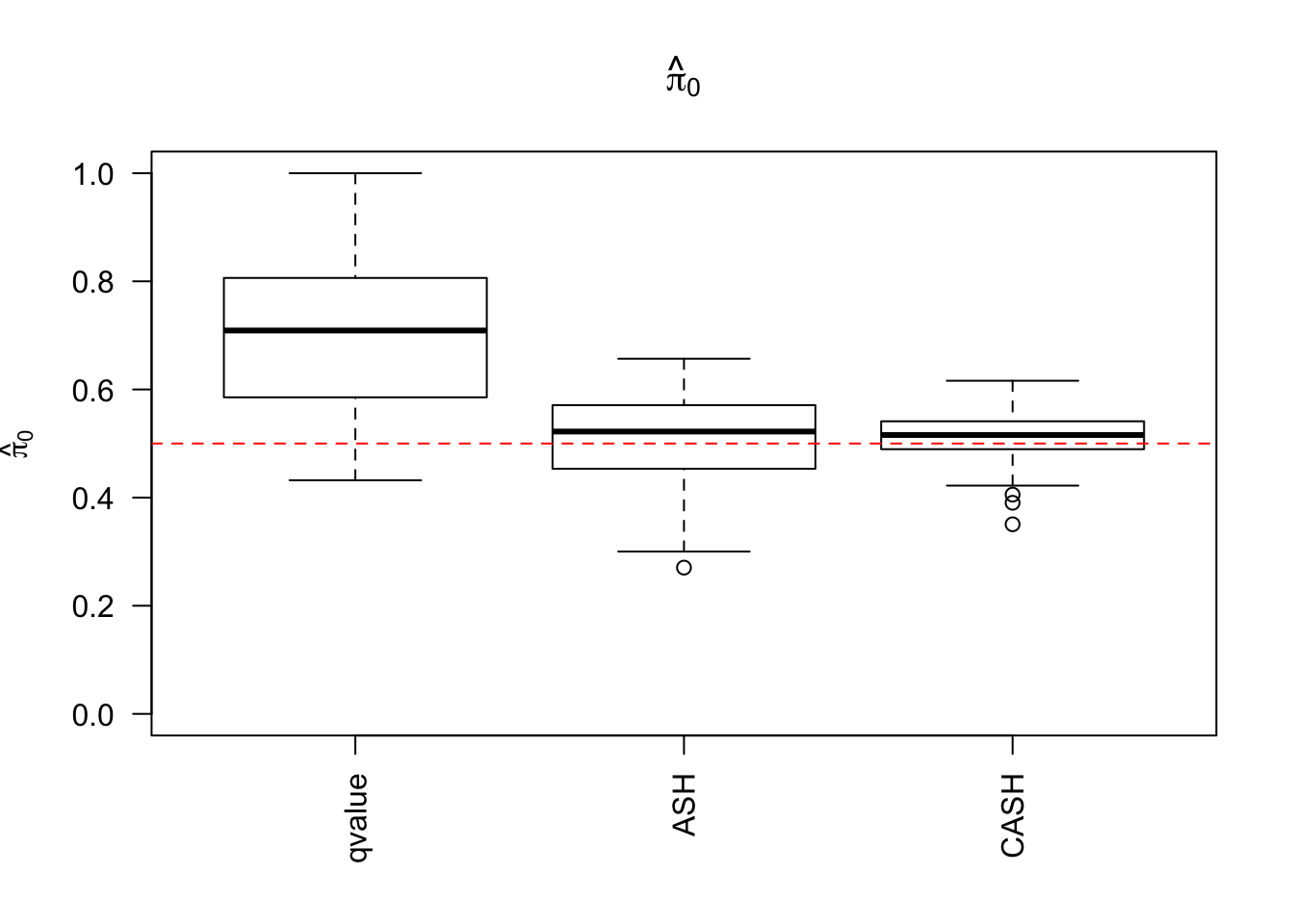

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.5, 0.3, 0.2), g.sd = c(0, 1, 2), relative_to_noise = FALSE)

Simulation

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.5, 0.4, 0.1), g.sd = c(0, 1, 2), relative_to_noise = FALSE)

Simulation

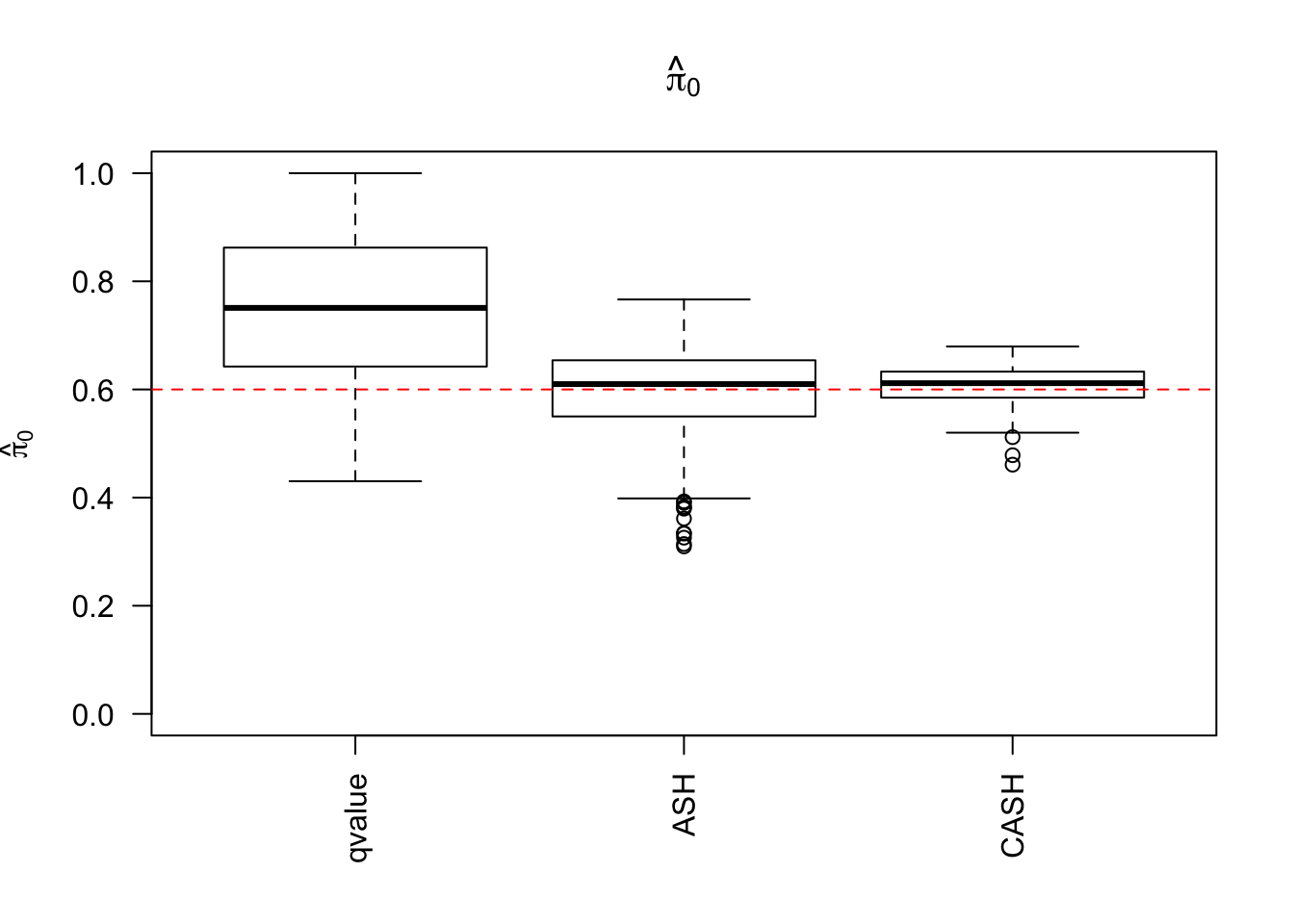

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.6, 0.3, 0.1), g.sd = c(0, 1, 2), relative_to_noise = FALSE)

Simulation

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.9, 0.1), g.sd = c(0, 1), relative_to_noise = FALSE)

Simulation

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.9, 0.1), g.sd = c(0, 2), relative_to_noise = FALSE)

Simulation

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.9, 0.1), g.sd = c(0, 3), relative_to_noise = FALSE)

Simulation

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.9, 0.05, 0.05), g.sd = c(0, 1, 2), relative_to_noise = FALSE)

Simulation

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.9, 0.05, 0.05), g.sd = c(0, 1, 3), relative_to_noise = FALSE)

Simulation

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.5, 0.5), g.sd = c(0, 1), relative_to_noise = FALSE)

Simulation

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.5, 0.5), g.sd = c(0, 2), relative_to_noise = FALSE)

Simulation

cashSim(z.mat, se.mat,
        nsim = 200, ngene = 1000,
        g.pi = c(0.5, 0.5), g.sd = c(0, 3), relative_to_noise = FALSE)

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
               consider reducing rtol

Read data

z.real <- readRDS("../output/z_null_liver_777.rds")
se.real <- readRDS("../output/sebetahat_null_liver_777.rds")

Simulation

cashSim(z.real, se.real,
        nsim = 200, ngene = 1000,
        g.pi = c(0.5, 0.5), g.sd = c(0, 1), relative_to_noise = TRUE)

Simulation

cashSim(z.real, se.real,
        nsim = 200, ngene = 1000,
        g.pi = c(0.9, 0.1), g.sd = c(0, 1), relative_to_noise = TRUE)

Simulation

cashSim(z.real, se.real,
        nsim = 200, ngene = 1000,
        g.pi = c(0.9, 0.1), g.sd = c(0, 2), relative_to_noise = TRUE)
