Introduction

Theoretically, the Dirac delta function \(\delta_z\) can be approximated by infinite orders of Gaussian derivatives as follows,

\[ \delta_z = \sum\limits_{l = 0}^\infty \frac{1}{\sqrt{l!}}h_l\left(z\right) \left(\frac{1}{\sqrt{l!}}h_l\left(x\right)\varphi(x)\right) \ . \] Previously with the EQL::hermite function, it takes a very long time to evaluate an Hermite polynomial of a high degree, yet the PolynomF package provides a computationally efficient way to check if higher order Gaussian derivatives indeed approximate \(\delta_z\) at any \(z\).

With finite \(L\), we are looking at

\[ f_L\left(x\right) := \sum\limits_{l = 0}^L \frac{1}{\sqrt{l!}}h_l\left(z\right) \left( \frac{1}{\sqrt{l!}}h_l\left(x\right) \varphi\left(x\right) \right) \] and

\[ F_L\left(x\right) := \Phi\left(x\right) - \sum\limits_{l = 1}^L \frac{1}{\sqrt{l}} \frac{1}{\sqrt{l!}}h_l\left(z\right) \left( \frac{1}{\sqrt{\left(l - 1\right)!}}h_{l - 1}\left(x\right)\varphi\left(x\right)\right) \ . \] Given any \(z\), \(f_L\) should get closer to \(\delta_z\) and \(F_L\) to the \(0\)-\(1\) step function, as \(L\to\infty\).

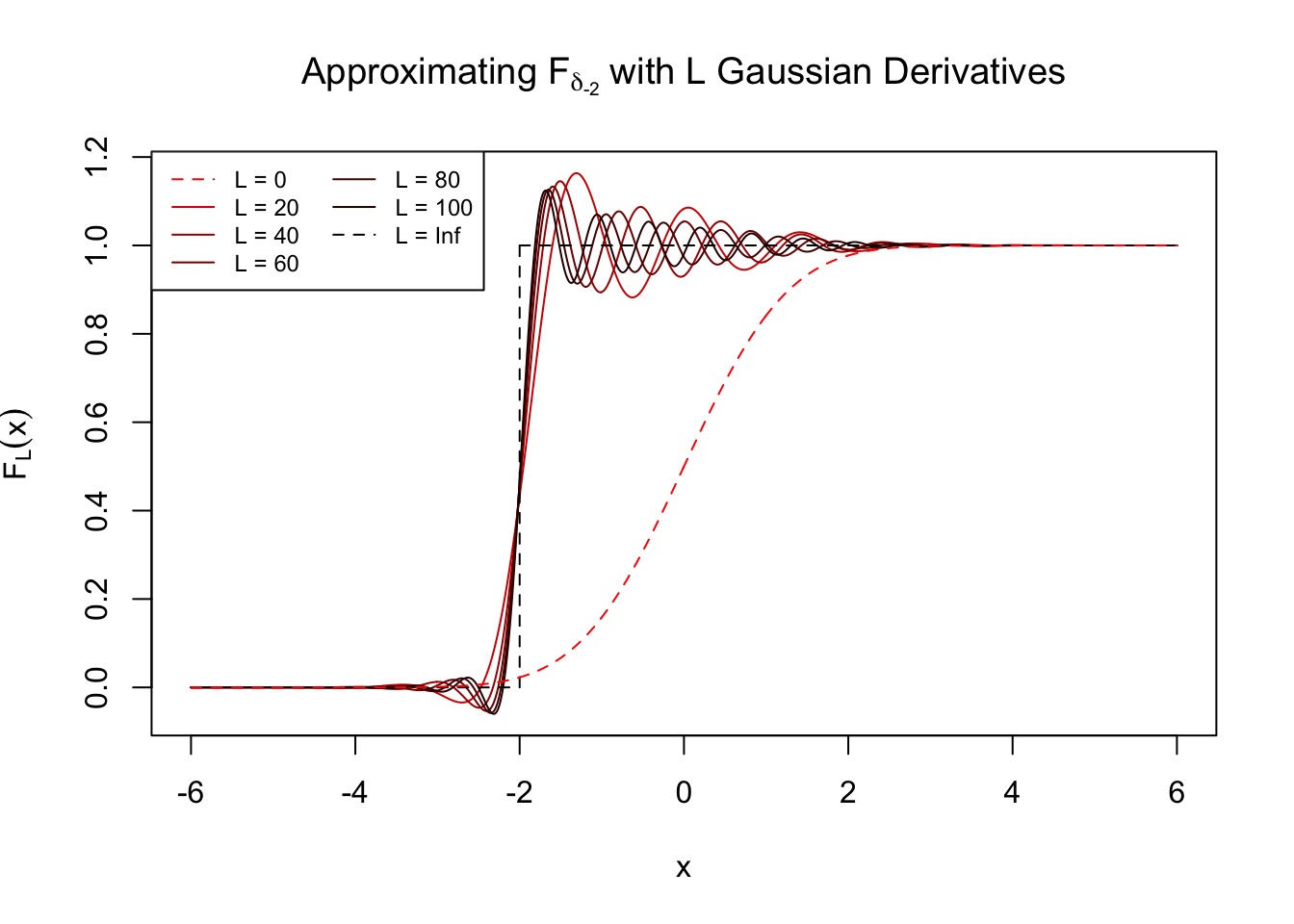

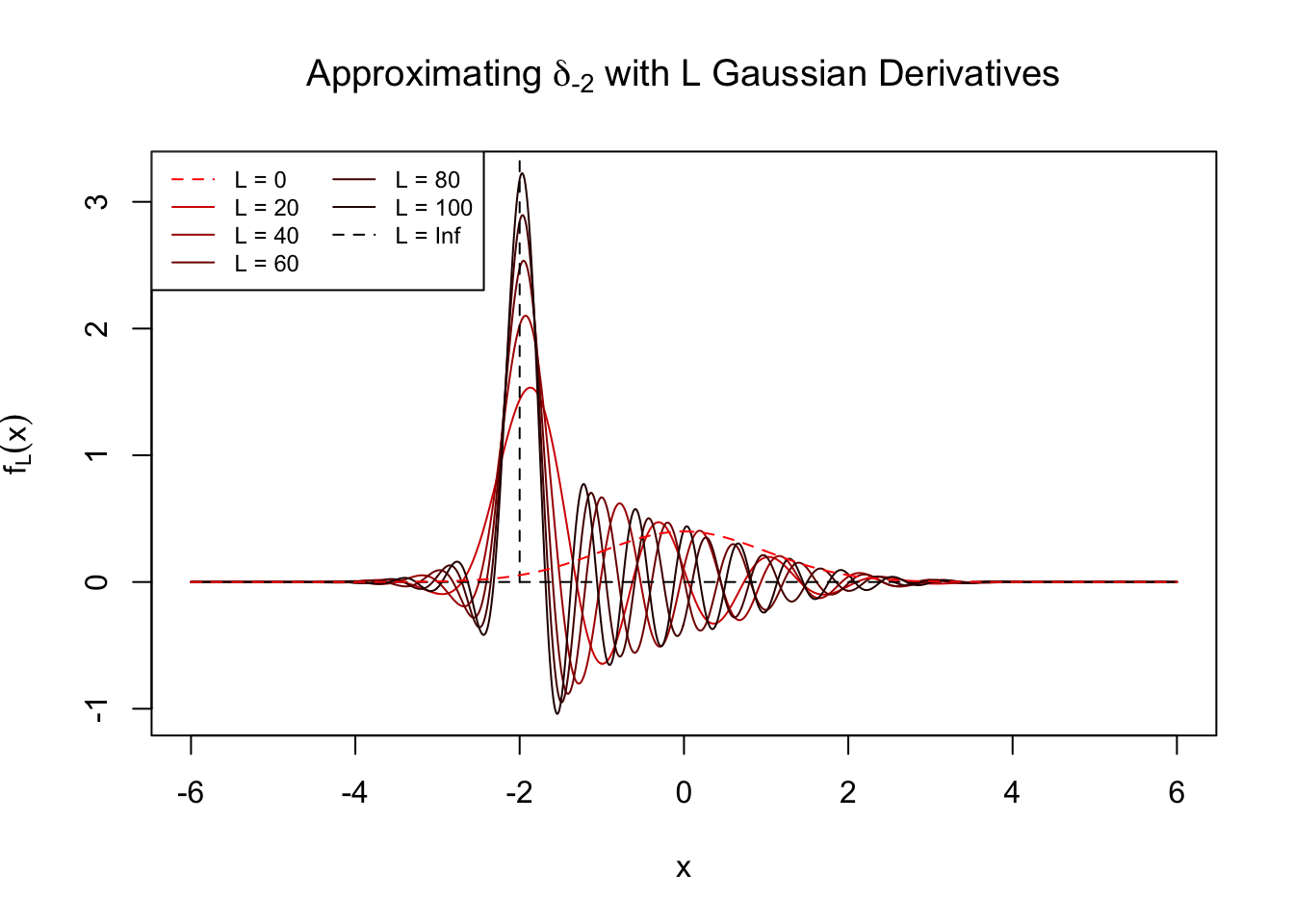

\(z = -2\)

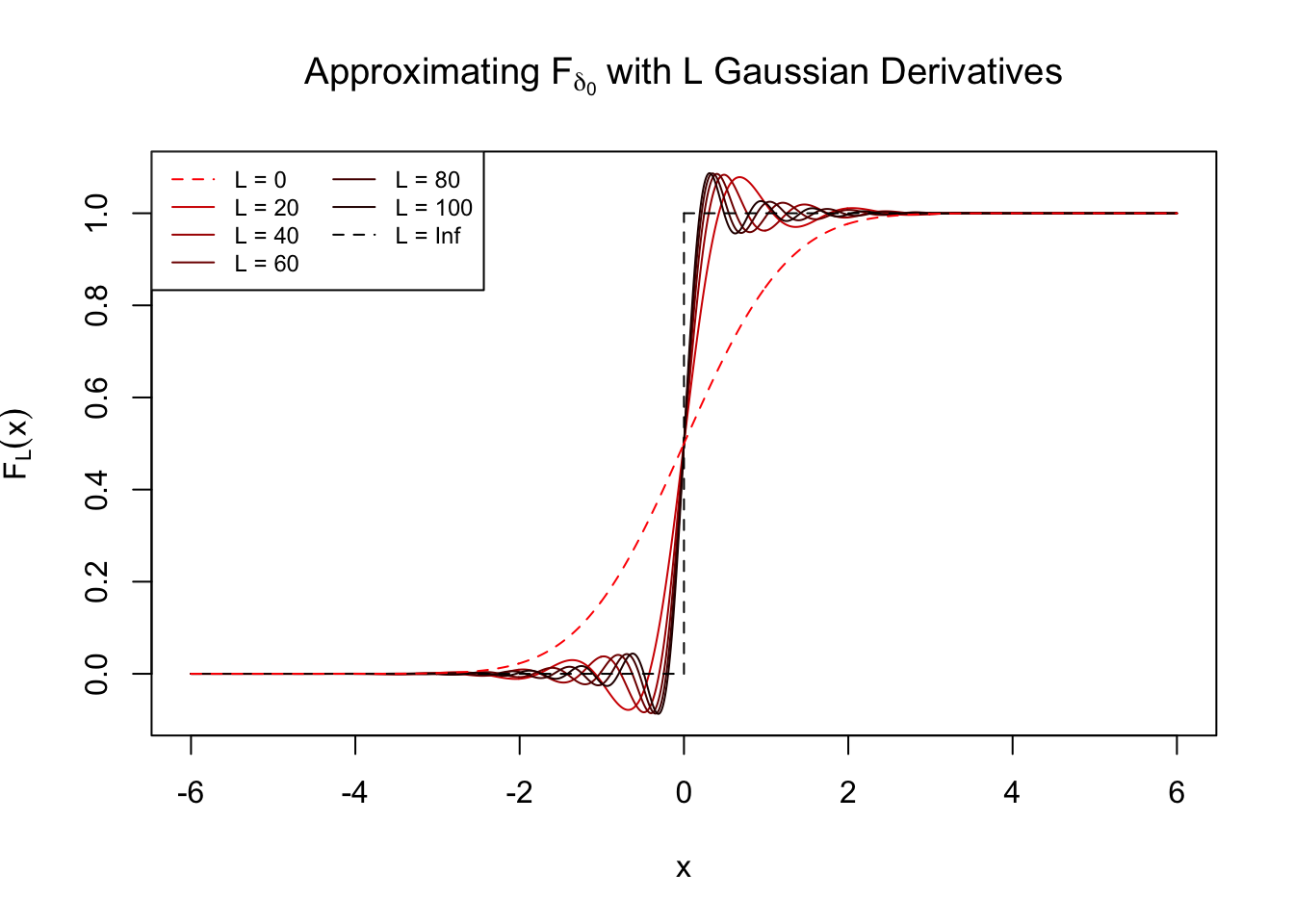

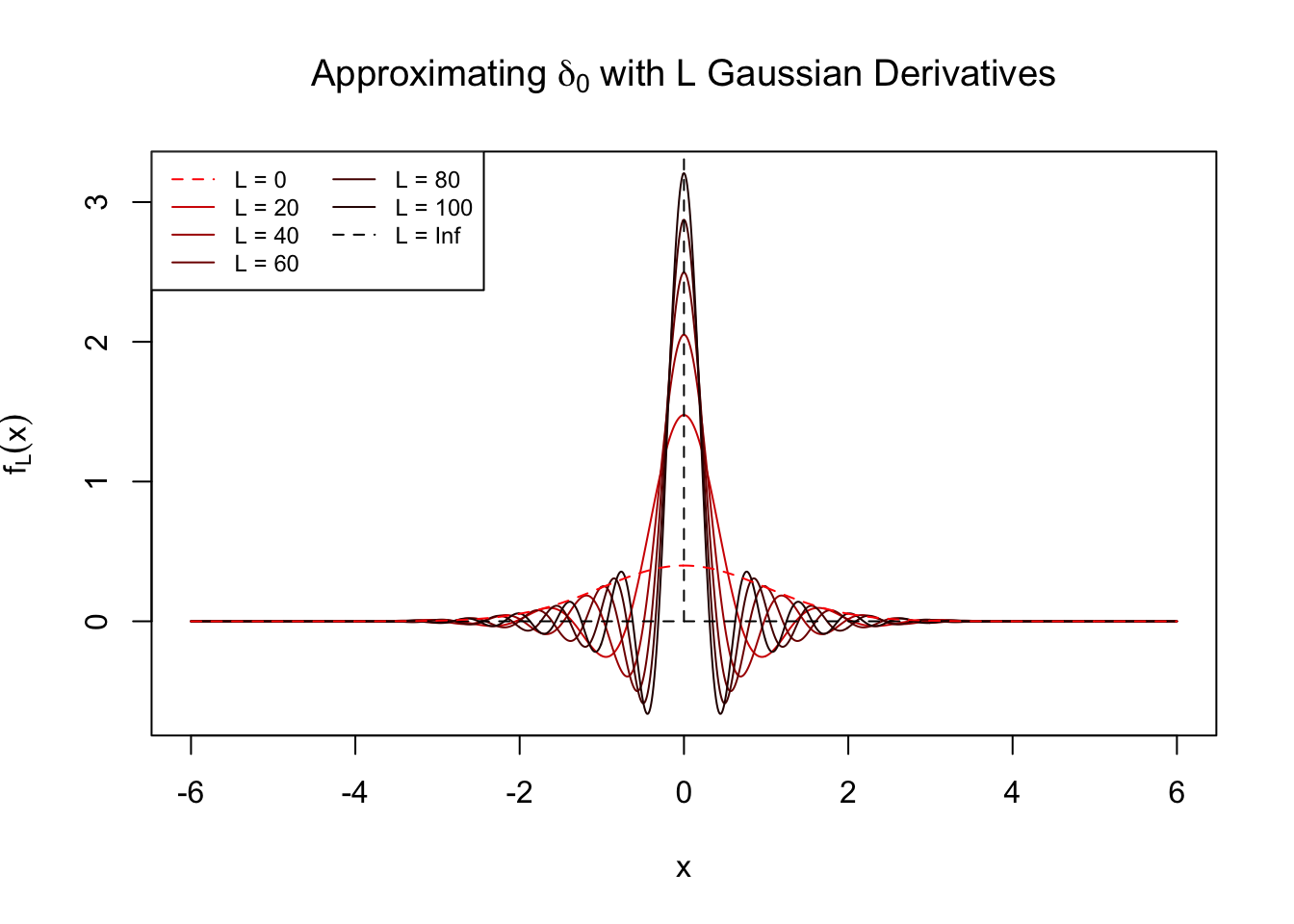

\(z = 0\)

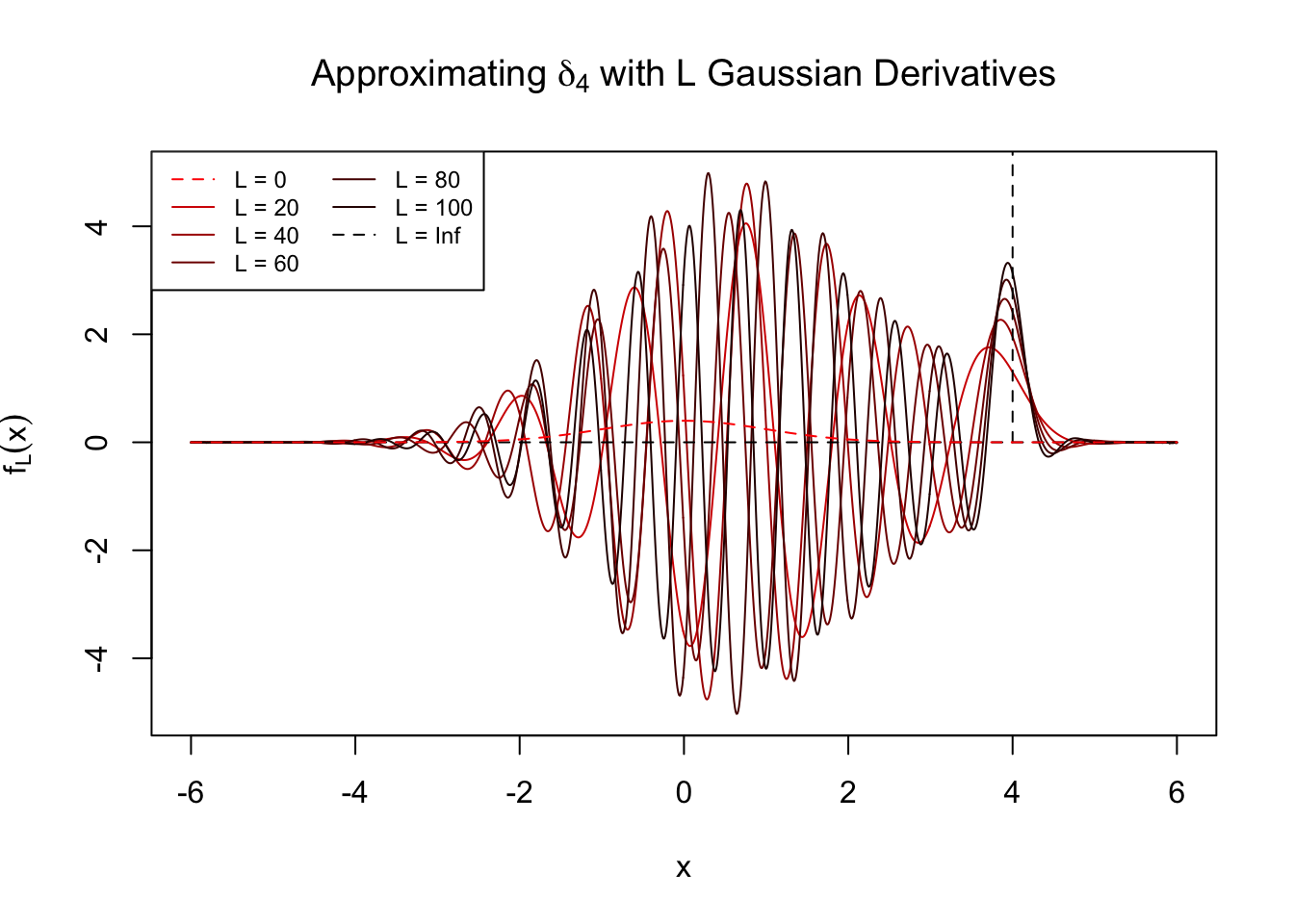

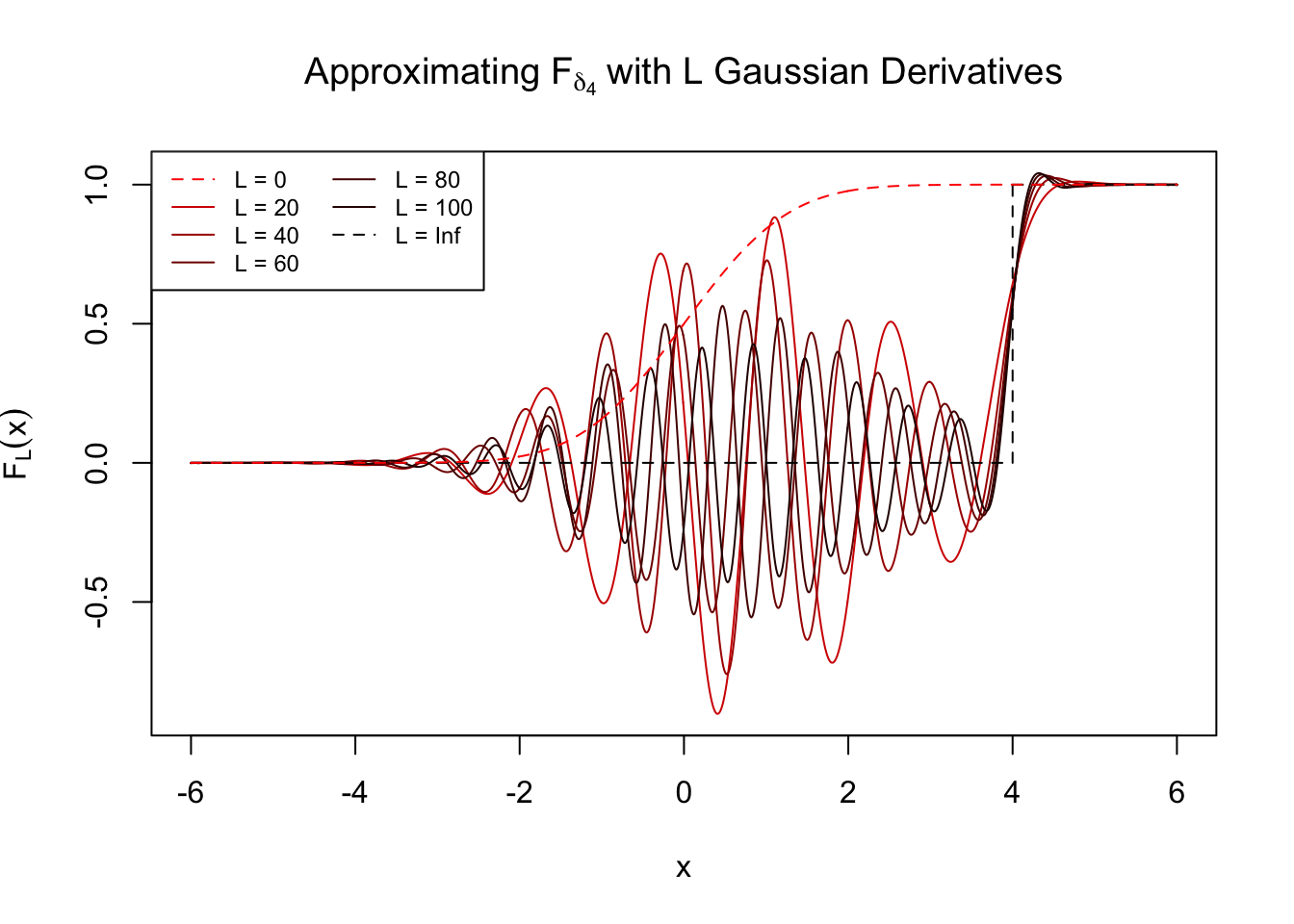

\(z = 4\)

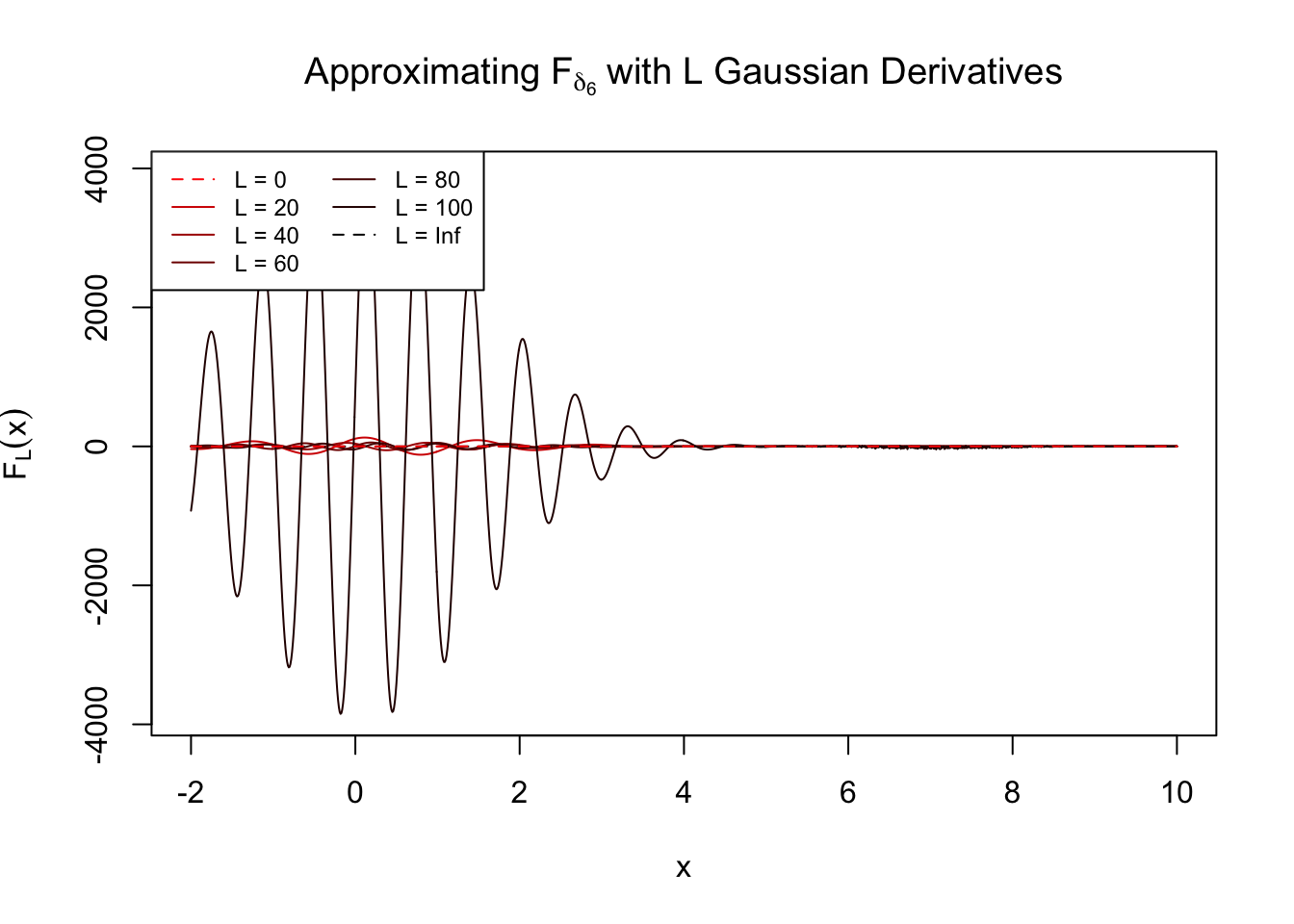

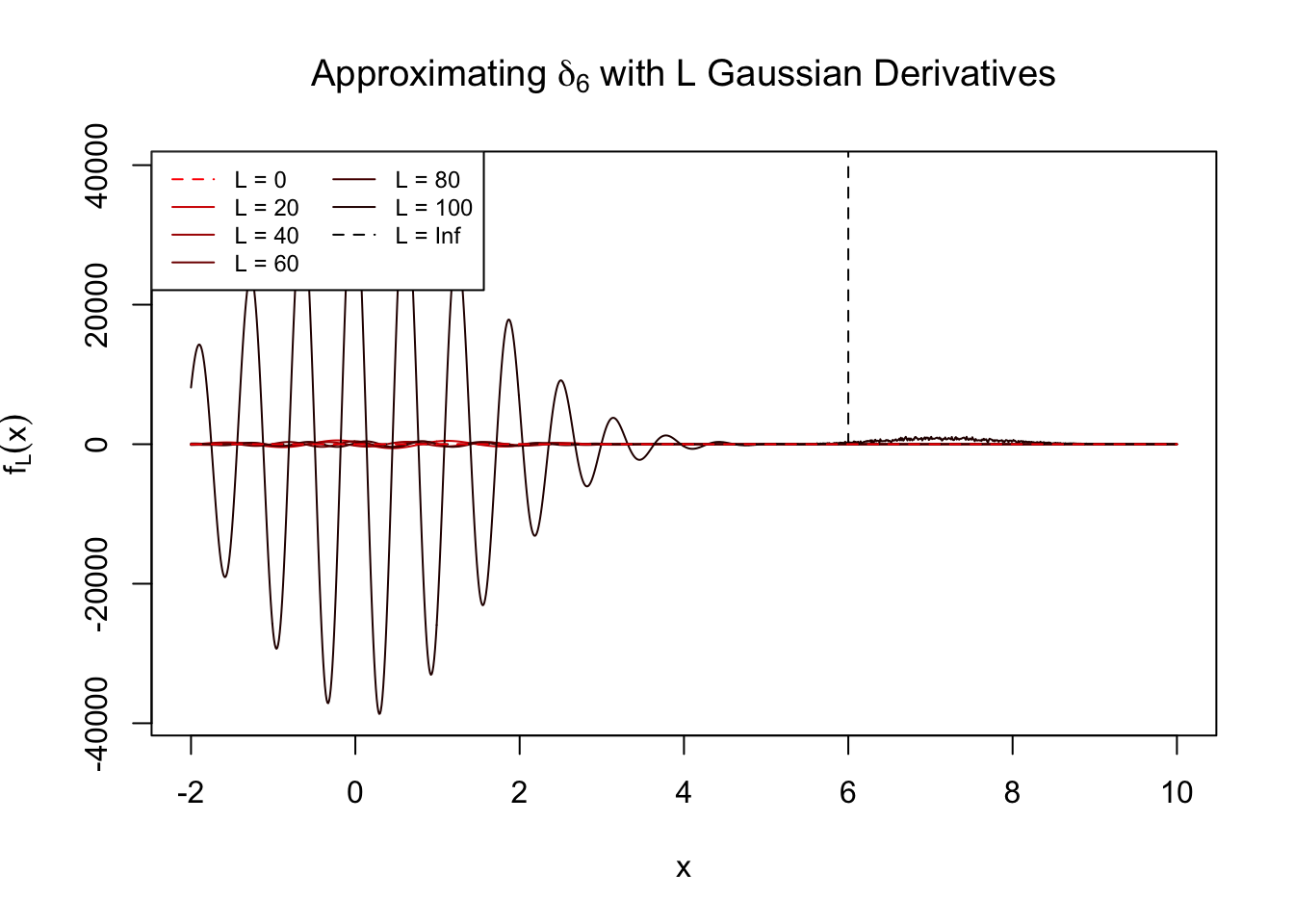

\(z = 6\)

Numerical instability.
