Simulating Design Matrix \(X\): Correlation patterns

Introduction

For a fixed design matrix \(X\), \(\hat\beta \sim N(\beta, \sigma_e^2(X^TX)^{-1})\), and the empirical distribution of \(\hat z_j = \hat\beta_j / \hat{\text{SE}}(\hat\beta_j)\) under the null will depend on the average correlation in \((X^TX)^{-1}\).

Actually the most important quantity to determine the shape of the empirical distribution of \(\hat z_j\) is the square root of the mean squared correlation among \(\hat\beta_j\)’s, that is, \(\sqrt{\overline{\rho_{\hat\beta_i, \hat\beta_j}^2}}\).

Now we are taking a look at this quantity for some commonly used design matrix in linear regression simulations.

In all three settings, each row of \(X_{n \times p}\) is independently drawn from a \(N(0, \Sigma)\) distribution, where the diagonal elements of \(\Sigma\) are all one. Then the columns of \(X\) are normalized such that \(\|X_j\|_2^2 = 1\).

Independent and normalized columns

• \(\Sigma = I\).

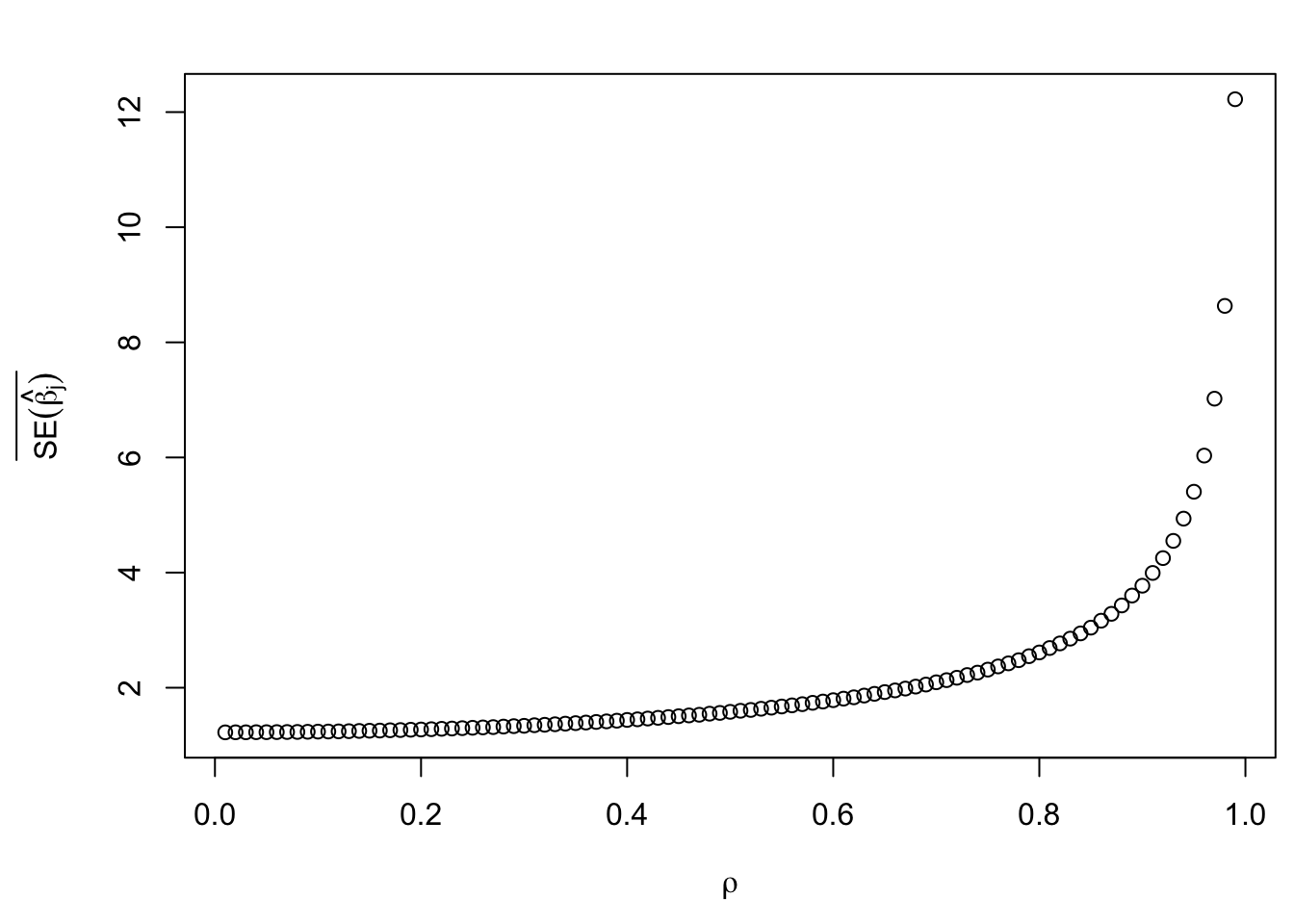

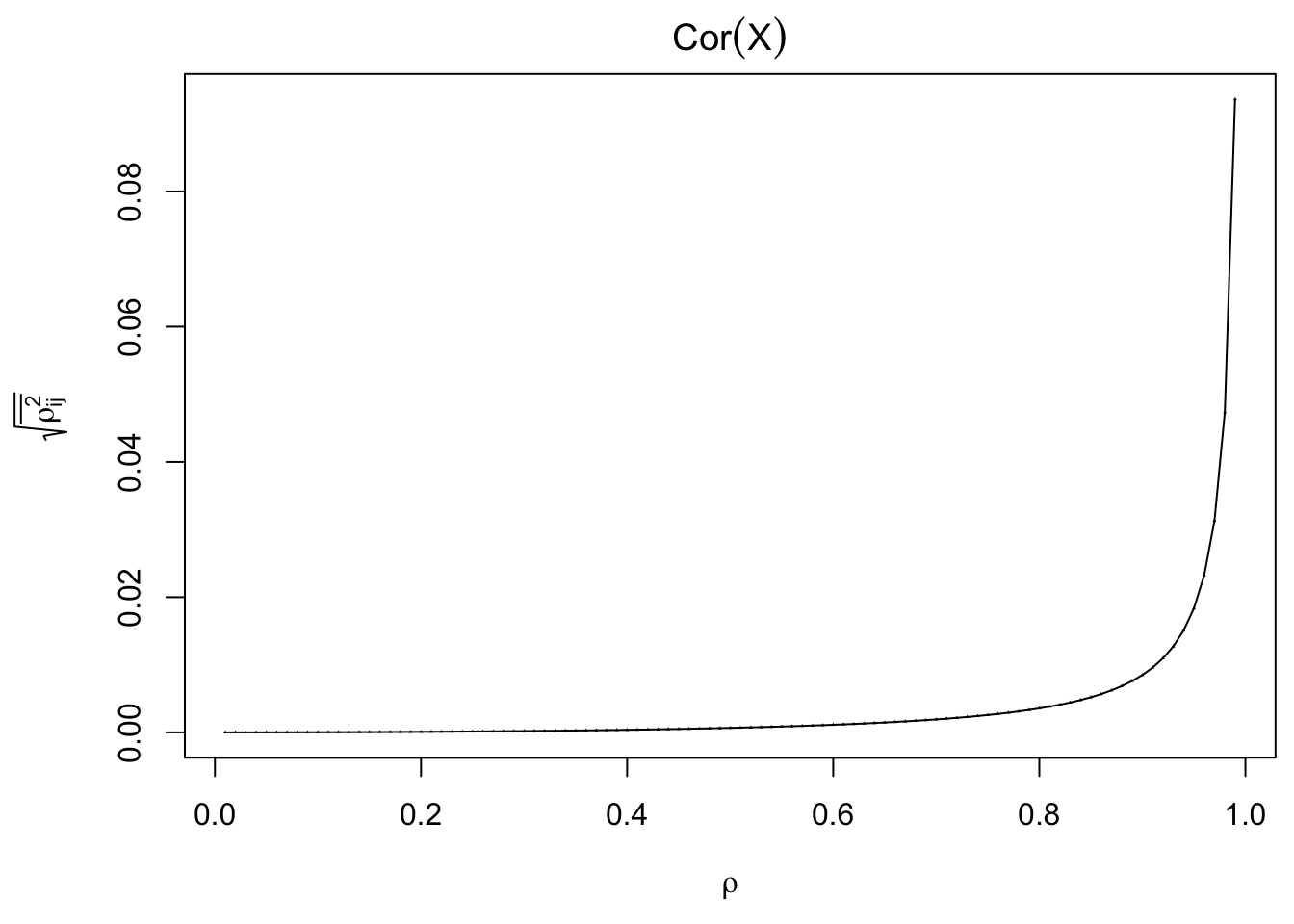

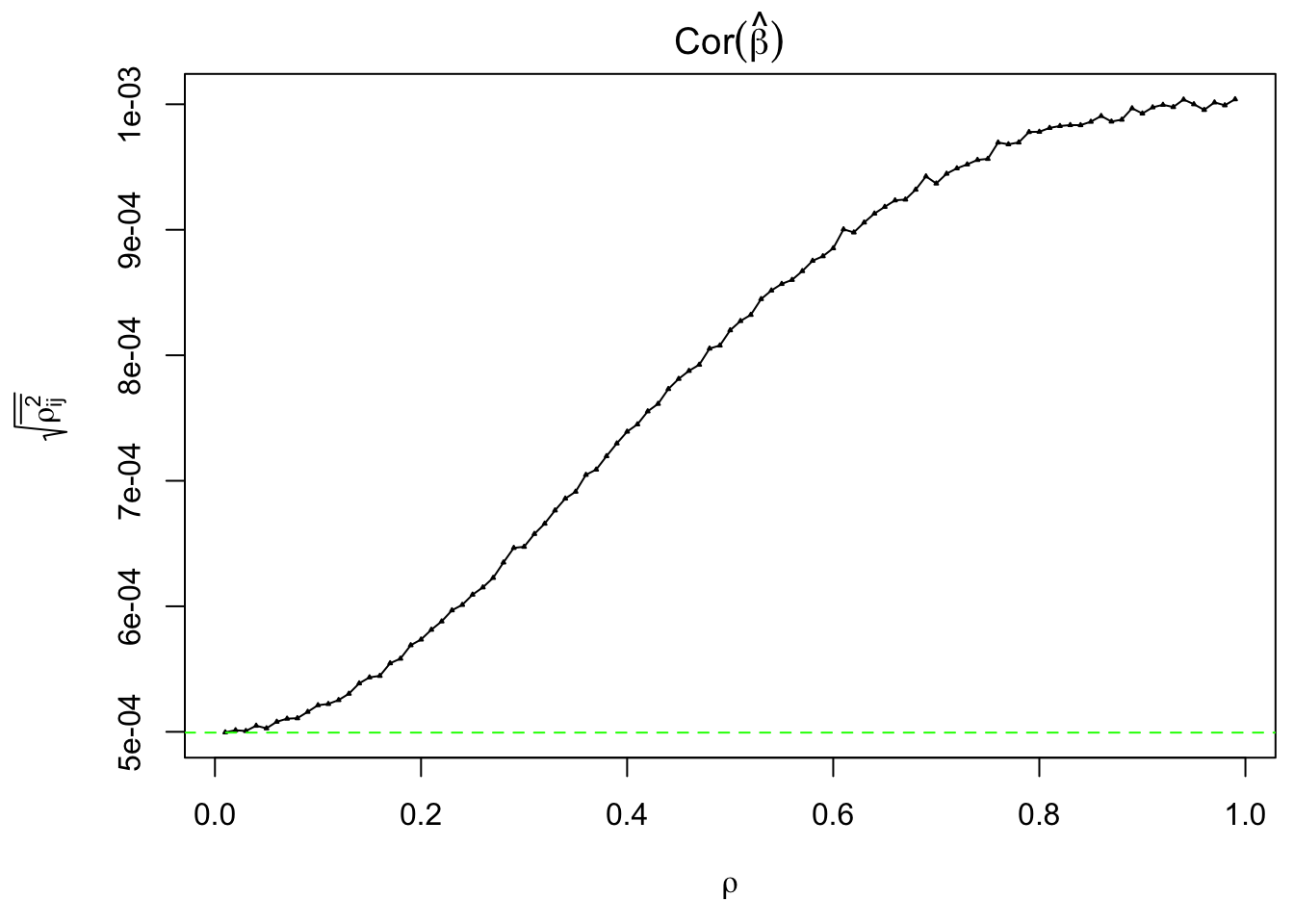

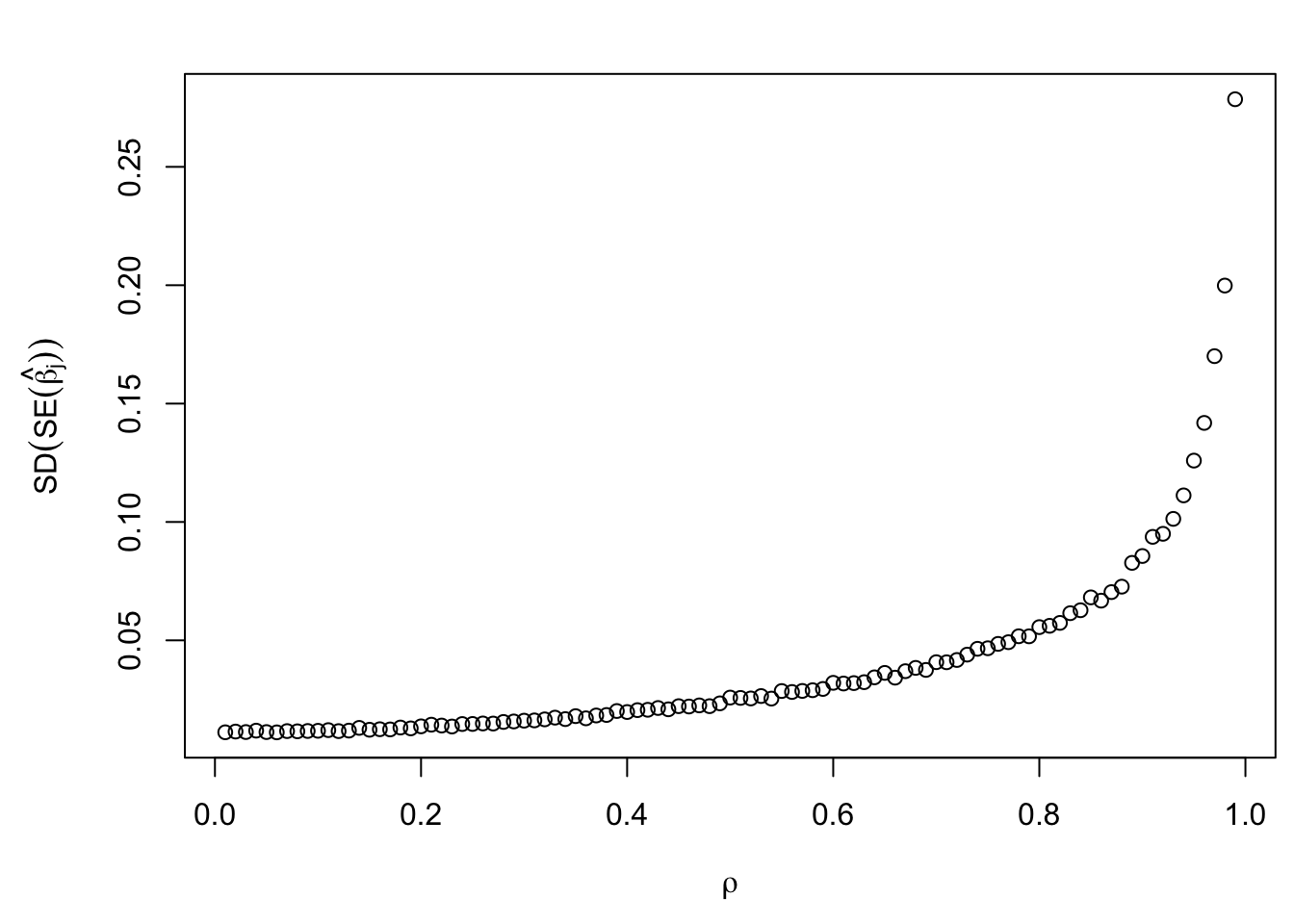

Toeplitz column correlation

• \(\Sigma_{ij} = \rho^{|i - j|}\)

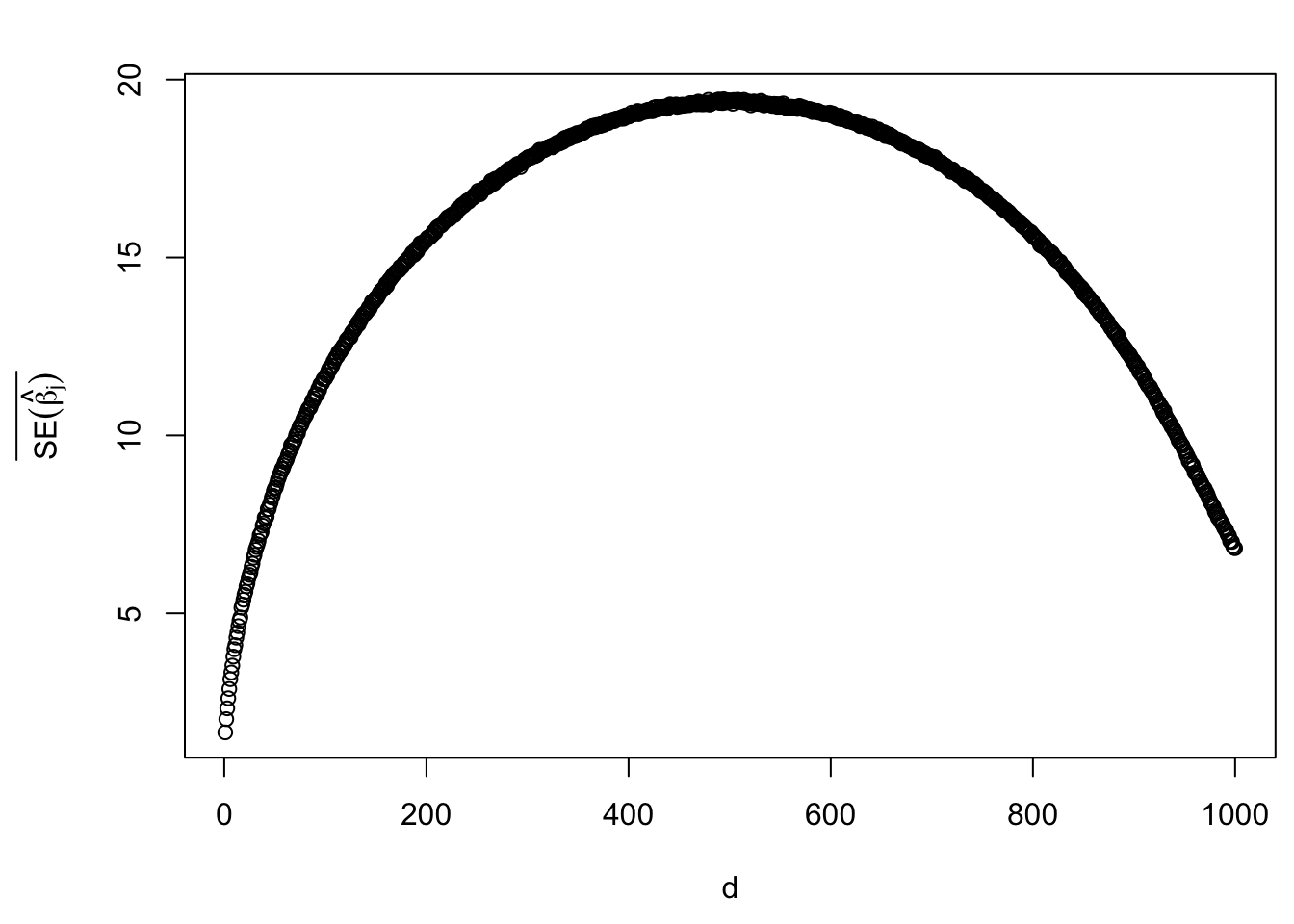

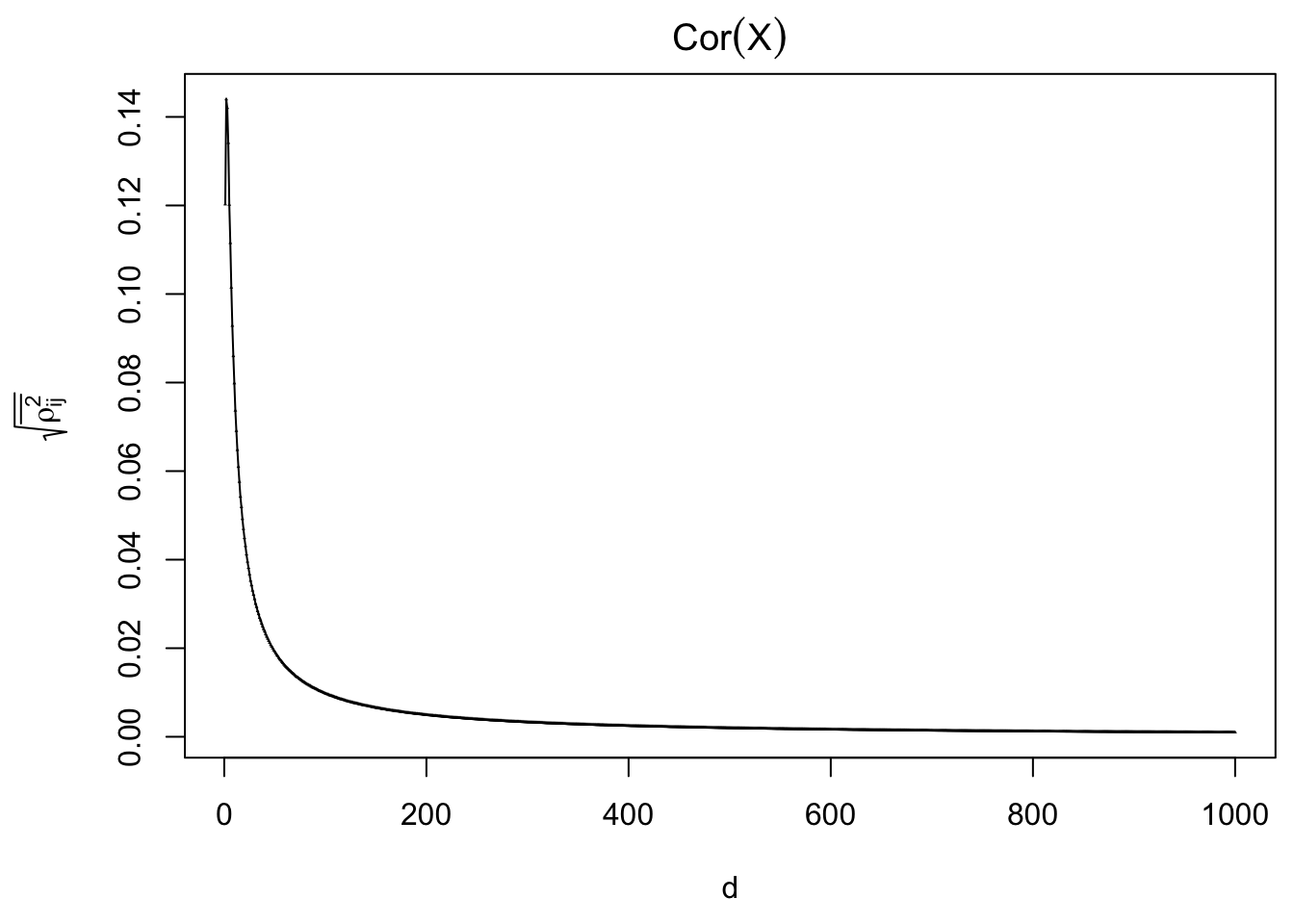

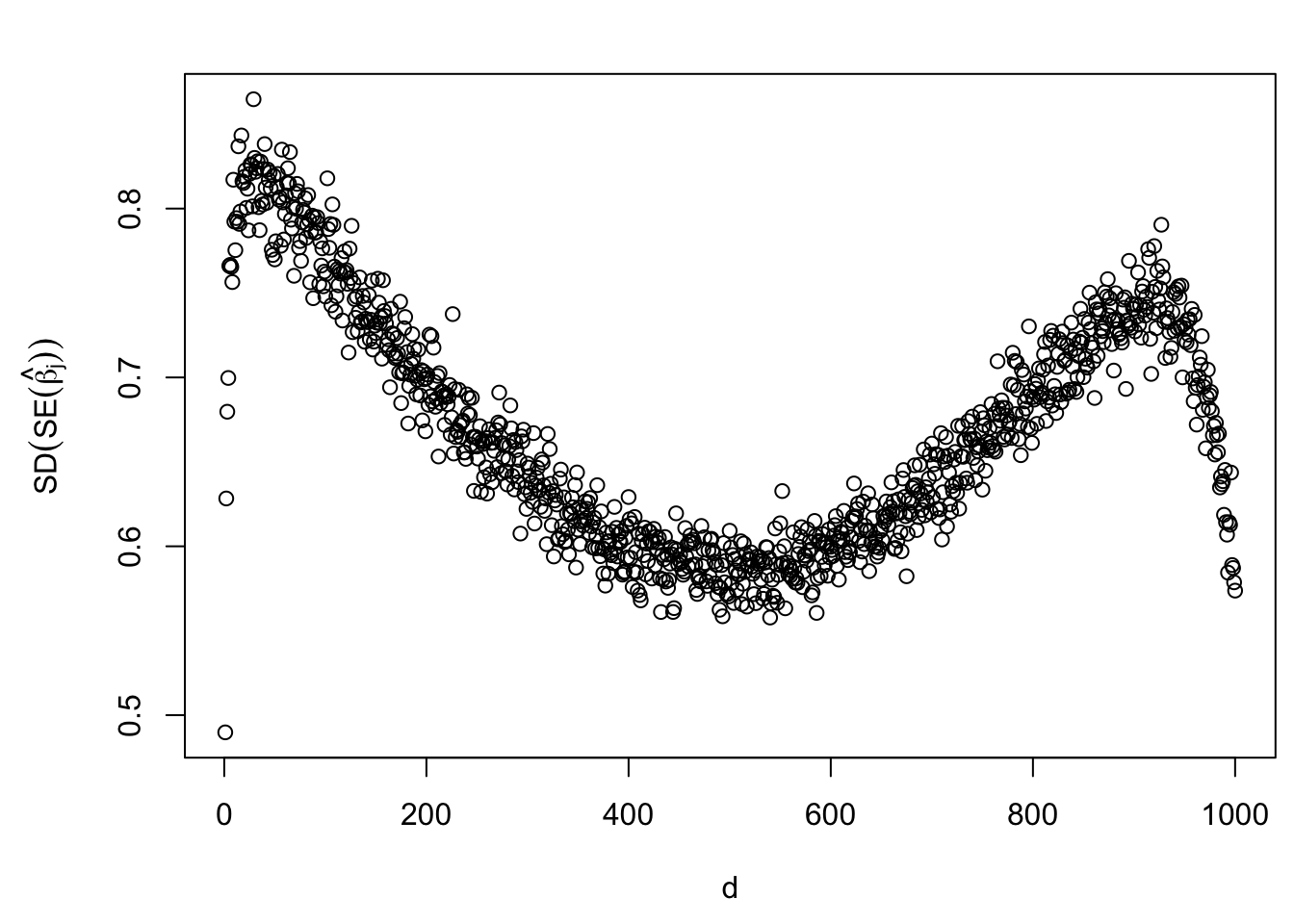

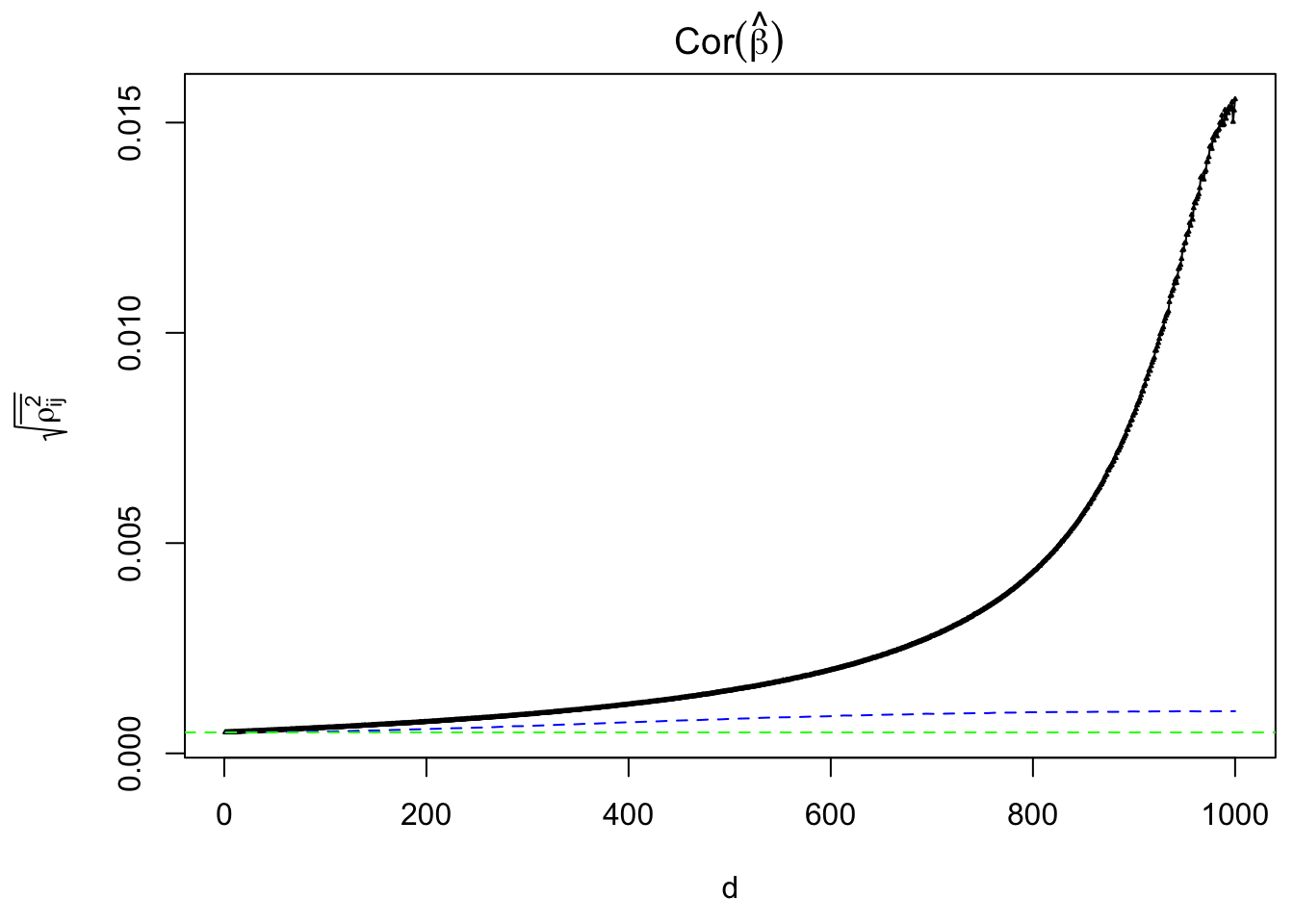

Factor model column correlation

• \(\Sigma = \texttt{cov2cor}(B_{p \times d}B_{d\times p}^T + I)\)
