Knockoff on Small Signals

Introduction

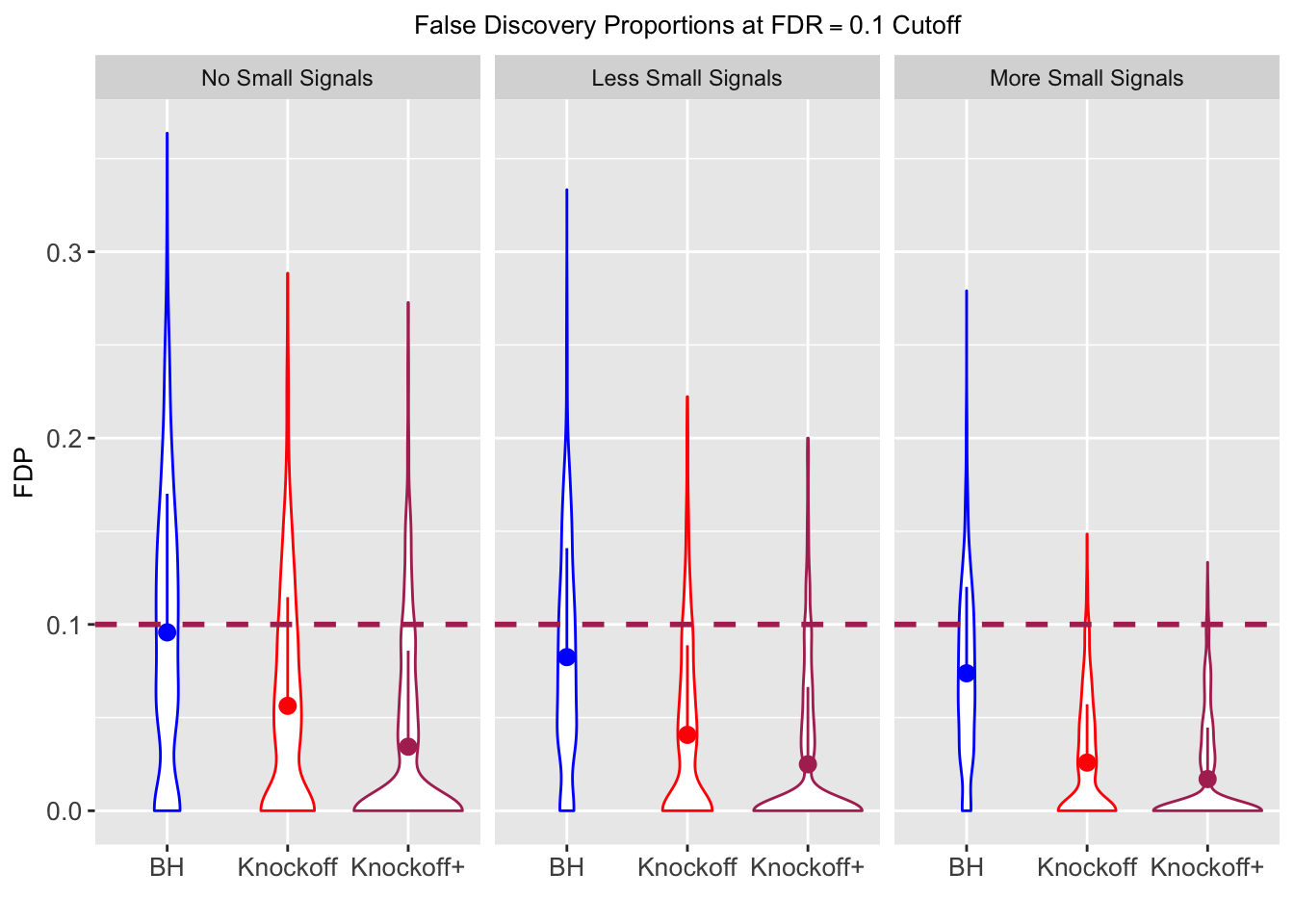

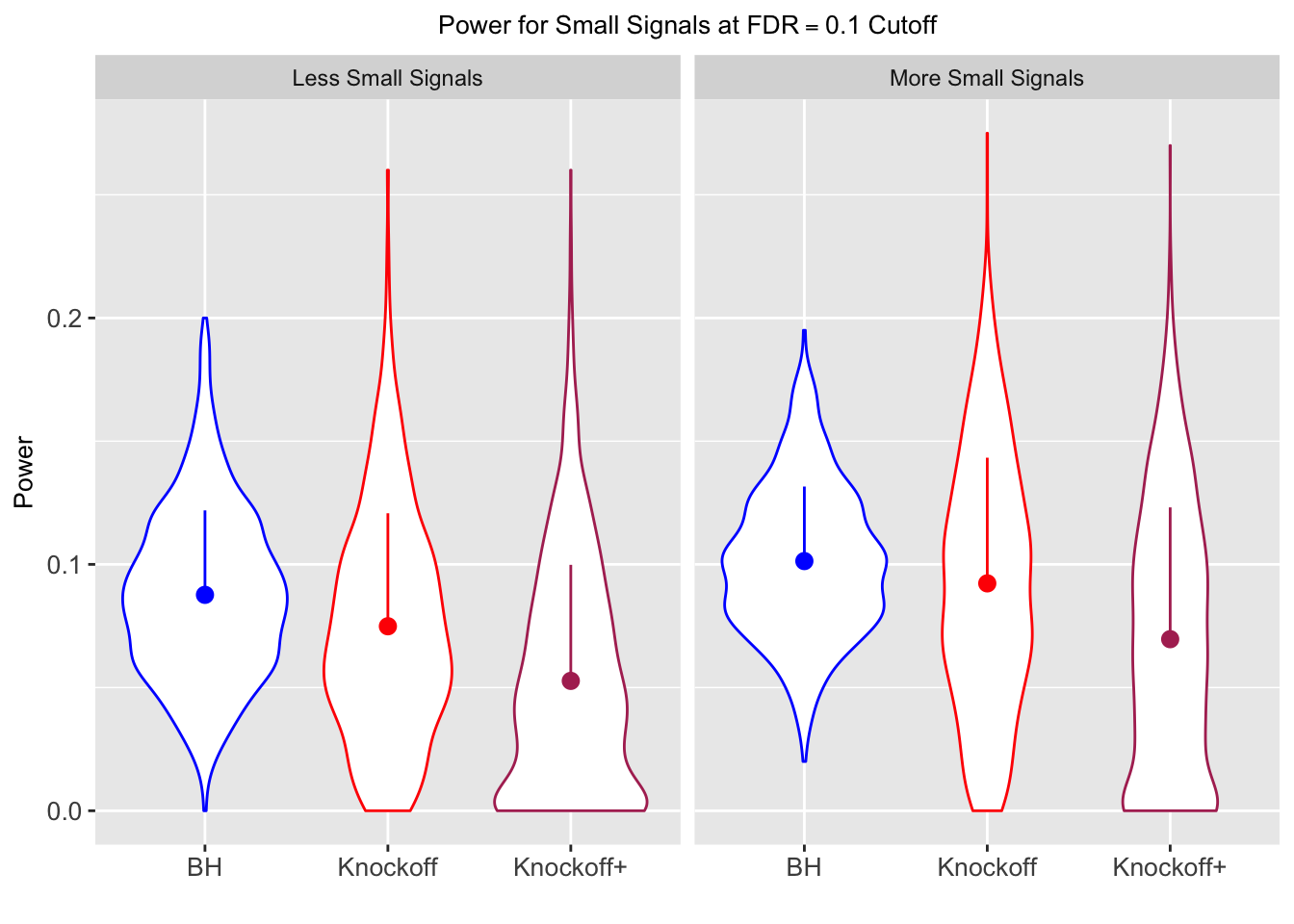

In the Knockoff paper simulations, \(\beta\)’s are either \(0\) or \(A\). Here we are replicating the results, and investigating how well Knockoff deal with small signals.

In the following simulations, we always have \(n = 3000\), \(p = 1000\), For a certain \(\beta\), \(Y_n \sim N(X_{n\times p}\beta_p, I_n)\). Out of \(p = 1000\) \(\beta_j\)’s, here are three scenarios.

• Scenario 1: \(950\) are 0, and the rest \(50\) are \(A = 3.5\). (replicating a data point on Fig 3 of the Knockoff paper)

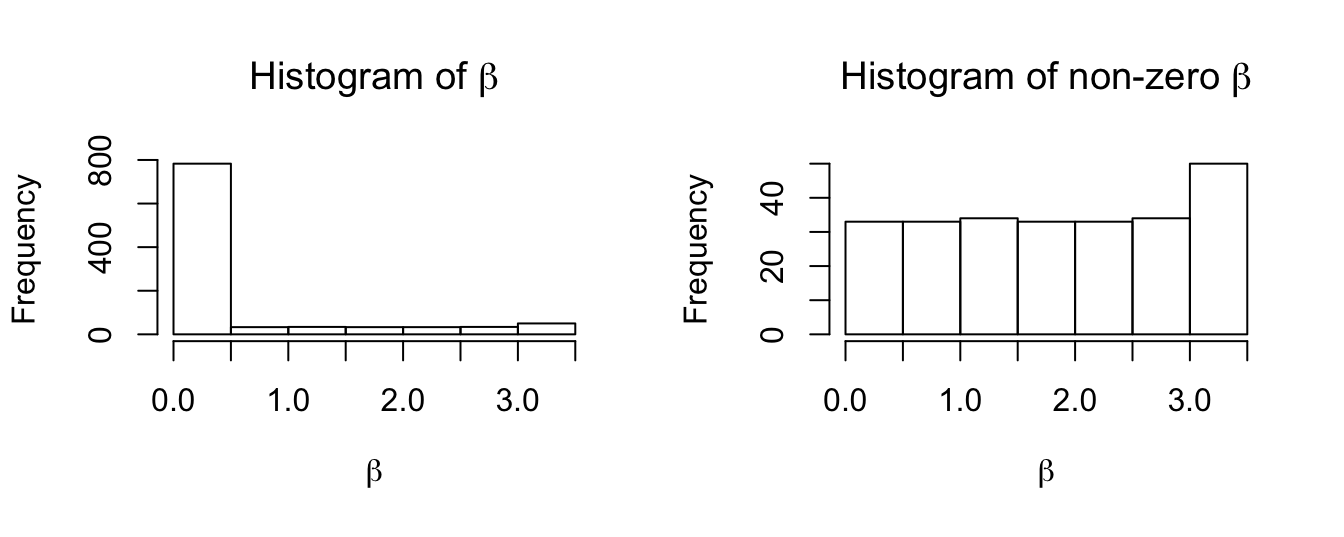

• Scenario 2: \(850\) are 0, \(50\) are \(A = 3.5\) as large signals, and the rest \(100\) are small signals uniformly from \(0\) to \(3.5\).
• Scenario 3: \(750\) are 0, \(50\) are \(A = 3.5\) as large signals, and the rest \(200\) are small signals uniformly from \(0\) to \(3.5\).

n <- 3000
p <- 1000
k <- 50
q <- 0.1
A <- 3.5

X <- matrix(rnorm(n * p), n , p)
X <- svd(X)$u
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk

X <- matrix(rnorm(n * p), n , p)
X <- svd(X)$u
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk

X <- matrix(rnorm(n * p), n , p)
X <- svd(X)$u
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk

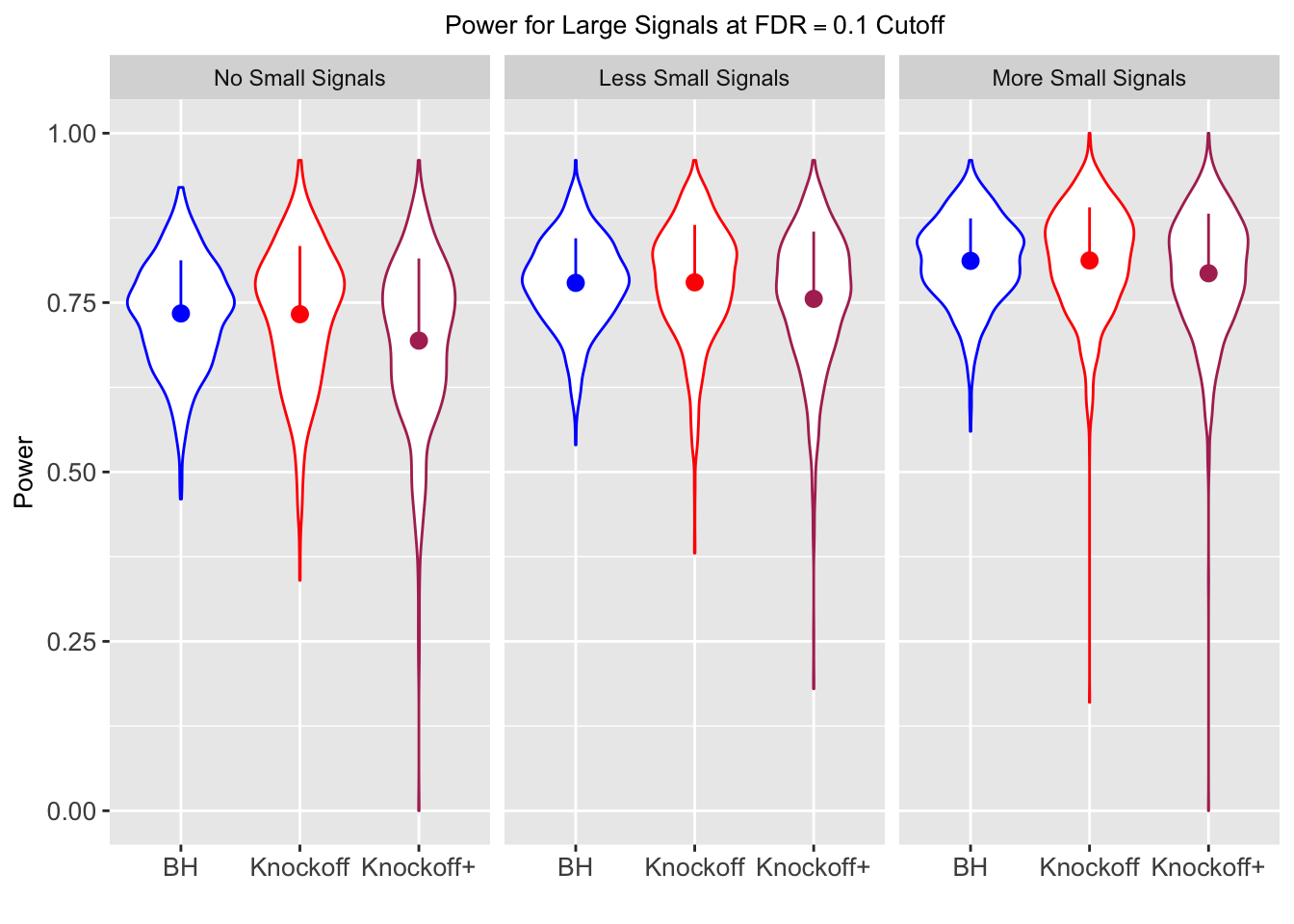

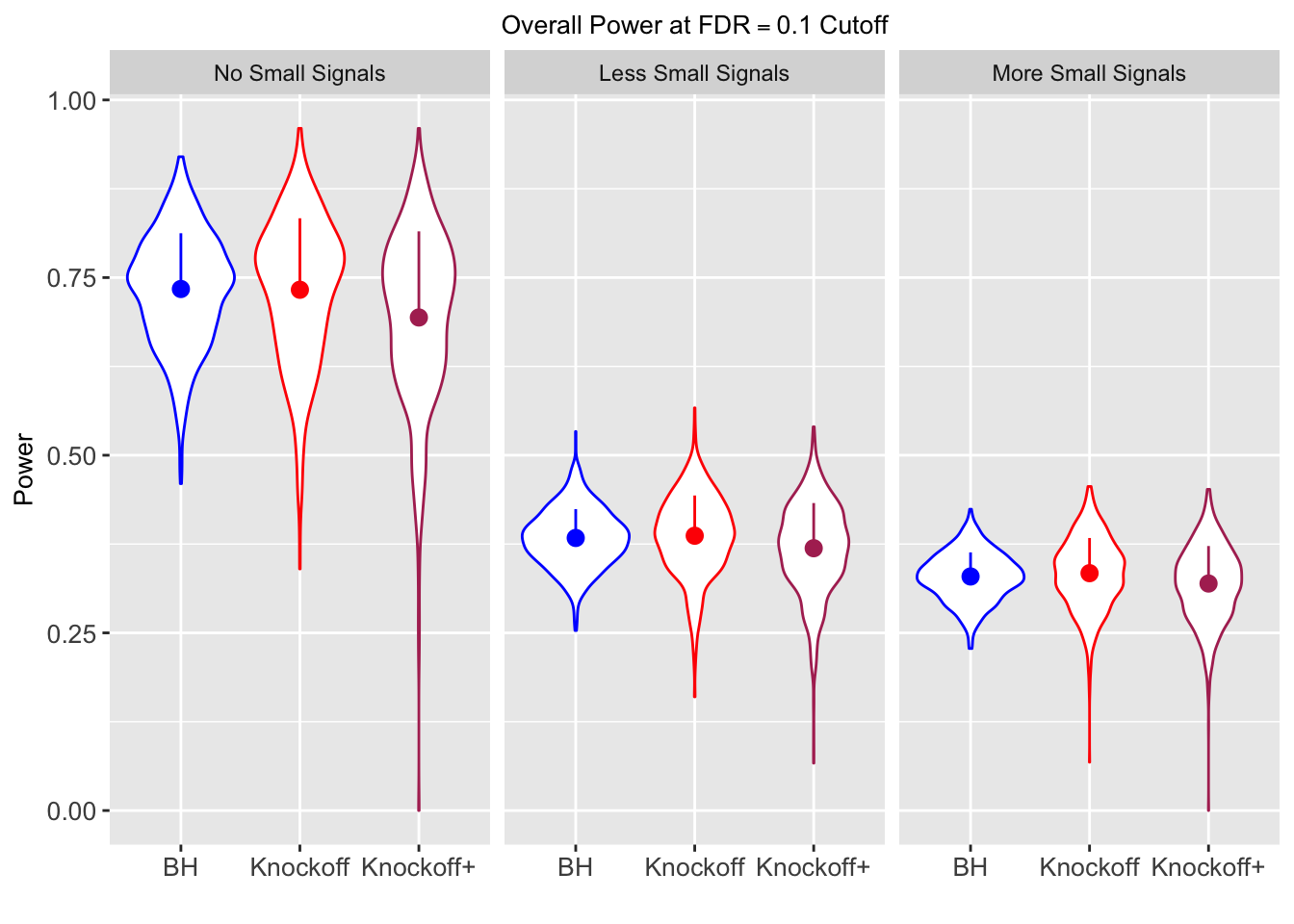

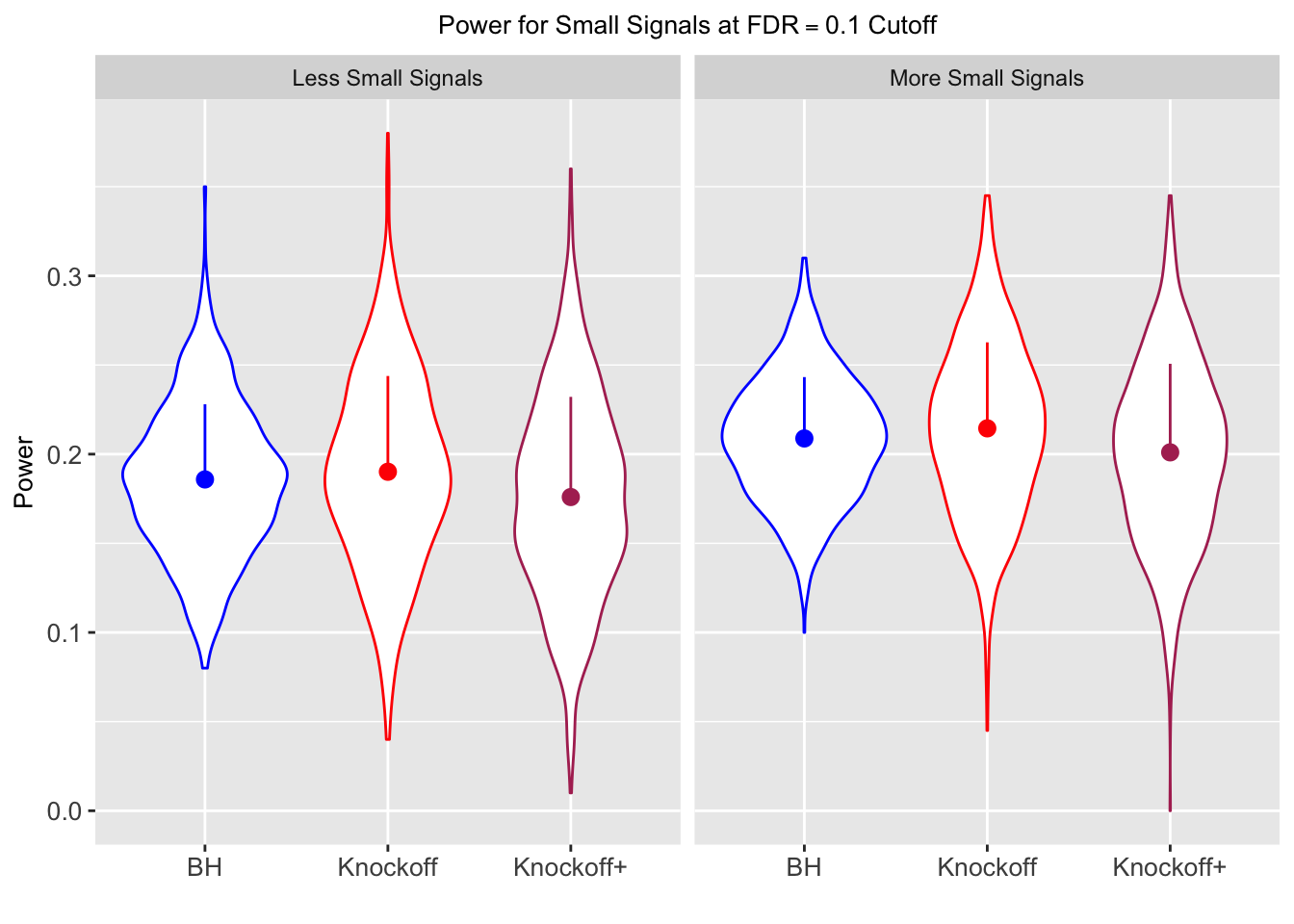

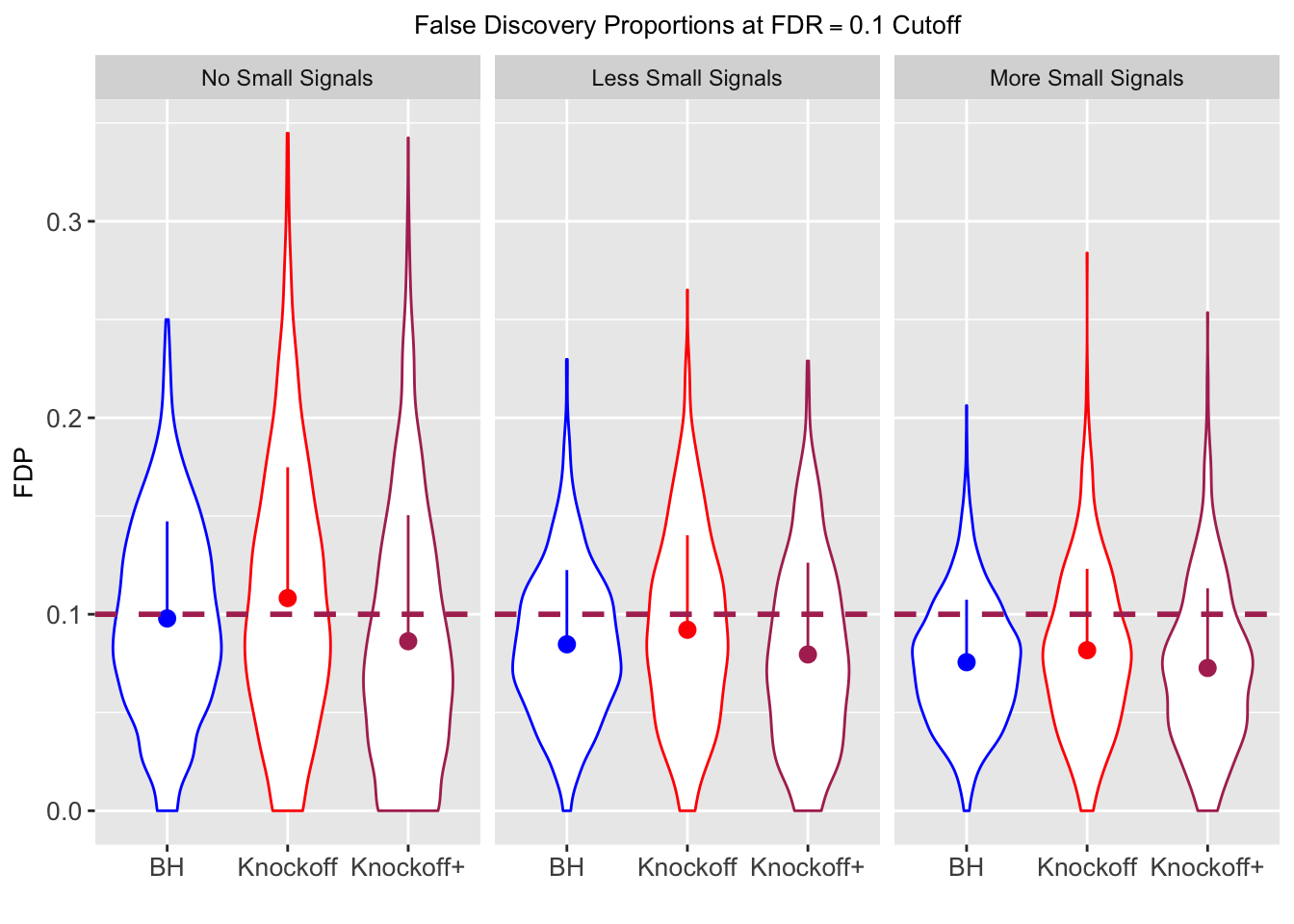

Orthogonal design

\(X\) has random orthonormal columns

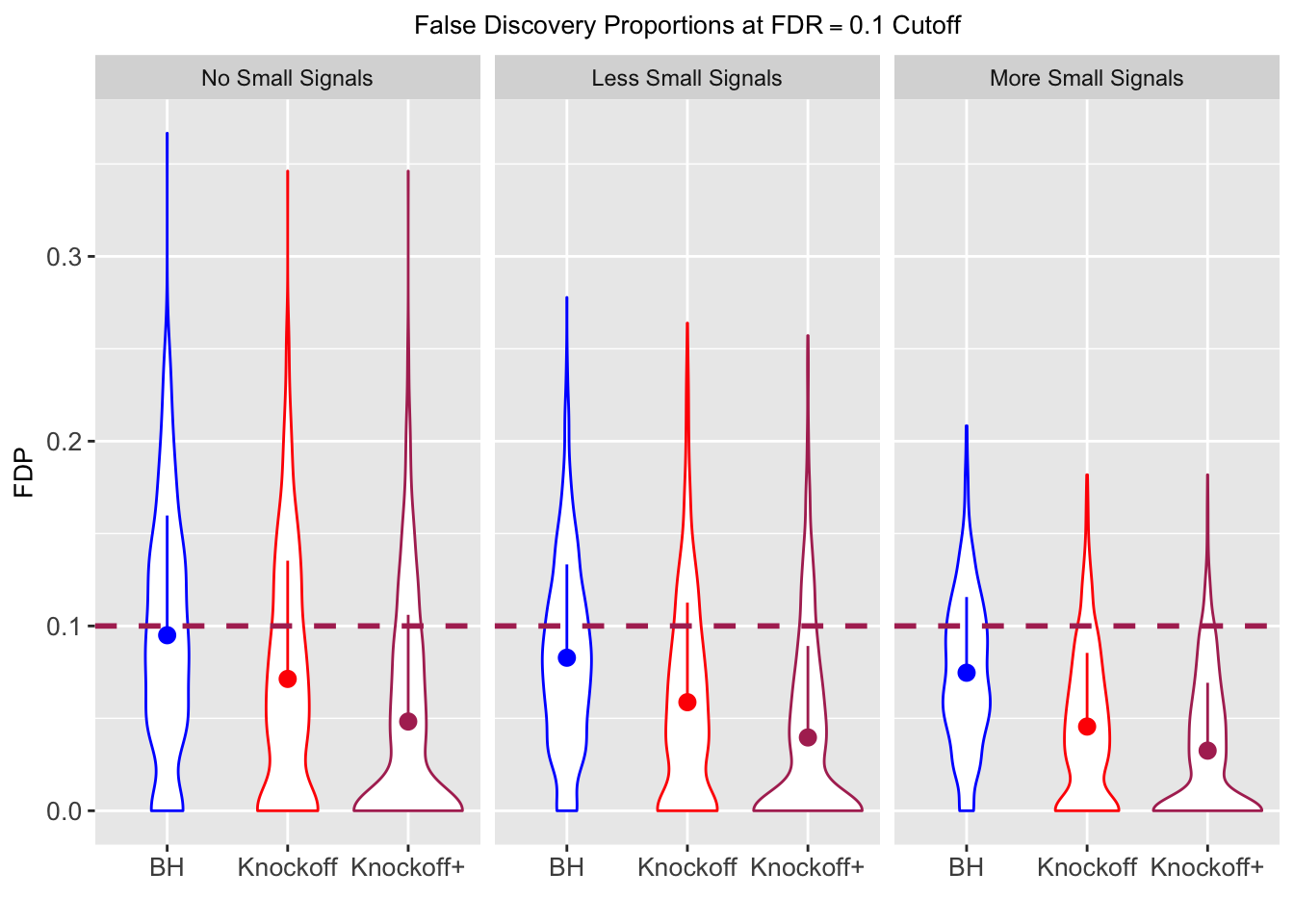

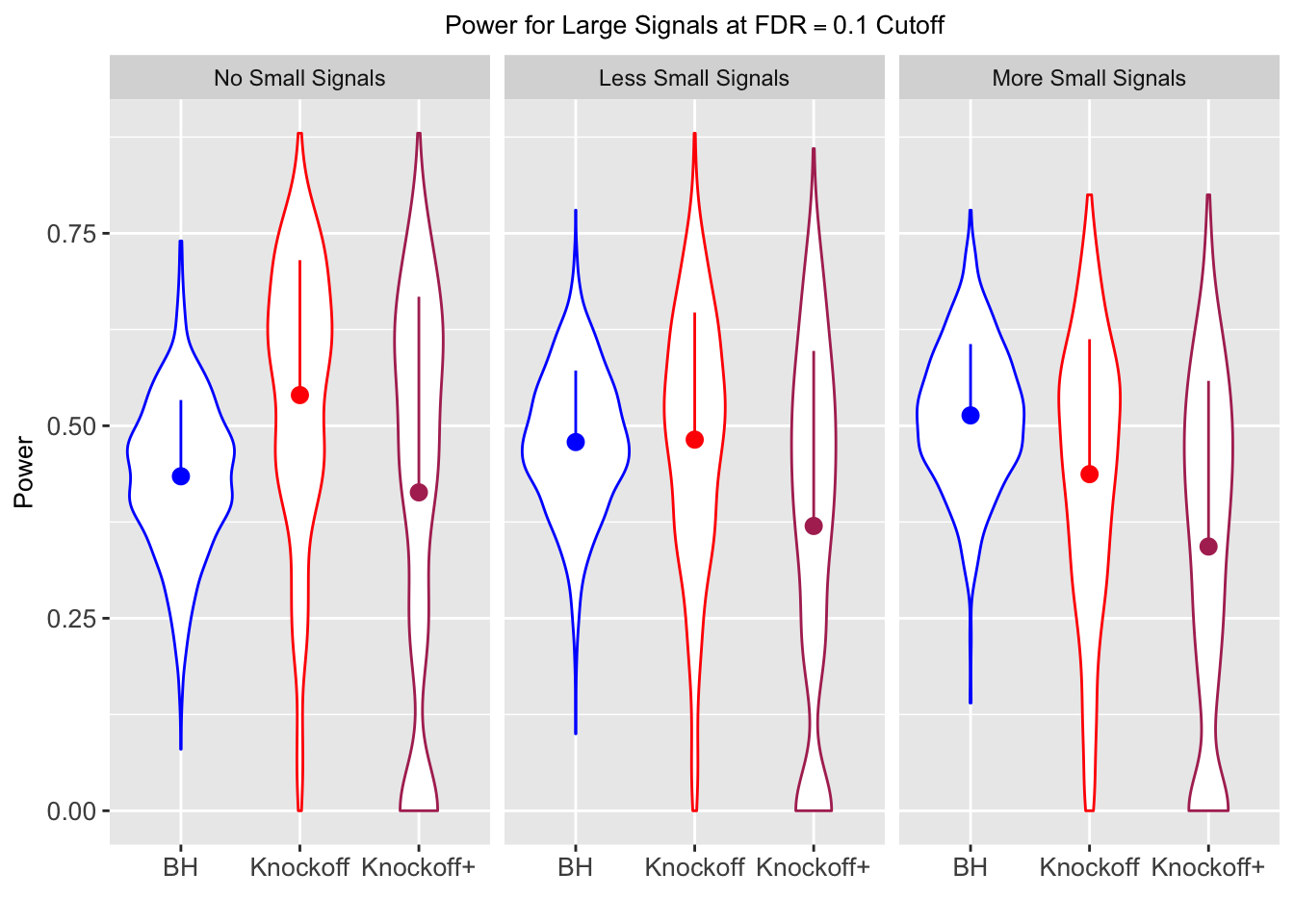

Independent design

\(X_{n \times p}\) has independent columns simulated from \(N(0, 1)\) and then normalized to have \(\|X_j\|_2^2 \equiv 1\).

X <- matrix(rnorm(n * p), n , p)
X <- t(t(X) / sqrt(colSums(X^2)))
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk

X <- matrix(rnorm(n * p), n , p)
X <- t(t(X) / sqrt(colSums(X^2)))
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk

X <- matrix(rnorm(n * p), n , p)
X <- t(t(X) / sqrt(colSums(X^2)))
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk

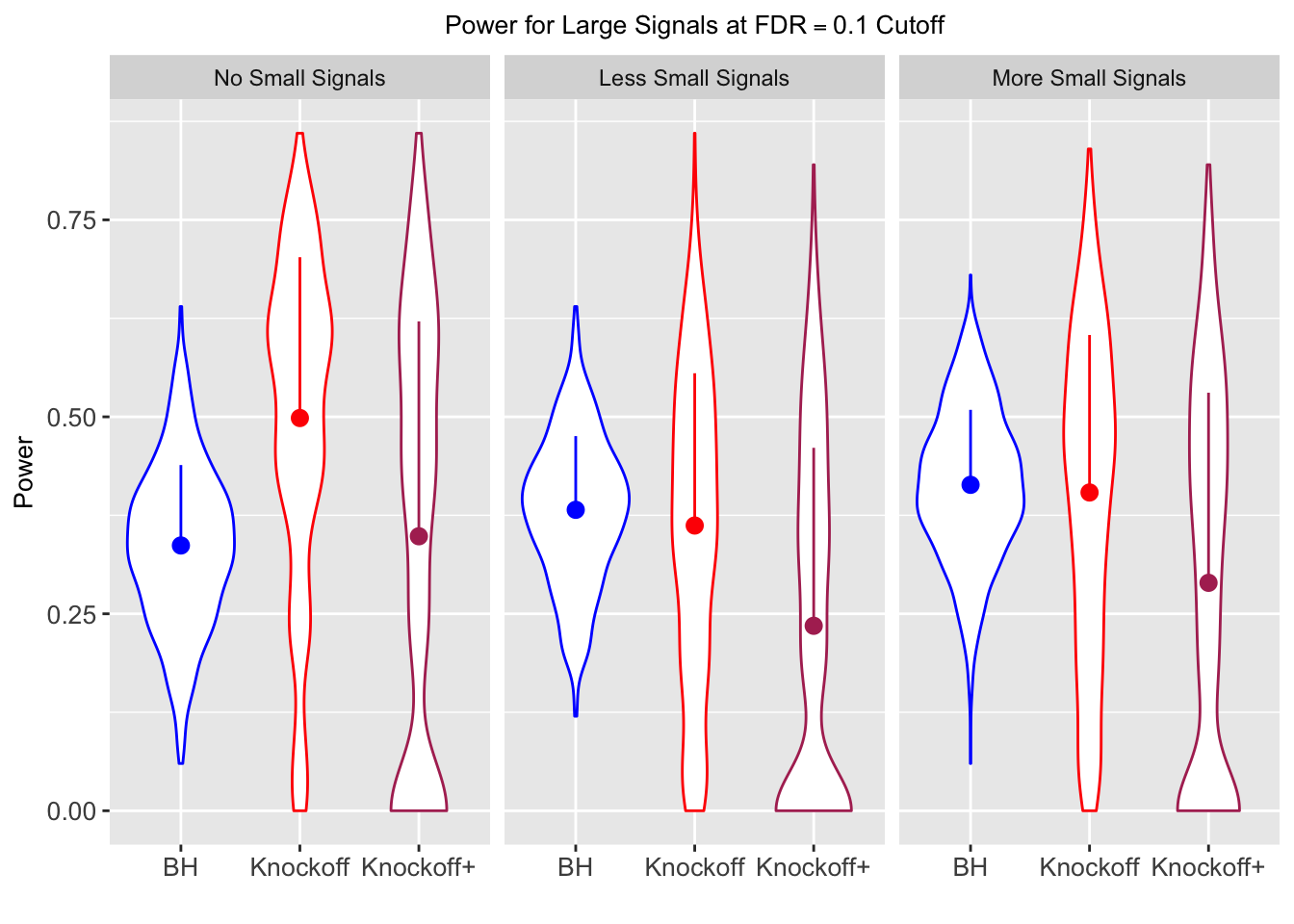

Local correlation design

\(X_{n \times p}\) has correlation \(\Sigma_{ij} = \rho^{|i - j|}\). Each row is independently \(N(0, \Sigma)\) and then normalized to have \(\|X_j\|_2^2 \equiv 1\).

rho <- 0.25
Sigma <- toeplitz(rho^(0 : (p - 1)))
X <- matrix(rnorm(n * p), n , p)
X <- t(t(X) / sqrt(colSums(X^2)))
X <- X %*% chol(Sigma)
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk

X <- matrix(rnorm(n * p), n , p)
X <- t(t(X) / sqrt(colSums(X^2)))
X <- X %*% chol(Sigma)
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk

X <- matrix(rnorm(n * p), n , p)
X <- t(t(X) / sqrt(colSums(X^2)))
X <- X %*% chol(Sigma)
Xk <- knockoff::create.fixed(X)
Xk <- Xk$Xk
