A closer look at Knockoff on heavy correlation design

Introduction

Knockoff has 3 steps.

1. Generate knockoff variables, which keep the same correlation structure as original variables but has no effect on the response.

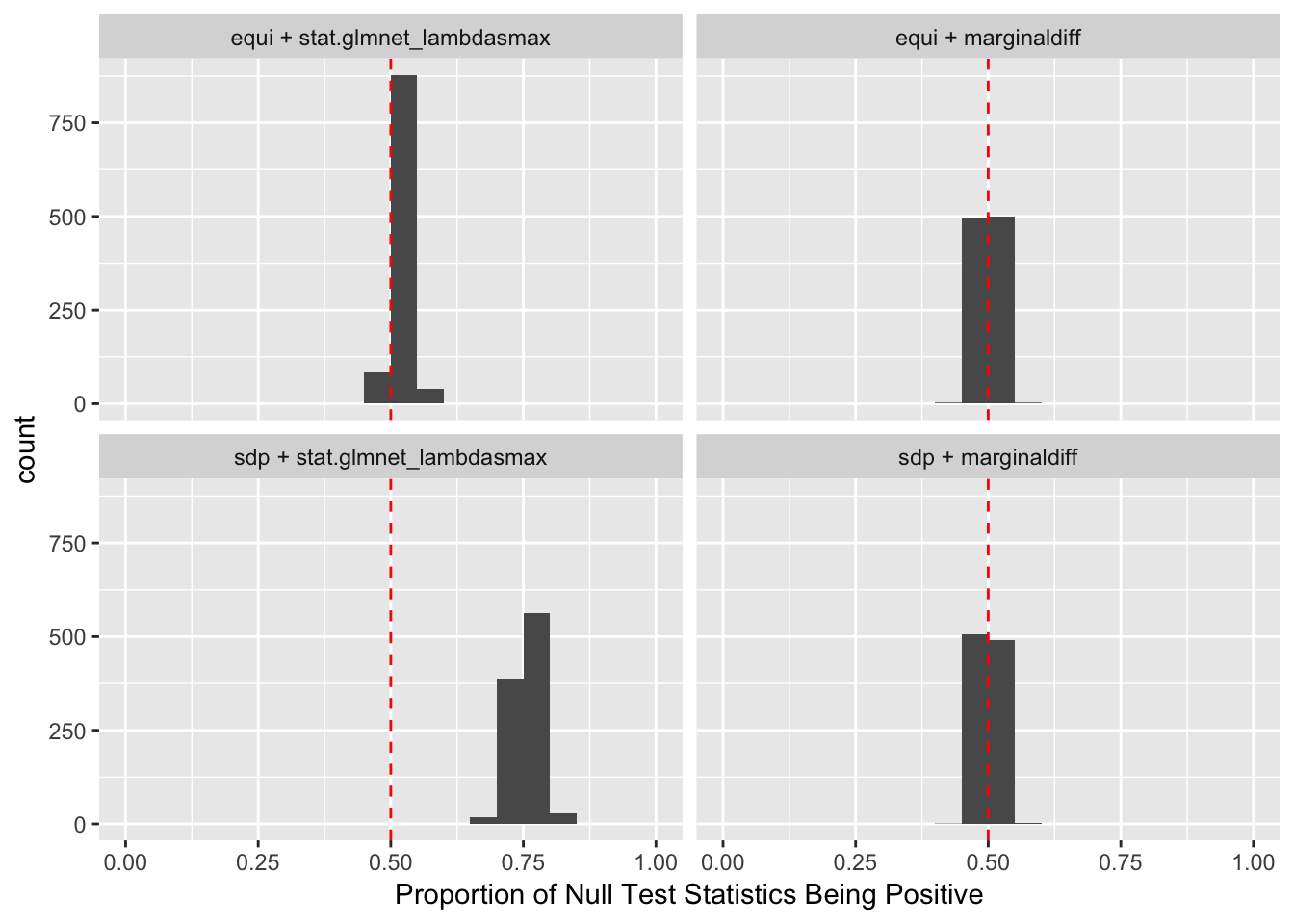

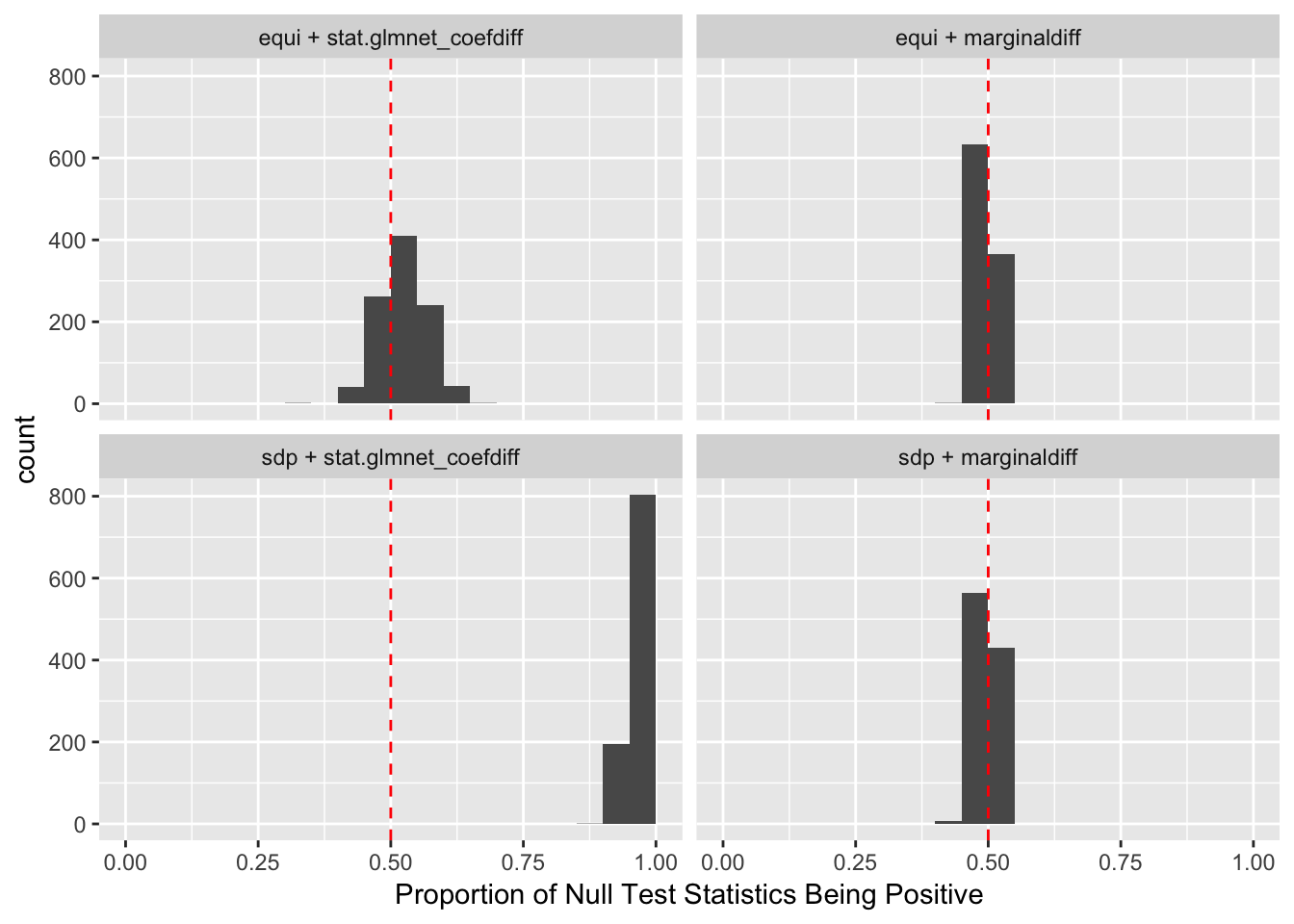

2. Generate test statistics such that these statistics tend to be large positive number for non-null variables but iid positive or negative for null variables.

3. Find a cutoff threshold for those test statistics to control the estimated FDR under \(q\).

The default knockoff::knockoff.filter function uses SDP construction in step 1 and LASSO-related statistics in step 2. However, we’ve found that Knockoff coded in this way failed to control FDR in simulations when variables are generated such that \(\hat\beta\) has heavy average absolute pairwise correlation, which seems to contradict Thoerem 2 in the Knockoff paper. Now we take a closer look to see what went wrong.

In step 1, we use two construction methods: equi and sdp. sdp is believed to be more powerful. In step 2, we use two statistics: marginal and lasso-related. lasso-related is believed to be more powerful.

n <- 3e3
p <- 1e3
k <- 50
d <- 7
q <- 0.1

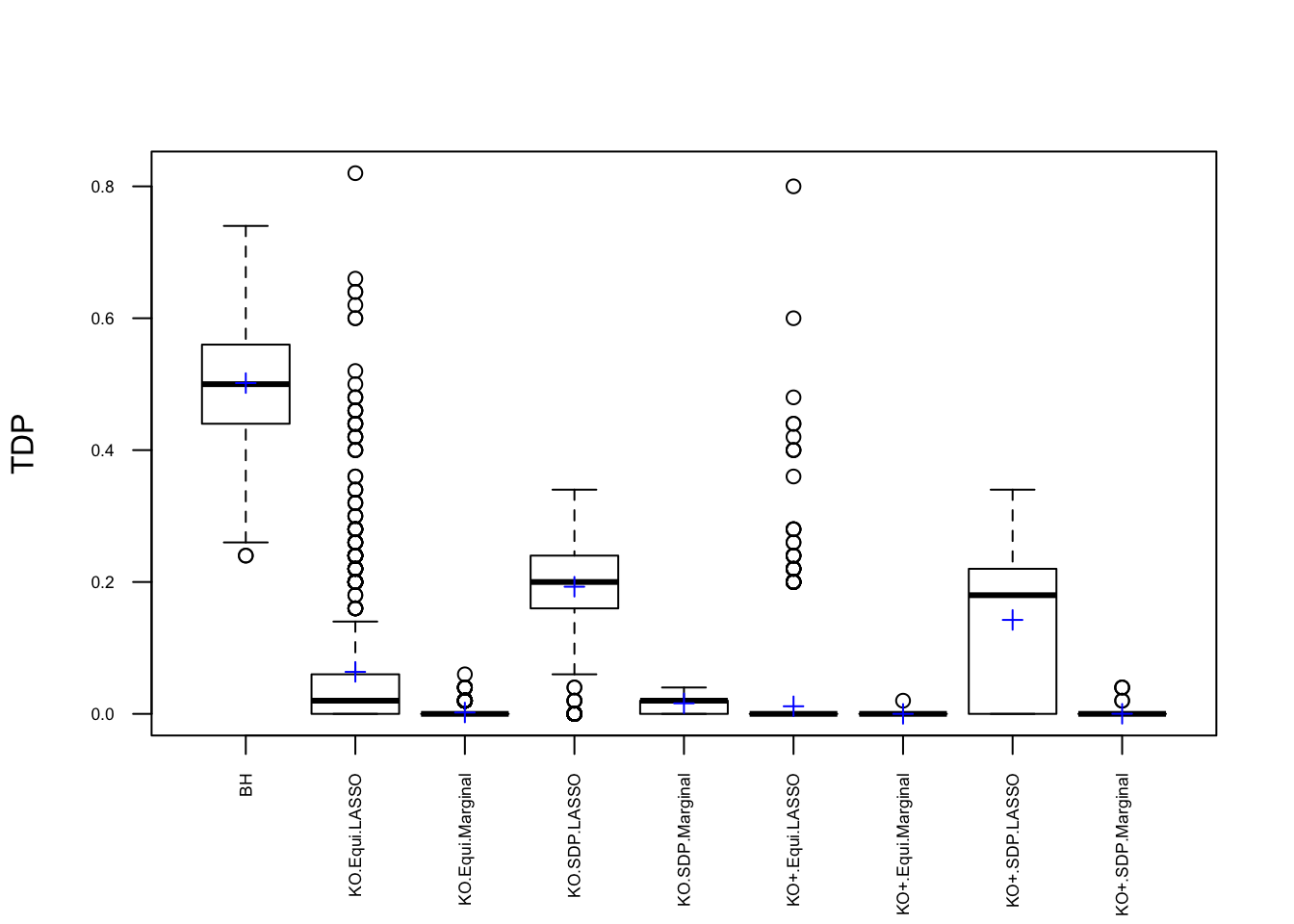

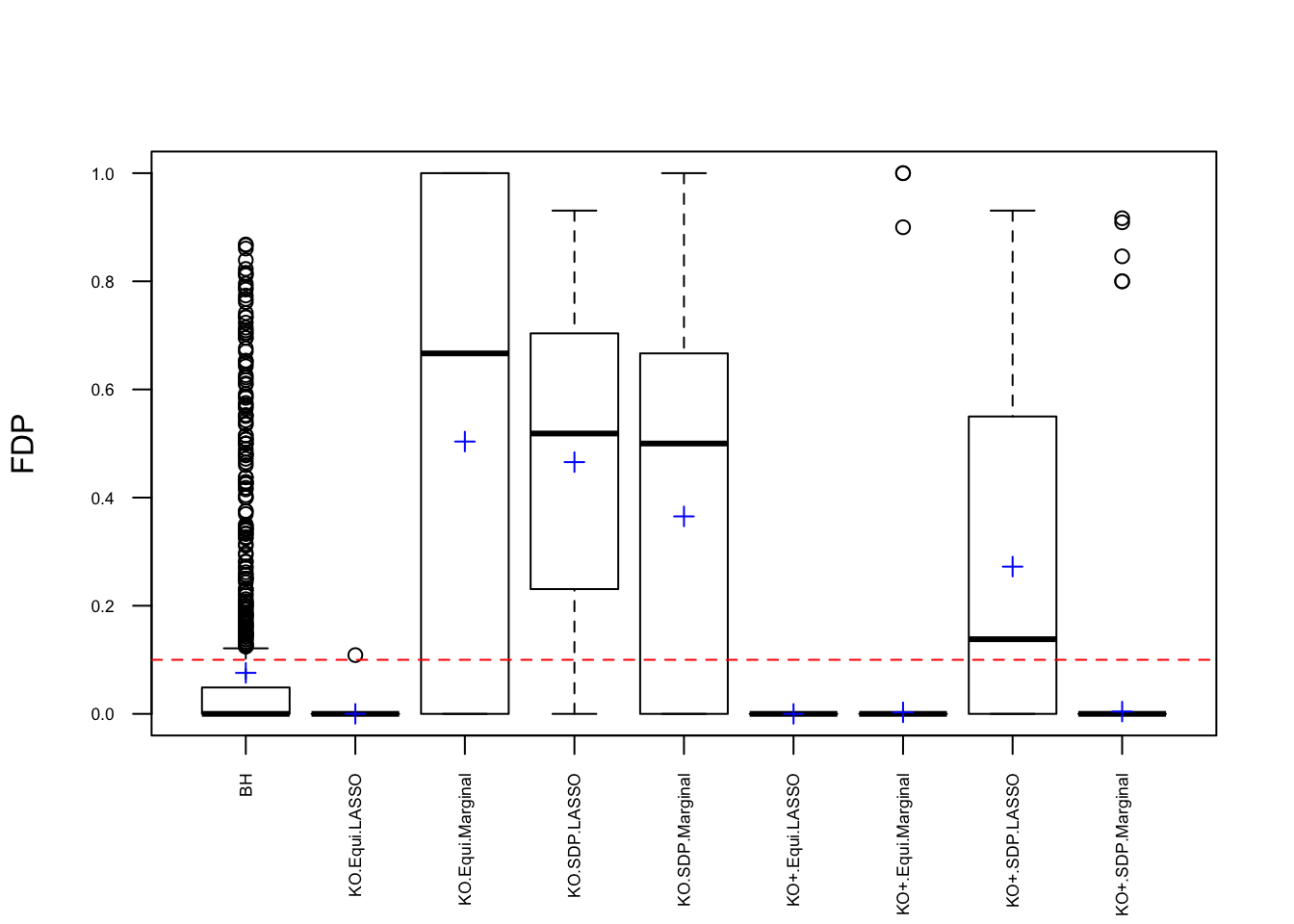

Fixed \(X\) Knockoffs: 1000 simulation trials

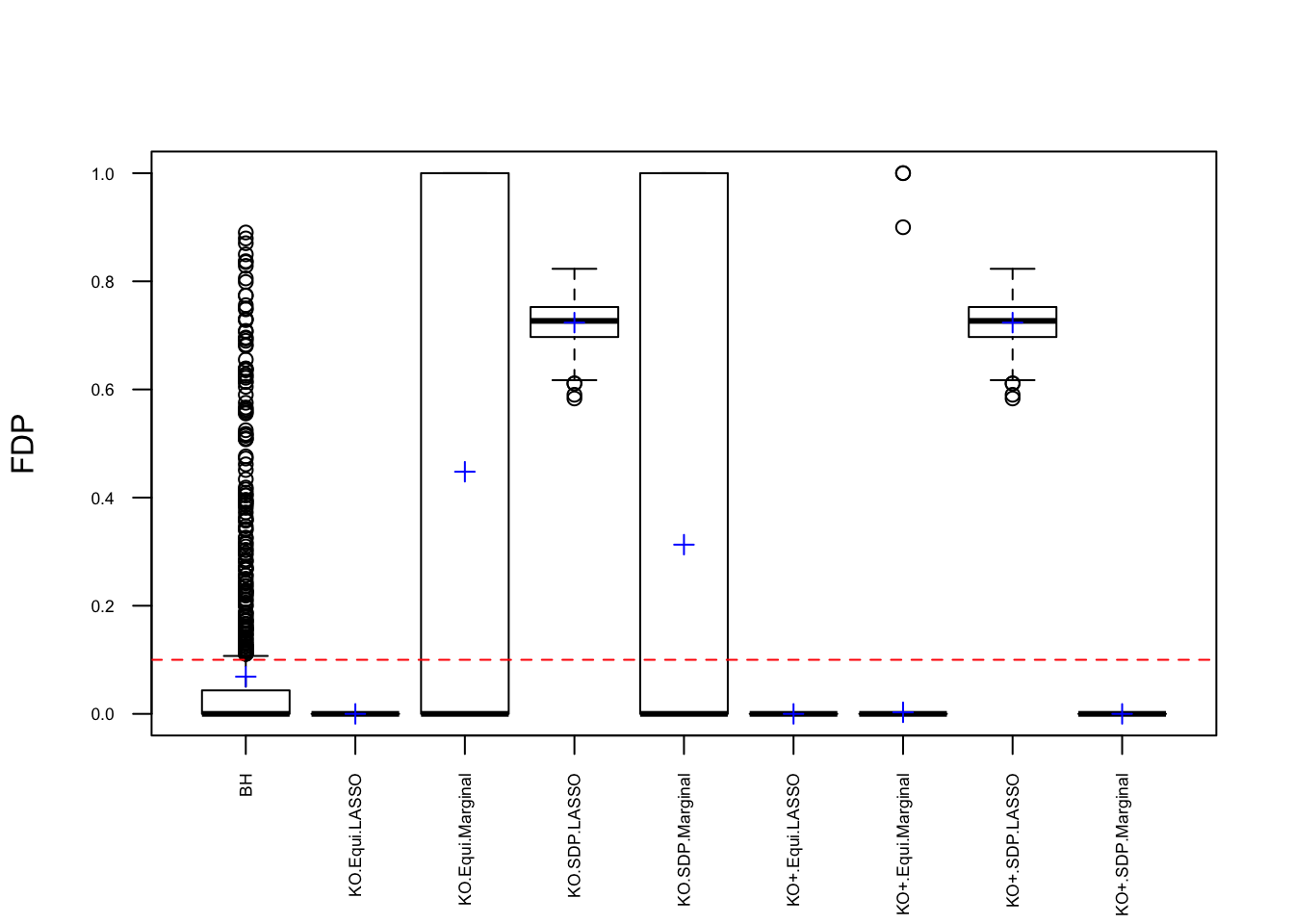

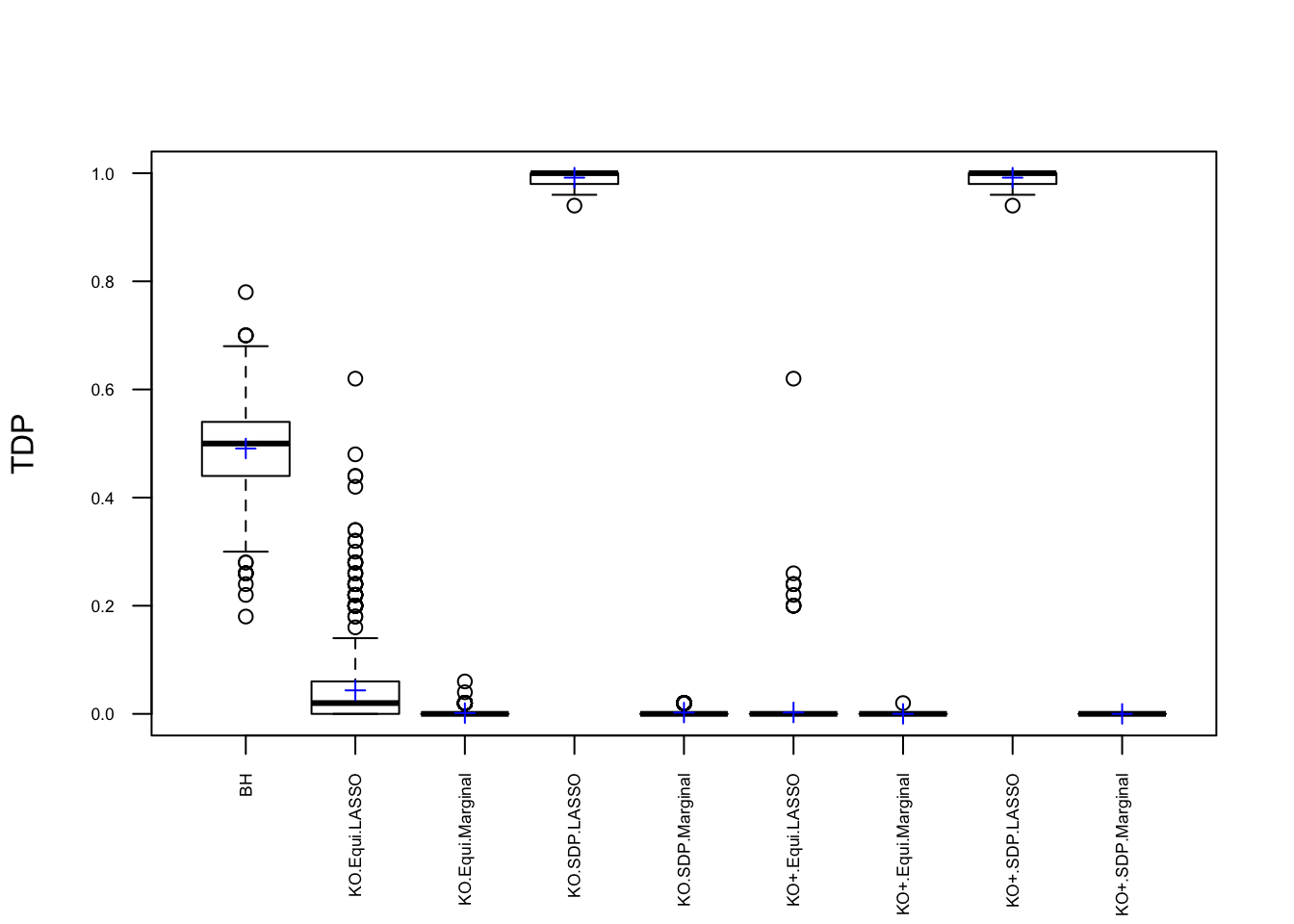

Model \(X\) Knockoffs: 1000 simulation trials

Observation

A set of well-bahaving Knockoff variables \(X^k\) should have the property that \[ \begin{array}{c} cor(X^k_i, X^k_j) = cor(X_i, X_j)\\ cor(X_i, X^k_j) = cor(X_i, X_j) \end{array} \] while \(cor(X_i, X^k_i)\) should be as small as possible. It turns out it’s just not that easy to generate these well-behaving Knockoff variables when columns in \(X\) are correlated in a certain way. Especially when using SDP optimization, it could generate a lot of knockoffs that are exactly the same as the originals.
