We see that smash.gaus still gives similar mean estimations given inaccurate variance(to ones given accurate variance) in previous section. We now try some more examples on this.

spike mean

library(smashr)
n = 2^9
t = 1:n/n
spike.f = function(x) (0.75 * exp(-500 * (x - 0.23)^2) +
            1.5  * exp(-2000 * (x - 0.33)^2) +
        3    * exp(-8000 * (x - 0.47)^2) +
            2.25 * exp(-16000 * (x - 0.69)^2) +
        0.5  * exp(-32000 * (x - 0.83)^2))
mu.s = spike.f(t)

# Scale the signal to be between 0.2 and 0.8.
mu.t = (1 + mu.s)/5

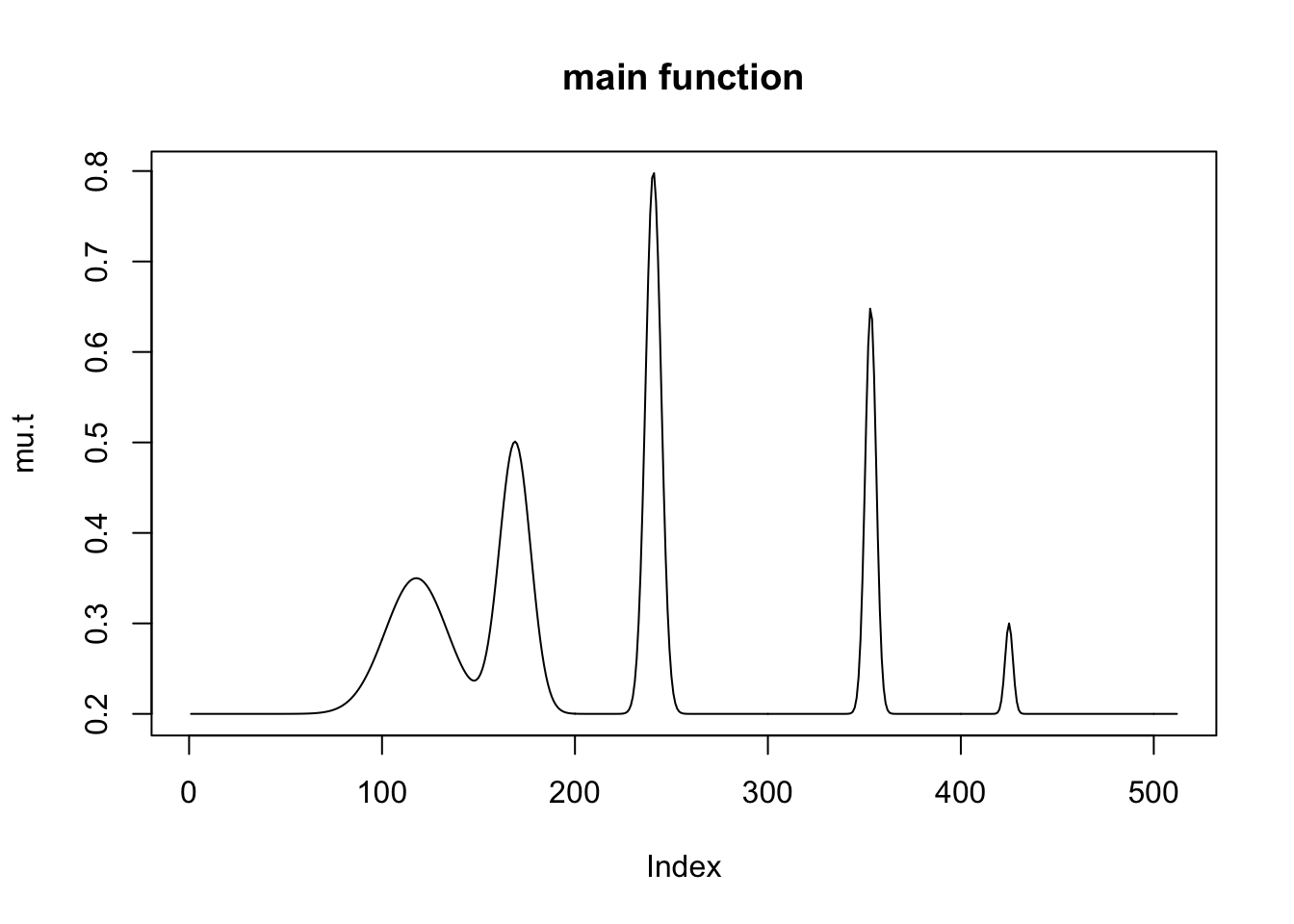

plot(mu.t, type = "l",main='main function')

# Create the baseline variance function. (The function V2 from Cai &
# Wang 2008 is used here.)
var.fn = (1e-04 + 4 * (exp(-550 * (t - 0.2)^2) +
  exp(-200 * (t - 0.5)^2) + exp(-950 * (t - 0.8)^2)))/1.35+1
#plot(var.fn, type = "l")

# Set the signal-to-noise ratio.
rsnr = sqrt(3)
sigma.t = sqrt(var.fn)/mean(sqrt(var.fn)) * sd(mu.t)/rsnr^2

set.seed(12345)
y=mu.t+rnorm(n,0,sigma.t)
plot(y,col='grey80',main='n=512,SNR=3')
lines(smash.gaus(y))
lines(smash.gaus(y,mean(sigma.t)),col=2)
lines(smash.gaus(y,sigma.t),col=3)
lines(mu.t,col='grey80')
legend('topleft',c('smashu','smash.mean.sigma','smash.true.sigma','true mean'),col=c(1,2,3,'grey80'),lty=c(1,1,1,1))

plot(sqrt(smash.gaus(y,joint=T)$var.res),type='l',ylim=c(0.02,0.05),main='sigma')
lines(rep(mean(sigma.t),n),col=2)
lines(sigma.t,col=3)

mean(sigma.t)
mean(sqrt(smash.gaus(y,joint=T)$var.res))

Decrease n:

n = 64
t = 1:n/n
spike.f = function(x) (0.75 * exp(-500 * (x - 0.23)^2) +
            1.5  * exp(-2000 * (x - 0.33)^2) +
        3    * exp(-8000 * (x - 0.47)^2) +
            2.25 * exp(-16000 * (x - 0.69)^2) +
        0.5  * exp(-32000 * (x - 0.83)^2))
mu.s = spike.f(t)

# Scale the signal to be between 0.2 and 0.8.
mu.t = (1 + mu.s)/5
#plot(mu.t, type = "l",main='main function')

# Create the baseline variance function. (The function V2 from Cai &
# Wang 2008 is used here.)
var.fn = (1e-04 + 4 * (exp(-550 * (t - 0.2)^2) +
  exp(-200 * (t - 0.5)^2) + exp(-950 * (t - 0.8)^2)))/1.35+1
#plot(var.fn, type = "l")

# Set the signal-to-noise ratio.
rsnr = sqrt(3)
sigma.t = sqrt(var.fn)/mean(sqrt(var.fn)) * sd(mu.t)/rsnr^2

set.seed(12345)
y=mu.t+rnorm(n,0,sigma.t)

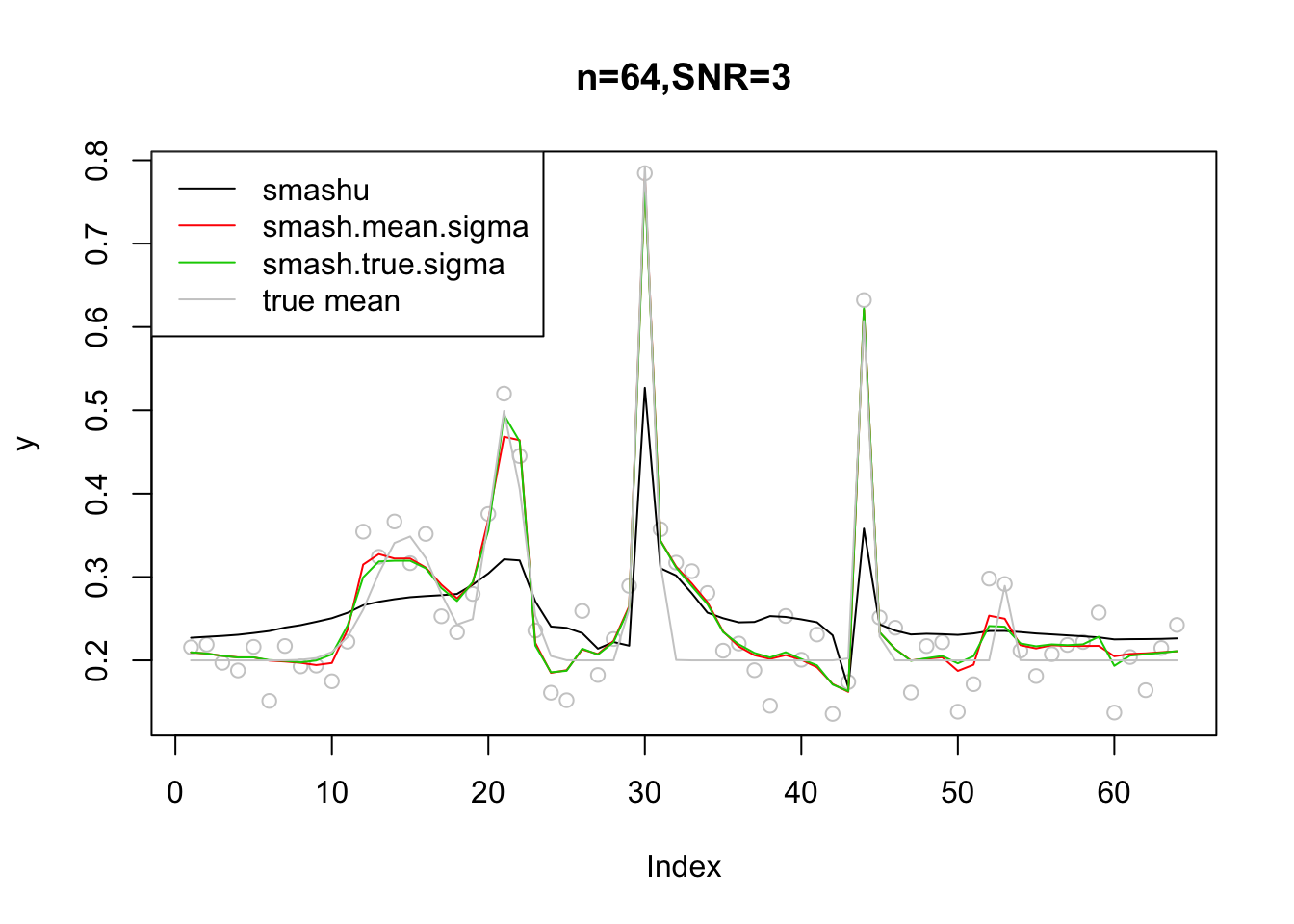

plot(y,col='grey80',main='n=64,SNR=3')
lines(smash.gaus(y))
lines(smash.gaus(y,mean(sigma.t)),col=2)
lines(smash.gaus(y,sigma.t),col=3)
lines(mu.t,col='grey80')
legend('topleft',c('smashu','smash.mean.sigma','smash.true.sigma','true mean'),col=c(1,2,3,'grey80'),lty=c(1,1,1,1))

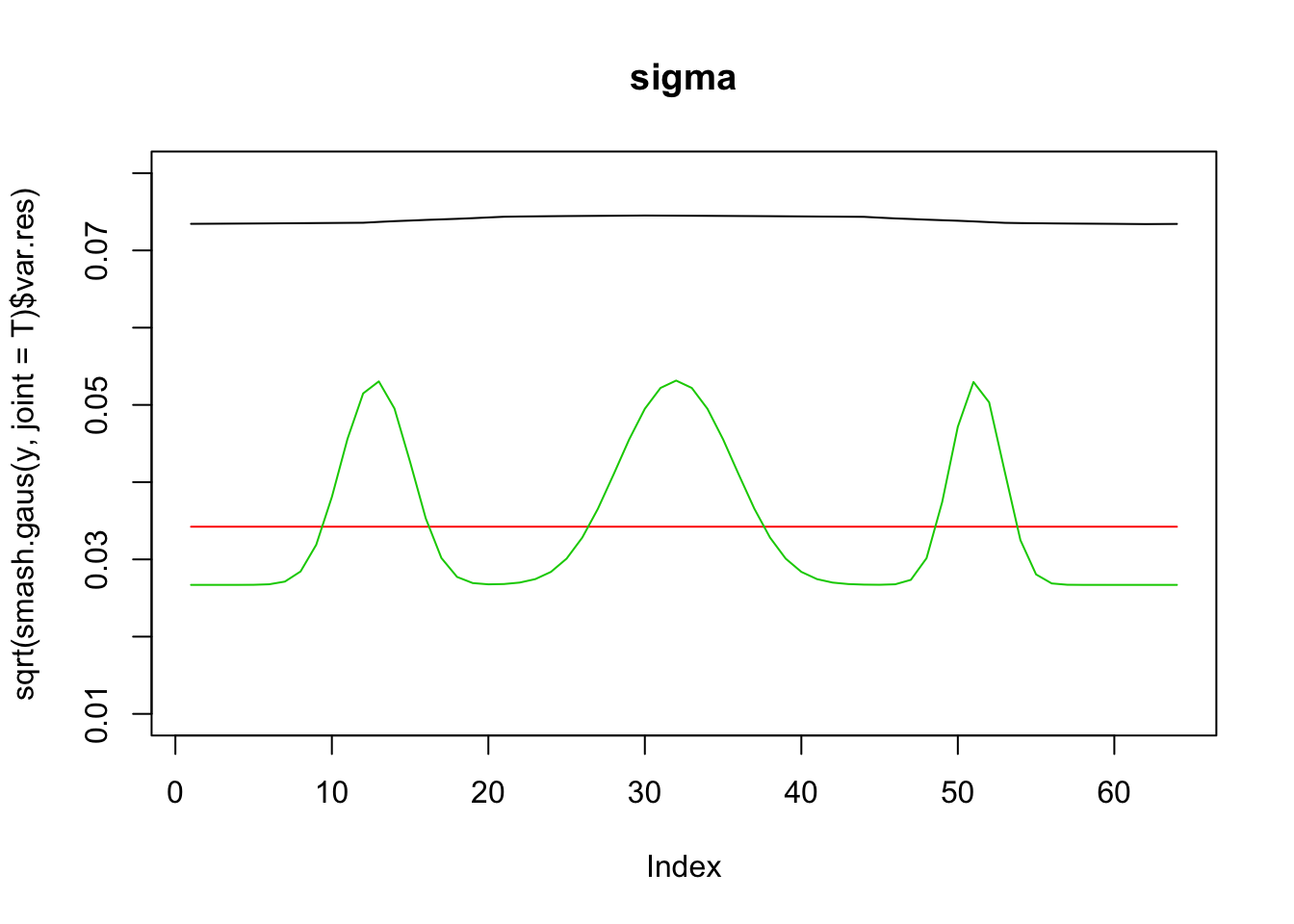

plot(sqrt(smash.gaus(y,joint=T)$var.res),type='l',ylim=c(0.01,0.08),main='sigma')
lines(rep(mean(sigma.t),n),col=2)
lines(sigma.t,col=3)

mean(sigma.t)
[1] 0.03423118
mean(sqrt(smash.gaus(y,joint=T)$var.res))
[1] 0.07396342

Decrease SNR:

n = 512
t = 1:n/n
spike.f = function(x) (0.75 * exp(-500 * (x - 0.23)^2) +
            1.5  * exp(-2000 * (x - 0.33)^2) +
        3    * exp(-8000 * (x - 0.47)^2) +
            2.25 * exp(-16000 * (x - 0.69)^2) +
        0.5  * exp(-32000 * (x - 0.83)^2))
mu.s = spike.f(t)

# Scale the signal to be between 0.2 and 0.8.
mu.t = (1 + mu.s)/5
#plot(mu.t, type = "l",main='main function')

# Create the baseline variance function. (The function V2 from Cai &
# Wang 2008 is used here.)
var.fn = (1e-04 + 4 * (exp(-550 * (t - 0.2)^2) +
  exp(-200 * (t - 0.5)^2) + exp(-950 * (t - 0.8)^2)))/1.35+1
#plot(var.fn, type = "l")

# Set the signal-to-noise ratio.
rsnr = sqrt(1)
sigma.t = sqrt(var.fn)/mean(sqrt(var.fn)) * sd(mu.t)/rsnr^2

set.seed(12345)
y=mu.t+rnorm(n,0,sigma.t)
plot(y,col='grey80',main='n=512,SNR=1')
lines(smash.gaus(y))
lines(smash.gaus(y,mean(sigma.t)),col=2)
lines(smash.gaus(y,sigma.t),col=3)
lines(mu.t,col='grey80')
legend('topleft',c('smashu','smash.mean.sigma','smash.true.sigma','true mean'),col=c(1,2,3,'grey80'),lty=c(1,1,1,1))

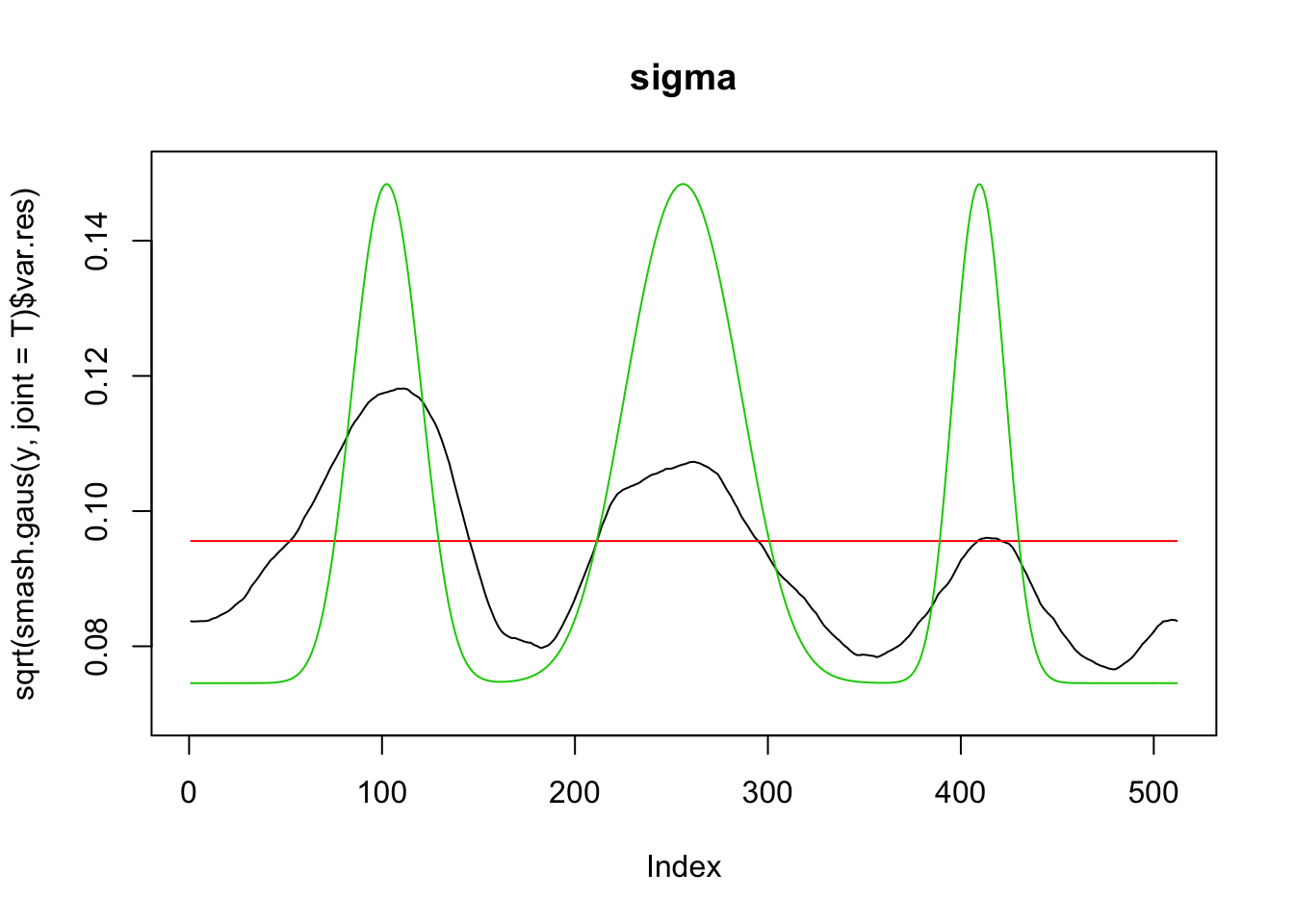

plot(sqrt(smash.gaus(y,joint=T)$var.res),type='l',ylim=c(0.07,0.15),main='sigma')
lines(rep(mean(sigma.t),n),col=2)
lines(sigma.t,col=3)

mean(sigma.t)
[1] 0.0955747
mean(sqrt(smash.gaus(y,joint=T)$var.res))
[1] 0.09278895

Summary

  1. smash.gaus is sensitive to the scale of variance instead of the shape of variance.
  2. As long as n is large enough so that smash can give good estimation of scale of variance and roughly satifactory shape, then smash.gaus can still give similar mean estimation.
