Introduction

Consider estimating spatially-structured \(\mu_t\) from Poisson sequence: \[Y_t\sim Poisson(\lambda_t).\] We assume that \(\lambda_t\) satisfies \[\log(\lambda_t)=X_t'\beta+\mu_t\], where \(X_t\) are \(p-\)dimensional covaraites and \(\beta\) is unknown coefficients.

For Bionomial sequence: \[Y_t\sim Binomial(n_t,p_t).\] Assume that \[logit(p_t)=X_t'\beta+\mu_t\], where \(\mu_t\) has smooth structure.

Method

Apply ash to \(Y_t\) and let the posterior mean be \(\tilde\lambda_t\). Define \(\tilde Y_t=\log(\tilde\lambda_t)+\frac{Y_t-\tilde\lambda_t}{\tilde\lambda_t}\) and apply smash.gaus allowing covariates method to \(\tilde Y_t\), which gives \(\hat\mu_t\) and \(\hat\beta\). The recovered smooth mean structure is given by \(\exp(\hat\mu_t)\).

Similarly to Binomial data, \(\tilde Y_t=logit(\tilde p_t)+\frac{Y_t/n_t-\tilde p_t}{\tilde p_t(1-\tilde p_t)}\).

Simulations

Data generation

Poisson sequence: Given \(\mu_t, t=1,2,\dots,T\), \(\lambda_t=\exp(\mu_t+X_t'\beta+N(0,\sigma^2))\), generate \(Y_t\sim Poisson(\lambda_t)\).

Bionimial sequence(\(p\)): Given \(\mu_t, t=1,2,\dots,T\),\(p_t=logit(\mu_t+X_t'\beta+N(0,\sigma^2))\), generate \(Y_t\sim Binomial(n_t,p_t)\), where \(n_t\) is given.

For each case, we run 3 times of simulation and plot the fitted curve.

Poisson Seq

The length of sequence \(T\) is set to be 256, covariates \(X_t\) are generate from \(N(0,I_{p\times p})\), and \(\beta\) is chosen to be \((1,2,-3,-4,5)\) then normalized to have unit norm.

simu_study_poix=function(mu,beta,sigma=1,snr=2,nsimu=3,filter.number=1,family='DaubExPhase',seed=1234){
  set.seed(1234)
  n=length(mu)
  p=length(beta)
  X=matrix(rnorm(n*p,0,1),nrow=n,byrow = T)
  Xbeta=X%*%beta
  mu.est=c()
  beta.est=c()
  y.data=c()
  #lambda.null=exp(mu+Xbeta)
  #var.st=1/mean(lambda.null)
  #var.mu=var(mu)
  #sigma=sqrt(max(var.mu/(snr^2)-var.st,0))
  for(s in 1:nsimu){
    lambda=exp(mu+Xbeta+rnorm(n,0,sigma))
    yt=rpois(n,lambda)
    fit=smash_gen_x_lite(yt,X,wave_family = family,filter.number = filter.number,dist_family = 'poisson')
    mu.est=rbind(mu.est,fit$mu.est)
    beta.est=rbind(beta.est,fit$beta.est)
    y.data=rbind(y.data,yt)
  }
  return(list(mu.est=mu.est,beta.est=beta.est,y=y.data,X=X,sigma=sigma))
}
beta=c(1,2,-3,-4,5)
beta=beta/norm(beta,'2')

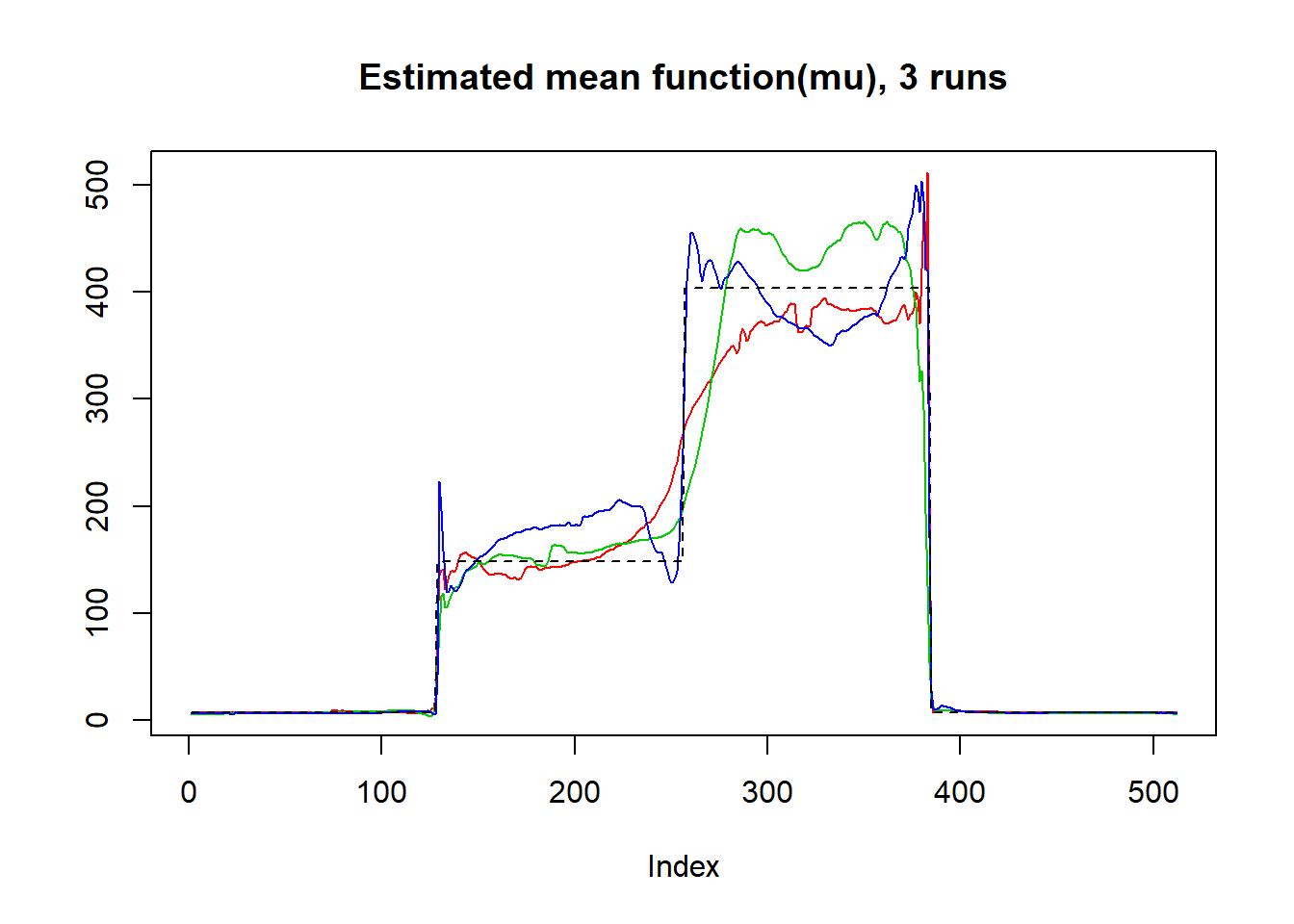

Step

mu=c(rep(2,128), rep(5, 128), rep(6, 128), rep(2, 128))
result=simu_study_poix(mu,beta)
plot(result$mu.est[1,],type='l',col=2,ylab = '',main='Estimated mean function(mu), 3 runs')
lines(result$mu.est[2,],col=3)
lines(result$mu.est[3,],col=4)
lines(exp(mu),lty=2)

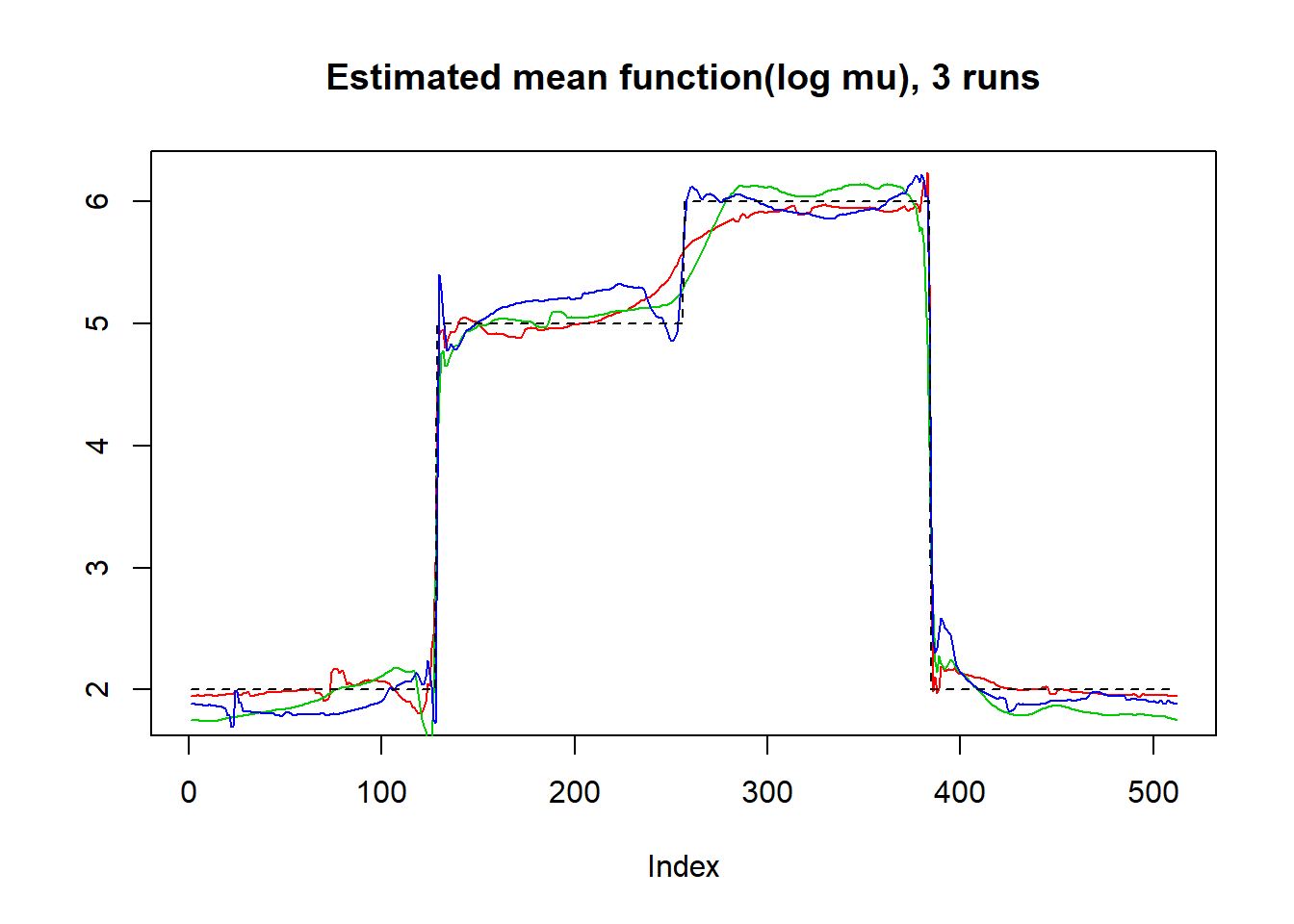

plot(log(result$mu.est[1,]),type='l',col=2,ylab = '',main='Estimated mean function(log mu), 3 runs')
lines(log(result$mu.est[2,]),col=3)
lines(log(result$mu.est[3,]),col=4)
lines(mu,lty=2)

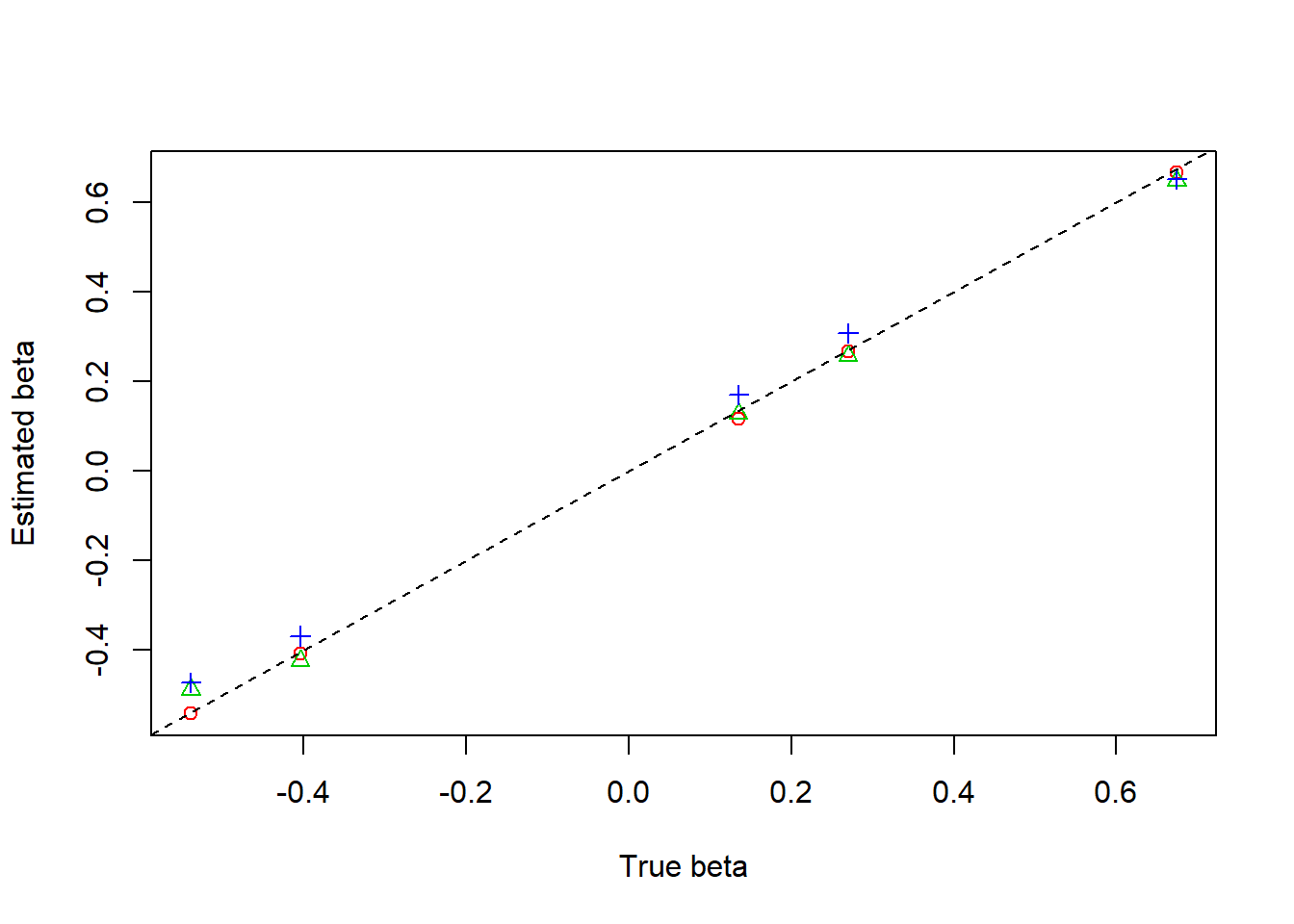

plot(beta,result$beta.est[1,],col=2,pch=1,xlab = 'True beta',ylab = 'Estimated beta')
lines(beta,result$beta.est[2,],col=3,pch=2,type='p')
lines(beta,result$beta.est[3,],col=4,pch=3,type='p')
abline(0,1,lty=2)

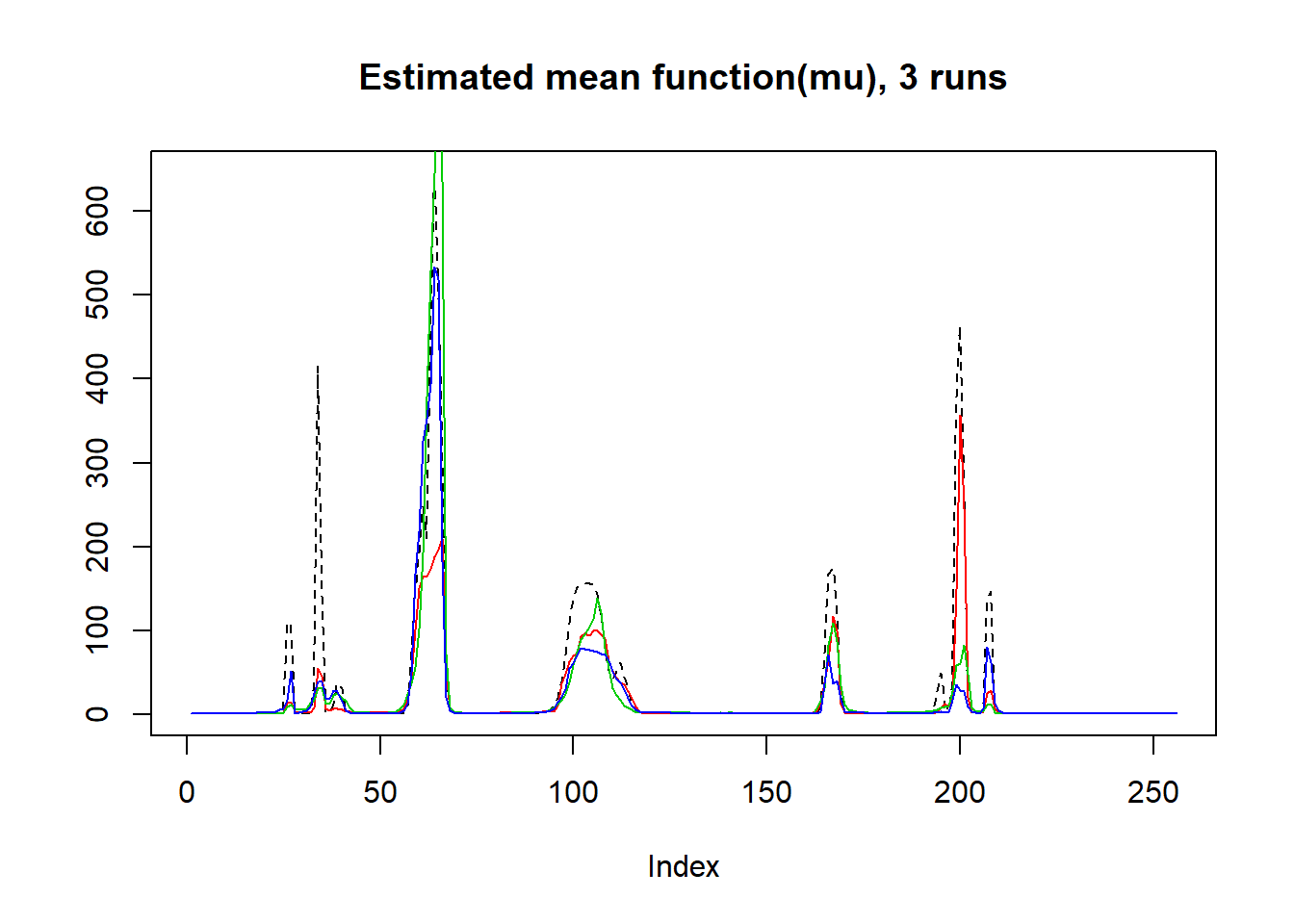

Bumps

m=seq(0,1,length.out = 256)
h = c(4, 5, 3, 4, 5, 4.2, 2.1, 4.3, 3.1, 5.1, 4.2)
w = c(0.005, 0.005, 0.006, 0.01, 0.01, 0.03, 0.01, 0.01, 0.005,0.008,0.005)
t=c(.1,.13,.15,.23,.25,.4,.44,.65,.76,.78,.81)
f = c()
for(i in 1:length(m)){
  f[i]=sum(h*(1+((m[i]-t)/w)^4)^(-1))
}
mu=f*1.2

result=simu_study_poix(mu,beta)
plot(exp(mu),lty=2,ylab = '',main='Estimated mean function(mu), 3 runs',type = 'l')
lines(result$mu.est[1,],type='l',col=2)
lines(result$mu.est[2,],col=3)
lines(result$mu.est[3,],col=4)

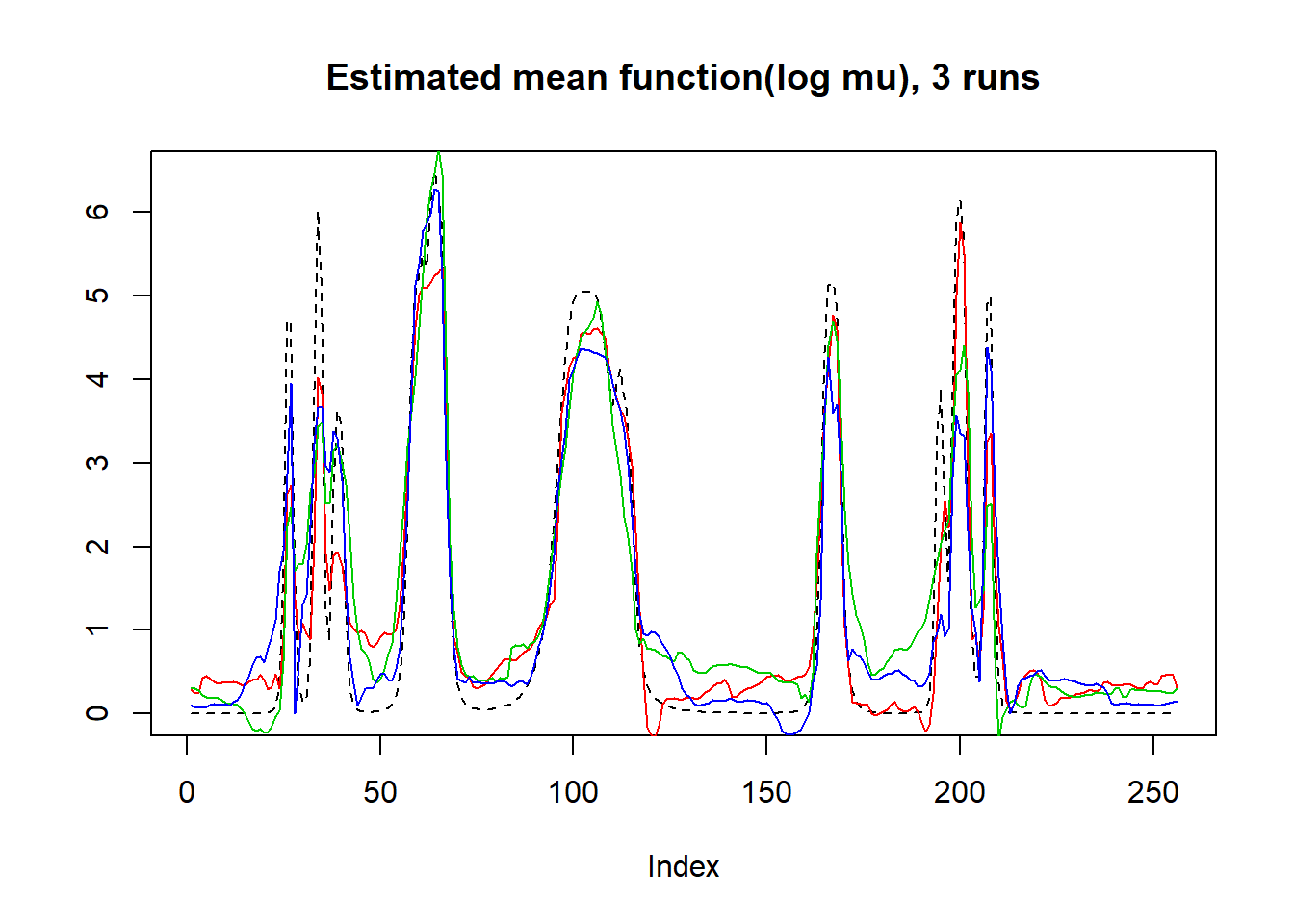

plot(mu,lty=2,ylab = '',main='Estimated mean function(log mu), 3 runs',type = 'l')
lines(log(result$mu.est[1,]),type='l',col=2)
lines(log(result$mu.est[2,]),col=3)
lines(log(result$mu.est[3,]),col=4)

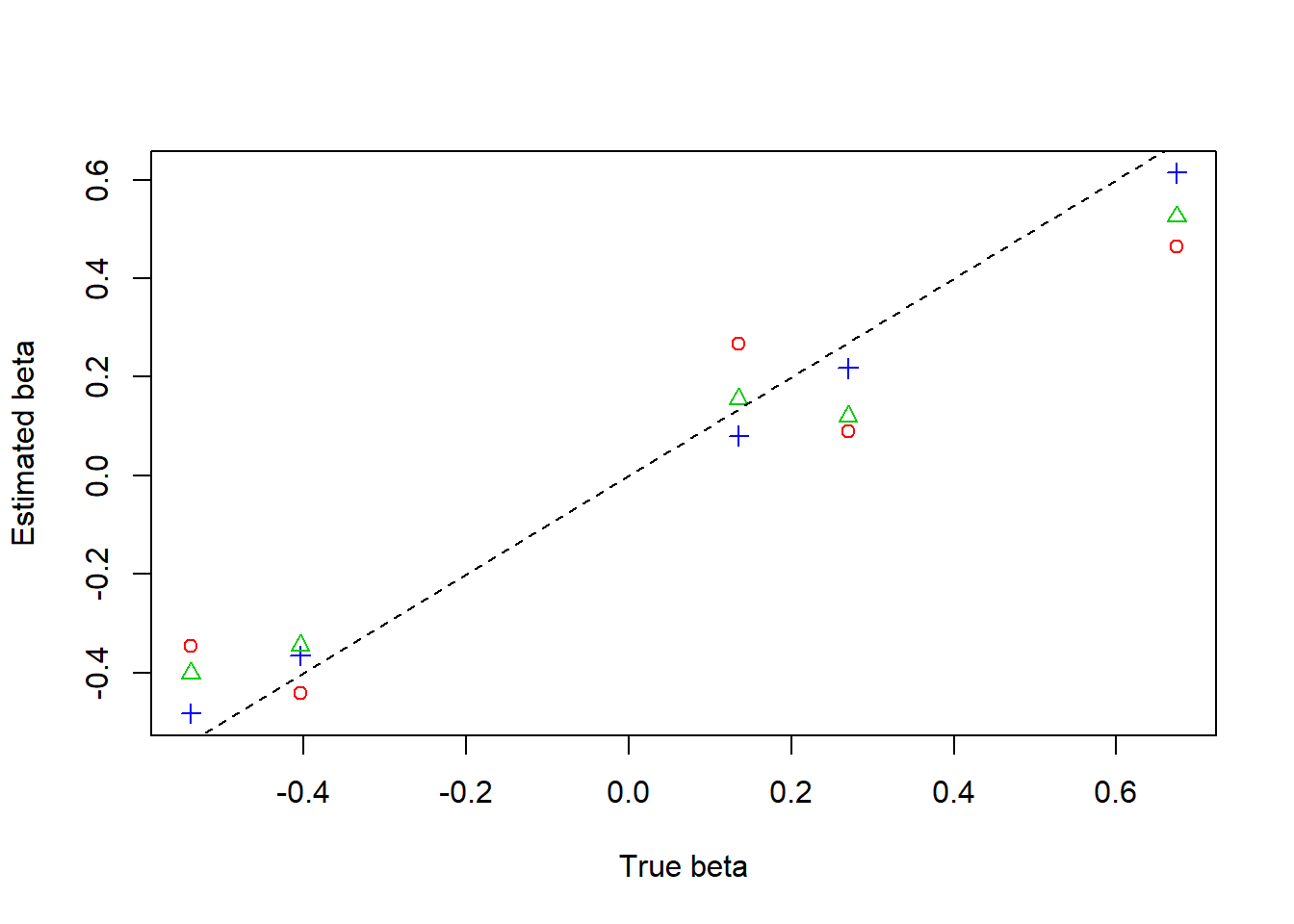

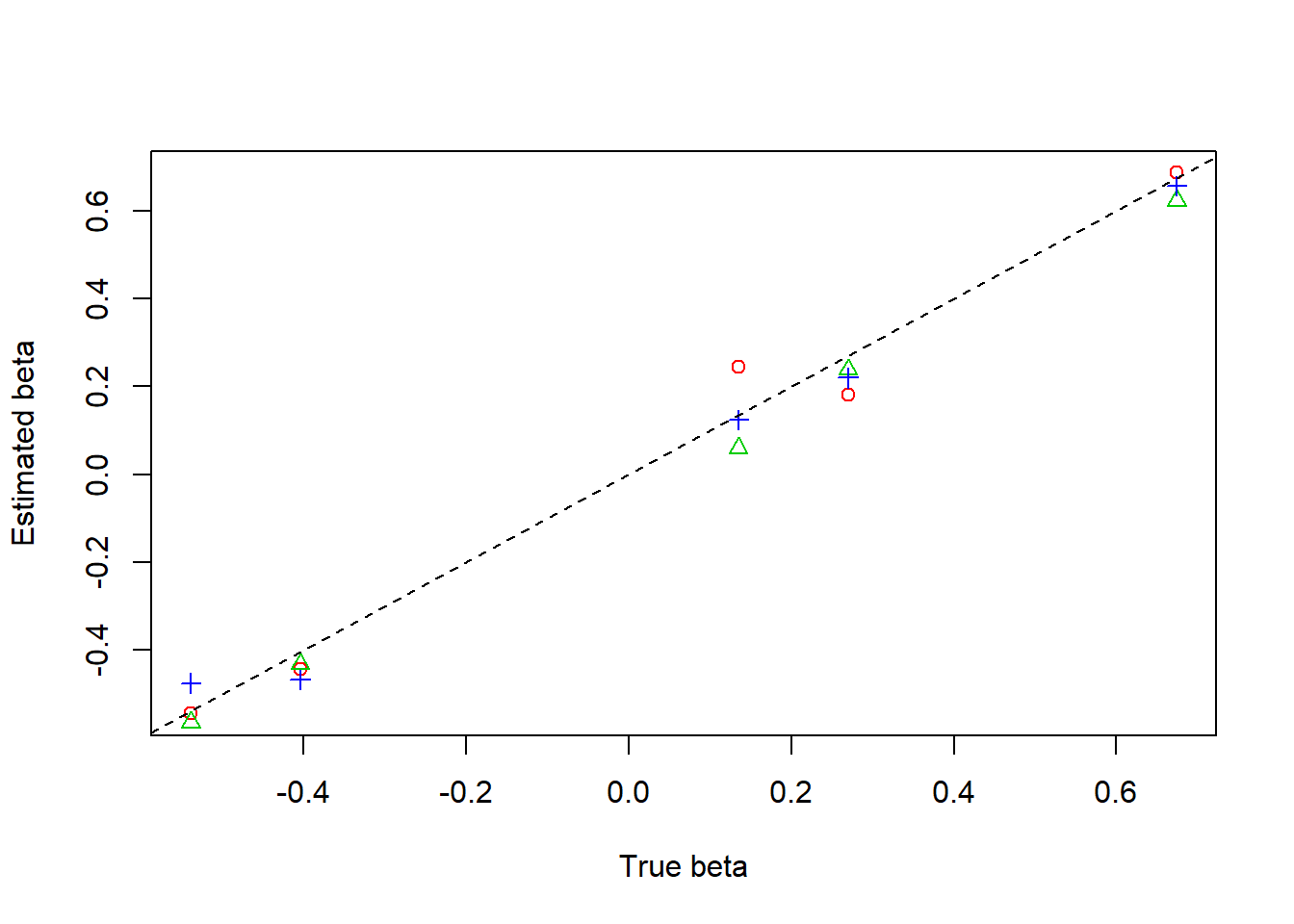

plot(beta,result$beta.est[3,],col=4,pch=3,xlab = 'True beta',ylab = 'Estimated beta')
lines(beta,result$beta.est[2,],col=3,pch=2,type='p')
lines(beta,result$beta.est[1,],col=2,pch=1,type='p')
abline(0,1,lty=2)

Parabola

r=function(x,c){return((x-c)^2*(x>c)*(x<=1))}
f=function(x){return(0.8 − 30*r(x,0.1) + 60*r(x, 0.2) − 30*r(x, 0.3) +
500*r(x, 0.35) − 1000*r(x, 0.37) + 1000*r(x, 0.41) − 500*r(x, 0.43) +
7.5*r(x, 0.5) − 15*r(x, 0.7) + 7.5*r(x, 0.9))}
mu=f(1:256/256)
mu=mu*7

result=simu_study_poix(mu,beta,filter.number = 8,family = 'DaubLeAsymm')

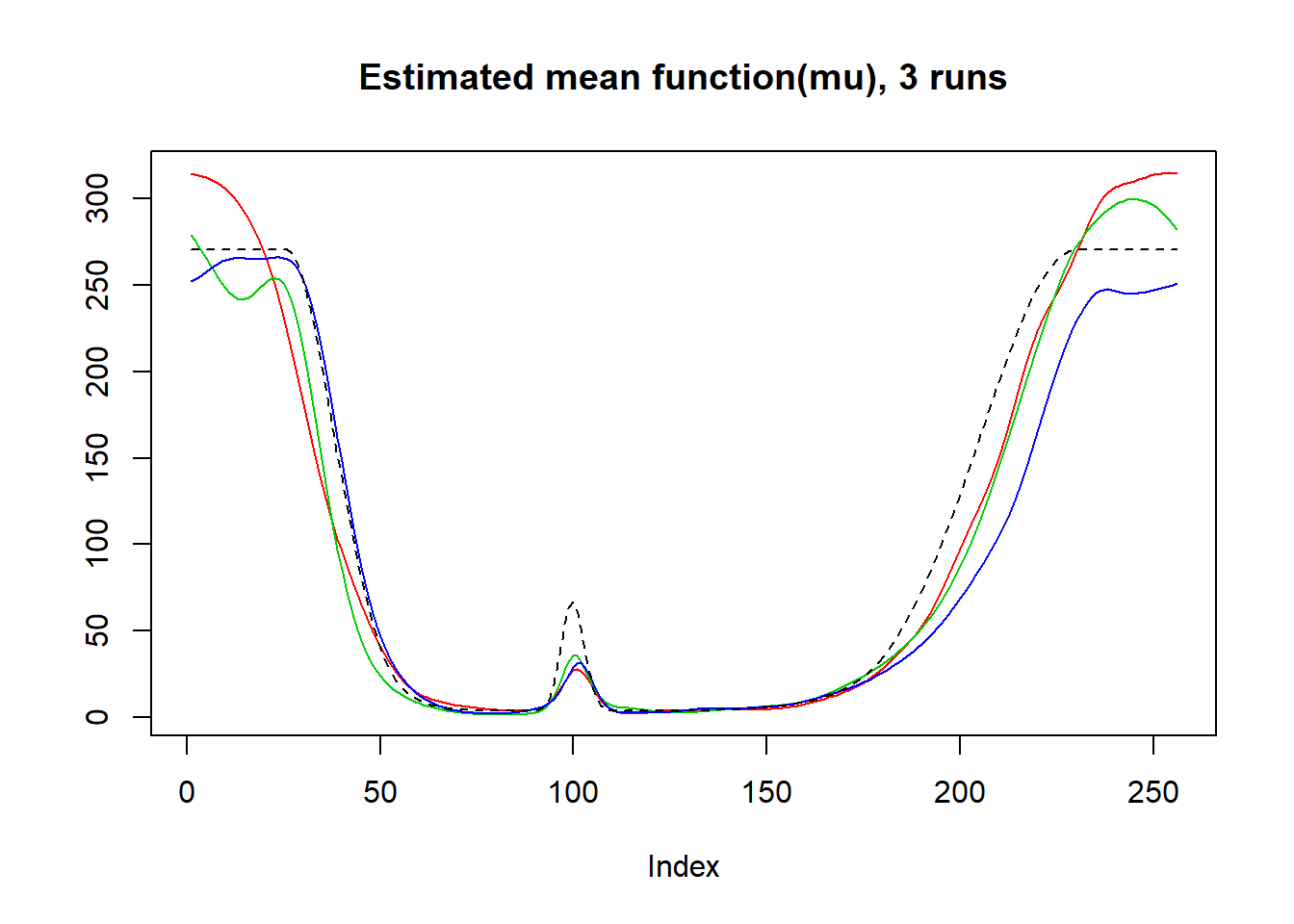

plot(result$mu.est[1,],type='l',col=2,ylab = '',main='Estimated mean function(mu), 3 runs')
lines(result$mu.est[2,],col=3)
lines(result$mu.est[3,],col=4)
lines(exp(mu),lty=2)

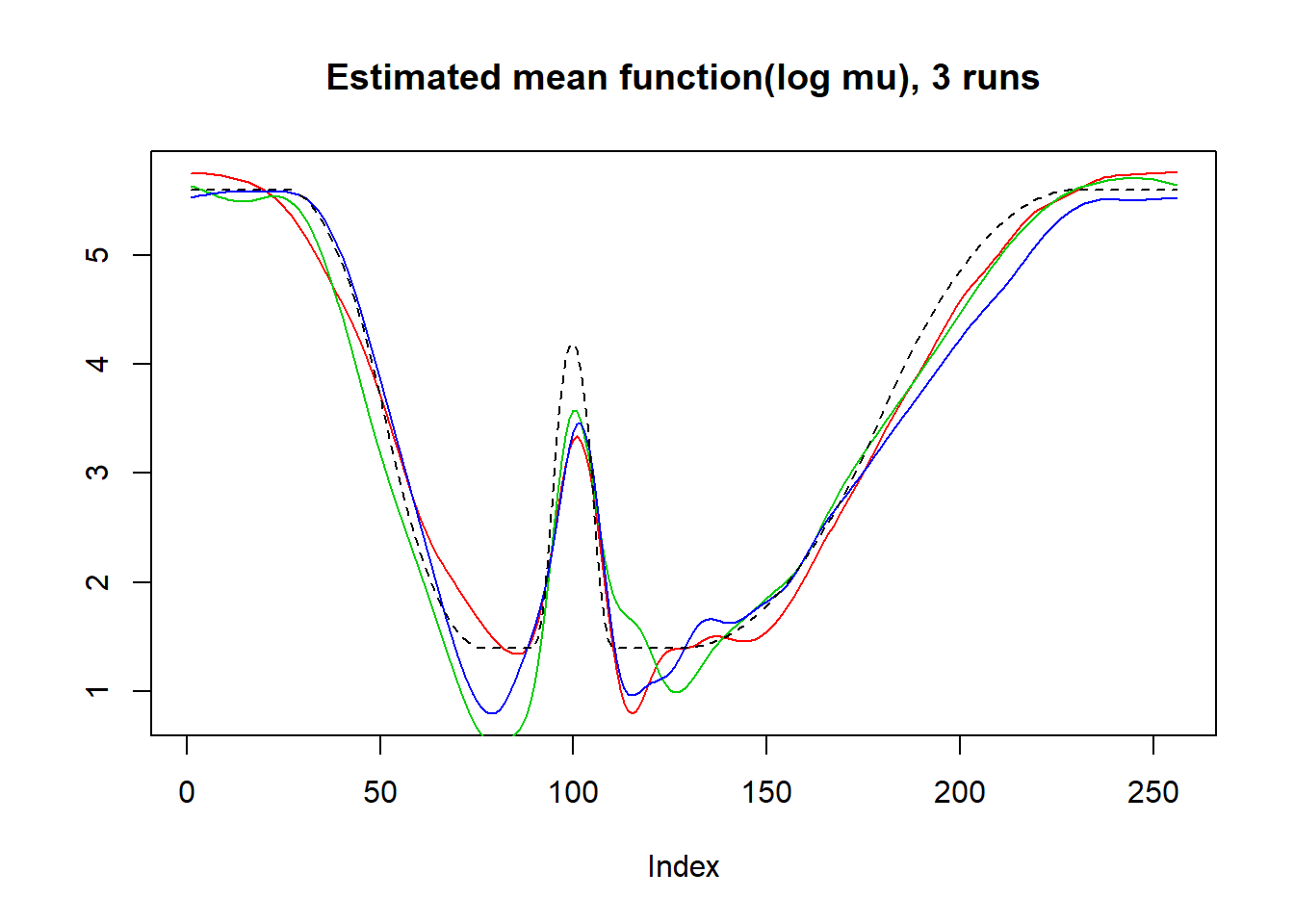

plot(log(result$mu.est[1,]),type='l',col=2,ylab = '',main='Estimated mean function(log mu), 3 runs')
lines(log(result$mu.est[2,]),col=3)
lines(log(result$mu.est[3,]),col=4)
lines(mu,lty=2)

plot(beta,result$beta.est[1,],col=2,pch=1,xlab = 'True beta',ylab = 'Estimated beta')
lines(beta,result$beta.est[2,],col=3,pch=2,type='p')
lines(beta,result$beta.est[3,],col=4,pch=3,type='p')
abline(0,1,lty=2)

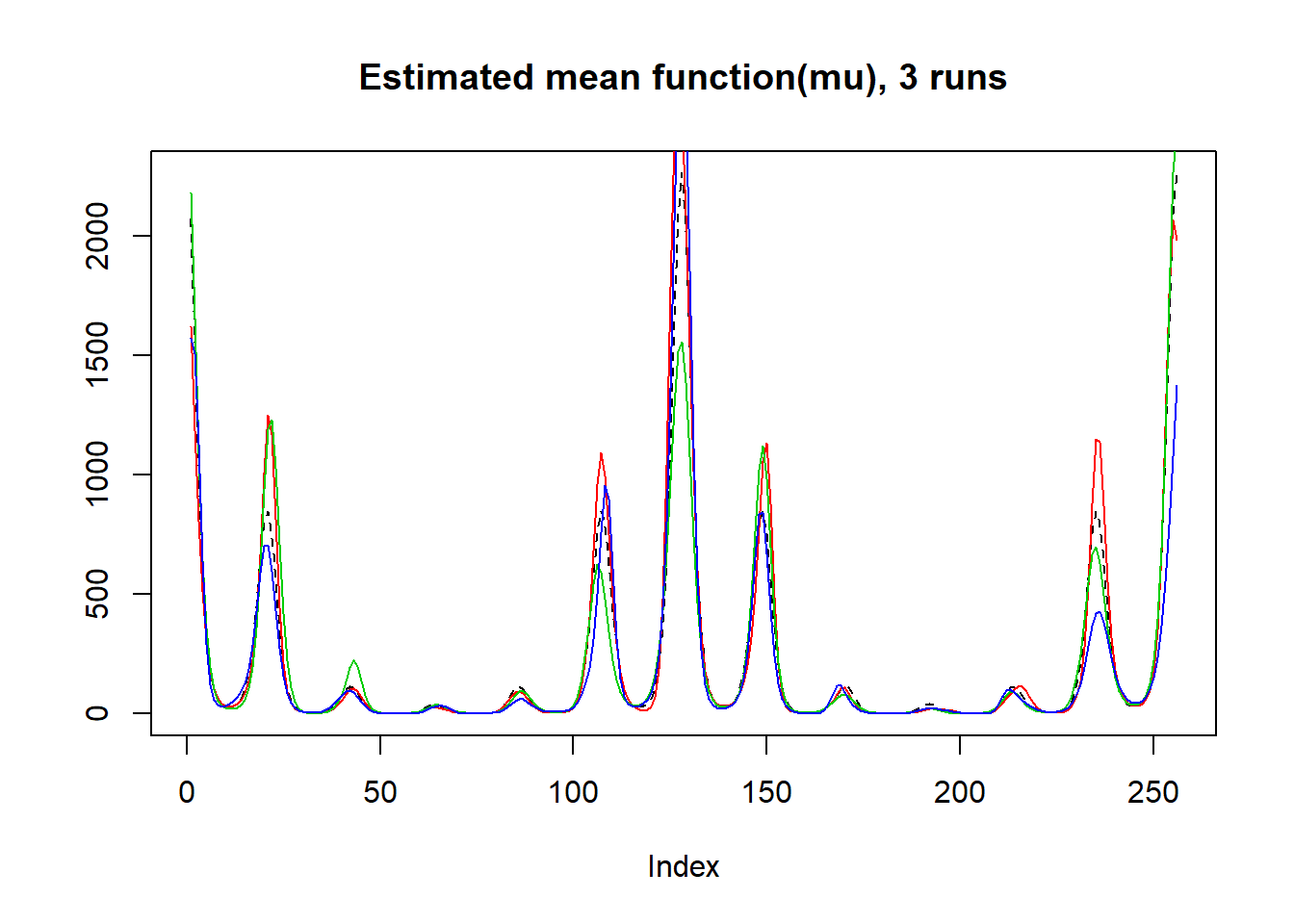

wave

f=function(x){return(0.5 + 2*cos(4*pi*x) + 2*cos(24*pi*x))}
mu=f(1:256/256)
mu=mu-min(mu)

result=simu_study_poix(mu,beta,filter.number = 8,family = 'DaubLeAsymm')
plot(exp(mu),lty=2,ylab = '',main='Estimated mean function(mu), 3 runs',type = 'l')
lines(result$mu.est[1,],type='l',col=2)
lines(result$mu.est[2,],col=3)
lines(result$mu.est[3,],col=4)

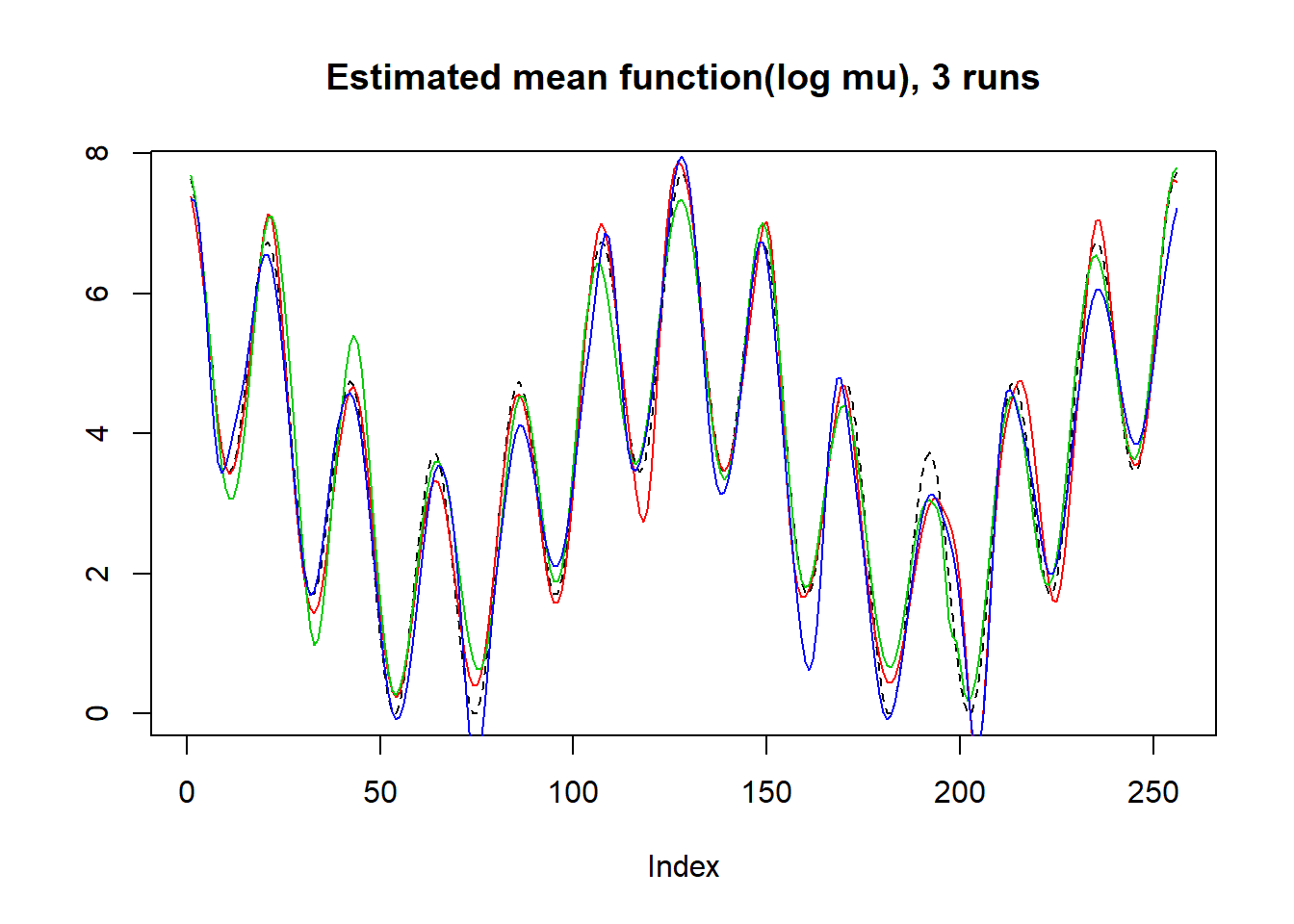

plot(mu,lty=2,ylab = '',main='Estimated mean function(log mu), 3 runs',type = 'l')
lines(log(result$mu.est[1,]),type='l',col=2)
lines(log(result$mu.est[2,]),col=3)
lines(log(result$mu.est[3,]),col=4)

plot(beta,result$beta.est[1,],col=2,pch=1,xlab = 'True beta',ylab = 'Estimated beta')
lines(beta,result$beta.est[2,],col=3,pch=2,type='p')
lines(beta,result$beta.est[3,],col=4,pch=3,type='p')
abline(0,1,lty=2)

Binomial Seq

The length of sequence \(T\) is set to be 256, covariates \(X_t\) are generate from \(N(0,I_{p\times p})\), and \(\beta\) is chosen to be \((1,2,-3,-4,5)\) then normalized to have unit norm. \(n_t\) is from Poisson(50).

Step

mu=c(rep(-3,128), rep(0, 128), rep(3, 128), rep(-3, 128))
result=simu_study_binomx(mu,beta,ntri)

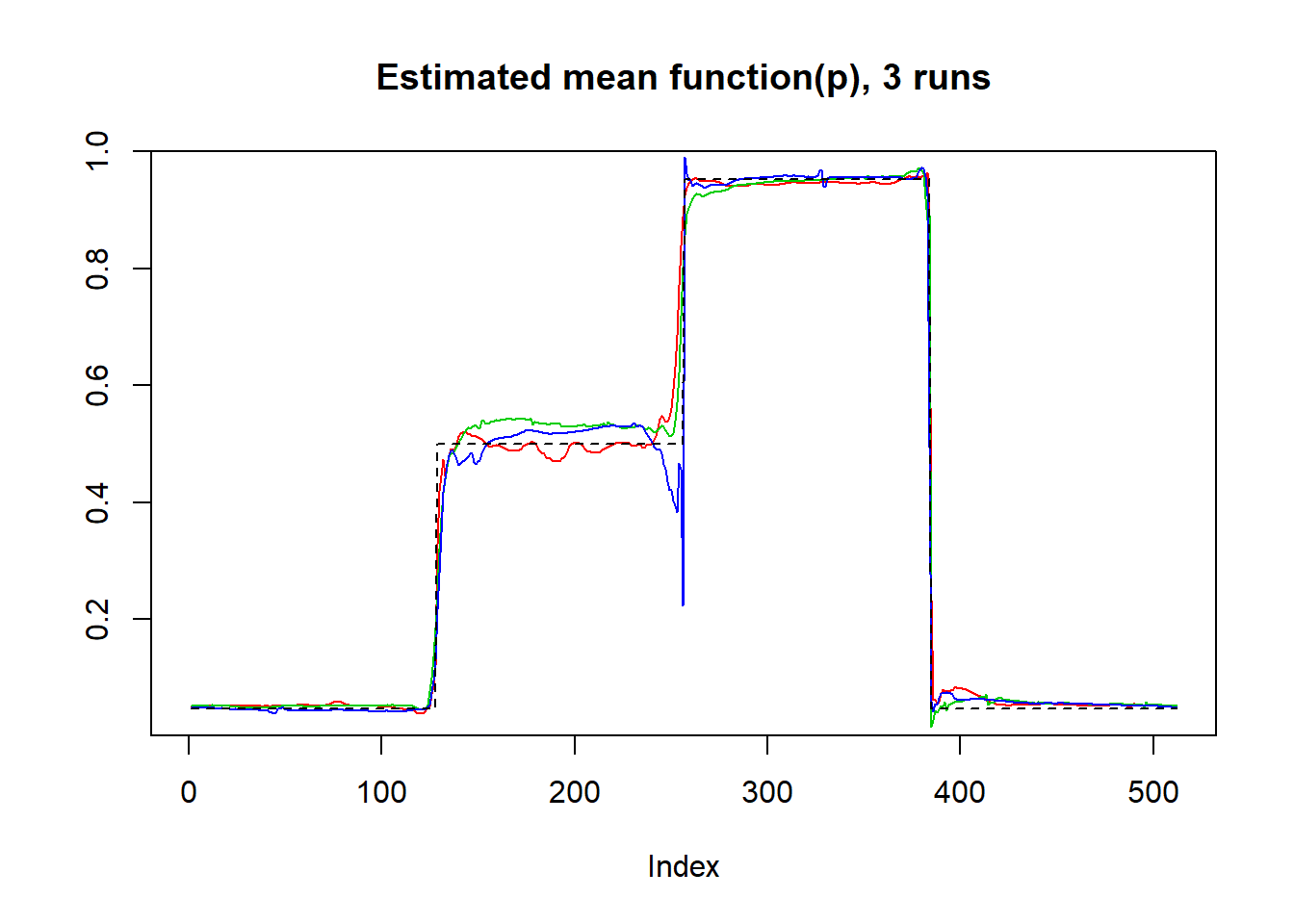

plot(result$mu.est[1,],type='l',col=2,ylab = '',main='Estimated mean function(p), 3 runs')
lines(result$mu.est[2,],col=3)
lines(result$mu.est[3,],col=4)
lines(logistic(mu),lty=2)

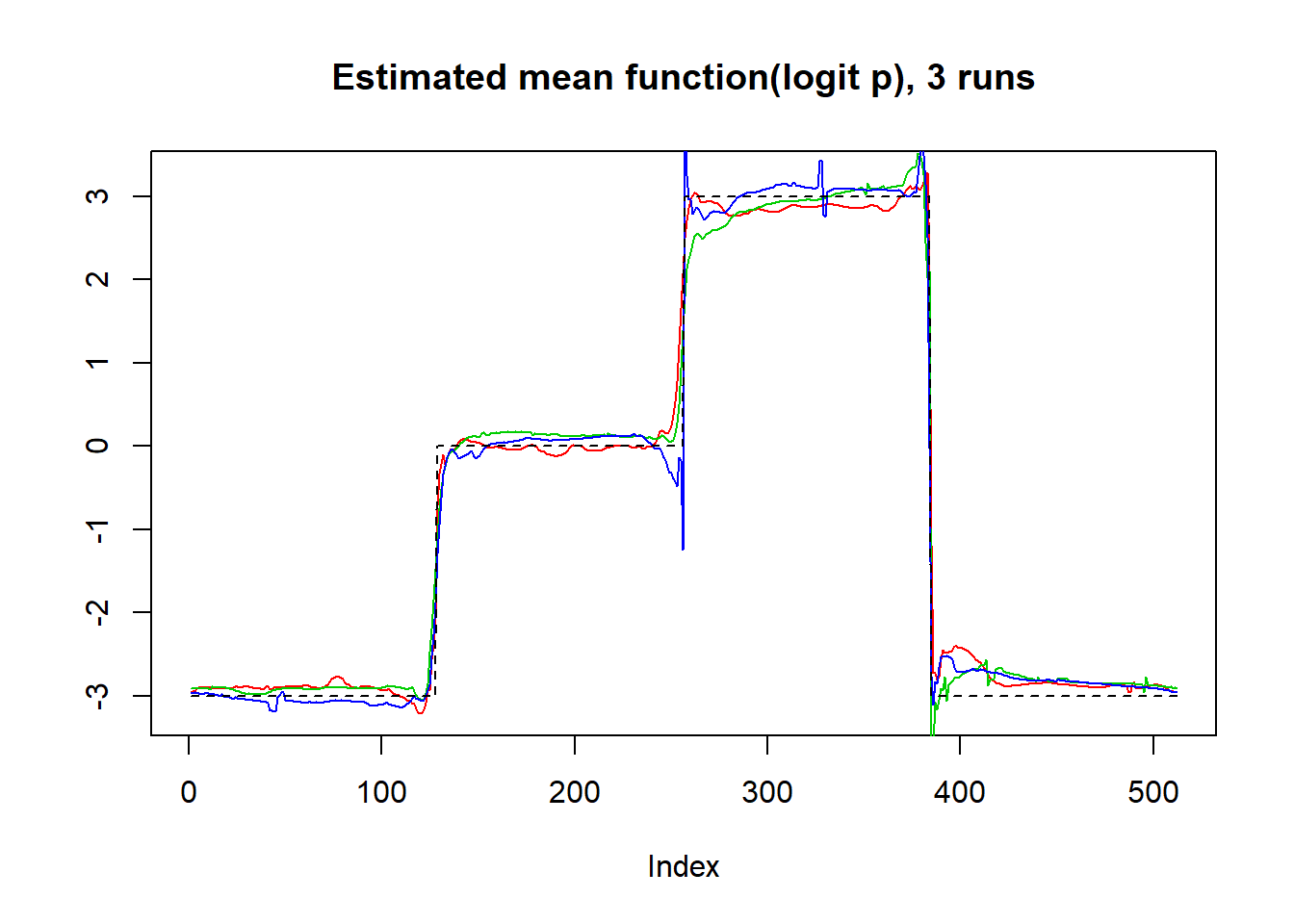

plot(logit(result$mu.est[1,]),type='l',col=2,ylab = '',main='Estimated mean function(logit p), 3 runs')
lines(logit(result$mu.est[2,]),col=3)
lines(logit(result$mu.est[3,]),col=4)
lines(mu,lty=2)

plot(beta,result$beta.est[3,],col=4,pch=3,xlab = 'True beta',ylab = 'Estimated beta')
lines(beta,result$beta.est[2,],col=3,pch=2,type='p')
lines(beta,result$beta.est[1,],col=2,pch=1,type='p')
abline(0,1,lty=2)

Bumps

m=seq(0,1,length.out = 256)
h = c(4, 5, 3, 4, 5, 4.2, 2.1, 4.3, 3.1, 5.1, 4.2)
w = c(0.005, 0.005, 0.006, 0.01, 0.01, 0.03, 0.01, 0.01, 0.005,0.008,0.005)
t=c(.1,.13,.15,.23,.25,.4,.44,.65,.76,.78,.81)
f = c()
for(i in 1:length(m)){
  f[i]=sum(h*(1+((m[i]-t)/w)^4)^(-1))
}
mu=f-3

result=simu_study_binomx(mu,beta,ntri)

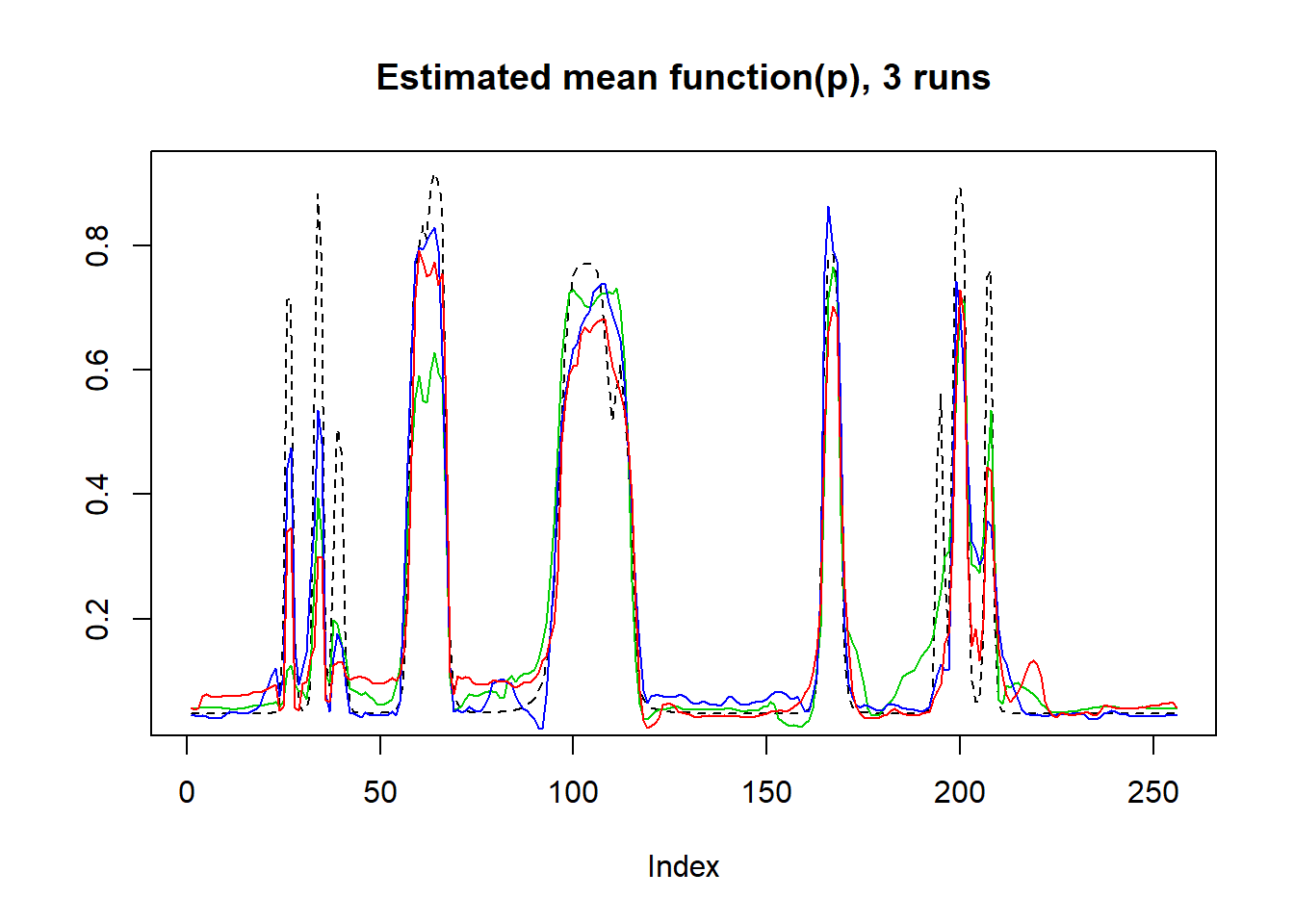

plot(logistic(mu),lty=2,type='l',ylab = '',main='Estimated mean function(p), 3 runs')
lines(result$mu.est[2,],col=3)
lines(result$mu.est[3,],col=4)
lines(result$mu.est[1,],col=2)

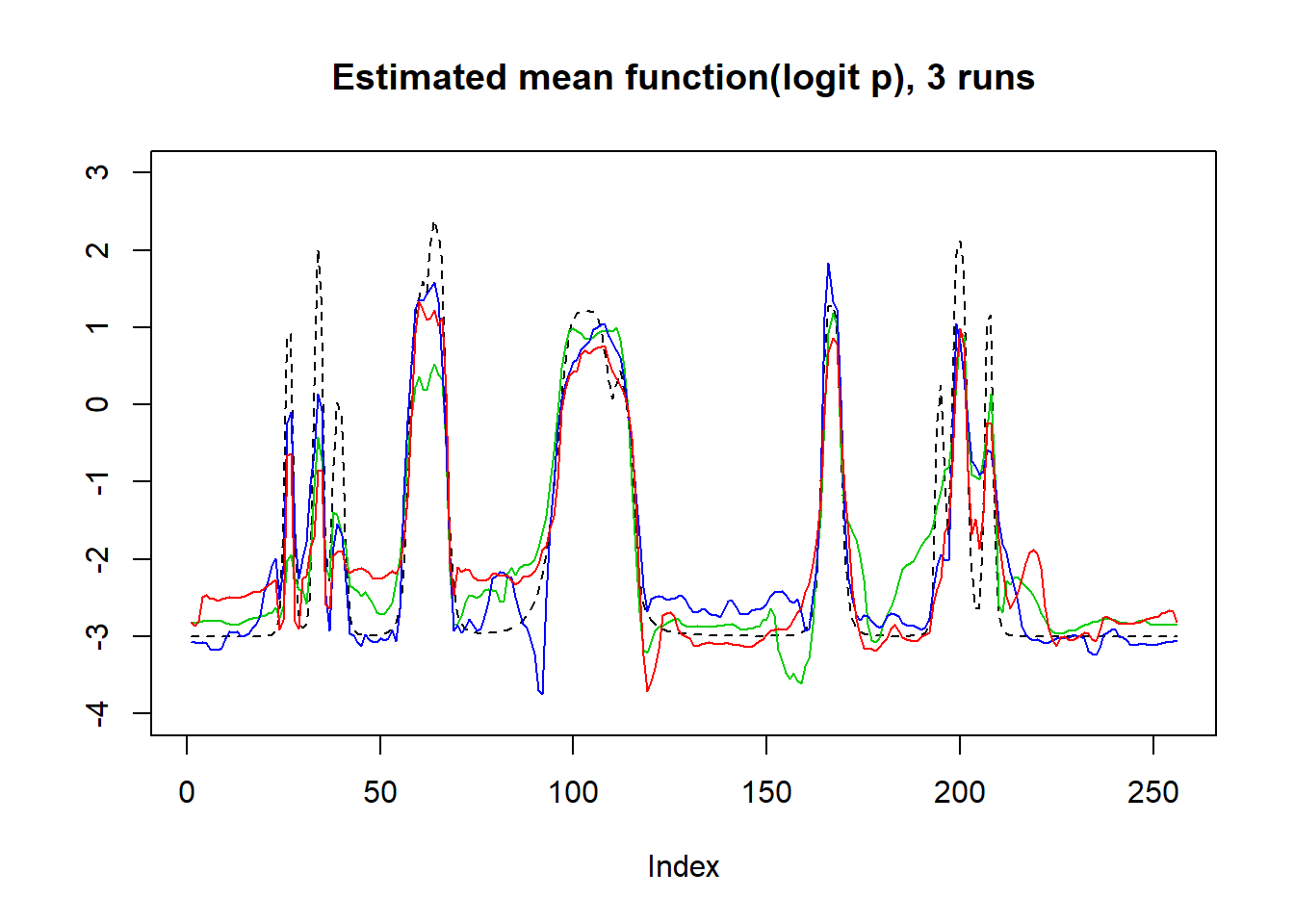

plot(mu,lty=2,type='l',ylab = '',main='Estimated mean function(logit p), 3 runs',ylim=c(-4,3))
lines(logit(result$mu.est[2,]),col=3)
lines(logit(result$mu.est[3,]),col=4)
lines(logit(result$mu.est[1,]),col=2)

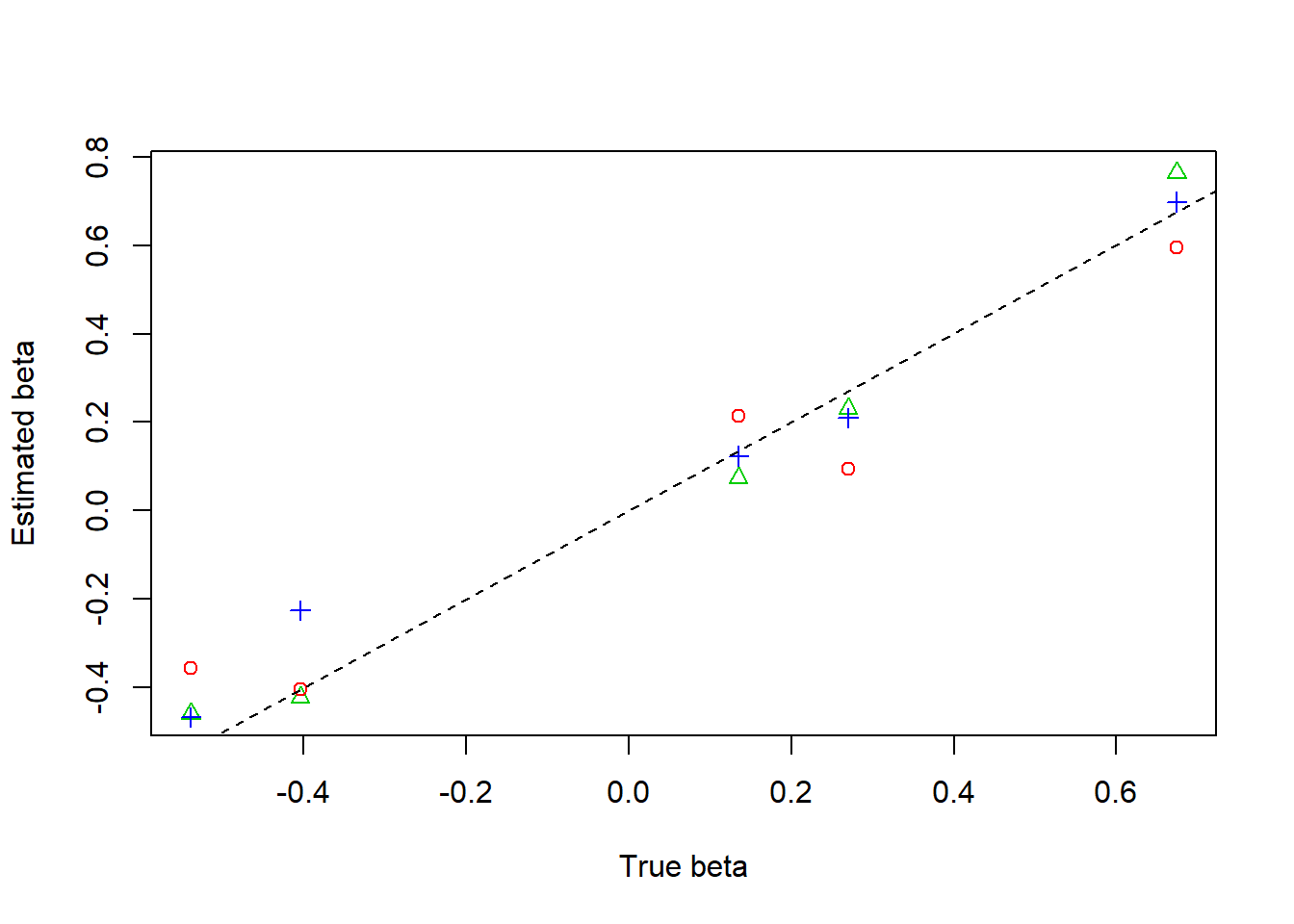

plot(beta,result$beta.est[2,],col=3,pch=2,xlab = 'True beta',ylab = 'Estimated beta')
lines(beta,result$beta.est[3,],col=4,pch=3,type='p')
lines(beta,result$beta.est[1,],col=2,pch=1,type='p')
abline(0,1,lty=2)

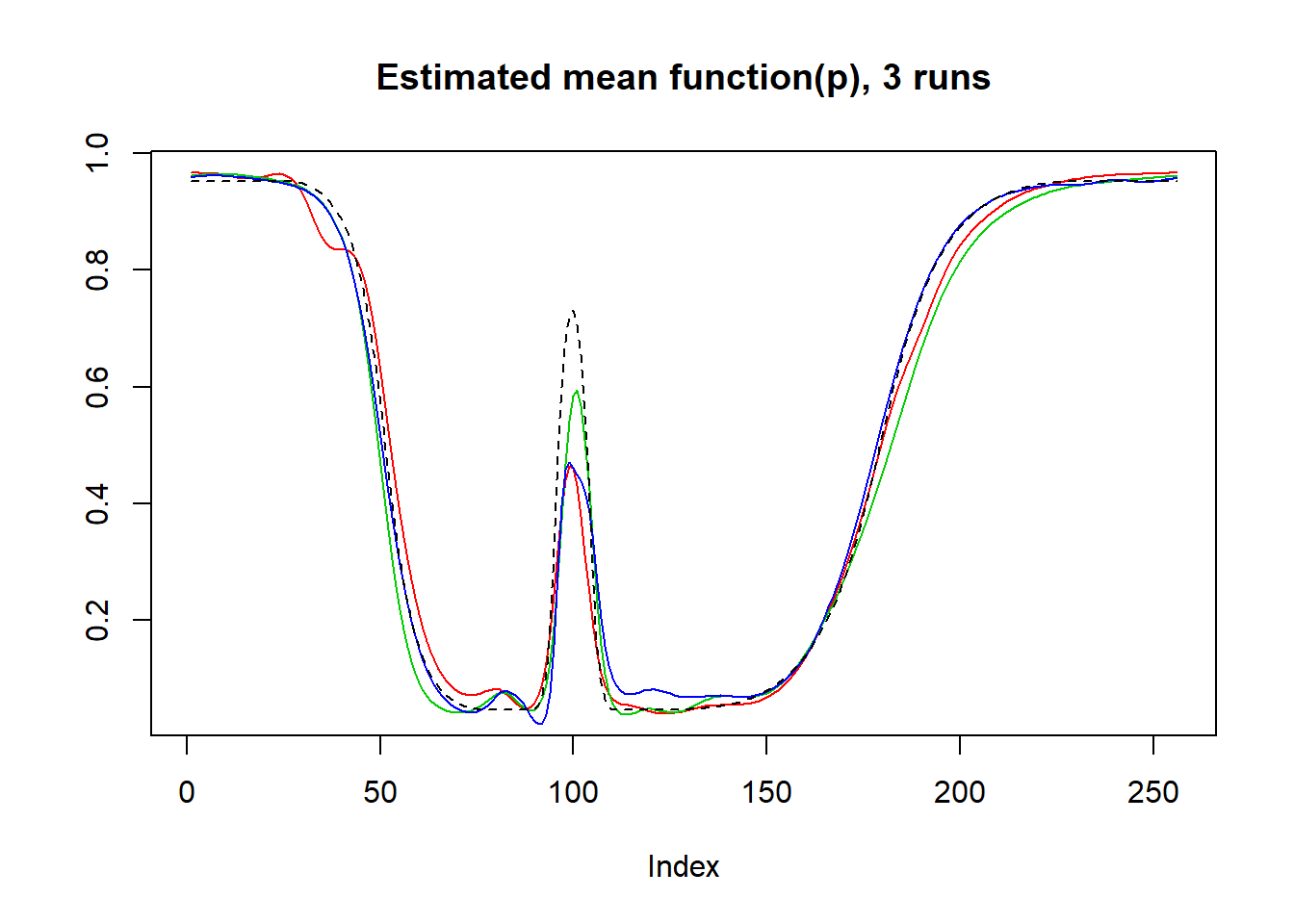

Parabola

r=function(x,c){return((x-c)^2*(x>c)*(x<=1))}
f=function(x){return(0.8 − 30*r(x,0.1) + 60*r(x, 0.2) − 30*r(x, 0.3) +
500*r(x, 0.35) − 1000*r(x, 0.37) + 1000*r(x, 0.41) − 500*r(x, 0.43) +
7.5*r(x, 0.5) − 15*r(x, 0.7) + 7.5*r(x, 0.9))}
mu=f(1:256/256)
mu=(mu-min(mu))*10-3

result=simu_study_binomx(mu,beta,ntri,filter.number = 8,family = 'DaubLeAsymm')
plot(result$mu.est[1,],type='l',col=2,ylab = '',main='Estimated mean function(p), 3 runs')
lines(result$mu.est[2,],col=3)
lines(result$mu.est[3,],col=4)
lines(logistic(mu),lty=2)

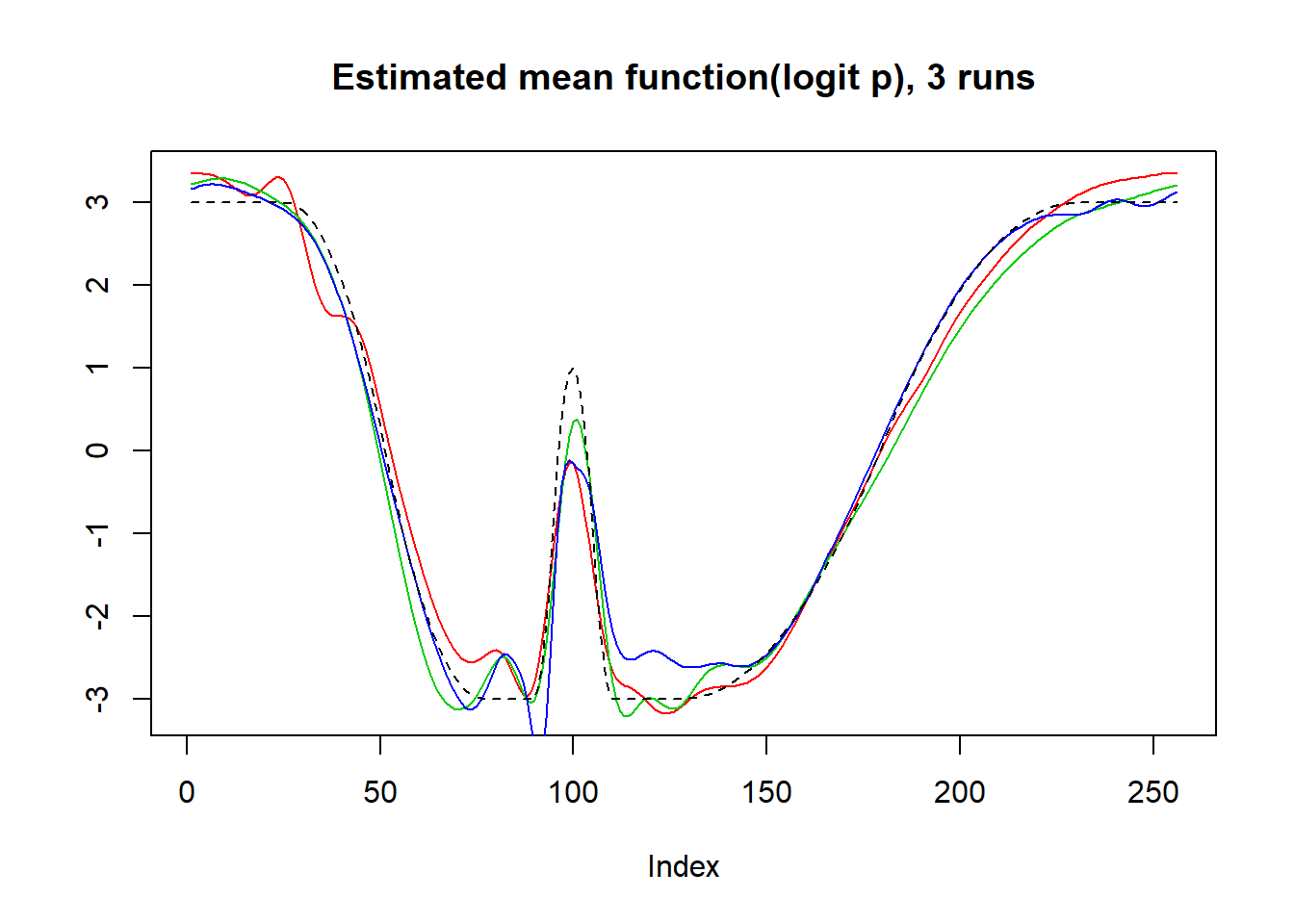

plot(logit(result$mu.est[1,]),type='l',col=2,ylab = '',main='Estimated mean function(logit p), 3 runs')
lines(logit(result$mu.est[2,]),col=3)
lines(logit(result$mu.est[3,]),col=4)
lines(mu,lty=2)

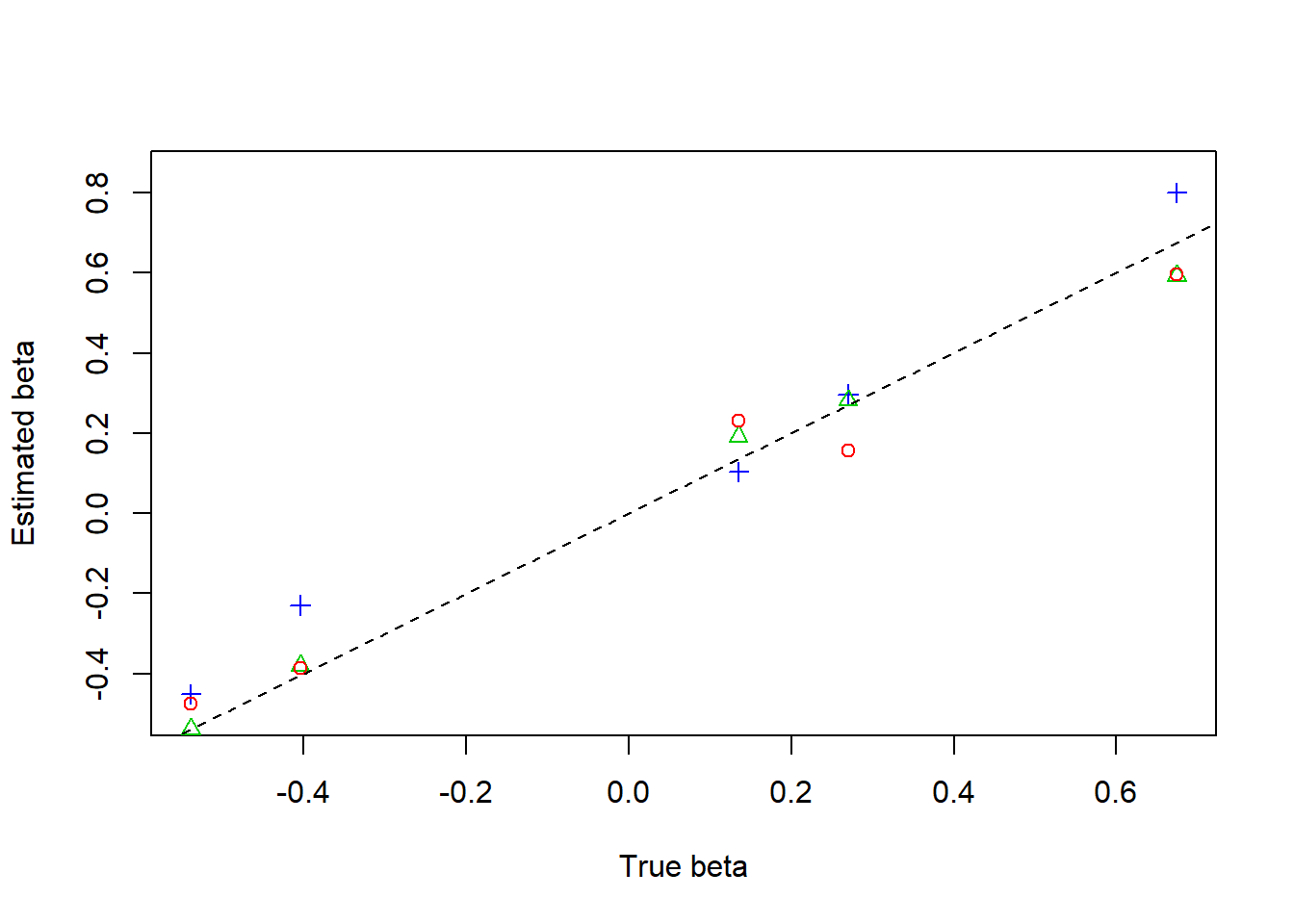

plot(beta,result$beta.est[3,],col=4,pch=3,xlab = 'True beta',ylab = 'Estimated beta',ylim=c(-0.5,0.85))
lines(beta,result$beta.est[2,],col=3,pch=2,type='p')
lines(beta,result$beta.est[1,],col=2,pch=1,type='p')
abline(0,1,lty=2)

wave

f=function(x){return(0.5 + 2*cos(4*pi*x) + 2*cos(24*pi*x))}
mu=f(1:256/256)

result=simu_study_binomx(mu,beta,ntri,filter.number = 8,family = 'DaubLeAsymm')

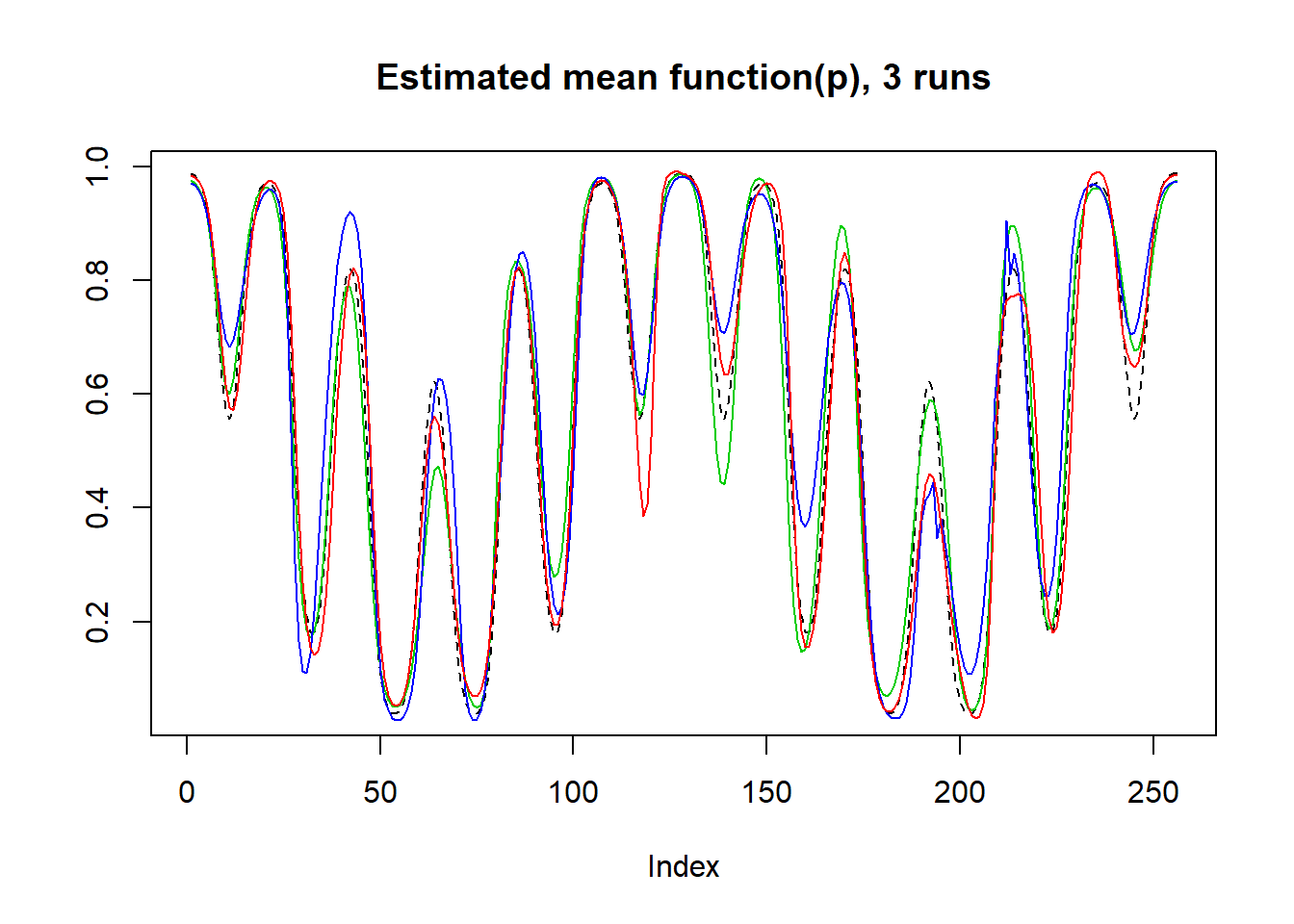

plot(logistic(mu),lty=2,type='l',ylab = '',main='Estimated mean function(p), 3 runs')
lines(result$mu.est[2,],col=3)
lines(result$mu.est[3,],col=4)
lines(result$mu.est[1,],col=2)

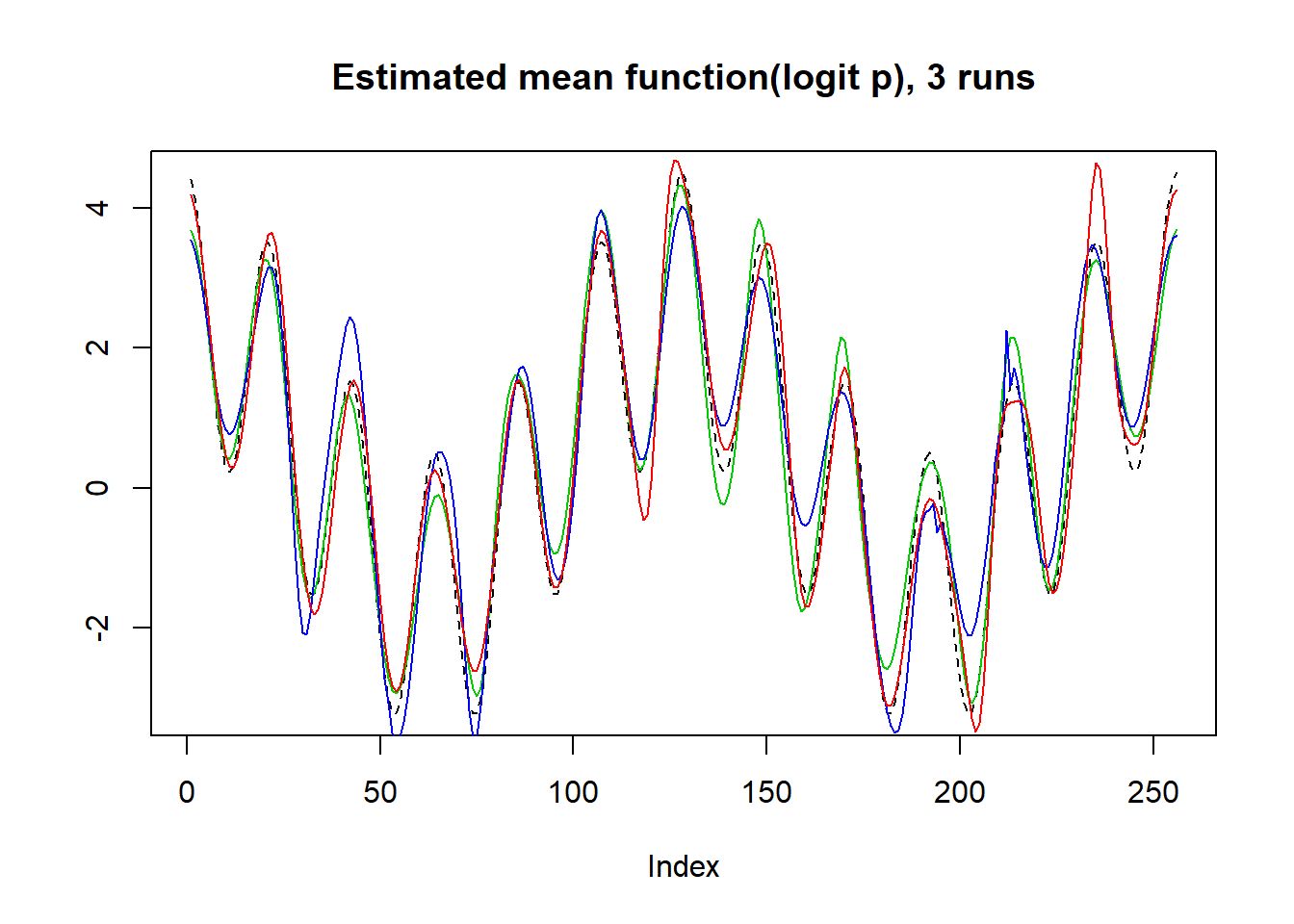

plot(mu,lty=2,type='l',ylab = '',main='Estimated mean function(logit p), 3 runs')
lines(logit(result$mu.est[2,]),col=3)
lines(logit(result$mu.est[3,]),col=4)
lines(logit(result$mu.est[1,]),col=2)

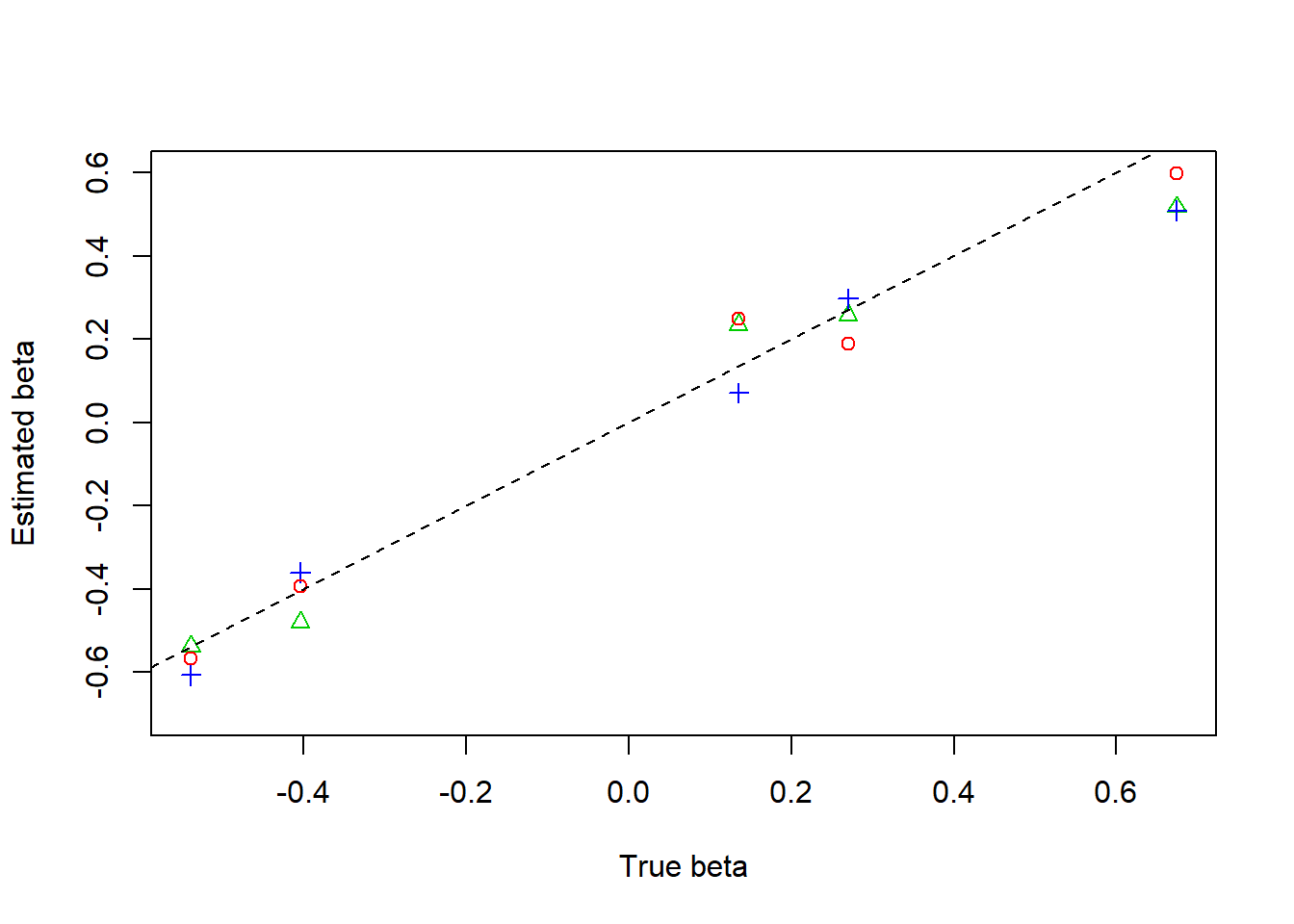

plot(beta,result$beta.est[2,],col=3,pch=2,xlab = 'True beta',ylab = 'Estimated beta',ylim=c(-0.7,0.6))
lines(beta,result$beta.est[3,],col=4,pch=3,type='p')
lines(beta,result$beta.est[1,],col=2,pch=1,type='p')
abline(0,1,lty=2)
