Introduction

If we do square-root type variance stablizing transformation of poisson \(X\sim Poi(\mu)\), then \(Y=\sqrt{X+c}\) and \(E(Y)\approx \sqrt{\mu+c}\) and \(Var(Y)\approx 1/4\). Assume \(\mu+c=(m+\epsilon)^2\), then \(E(Y)=m+\epsilon\). So we can have a version of vst to deal with nugget effect. For example, if we observe \(X_t\sim Pois(\mu)\) then form \(y_t=\sqrt{x_t+c}\). Apply any smoothing method with variance \((\sigma^2+1/4)\) to \(y=(y_1,...,y_t)\) to get \(\hat{m}\) then \(\hat\mu_{smooth}=\hat{m}^2-c\).

Advancetage: no need to worry about 0; homoscedastic variance.

Experiments

library(smashrgen)
vst_gen=function(x,sigma=NULL,c=3/8){
  n=length(x)
  y=sqrt(x+c)
  x.var=rep(1/4,n)
  x.var[x==0]=0
  if(is.null(sigma)){sigma=sqrt(homo_var(y,1/4)-1/4)}
  m=smashr::smash.gaus(y,sqrt(x.var+sigma^2))
  #if(is.null(sigma)){m=smashr::smash.gaus(y)}else{m=smashr::smash.gaus(y,sqrt(x.var+sigma^2))}
  return(m^2-c)
}

homo_var=function(x,minv=0){
  #second order method
  n=length(x)
  ssq=0
  for (i in 1:(n-2)) {
    ssq=ssq+(0.5*x[i]-x[i+1]+0.5*x[i+2])^2
  }
  var.hat=ssq*2/(3*(n-2))
  return(ifelse(var.hat>=minv,var.hat,minv))
}

spike.f = function(x) (0.75 * exp(-500 * (x - 0.23)^2) + 1.5 * exp(-2000 * (x - 0.33)^2) + 3 * exp(-8000 * (x - 0.47)^2) + 2.25 * exp(-16000 *
    (x - 0.69)^2) + 0.5 * exp(-32000 * (x - 0.83)^2))

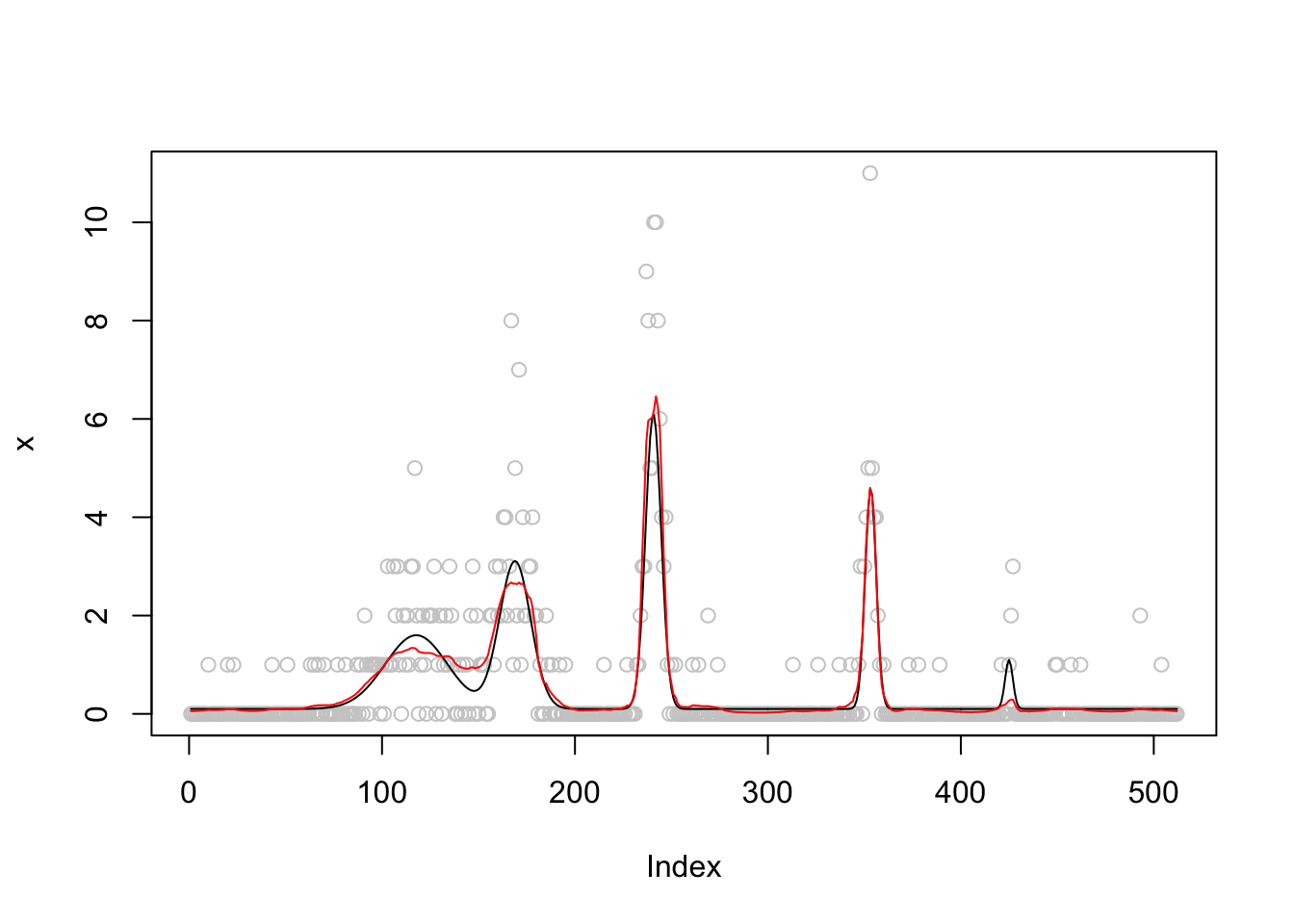

n = 512
t = 1:n/n
m = spike.f(t)
m=m*2+0.1

set.seed(12345)
sigma=0
mm=(sqrt(m)+rnorm(n,0,sigma))^2
x=rpois(n,mm)
mu=vst_gen(x,sigma)
plot(x,col='grey80')
lines(m)
lines(mu,col=2)

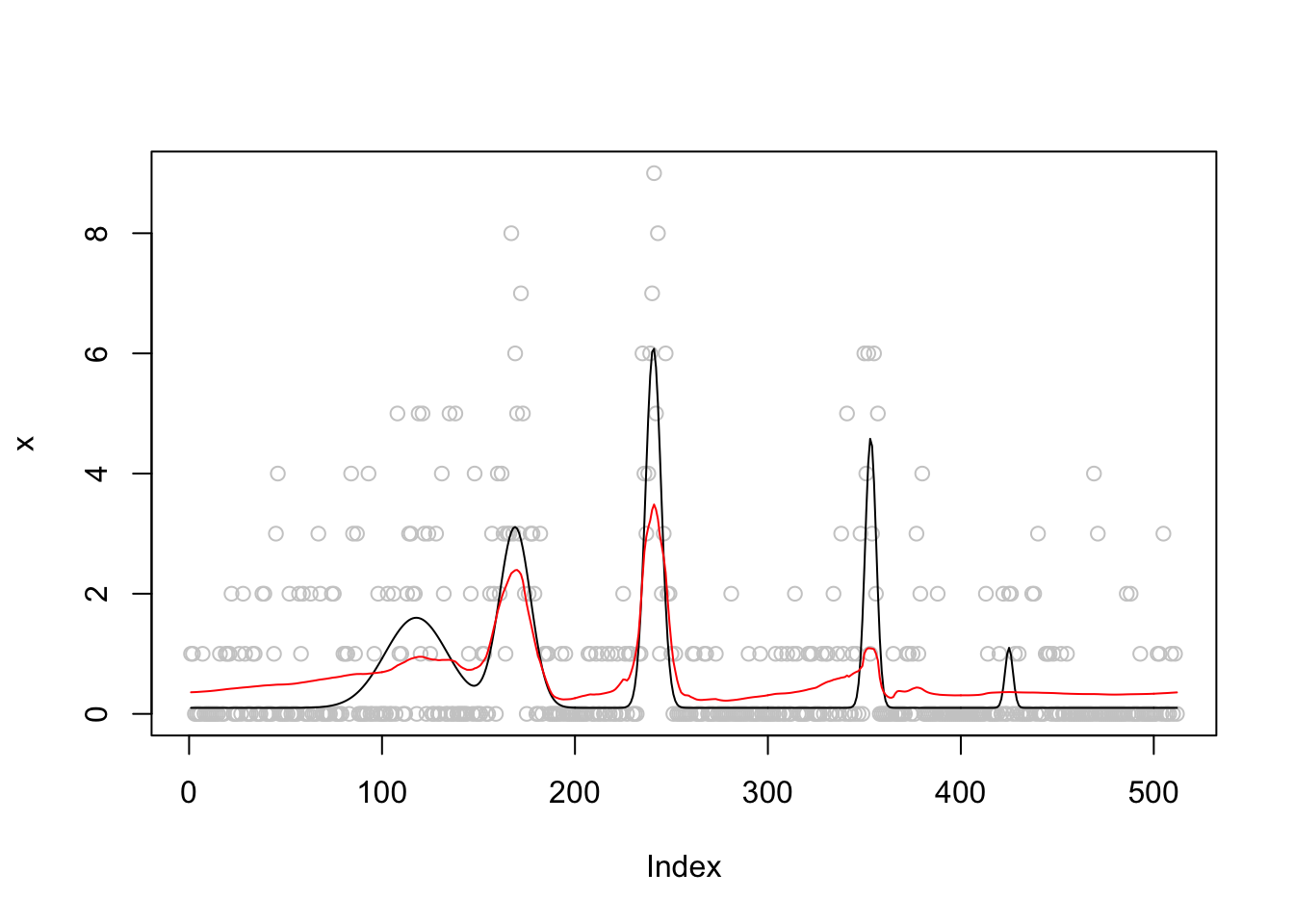

set.seed(12345)
sigma=0.5
mm=(sqrt(m)+rnorm(n,0,sigma))^2
x=rpois(n,mm)
mu=vst_gen(x,sigma)
plot(x,col='grey80')
lines(m)
lines(mu,col=2)

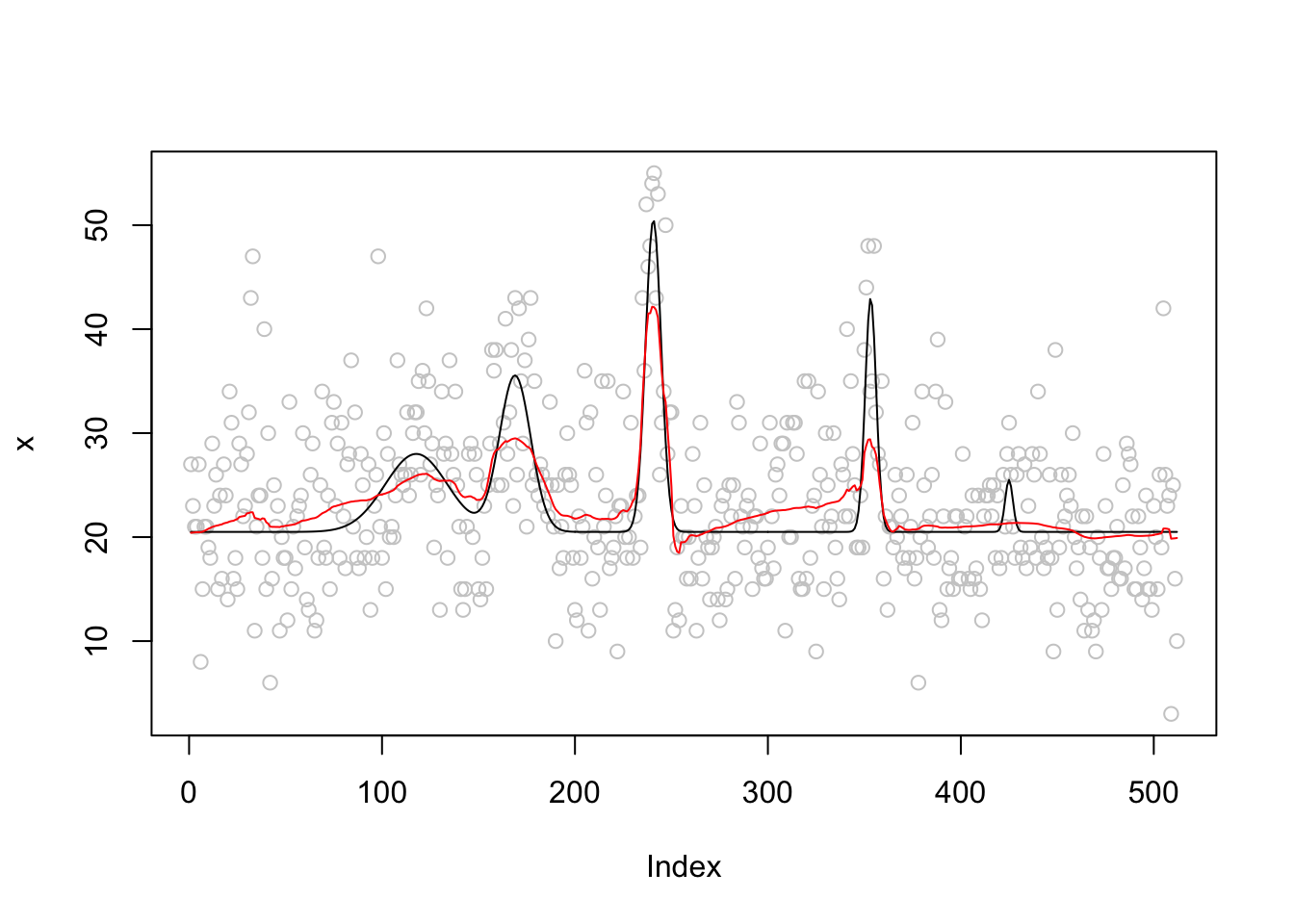

m=m*5+20
set.seed(12345)
sigma=0.5
x=rpois(n,(sqrt(m)+rnorm(n,0,sigma))^2)

mu=vst_gen(x,sigma)
plot(x,col='grey80')
lines(m)
lines(mu,col=2)

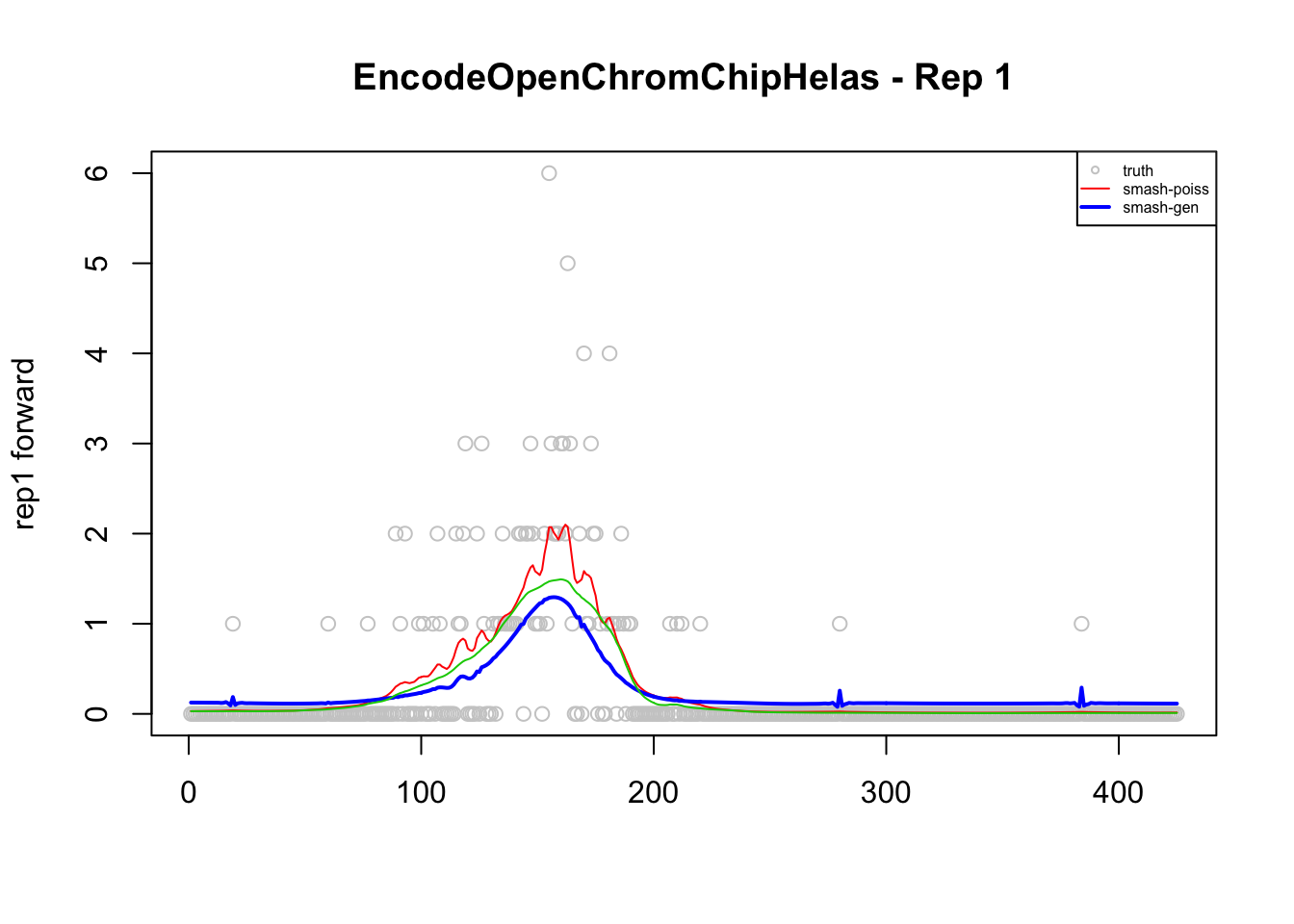

Real data

extract_counts_CTCF <- function(filename){
  bed_counts <- read.table(filename, header = F, stringsAsFactors = F)
  colnames(bed_counts) <- c("chr", "start", "end", "name", "width", "counts")

  counts <- strsplit(bed_counts$counts, split = ",")[[1]]
  counts[counts == "NA"] <- 0
  counts <- as.numeric(counts)

  return(counts.l = list(chr = bed_counts$chr, start = bed_counts$start, end = bed_counts$end, counts = counts))
}

chipexo1 <- extract_counts_CTCF("/Users/dongyue/Documents/smash-gen/data/chipexo_examples/example_CTCF_MACE_wgEncodeOpenChromChipHelas3CtcfAlnRep1_forward_counts.txt")

smash.out=smash.poiss(chipexo1$counts)
y=reflect(chipexo1$counts,'both',c(300,299))
smashgen.out=smash_gen_lite(y,wave_family = 'DaubLeAsymm',filter.number = 8)
vst.out=vst_gen(y,0.1)

plot(chipexo1$counts, col = "gray80", ylab = "rep1 forward", xlab = "", main = "EncodeOpenChromChipHelas - Rep 1")
lines(smash.out, col = 2, lwd = 1)
lines(smashgen.out[301:725],col=4,lwd=2)
lines(vst.out[301:725],col=3)

legend("topright", # places a legend at the appropriate place
       c("truth","smash-poiss",'smash-gen'), # puts text in the legend
       lty=c(0,1,1), # gives the legend appropriate symbols (lines)
       pch=c(1,NA,NA),
       lwd=c(1,1,2),
       cex = 0.5,
       col=c("gray80","red", "blue"))
