JupyterHub as an Interactive Supercomputing Gateway

Interactive HPC with batchspawner, profiles, SSO and more!

Michael Milligan
Head of Application Development
Minnesota Supercomputing Institute

A couple of years ago we decided to work towards supporting
Interactive HPC
as a first-class service.

Partly because I kept putting on these cool demos using IPython notebooks, IPython Parallel, and similar tools.

But the user experience wasn't great

We had to teach users to ...

set up remote desktops
craft and submit job scripts
create ssh tunnels
etc :(

If only there was a way to run them as a service...

JupyterHub

jhamrick.github.io/2015-07-17-jupyterday/

I considered putting a picture of a lightbulb here,
but that's cliche, I couldn't bring myself to do it.

batchspawner

started out as a hack to generalize Michael Gilbert's slurmspawner[1], with liberal inspiration from Andrea Zonca's blogging about Jupyterhub on supercomputers[2]

github.com/mbmilligan/batchspawner

  • [1] https://github.com/mkgilbert/slurmspawner
  • [2] http://zonca.github.io/2015/04/jupyterhub-hpc.html

Result turned out to be extremely general

class TorqueSpawner(BatchSpawnerRegexStates):
    batch_script = Unicode("""#!/bin/sh
#PBS -q {queue}@{host}
...etc...
{cmd}
""", config=True)
    batch_submit_cmd = Unicode("sudo -E -u {username} qsub", config=True)
    batch_query_cmd = Unicode("sudo -E -u {username} qstat -x {job_id}", config=True)
    batch_cancel_cmd = Unicode("sudo -E -u {username} qdel {job_id}", config=True)
    state_pending_re = Unicode(r"[QH]", config=True)
    state_running_re = Unicode(r"R", config=True)
    state_exechost_re = Unicode(r"<exec_host>((?:[\w_-]+\.?)+)/\d+", config=True)
But wait, there's more!
At MSI we have more than one cluster, multiple queues and node types -- is there an easier way to expose this than running multiple Jupyterhub instances?

WrapSpawner

Realized that we'd abstracted all the characteristics of batch systems and job types into configurable traits, and:
  • trait values can be set arbitrarily at instance creation time without cooperation from class being configured
  • the Spawner Options Form feature accepts user input during spawning
  • the Spawner public interface is pretty simple

WrapSpawner

emulates the public interface of a Spawner, but:
  • doesn't instantiate a real spawner right away
  • when no spawner exists, just pretends to be an idle spawner
  • when told to start or recreated from saved state, instantiates a child class of configurable type and configures it with trait values from a dict
  • when a child spawner exists, proxies calls to the public interface through to the child
Cute trick, but...

Profiles

Builds on WrapSpawner to intervene in starting the notebook server

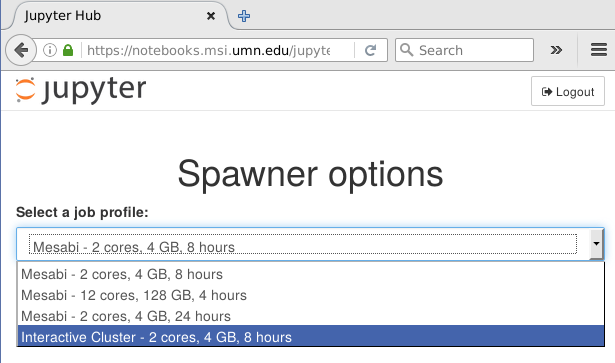

Auto-generates a spawner options form drop-down listing profiles

User gets to select a profile and run their notebook server with different options or even totally different spawner classes

Site admin simply configures a list of "profiles":


  c.ProfilesSpawner.profiles = [
      ( "Local server", 'local', 'jupyterhub.spawner.LocalProcessSpawner',
         {'ip':'0.0.0.0'} ),
      ('Mesabi - 2 cores, 4 GB', 'mesabi2c4g12h', 'batchspawner.TorqueSpawner',
         dict(req_nprocs='2', req_queue='mesabi', req_memory='4gb')),
      ('Mesabi - 12 cores, 128 GB', 'mesabi128gb', 'batchspawner.TorqueSpawner',
         dict(req_nprocs='12', req_queue='ram256g', req_memory='125gb')),
      ('Another Cluster - 8 hours', 'small', 'batchspawner.TorqueSpawner',
         dict(req_nprocs='2', req_host='labhost.xyz.edu', req_queue='small',
             req_runtime='8:00:00', req_memory='4gb', state_exechost_exp='')),
  ]

Selection is saved as per-user state, so different users can run their notebooks with totally different spawner classes concurrently

WrapSpawner and ProfilesSpawner are included in the batchspawner repo

Next up -- authentication

Authentication

  • at an site like ours, it's a bit deprecated to have a public web app that just takes usernames / passwords
  • for security, we conceivably might not even have normal users on the web-facing server
    (i.e. in a minimal VM or container)

Authentication

At U of M we have a site-wide Shibboleth provider, and MSI has a web SSO system that wraps that

Result:

  • easy to throw up an Apache server that understands our auth system
  • annoying and error-prone to write an endpoint to do the same thing
Final configuration looks like:
  • Apache module talks to our auth setup, puts data in request headers
    Remote_User: username
Remote_User_Data: stuff;morestuff
  • Apache terminates SSL (with official UofM certs)
  • remoteuser Authenticator class[1] simply reads those headers
  • Apache proxies resulting requests to configurable-http-proxy

[1] github.com/cwaldbieser/jhub_remote_user_authenticator/

Exact proxy rules to make everything work are a tad arcane:

<LocationMatch "/jupyter/(user/[^/]*)/(api/kernels/[^/]+/channels|terminals/websocket)(.*)">
  ProxyPassMatch ws://localhost:8999/jupyter/$1/$2$3
  ProxyPassReverse ws://localhost:8999
</LocationMatch>

<Location "/jupyter">
  ProxyPass http://localhost:8999/jupyter
  ProxyPassReverse http://localhost:8999/jupyter

  Header edit Origin <%= @fqdn %> localhost:8999
  RequestHeader edit Origin <%= @fqdn %> localhost:8999

  Header edit Referer <%= @fqdn %> localhost:8999
  RequestHeader edit Referer <%= @fqdn %> localhost:8999
</Location>

Deployment and testing

MSI is currently a CentOS 6 shop under Puppet management

  • puppet python classes needed some hacking to properly get python 3 installed
  • install paths and hostnames are handled via puppet templates
  • created separate classes for Apache config, Jupyterhub installation, and service startup scripts.

This is a production service, so reproducible and testable deployment is mandatory!

  • Jupyterhub install is modelled as a directory containing a Python virtualenv and a npm module tree
  • code is pulled from github or PyPI/npm repos via pip/npm
  • Init scripts and Apache config modelled as Puppet classes (unique per node)

Result: easy to create test server or parallel test install, guaranteed consistent system state

would love to hook into jupyterhub's test framework to get CI testing during development - not there yet

Monitoring

We log everything to Splunk: just dump log lines to syslog

  • Hub and proxy can generate very thorough logging output
  • Splunk digests it all and runs various saved searches (nightly, weekly)

Example: I get detailed nightly reports of users, runtimes, failures, job types

username count Failures avg(starttime) max(starttime) latest(queue) latest(mem) latest(walltime) latest(nodes)
balc0022 26 1 46.565667 117.146 ram256g@mesabim3 125gb 4:00:00 1:ppn=12
jj 4 2 mesabi@mesabim3 4gb 8:00:00 1:ppn=2
yminato 10 0 34.327000 86.152 mesabi@mesabim3 4gb 8:00:00 1:ppn=2

Hub admin dashboard is also a handy way to see at a glance who's using the site

5-10 regular users, ~50 have used at some point since public announcement in May

Next steps

Building an all-purpose interactive supercomputing hub...

  • software integration: support more kernels, automatically do kernel setup when we upgrade packages (looking at you, R)
  • user handholding: autopopulate user configuration as appropriate to system
  • environment management: environment modules system assumes a shell

Next Steps

  • ipyparallel integration: Jupyter extension enabling, plus config issues
  • multiple spawners-per-user
  • easier integration of site local web template customization

Next Steps

What other interesting things can we tunnel through the proxy? Services architecture might enable new applications, esp in the visualization space

  • great interest in GPU-accelerated viz
  • can we integrate a noVNC-style remote desktop similar to terminal app?

THANKS!

- github.com/jupyterhub/batchspawner
- www.msi.umn.edu
- milligan@umn.edu
